Sheet 05.702

PR Lighting · Wash

PR-6000 Wash

ModelPR-2925

PR 6000 Wash(1400W) is designed for plenty of applications where a fixture with outstanding color effect is required. It has a Fresnel lens designed for OSRAM 1400W lamp with CRI more than 90.

Light source: OSRAM lok-it 1400/PS (6000K,CRI >90,single ended ,750hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:38

PR Lighting PR-6000 Wash1:38

02SpecificationManufacturer's data · 19 groups · 40 values

What this product is, in numbers.

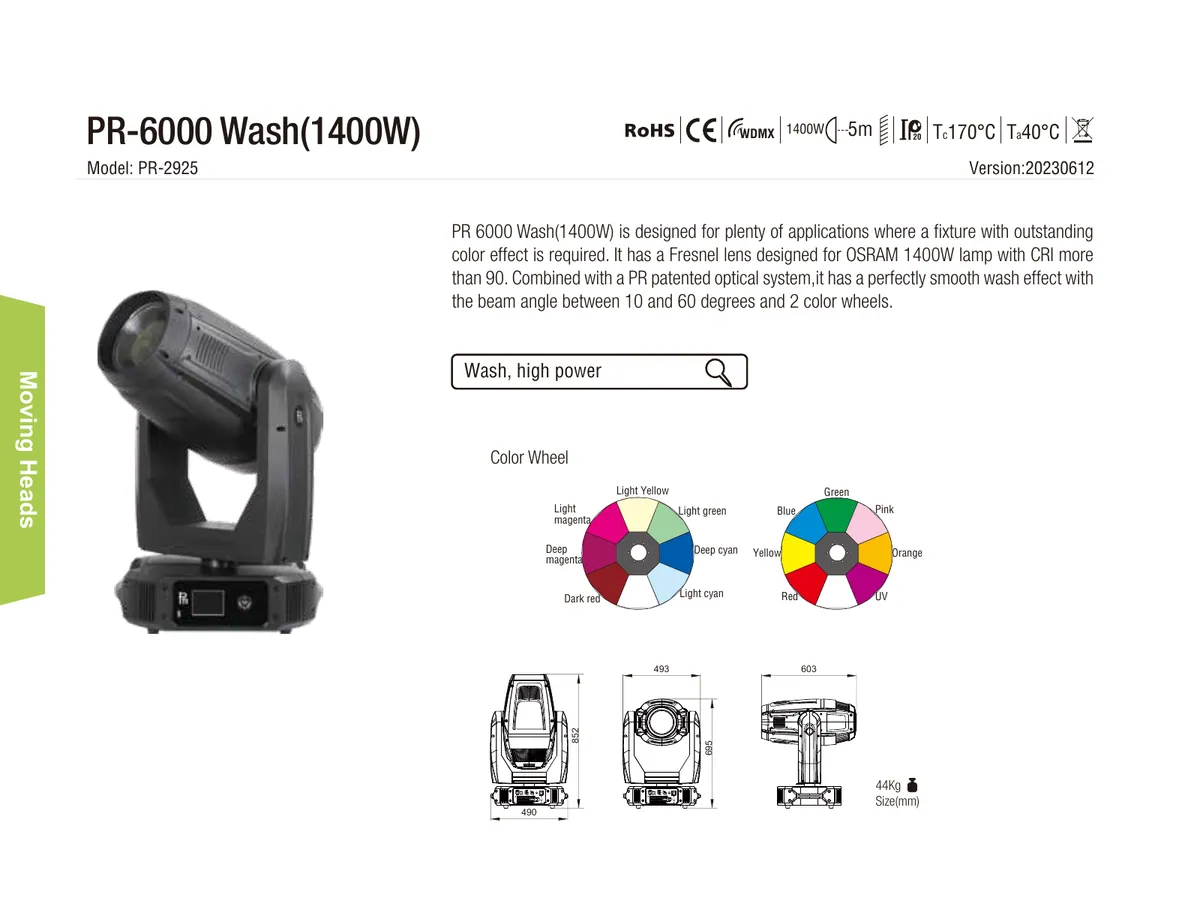

PDFDatasheetEN · 2 pages · 1.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01INPUT VOLTAGES1

200V~240V AC,50/60Hz

02INPUT POWER2

1800W@220V
Power factor: PF>0.95

03LIGHT SOURCE1

OSRAM lok-it 1400/PS (6000K,CRI >90,single ended ,750hrs)

04CTO1

0-100% linear CTO

05ZOOM1

DMX linear zoom

06DIMMER1

0-100% linear dimmer

Show the full specificationHide the rest of the specification13 more groups · 33 values

07STROBE1

Double shutter blades, 0.3~25 F.P.S

08HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction

09BEAM ANGLE1

Linear zoom 10°~ 60°with 16 bit function

10CONTROL4

DMX512, 5 pin interfaces

RDM control protocol

18channels in short mode, 23channels in standard mode and 27channels in extended mode

Self-test mode

11OTHER FUNCTION12

Adjustable Pan & Tilt speed

Lamp and Total hours displayed

Touch screen English and Chinese Display with

Contrast and brightness adjustable

Energy saving ballast

Built-in sensor diagnostic system

Input signal isolation

Modular Structure for easy maintenance

Ethernet Interface

DMX512 wireless reciever

DMX512 Transmitter ( Optional)

ArtNet and sACN ( Optional)

12HOUSING1

High temperature ABS, IP20

13NET WEIGHT1

44Kg

14PACKAGING2

Standard: carton 840x640x738(mm)
Optional: flight case 720x580x900(mm)

15OPERATION TEMPERATURE1

Ambient temperature at maximum: 40°C

16ACCESSORIES4

Clamps 2 Pcs

XLR Connector 1 Set Male and female

Safety cord 2 Pc

User manual 1 Pc

17General1

【Version: 20230612】

18CMY1

CMY linear mixing system with macros

19Color Wheel3

2color wheels: 7colors+ Open,Half Color effect; Rainbow effect with bi-directional and variable speeds; Stepping/linear color changing

03DescriptionManufacturer's description

What it is.

PR 6000 Wash(1400W) is designed for plenty of applications where a fixture with outstanding color effect is required. It has a Fresnel lens designed for OSRAM 1400W lamp with CRI more than 90. Combined with a PR patented optical system,it has a perfectly smooth wash effect with the beam angle between 10 and 60 degrees and 2 color wheels.

04Documents2 files · 7.2 MB
