Sheet 05.704

LIGHT SKY · Wash

AQUAPEARL-MINI

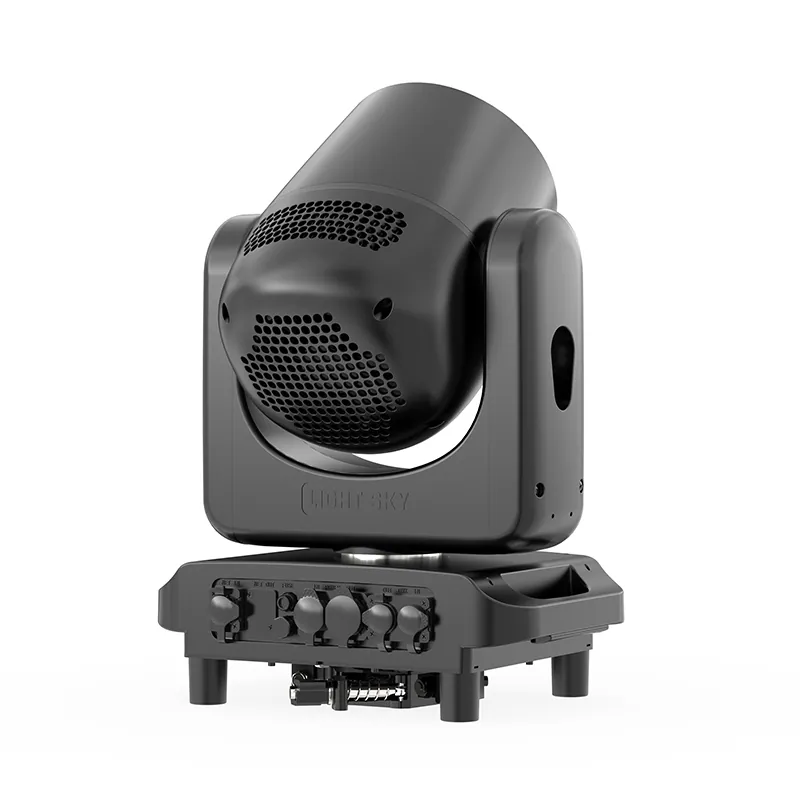

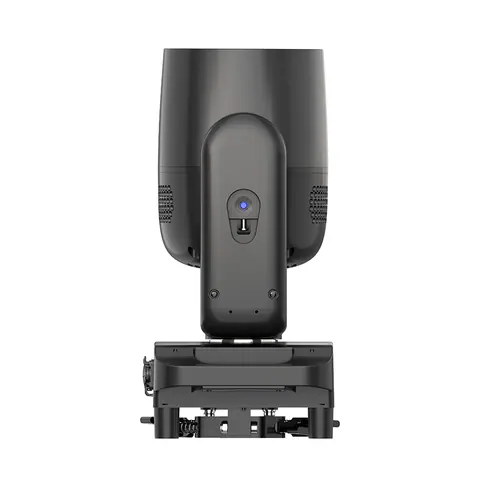

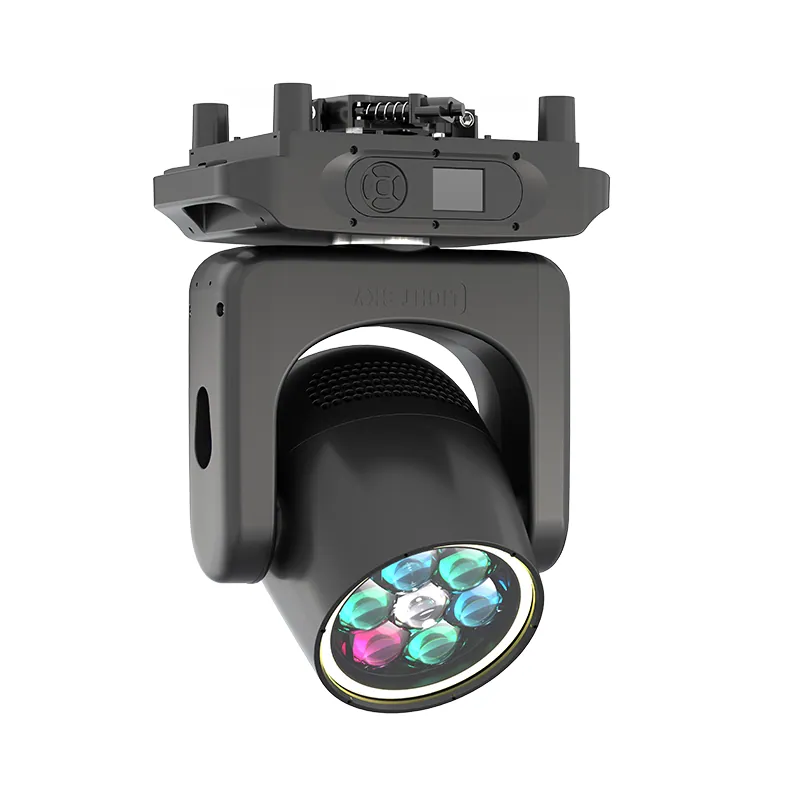

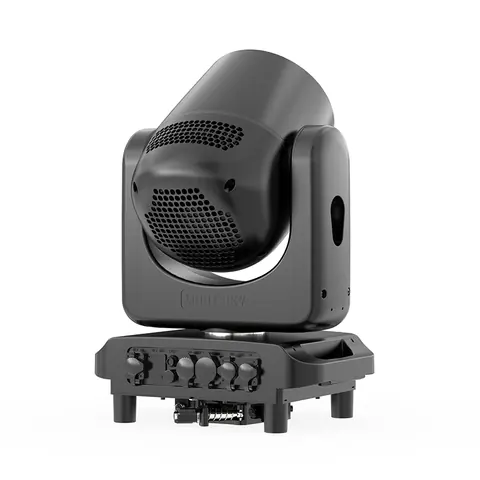

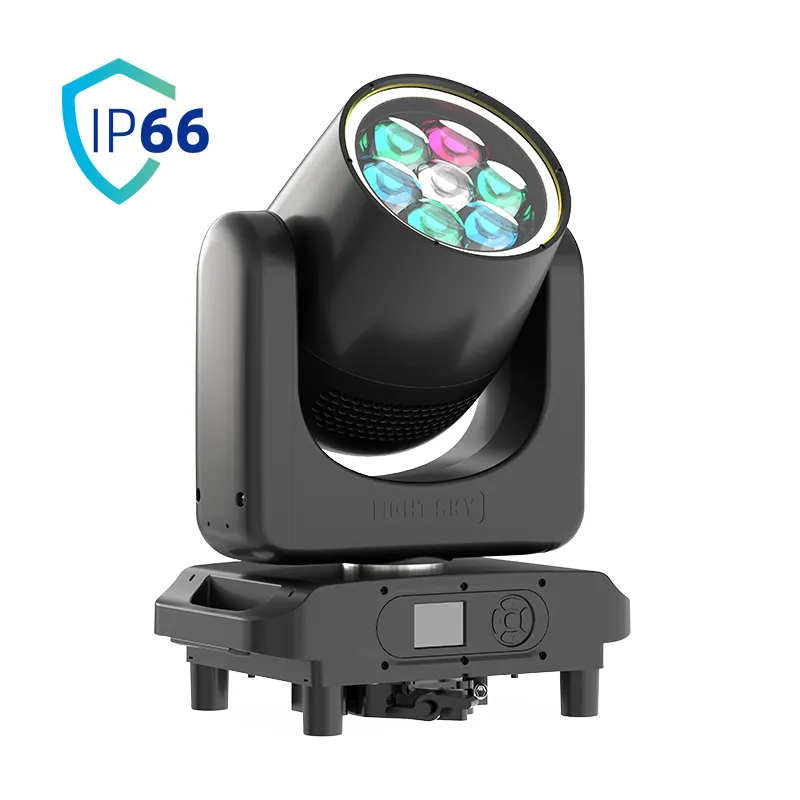

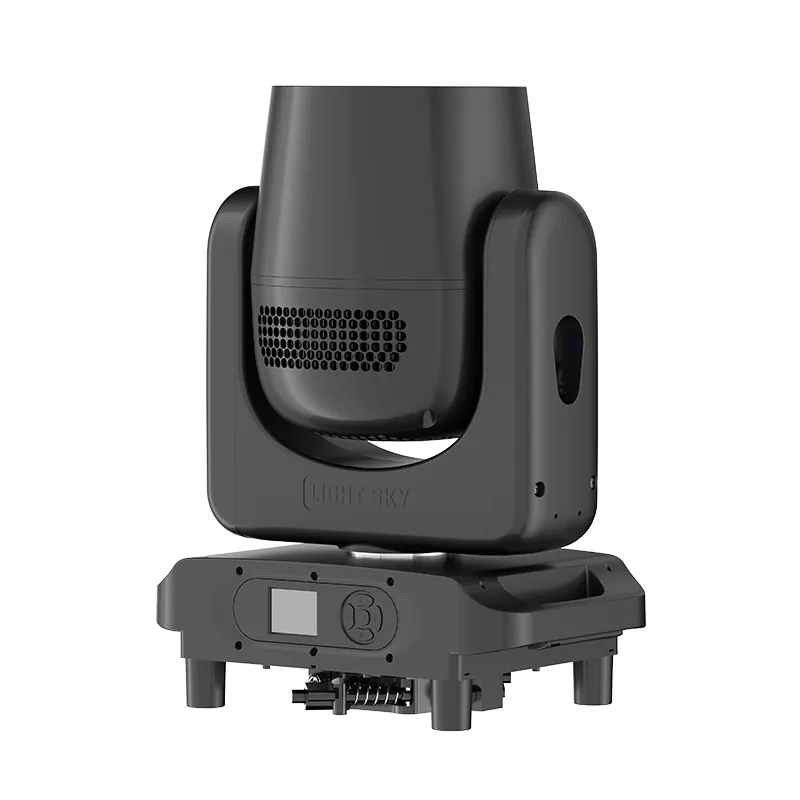

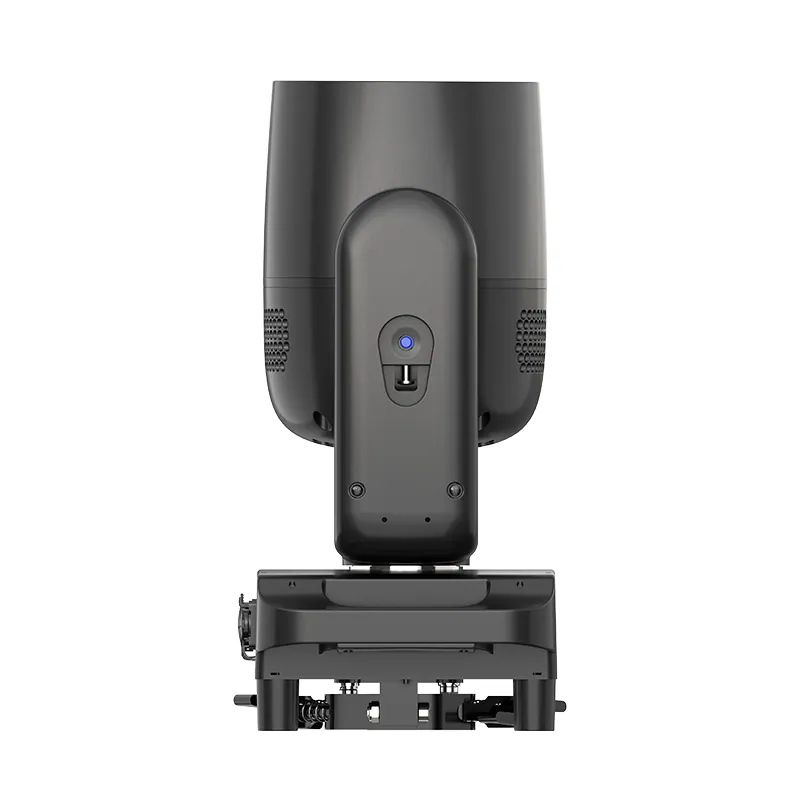

LiGHT SKY AQUAPEARL-MINI is a compact IP66 mini LED wash moving head light designed for indoor and outdoor stage applications.

Light source: 7pcs * 60W RGBW 4 in 1 LED
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 4° to 32°
DMX channels: 31CH, 55CH, 21CH, 35CH, 28CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net
Net weight: 12.3 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video2 manufacturer's videos · 4:16

LIGHT SKY AQUAPEARL-MINIVideo 1 of 2 · 2:29

02SpecificationManufacturer's data · 12 groups · 46 values

What this product is, in numbers.

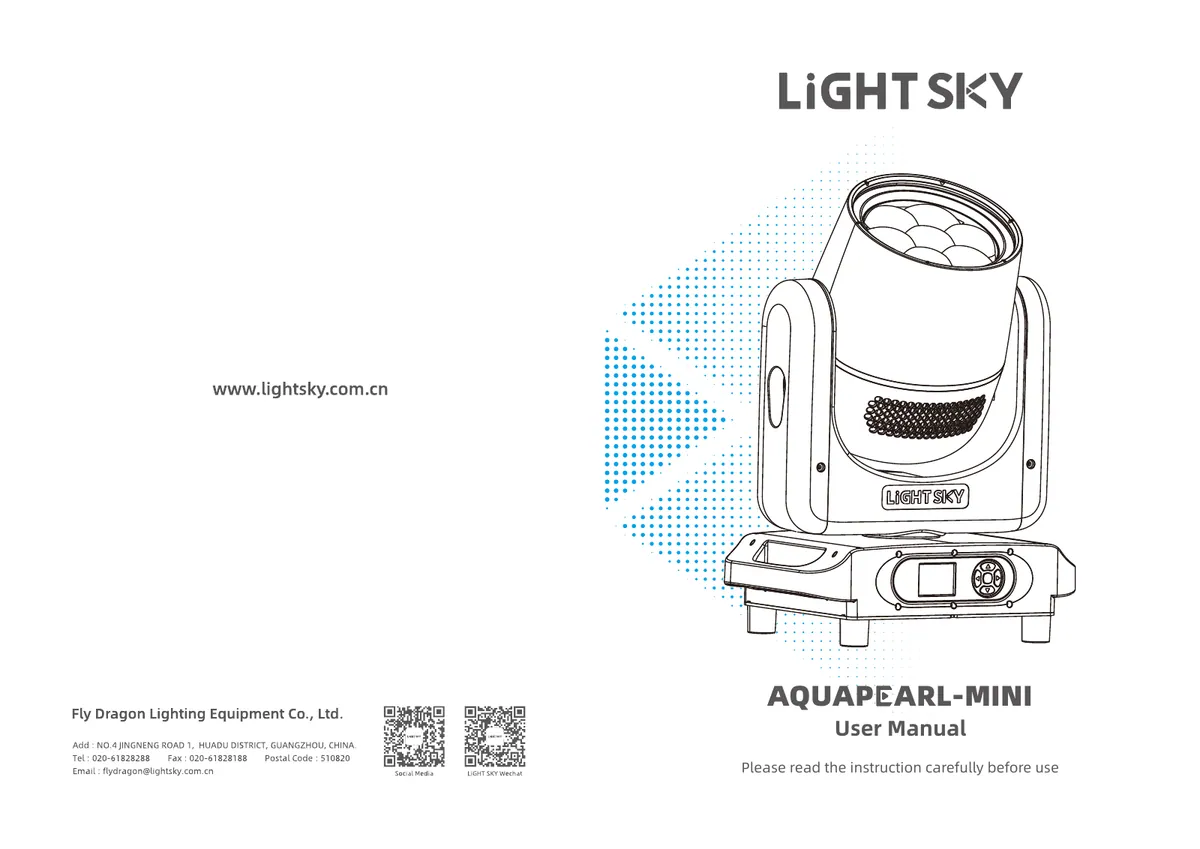

PDFUser manualEN · 31 pages · 9.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL7

Light Source: 7pcs * 60W RGBW 4 in 1 LED
Beam Angle: 4° to 32°
Zoom Angle: 5° to 50°
Light Color Temperature Range: 2500K to 10000K

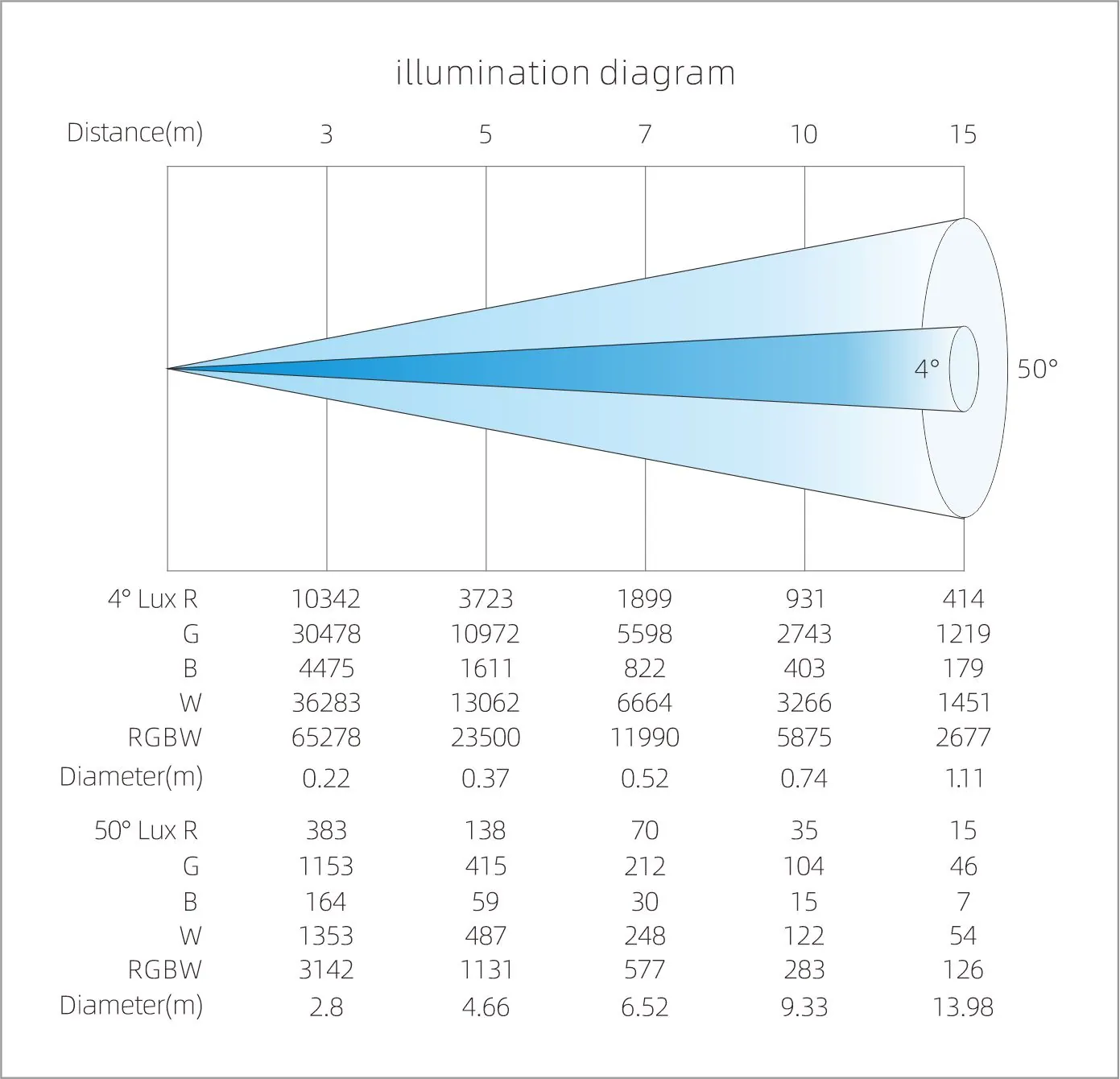

Illuminance: 23500lux@ 5m
Total Lumen Output: 7100LM
Light Source Average Life Span: 30000H

02COLOR1

Color Mixing: RGBW color mixing system, can make rainbow effect

03EFFECTS6

Zoom System: Linear electric zoom
Individual LED Control: Individual LED control, outstanding effect
Front ring AURA: The front ring AURA’s LED chip can be controlled individually, can make flow color effect
Effect Macro: Static effect macro function and dynamic effect macro function
Dimmer: Electronic dimmer, provides four dimming options
Strobe: 1-25Hz electronic strobe and random strobe

04CONTROL4

Control Channels: 31CH, 55CH, 21CH, 35CH, 28CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net
DMX and RDM connectors: 3-pin or 5-pin XLR IN/OUT
Display: LCD screen

05SOFTWARE2

Software Upgrade: DMX signal interface or USB interface (optional)
Temperature Intelligent Control: Ensures LED lifespan through temperature intelligent control

06PAN/TILT Movement4

Pan: 540°, 8-bit / 16-bit precision
Tilt: 250° , 8-bit / 16-bit precision; Automatic reset with error correction; Tilt Lock

Show the full specificationHide the rest of the specification6 more groups · 22 values

07POWER4

Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 480W
Power Factor: 0.9
Maximum Current of Fixture: 2.4A/220V; 4.8A/110V

08SIZE & WEIGHT4

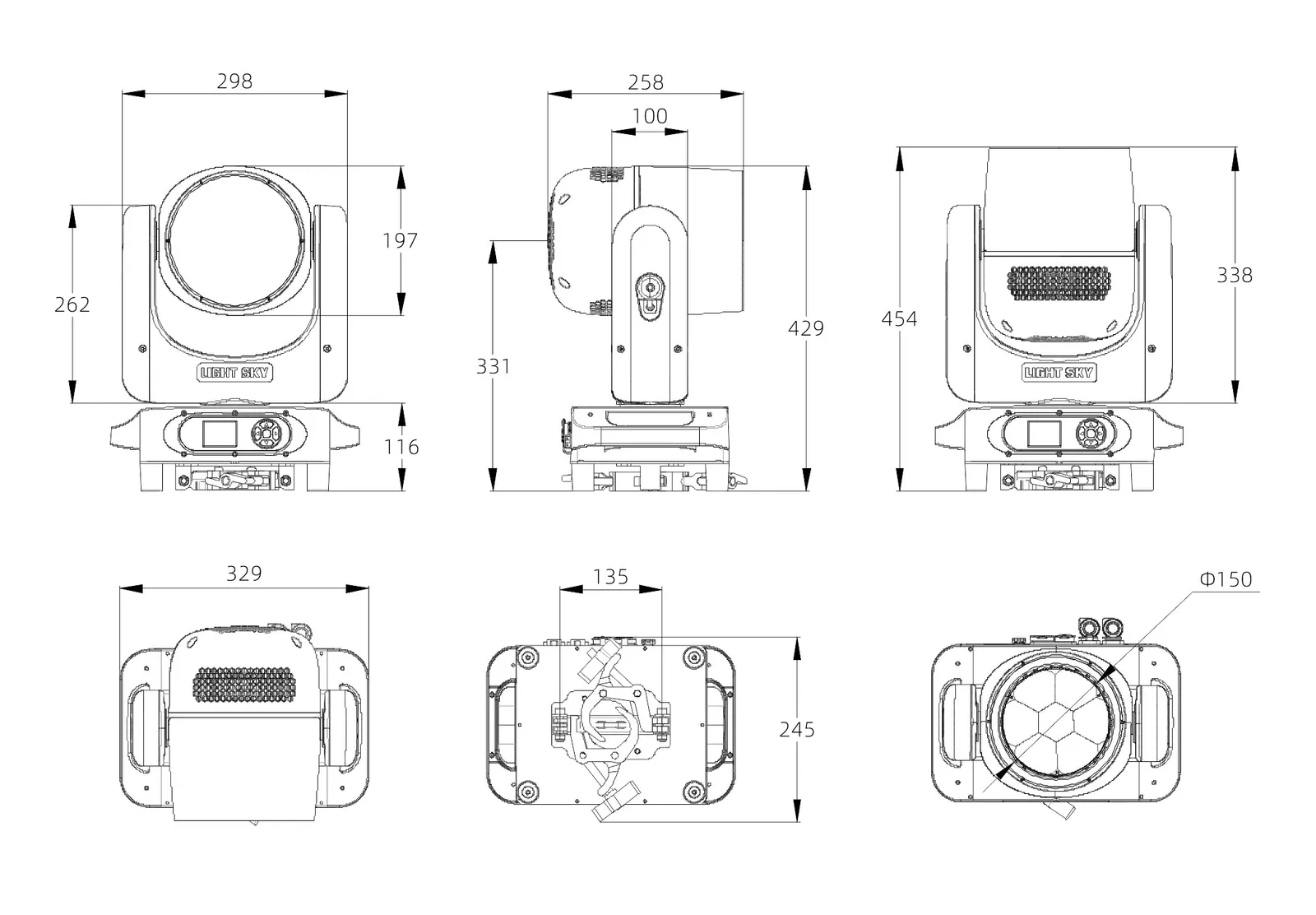

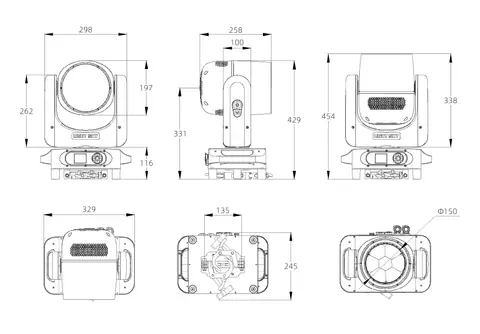

Product Dimensions: 329mm × 245mm × 454mm
Net Weight: 12.3 kg
Carton Dimensions: 410mm × 290mm × 625mm
Gross Weight: 15.7 kg

09FACTORY CONFIGURATION4

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: F0200020008)
Safety Rope: 2 pcs (Part No.: F0200010010)

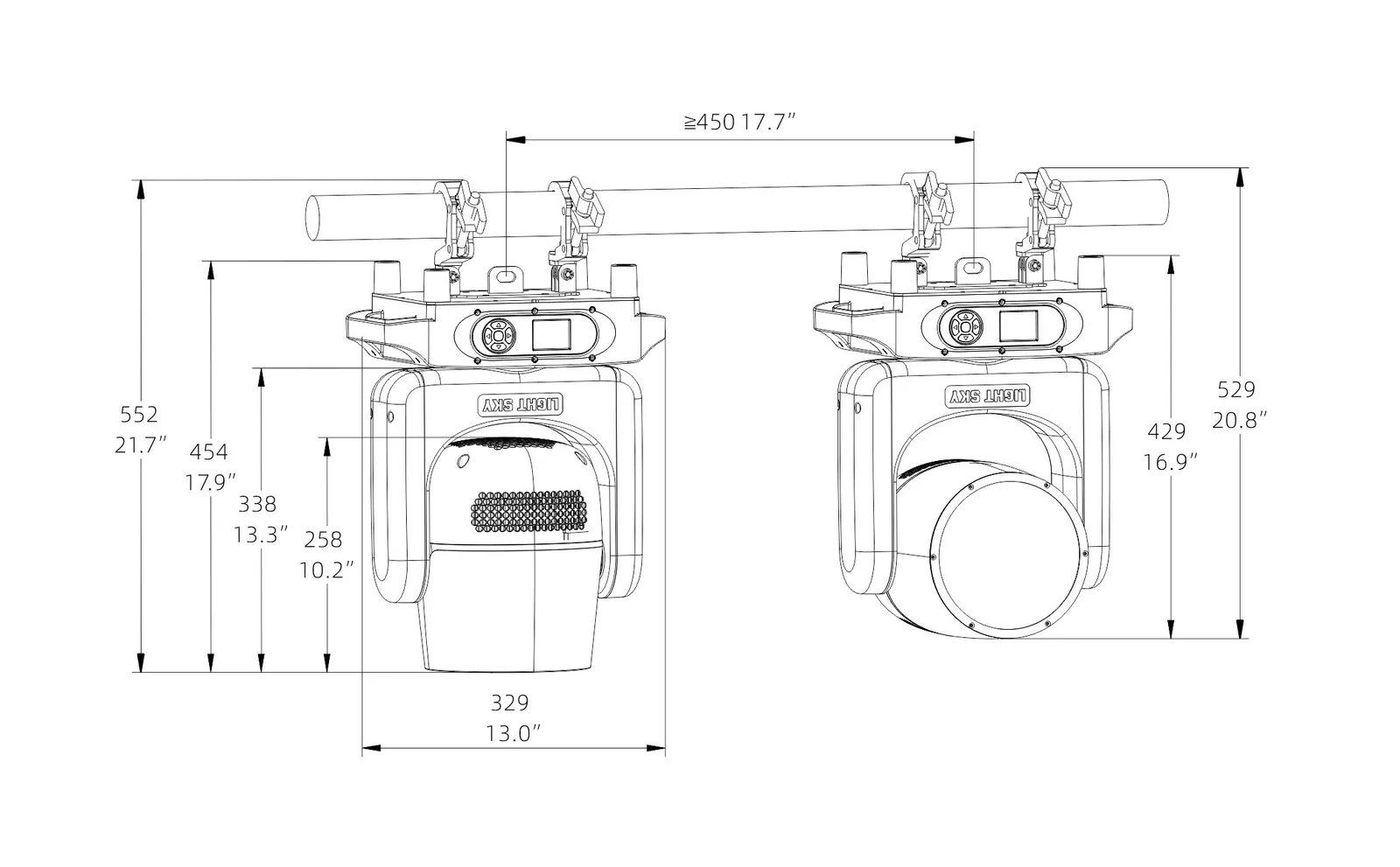

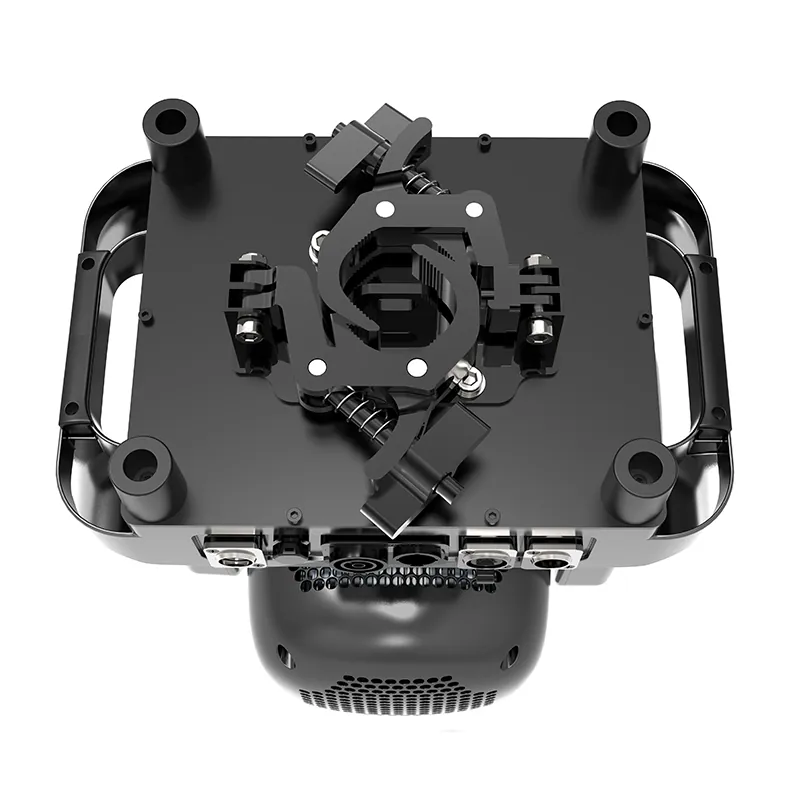

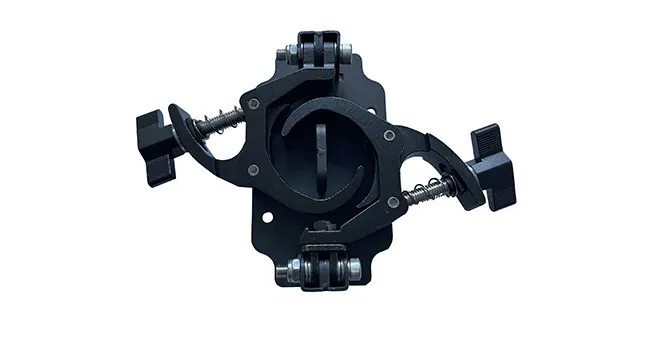

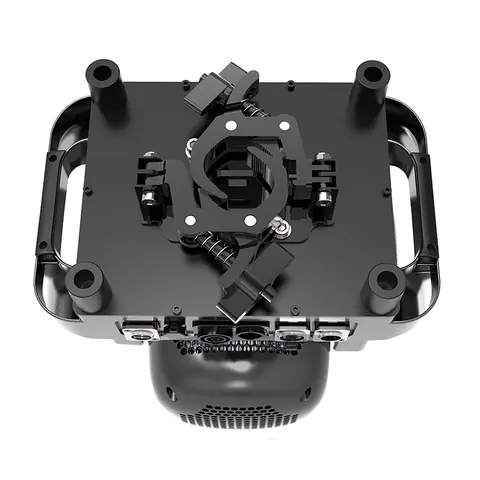

Clamp: 1 set. Compatible with tubes of Ø38–52 mm (Part No.: C0499990057)

10OTHERS3

IP Rate: IP66
Operating Environment: -10°C ~ 40°C
Maximum Surface Temperature of Fixture: 80°C

11Optional Accessories/Packaging3

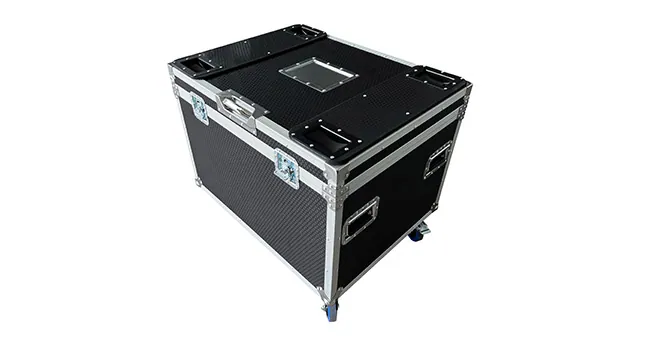

Flycase Part No.: B0100730001
Flycase Dimensions(4 in 1): 850mm × 660mm × 725mm
Flycase Gross Weight(4 in 1): 100.4kg

12APPROVALS4

The Product Implementation Standard: GB 7000.1-2015, GB7000. 217-2008
Approved Certifications: CE, RoHS
The Product Complies with the Following EU Directives: Low Voltage Directive 2014/35/EU. EMC Directive 2014/30/EU; LiGHT SKY as a leading professional lighting company with 30+ years of experience, delivers LED moving head professional show lighting solutions for global entertainment projects. LiGHT SKY AQUAPEARL-MINI, as a compact mini LED wash moving head, brings vivid RGBW color, flexible wash effects, and portable performance to concerts, TV studios, festivals, exhibitions, and rental applications.

03DescriptionManufacturer's description

What it is.

LiGHT SKY AQUAPEARL-MINI is a compact IP66 mini LED wash moving head light designed for indoor and outdoor stage applications. Equipped with 7×60W RGBW 4-in-1 LEDs, a 360° rotating front lens, and a 4°–50° zoom range, it delivers bright wash effects and flexible visual performance for concerts, TV studios, festivals, exhibitions, and entertainment venues.

As a professional stage lighting equipment supplier, LiGHT SKY designs AQUAPEARL-MINI as a beam wash moving head for productions that need a portable wash fixture with strong output, rich color effects, and reliable outdoor performance.

FEATURES

Mini LED Wash Moving Head: Compact fixture with 7×60W RGBW 4-in-1 LEDs for bright wash effects and vivid color output.

IP66 Waterproof Design: Suitable for both indoor and outdoor stage applications.
360° Rotating Lens: Creates vortex and kaleidoscopic visual effects.
Flexible Zoom Range: 4°–50° zoom supports narrow beam looks and wide wash coverage.
Individual LED Control: Enables richer color effects and dynamic pixel-style visuals.
Strong Output: Delivers 23,500 lux at 5 meters and 7,100 lumens.
Portable Structure: 12.3 kg net weight supports easier handling and installation.
