Sheet 05.27
VTRIX · Switchers and KVM

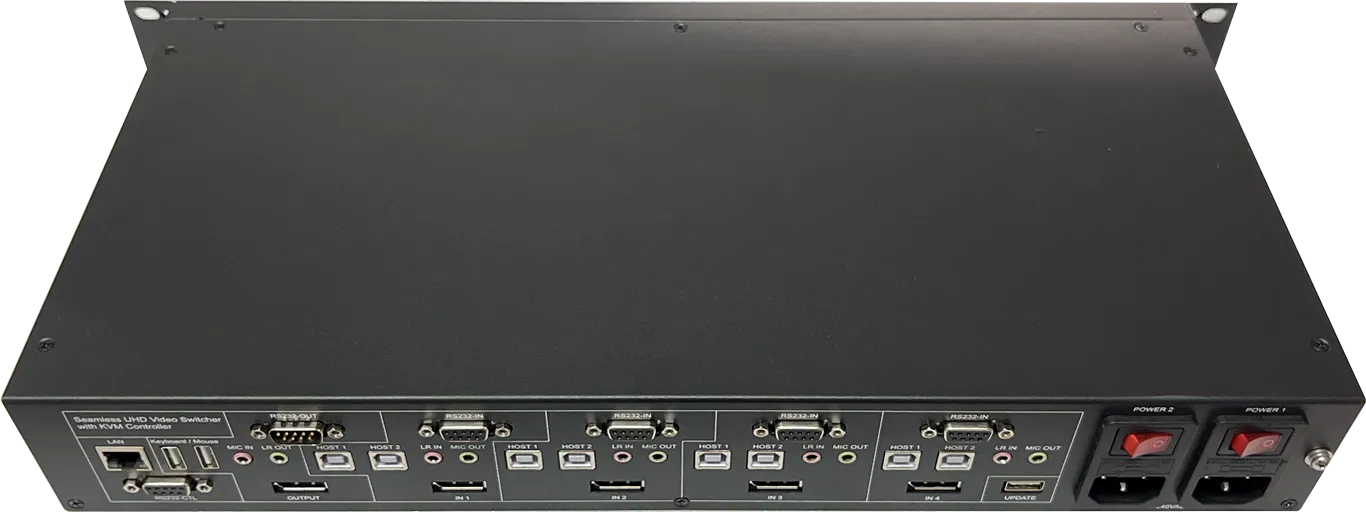

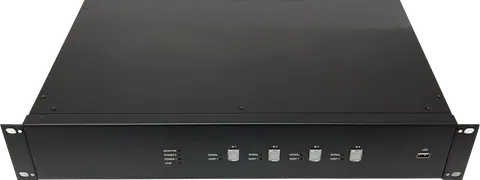

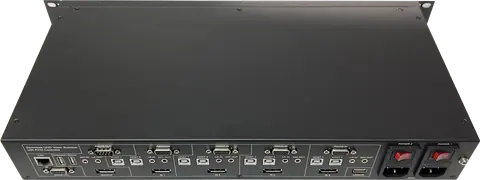

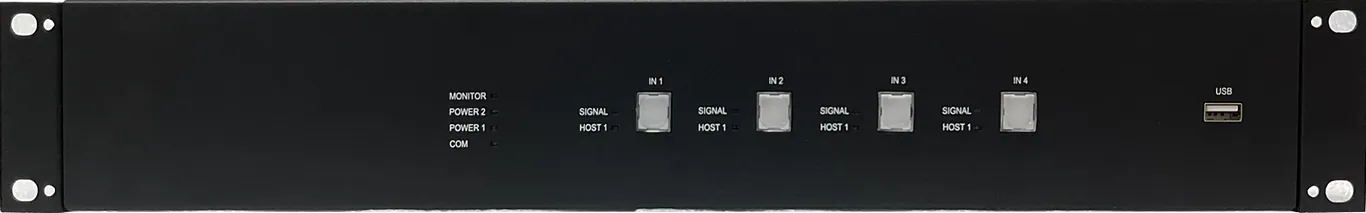

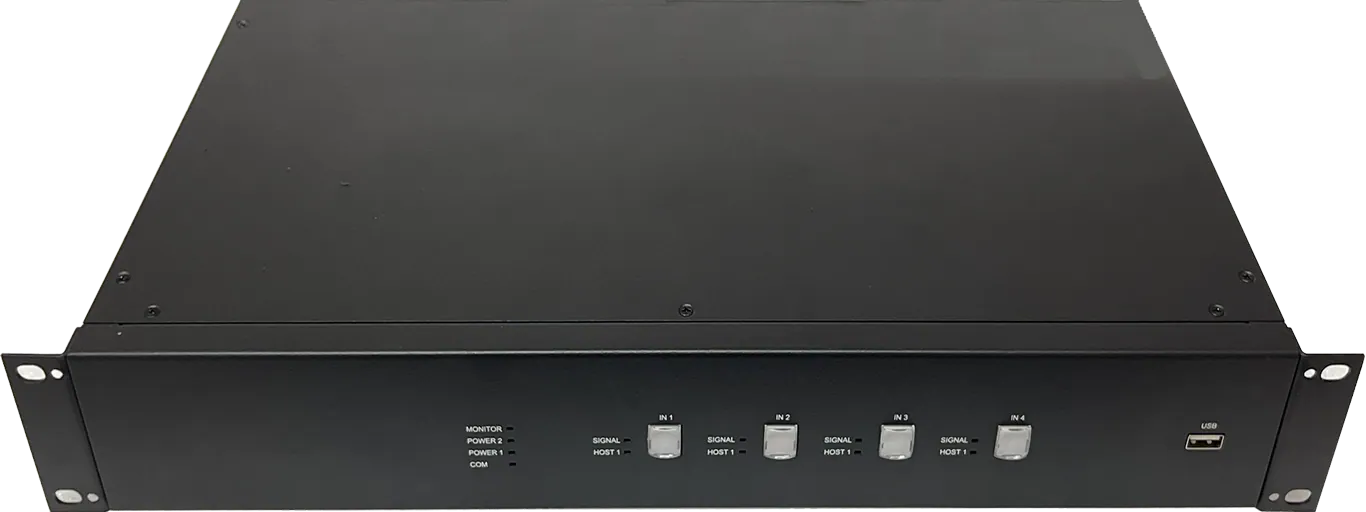

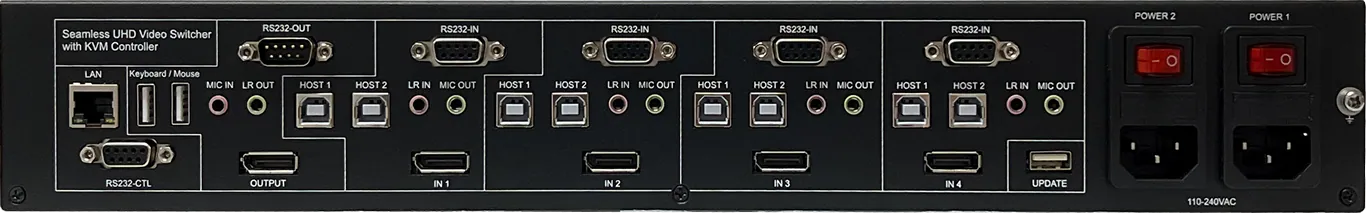

KVM18G41DP
A 4 × 1 switcher for workstations with DisplayPort 1.4. It switches video, USB 2.0, RS-232 and analogue audio.
- Inputs
- 4 × (DP 1.4 + USB 2.0 + RS-232 + L/R + Mic)
- Outputs
- 1 × (DP 1.4 + USB 2.0 + RS-232 + L/R + Mic)
- Video format
- 4K 4:4:4 / 60 Hz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
KVM18G41DPPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Inputs
- 4 × (DP 1.4 + USB 2.0 + RS-232 + L/R + Mic)
- Outputs
- 1 × (DP 1.4 + USB 2.0 + RS-232 + L/R + Mic)
- Video format
- 4K 4:4:4 / 60 Hz
- Video interface
- DisplayPort 1.4
- Bandwidth
- 18 Gbps
- Switching
- 0 ms, seamless
- MultiViewer
- Predefined window layouts
- Control
- LAN + RS-232
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- 4K / 60 Hz
- 0 ms
- KVM
