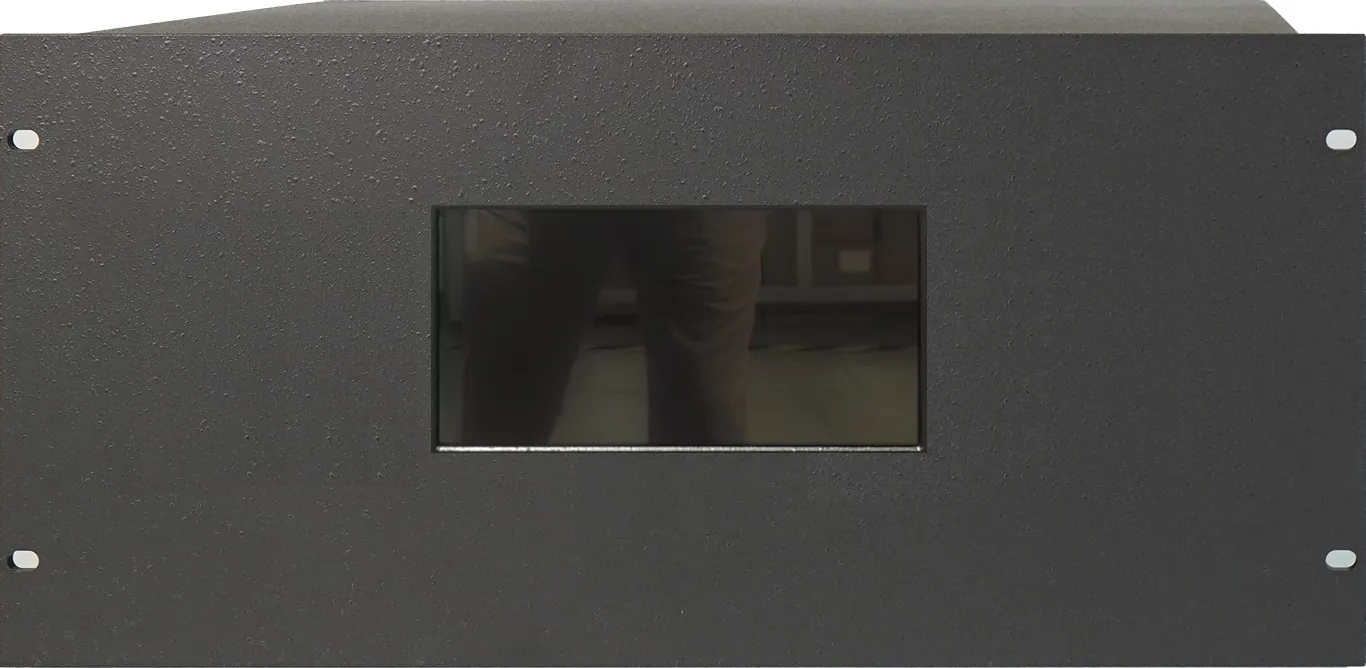

QVM3232-5U-TP

32 × 32 modular matrix with seamless switching and image processing for video walls. Quad-Ch cards allow systems to be built with different interfaces.

Matrix: 32 inputs × 32 outputs
Input / output card: 4 channels
Crosspoint bandwidth: 18 Gbps

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 9 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications9

Matrix: 32 inputs × 32 outputs
Input / output card: 4 channels
Crosspoint bandwidth: 18 Gbps
Dimensions: 483 × 365 × 223 mm
Catalogue weight: 23 kg
Carton: 56 × 47 × 48 cm
Chassis: 5U
Touch screen: 7″
Card interfaces: HDMI, DVI-U, VGA, SDI, HDBaseT, fibre, IP

02DescriptionManufacturer's description

What it is.

Seamless source switching.
Video wall bezel compensation.
Control over LAN, via a web interface and over RS-232.
EDID management, scene save and recall.
Redundant power supply.
Four freely positioned windows (Free-Windows).
Custom resolutions for LED screens.
Optional IP Preview and Audio Processor cards. The audio card occupies the last output slot.
