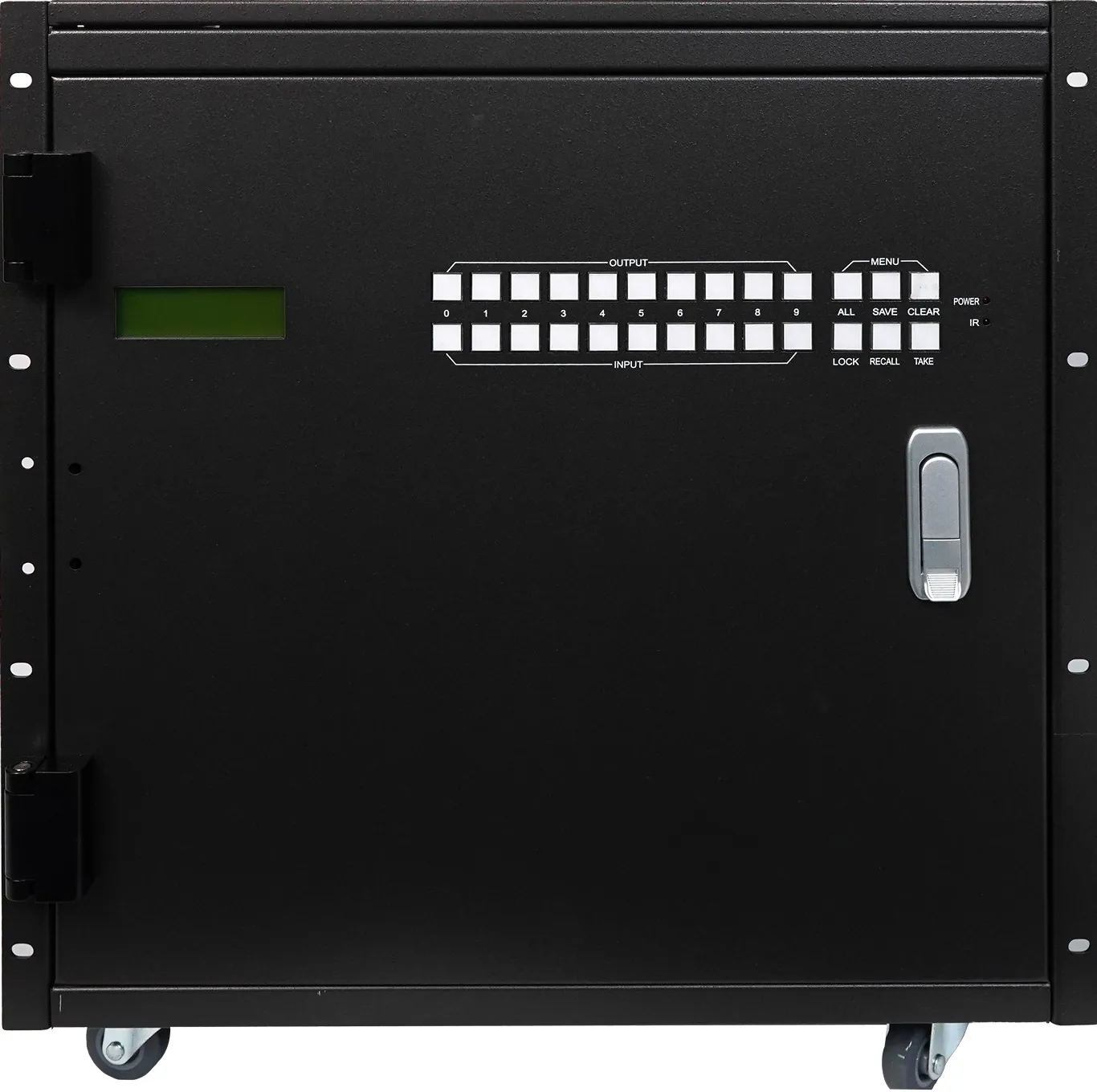

QVM8080-11U

80 × 80 modular matrix with seamless switching and image processing for video walls. Quad-Ch cards allow systems to be built with different interfaces.

Matrix: 80 inputs × 80 outputs
Input / output card: 4 channels
Crosspoint bandwidth: 18 Gbps

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 8 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications8

Matrix: 80 inputs × 80 outputs
Input / output card: 4 channels
Crosspoint bandwidth: 18 Gbps
Dimensions: 483 × 365 × 512 mm
Catalogue weight: 60 kg
Carton: 90 × 60 × 60 cm
Chassis: 11U

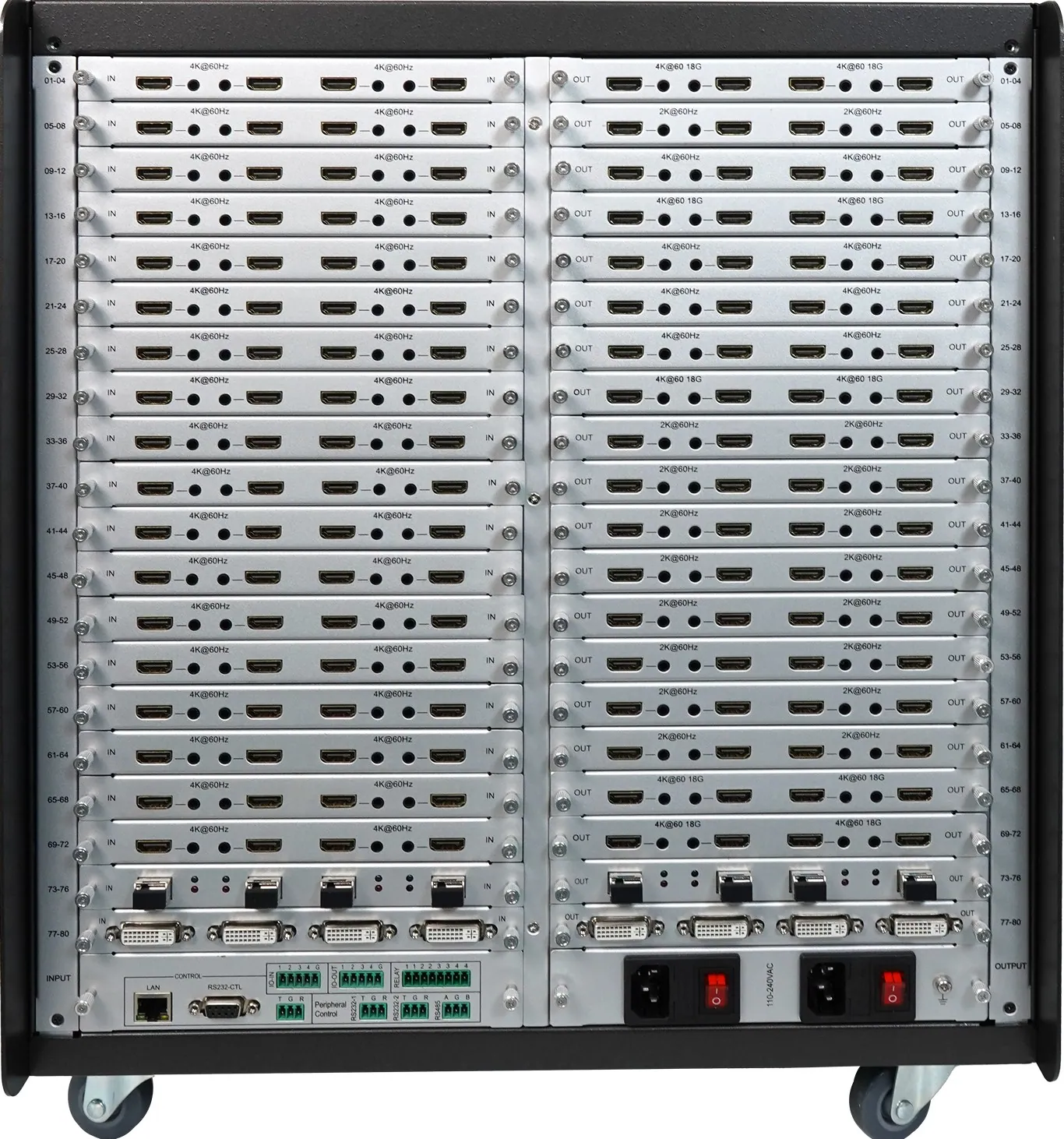

Card interfaces: HDMI, DVI-U, VGA, SDI, HDBaseT, fibre, IP

02DescriptionManufacturer's description

What it is.

Seamless source switching.
Video wall bezel compensation.
Control over LAN, via a web interface and over RS-232.
EDID management, scene save and recall.
Redundant power supply.
Four freely positioned windows (Free-Windows).
Custom resolutions for LED screens.
Optional IP Preview and Audio Processor cards. The audio card occupies the last output slot.
