Sheet 05.39
VTRIX · Extenders
SS2H70 / SS2H100

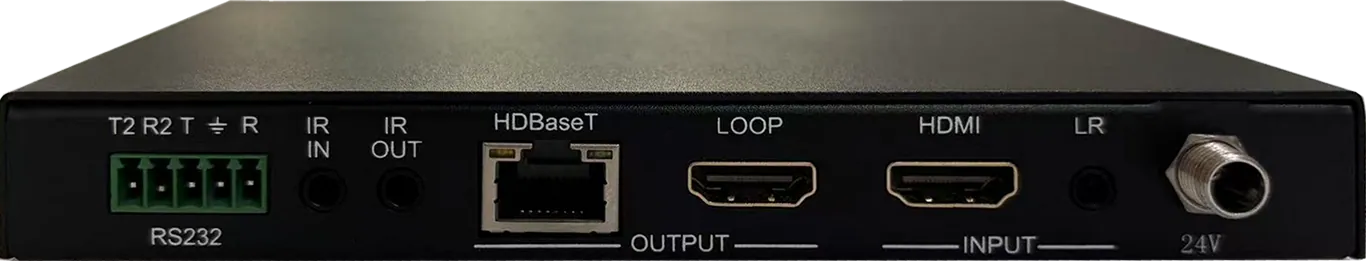

Transmits an HDMI signal over an HDBaseT link. Supports 4K 4:2:0 at 60 Hz on the HDBaseT link. The transmitter's HDMI loop-out lets you connect a local display.
- HDMI input / output
- HDMI 2.0, 4K 4:4:4 / 60 Hz
- Link format
- 4K 4:2:0 / 60 Hz
- HDBaseT
- 1.0
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SS2H70 / SS2H100Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 5 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications5
- HDMI input / output
- HDMI 2.0, 4K 4:4:4 / 60 Hz
- Link format
- 4K 4:2:0 / 60 Hz
- HDBaseT
- 1.0
- SS2H70
- 4K up to 40 m / 1080p up to 70 m
- SS2H100
- 4K up to 70 m / 1080p up to 100 m
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Cooling fan.
- Built-in test pattern for set-up.
- HDMI Loop Out on the transmitter.
- HDBaseT 1.0
- up to 100 m
