Sheet 05.41
VTRIX · Extenders
SSH70 / SSH100
Transmits an HDMI signal over an HDBaseT link. Supports 4K 4:2:0 at 60 Hz on the HDBaseT link.
- HDMI input / output
- HDMI 2.0, 4K 4:4:4 / 60 Hz
- Link format
- 4K 4:2:0 / 60 Hz
- HDBaseT
- 1.0
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SSH70 / SSH100Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 5 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications5
- HDMI input / output
- HDMI 2.0, 4K 4:4:4 / 60 Hz
- Link format
- 4K 4:2:0 / 60 Hz
- HDBaseT
- 1.0
- SSH70
- 4K up to 40 m / 1080p up to 70 m
- SSH100
- 4K up to 70 m / 1080p up to 100 m
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Cooling fan.
- Built-in test pattern for set-up.
- HDBaseT 1.0
- up to 100 m

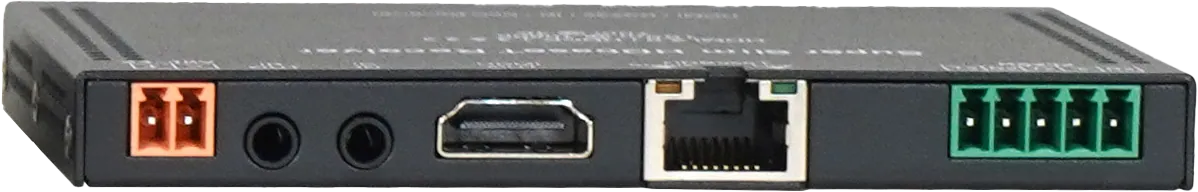

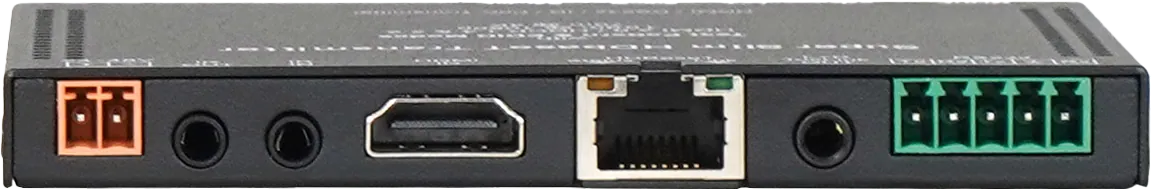

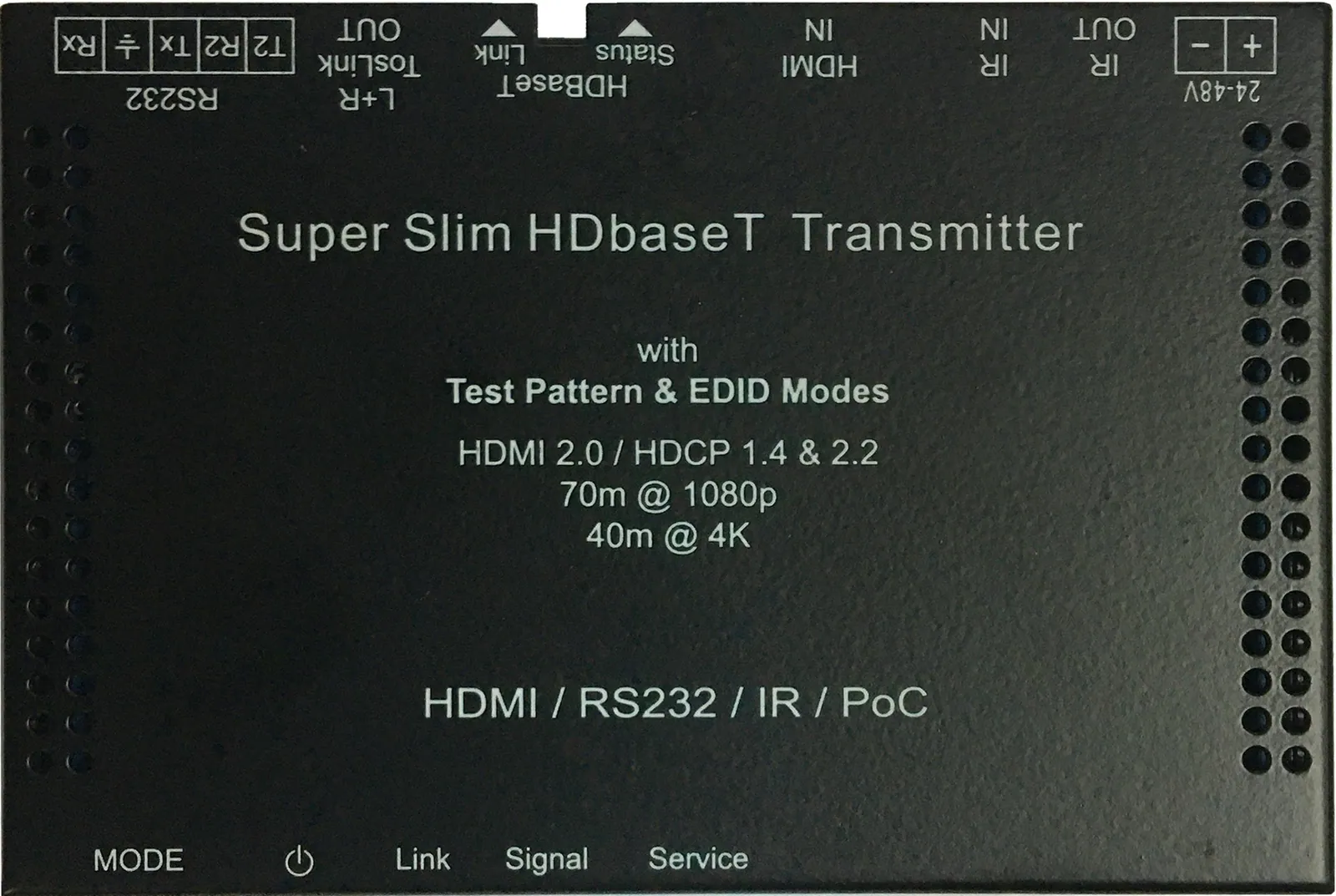

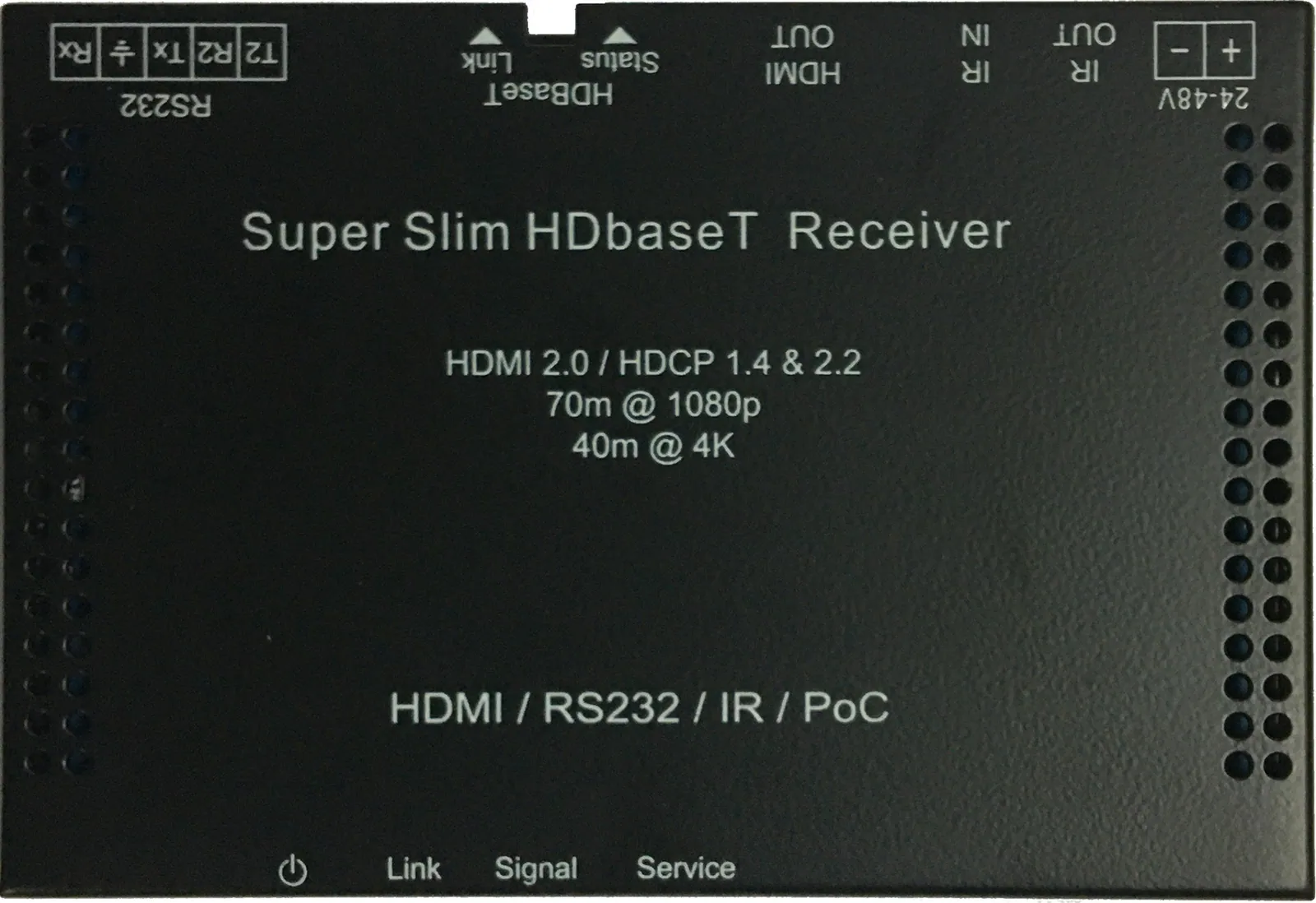

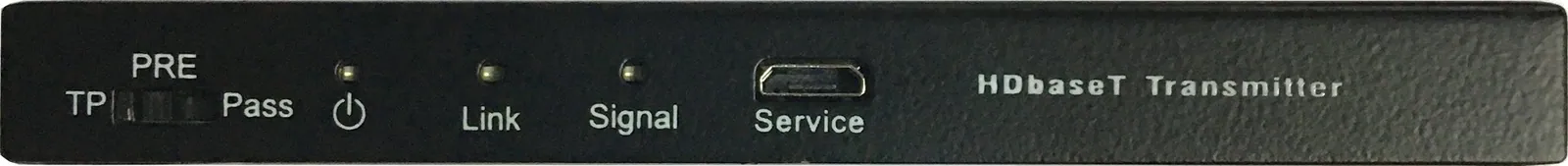

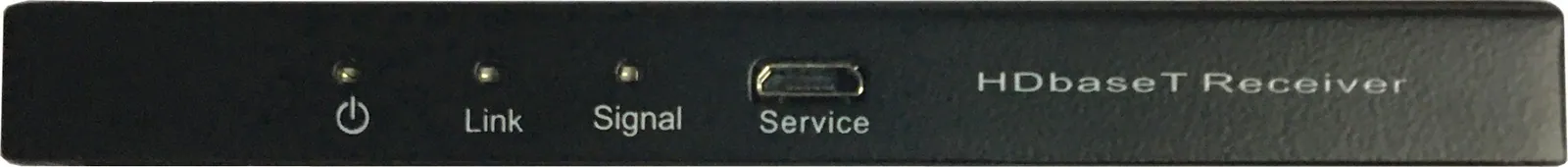

The photo shows the SSH70 version; the SSH100 range is given separately in the specifications.
