Sheet 05.32
VTRIX · Switchers and KVM

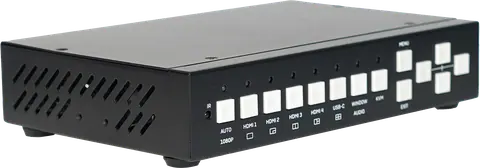

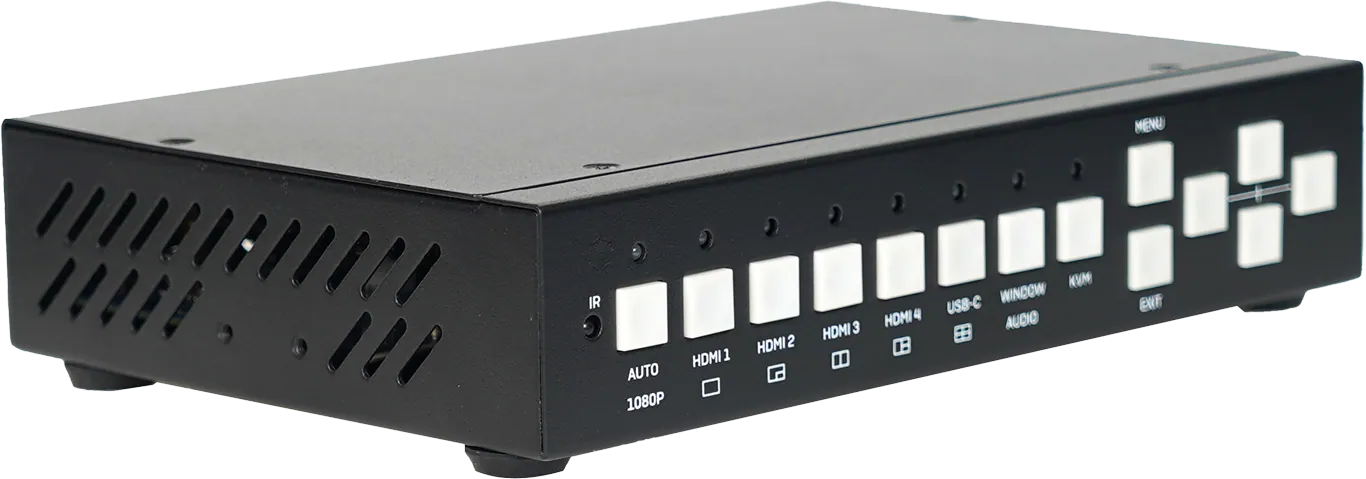

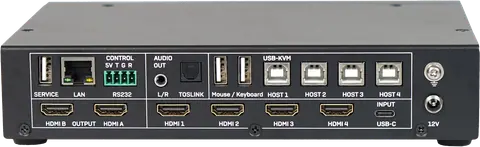

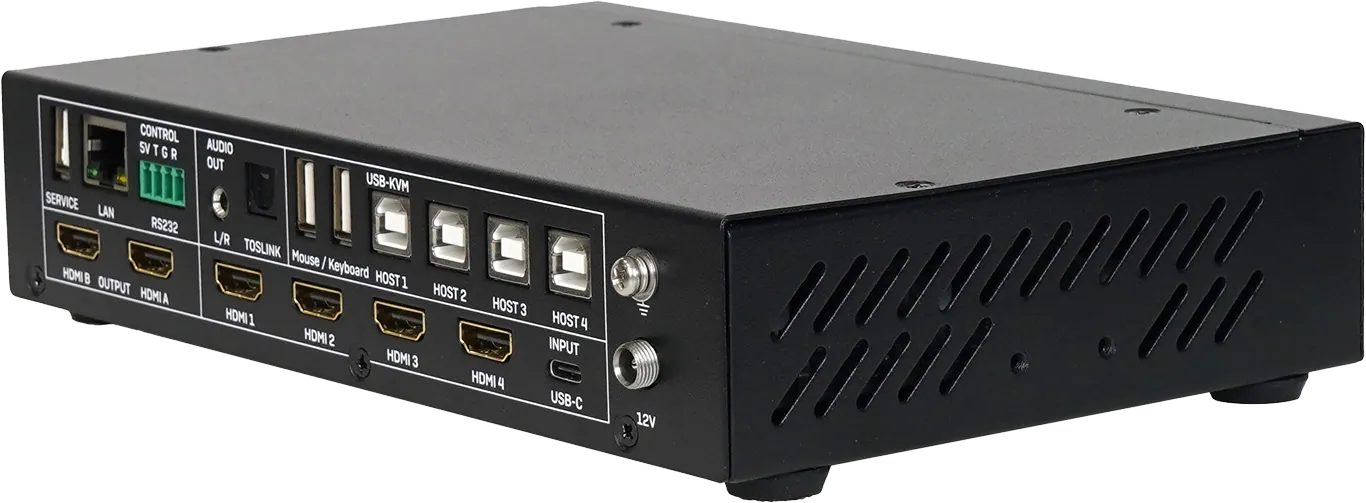

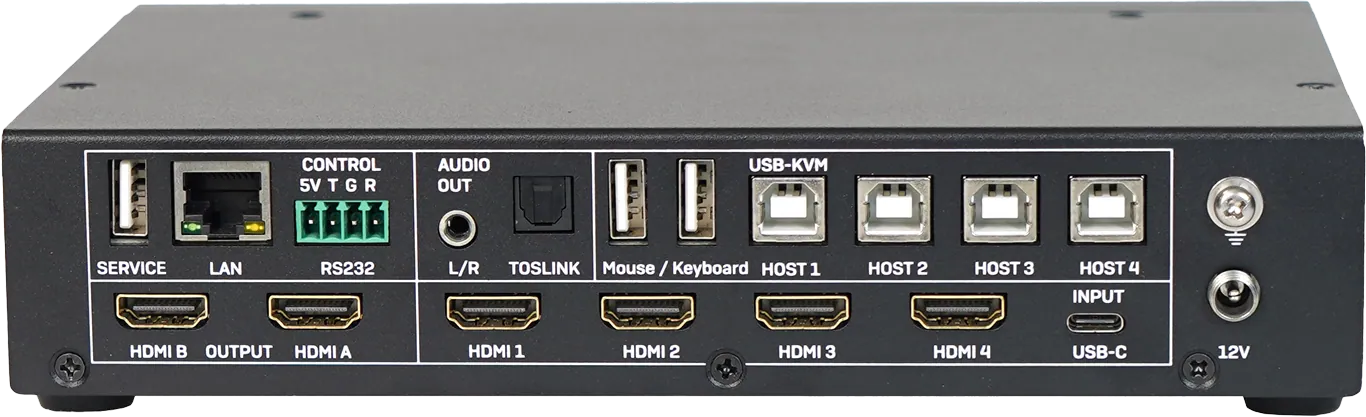

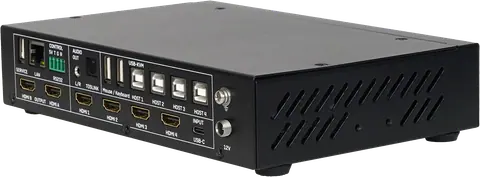

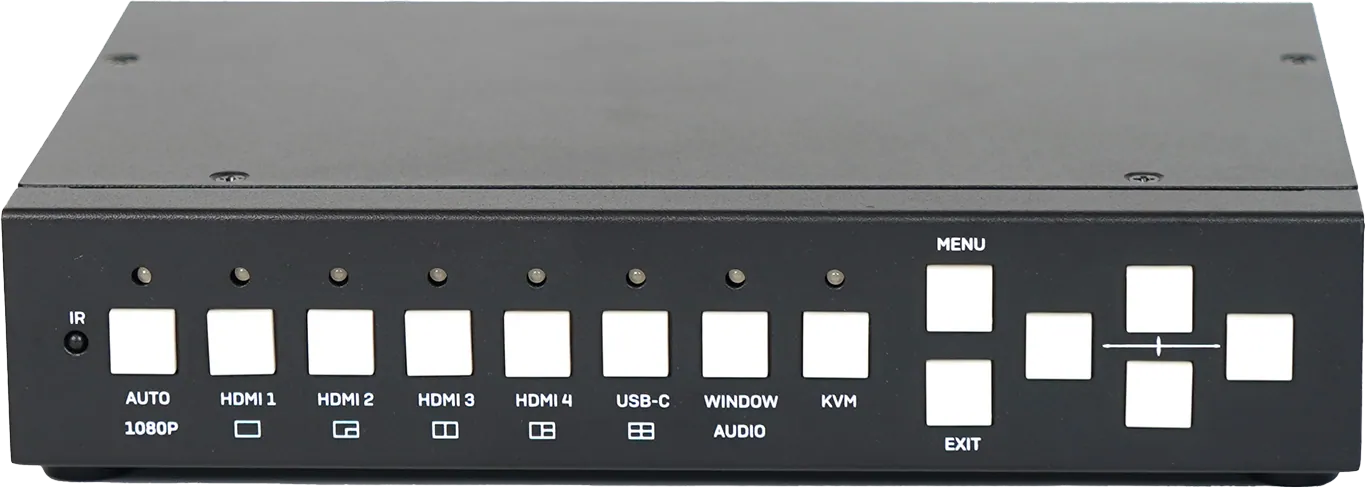

SW18G512MV
A switcher for five video sources with two HDMI outputs. It lets you control computers with keyboard and mouse roaming between sources.
- Inputs
- 4 HDMI + USB-C
- Outputs
- 2 HDMI
- Video format
- 4K 4:4:4 / 60 Hz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SW18G512MVPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Inputs
- 4 HDMI + USB-C
- Outputs
- 2 HDMI
- Video format
- 4K 4:4:4 / 60 Hz
- Video interface
- HDMI 2.0
- Bandwidth
- 18 Gbps
- Switching
- 0 ms, seamless
- MultiViewer
- Predefined window layouts
- Control
- LAN + RS-232
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Keyboard and mouse roaming between sources.
- 4K / 60 Hz
- 0 ms
- MultiViewer
