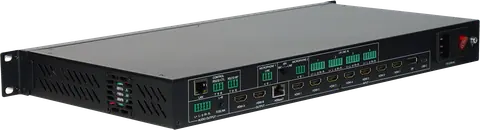

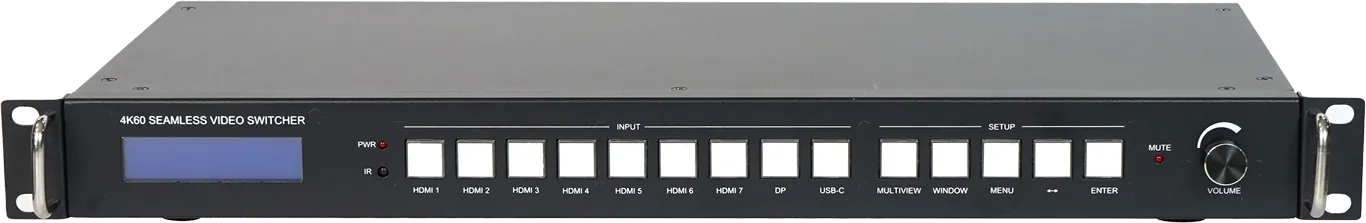

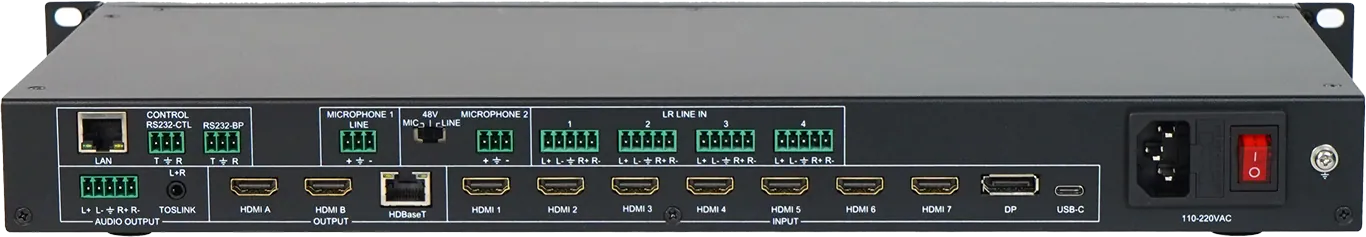

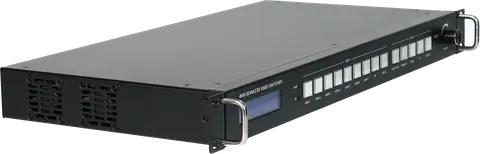

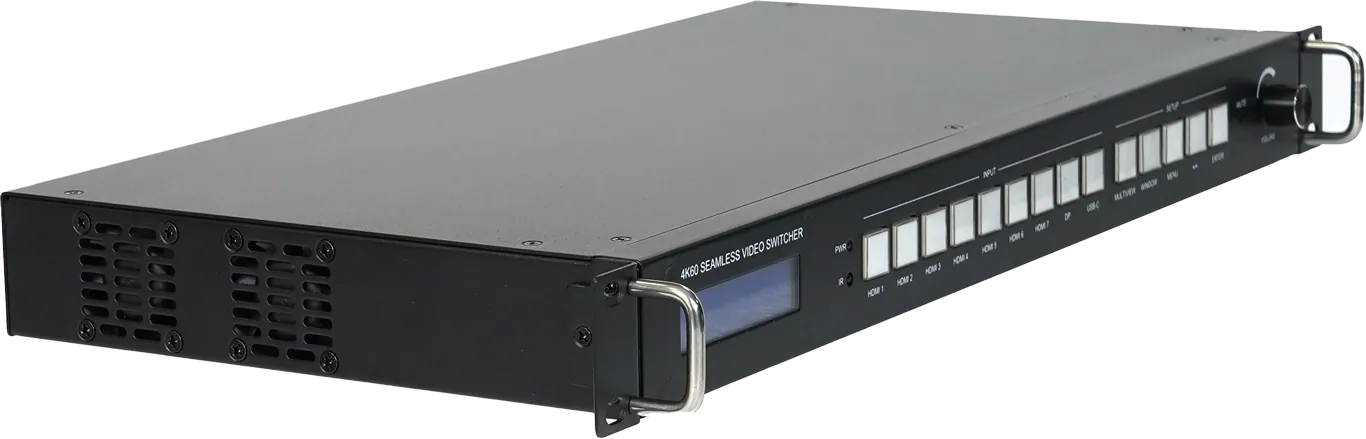

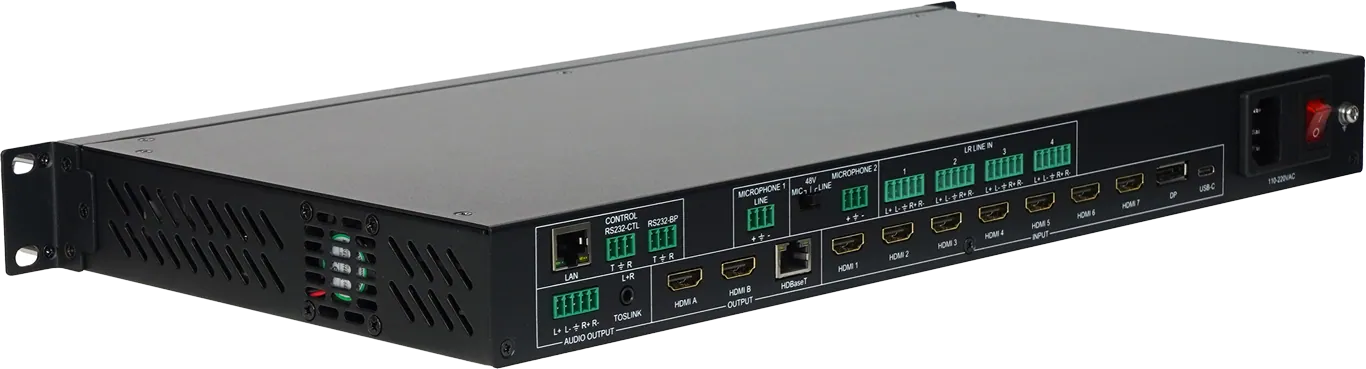

PS18G913PSE
A switcher for nine video sources with a MultiViewer, microphone inputs and balanced audio. Supports 60 W USB-C charging.
- Inputs
- 7 HDMI + DisplayPort + USB-C
- Outputs
- 2 HDMI + HDBaseT
- Video format
- 4K 4:4:4 / 60 Hz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PS18G913PSEPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Inputs
- 7 HDMI + DisplayPort + USB-C
- Outputs
- 2 HDMI + HDBaseT
- Video format
- 4K 4:4:4 / 60 Hz
- Video interface
- HDMI 2.0
- Bandwidth
- 18 Gbps
- Switching
- 0 ms, seamless
- MultiViewer
- Predefined window layouts
- Control
- LAN + RS-232
- HDBaseT range at 4K
- 70 m
- Audio inputs
- 2 Mic + 4 balanced L/R
- Audio outputs
- Balanced L/R + Mini Toslink
- USB-C Power Delivery
- 60 W
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- 4K / 60 Hz
- 0 ms
- Presentation
