Sheet 05.875

ACME · Theatre lighting

COMET

ModelXA 2000 FS

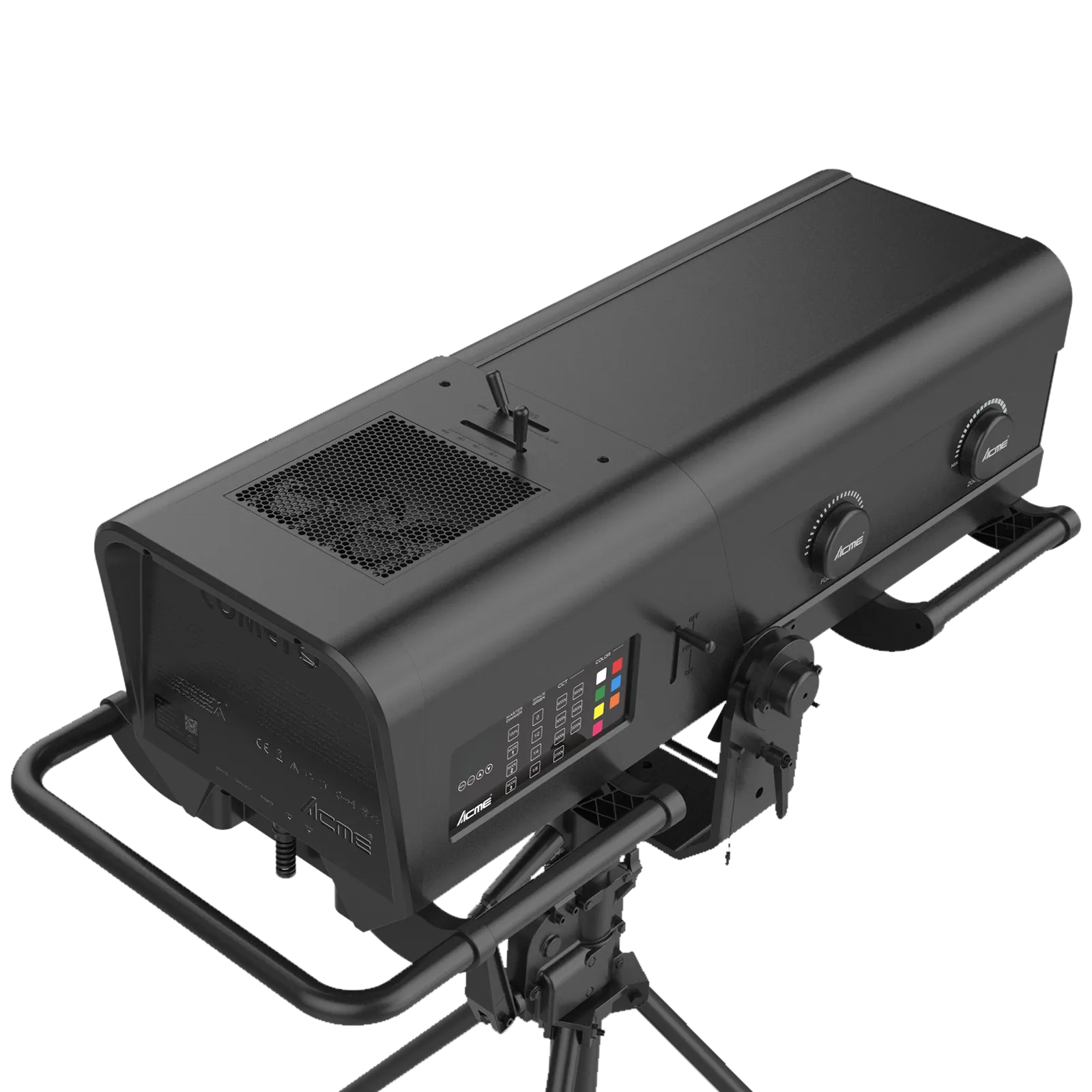

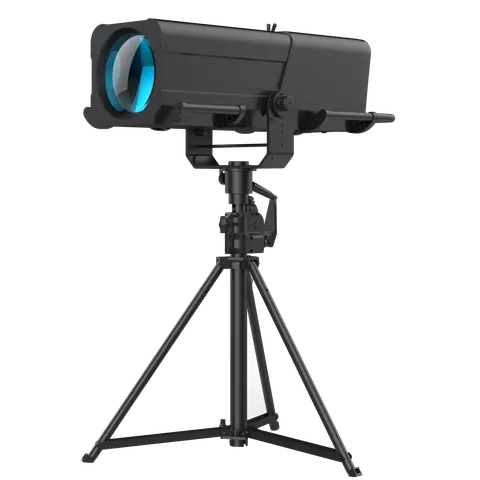

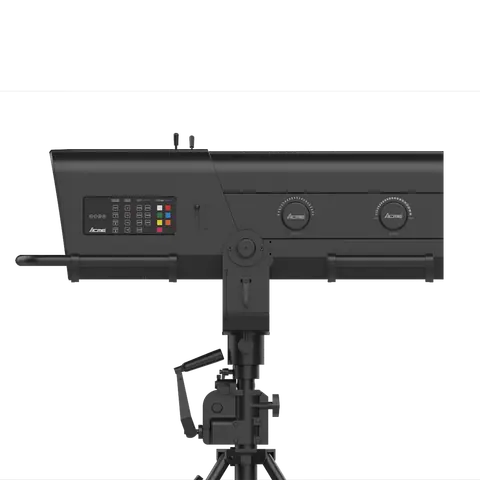

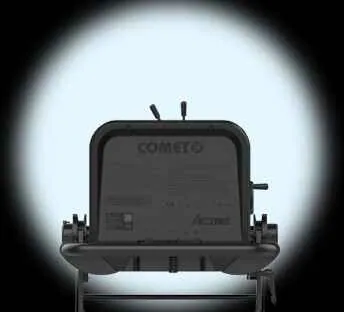

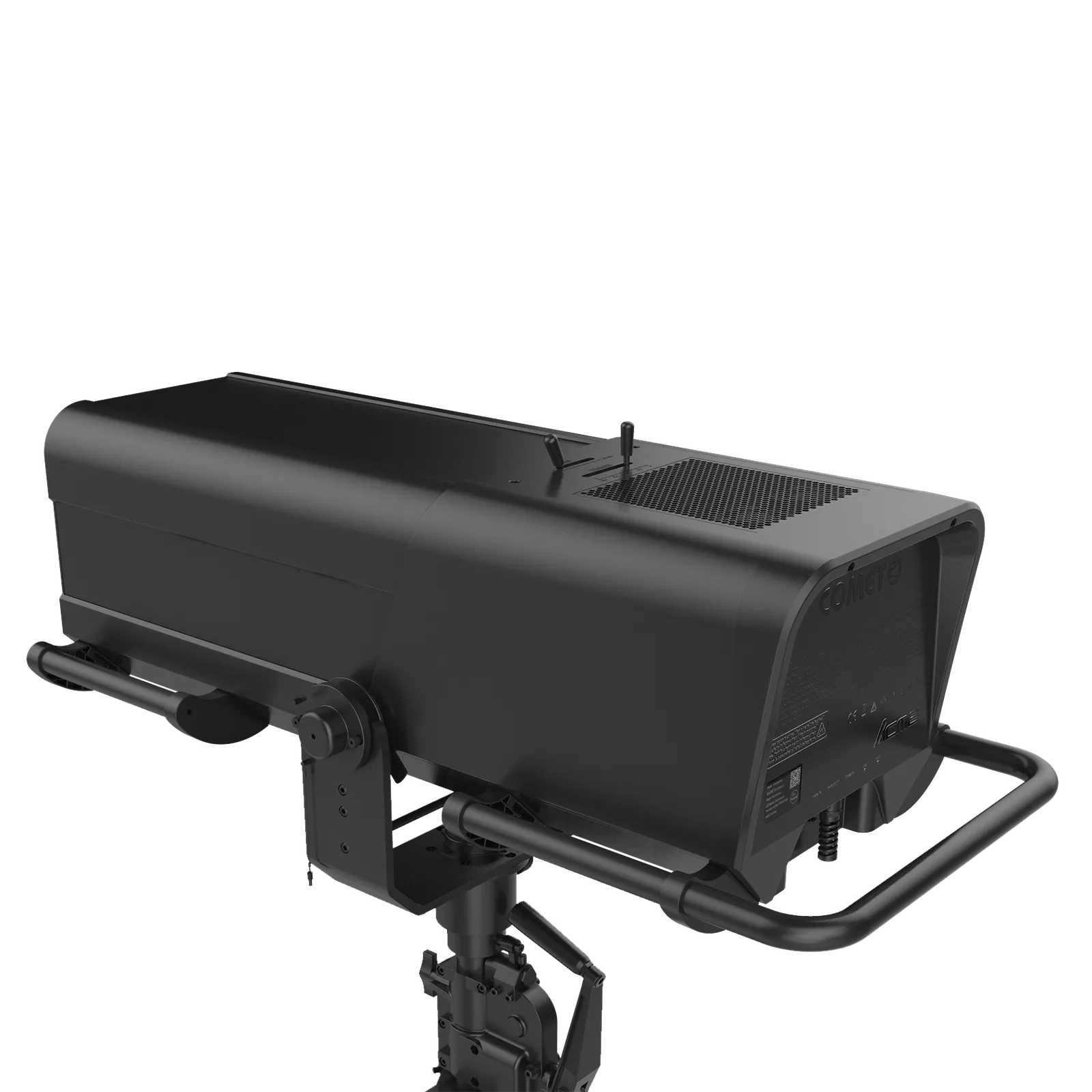

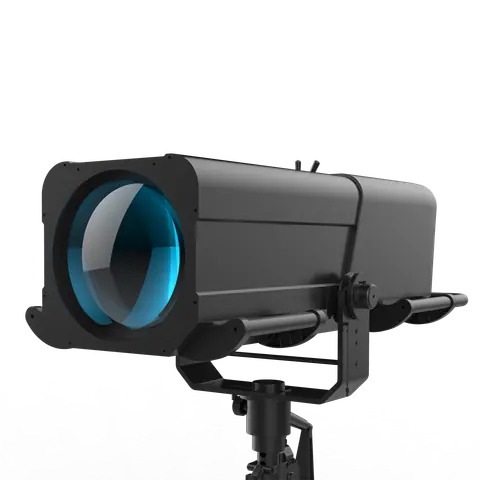

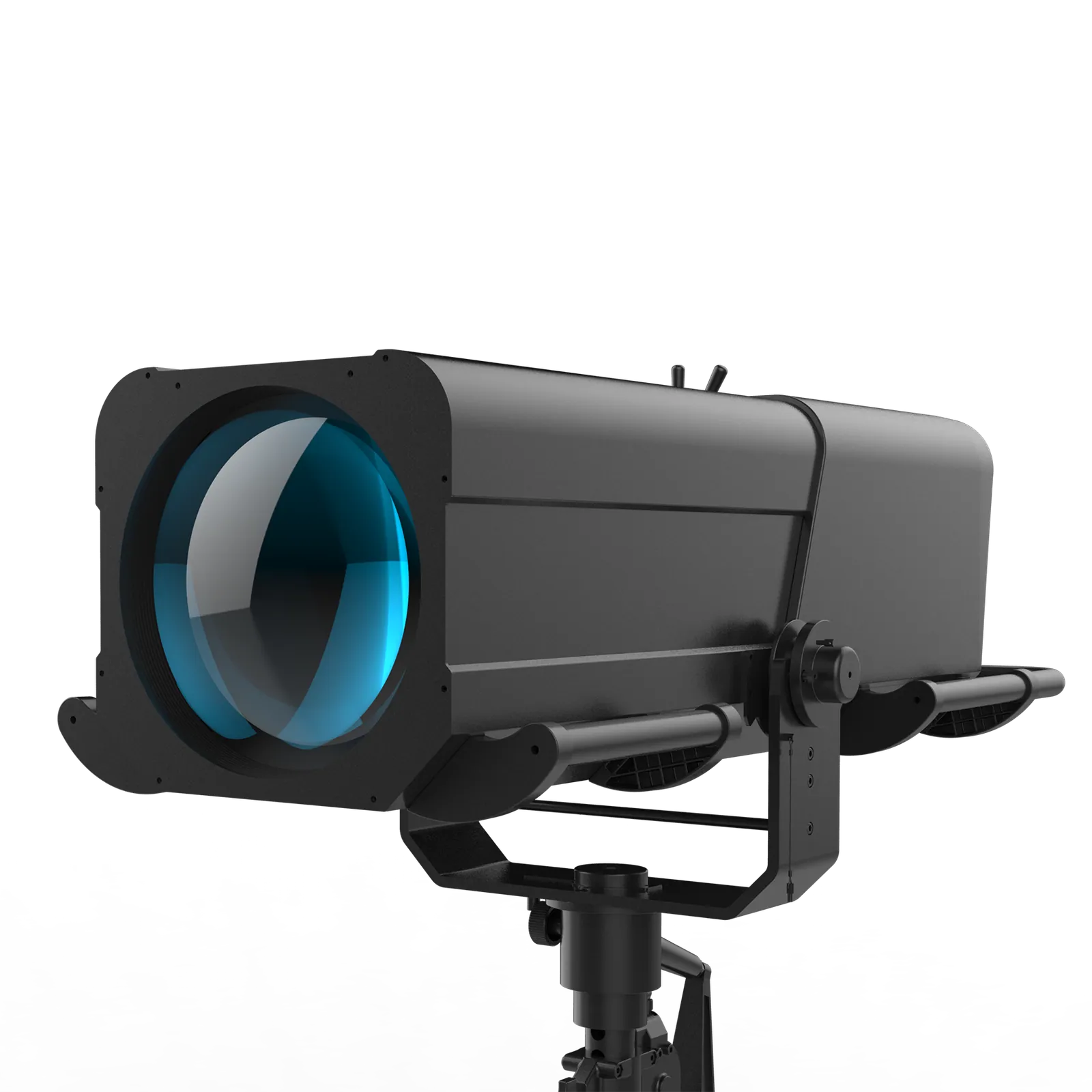

The COMET uses a 1800W LED light engine, featuring a high-color rendering mode, 3-level custom power, manual dimming, and a zoom range of 5°-15°. With a standard stand, it is easier to operate.

Light source: 1,800W LED engine
Power consumption: 2,180W
Power supply: 180-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 5°-15°
DMX channels: 7
Protocols: RDM
Colour temperature: 6,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 59 values

What this product is, in numbers.

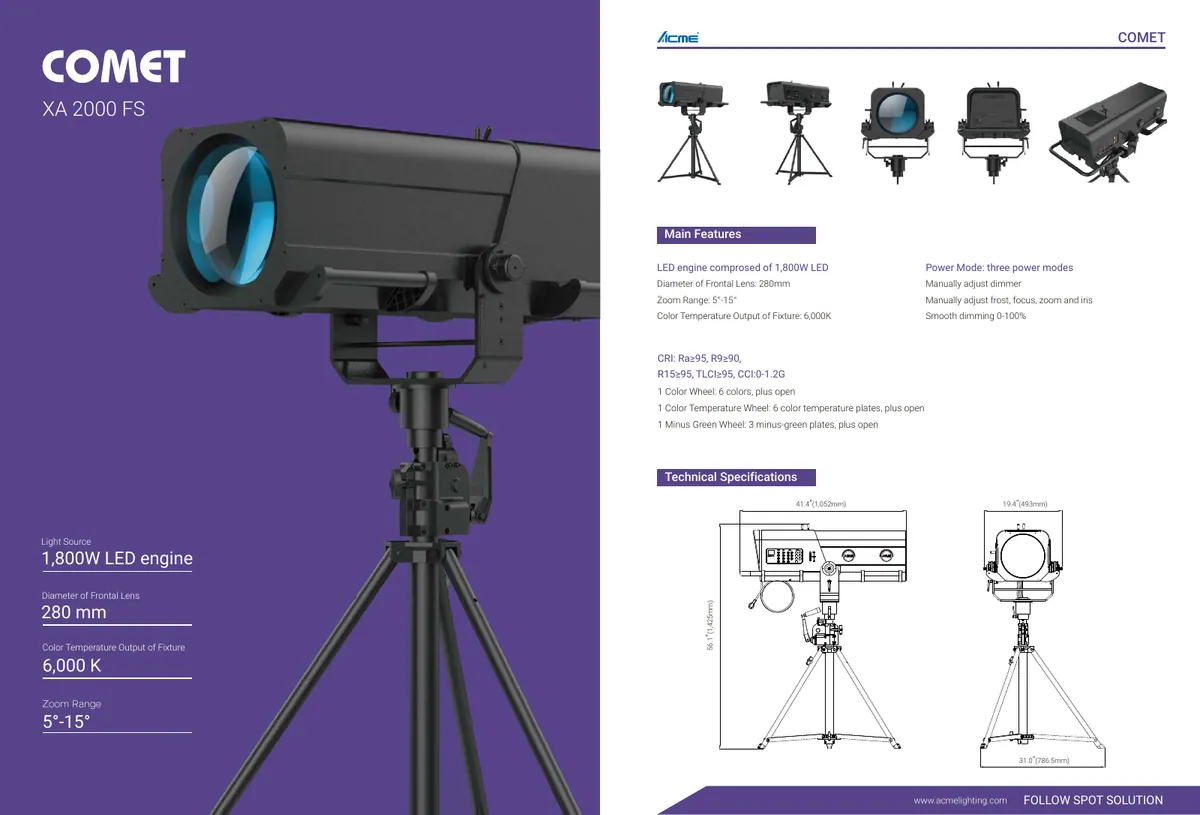

PDFDatasheetEN · 2 pages · 442 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: COMET
Model Code: XA 2000 FS

02Light Source4

Light Source: 1,800W LED engine
Color Temperature Output of Fixture: 6,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data2

Total Lumen Output of Fixture: 38,000 lumens
Color Rendering: Ra≥95, R9≥90, R15≥95, TLCI≥95, CCI:0-1.2G

04Optical System2

Zoom Range: 5°-15°
Diameter of Frontal Lens: 280 mm

05Control7

26 touch button control panel
Display: LCD display
Operational Modes: DMX Control,Manual Control
Protocols: RDM
DMX Protocol Modes: 1
Control Channels: 7
Firmware Upgrade: Upgrade via DMX link

06Colors3

1 Color Wheel: 6 colors, plus open
1 Color Temperature Wheel: 6 color temperature plates
1 Minus Green Wheel: 3 minus-green plates

Show the full specificationHide the rest of the specification10 more groups · 39 values

07Frost Filter1

1 frost filter

08Other Effects8

Smooth dimming 0-100% (4 user selectable dimming curves); Motorized linear iris; Manually adjust dimmer; Manually adjust frost, focus, zoom and iris
Color Rendering: Ra≥95, R9≥90, R15≥95, TLCI≥95, CCI:0-1.2G
1x Color Temperature Wheel: 6 color temperature plates
1x Minus Green Wheel: 3 minus-green plates
Power Mode: three power modes

09Electrical and Connectors4

Input Voltage Range: 180-240Vac; 50/60Hz
Power Consumption: 2,180W
Power In/Out: Power Cord in
Data In/Out: 3-pin or 5-pin XLR

10Physical Information8

Fixture Dimensions
Width: 493 mm (19.4")
Depth: 1,052 mm (41.4")
Height: 369 mm (14.5")
Weight: 51 kg (112.4 lbs)
Fixture Dimensions

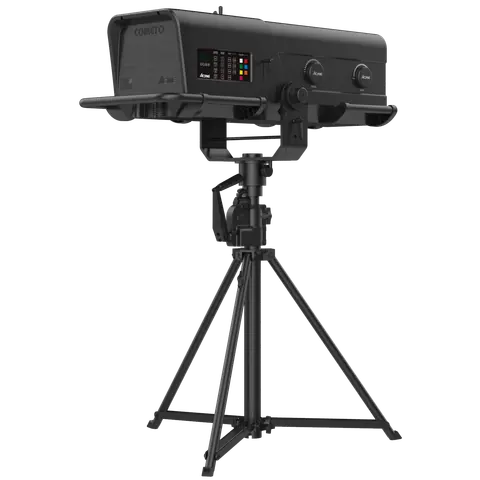

With Tripod Stand
Width: 787 mm (31")
Depth: 1,052 mm (41.4")
Height: 1,425 mm (56.1")
Wieght: 74.5 kg (164.2 lbs)

11Packing Information4

Flight Case Dimensions
Width: 1,195 mm (47.0")
Depth: 625 mm (24.6")
Height: 775 mm (30.5")
Weight
Standard: G.W.: 134.5 kg (296.5 lbs) ( One-pack loader case)

12Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 75°C
Protection Rating: IP20

13Approvals2

CE compliant

UKCA compliant

14Installation4

Horizontal or vertical mounting

Universal working position

Tripod at the bottom

Safety cable attachment point

15Included Items2

Digital user manual

Power cable

16Optional Accessories (With Order Code)2

Flight Case
Standard: One-pack loader case (63583822)
Tripod Stand: 3033002594

02DescriptionManufacturer's description

What it is.

The COMET uses a 1800W LED light engine, featuring a high-color rendering mode, 3-level custom power, manual dimming, and a zoom range of 5°-15°. With a standard stand, it is easier to operate. The built-in color wheel, color temperature wheel, and minus green wheel can be stacked to create multiple effects, making it widely applicable to various performing arts events and providing subsequent lighting effects that are more in line with on-site needs.
