Sheet 05.876

Color Imagination · Theatre lighting

C-PANEL 448

ModelCP448

Light source: 224*0.5W cold white+224*0.5W warm white LEDs
Power consumption: 200W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 4.8kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 54 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 224*0.5W cold white+224*0.5W warm white LEDs
CRI: ≥95; Flicker free operation for broadcast TV and FILM; Frequency adjustable between 10KHz and 15KHz
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics3

High resolution and precise front soft diffusion panel

180°Projection angle

Motorized projection angle adjustable

03Color System4

3200K Warm white

6500K Cold white

Tungsten simulation effect

Smooth color temperature adjustment, 3200K-6500K

04Strobe Effect1

1-25Hz high speed LED shutter/strobe effect with variable speed

05Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curve modes, linear/square law/Inv square law/S-curve

06Control System5

7 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-3-Pin XLR DMX connectors IN/OUT

Show the full specificationHide the rest of the specification10 more groups · 33 values

07Display System4

1.8″ TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display Auto OFF

08Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Noise free featured (NO-FAN Designed)

Constant temperature readout and management function

Over temperature protection management

09Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/OUT with fuse

200W Power consumption

10Housing2

Skeleton made of steel metal plates
Exterior finish: white

11Installation1

Embedded into ceiling

12Operating Condition4

Operating positions: all; Tripod stand as optional; -25°C to 45°C ambient temperature; IP20 protection rating

13Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

14Weight2

N.W.: 4.8kg
G.W.: 5.3kg

15Dimensions2

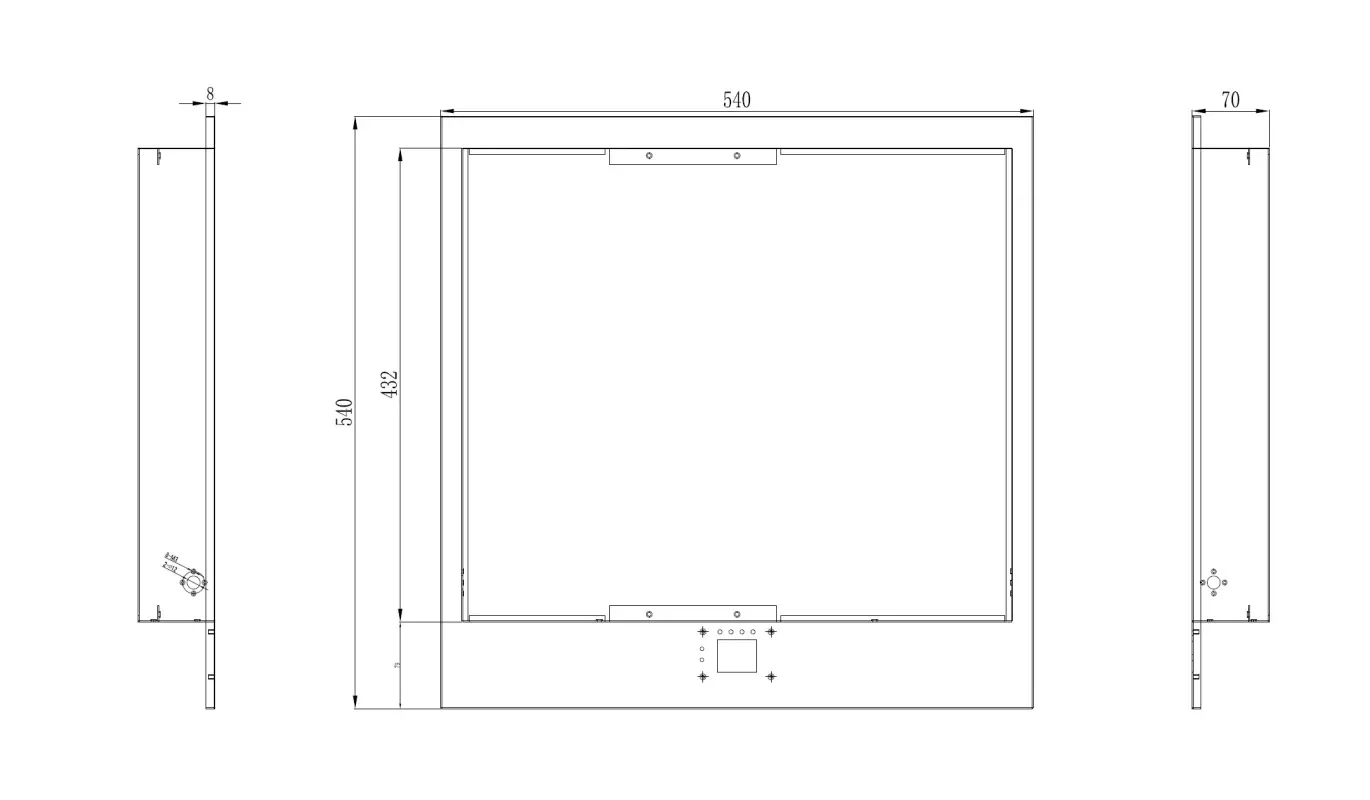

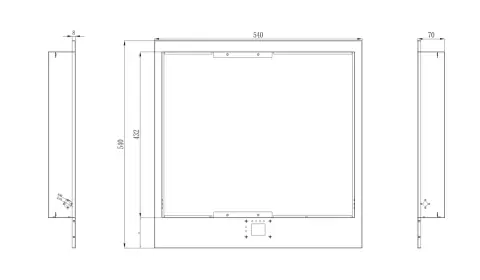

Product Dimensions: 540(D)*540(W)*70(H)mm
Packing Dimensions: 670(D)*670(W)*180(H)mm

16Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

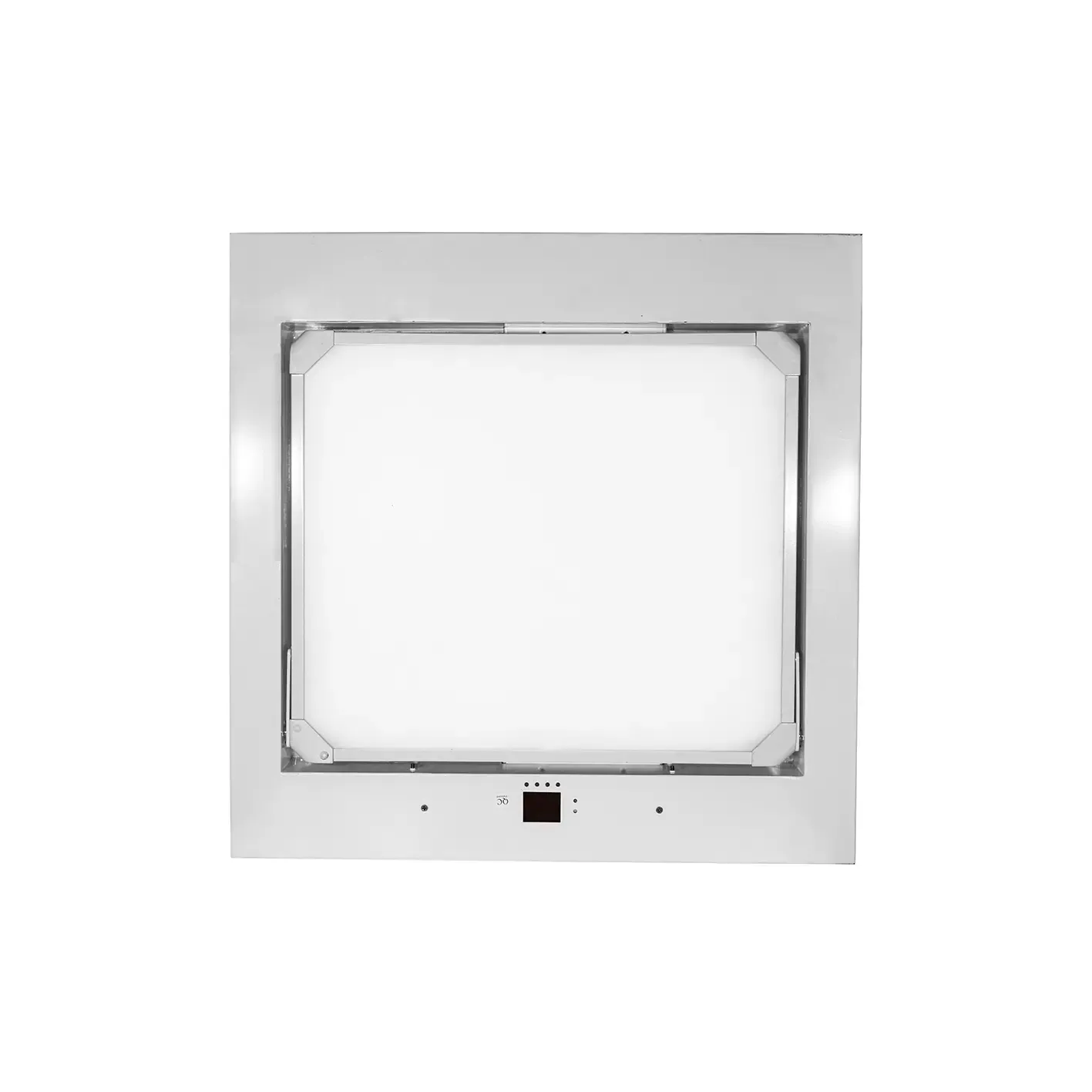

C-PANEL 448

The flexible and modular concept NO-FAN designed C-PANEL 448 is an embedded soft studio panel light featuring 448*0.5W premium quality, high CRI and surface mount stable LEDs , cold white and warm white integrated. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 6500K. These features provide the PANEL with superior color reproduction and a great light output, offering greater flexibility than traditional ones. The fixture also comes with a front soft diffusion panel that makes the light coverage more even.The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.

The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations, also for office, conference hall that needed ceiling mounting.
