Sheet 05.877

Color Imagination · Theatre lighting

CYC 363

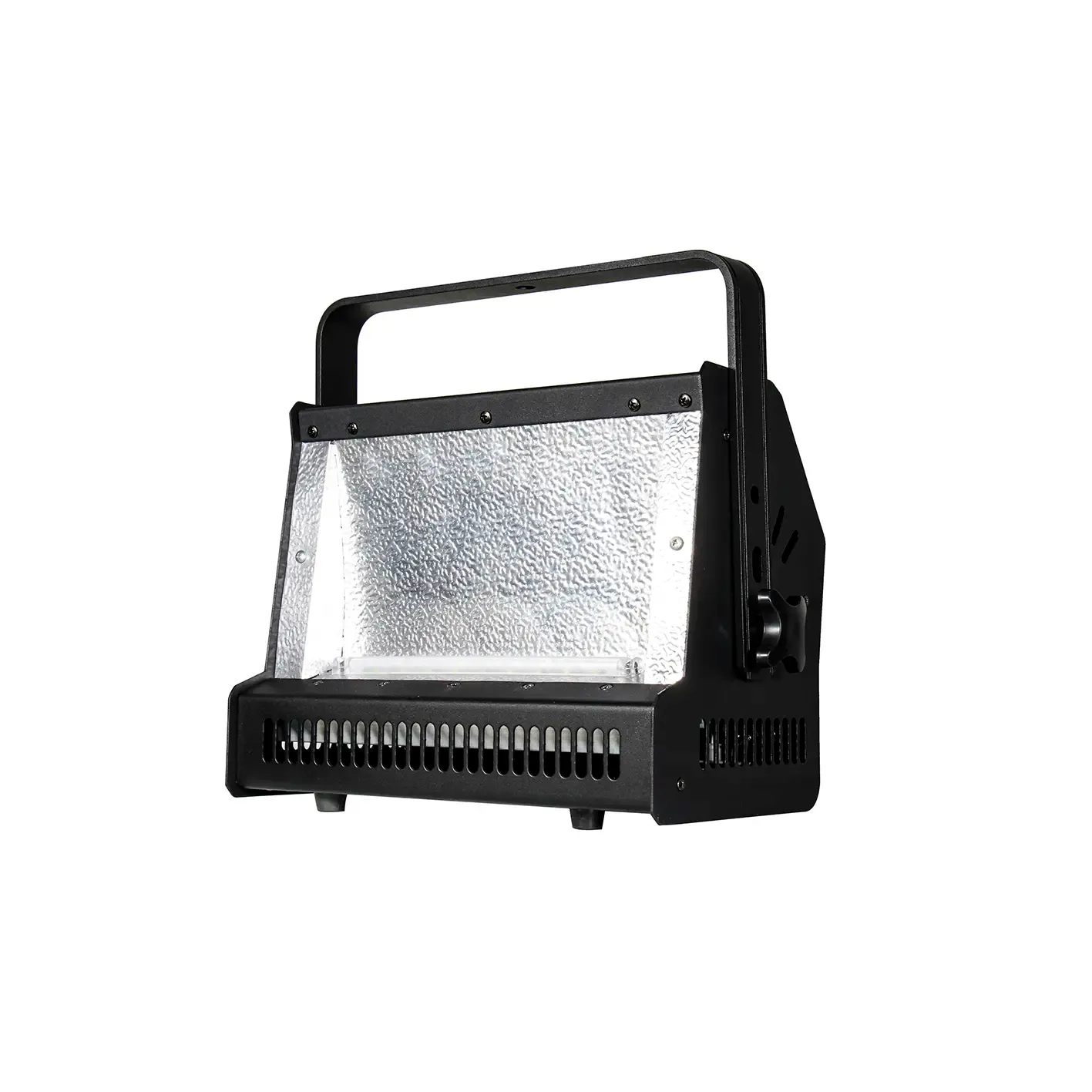

The CYC 363 is a CYCLORAMAS light featuring 36*3W LEDs (RGBA) into high efficiency 90° optics. These features provide the CYCLORAMAS with superior color reproduction and a high light output, offering greater flexibility than tradition ones.

Light source: 36*3W LEDs, RGBA
Power consumption: 100W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 4.8kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 52 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source4

Source: 36*3W LEDs, RGBA; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics4

High efficiency 90° optic system

100°Field angle

Even/soft coverage

High output

03Color System2

RGBA

Even and pure color mixing

04Preset Program1

Preset macro programs with variable speed

05Strobe Effect1

0-25Hz LED shutter/strobe effect with variable speed

06Dimming System3

0-100% Smooth linear LED dimming

No noticeable color shift throughout the entire range

Flicker free

Show the full specificationHide the rest of the specification11 more groups · 37 values

07Control System6

4/8 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

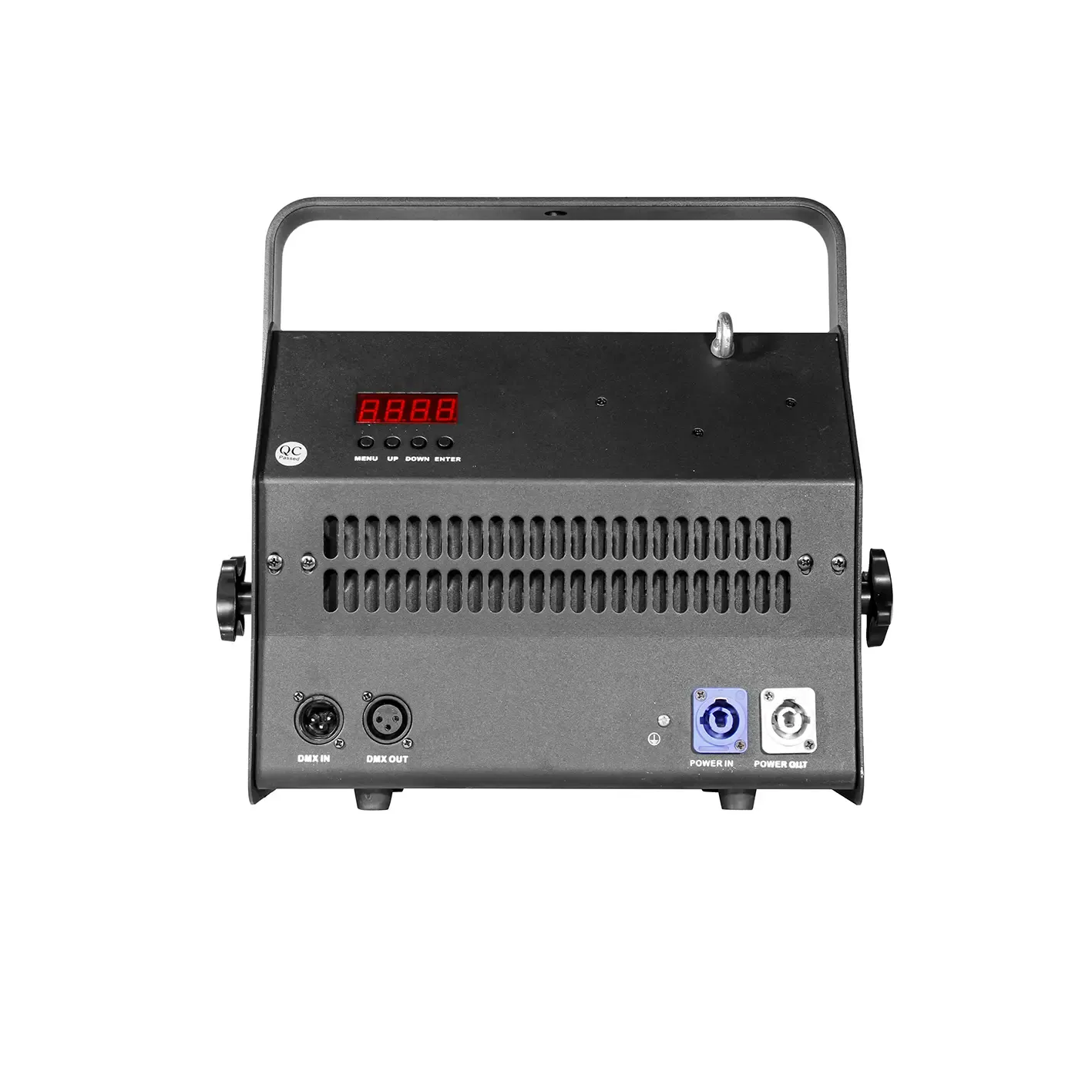

3-Pin XLR DMX connectors IN/OUT

08Display System3

4-Digit LED display

4 Control buttons

Display auto OFF

09Cooling System3

Advanced cooling system integrated aluminum

Noise free featured (NO-FAN Designed)

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

POWERCON connectors IN/OUT

100W Power consumption

11Housing3

Skeleton made of metal plates; 1 Hanging bracket
Exterior finish: Black

12Installation1

1*Safety attachment point

13Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 4.8kg
G.W.: 5.3kg

16Dimensions2

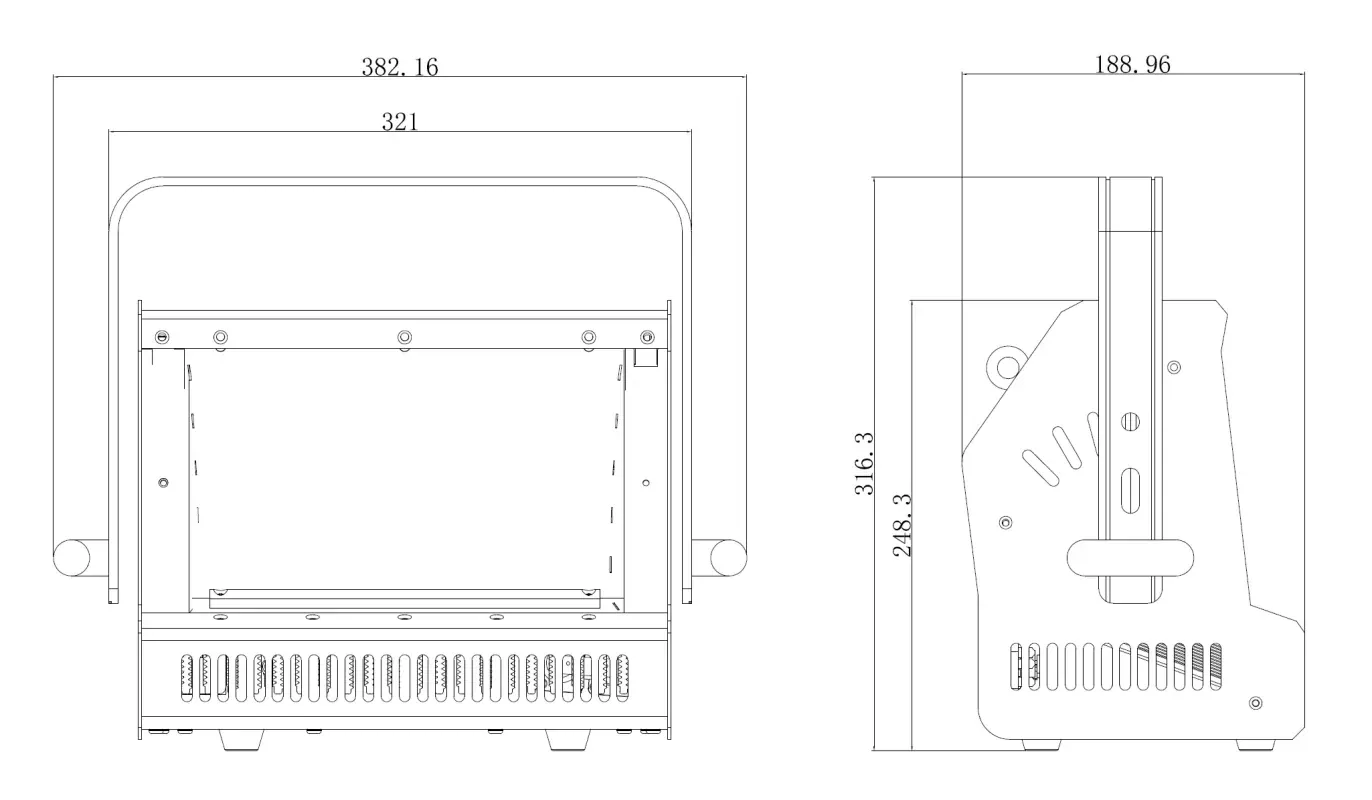

Product Dimensions: 189(D)*382.2(W)*248.3(H)mm
Packing Dimensions: 260(D)*428(W)*390(H)mm

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

CYC 363

The CYCLORAMAS is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations and theaters.
