Sheet 05.771

ACME · Effects and lasers

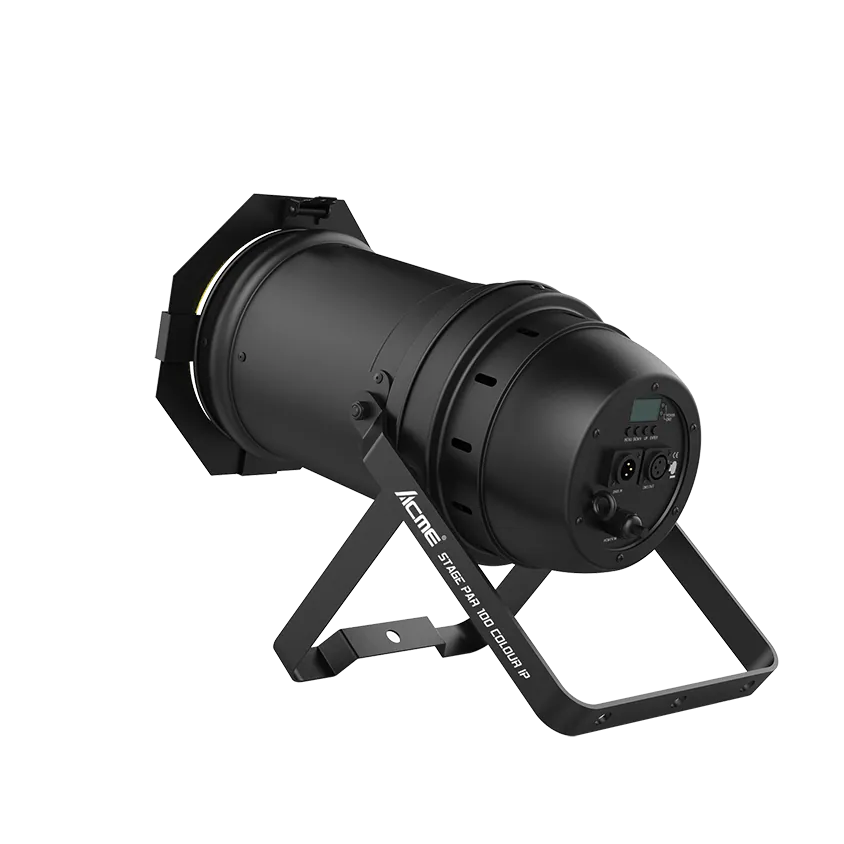

STAGE PAR 100 COLOUR IP

ModelLED-PAR100 RGBA IP

Light source: 1x 120W RGBA LED module
Power consumption: 110W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IPX4
Beam angle / zoom: 7°/11.5°/16°/20.5°/25°
DMX channels: 4/6/7/8
Protocols: DMX512,RDM
Net weight: 4.5 kg (9.9 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 44 values

What this product is, in numbers.

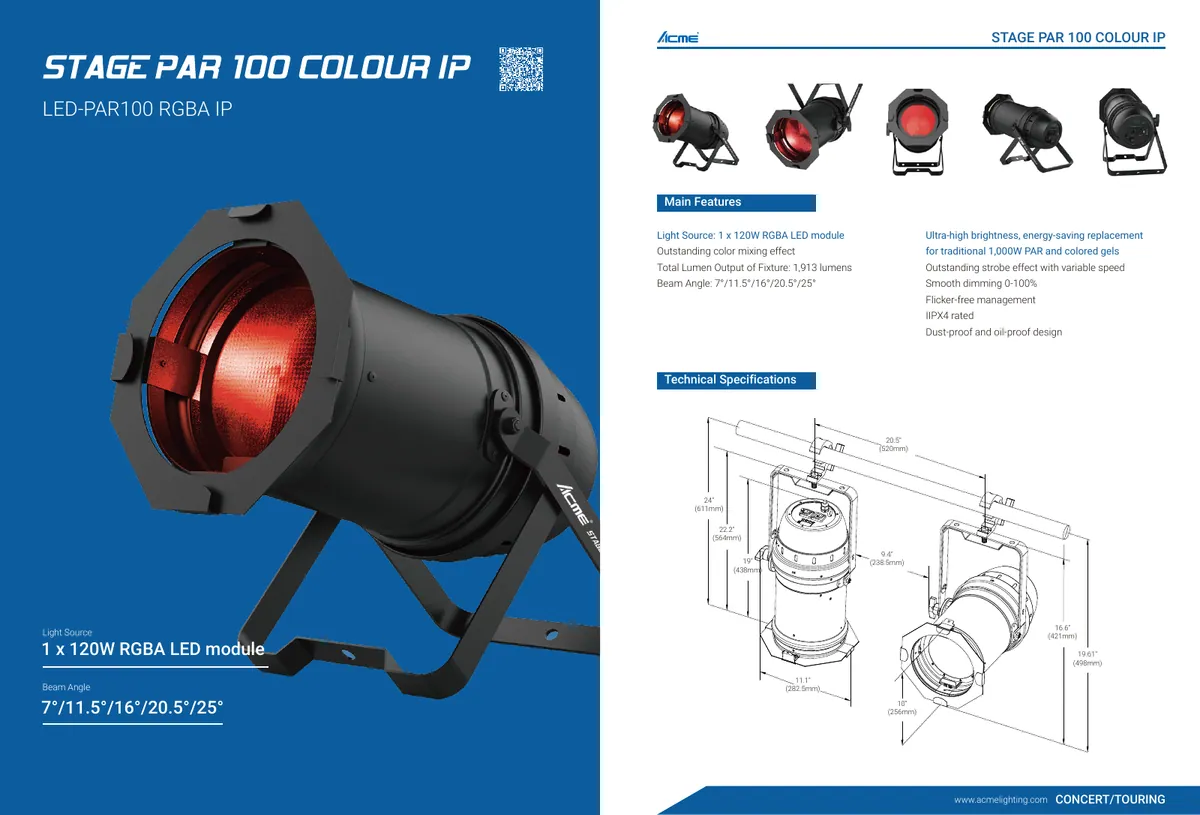

PDFDatasheetEN · 2 pages · 1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: STAGE PAR 100 COLOUR IP
Model Code: LED-PAR100 RGBA IP

02Light Source3

Light Source: 1x 120W RGBA LED module
Light Source Rated Life: 10,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 1,913 lumens

04Optical System1

Beam Angle: 7°/11.5°/16°/20.5°/25°

05Control6

4 touch button control panel
Protocols: DMX512,RDM
DMX Protocol Modes: 4
Control Channels: 4/6/7/8
Firmware Upgrade: Upgrade via DMX link; Power supply with electronic auto-ranging

06Pan & Tilt1

Dimmer: 16 bit

Show the full specificationHide the rest of the specification8 more groups · 30 values

07Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Outstanding color mixing effect

Ultra-high brightness, energy-saving replacement for traditional 1,000W PAR and colored gels

Dust-proof and oil-proof design

08Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 110W
Power In/Out: Power Cord out

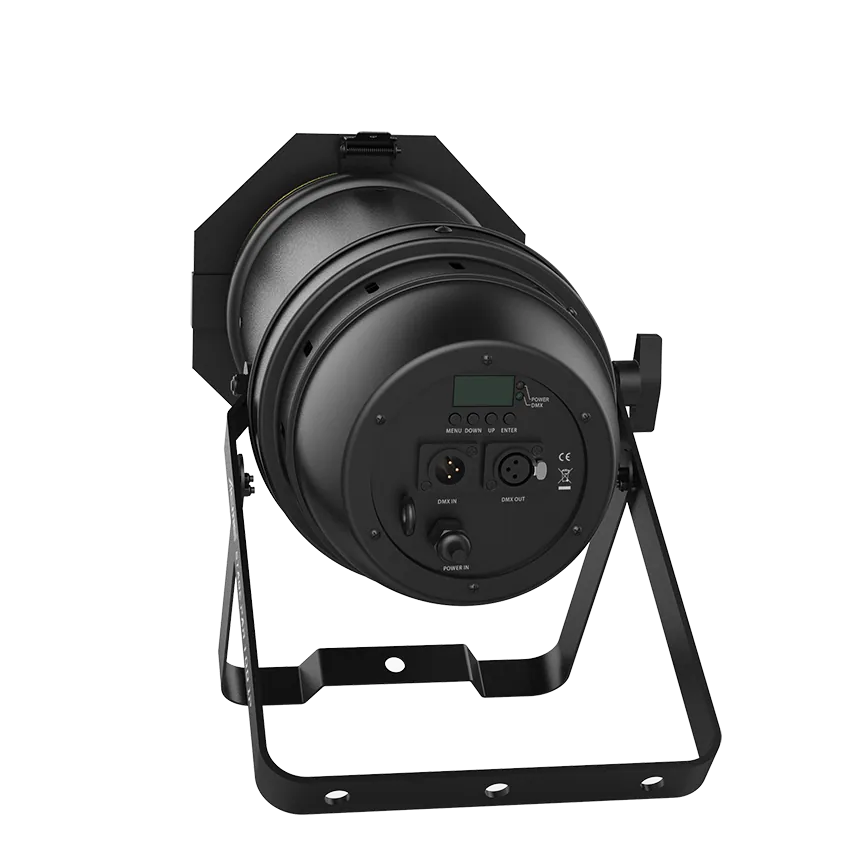

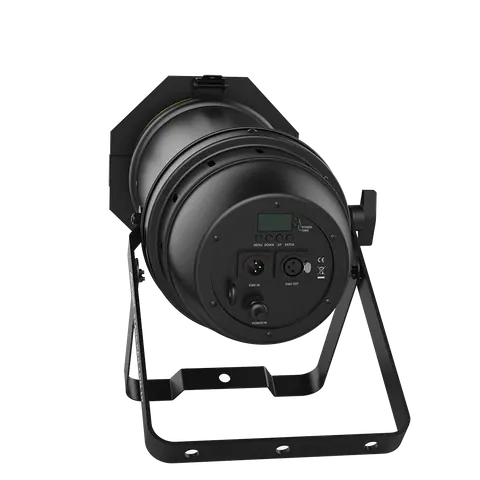

Data In/Out: 3-pin or 5-pin XLR

09Physical Information4

Fixture Dimensions
Width: 283 mm (11.1")
Depth: 256 mm (11.1")
Height: 564 mm (22.2")
Weight: 4.5 kg (9.9 lbs)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IPX4

11Approvals1

CE compliant

12Installation4

Horizontal or vertical mounting

Universal working position

Supporting feet with 3x locking points

Safety cable attachment point

13Included Items3

Digital user manual

Power cable

Color Frame

14Optional Accessories (With Order Code)5

Flight Case
Standard: Eight-pack loader case (63583821)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable
Barndoor: 63581138

02DescriptionManufacturer's description

What it is.

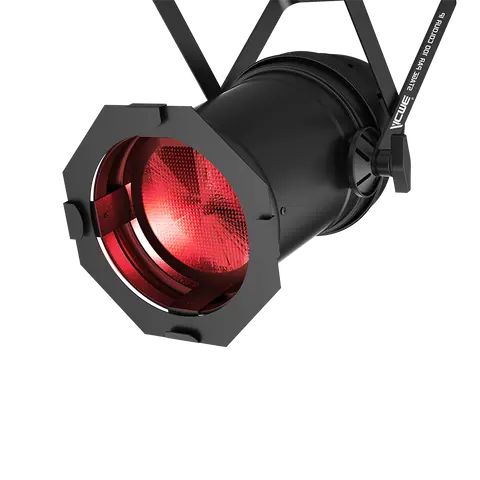

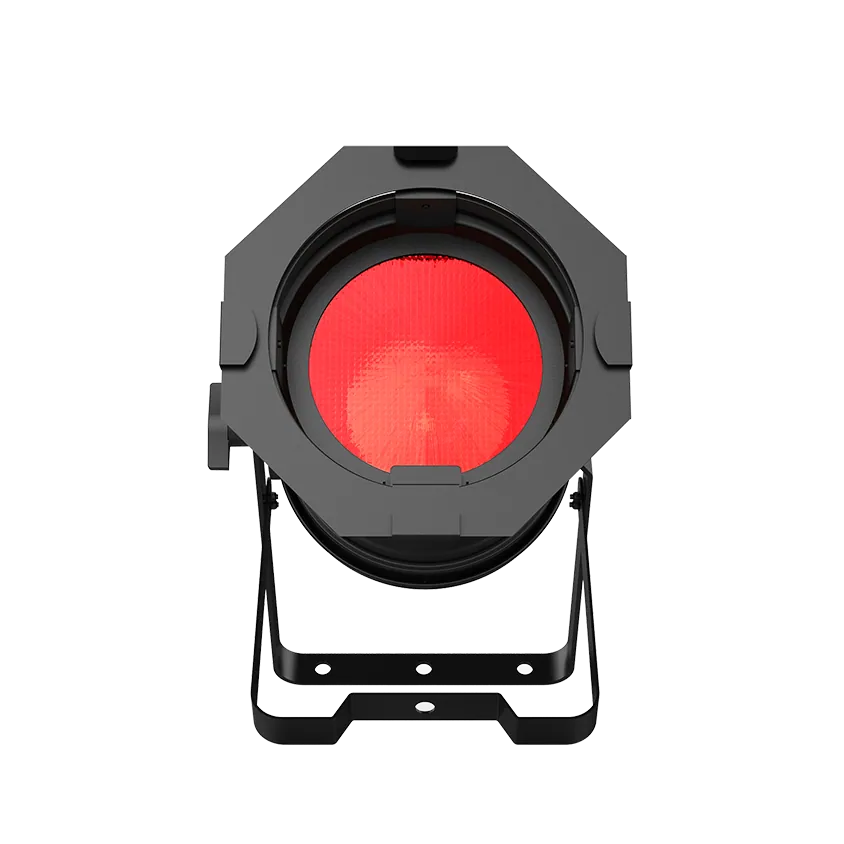

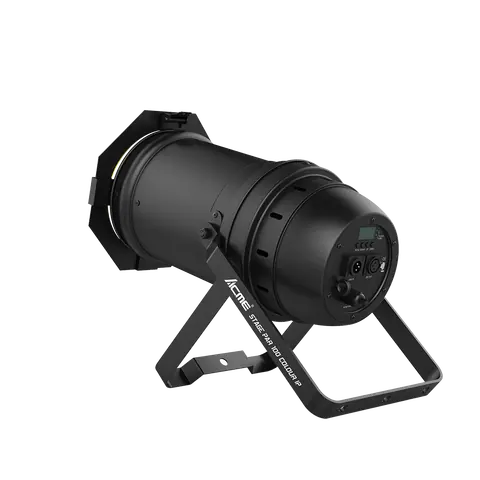

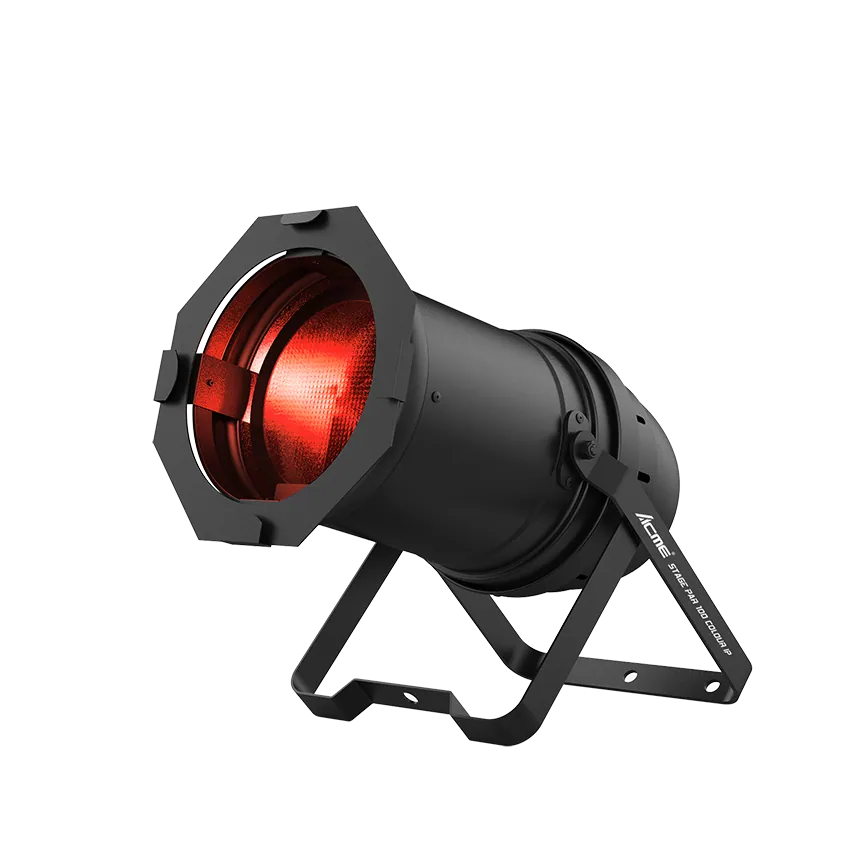

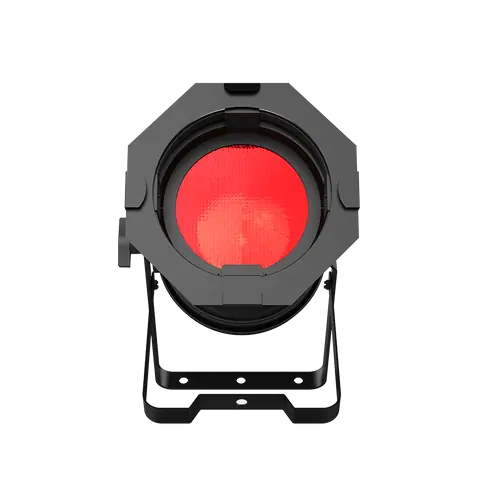

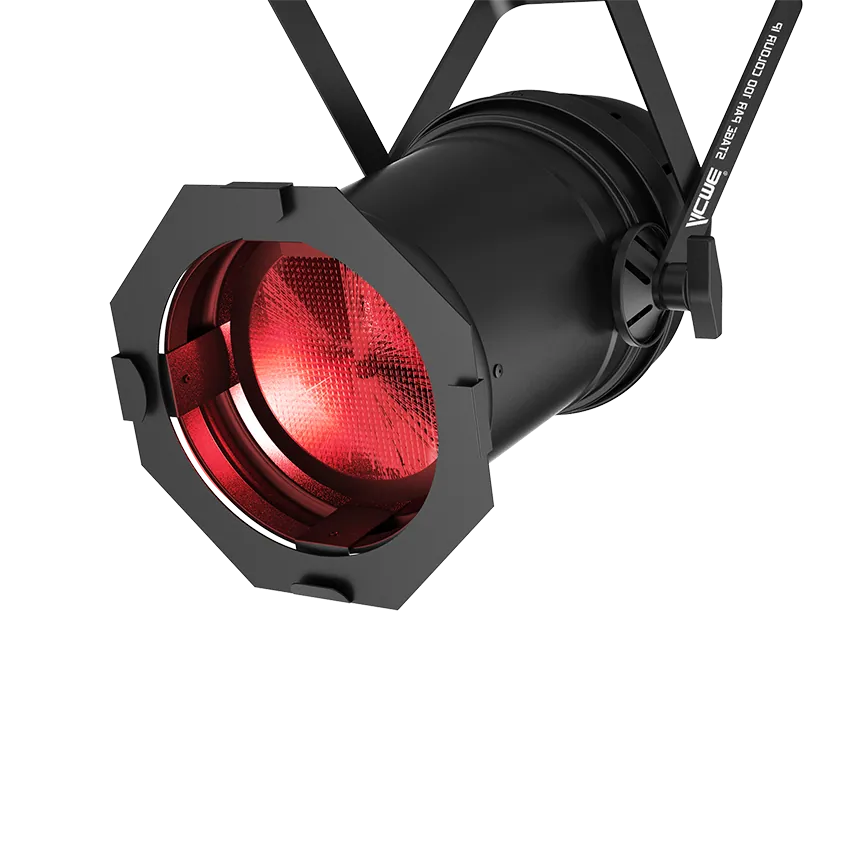

ACME's STAGE PAR 100 COLOUR IP features an RGBA LED light source, with ultra-high brightness and environmental protection. It is designed as an energy-saving replacement for the traditional 1000W PAR lamp, with its various colored gels. Its IPX4 protection rating provides all-round splash-proof protection. Small and portable, its double hanger design, manually switchable multiple beam angles, 0-100% smooth dimming and variable speed strobe effect make it suitable for a wide range of venues.
