Sheet 05.770
ACME · Effects and lasers
SKYTRK
ModelXL 850 BEAM IP

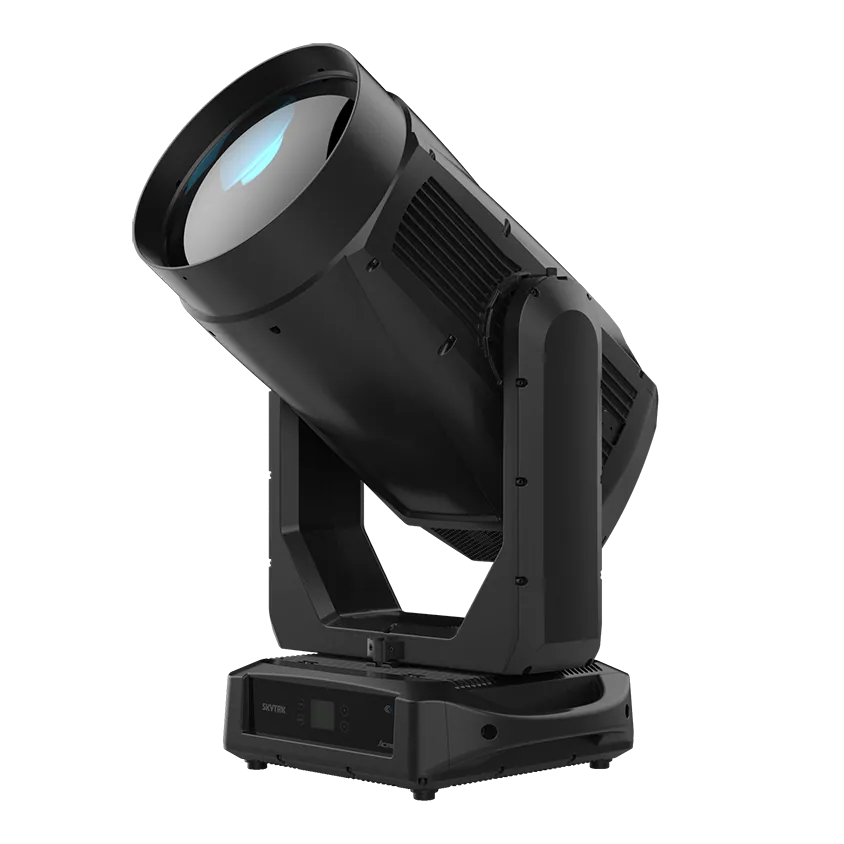

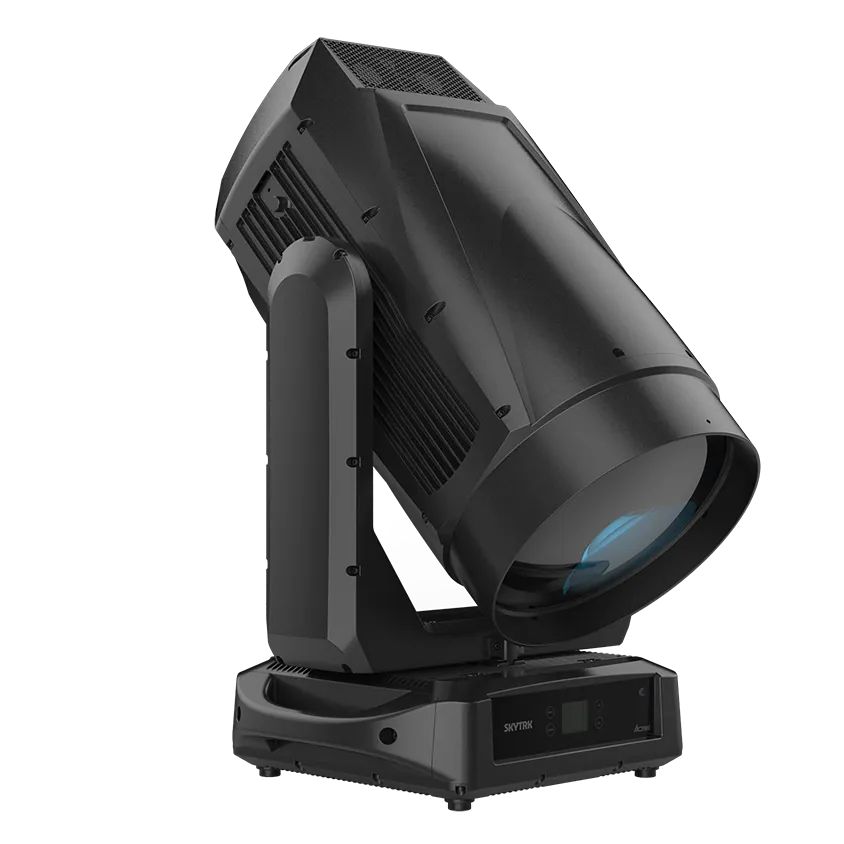

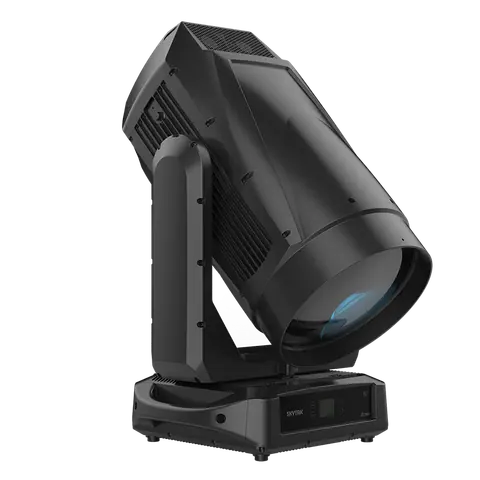

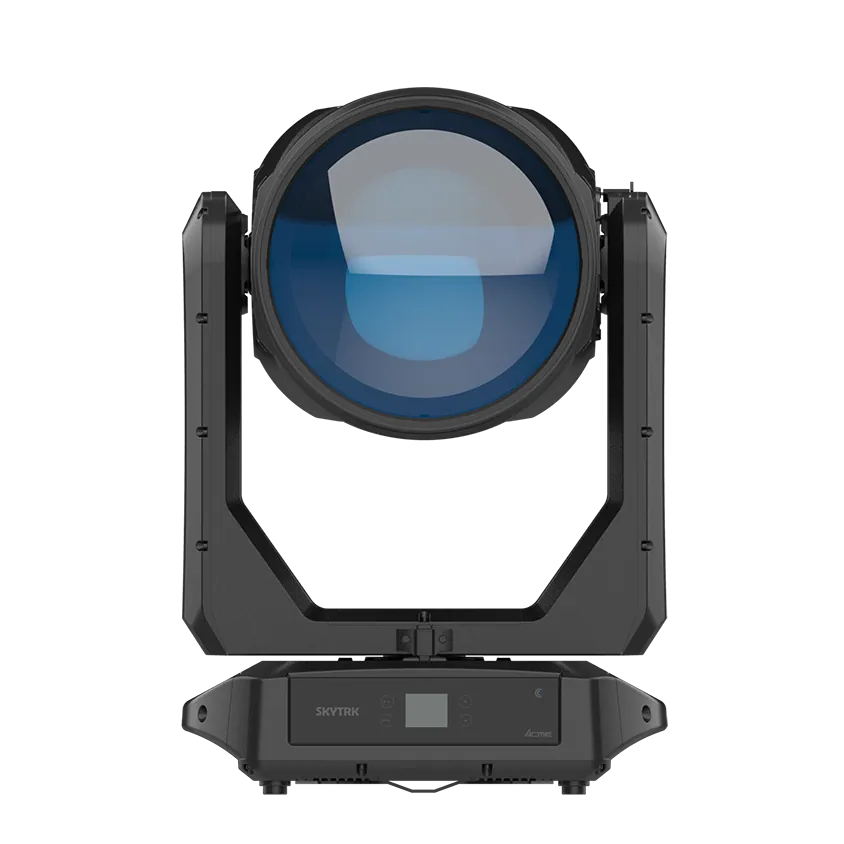

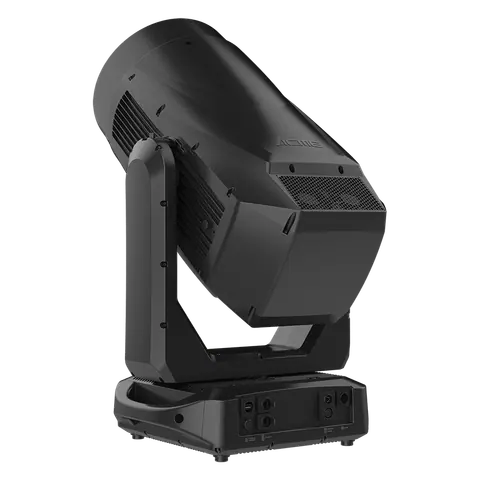

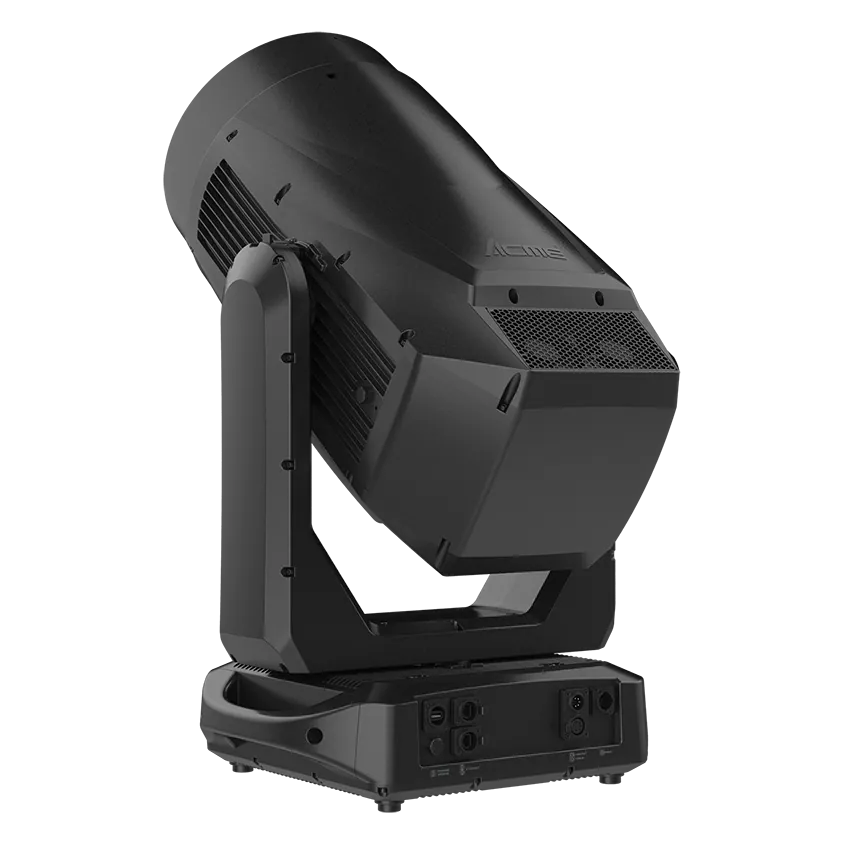

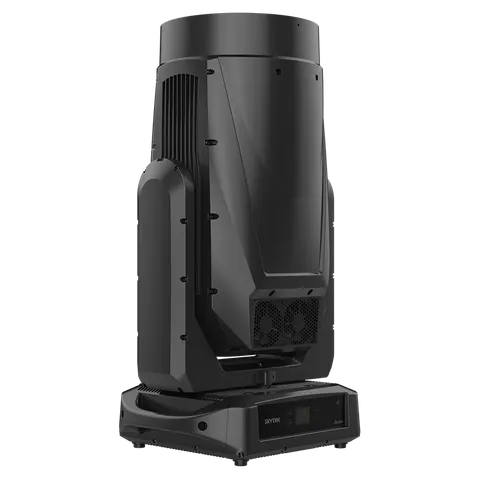

The ACME SKYTRK is a groundbreaking full-color laser searchlight, engineered to deliver intense output, exceptional precision, and chromatic finesse far beyond conventional beam fixtures.
- Light source
- 850W RGB full-color laser engine
- Power consumption
- 1,525W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP66
- Beam angle / zoom
- 0.5°
- DMX channels
- 23(CMY)/23(RGB)
- Protocols
- DMX512,RDM,Art-Net,sACN,NFC
- Colour temperature
- 6,000K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SKYTRKPrice on requestRequest a quotation
01SpecificationManufacturer's data · 18 groups · 64 values
What this product is, in numbers.

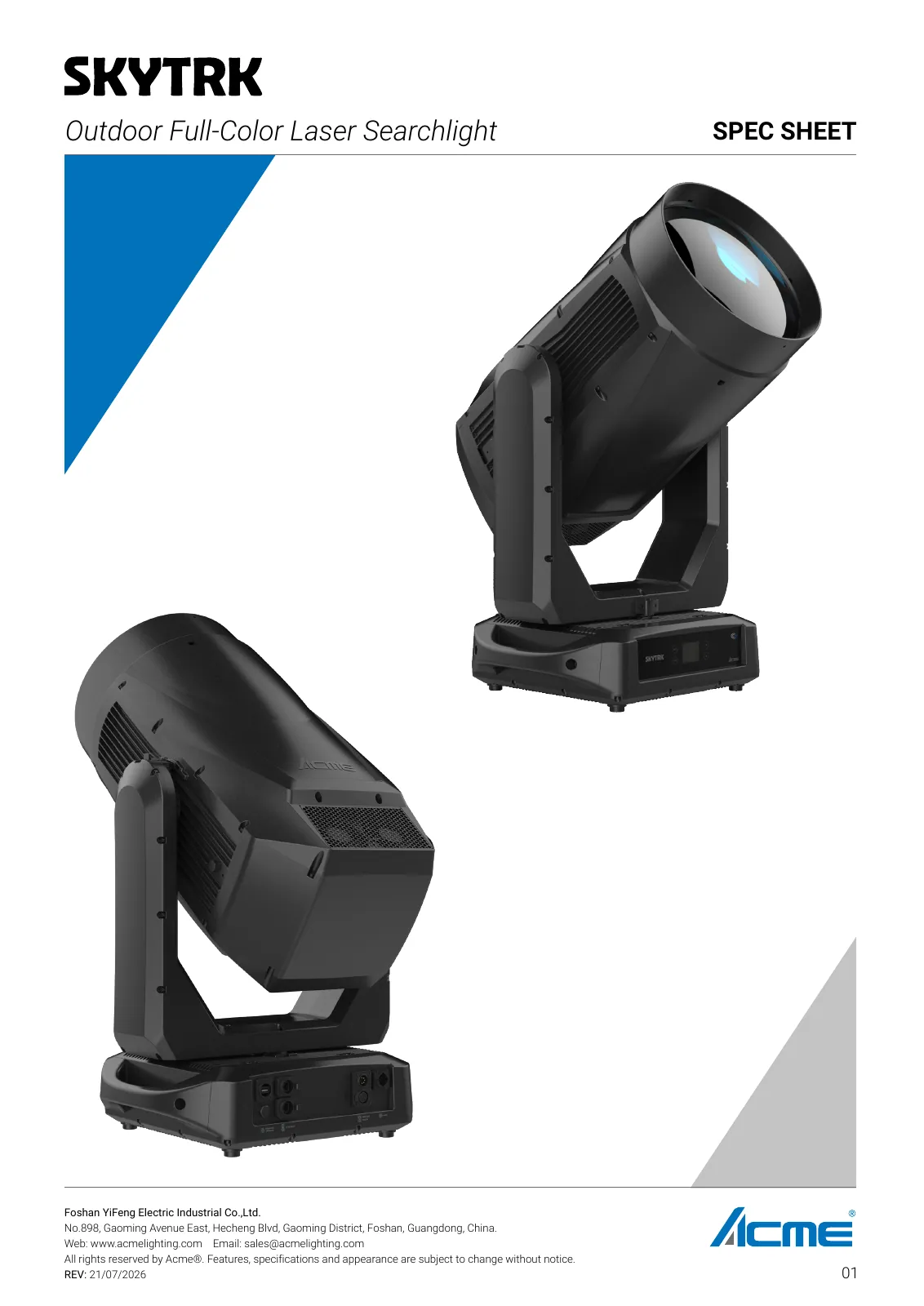

PDFDatasheetEN · 14 pages · 3.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- SKYTRK
- Model Code
- XL 850 BEAM IP
02Light Source4
- Light Source
- 850W RGB full-color laser engine
- Color Temperature Output of Fixture
- 6,000K
- Light Source Rated Life
- 12,000 hours*
- *Source manufacturer specification
03Photometric Data3
- Total Lumen Output of Fixture
- Auto Mode
- 22,100 lumens
- Quiet Mode
- 9,160 lumens
- Super Quiet Mode
- 3,520 lumens
04Optical System2
- Beam Angle
- 0.5°

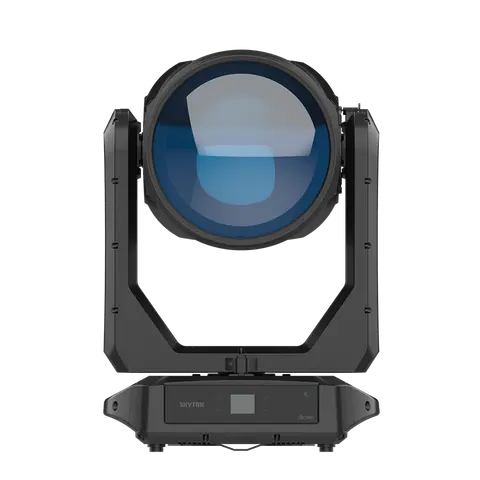

- Diameter of Frontal Lens
- 300 mm
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net,sACN,NFC
- DMX Protocol Modes
- 2
- Control Channels
- 23(CMY)/23(RGB)
- Firmware Upgrade
- Upgrade via DMX link or USB stick

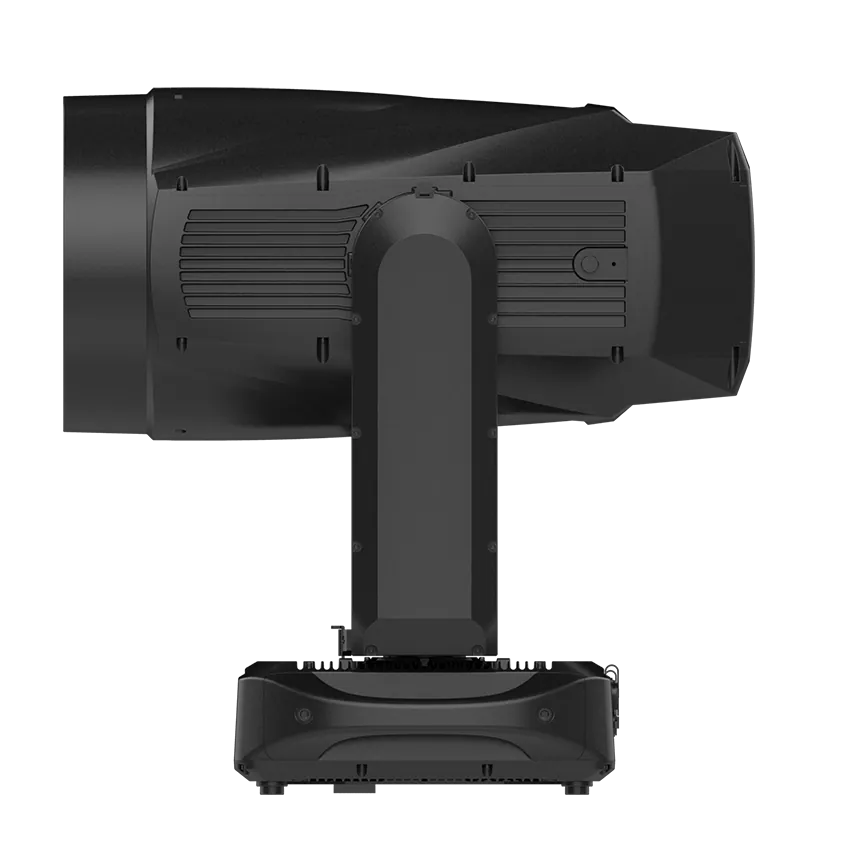

06Pan & Tilt5
- Pan Movement
- 540°
- Tilt Movement
- 270°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
- Pan/Tilt lock
Show the full specificationHide the rest of the specification12 more groups · 42 values
07Colors3
- Virtual CMY color mixing
- Virtual CTO
- 2500K-8000K
- Virtual Color Wheel
- 51 color presets
08Prism1
- 4 Combinable Rotating and Indexable Prisms
- 1 x 6-facet linear prism, 1 x 8-facet circular prism, 1 x 16-facet circular prism, 1 x multi-facet circular prism, rotatable and overlayable in both directions
09Other Effects3
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized focus system
10Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 1,525W
- Power In/Out
- Waterproof power connector in/out
- Data In/Out
- 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

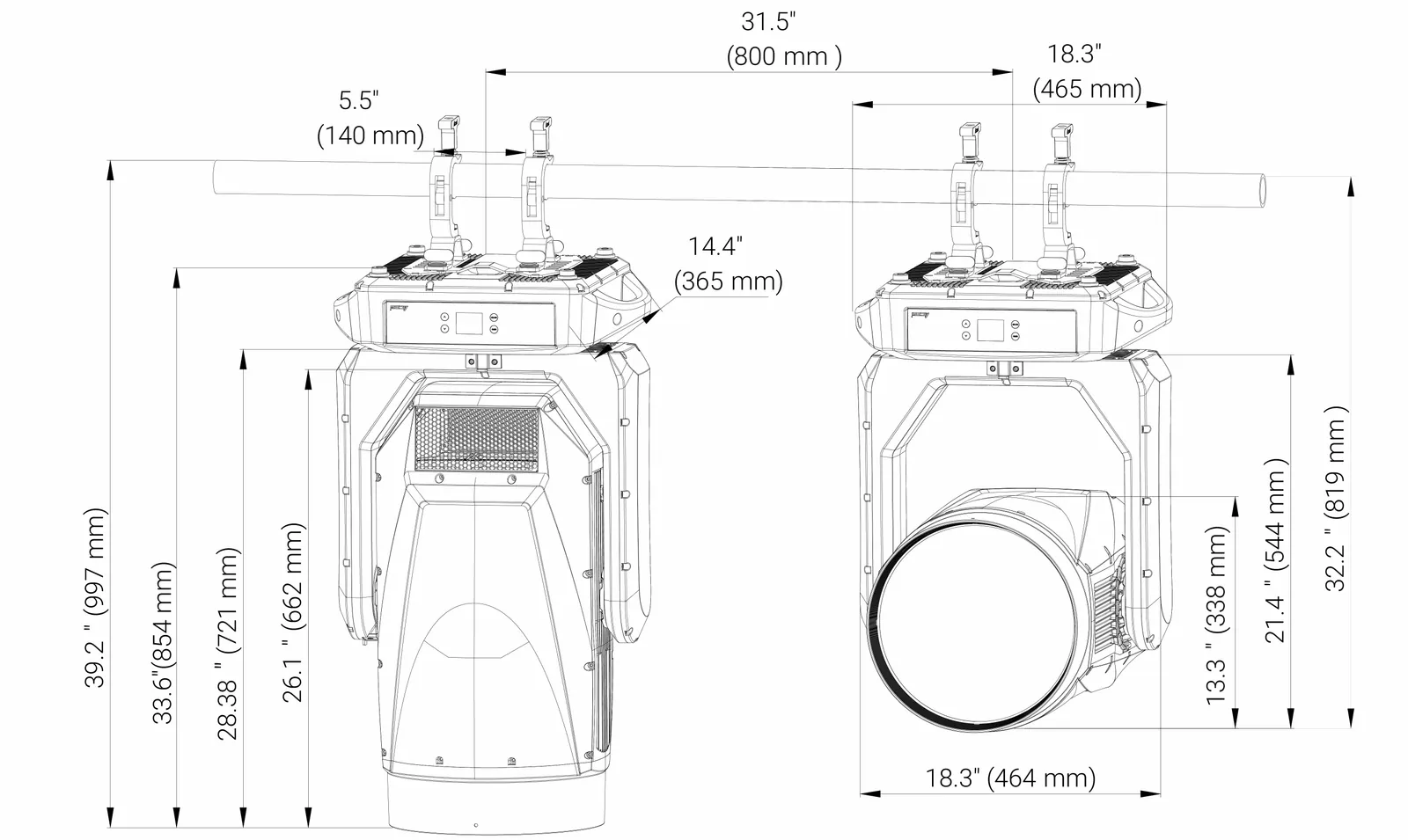

11Physical Information4
- Fixture Dimensions
- Width
- 465 mm (18.3")
- Depth
- 365 mm (14.3")
- Height
- 854 mm (33.6")
- Weight
- 59.5 kg (132.2 lbs)
12Packing Information8
- Flight Case Dimensions
- Width
- 810 mm (31.9")
- Depth
- 610 mm (24")
- Height
- 910 mm (35.8")
- Weight
- Standard
- G.W.: 115 kg (253.5 lbs) (one-pack loader case)
- Carton Dimensions
- Width
- 830 mm (32.7")
- Depth
- 570 mm (22.4")
- Height
- 855 mm (33.7")
- Weight
- G.W.
- 73 kg (160.9 lbs) (one-pack loader carton)
13Work Environment4
- Maximum Ambient Temperature
- 45°C
- Minimum Operating Temperature
- -20°C
- Maximum Surface Temperature
- 75°C
- Protection Rating
- IP66
14Approvals2
- CE compliant
- UKCA compliant
15Acoustic Data3
- Noise Level
- Auto Mode
- 47 dB(A) @ 1 m
- Quiet Mode
- 46 dB(A) @ 1 m
- Super Quiet Mode
- 45 dB(A) @ 1 m

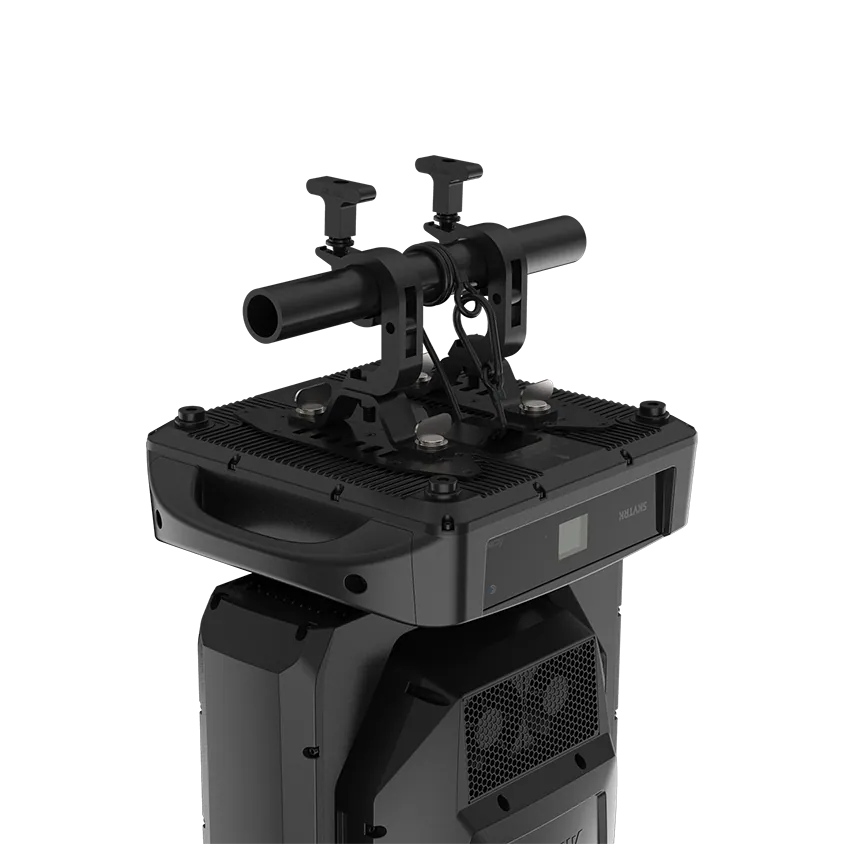

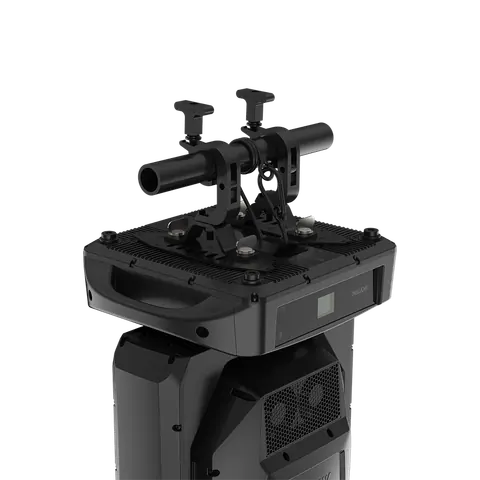

16Installation3
- Vertical mounting
- 2 omega brackets
- Safety cable attachment point
17Included Items3
- QR code on fixture to receive digital user manual
- Power cable
- 2 omega brackets (3002003002)
18Optional Accessories (With Order Code)4
- Flight Case
- Standard
- One-pack loader case (63584348)
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
02DescriptionManufacturer's description
What it is.
Powered by an 850W RGB full-color laser engine, the fixture produces 22,100 lumens of high-intensity light through an advanced optical system. At its heart is an ultra-large 300 mm frontal lens, projecting a razor-sharp 0.5° laser beam that cuts through the sky with unmatched clarity and saturated output. Its flexible moving-head design and precise positioning ensure wide coverage and dynamic transitions for any large-scale outdoor spectacle.
Color performance is equally advanced. The SKYTRK features a virtual color wheel with 51 color presets, a virtual CMY color mixing system, and a virtual CTO ranging from 2,500K to 8,000K. Whether you need deep primaries, delicate pastels, or precise color-temperature control, the fixture ensures smooth, expressive chromatic performance across all applications. Four combinable rotating prisms add layered aerial effects that expand creative possibilities.
Built into a rugged IP66-rated enclosure, the SKYTRK is perfect for large-scale shows, tours and live events, delivering laser-driven power, exceptional brightness, and limitless color creativity — even in the harshest outdoor conditions.
