Sheet 05.769

ACME · Effects and lasers

PULSAR S2

ModelCM S2

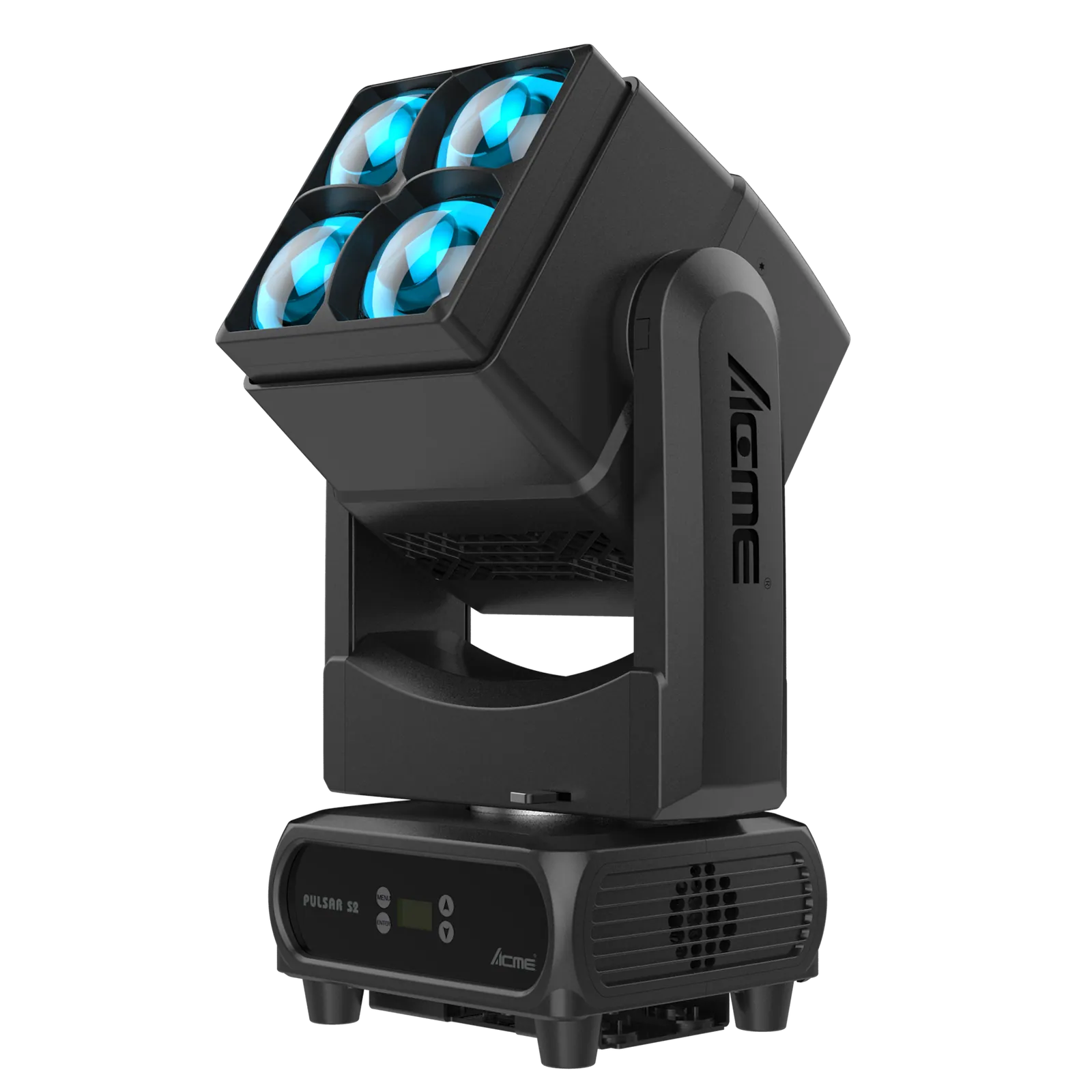

The ACME PULSAR S2 is a rugged, multi-effect moving head fixture in a small form factor that provides you with unlimited effects, washes, complimentary beams, and strobes in white light or saturated, rich colors.

Light source: 4 x 60W RGBW LEDs
Power consumption: 600W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
DMX channels: 21+/24/39/97
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 11 kg (23.4 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:25

ACME PULSAR S22:25

02SpecificationManufacturer's data · 16 groups · 75 values

What this product is, in numbers.

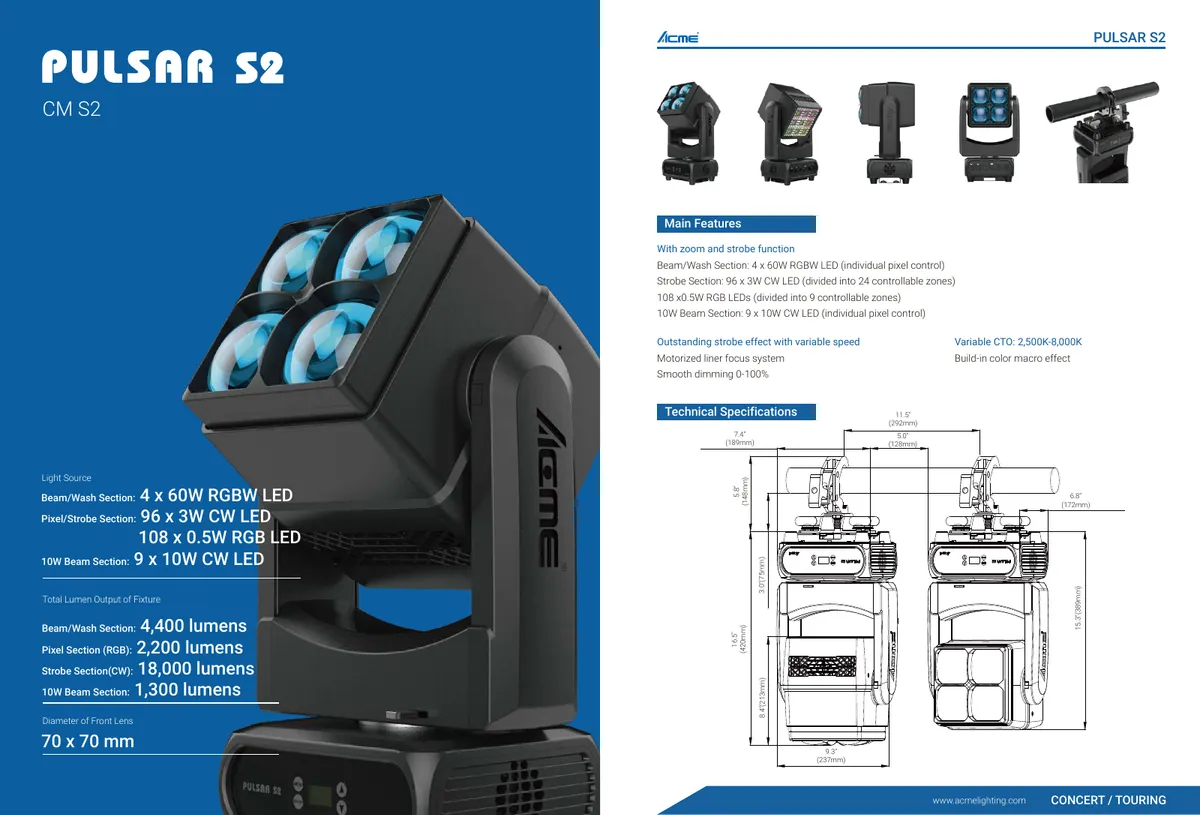

PDFDatasheetEN · 2 pages · 467 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: PULSAR S2
Model Code: CM S2

02Light Source6

Light Source
Beam/Wash: 4 x 60W RGBW LEDs
10W Beam: 9 x 10W CW LEDs
Strobe: 96 x 3W CW LEDs (divided into 24 controllable zones)
Pixel: 108 x 0.5W RGB LEDs (divided into 9 controllable zones)
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data4

Total Lumen Output of Fixture
Beam/Wash Section: 4,400 lumens
10W Beam: 1,300 lumens
Strobe: 18,000 lumens
Pixel: 2,200 lumens

04Optical System5

Beam Angle

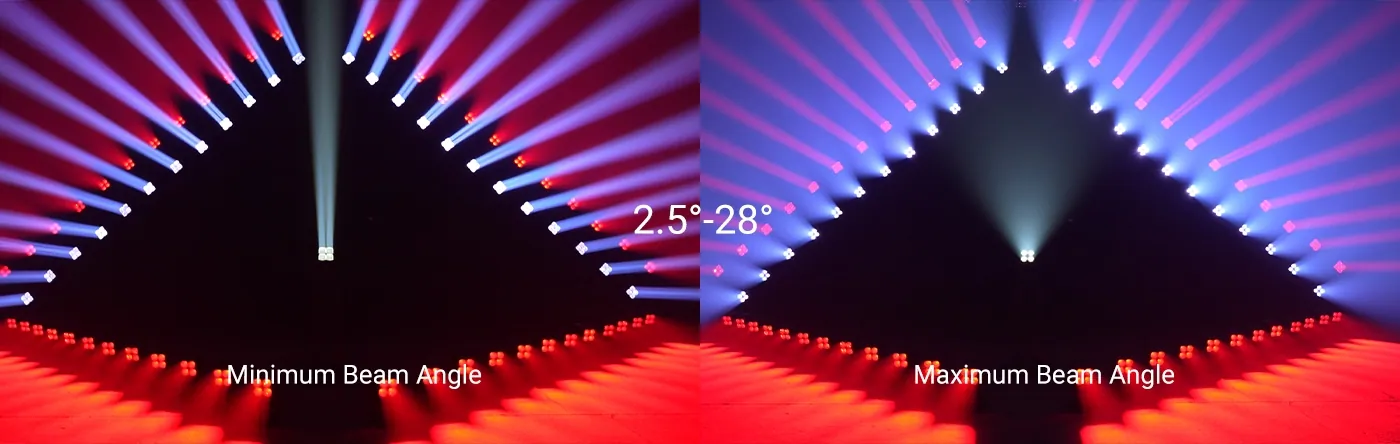

Beam/Wash: 2.5°-28°
10W Beam: 3.5°
Strobe: 108°
Pixel: 115°
Field Angle
Beam/Wash: 4.4°-36°

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 21+/24/39/97
Firmware Upgrade: Upgrade via DMX link

06Pan & Tilt5

Pan Movement: Infinite
Tilt Movement: Infinite; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification10 more groups · 47 values

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized zoom

Individual pixel control and built-in color macro effects

Wash and strobe functions

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 600W
Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

10Physical Information4

Fixture Dimensions
Width: 237 mm (9.3")
Depth: 176 mm (6.9")
Height: 383 mm (15.1")
Weight: 11 kg (23.4 lbs)

11Packing Information13

Flight Case Dimensions 1
Width: 1,025 mm (40.4")
Depth: 580 mm (22.8")
Height: 640 mm (25.2")
Weight
Standard: G.W.: 115 kg (253.5 lbs) (six-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 640 mm (25.2")
Weight
Standard: G.W.: 150 kg (330.7 lbs) (eight-pack loader case)
North American Standard: G.W.: 156 kg (343.9 lbs) (eight-pack loader case)
Carton Dimensions
Width: 365 mm (14.4")
Depth: 265 mm (10.4")
Height: 480 mm (18.9")
Weight
G.W.: 12 kg (26.5 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

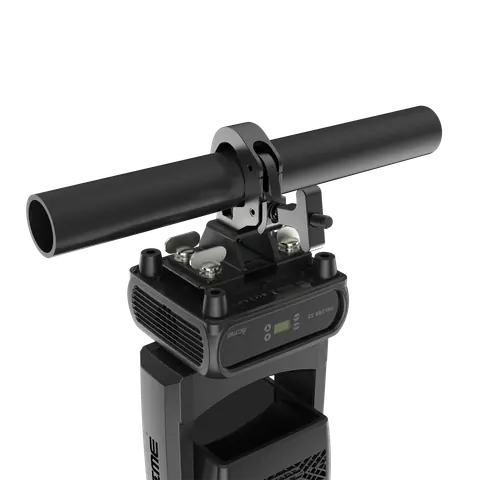

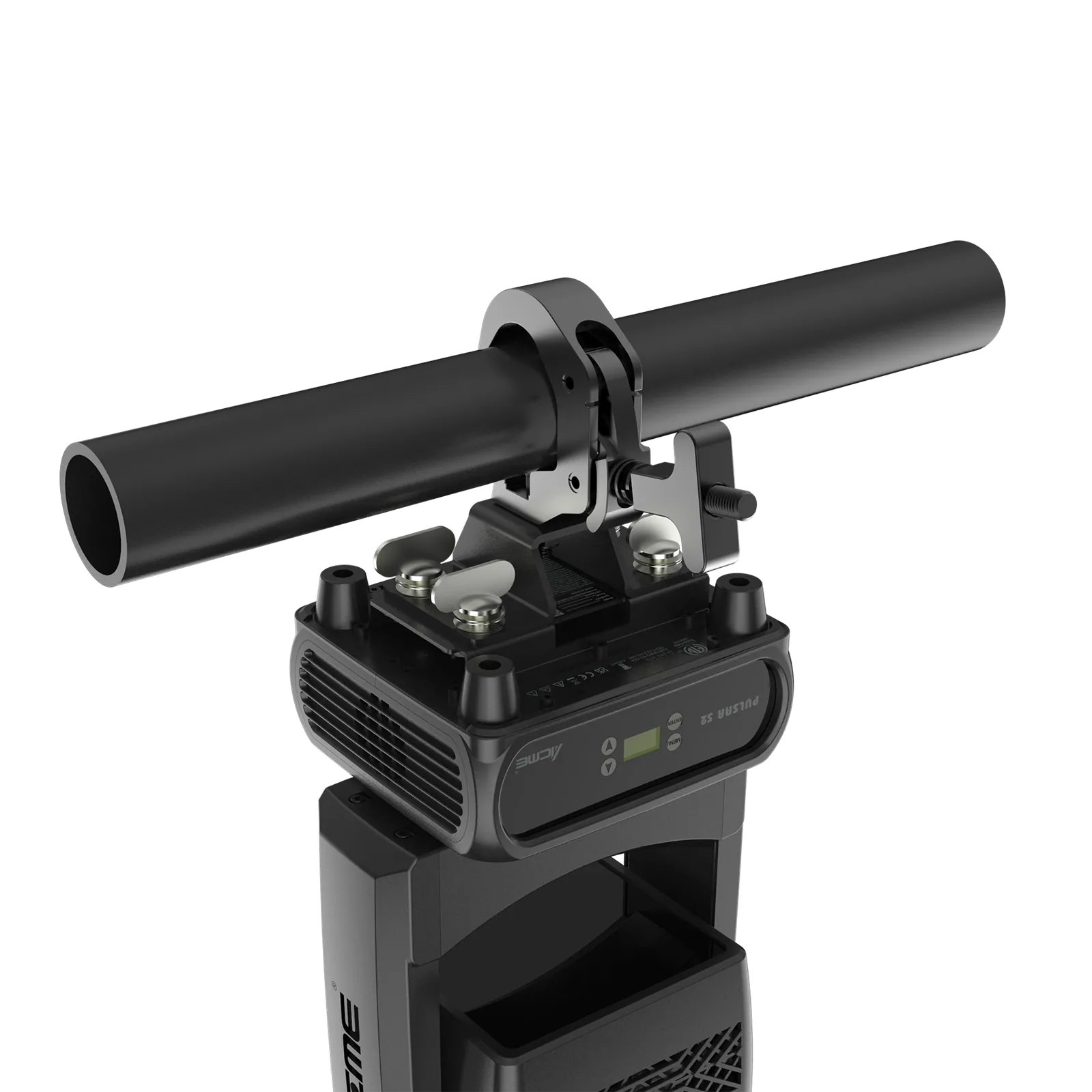

14Installation4

Horizontal or vertical mounting

Universal working position

1 omega bracket

Safety cable attachment point

15Included Items3

Digital user manual

Power cable

1 omega bracket (63583372)

16Optional Accessories (With Order Code)6

Flight Case 1
Standard: Six-pack loader case (63583578)
Flight Case 2
Standard: Eight-pack loader case (63583735)
North American Standard: Eight-pack loader case (63583200)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable

03DescriptionManufacturer's description

What it is.

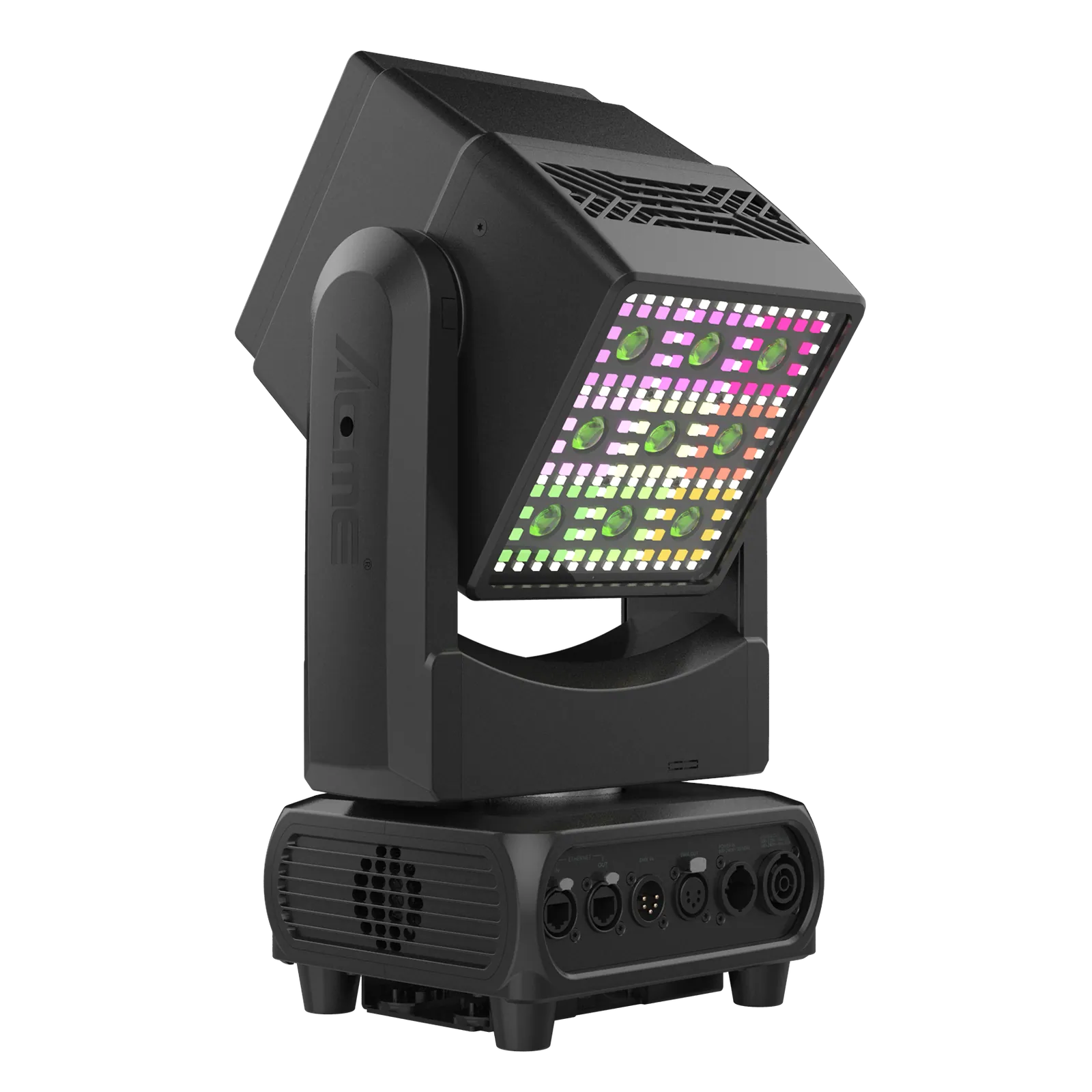

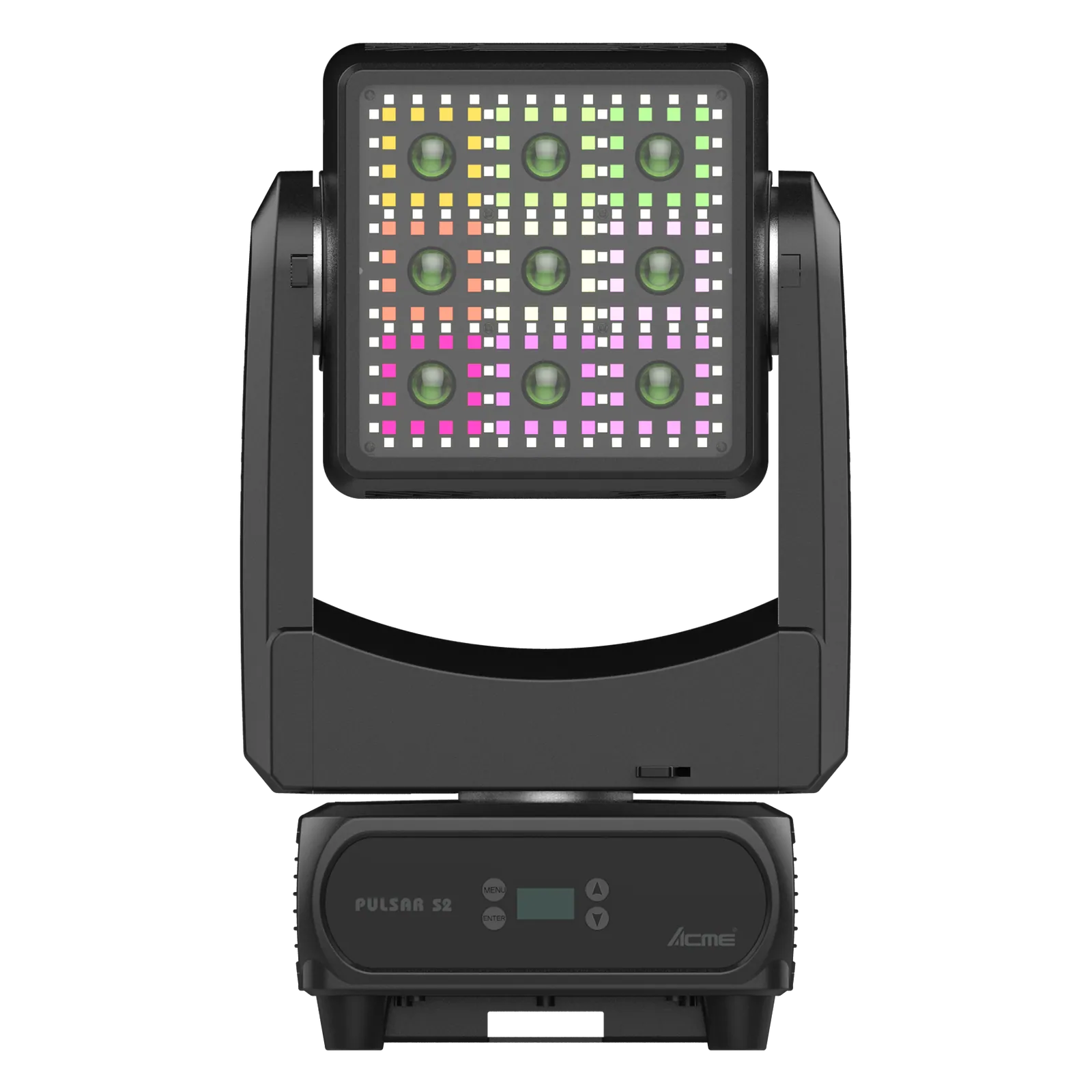

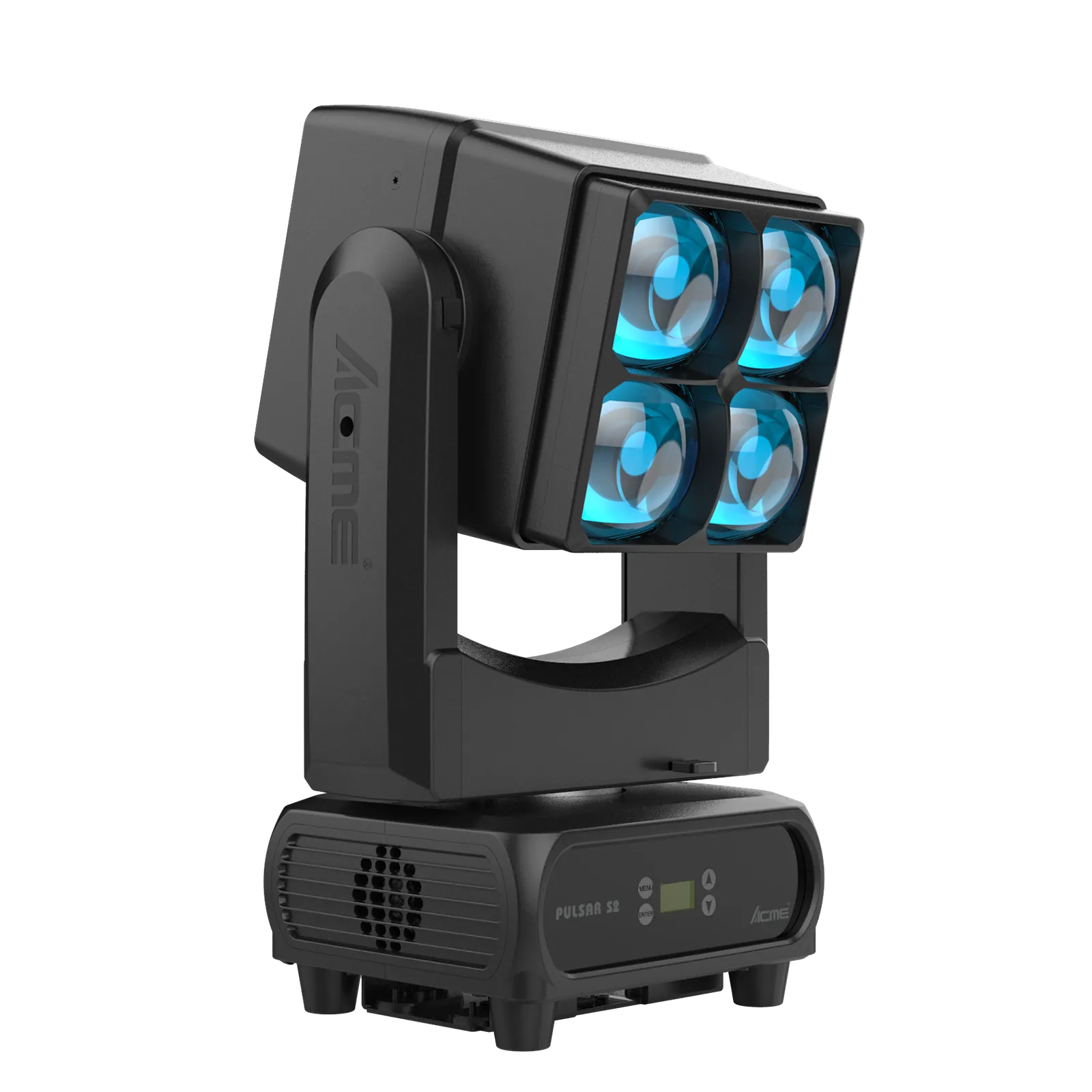

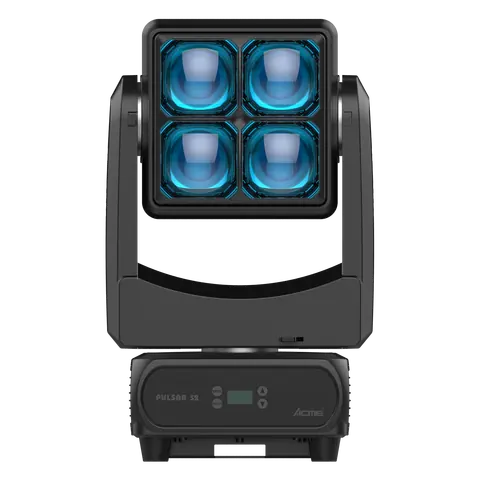

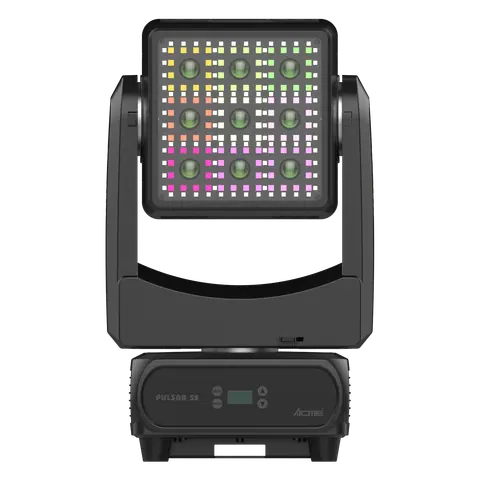

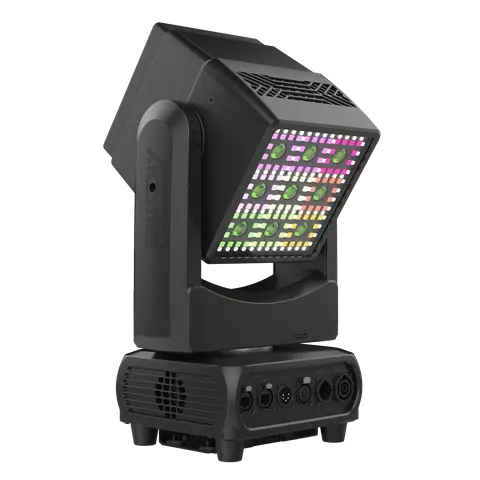

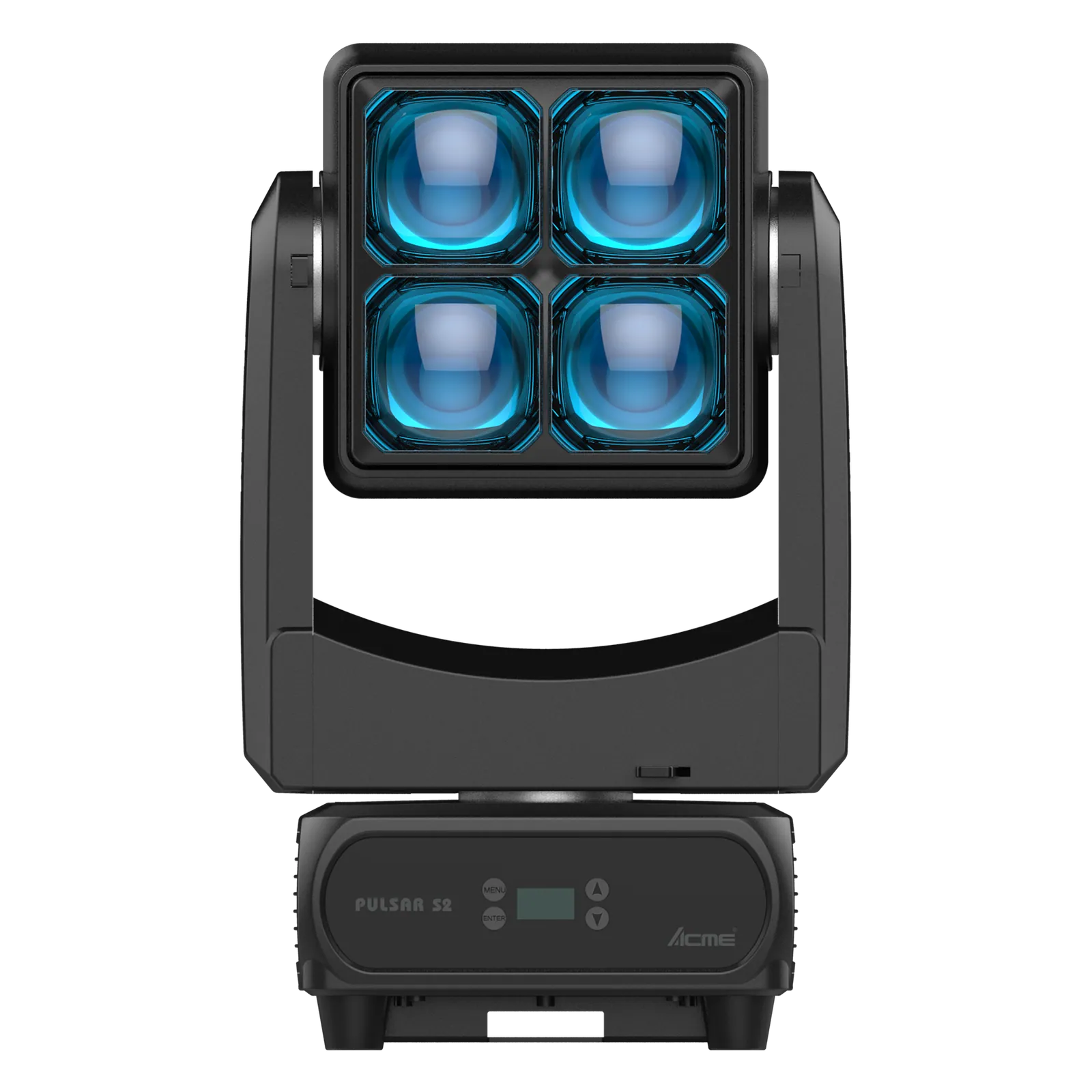

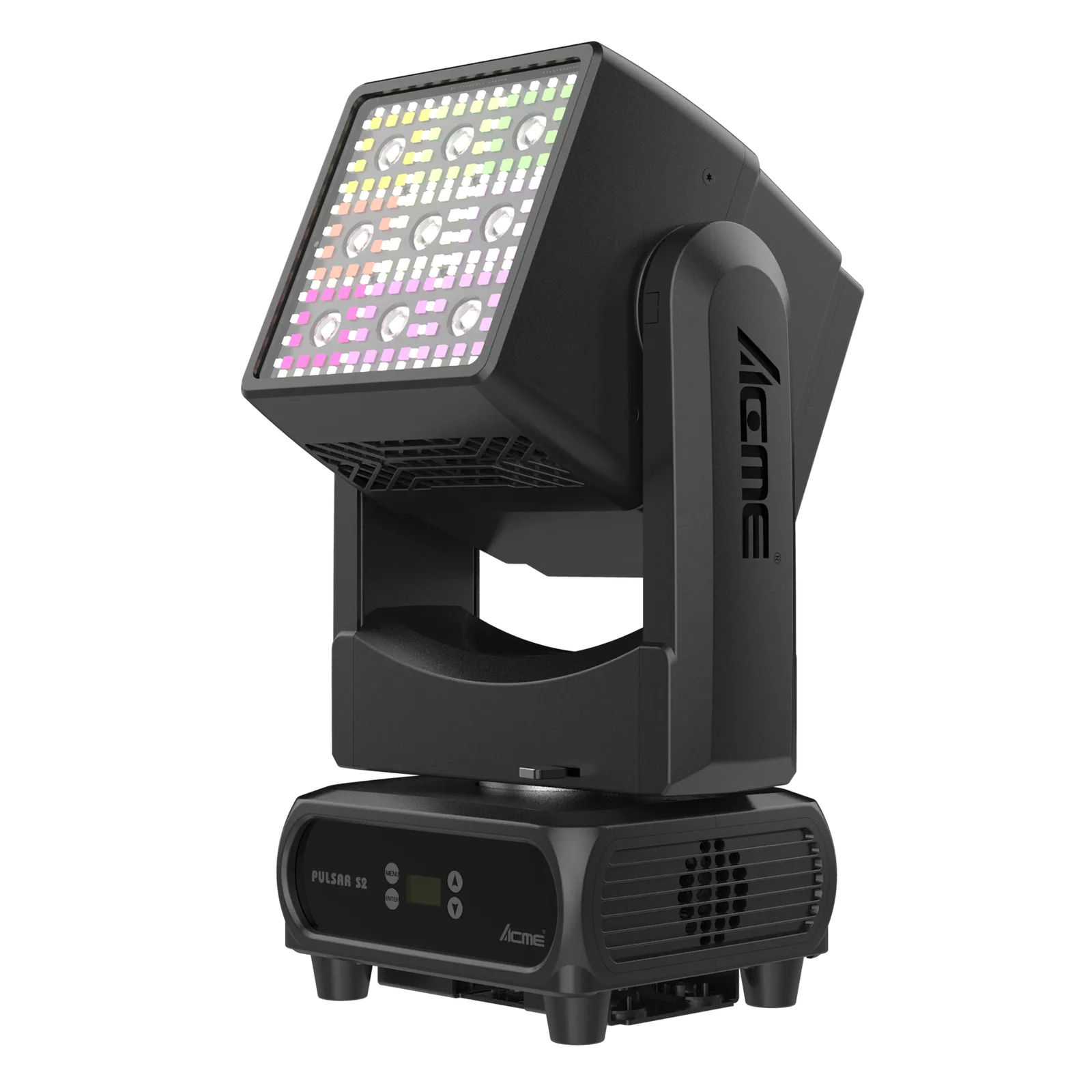

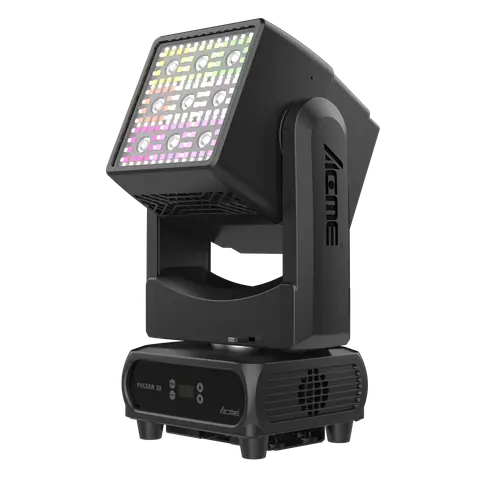

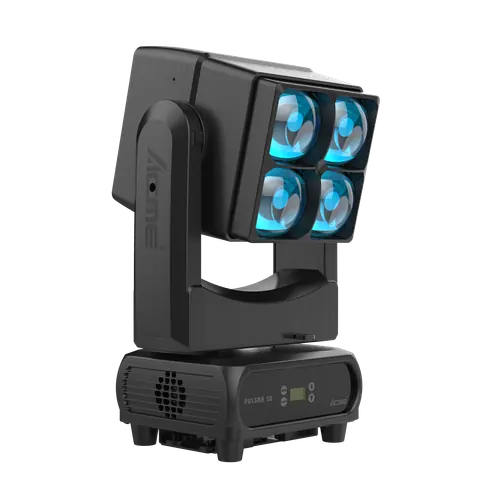

The PULSAR S2 has powerful beams and strobe effects with its dual head design. The front of the luminaire's head has four 60-Watt RGBW LEDs for beams and uniform washes via the fixture's 2.5° to 28° zoom range. The rear of the fixture's head features 96 3-Watt cool white LEDs, 108 0.5-Watt RGB LEDs, and 9 10-Watt cool white LEDs. The rear of the head has a 100° field angle in pixel strobe section and a tight 3.5° angle for well-defined , mid-air beams.

The PULSAR S2 fixture offers four different DMX control modes from basic operation to sophisticated individual pixel-control effects. For users wanting simpler control, the unit has preprogrammed colors and macros with popular colors and eye-catching effects saving you programming time. The front of the fixture features four different control zones and the rear up to twenty-four.

In addition to its powerful effects and strobes, the PULSAR S2 has infinite pan and tilt operation making it like no other fixture on the market. The unit is lightweight and compact and is perfect for any application from touring to fixed installations and everything in between.

The PULSAR S2 is part of the next generation of powerful effects fixtures by ACME Lighting.
