Sheet 05.774
ACME · Effects and lasers
SUPER DOTLINE
ModelTB 1060

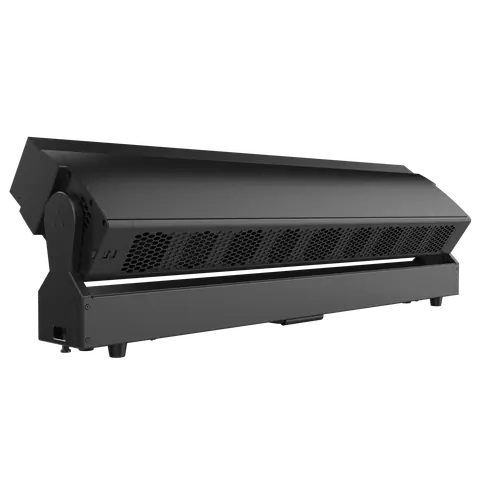

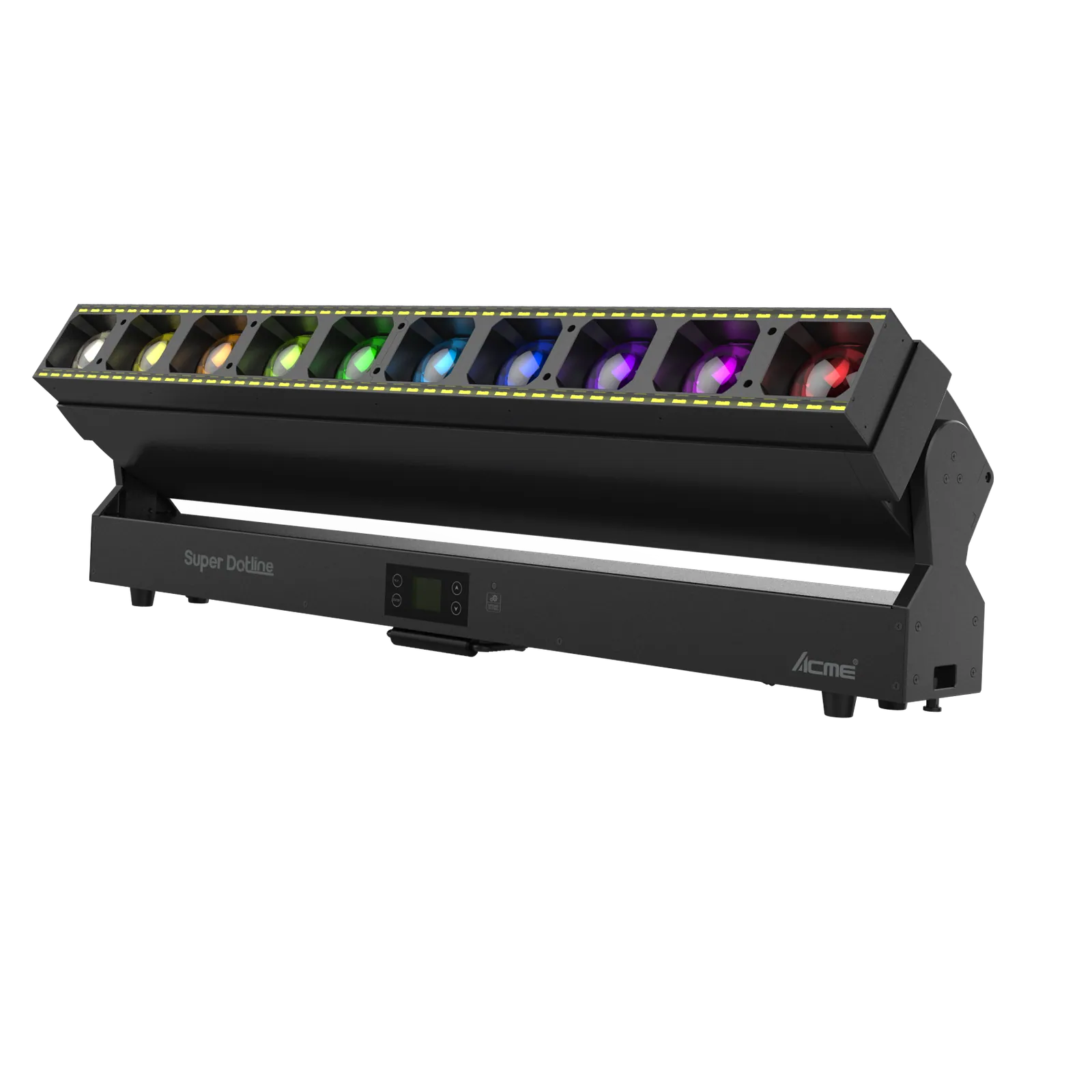

The ACME SUPER DOTLINE is a powerful bar light that offers several operational modes for creating unique effects and looks. Whether your needs are for beams, washes, or strobes, the SUPER DOTLINE does all in this versatile fixture, perfect for any production.
- Light source
- 10 x 60W RGBW LEDs
- Power consumption
- 1,155W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- Beam angle / zoom
- 2.8°-31°
- DMX channels
- 17/27/99/108/168/8+100/8+160/21
- Protocols
- DMX512,RDM,Art-Net,sACN
- Net weight
- 24 kg (52.9 lbs)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SUPER DOTLINEPrice on requestRequest a quotation
01VideoManufacturer's video · 2:36
ACME SUPER DOTLINE: the manufacturer's video
02SpecificationManufacturer's data · 15 groups · 60 values
What this product is, in numbers.

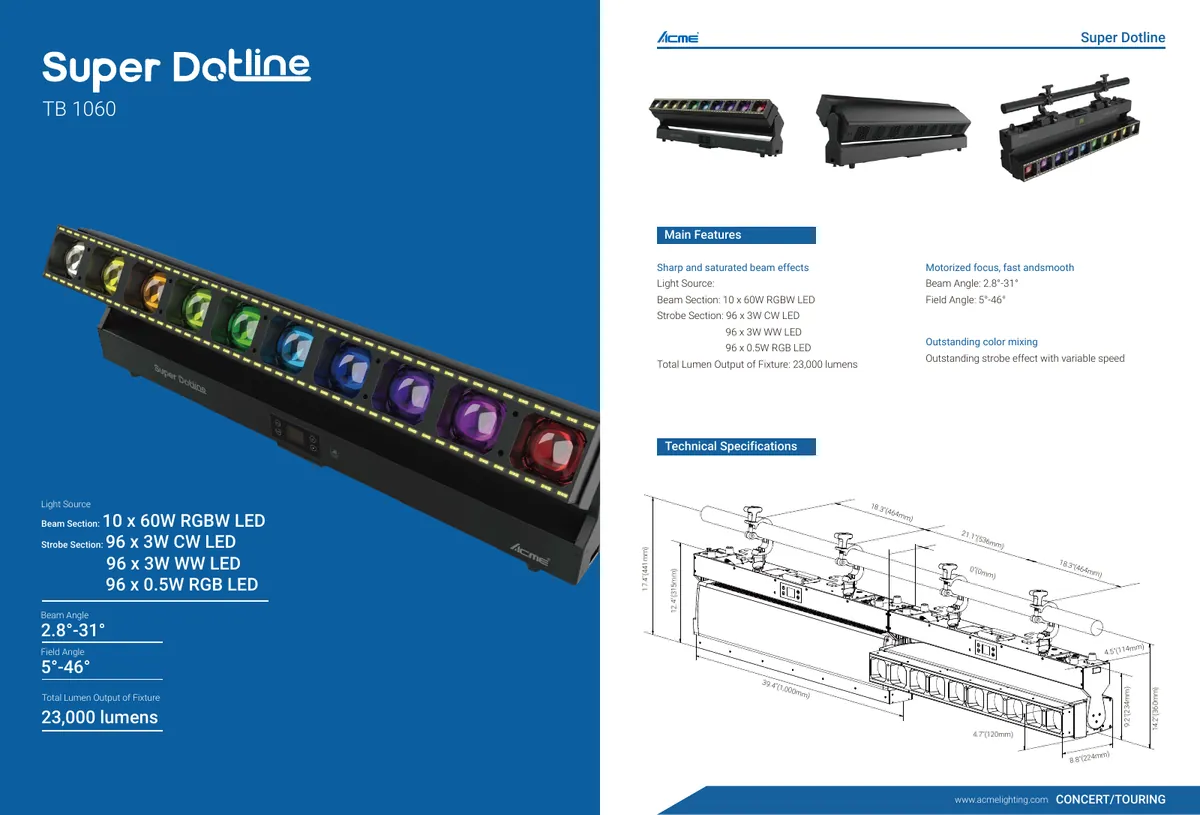

PDFDatasheetEN · 2 pages · 510 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- SUPER DOTLINE
- Model Code
- TB 1060
02Light Source9
- Light Source
- Main Light Section
- 10 x 60W RGBW LEDs
- Strip Light Section
- 96 x 3W CW LEDs
- Strip Light Section
- 96 x 3W WW LEDs
- Strip Light Section
- 96 x 0.5W RGB LEDs
- Color Temperature Output of Fixture
- Main Light (White)
- 6,300K
- Strip Light (Cool White)
- 6,000-7,000K
- Strip Light (Warm White)
- 2,600-2,900K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data1
- Total Lumen Output of Fixture
- 23,000 lumens
04Optical System2

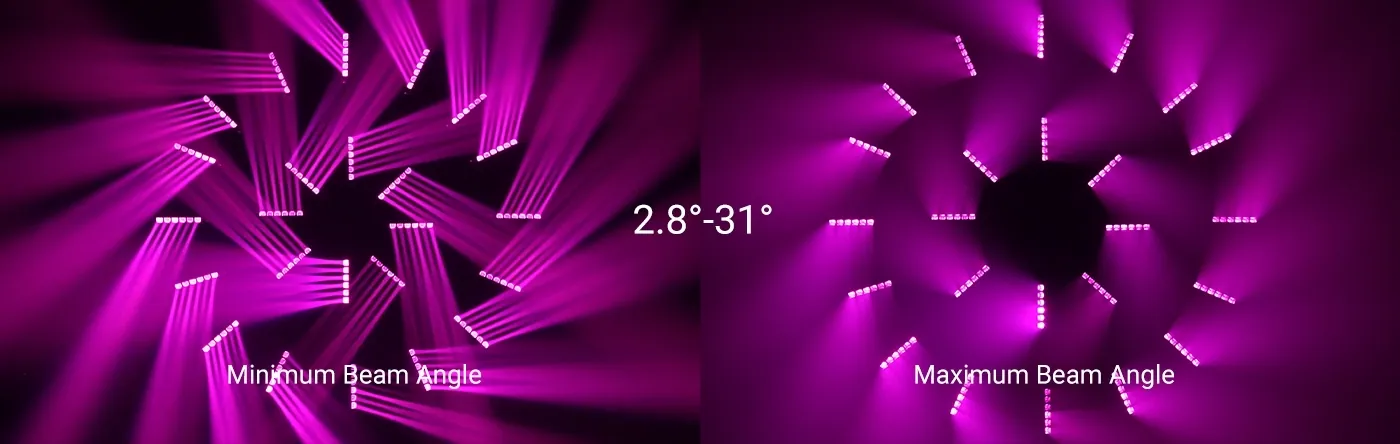

- Beam Angle
- 2.8°-31°

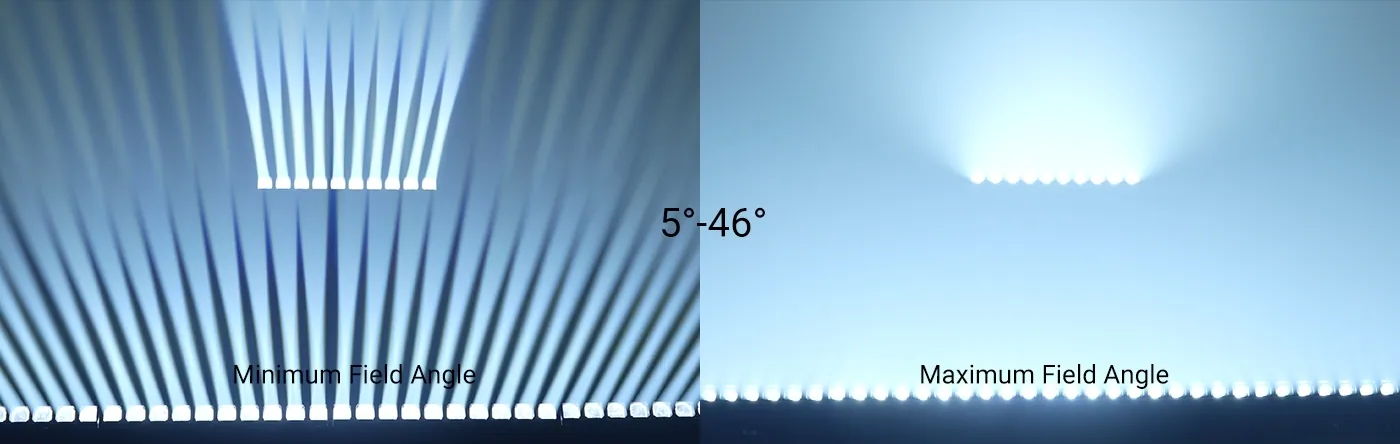

- Field Angle
- 5°-46°
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes
- 8
- Control Channels
- 17/27/99/108/168/8+100/8+160/21
- Firmware Upgrade
- Upgrade via DMX link
06Pan & Tilt2
- Tilt Movement
- 202°
- Pan/Tilt lock
Show the full specificationHide the rest of the specification9 more groups · 38 values
07Other Effects2
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
08Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 1,155W
- Power In/Out
- Power connector in/out
- Data In/Out
- 3-pin or 5-pin XLR,RJ45 connector
09Physical Information4
- Fixture Dimensions
- Width
- 1,000 mm (39.4")
- Depth
- 290 mm (11.4")
- Height
- 120 mm (4.7")
- Weight
- 24 kg (52.9 lbs)
10Packing Information9
- Flight Case Dimensions
- Width
- 1,220 mm (48.0")
- Depth
- 810 mm (32.0")
- Height
- 730 mm (28.7")
- Weight
- Standard
- G.W.: 175 kg (385.8 lbs) (four-pack loader case)
- North American Standard
- G.W.: 177.2 kg (390.7 lbs) (four-pack loader case)
- Carton Dimensions
- Width
- 1,200 mm (47.2")
- Depth
- 400 mm (15.7")
- Height
- 245 mm (9.6")
- Weight
- G.W.
- 27 kg (60 lbs) (one-pack loader carton)
11Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP20
12Approvals3
- CE compliant
- UKCA compliant
- cETLus compliant
13Installation4
- Horizontal or vertical mounting
- Universal working position
- 2 omega brackets
- Safety cable attachment point
14Included Items3
- Digital user manual
- Power cable
- 2 omega brackets (63583023)
15Optional Accessories (With Order Code)5
- Flight Case
- Standard
- Four-pack loader case (63582989)
- North American Standard
- Four-pack loader case (63583046)
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin or 5-pin signal cable
03DescriptionManufacturer's description
What it is.

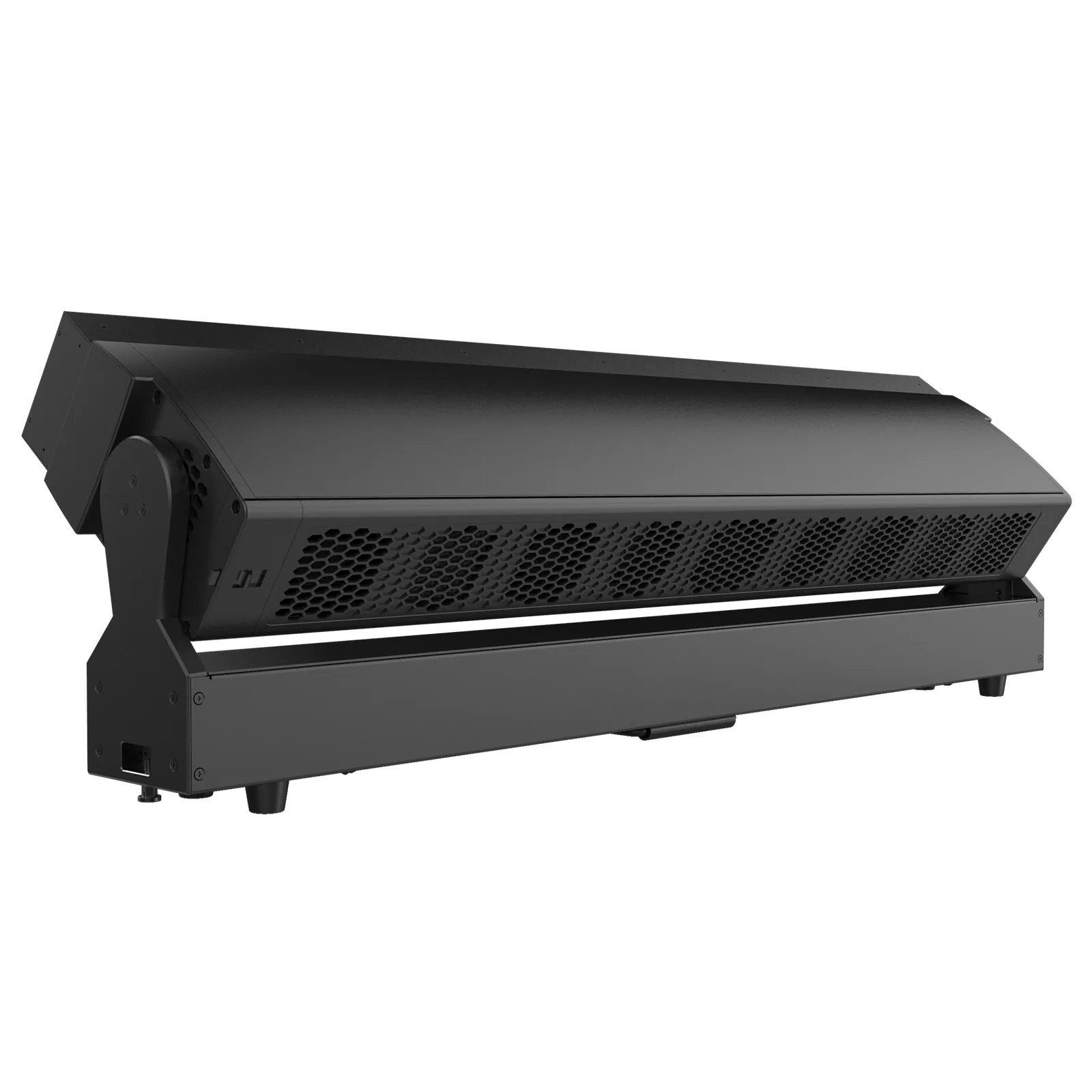

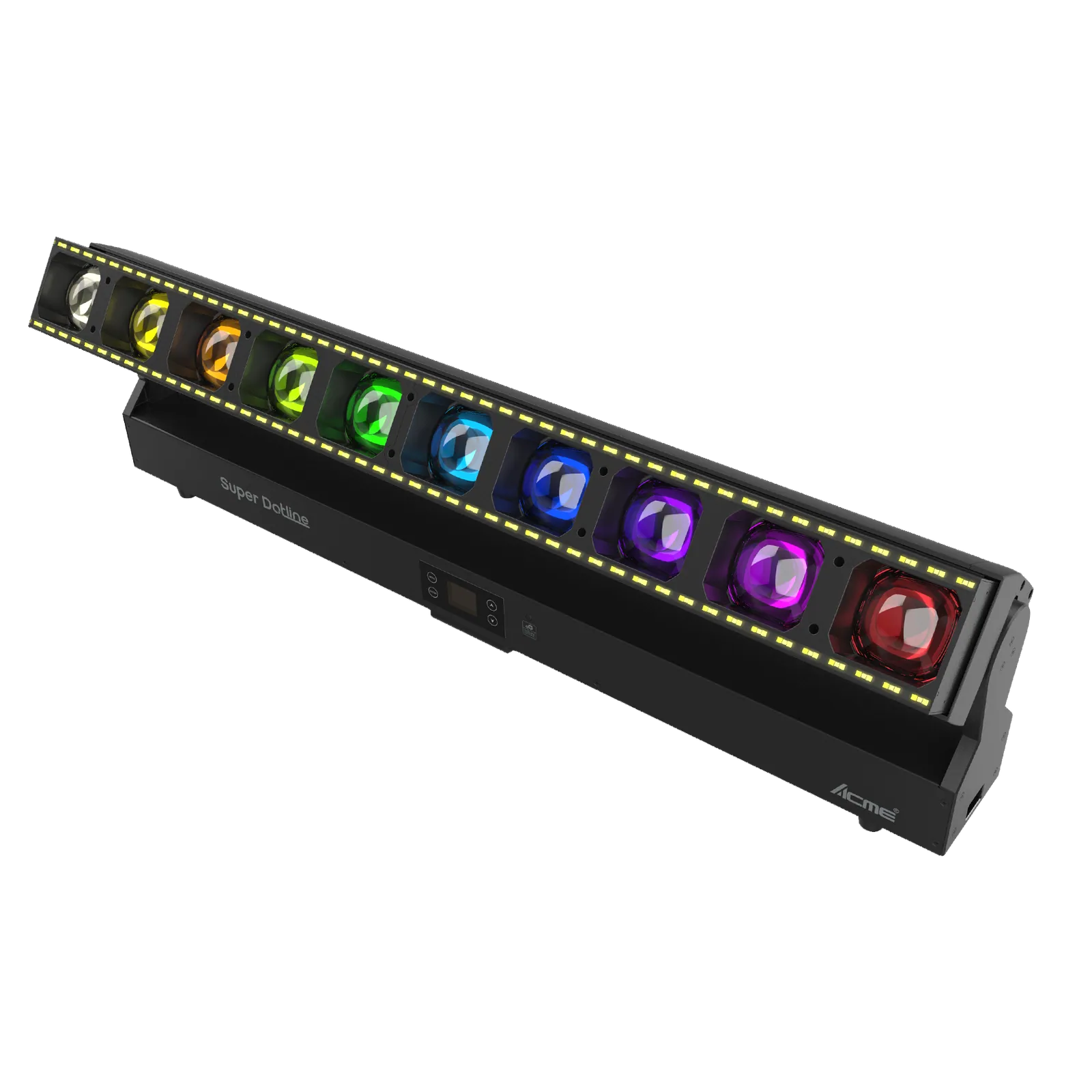

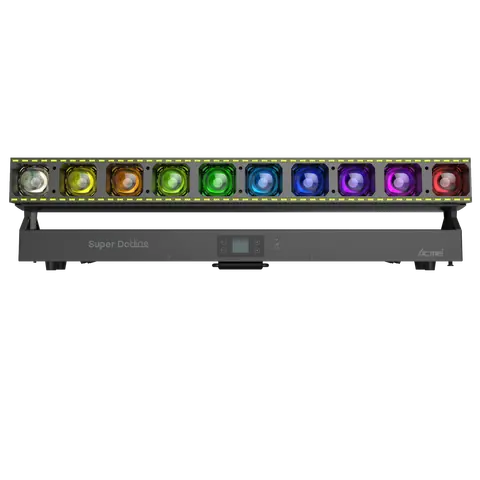

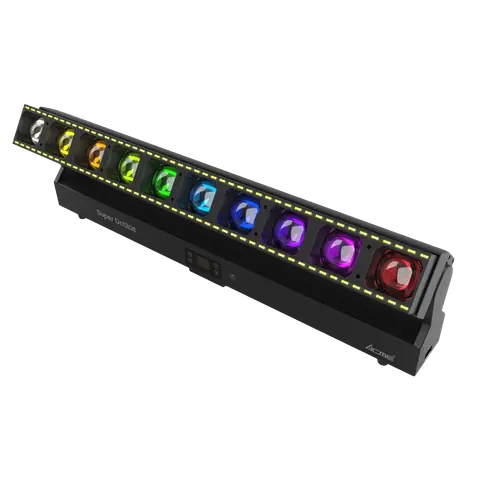

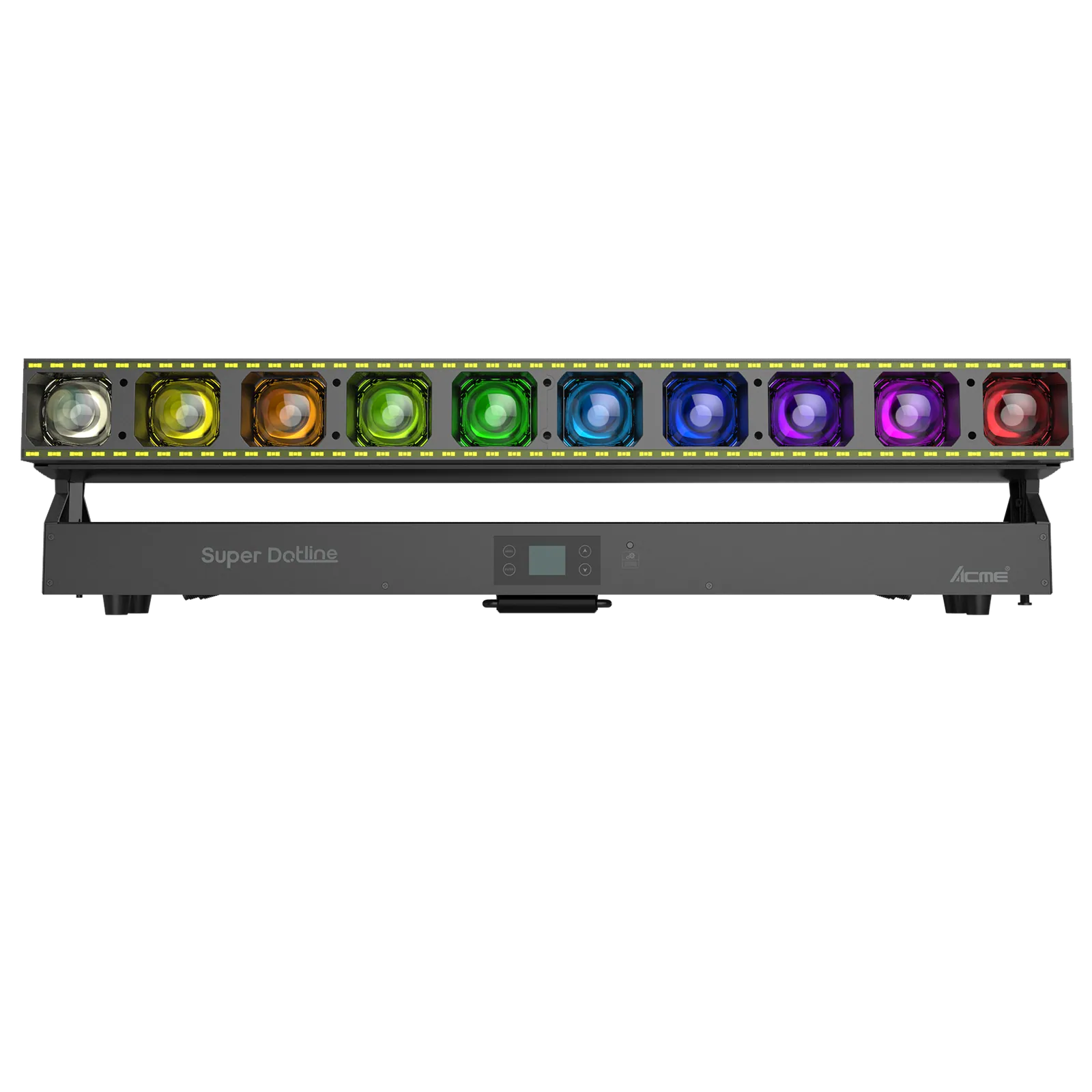

The SUPER DOTLINE fixture's main section has ten RGBW 60W LEDs and the strip light portion of the fixtures has 96 3W cool white LEDs, 96 3W warm white LEDs, and 96 0.5W RGB LEDs and is capable of an output of 23,000 lumens. The strip light section has control over 12 individual zones on one side to create the looks you want.
The fixture offers eight DMX control modes allowing you to decide how you wish to control the unit. The SUPER DOTLINE also offers preprogrammed effects macros and colors for time-saving programming and features a motorized zoom with beam angle of 2.8° to 31° ( main section) and field angle of 5° to 46° (strip section) and produces uniform beams and washes. The fixture's motorized tilt range is a wide 202° .

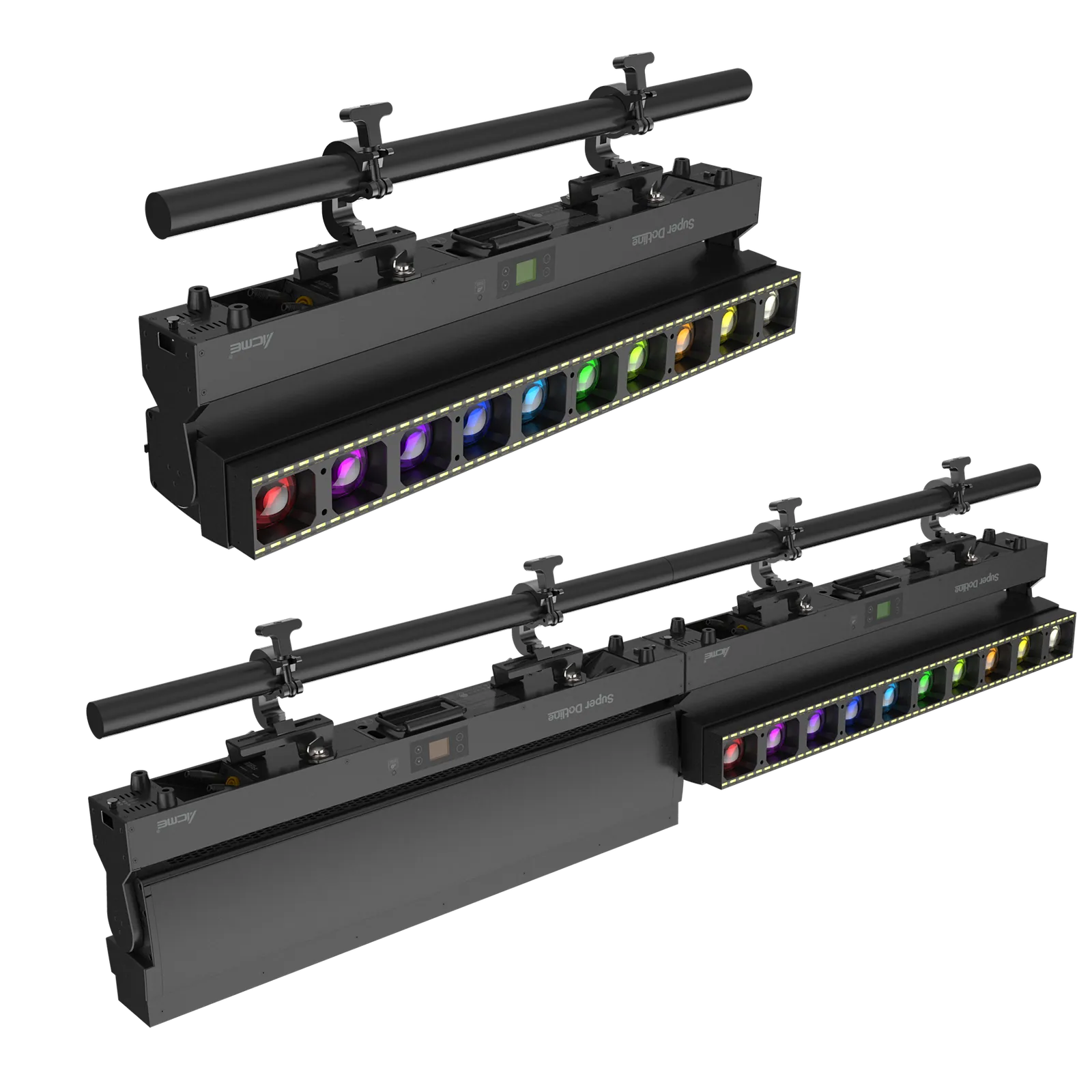

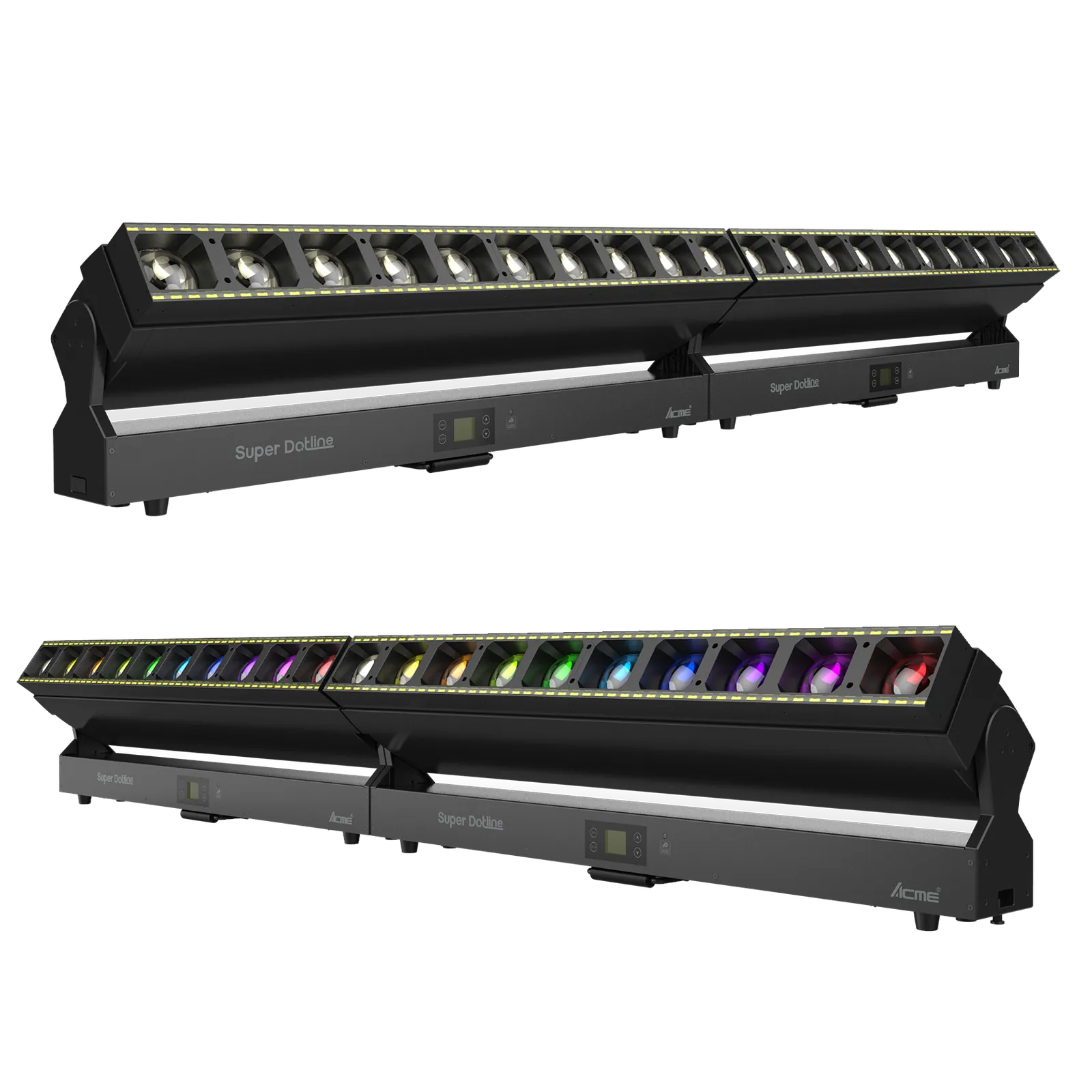

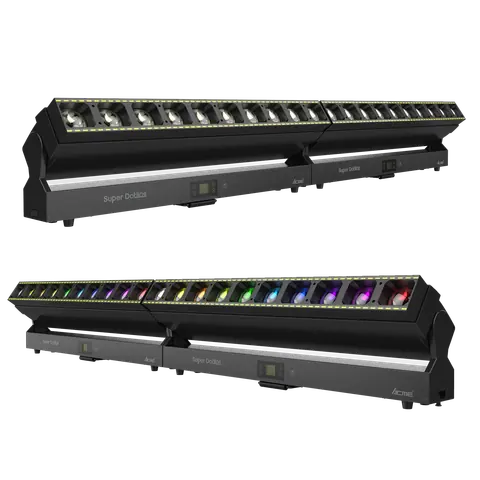

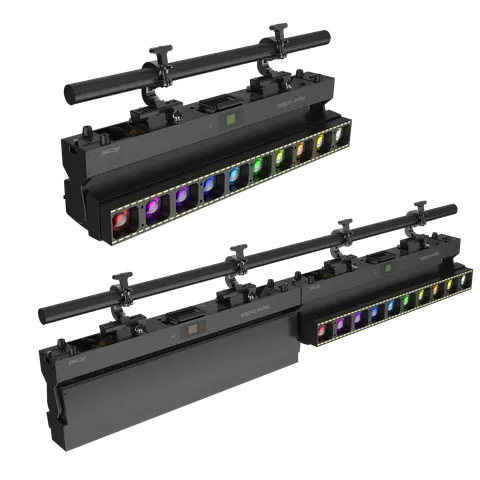

The SUPER DOTLINE allows for mounting in any orientation from the floor to hanging in truss. The unit has two connection points for the supplied omega brackets that accept most hooks or clamps. The fixture also features a tool-less connection system that allows units side- by-side connection and four retractable feet for floor applications. The SUPER DOTLINE only weighs 24 kilograms or just under 51 pounds and measures 1 meter (39.4 inches) in length.
The SUPER DOTLINE redefines what a bar light can be and should be.
