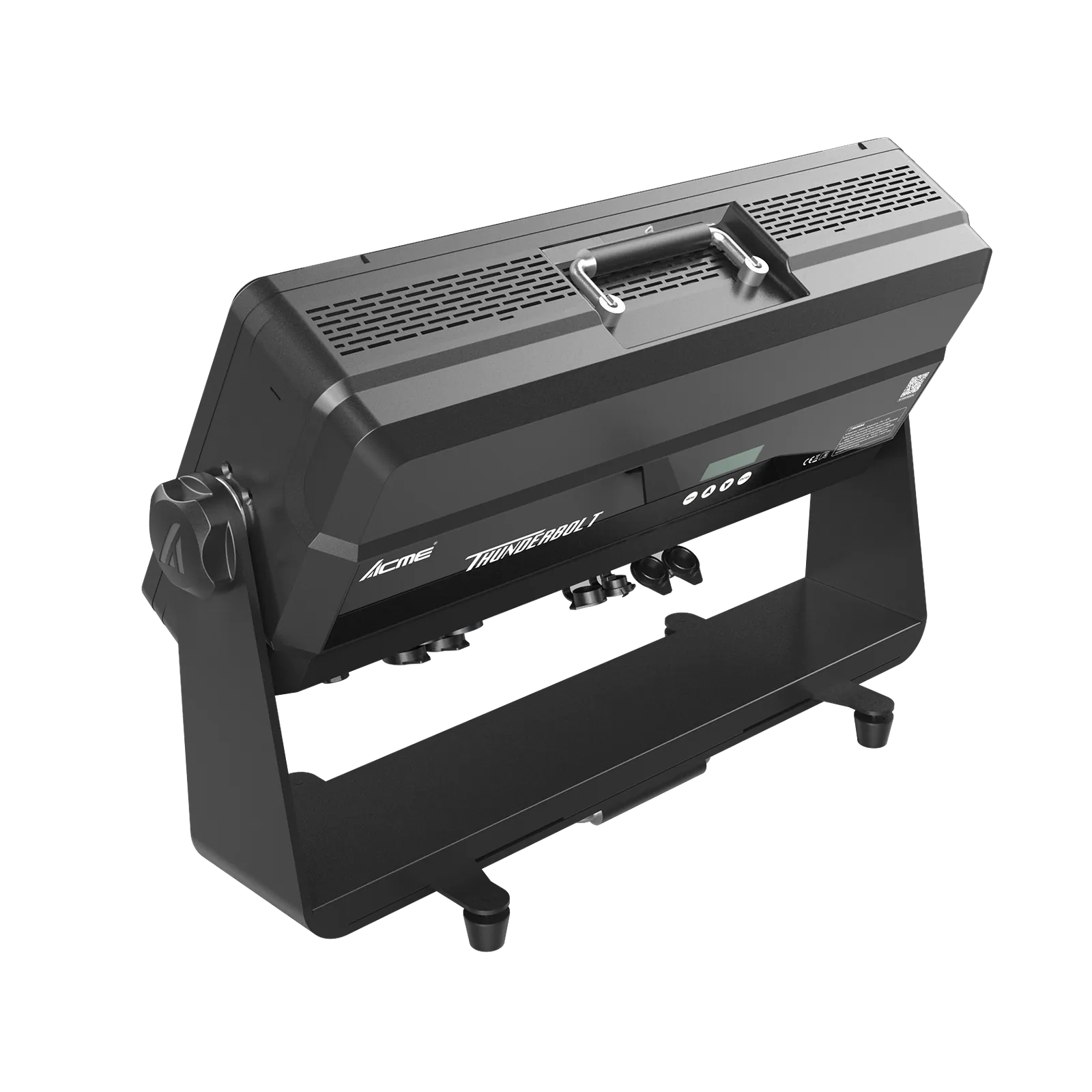

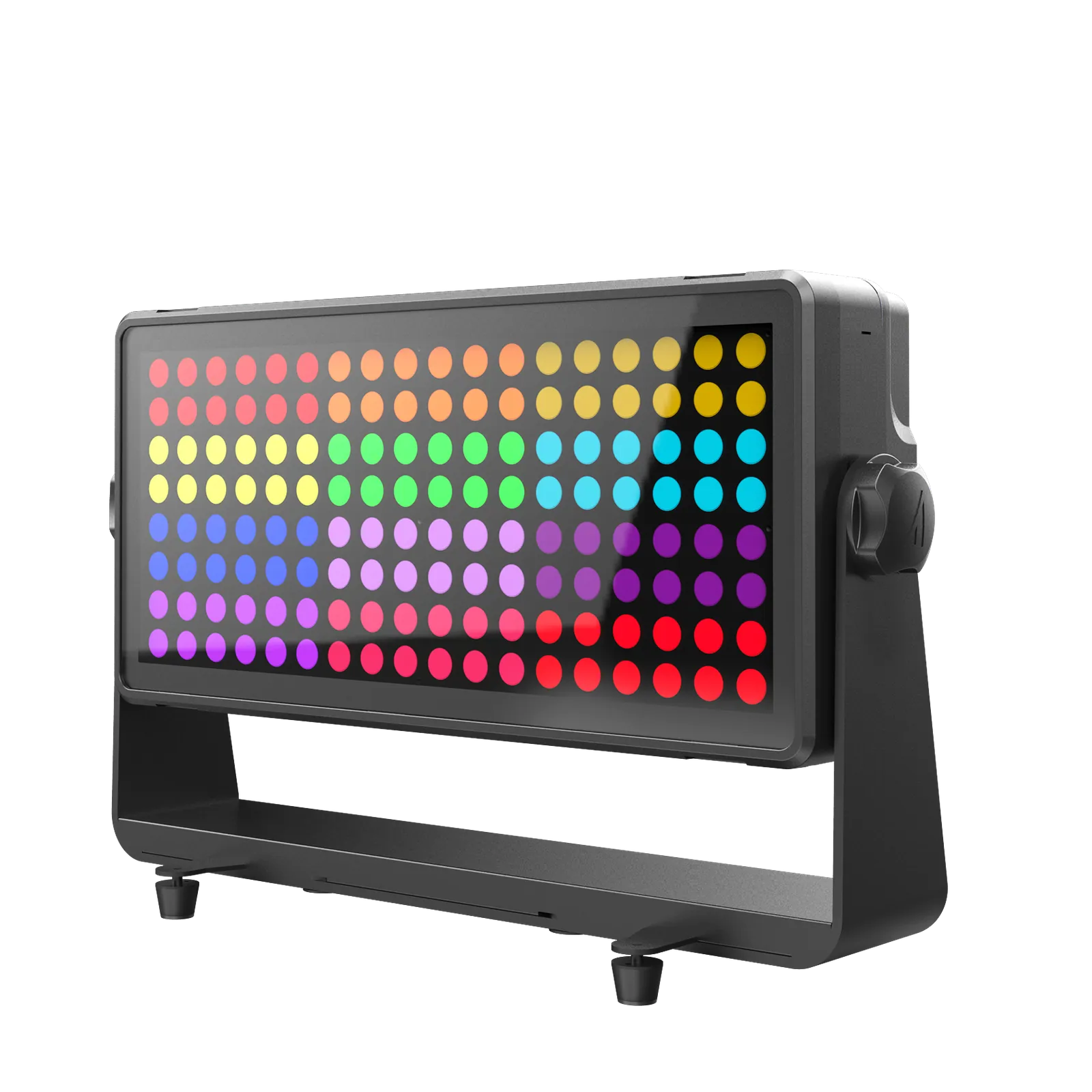

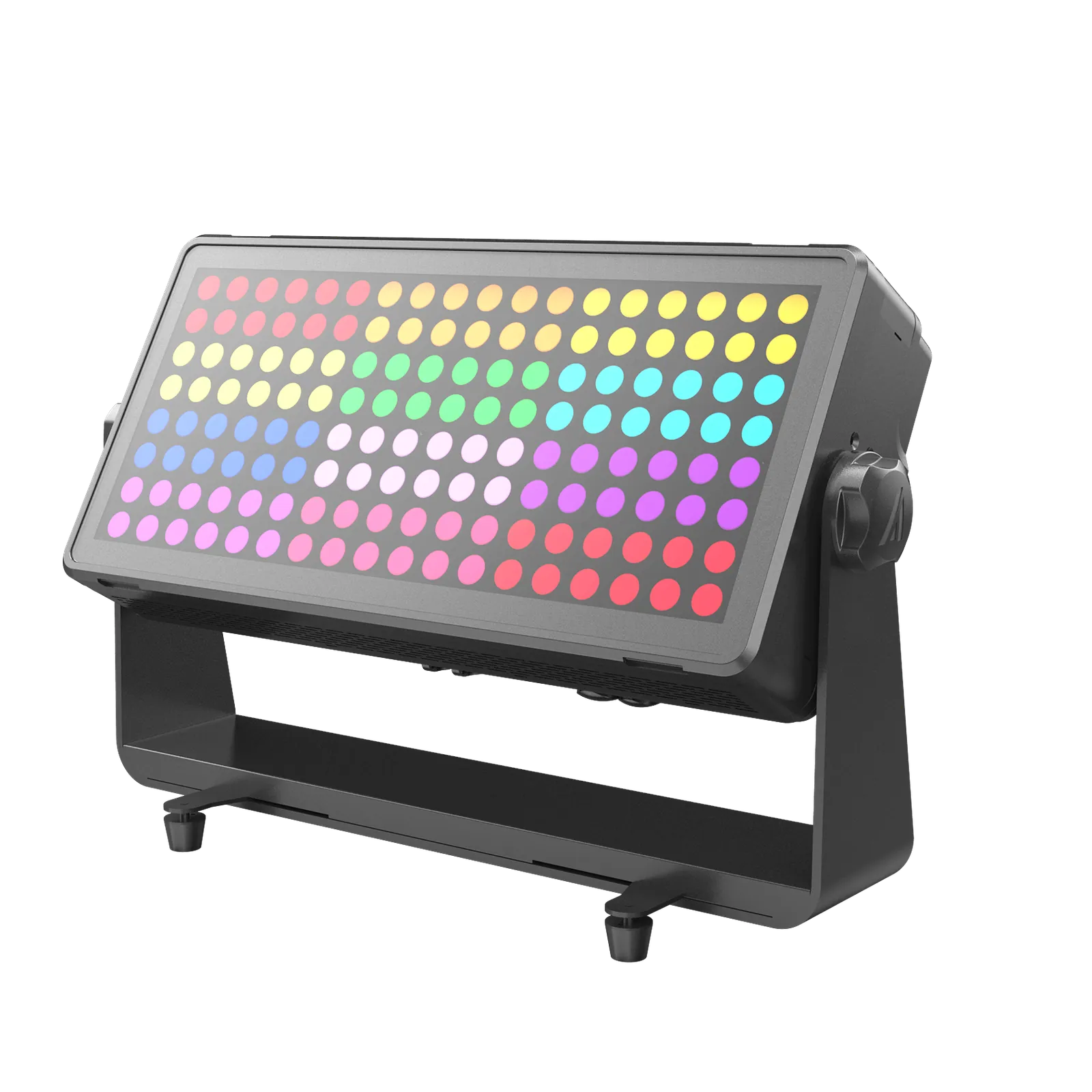

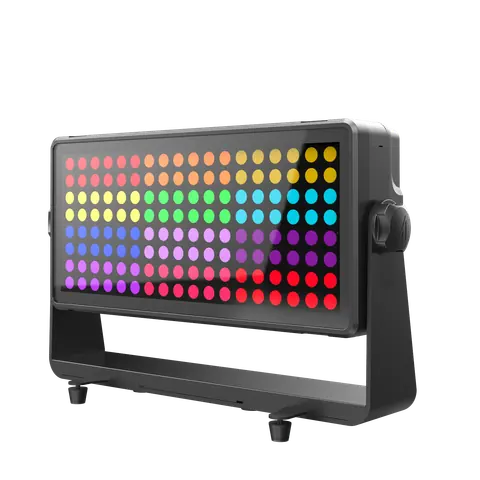

THUNDERBOLT

ModelLP-14410

ACME's THUNDERBOLT is a powerful RGBW LED strobe fixture equipped with 144 x 15-Watt LEDs that delivers an incredible 50,000 lumens with super-fast strobe performance and uniform washes.

Light source: 144 x 15W RGBW LEDs (12 individually controllable LED zones)
Power consumption: 1,580W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP65
Beam angle / zoom: 22°
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 17 kg (37.5 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 54 values

What this product is, in numbers.

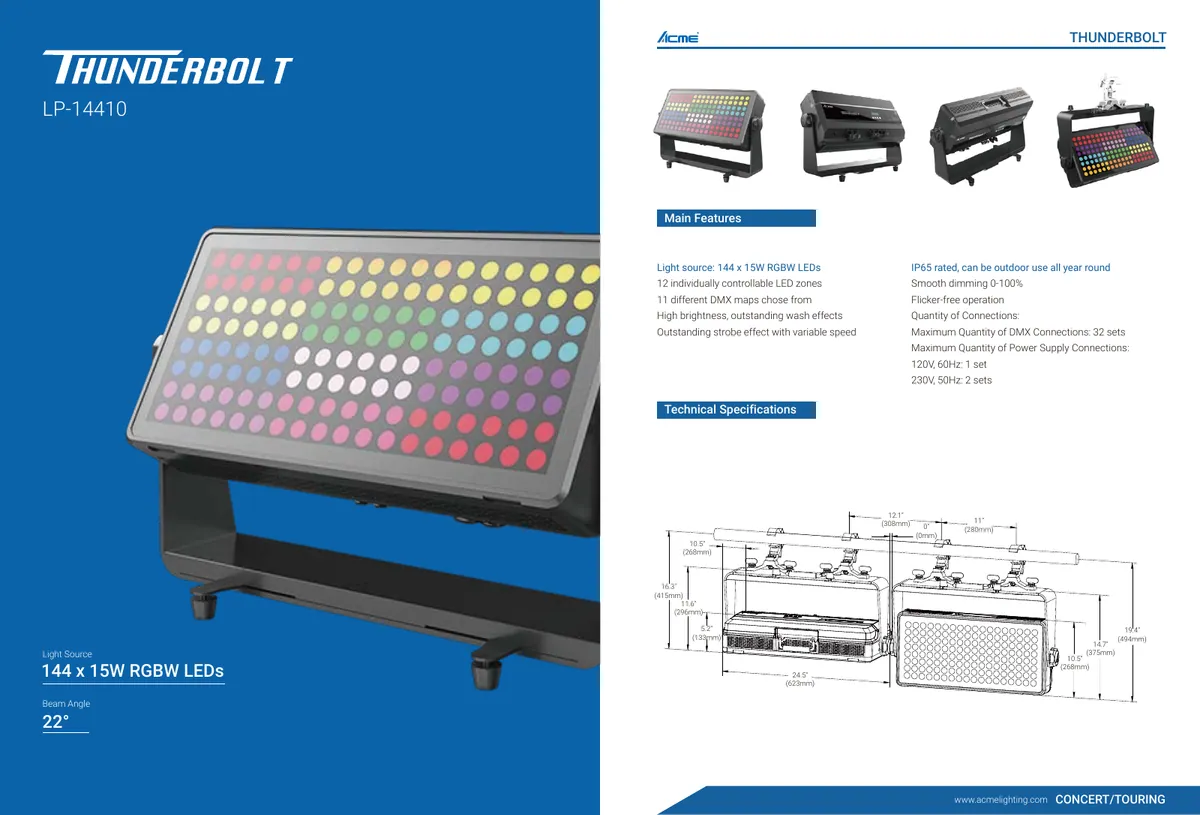

PDFDatasheetEN · 2 pages · 444 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: THUNDERBOLT
Model Code: LP-14410

02Light Source3

Light Source: 144 x 15W RGBW LEDs (12 individually controllable LED zones)
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 50,000 lumens

04Optical System1

Beam Angle: 22°

05Control6

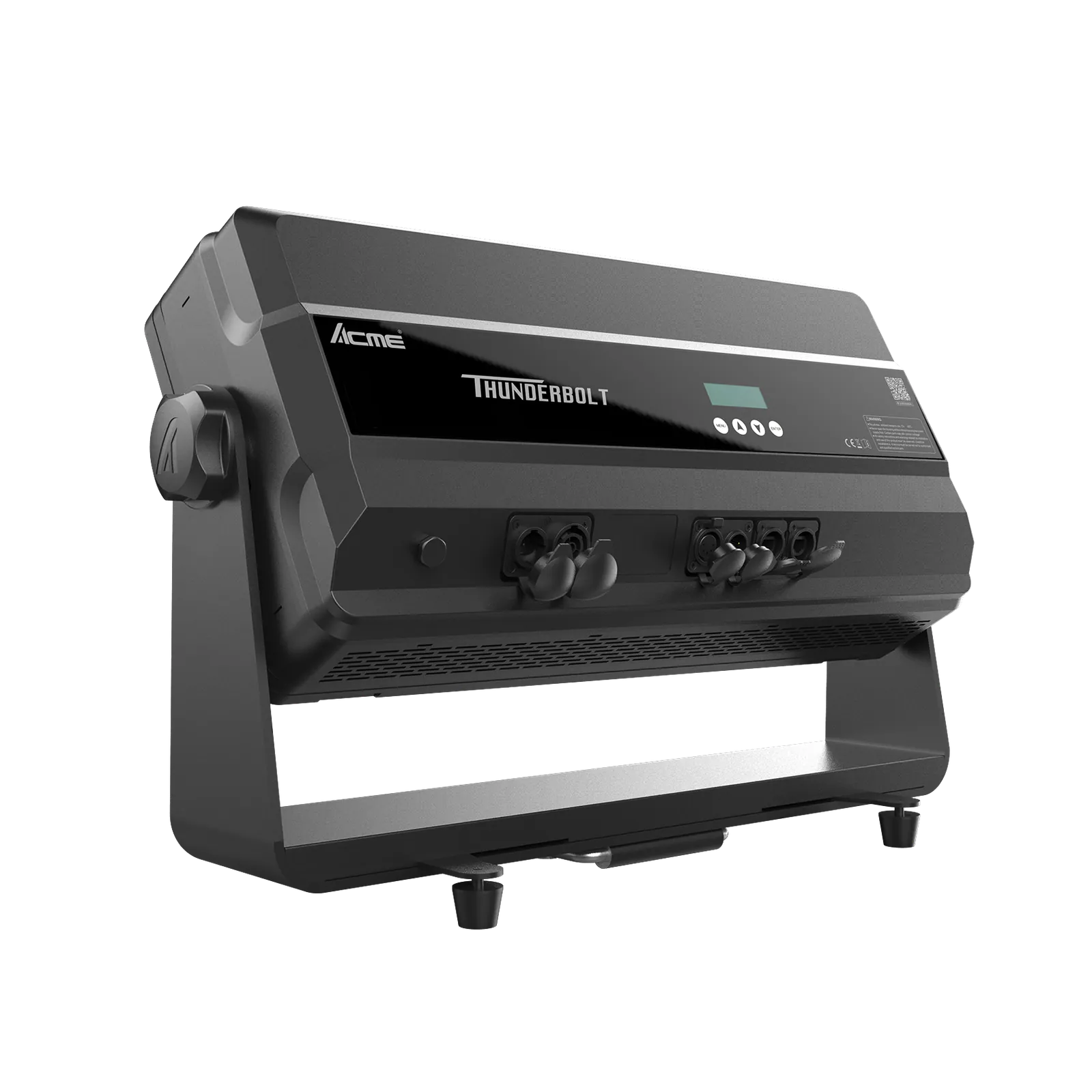

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM,Art-Net,sACN
Control channels: 4, 8 (16-bit), 8, 9, 52 channels; 1, 2, 3, 4, 6, 12 pixels
Firmware Upgrade: Upgrade via DMX link

06Other Effects6

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Excellent RGBW color mixing

Flicker-free management

High-brightness, outstanding wash effects

11 different DMX maps chose from

Show the full specificationHide the rest of the specification8 more groups · 35 values

07Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 1,580W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector; Power supply with electronic auto-ranging

08Physical Information4

Fixture Dimensions
Width: 623 mm (24.5")
Depth: 133 mm (5.2")
Height: 397 mm (15.6")
Weight: 17 kg (37.5 lbs)

09Packing Information4

Flight Case Dimensions
Width: 1,220 mm (48.0")
Depth: 815 mm (32.1")
Height: 630 mm (24.8")
Weight
Standard: G.W.: 177.2 kg (390.7 lbs) (Four-pack loader case)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP65

11Approvals2

CE compliant

cETLus compliant

12Installation7

Horizontal or vertical mounting

Universal working position

2 omega brackets

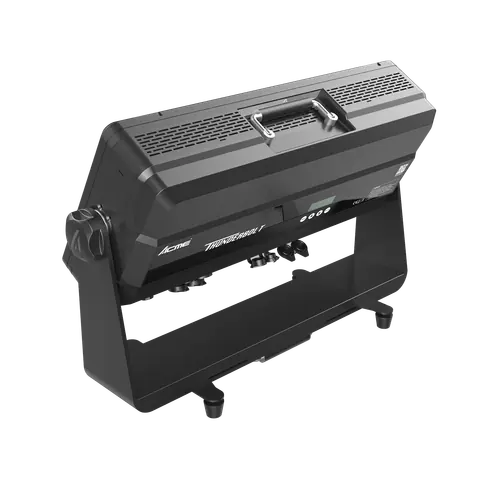

Carry handles top and bottom for easy portability

Retractable feet for floor applications

Concealed magnet for attaching accessories

Safety cable attachment point

13Included Items3

Digital user manual

Power cable

2 omega brackets

14Optional Accessories (With Order Code)6

Flight Case
Standard: Four-pack loader case (63582434)
North American Standard: Six-pack loader case (63583204)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Barndoor: 63581703

02DescriptionManufacturer's description

What it is.

ACME's THUNDERBOLT is a powerful RGBW LED strobe fixture equipped with 144 x 15-Watt LEDs that delivers an incredible 50,000 lumens with super-fast strobe performance and uniform washes. The unit features a 22° beam angle, offers smooth dimming performance, and flicker-free operation.

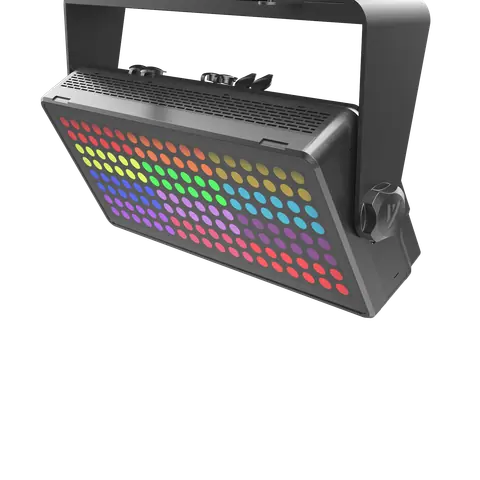

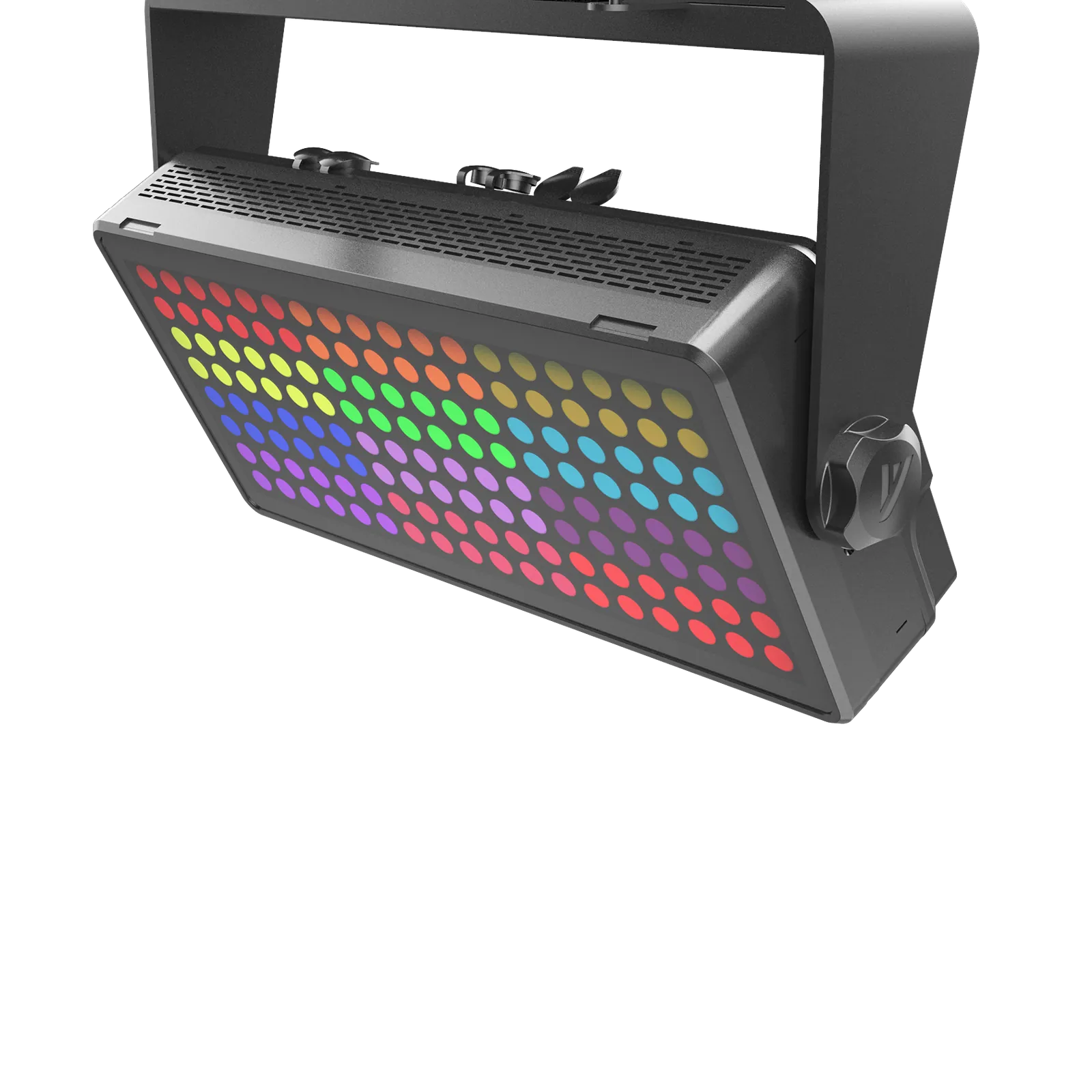

The THUNDERBOLT's LEDs are arranged into 12 individually controllable segments, generating powerful color effects and pixel-mapping combinations only limited by your imagination. Not only is the fixture a bright strobe; it is also perfect for wall wash applications providing uniform, even field washes. The unit's 11 different DMX maps allow you the choice from simple color control to pixel segment control – up to 12 segments – horizontally or vertically or both for a wide range of effects and looks.

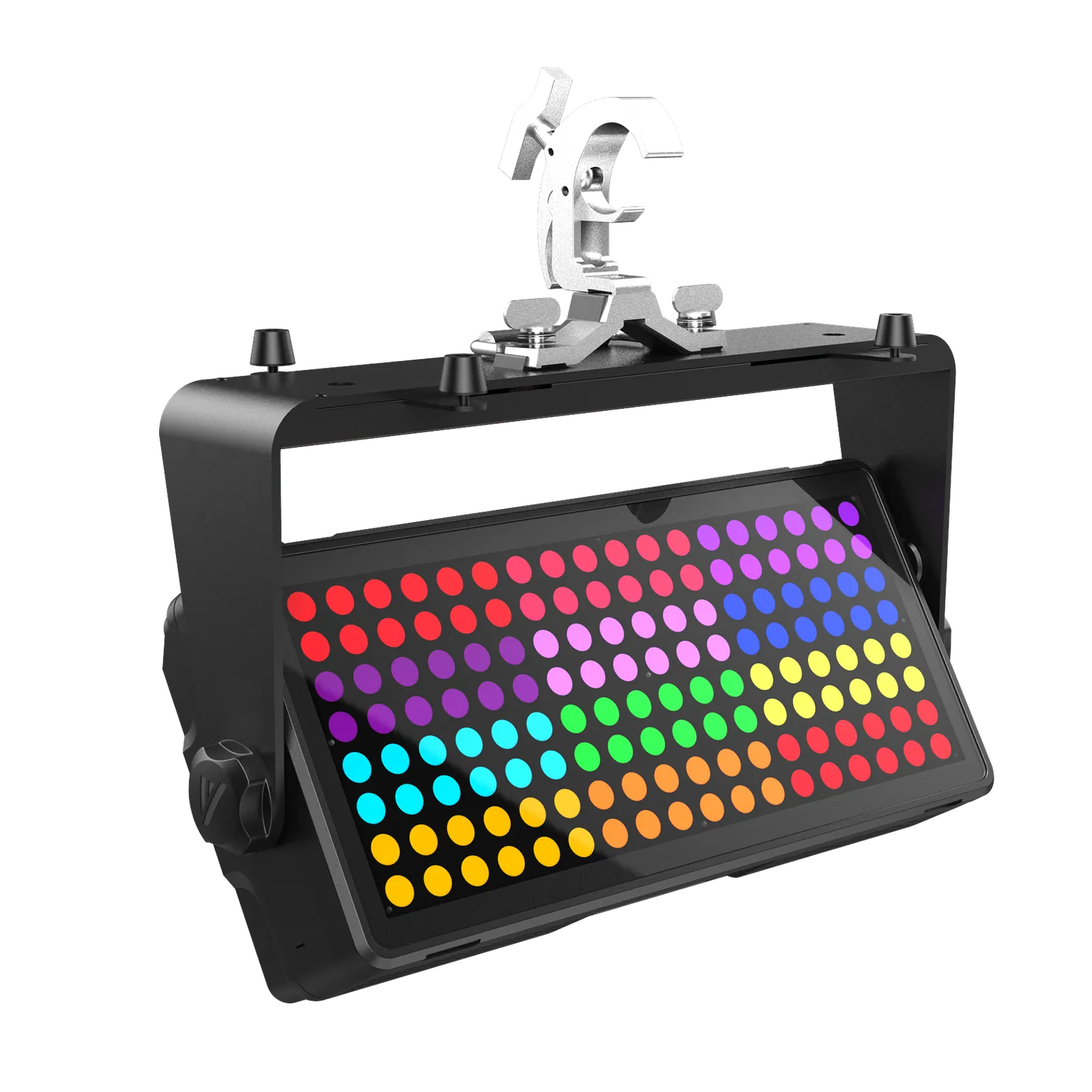

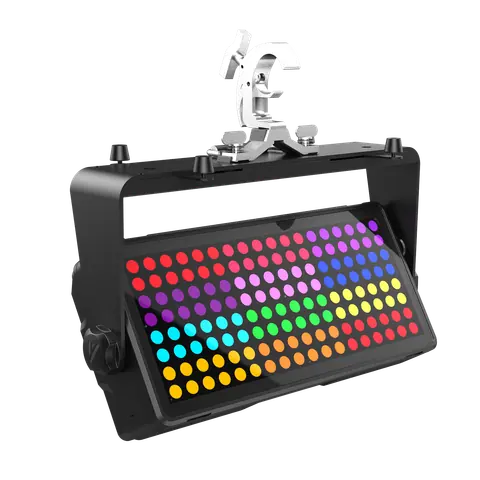

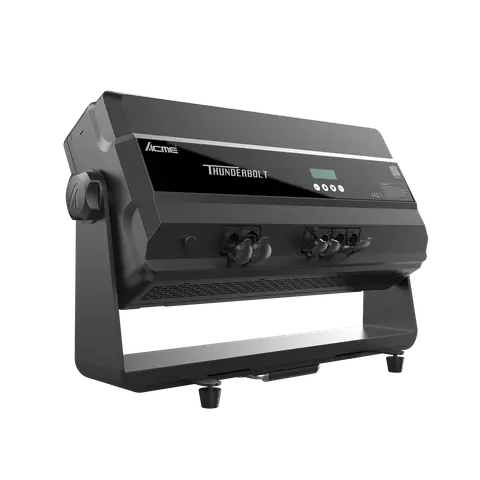

The THUNDERBOLT can be mounted in any orientation on truss or on the floor. The unit features a yoke assembly with four extendable feet for floor applications and a pair of omega brackets (for hooks or clamps) for hanging applications and two knobs on each side to set and lock the angle of the luminaire head. Since the unit is IP65-rated, it is perfect for indoor and outdoor productions.
