Sheet 05.775

ACME · Effects and lasers

THUNDER IP

ModelBL 200 CP IP

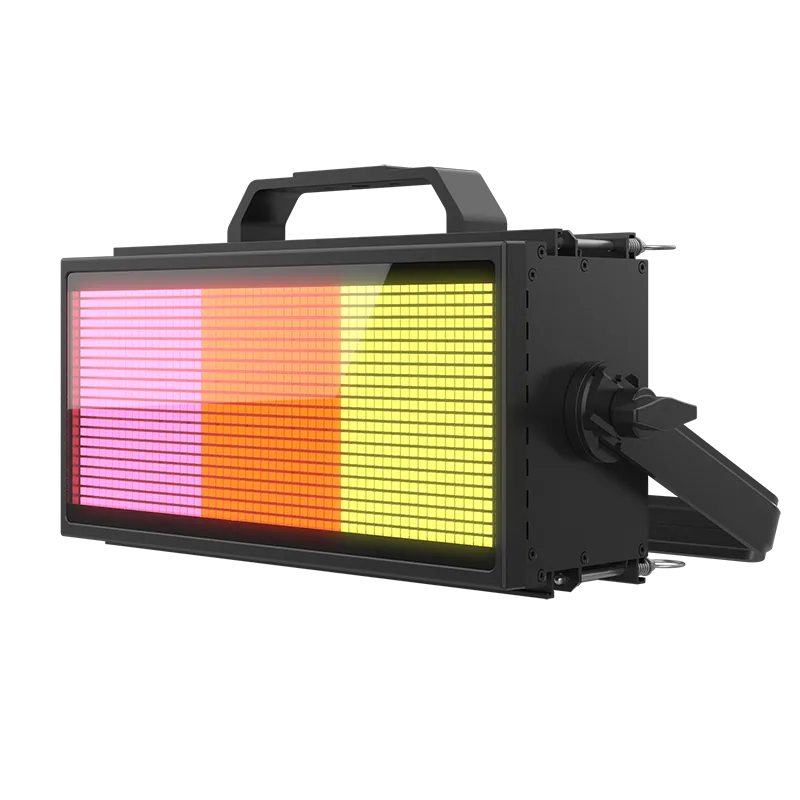

The ACME THUNDER IP LED strobe light is renowned for its extremely fast strobe with variable speed.

Light source: 1,188 x 0.8W RGBW LED (divided into 3 individually controllable LED zones)
Power consumption: 860W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 4/8/8(16 bit)/9(16 bit)/16
Protocols: DMX512,RDM
Net weight: 10 kg (22.0 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:47

ACME THUNDER IP2:47

02SpecificationManufacturer's data · 15 groups · 68 values

What this product is, in numbers.

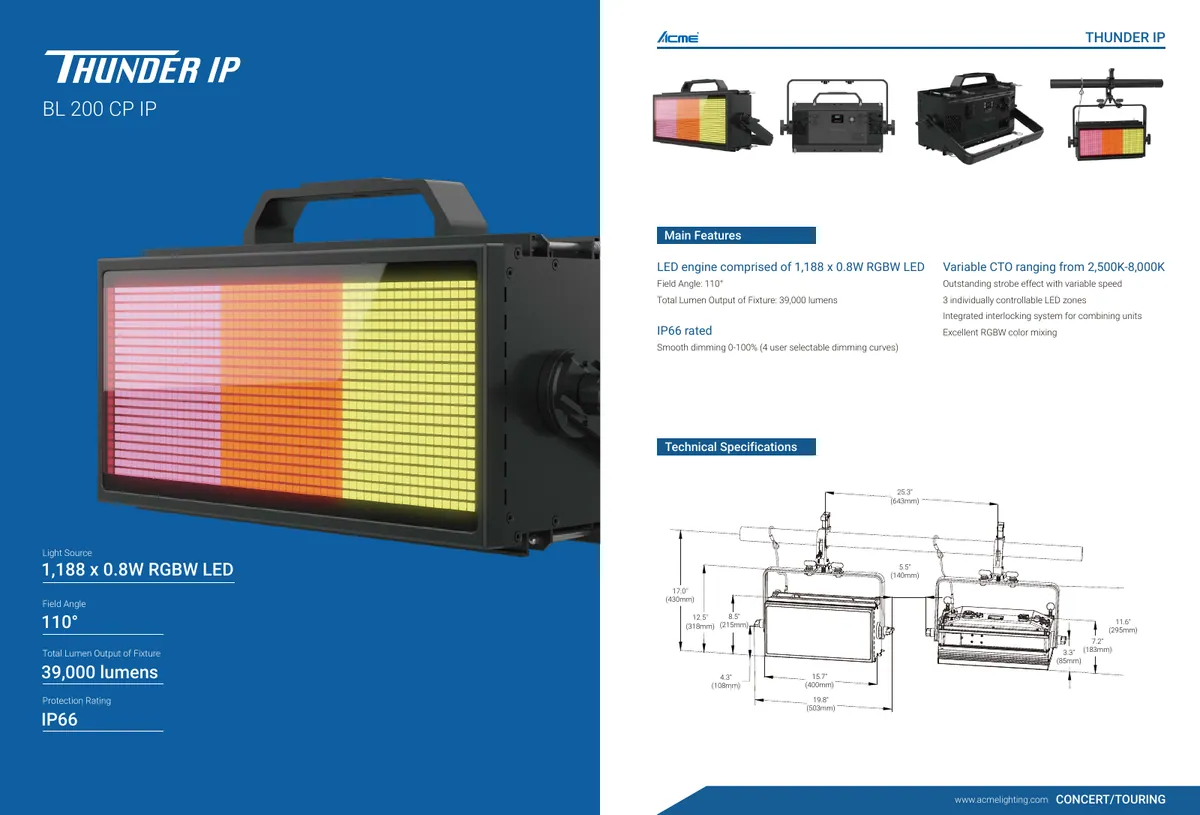

PDFDatasheetEN · 2 pages · 652 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: THUNDER IP
Model Code: BL 200 CP IP

02Light Source3

Light Source: 1,188 x 0.8W RGBW LED (divided into 3 individually controllable LED zones)
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 39,000 lumens

04Optical System1

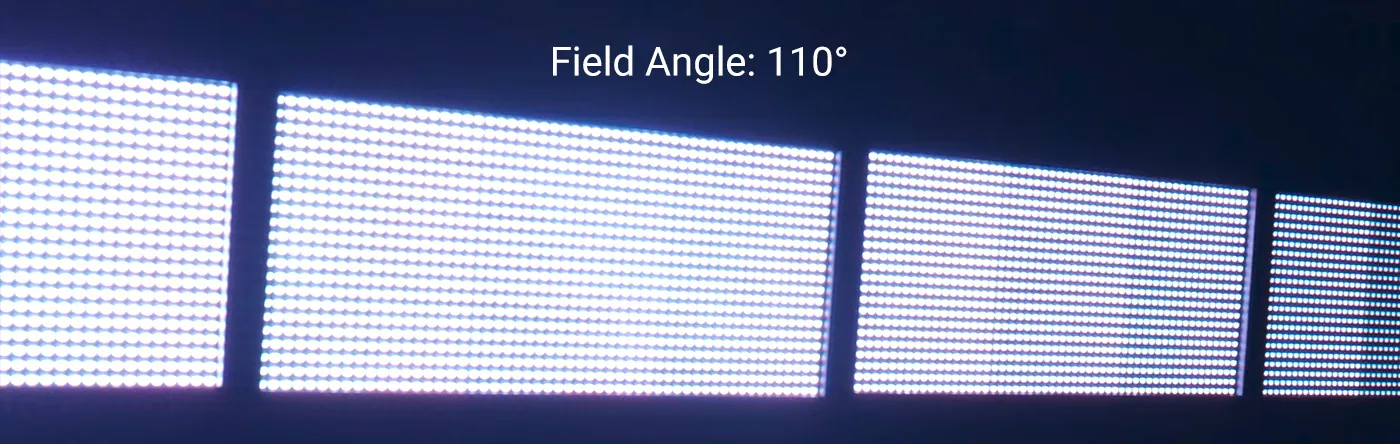

Field Angle: 110°

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 5
Control Channels: 4/8/8(16 bit)/9(16 bit)/16
Firmware Upgrade: Upgrade via DMX link

06Colors1

Linear CTO Color Correction: 2,500K-8,000K

Show the full specificationHide the rest of the specification9 more groups · 54 values

07Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Excellent RGBW color mixing

08Electrical and Connectors6

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 860W

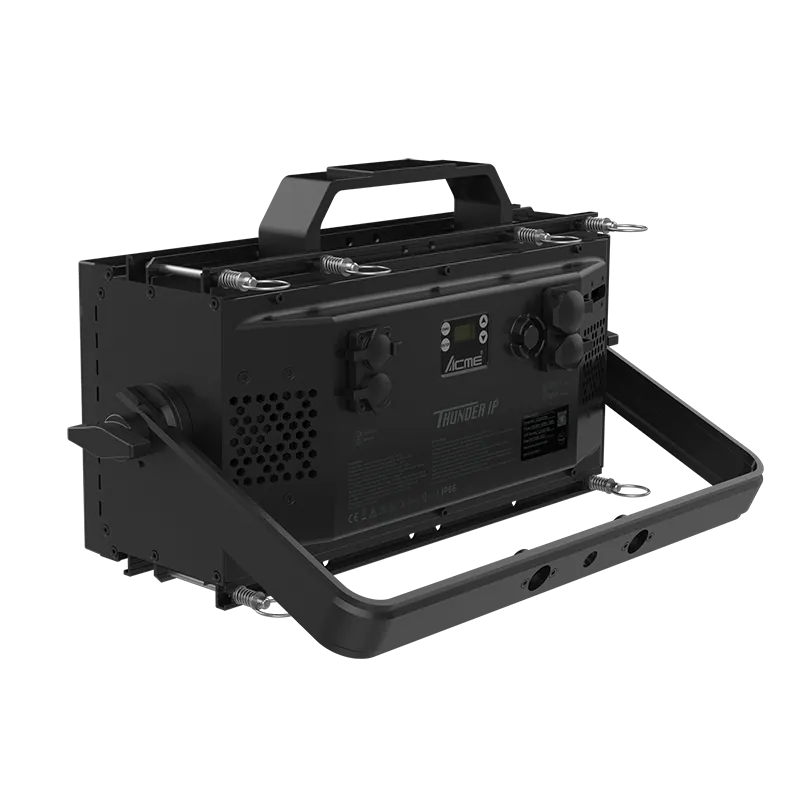

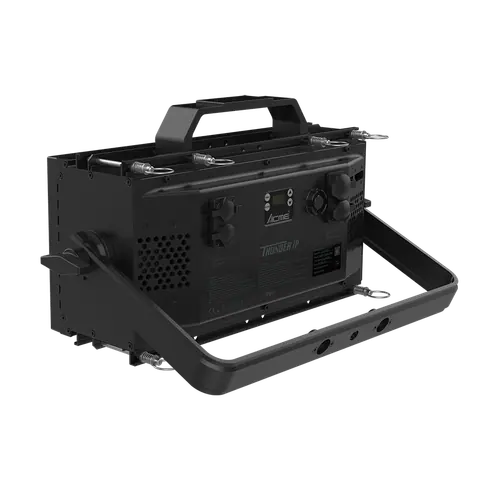

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR
Maximum Quantity of Connections
230V, 50Hz: 4 units
120V, 60Hz: 3 units

09Physical Information4

Fixture Dimensions
Width: 503 mm (19.8")
Depth: 183 mm (7.2")
Height: 318 mm (12.5")
Weight: 10 kg (22.0 lbs)

10Packing Information13

Flight Case Dimensions 1
Width: 1,075 mm (42.3")
Depth: 565 mm (22.2")
Height: 535 mm (21.1")
Weight
Standard: G.W.: 88 kg (194.0 lbs) (four-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 690 mm (27.2")
Weight
Standard: G.W.: 141.5 kg (312.0 lbs) (eight-pack loader case)
North American Standard: G.W.: 148.7 kg (327.8 lbs) (eight-pack loader case)
Carton Dimensions
Width: 575 mm (22.6")
Depth: 405 mm (15.9")
Height: 275 mm (10.8")
Weight
G.W.: 13 kg (28.7 lbs) (one-pack loader carton)

11Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

12Approvals3

CE compliant

UKCA compliant

cETLus compliant

13Installation9

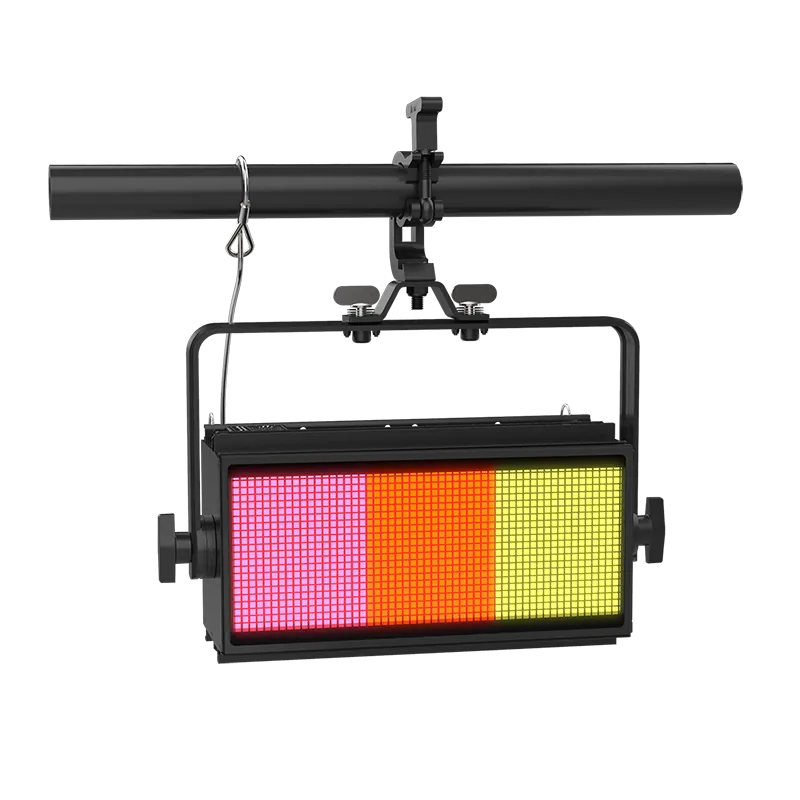

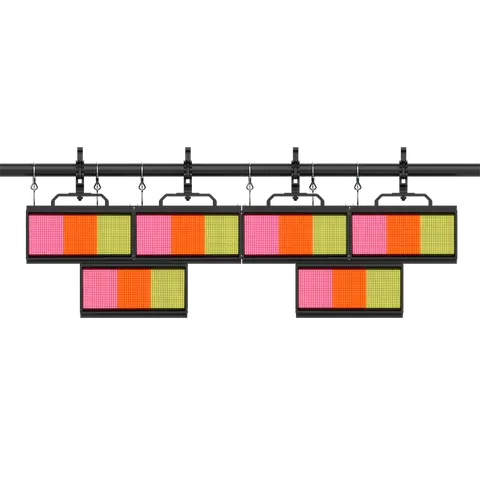

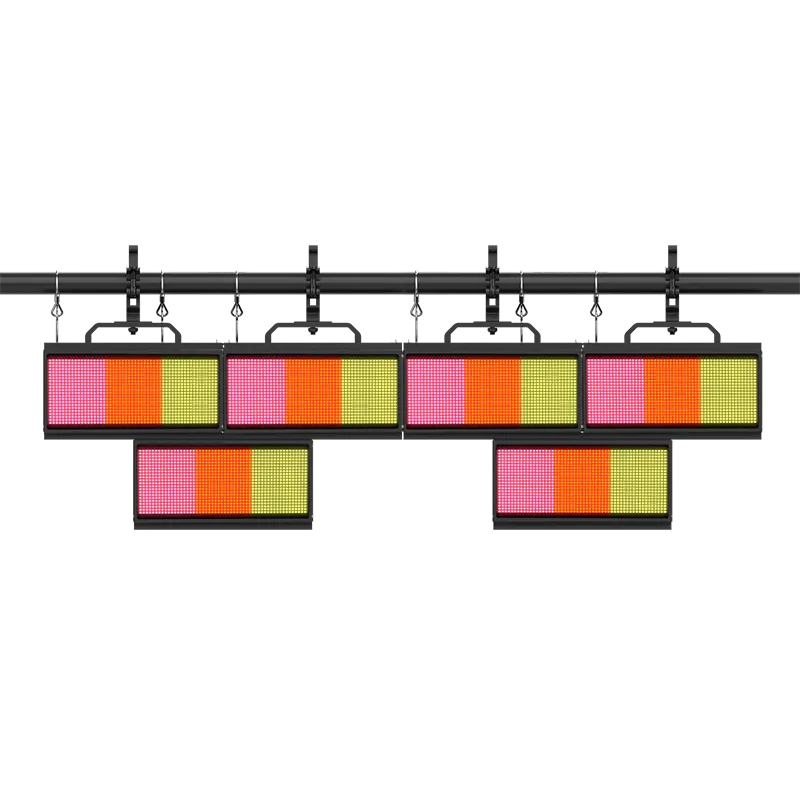

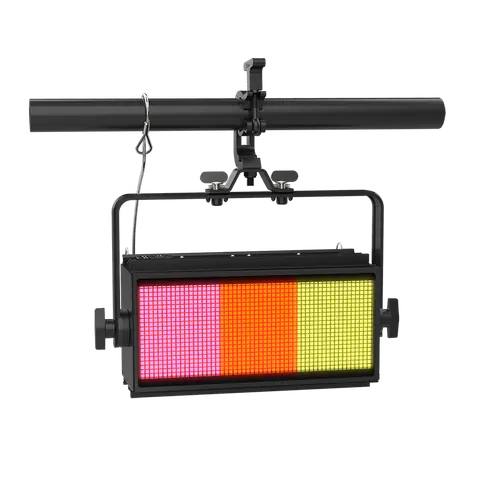

Horizontal or vertical mounting; Universal working position; 1 clamp for 50 mm truss; 1 omega bracket; Using one or two small hanging brackets (supplied) with clamp (by others), a maximum of 2 layers (3 fixtures) may be connected; Utilizing one large double vertical hanging bracket assembly (sold separately), a maximum of 2 fixtures may be connected

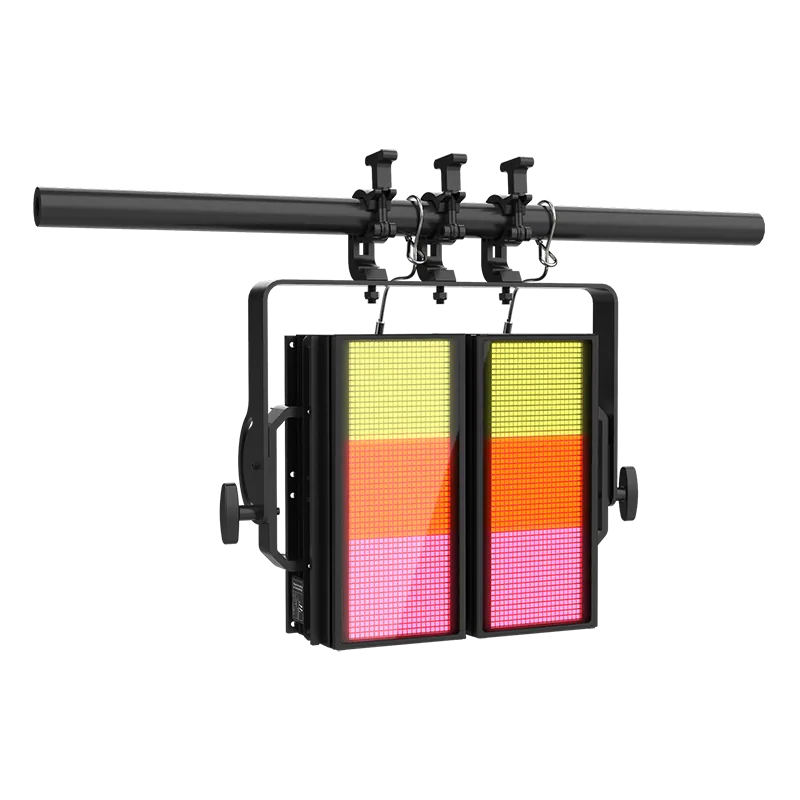

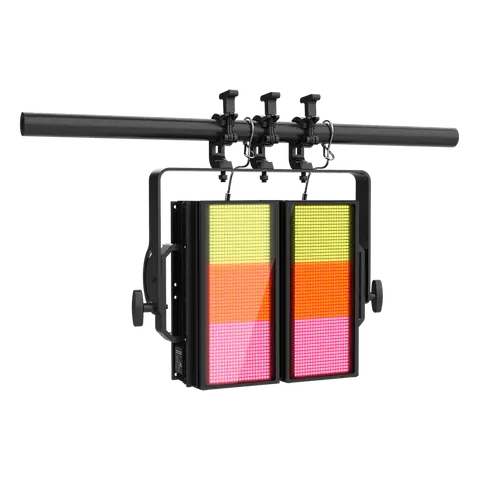

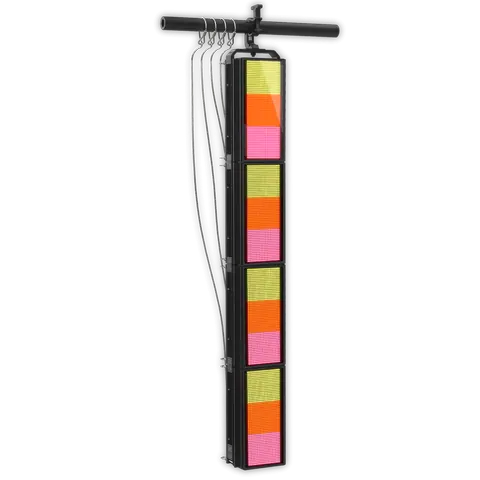

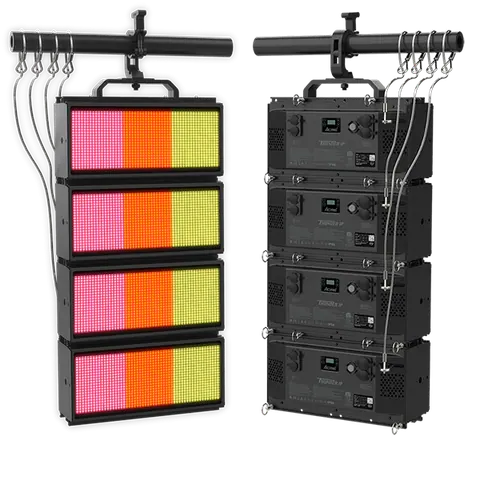

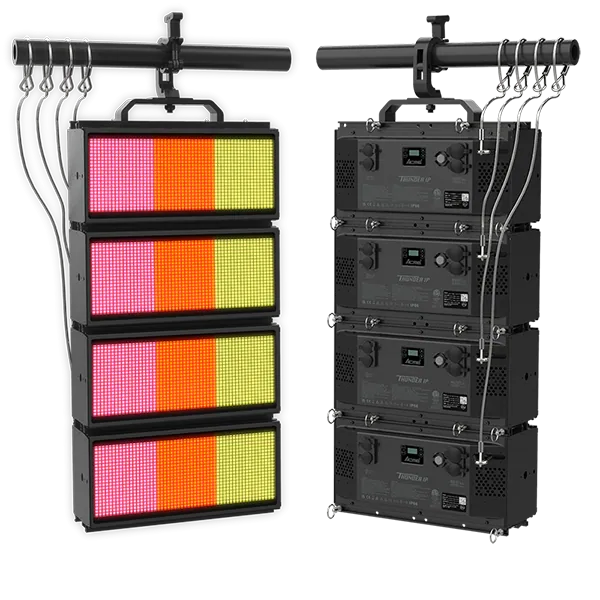

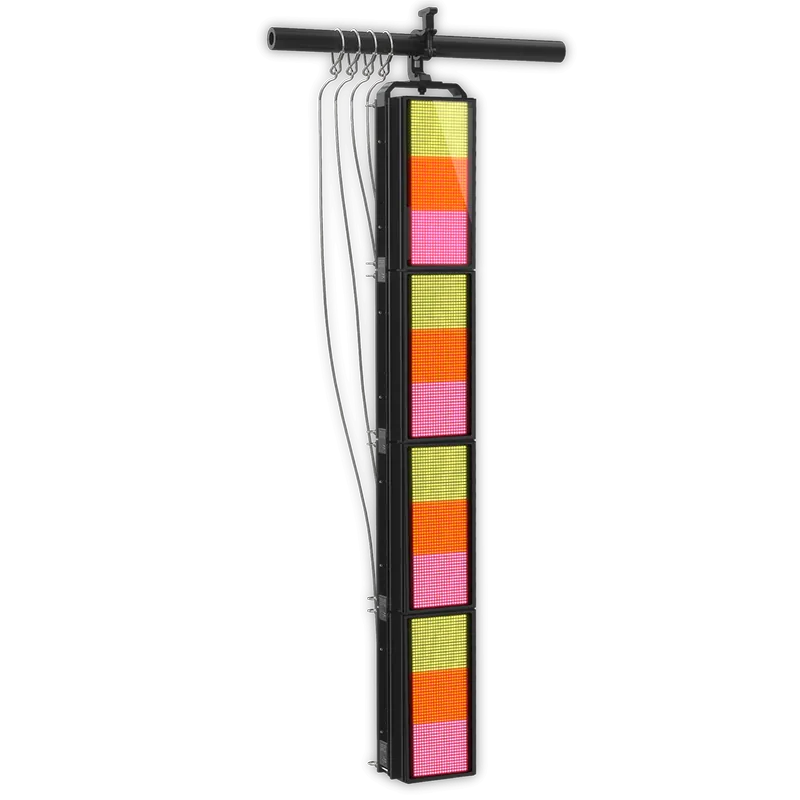

Vertical: Using one small hanging bracket (supplied) with clamp (by others), a maximum of 4 fixtures may be connected; Integrated interlocking system for combining units; Safety cable attachment point

14Included Items5

Digital user manual

Power cable

1 omega bracket (3002003002)

Small hanging bracket (50137301701100)

Large Hanging Bracket without Omega Bracket (63582342)

15Optional Accessories (With Order Code)7

Flight Case 1
Standard: Four-pack loader case (63583604)
Flight Case 2
Standard: Eight-pack loader case (63583666)
North American Standard: Eight-pack loader case (63583679)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Large Double Vertical Hanging Bracket Assembly: 63580738

03DescriptionManufacturer's description

What it is.

The ACME THUNDER IP LED strobe light is renowned for its extremely fast strobe with variable speed. Comprising 1,188 pcs 0.8-Watt RGBW LEDs, divided into 3 individually controllable LED zones, the fixture delivers an impressive 39,000 lumens output and exceptional color mixing effects. It features tremendous output and versatility with 4 selectable and smooth dimming curves, variable CTO, and a wide 110° field angle.

Equipped with a patented interlocking system, the THUNDER IP enables accessories-free horizontal and vertical connections, and can be easily integrated with other BL 200 series fixtures.

With its outstanding strobe effect and IP66, this fixture is suitable for large and medium-sized concerts, variety shows, and other professional stage or entertainment applications, both indoors and outdoors.
