Sheet 05.557

ACME · Spot and profile

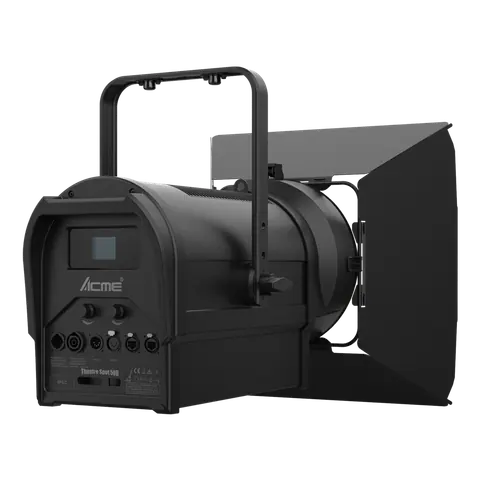

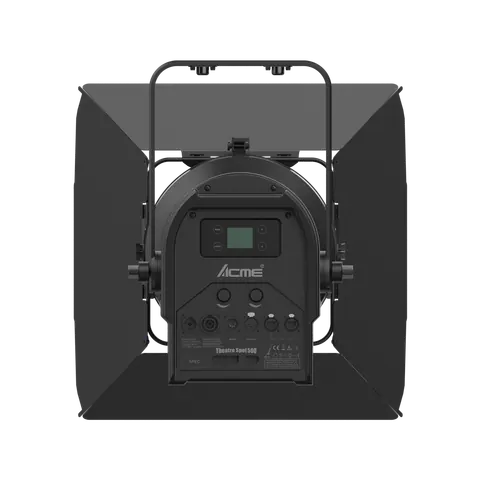

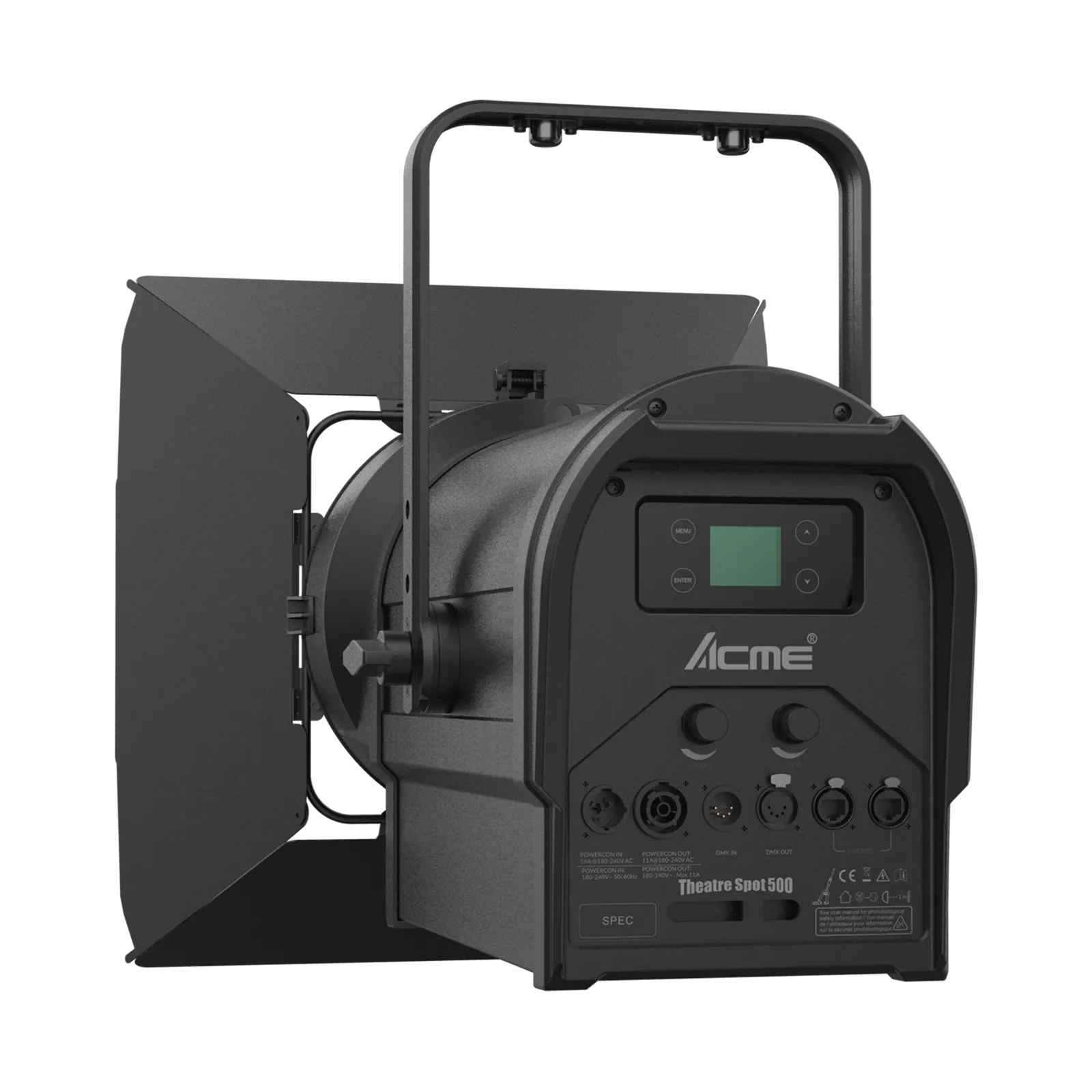

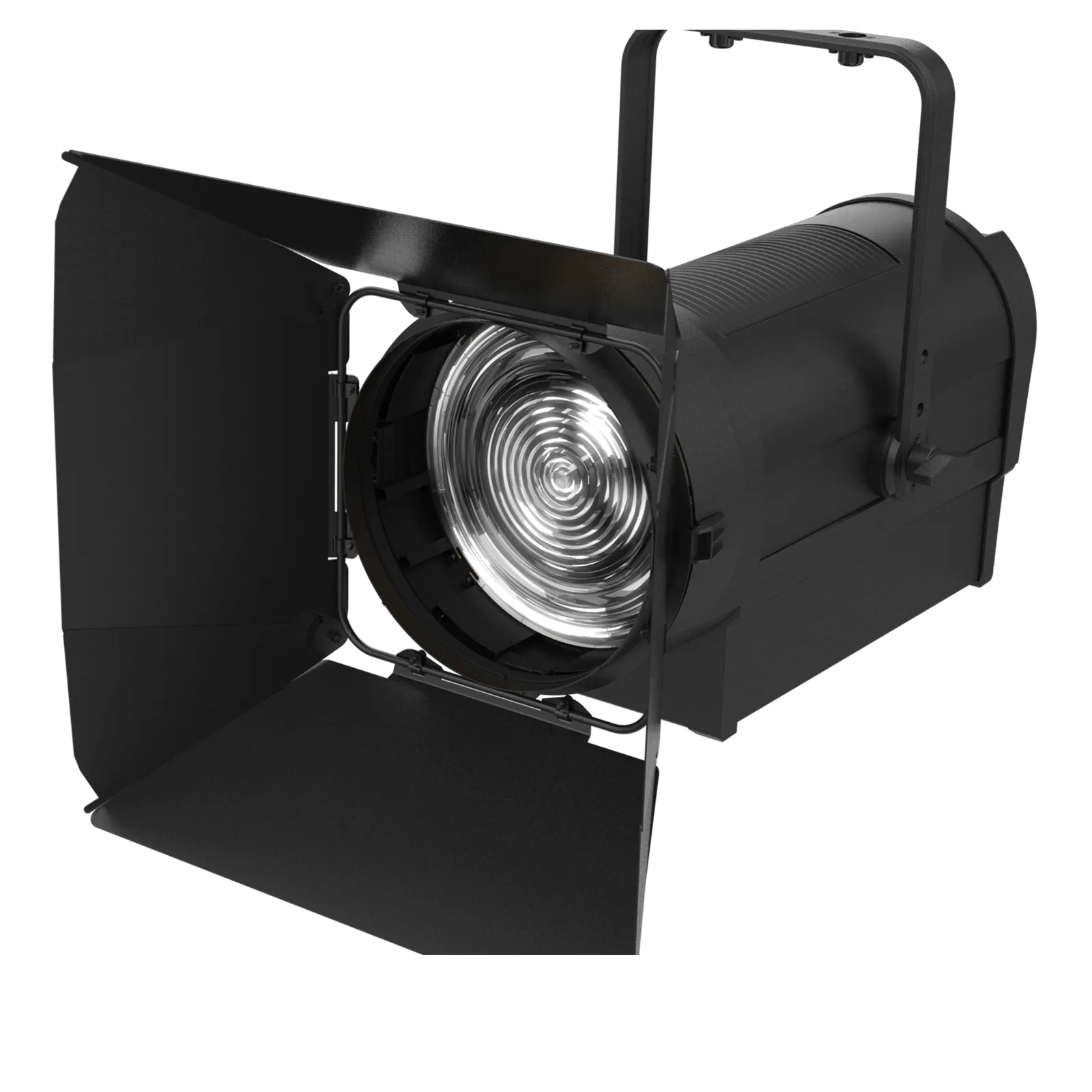

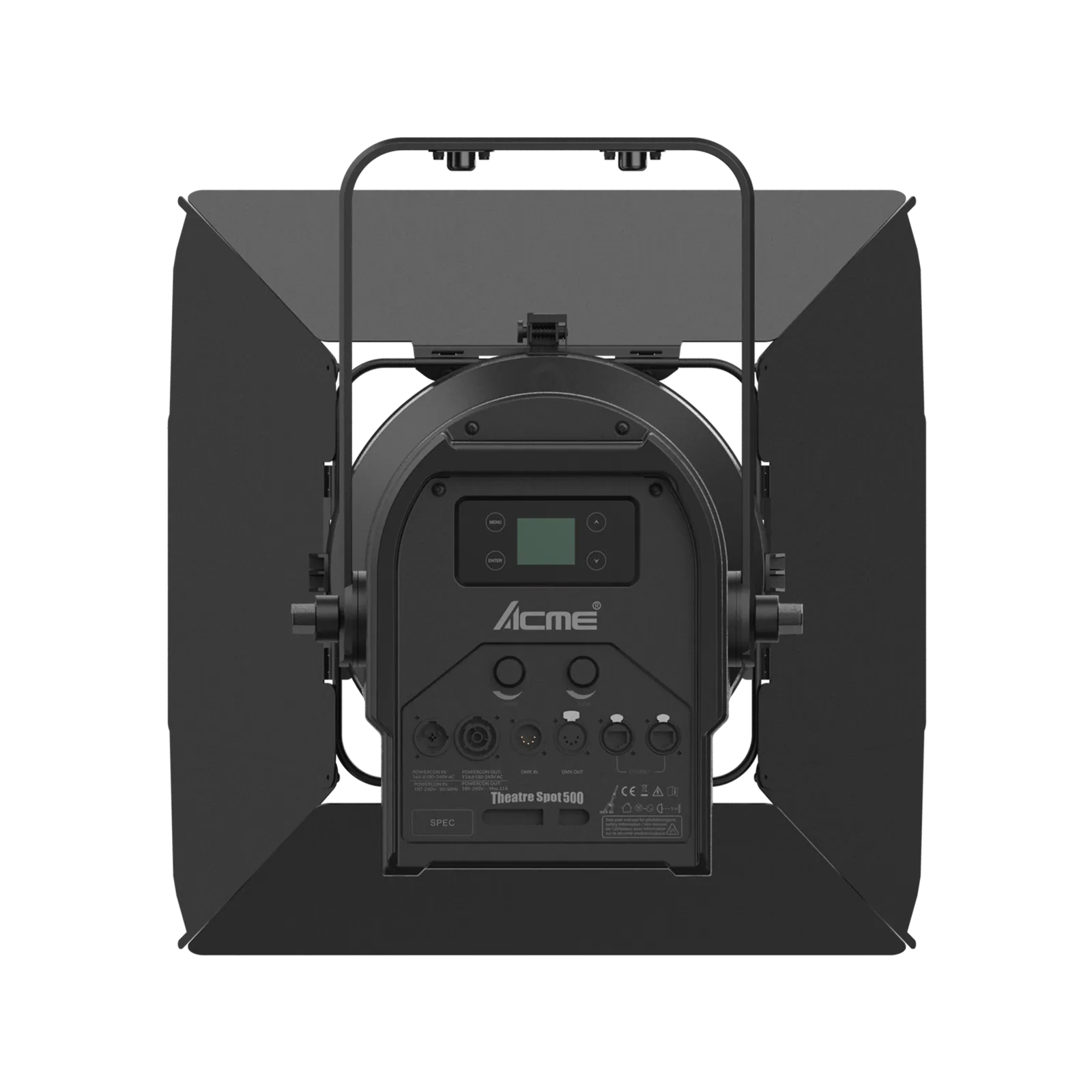

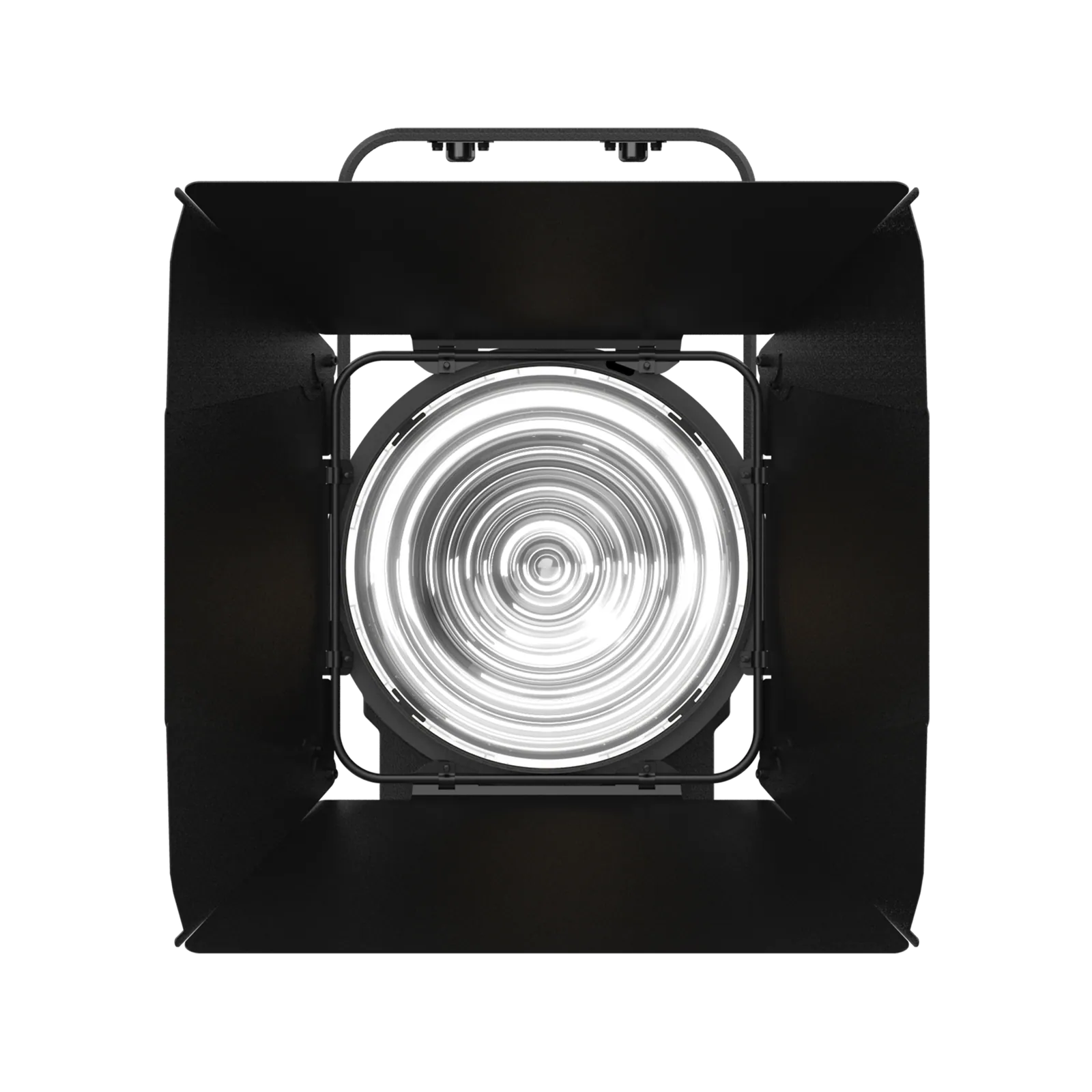

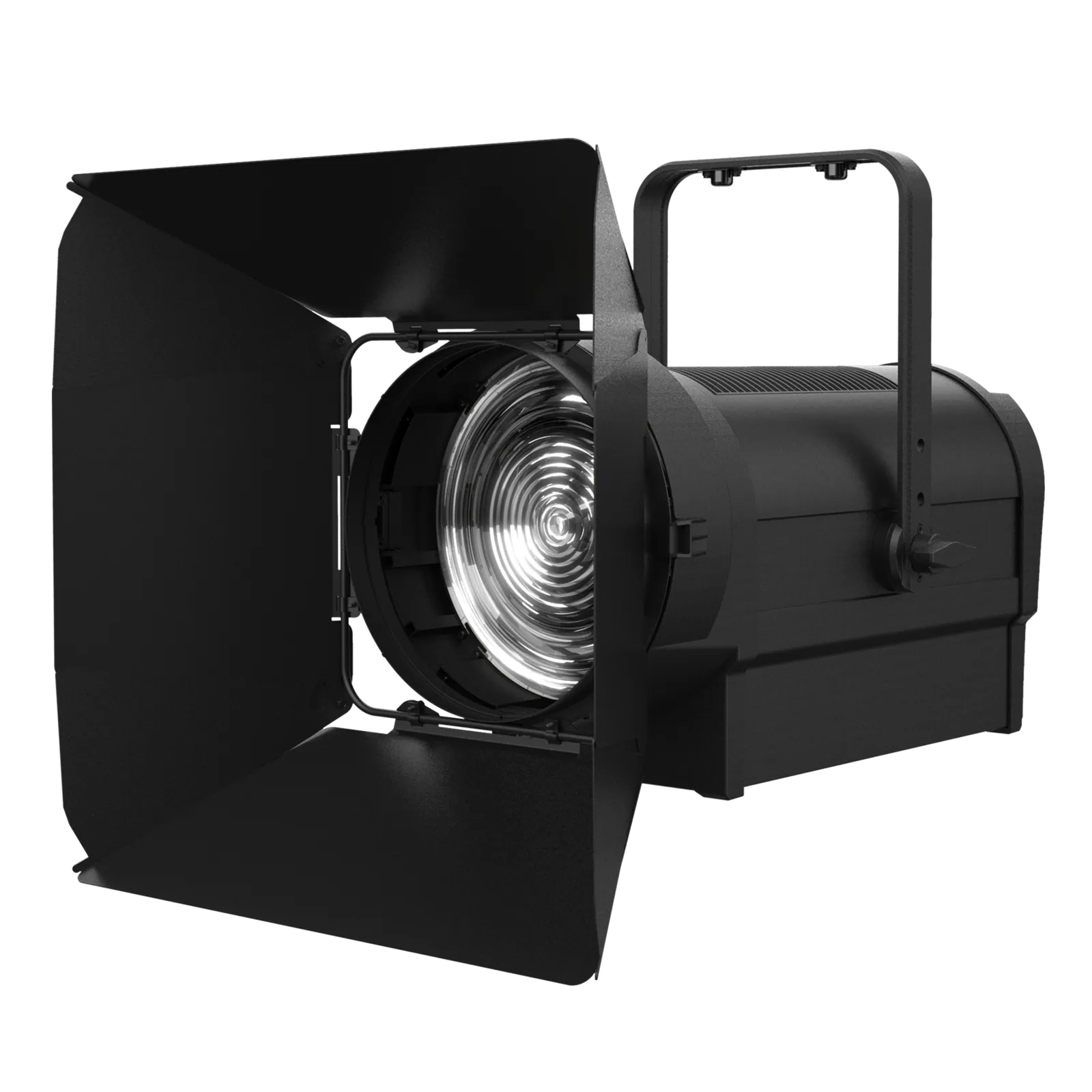

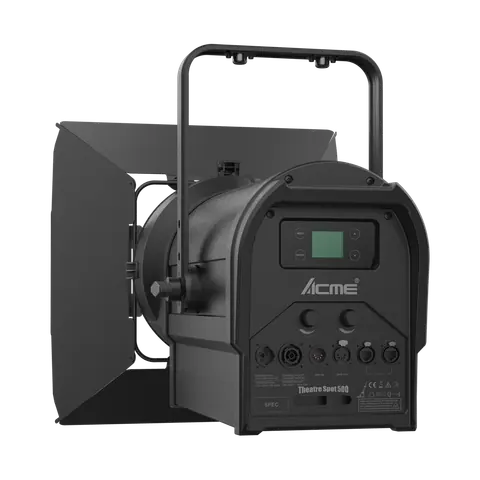

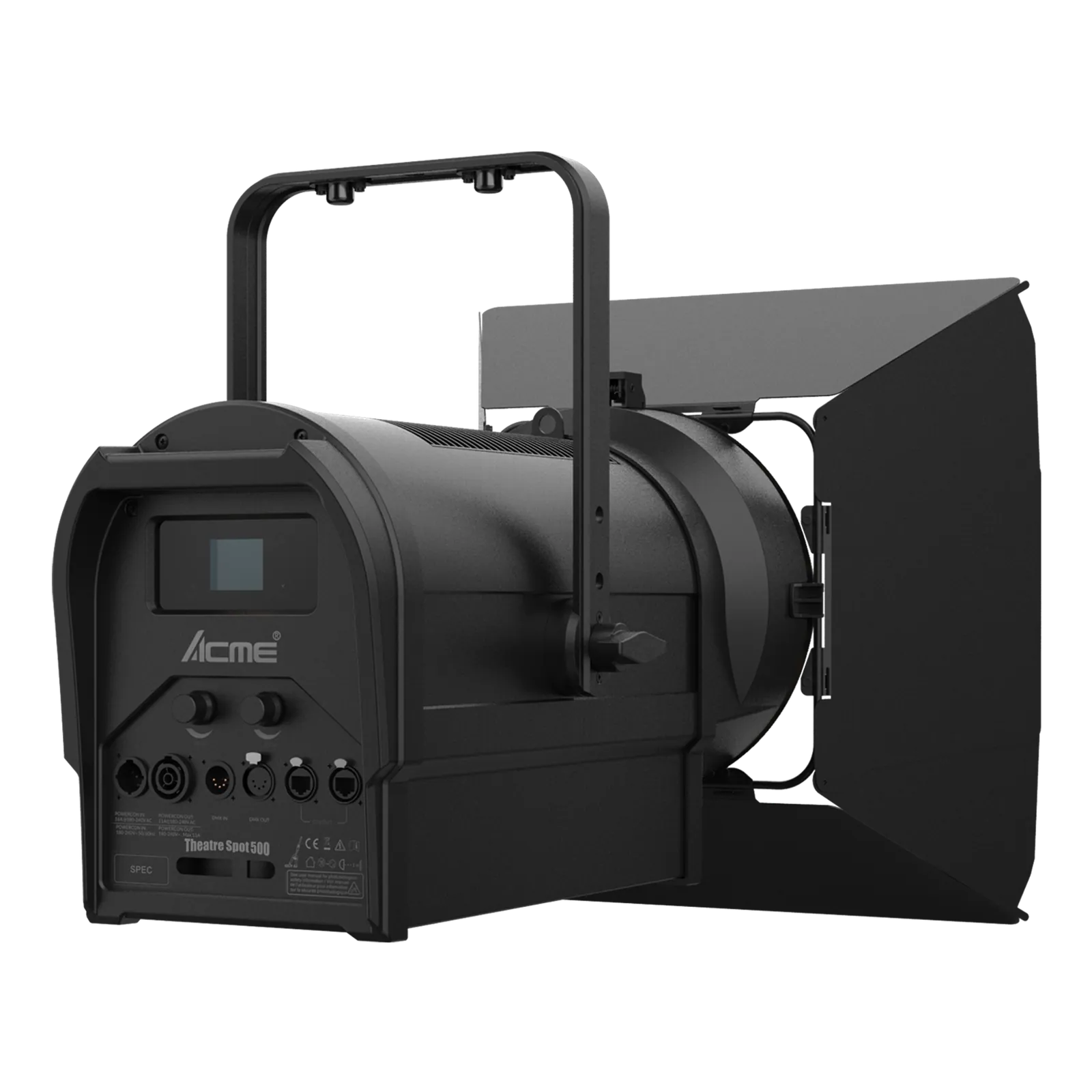

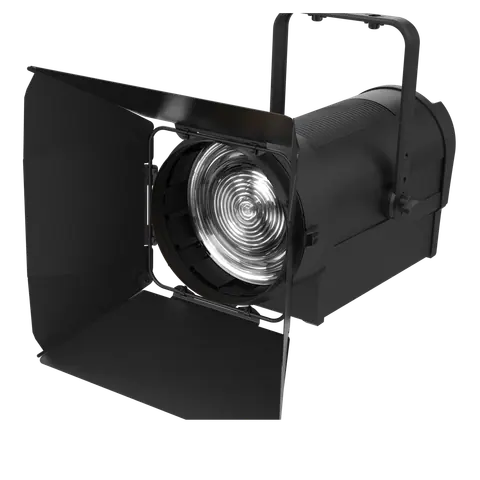

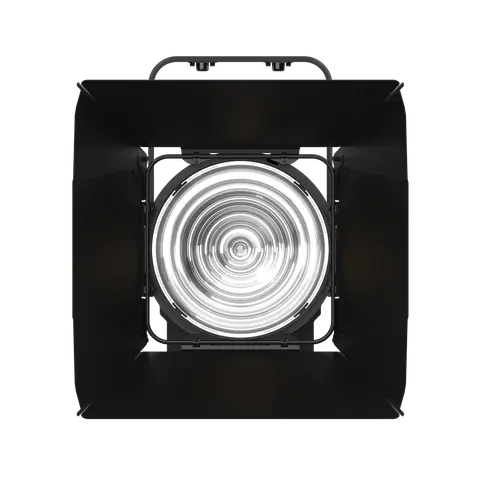

THEATRE SPOT 500 CW

ModelTS 500 CW

THEATRE SPOT 500 CW, a new high-CRI spot light with light weight and low noise,boasts a powerful 450-Watt CW LED engine calibrated at 5,600K that delivers a 34,000 lumens output with a 250 mm frontal lens.

Light source: 450W CW LED engine
Power consumption: 460W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 14°-74°
DMX channels: 4/6
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 5,600K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 13 groups · 53 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 776 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: THEATRE SPOT 500 CW
Model Code: TS 500 CW

02Light Source4

Light Source: 450W CW LED engine
Color Temperature Output of Fixture: 5,600K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data2

Total Lumen Output of Fixture: 34,000 lumens
HCRI Mode: Ra>96

04Optical System3

Zoom Range: 14°-74°
Zoom Ratio: 5.3 : 1
Diameter of Frontal Lens: 250 mm

05Control7

4 touch button control panel
Display: LCD display
Operational Modes: DMX Control,Manual Control
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 2
Control Channels: 4/6
Firmware Upgrade: Upgrade via DMX link

06Other Effects7

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized zoom

Low noise under 33.9dB@1m

Flicker free management under 4K/8K camera

Including rotatable barndoor

With color correction system to ensure consistent color output

Show the full specificationHide the rest of the specification7 more groups · 28 values

07Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 460W
Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

08Physical Information4

Fixture Dimensions
Width: 320 mm (12.6")
Depth: 569 mm (22.4")
Height: 462 mm (18.2")
Weight: 13.2 kg (29.2 lbs)

09Packing Information4

Carton Dimensions
Width: 720 mm (28.3")
Depth: 420 mm (16.5")
Height: 540 mm (21.3")
Weight
G.W.: 18.5 kg (40.8 lbs) (One-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 55°C
Protection Rating: IP20

11Installation5

Horizontal or vertical mounting

Universal working position

1 omega bracket

Two locking points and one locking hole on the hanger

Safety cable attachment point

12Included Items4

Digital user manual

Power cable

1 omega barket(3002000238)

Barndoor

13Optional Accessories (With Order Code)3

Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable,RJ45

02DescriptionManufacturer's description

What it is.

The fixture features a high-effciency optical system delivering a 5.5:1 zoom ratio with a zoom range of 14° to 74°. With a built-in fan, the heat dissipation in silent operation is significantly improved. Its patented hanger design prevents changes in the illumination angle from unexpected movements.

Equipped with flicker-free operation, a rotatable barndoor, and low noise design , the THEATRE SPOT 500 CW is suitable for various applications such as exhibitions, theaters, broadcasts, and film shooting, ensuring perfect illumination.
