Sheet 05.556

ACME · Spot and profile

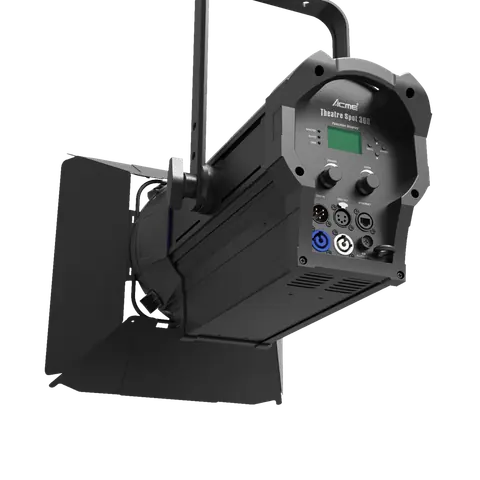

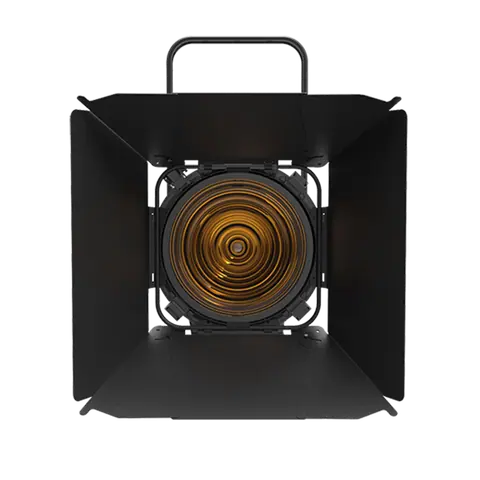

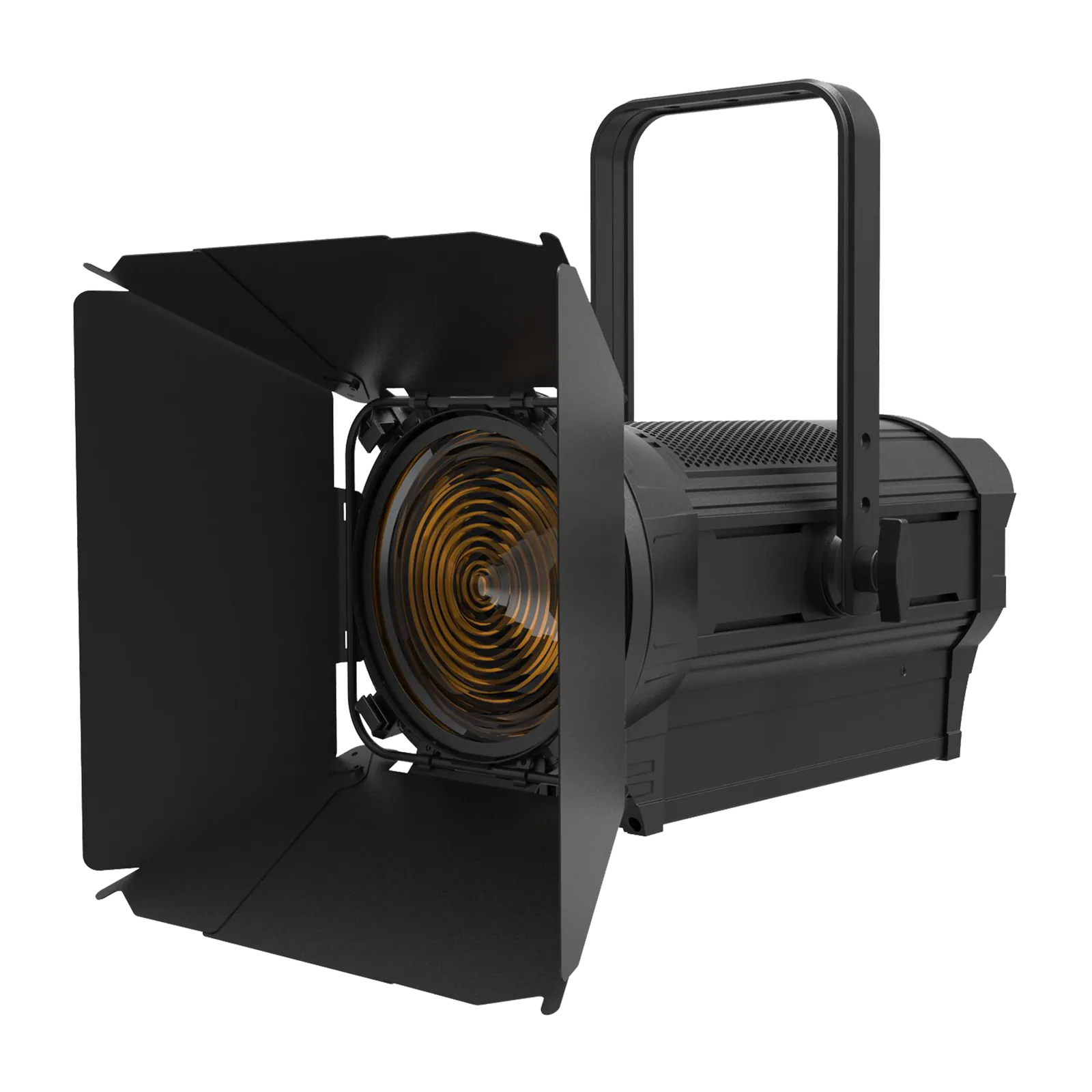

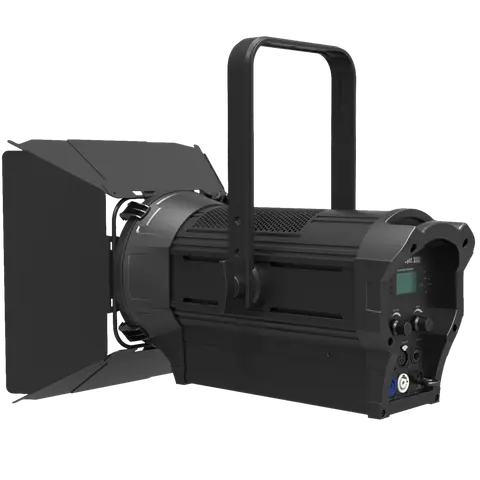

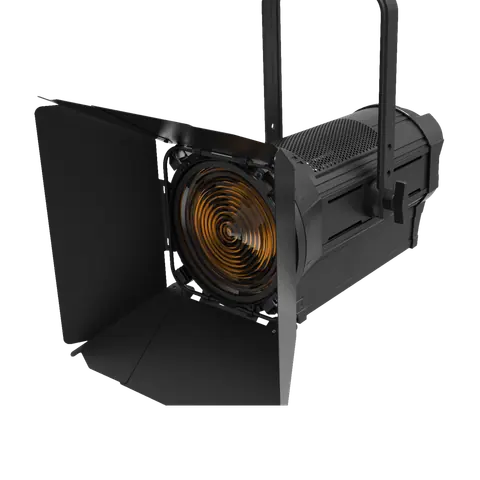

THEATRE SPOT 300 WW

ModelTS-300 WW

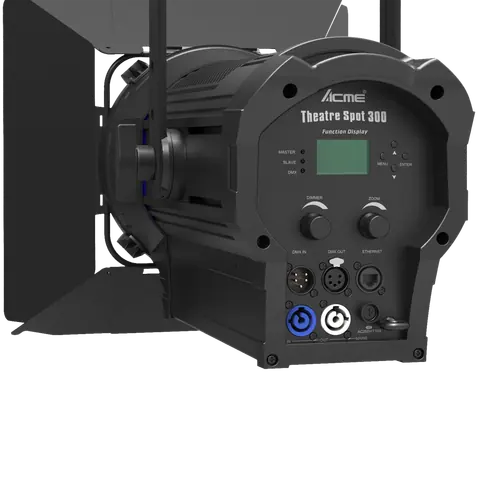

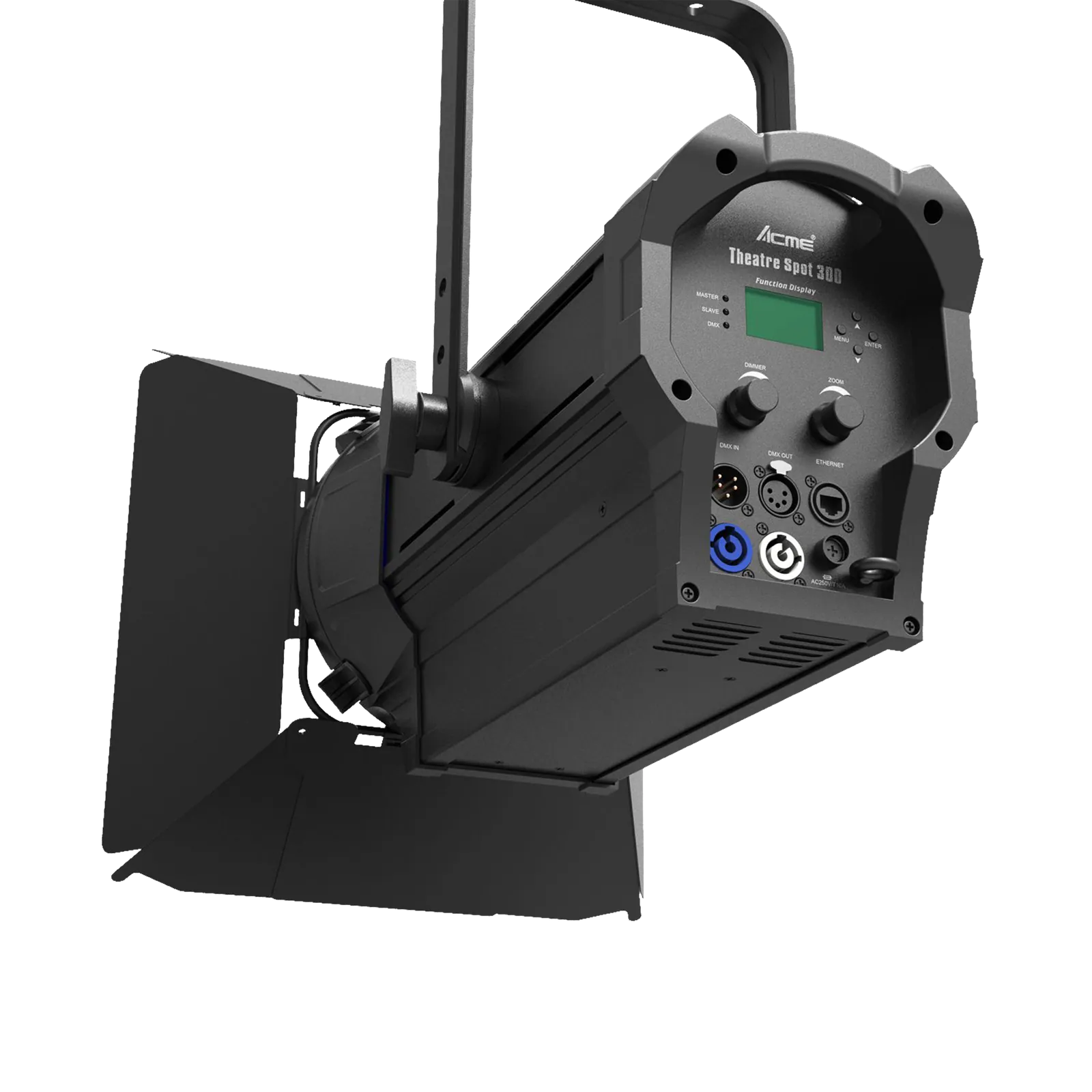

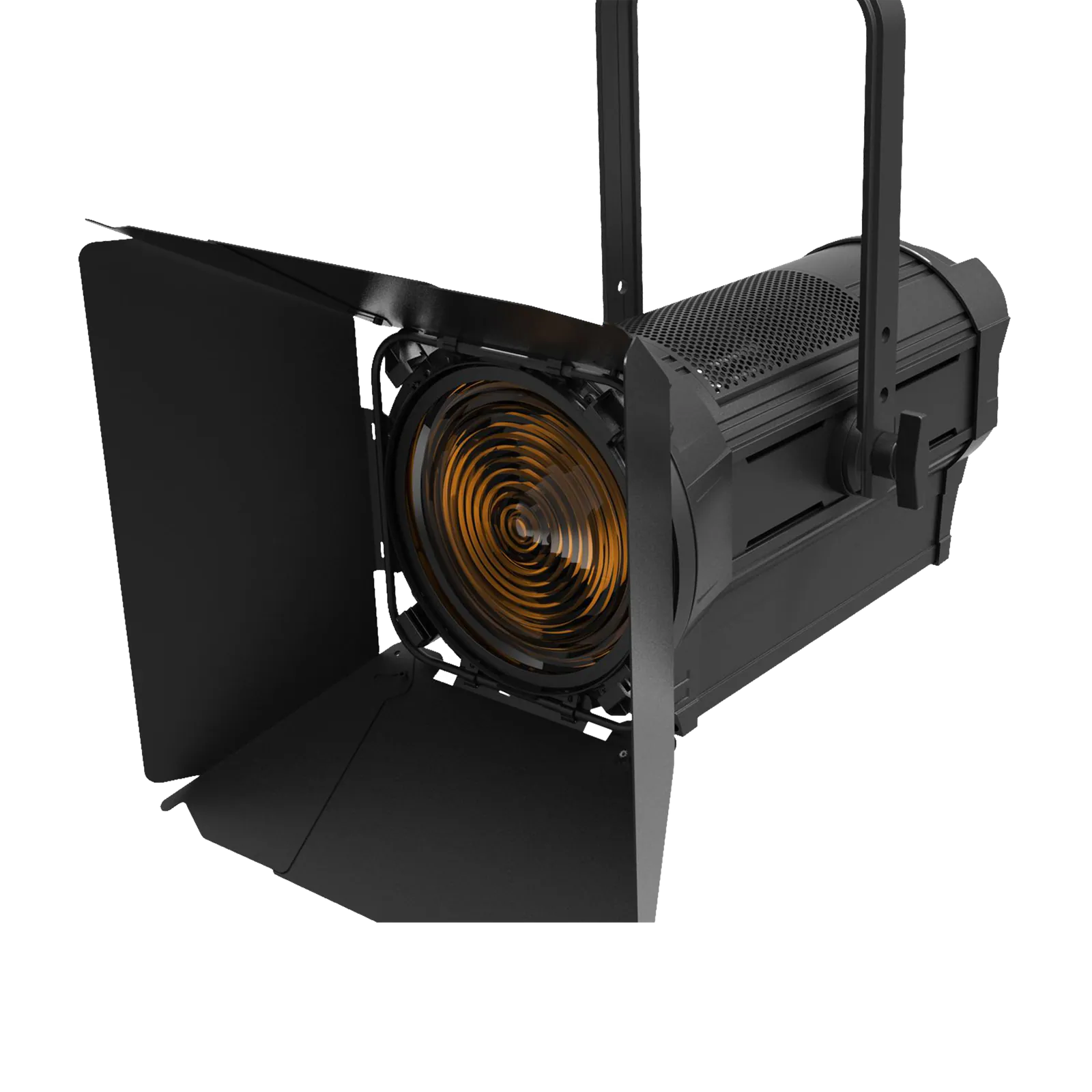

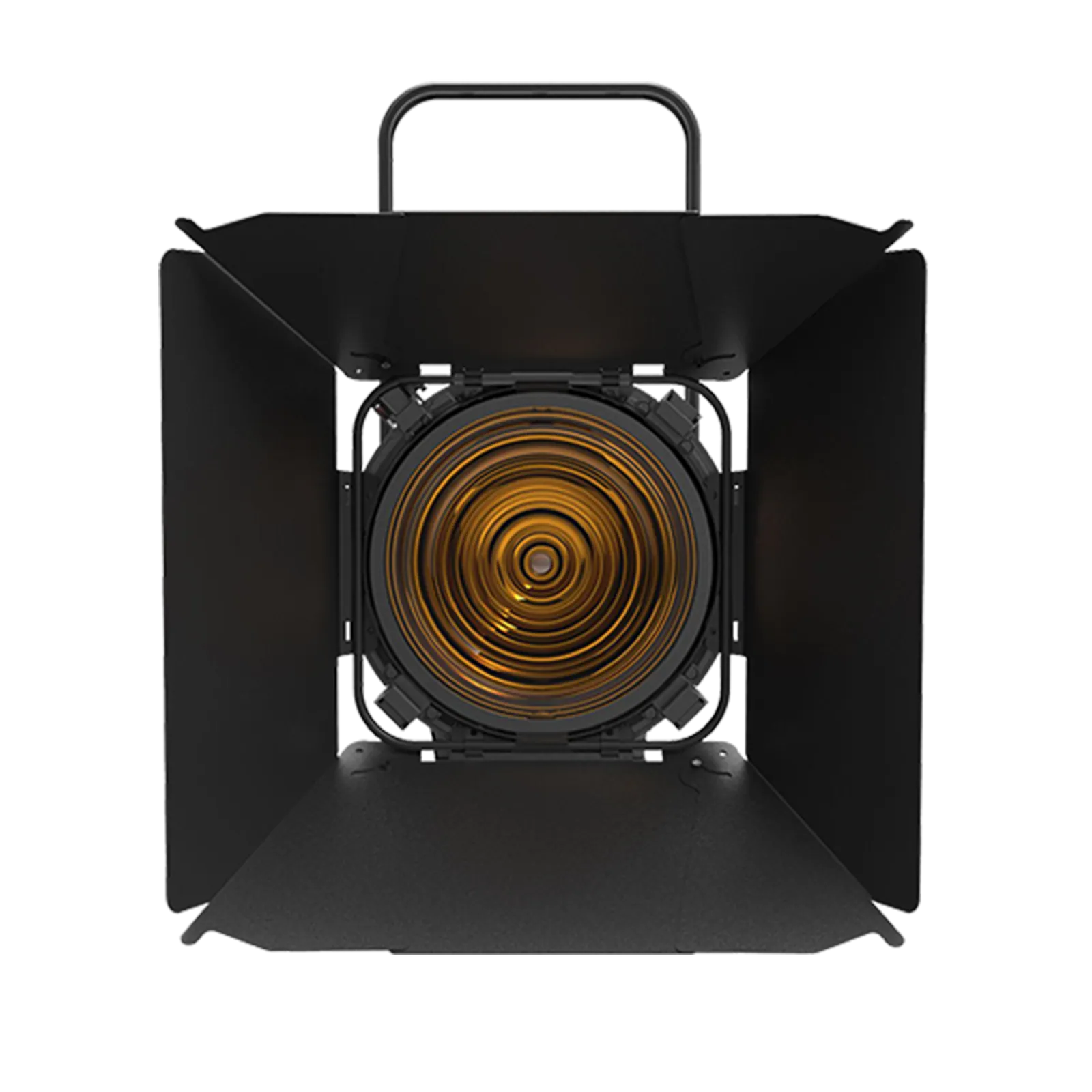

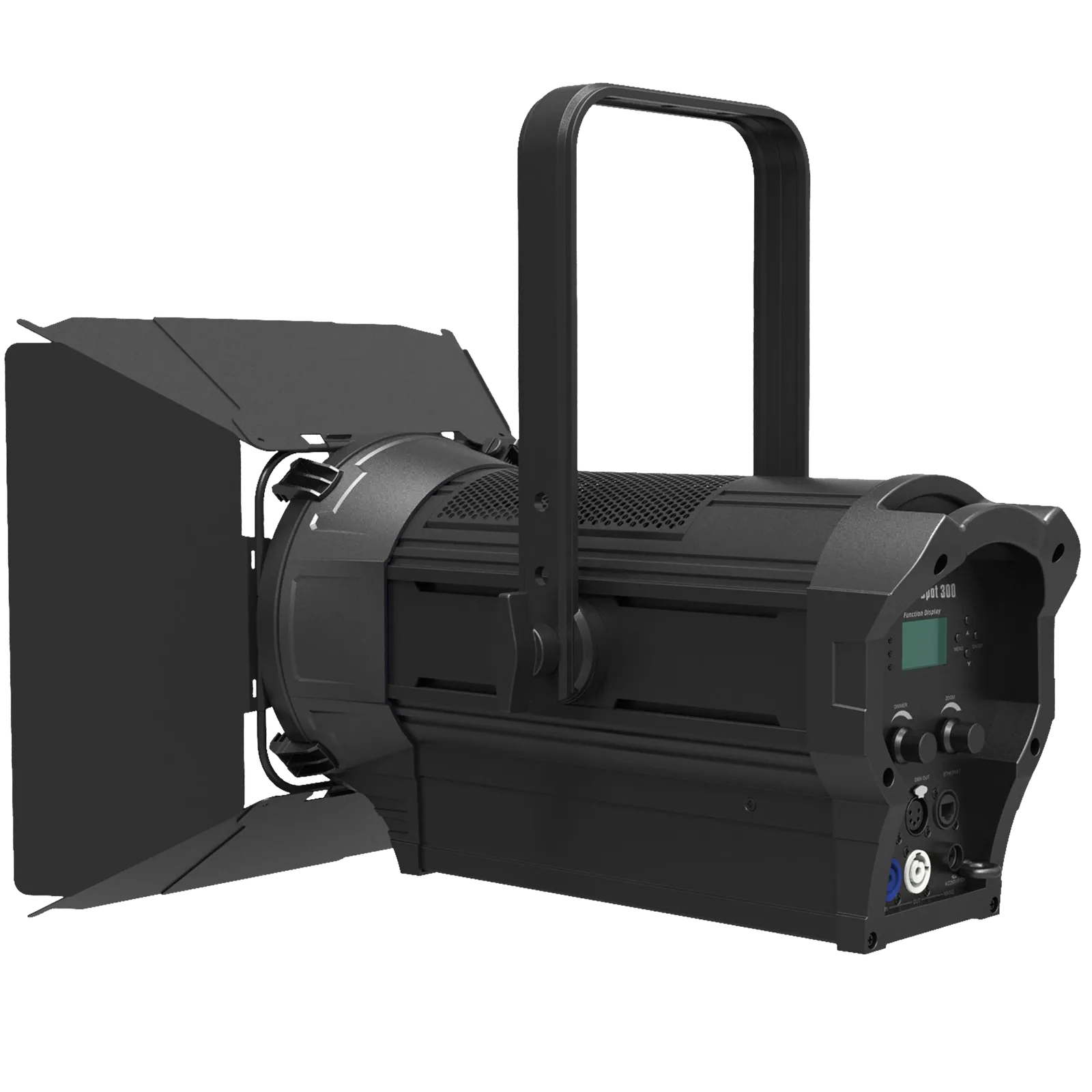

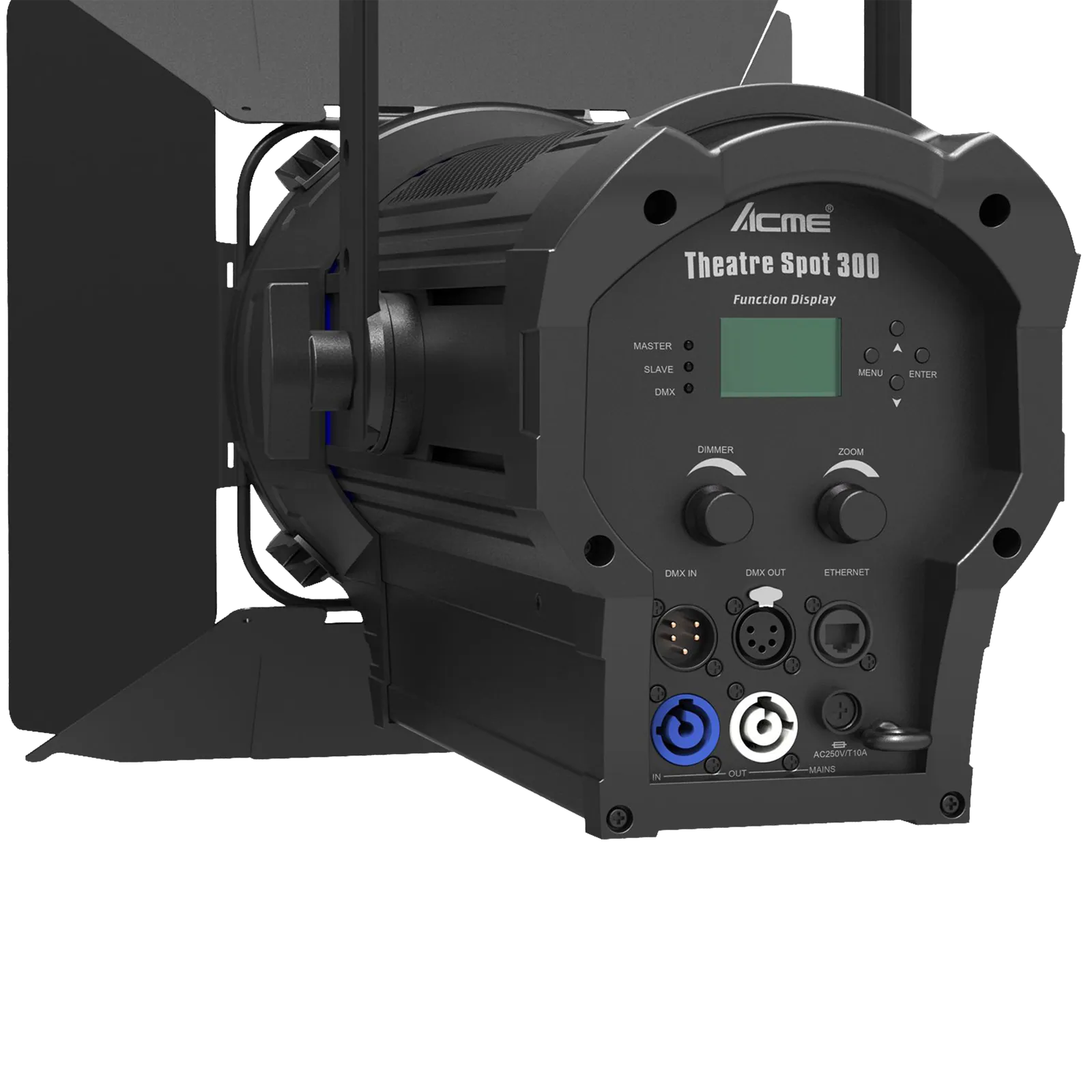

The ACME THEATRE SPOT 300 WW is a powerful single-source LED luminaire featuring a 300W Warm White LED engine with a color temperature of 3,200K ± 200K. This fixture emits clear warm light with a CRI of 95 or higher, ensuring accurate color reproduction.

Light source: 1 x 300W WW LED
Power consumption: 400W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 15°-53°
DMX channels: 2,3
Protocols: DMX512,Art-Net
Colour temperature: 3,200±200KK

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 52 values

What this product is, in numbers.

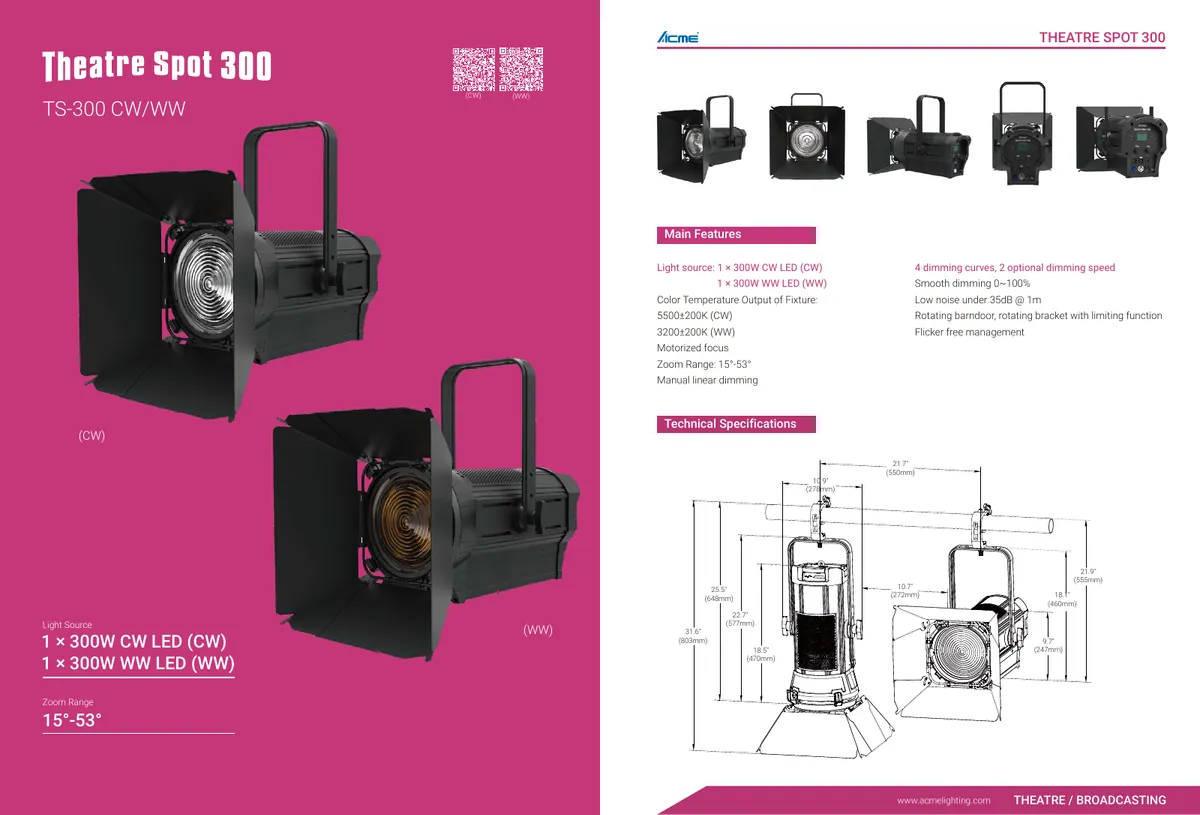

PDFDatasheetEN · 2 pages · 865 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: THEATRE SPOT 300 WW
Model Code: TS-300 WW

02Light Source4

Light Source: 1 x 300W WW LED
Color Temperature Output of Fixture: 3,200±200KK
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Color Rendering: CRI≥95, CQS≥94, TLCI≥97

04Optical System2

Zoom Range: 15°-53°
Zoom Ratio: 1 : 3.5

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,Art-Net
DMX Protocol Modes: 2
Control Channels: 2,3
Firmware Upgrade: Upgrade via DMX link

06Other Effects7

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized focus system

Manually adjust dimmer

Flicker-free management

4 dimming curves, 2 optional dimming speed

Low noise under 35dB within 1m

Rotating cover, rotating bracket with limiting function

Show the full specificationHide the rest of the specification8 more groups · 30 values

07Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 400W

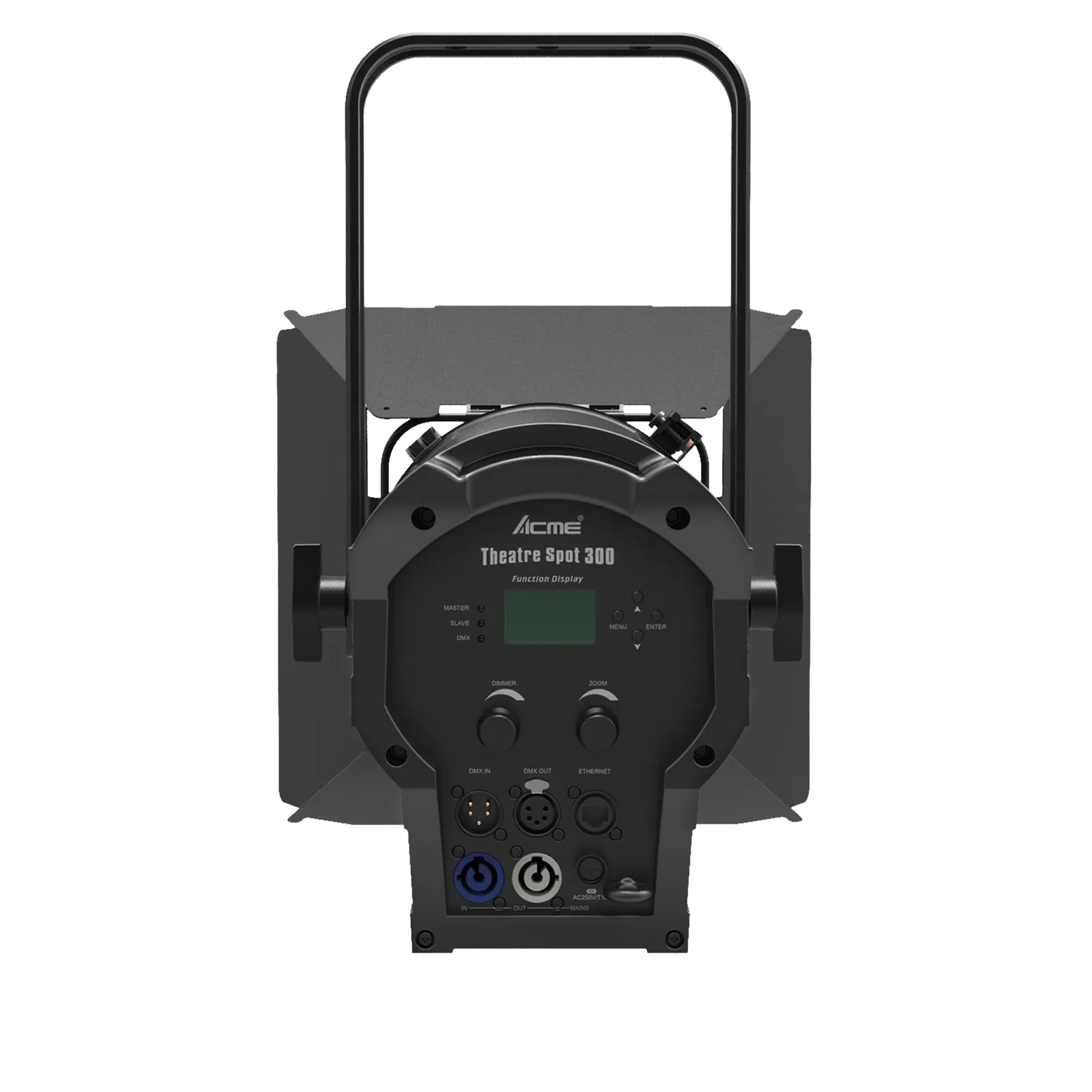

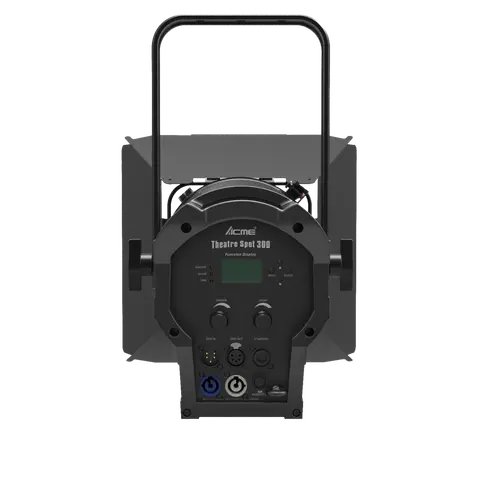

Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector; Power supply with electronic auto-ranging

08Physical Information4

Fixture Dimensions
Width: 278 mm (10.9")
Depth: 473 mm (18.6")
Height: 264 mm (10.3")
Weight: 10 kg (22.0 lbs)

09Packing Information4

Flight Case Dimensions
Width: 1,080 mm (42.5")
Depth: 790 mm (31.1")
Height: 815 mm (32.1")
Weight
Standard: G.W.: 134 kg (295.4 lbs) (Six-pack loader case)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

11Approvals1

CE compliant

12Installation4

Horizontal or vertical mounting

Universal working position

The feet support with 3 locking points

Safety cable attachment point

13Included Items3

Digital user manual

Power cable

Barn door

14Optional Accessories (With Order Code)5

Flight Case
Standard: Six-pack loader case (63581540)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable
Honeycomb Grid: 63580925

02DescriptionManufacturer's description

What it is.

It offers a wide beam angle ranging from 15° to 53°, thanks to its high-efficiency zoom optical system with a 1:3.5 ratio. The design includes a special thermal convection loop combined with a top-brand cooling fan, allowing for better heat management and silent operation.

Equipped with a patented clamp structure, the Theatre Spot easily accommodates various installation setups, preventing any unexpected movement that could cause the light to go out of focus. Additionally, it ensures smooth fading performance with four variable dimming curves and two optional dimming speeds.

The fixture includes a flicker-free operation, rotating barn door, and rotating bracket, making it a versatile choice for numerous applications, including major shows, exhibitions, evening performances, dramas, and film shoots.
