Sheet 05.555

ACME · Spot and profile

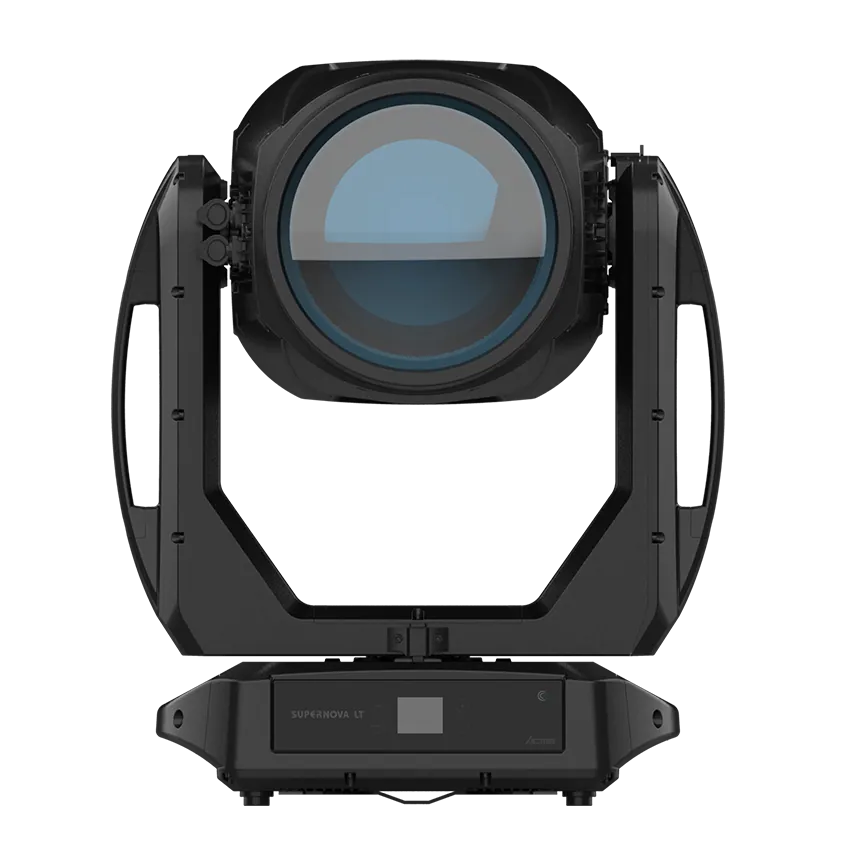

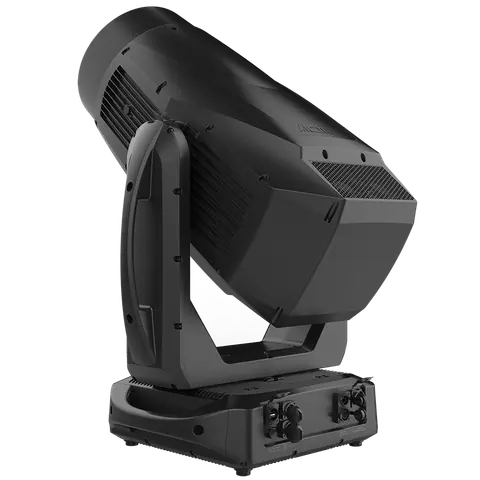

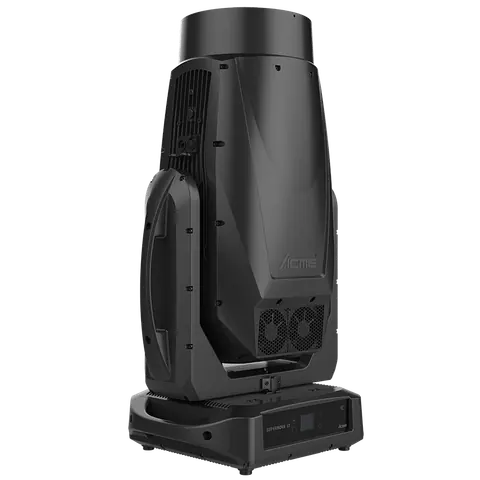

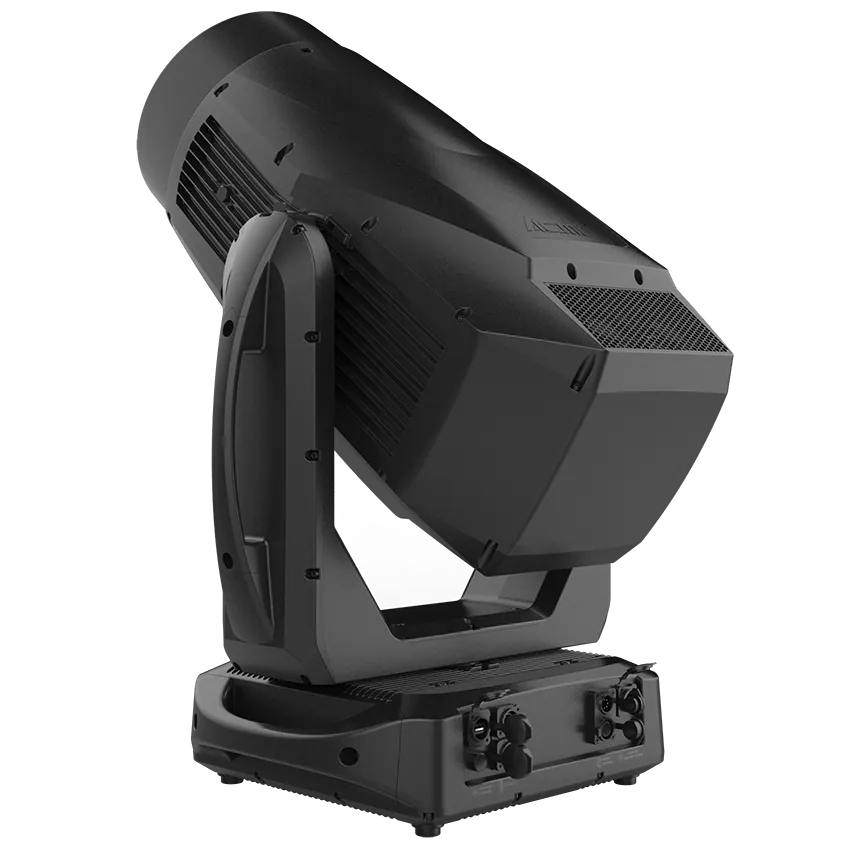

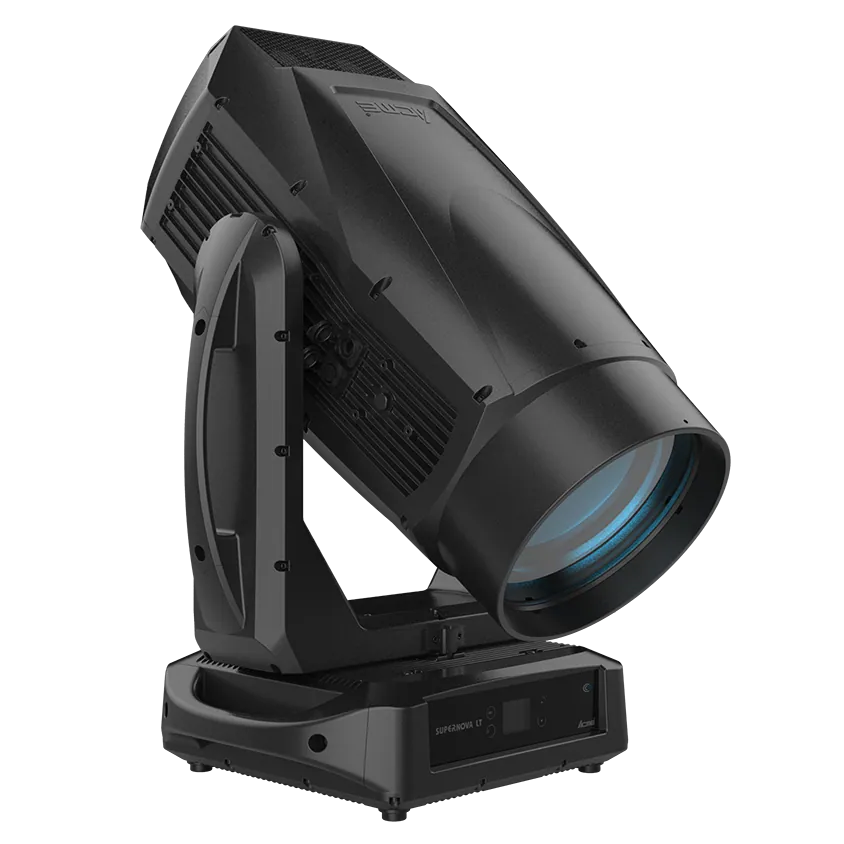

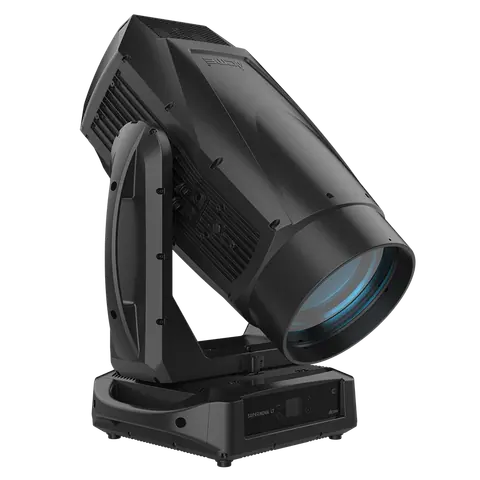

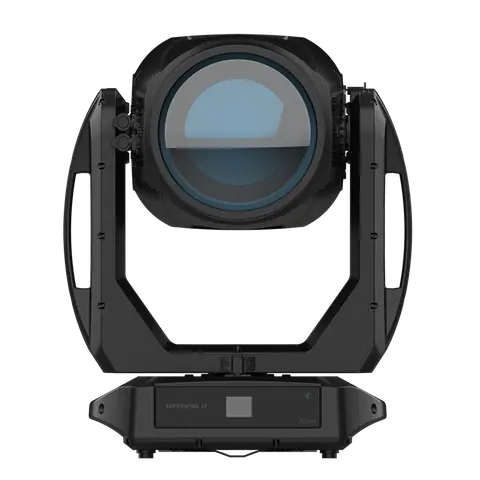

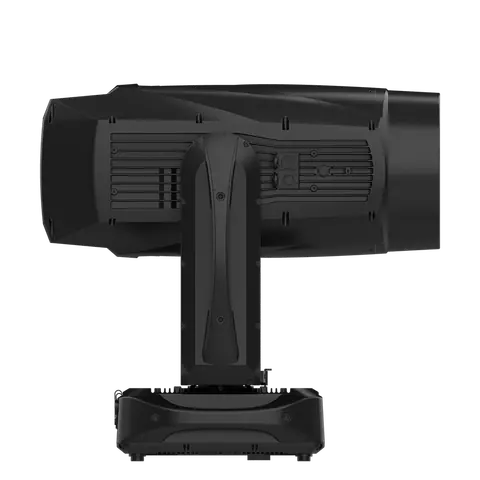

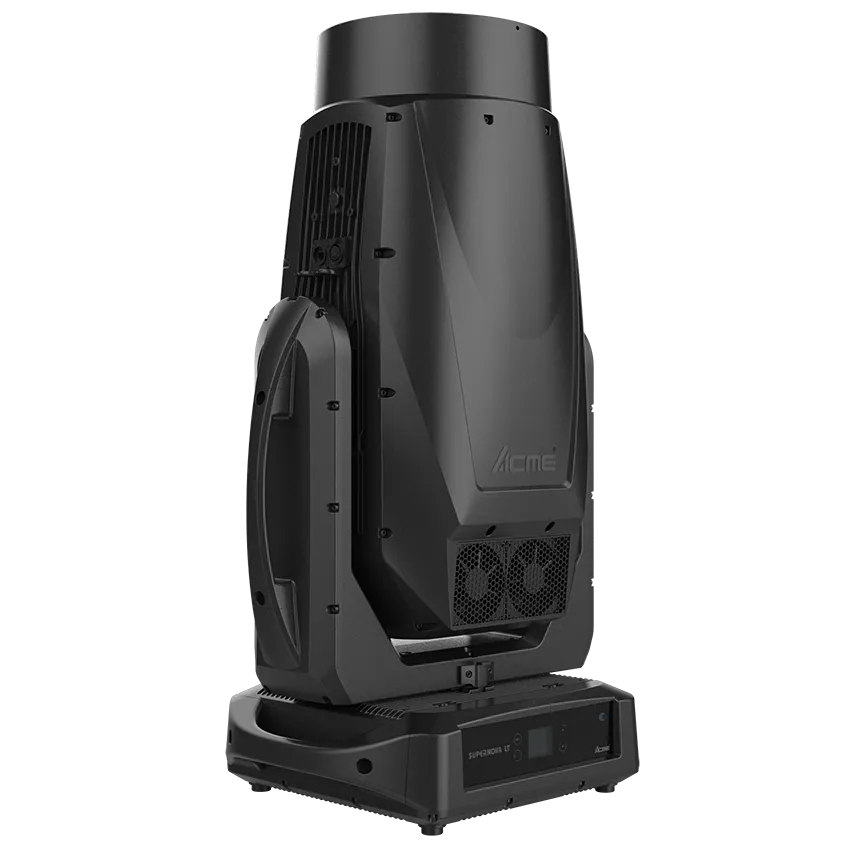

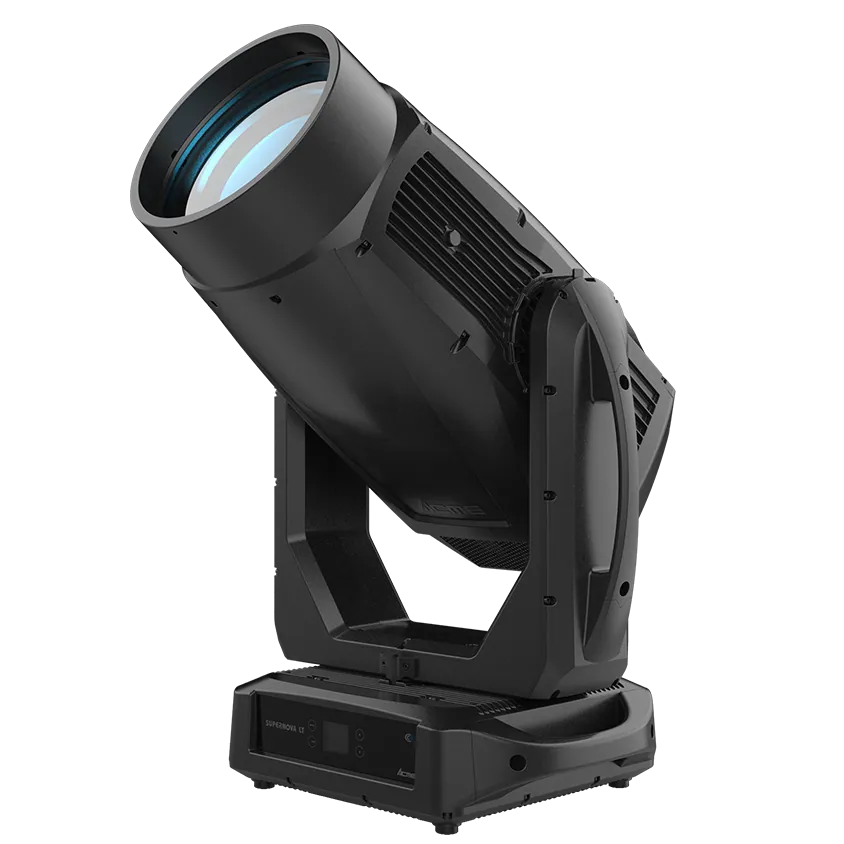

SUPERNOVA LT

ModelXA 2000 BSWF IP LT

Introducing the all-new ACME SUPERNOVA LT, a groundbreaking fixture designed for high-performance and long-throw applications that require intense beams and high precision.

Light source: 1,800W LED engine
Power consumption: 2,200W
Power supply: 180-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 23/32/35/44
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 6,700K
Net weight: 64.5 kg (142.2 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 3:29

ACME SUPERNOVA LT3:29

02SpecificationManufacturer's data · 22 groups · 86 values

What this product is, in numbers.

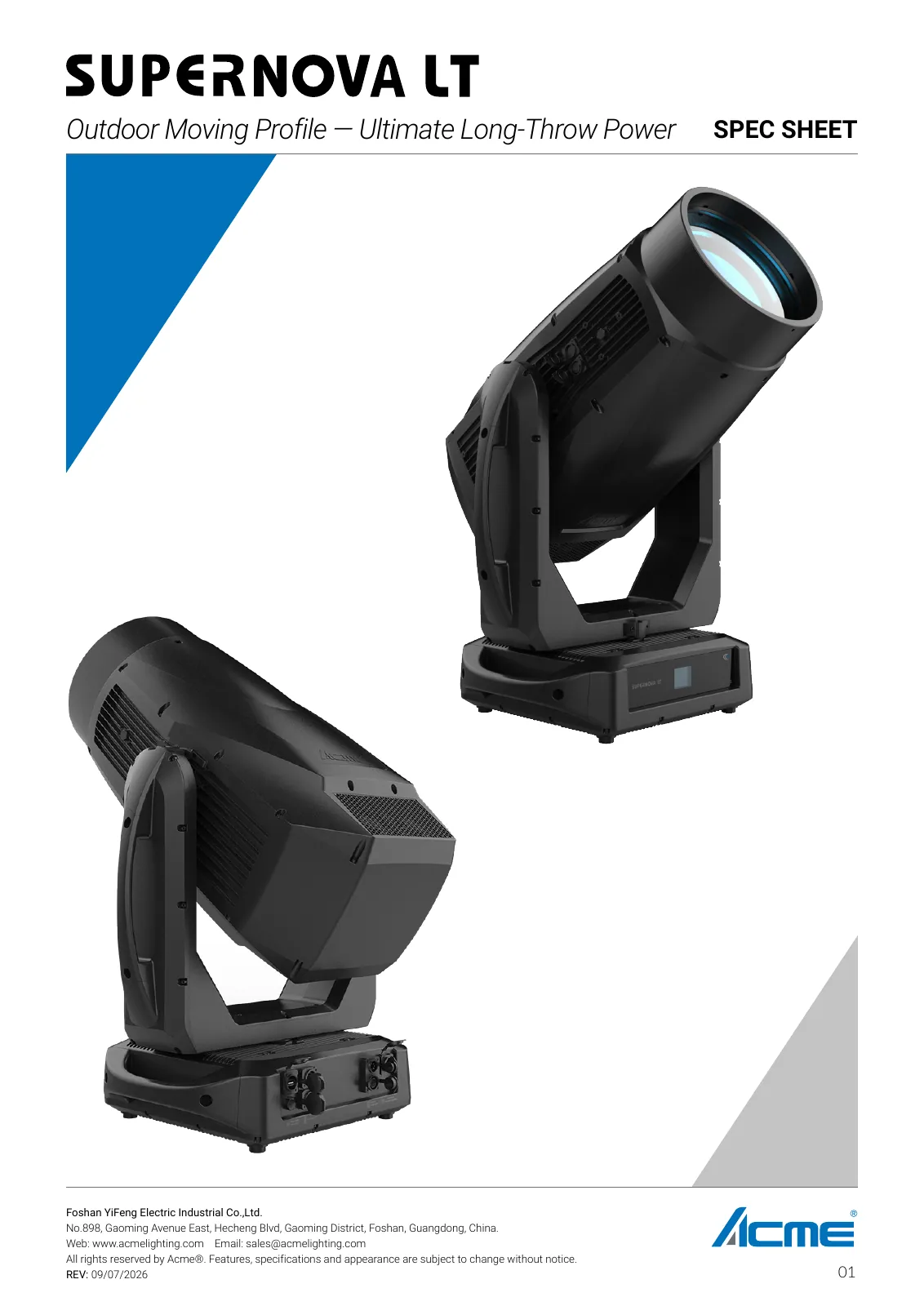

PDFDatasheetEN · 16 pages · 4.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: SUPERNOVA LT
Model Code: XA 2000 BSWF IP LT

02Light Source4

Light Source: 1,800W LED engine
Color Temperature Output of Fixture: 6,700K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data5

Total Lumen Output of Fixture
Auto Mode: 70,000 lumens
Quiet Mode: 51,000 lumens
Super Quiet Mode: 37,100 lumens
Standard Mode: Ra≥70
HCRI Mode: Ra≥95

04Optical System4

Zoom Range
Standard Optical Zoom: 3.6°-52.5°
Using Beam Reducer: 1.9°-25°
Long-Throw Mode (Using Iris): 0.9°-5°
Diameter of Frontal Lens: 245 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 23/32/35/44
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 246°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification16 more groups · 60 values

07Colors4

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-6,700K
2 Color Wheels
Color Wheel 1: 5 colors, plus open
Color Wheel 2: 3 colors + CRI, plus open

08Rotating Gobos5

2 Rotating Gobo Wheel
Rotating Gobo Wheel 1: 5 gobos + 1 beam reducer, plus open
Gobo: Ø34 mm, lmage: Ø26.5 mm
Rotating Gobo Wheel 2: 6 gobos, plus open
Gobo Slot 1-5: Ø34 mm, lmage: Ø26.5 mm
Gobo Slot 6: Ø31 mm

09Animation Wheel1

A graphic animation wheel with continuous rotation in both directions, offering excellent vertical and horizontal movement. It can be used alone or in combination with gobos to create water and flame effects

10Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

11Frost Filter1

1° diffusion and 5° diffusion

12Framing System2

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±60° of the complete framing system

13Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized linear iris

14Electrical and Connectors4

Input Voltage Range: 180-240Vac; 50/60Hz
Power Consumption: 2,200W
Power In/Out: Waterproof power connector in
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

15Physical Information4

Fixture Dimensions
Width: 465 mm (18.3")
Depth: 365 mm (14.4")
Height: 893 mm (35.2")
Weight: 64.5 kg (142.2 lbs)

16Packing Information9

Flight Case Dimensions
Width: 810 mm (32")
Depth: 760 mm (30")
Height: 950 mm (37.4")
Weight
Standard: G.W.: 147.5 kg (325.2 lbs) (one-pack loader case)
North American Standard: G.W.: 143.7 kg (316.8 lbs) (one-pack loader case)
Carton Dimensions
Width: 870 mm (34.3")
Depth: 656 mm (25.8")
Height: 855 mm (33.7")
Weight
G.W.: 79.5 kg (175.3 lbs) (one-pack loader carton)

17Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 80°C
Protection Rating: IP66

18Approvals3

CE compliant

UKCA compliant

cETLus compliant

19Acoustic Data3

Noise Level
Auto Mode: 52 dB(A) @ 1 m
Quiet Mode: 46 dB(A) @ 1 m
Super Quiet Mode: 43 dB(A) @ 1 m

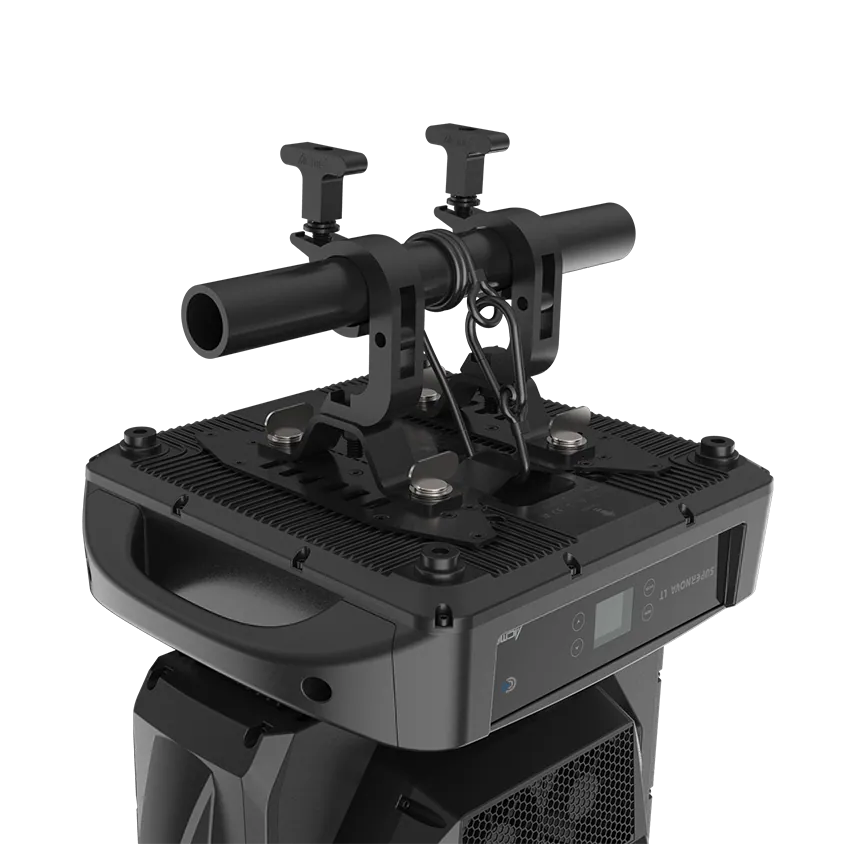

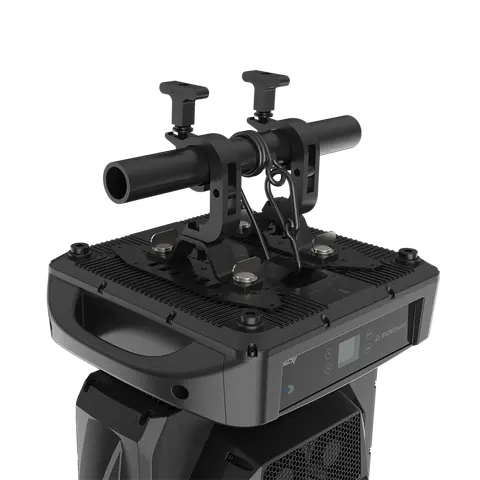

20Installation3

Vertical mounting

2 omega brackets

Safety cable attachment point

21Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003003)

22Optional Accessories (With Order Code)10

Flight Case
Standard: One-pack loader case (63584312)
North American Standard: One-pack loader case (63584376)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

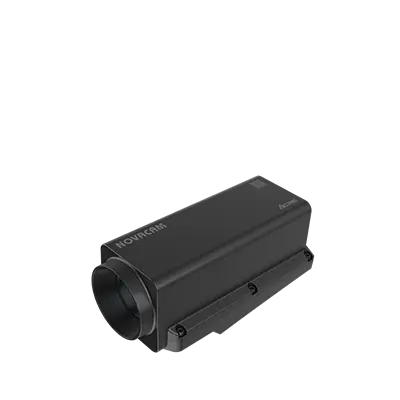

SUPERNOVA LT Camera Enclosure: 63584479

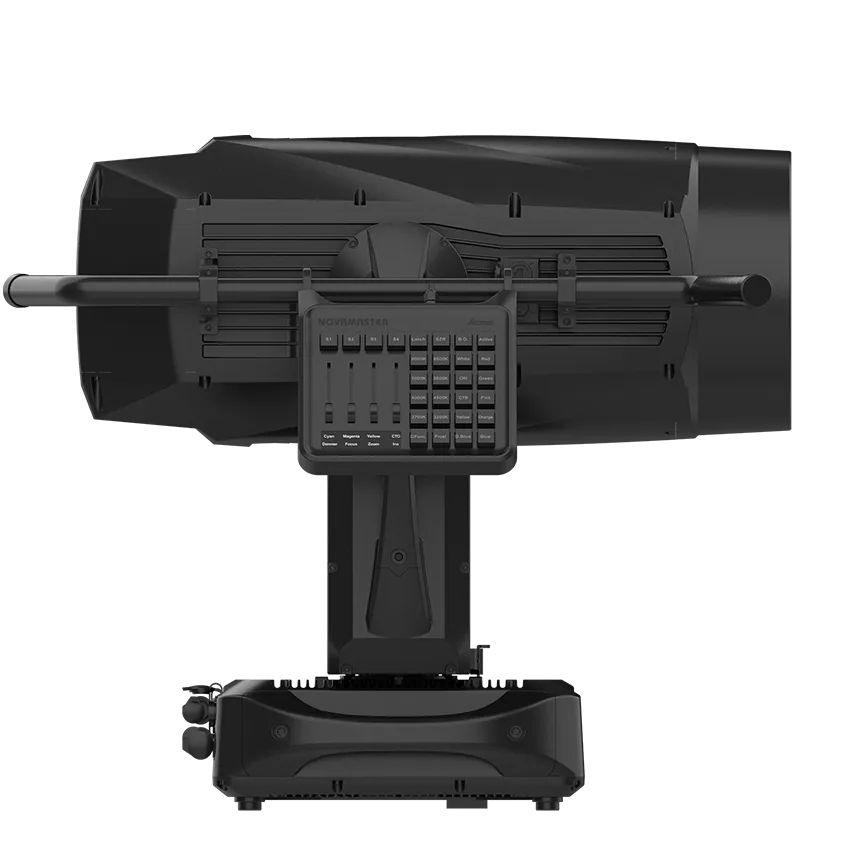

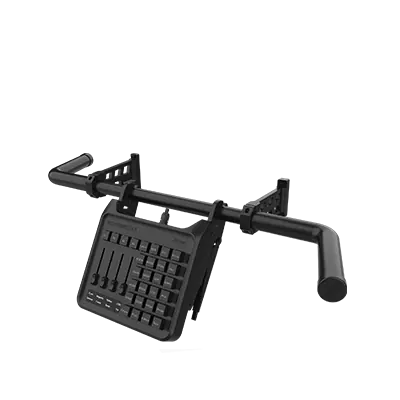

SUPERNOVA LT Follow Spot Kit: 63584190

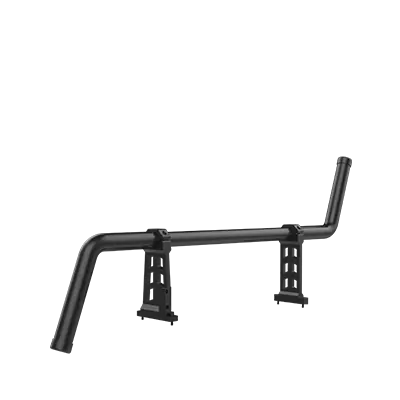

SUPERNOVA LT Follow Spot Handle Only: 63584218

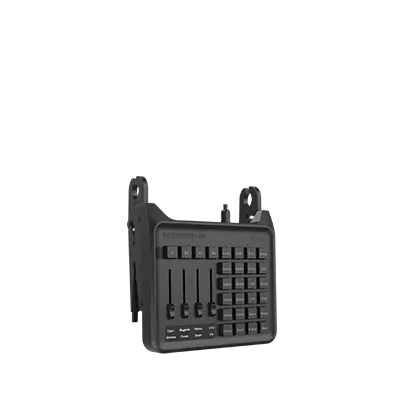

SUPERNOVA LT Follow Spot Control Pad Only: 63584219
3° Diffusion: 3015001393

03DescriptionManufacturer's description

What it is.

Powered by a powerful 1,800W LED engine, the SUPERNOVA LT delivers a jaw dropping 70,000 lumens through its large 245 mm frontal lens. In standard Optical Zoom Mode, the fixture is capable of 3.6 to 52.5 degrees. While using the beam reducer, the fixture provides an ultra-tight 1.9 to 25 degree beam for crisp, precise projections.

The SUPERNOVA LT features a CMY mixing system, dual color wheels, and variable CTO, offering exceptional color flexibility. Take creativity to the next level — the SUPERNOVA LT is packed with effects to inspire designers. It includes dual rotating gobo wheels, dual frost filters (one degree diffusion and five degree diffusion), an animation wheel that now offers both horizontal and vertical movement, as well as combinable 4-facet circular prism and a 4-facet linear prism.

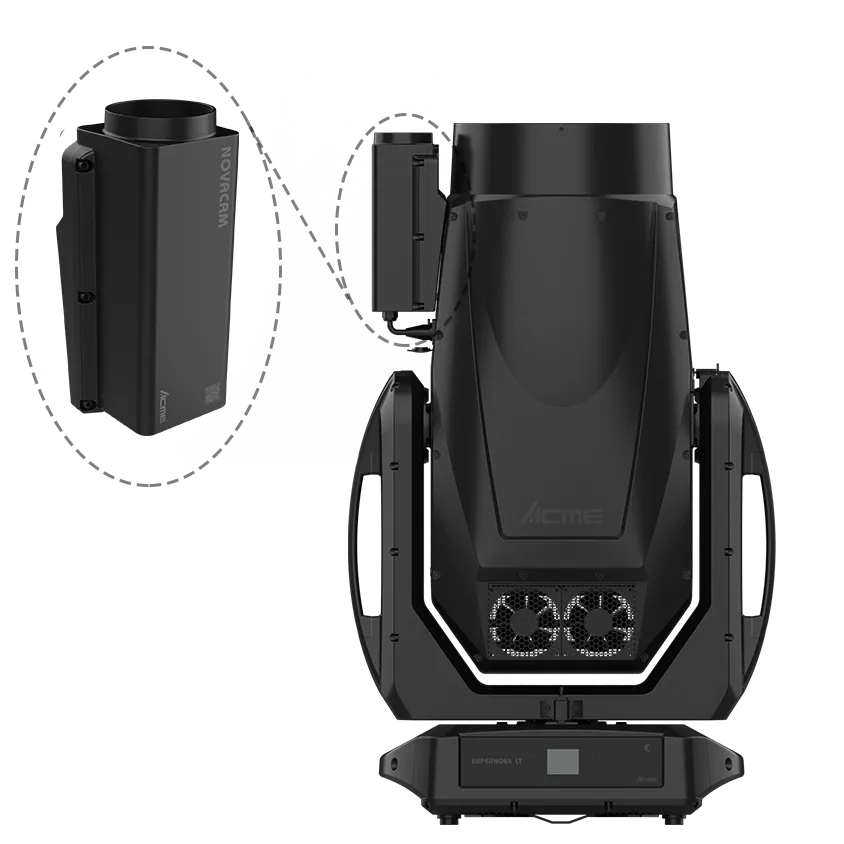

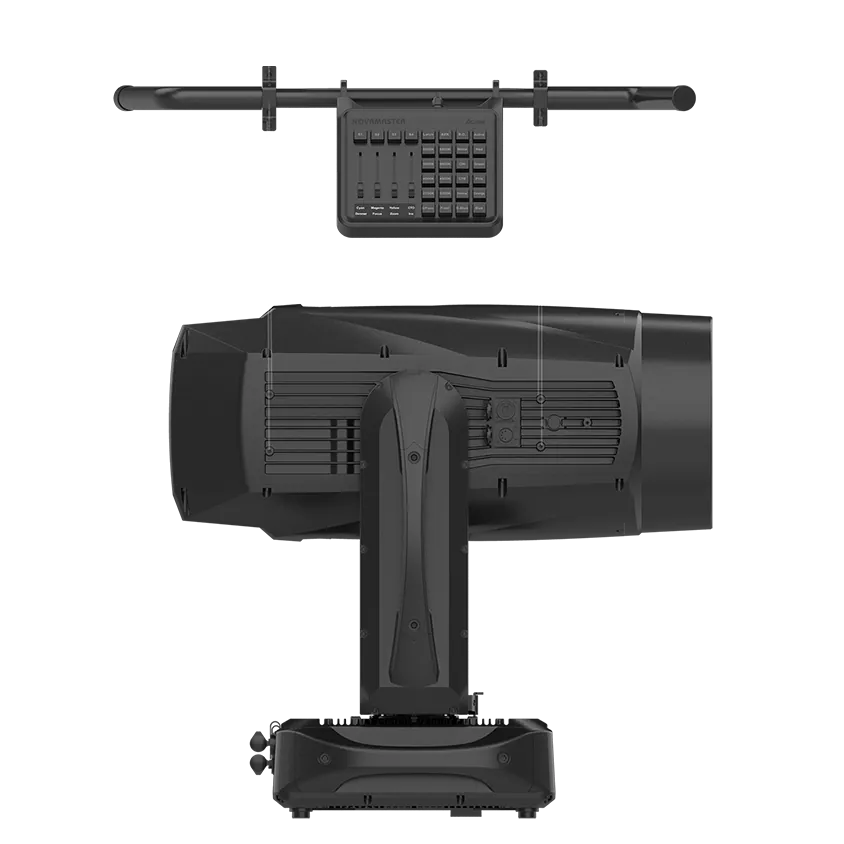

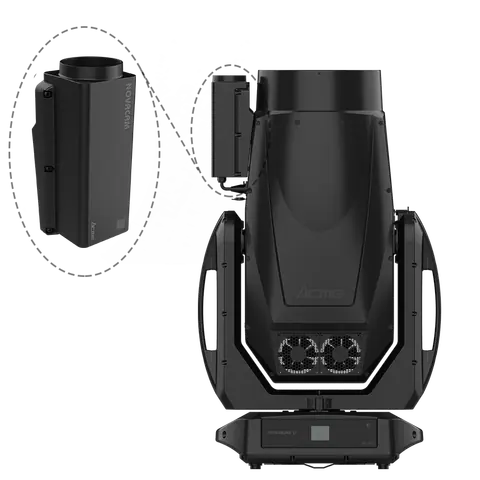

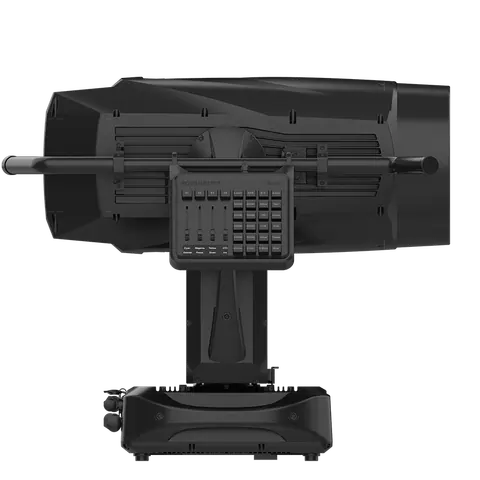

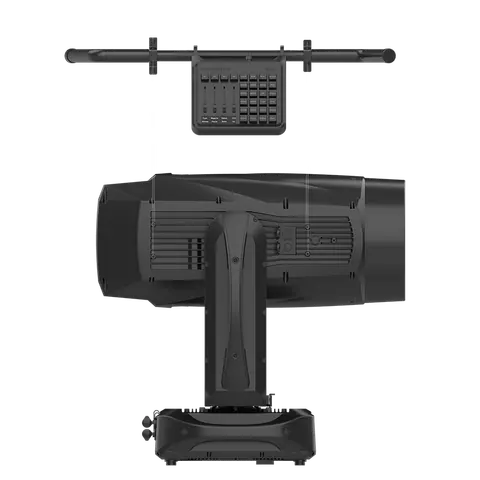

An optional camera enclosure is designed for integration with third-party remote follow spot systems. With the optional follow spot kit — including a follow spot handle and control pad — users can manually control the light, dimming levels, and color temperature, recreating the experience of a traditional follow spot.

Redefining performance, optical excellence, and output — the SUPERNOVA LT stands as the ultimate large-format lighting solution. Engineered for professionals who demand the best, it delivers unmatched brightness, precision, and control for any high-impact lighting application.
