Sheet 05.672
ACME · Wash
THETA
ModelCM 1000ZF

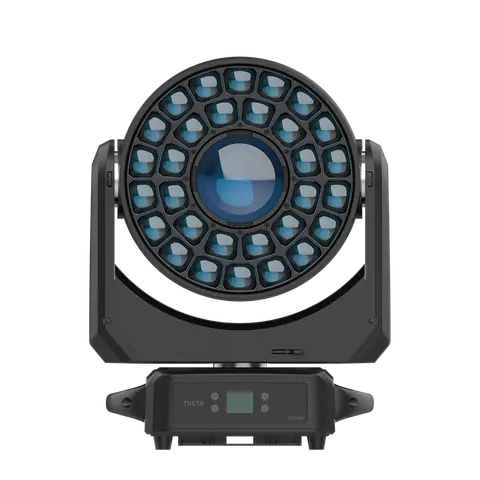

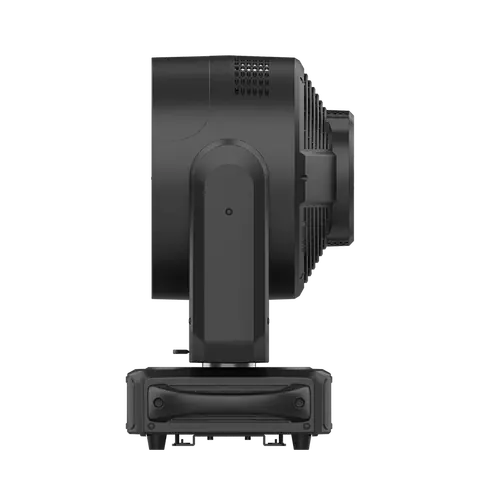

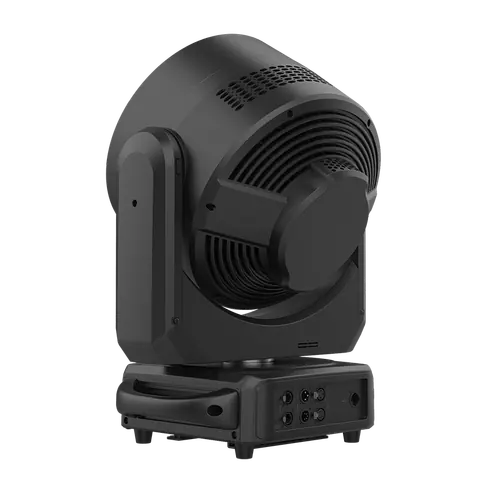

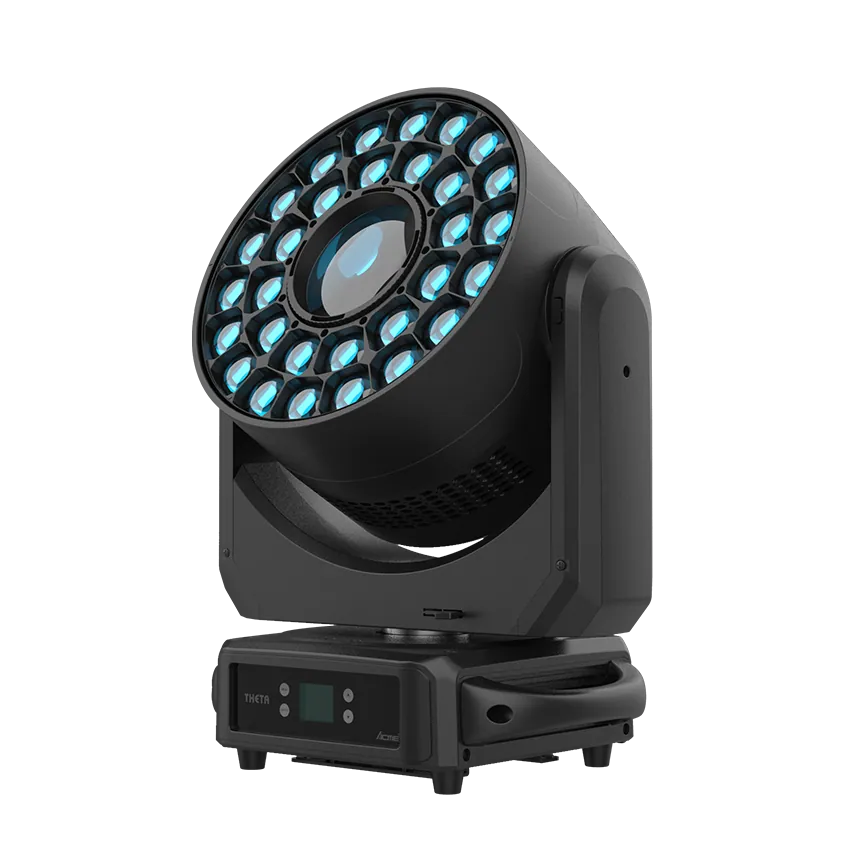

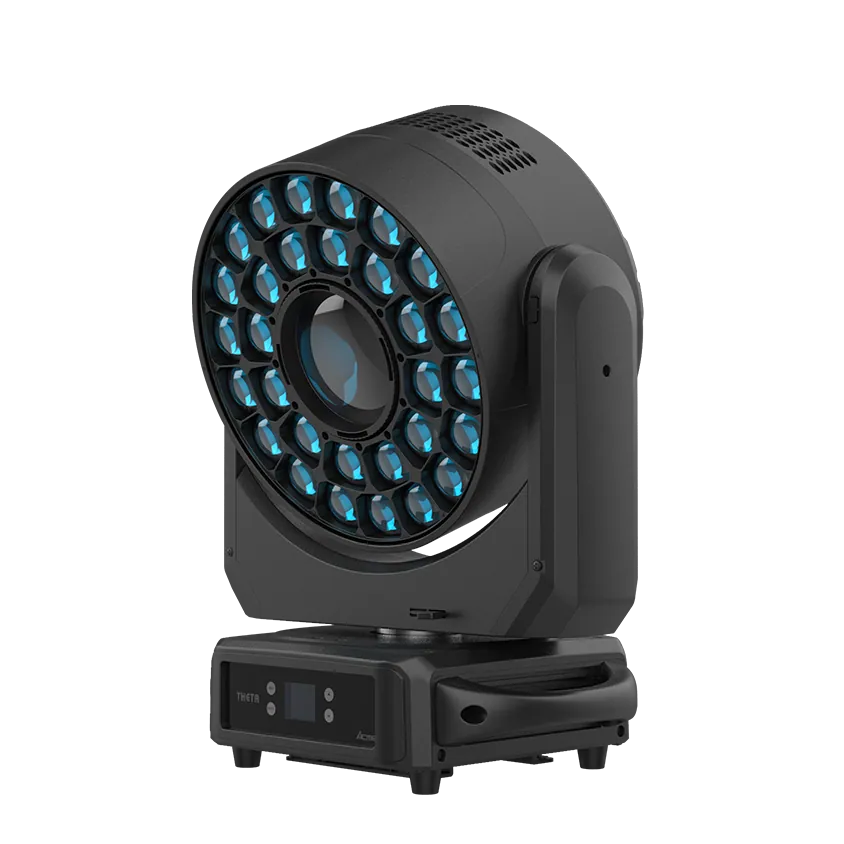

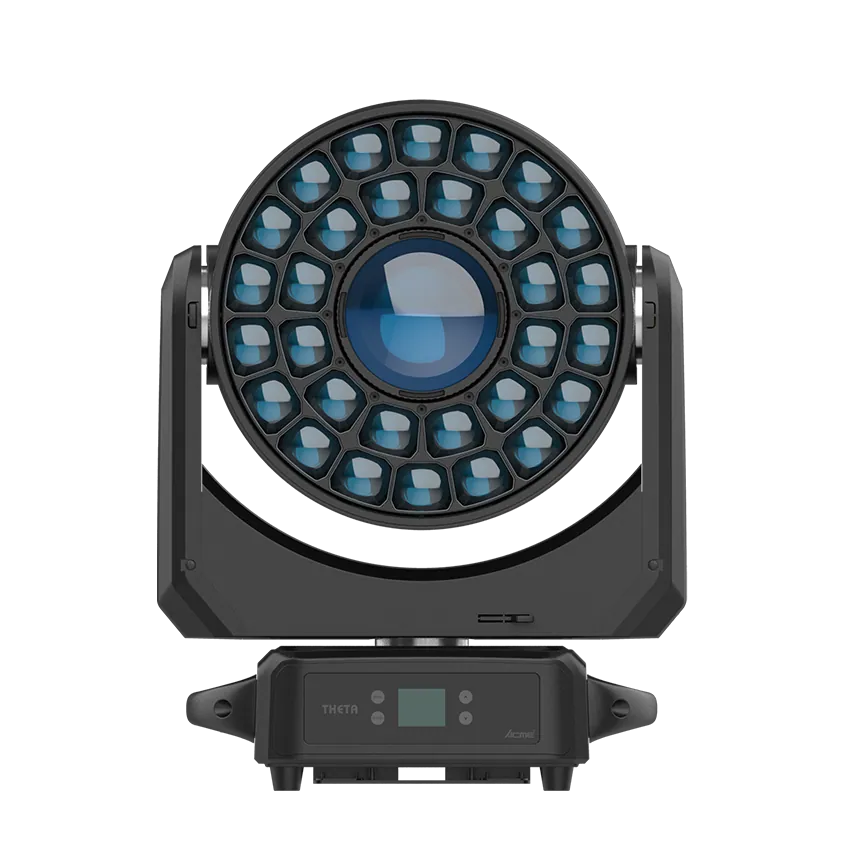

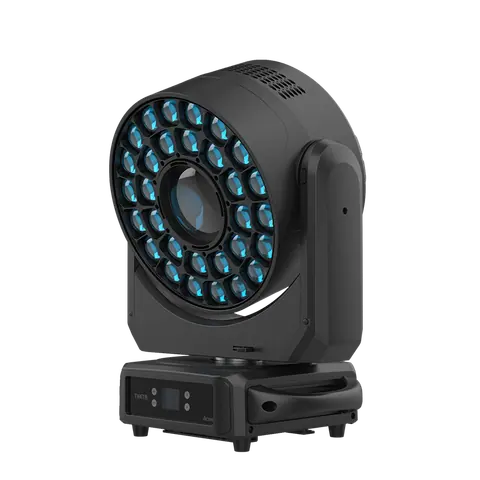

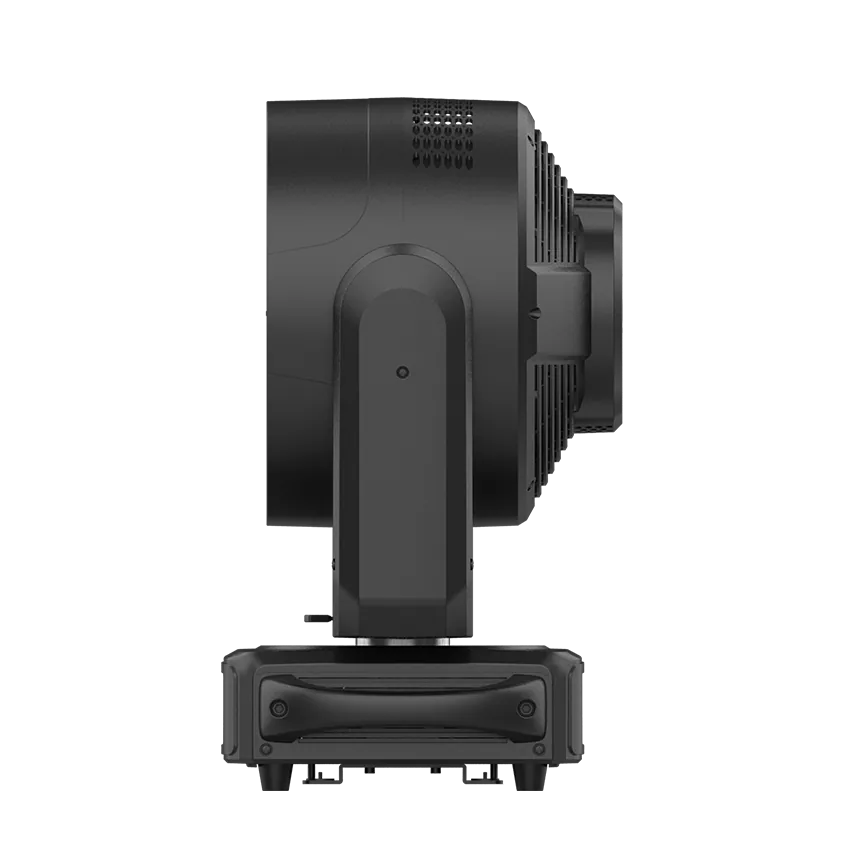

The ACME THETA combines beam and wash features into one extraordinary luminaire for powerful effects and deep color washes. The center section is powered by a 200-Watt cool white LED and the surrounding wash section has 30, 40-Watt RGBW LEDs.
- Light source
- 200W CW LED
- Power consumption
- 1,600W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- DMX channels
- 19+/27/29/139/141
- Protocols
- DMX512,RDM,Art-Net,sACN
- Colour temperature
- 7,000K
- Net weight
- 34 kg (75 lbs)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
THETAPrice on requestRequest a quotation
01VideoManufacturer's video · 2:19
ACME THETA: the manufacturer's video
02SpecificationManufacturer's data · 19 groups · 66 values
What this product is, in numbers.

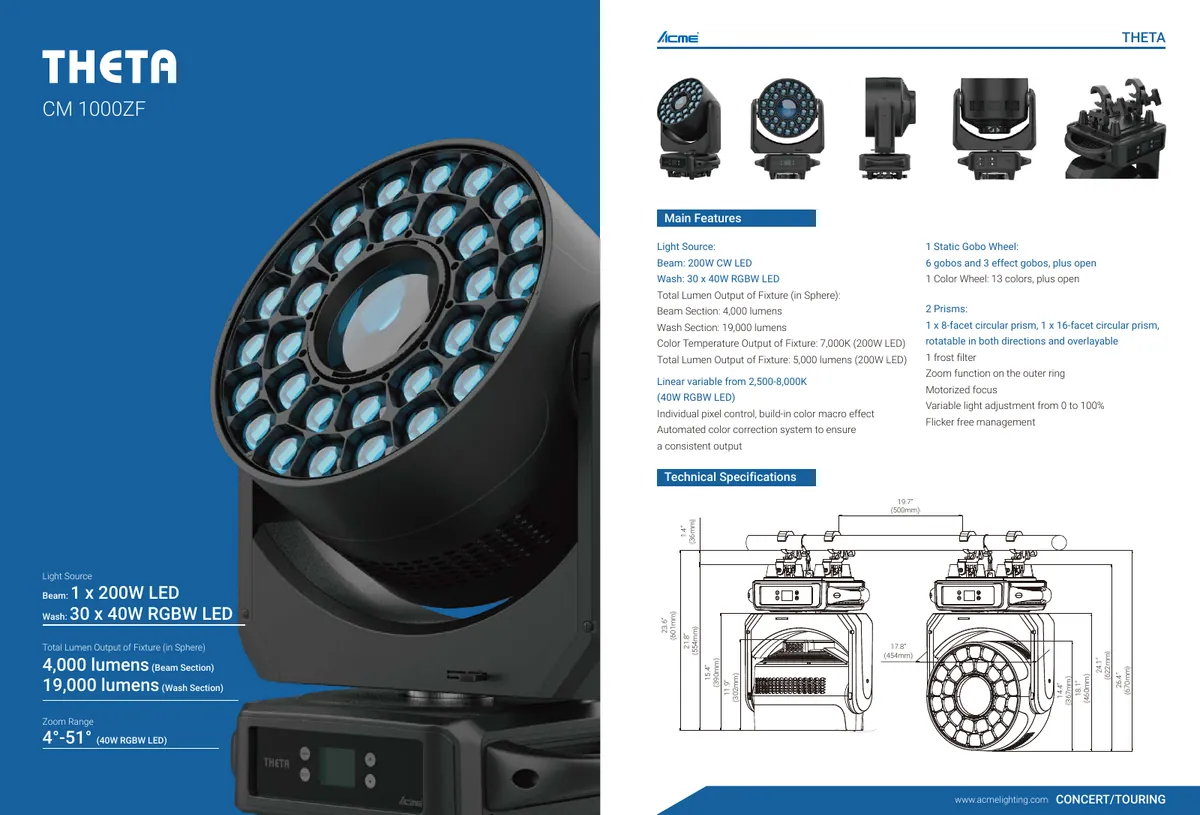

PDFDatasheetEN · 2 pages · 927 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- THETA
- Model Code
- CM 1000ZF
02Light Source5
- Light Source
- Beam
- 200W CW LED
- Wash
- 30 x 40W RGBW LED
- Color Temperature Output of Fixture
- 7,000K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data2
- Total Lumen Output of Fixture
- Beam
- 4,000 lumens
- Wash
- 19,500 lumens
04Optical System2

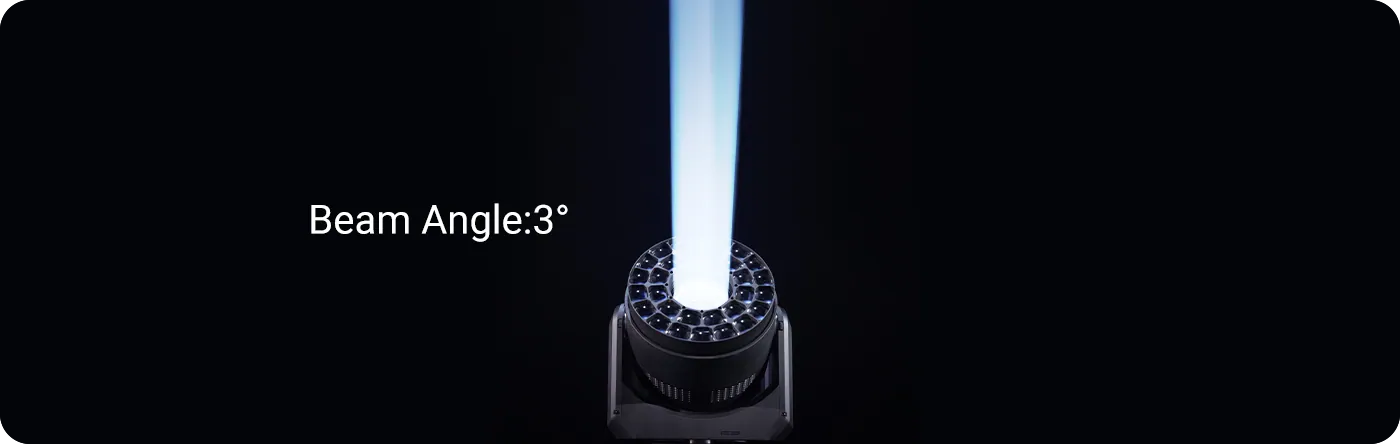

- Beam Angle
- 200W LED
- 3°
- Zoom Range
- 40W RGBW LED
- 4°-51°
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes
- 5
- Control Channels
- 19+/27/29/139/141
- Firmware Upgrade
- Upgrade via DMX link
06Pan & Tilt5
- Pan Movement
- 540°
- Tilt Movement
- 215°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
- Pan/Tilt lock
Show the full specificationHide the rest of the specification13 more groups · 44 values
07Colors2
- Linear CTO Color Correction
- 2,500K-8,000K
- 1 Color Wheel
- 13 colors, plus open
08Static Gobos2
- 1 Static Gobo Wheel
- 6 gobos and 3 effect gobos, plus open
- Gobo
- Ø100 mm
09Prism1
- 2 Combinable Rotating and Indexable Prisms
- 1 x 8-facet circular prism, 1 x 16-facet circular prism, rotatable in both directions
10Frost Filter1
- 1 frost filter
11Other Effects4
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized focus system
- Motorized zoom
12Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 1,600W

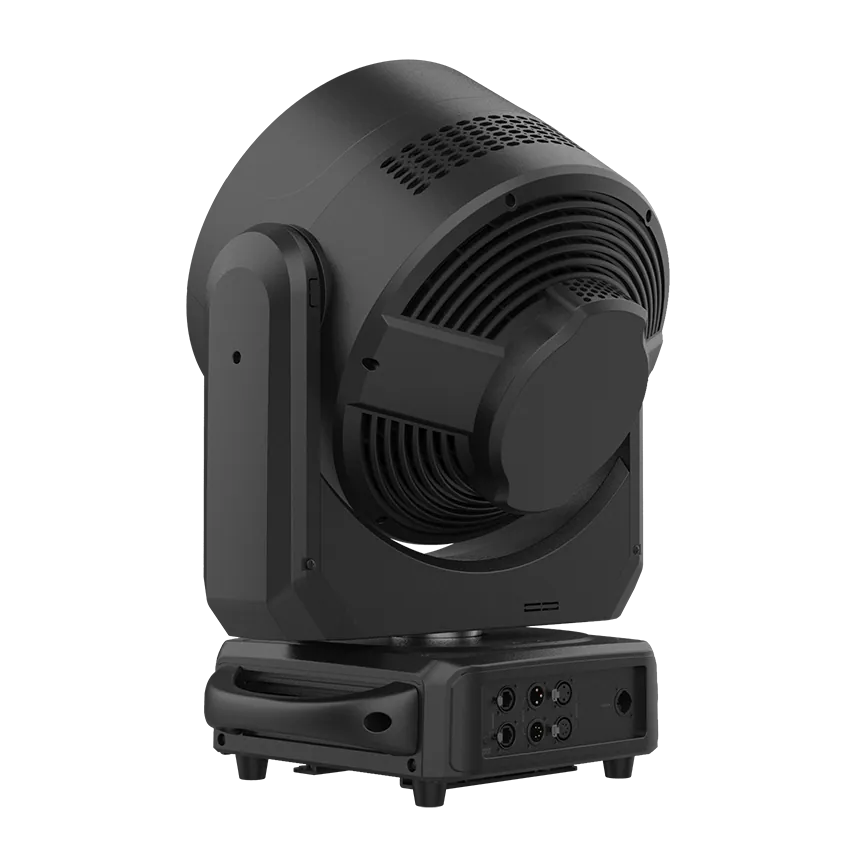

- Power In/Out
- Power connector in/out
- Data In/Out
- 3-pin or 5-pin XLR,RJ45 connector
13Physical Information4
- Fixture Dimensions
- Width
- 454 mm (17.9")
- Depth
- 341 mm (13.4")
- Height
- 590 mm (23.2")
- Weight
- 34 kg (75 lbs)
14Packing Information8
- Flight Case Dimensions 1
- Width
- 1,220 mm (48.0")
- Depth
- 685 mm (27.0")
- Height
- 645 mm (25.4")
- Weight
- Standard
- G.W.: 122.5 kg (270.1 lbs) (Two-pack loader case)
- Carton Dimensions
- Width
- 560 mm (22.1")
- Depth
- 470 mm (18.5")
- Height
- 675 mm (26.6")
- Weight
- G.W.
- 40 kg (88.2 lbs) (one-pack loader carton)
15Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP20
16Approvals3
- CE compliant
- UKCA compliant
- cETLus compliant
17Installation4
- Horizontal or vertical mounting
- Universal working position

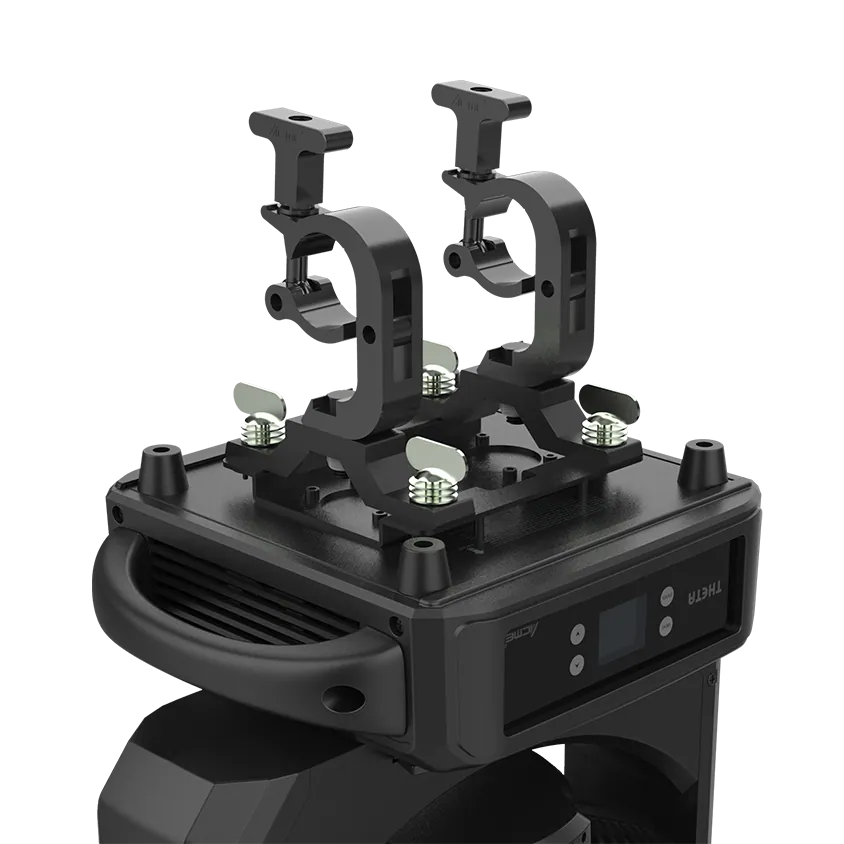

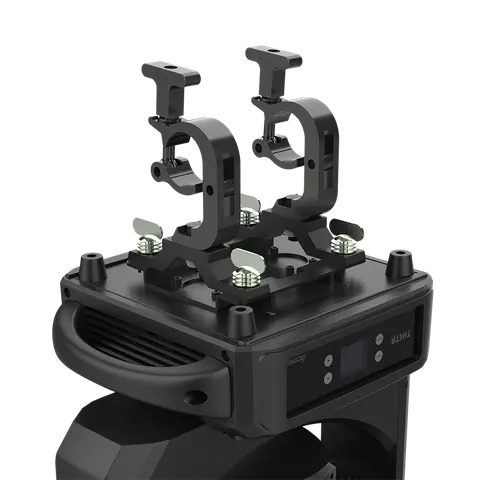

- 2 omega brackets
- Safety cable attachment point
18Included Items3
- Digital user manual
- Power cable
- 2 omega brackets (3002000288-B)
19Optional Accessories (With Order Code)4
- Flight Case 1
- Standard
- Two-pack loader case (63583510)
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin or 5-pin signal cable
03DescriptionManufacturer's description
What it is.
The center beam portion of THETA is equipped with a color wheel with 13 colors, a static gobo wheel with 9 patterns, 8-facet and 16-facet prisms, and a frost filter. The beam is a tight 3° beam angle and has motorized focus to sharpen images. The two prisms can be overlaid and are rotatable in either direction for amazing lighting effects.

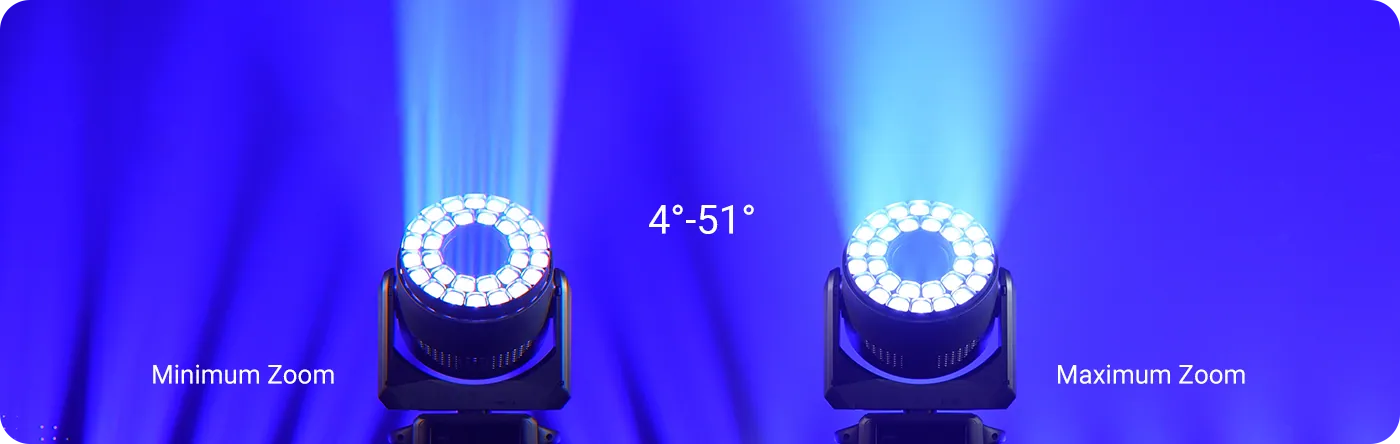

THETA's wash section delivers a wide range of rich, deep colors and includes a zoom range from 4° to 51°, individual pixel control, CTO color temperature adjustment from 2500K to 8000K, and color macro effects, providing lighting designers with a wide range of creative options and looks.
THETA adds a vibrant touch to any scene for many a wide range of productions from stage, touring, television, hospitality, and more.
