Sheet 05.671

ACME · Wash

TANGO

ModelPAR 7

Light source: 7 x 15W RGBW LED
Power consumption: 55W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 6°
DMX channels: 4/5/8/10
Protocols: DMX512,RDM
Net weight: 1.6 kg (3.6 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 48 values

What this product is, in numbers.

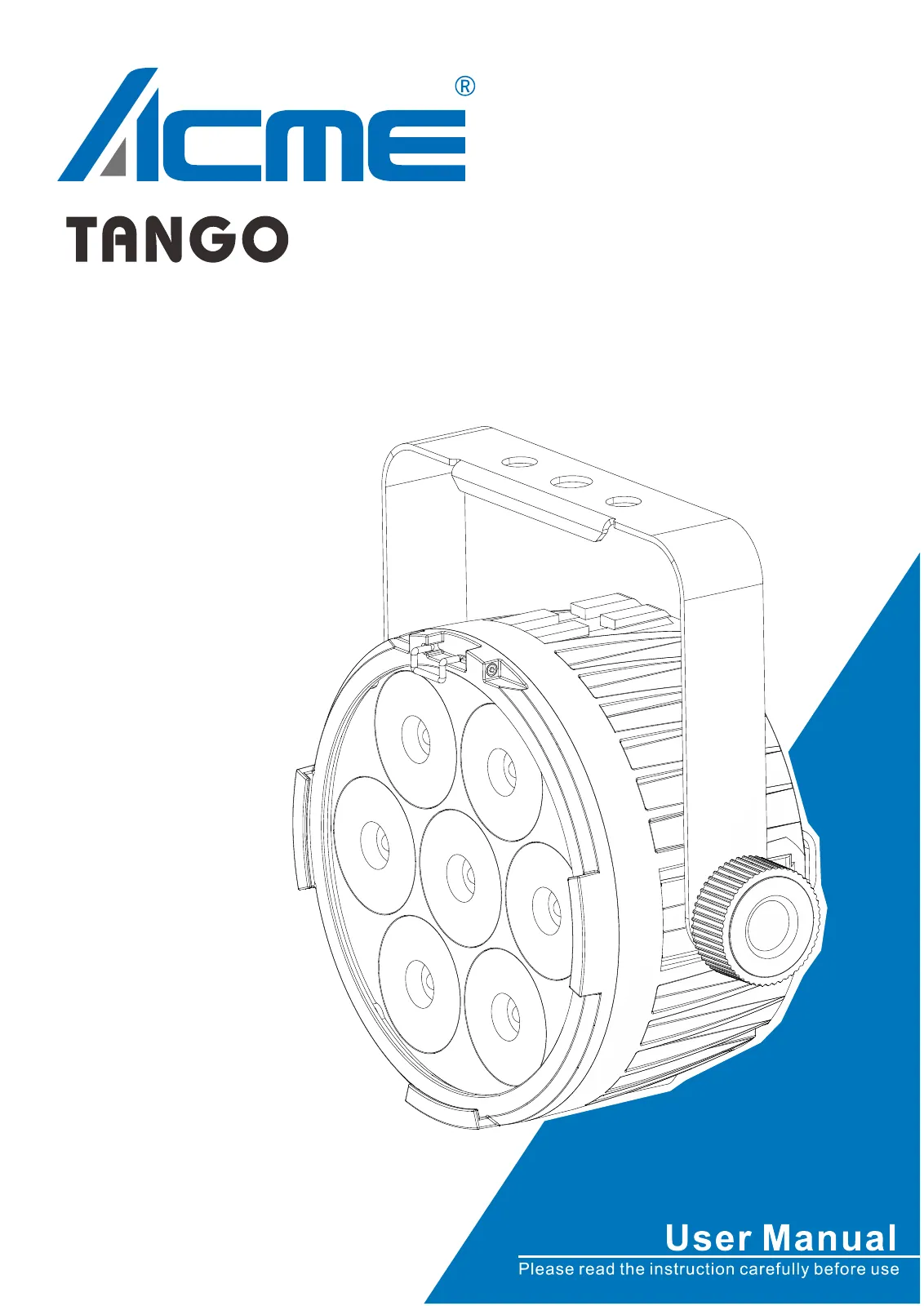

PDFUser manualEN · 24 pages · 1.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: TANGO
Model Code: PAR 7

02Light Source3

Light Source: 7 x 15W RGBW LED
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 2,128 lumens

04Optical System2

Beam Angle: 6°
Field Angle: 11°

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol Modes: 4
Control Channels: 4/5/8/10
Firmware Upgrade: Upgrade via DMX link

06Other Effects6

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Excellent RGBW color mixing

Compact and robust body

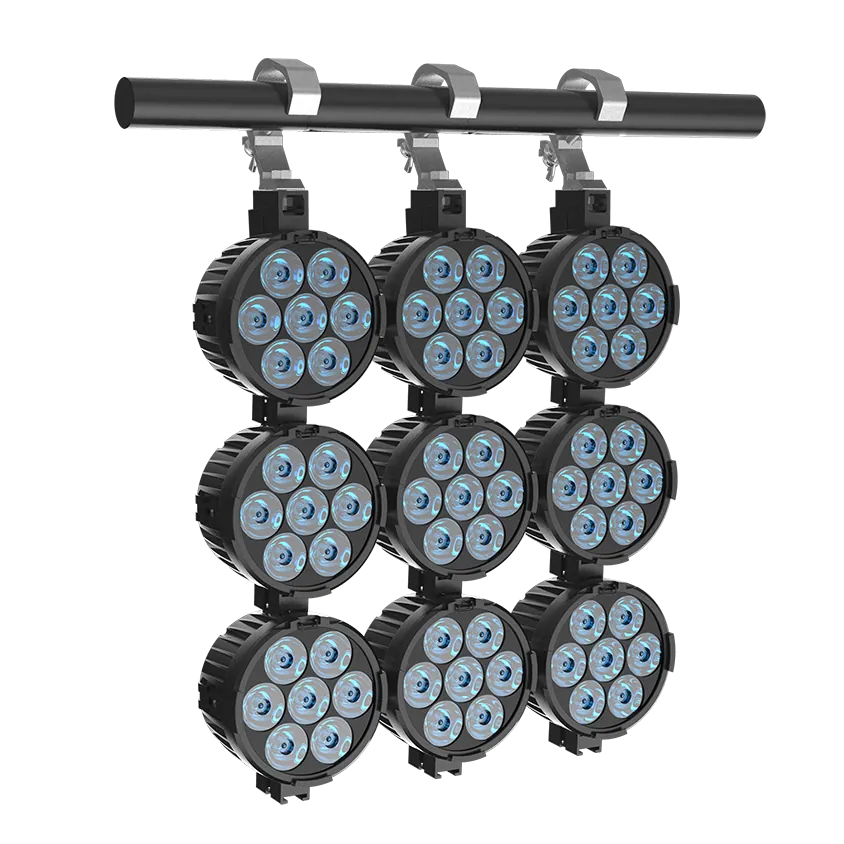

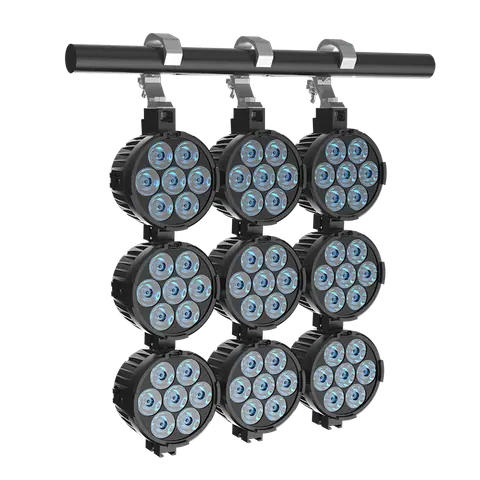

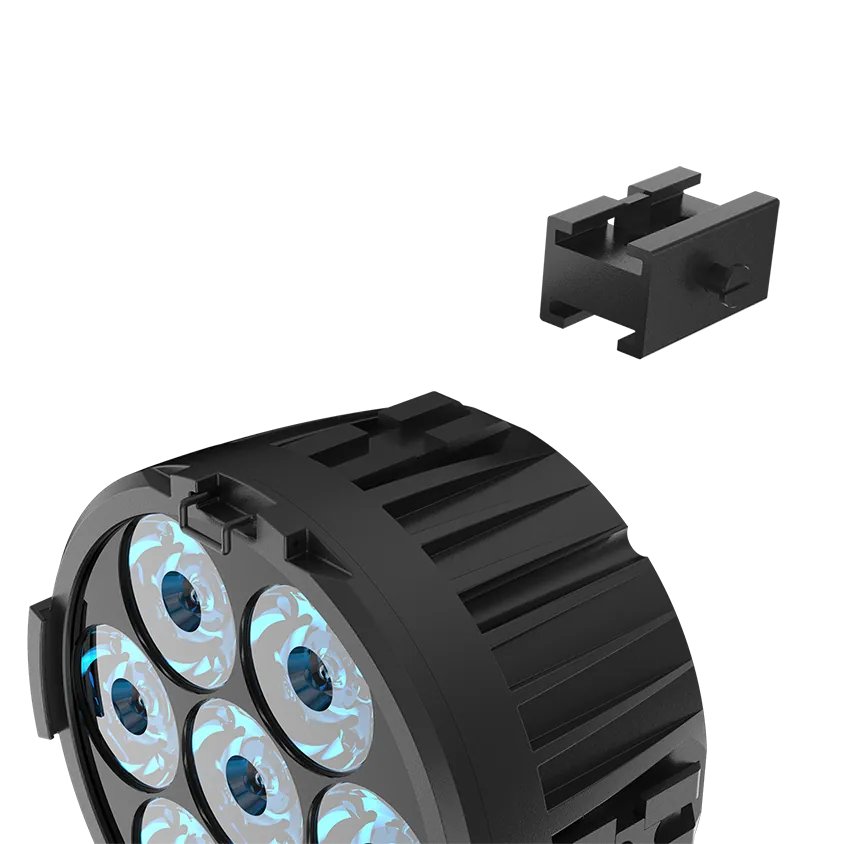

Multiple units can be split-jointed with tool-free junction buckle design

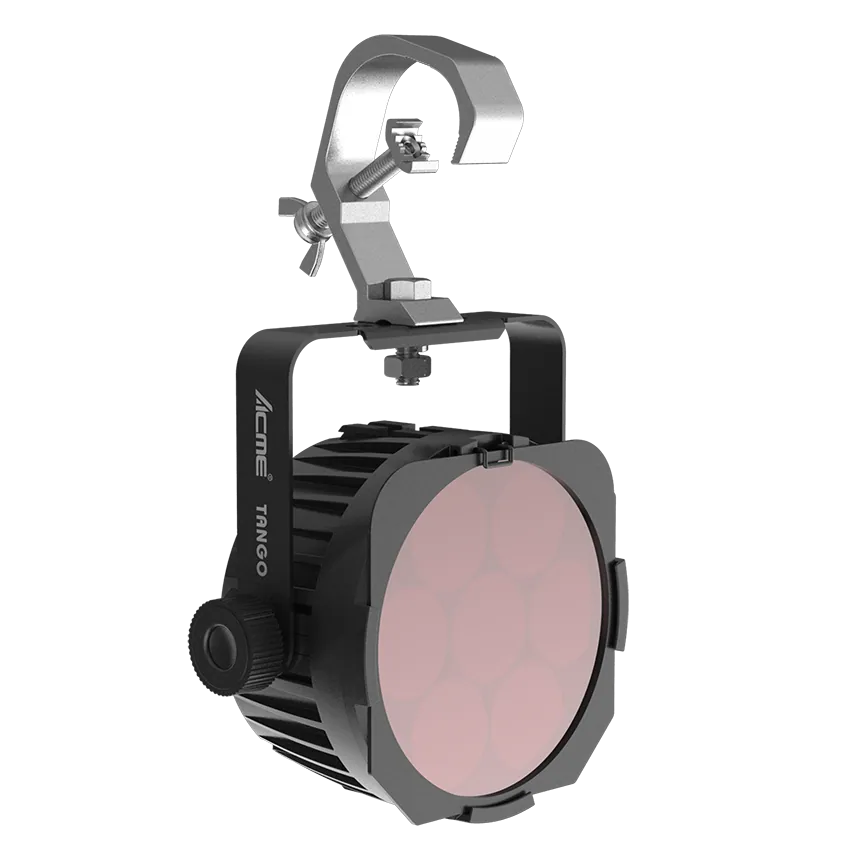

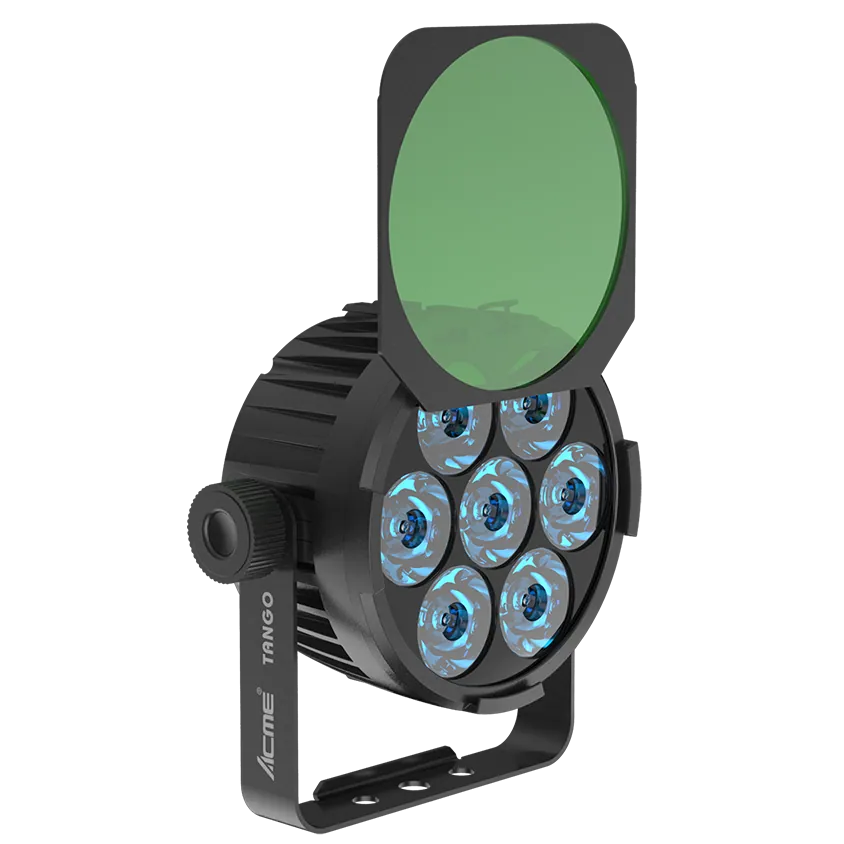

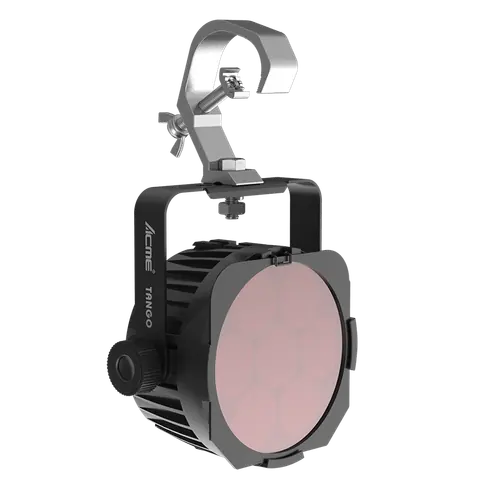

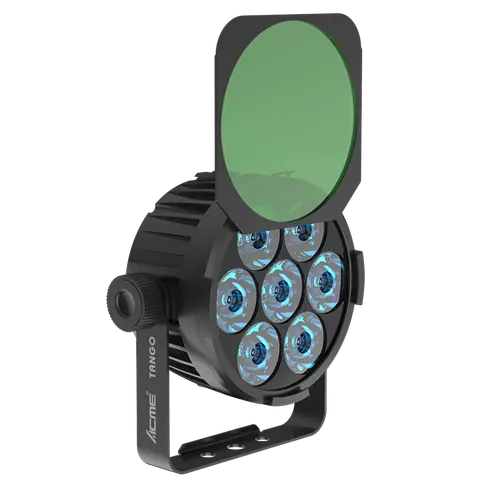

Optional color filter frame

Show the full specificationHide the rest of the specification8 more groups · 28 values

07Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 55W

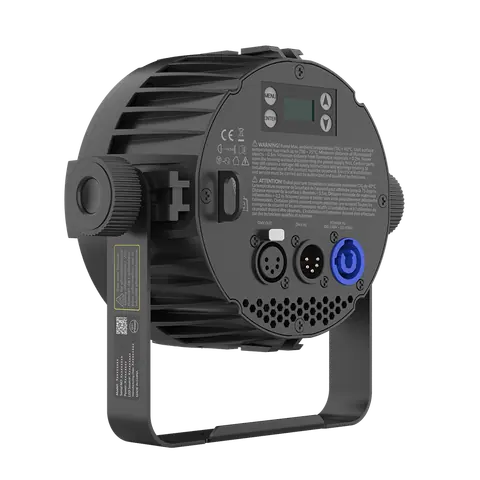

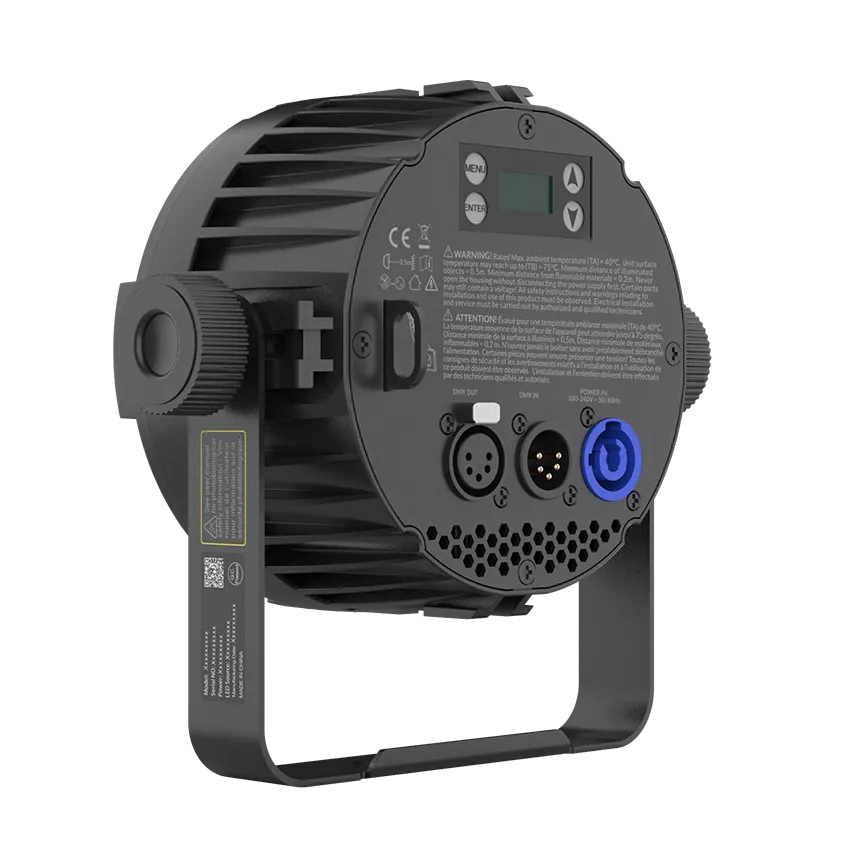

Power In/Out: Power connector in
Data In/Out: 3-pin or 5-pin XLR

08Physical Information4

Fixture Dimensions
Width: 197 mm (7.8")
Depth: 206 mm (8.1")
Height: 104 mm (4.1")
Weight: 1.6 kg (3.6 lbs)

09Packing Information4

Carton Dimensions
Width: 540 mm (21.3")
Depth: 540 mm (21.3")
Height: 350 mm (13.8")
Weight
G.W.: 18.7 kg (41.2 lbs) (Eight-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 75°C
Protection Rating: IP20

11Approvals1

CE compliant

12Installation4

Horizontal or vertical mounting

Universal working position

The feet support with locking points

Safety cable attachment point

13Included Items2

Digital user manual

Power cable

14Optional Accessories (With Order Code)5

Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal cable
Color Frame: 4014790090

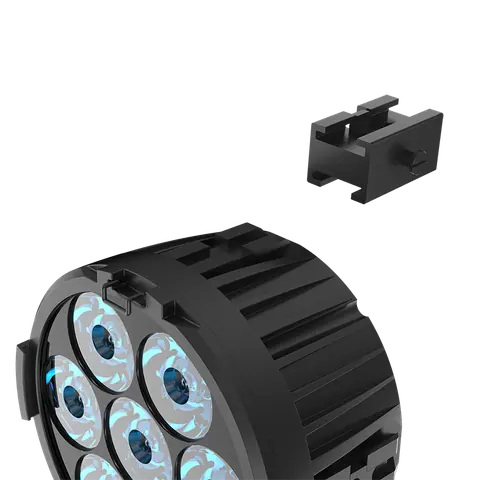

Junction Buckle: 63582318
Clamp: A011(2060001627)

02DescriptionManufacturer's description

What it is.

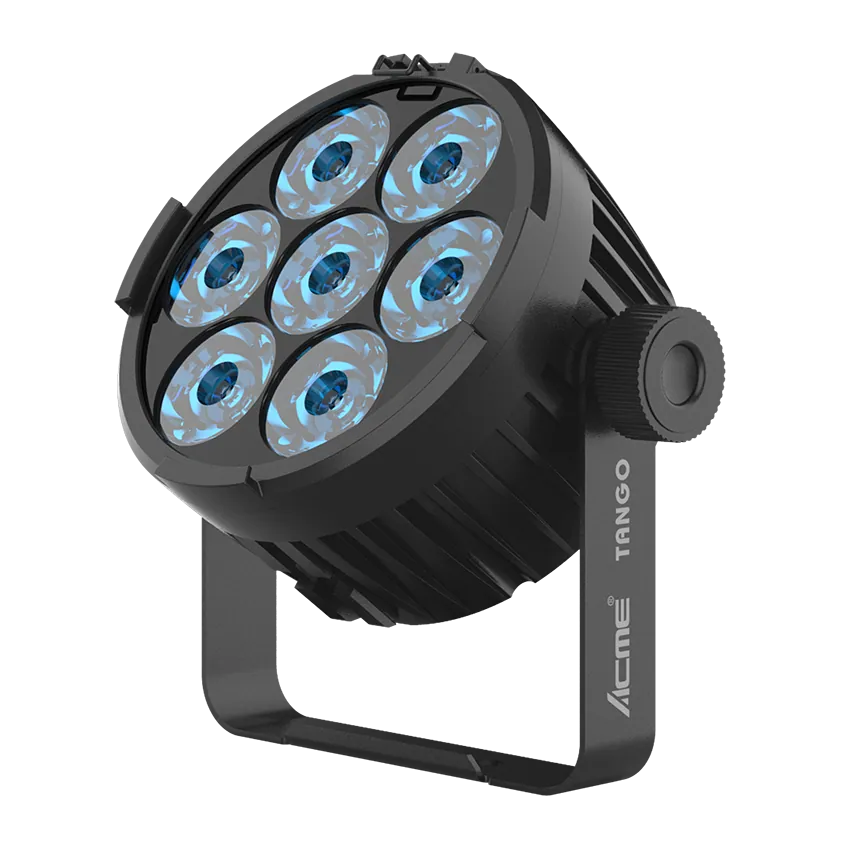

ACME TANGO. Equip with 7pcs 15W RGBW LED, the 2128lumens total output, tool-free buckle design, within a 2kg weighted light, Tango is the next choice to light up the bar, club, and other entertainment places. Especially when hanging many units onto the truss frame, it can highlight the contour of the entire stage, and also creates a large-scale and outstanding washing effect. Smooth color mixing, variable strobe speed, fixed sharp beam, and an optional color frame, all benefits are at hand for you to control. Let your stage be in TANGO.
