Sheet 05.670

ACME · Wash

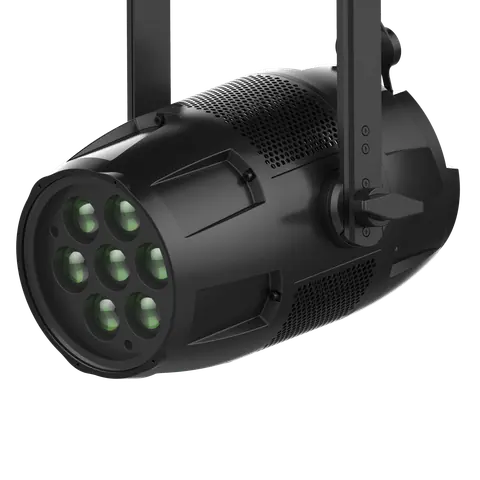

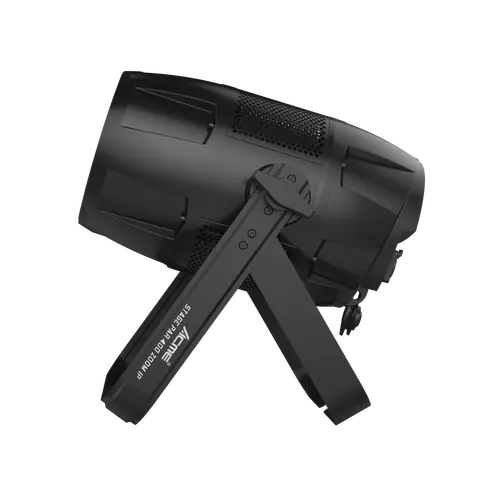

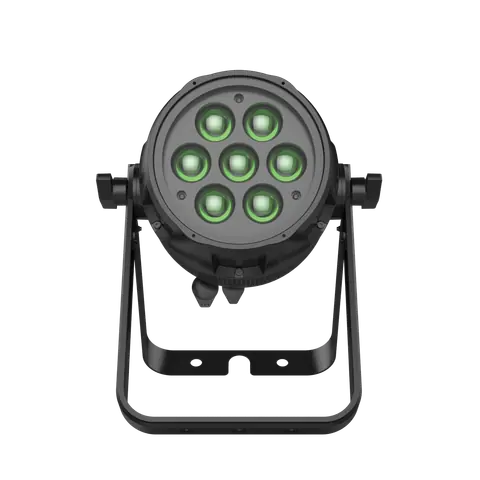

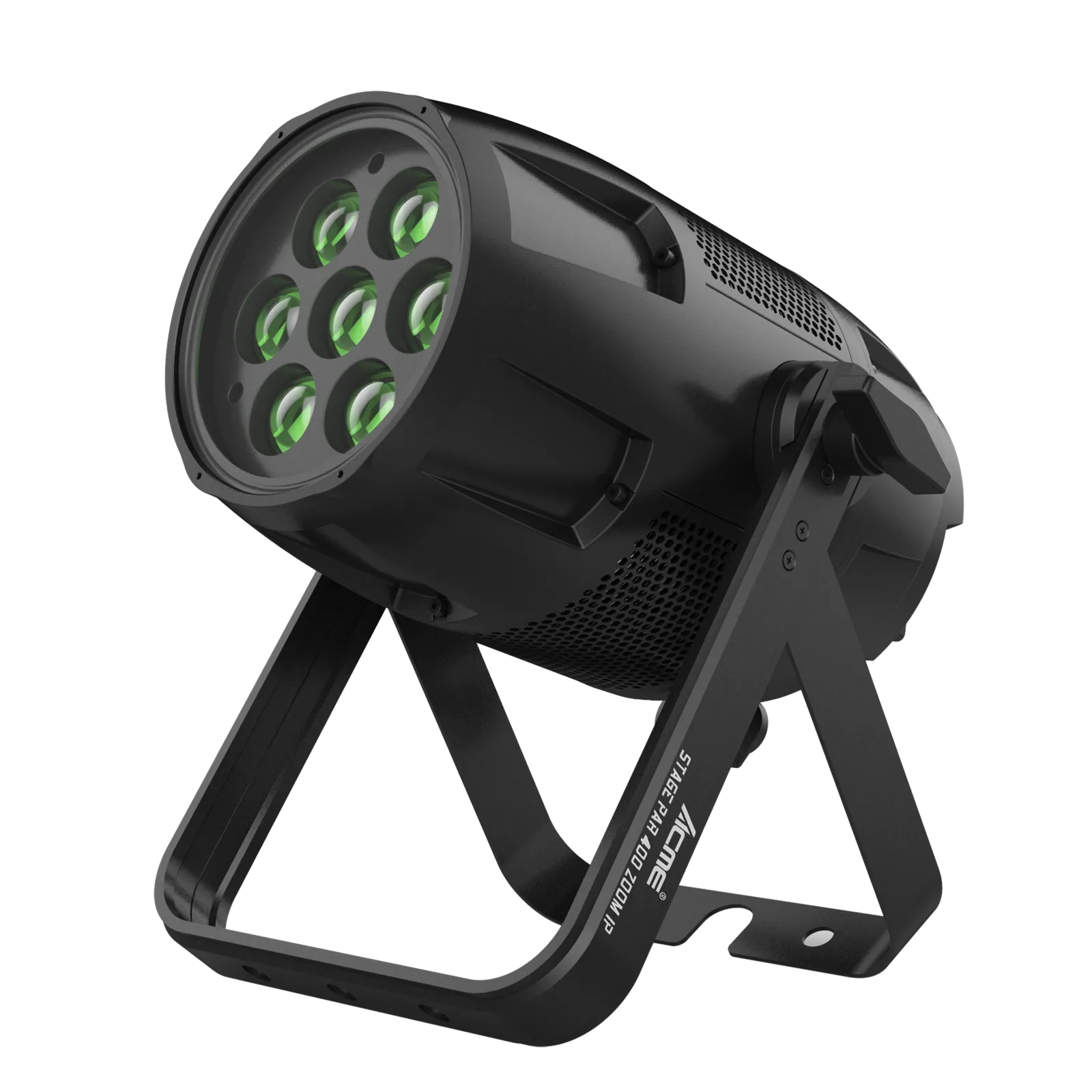

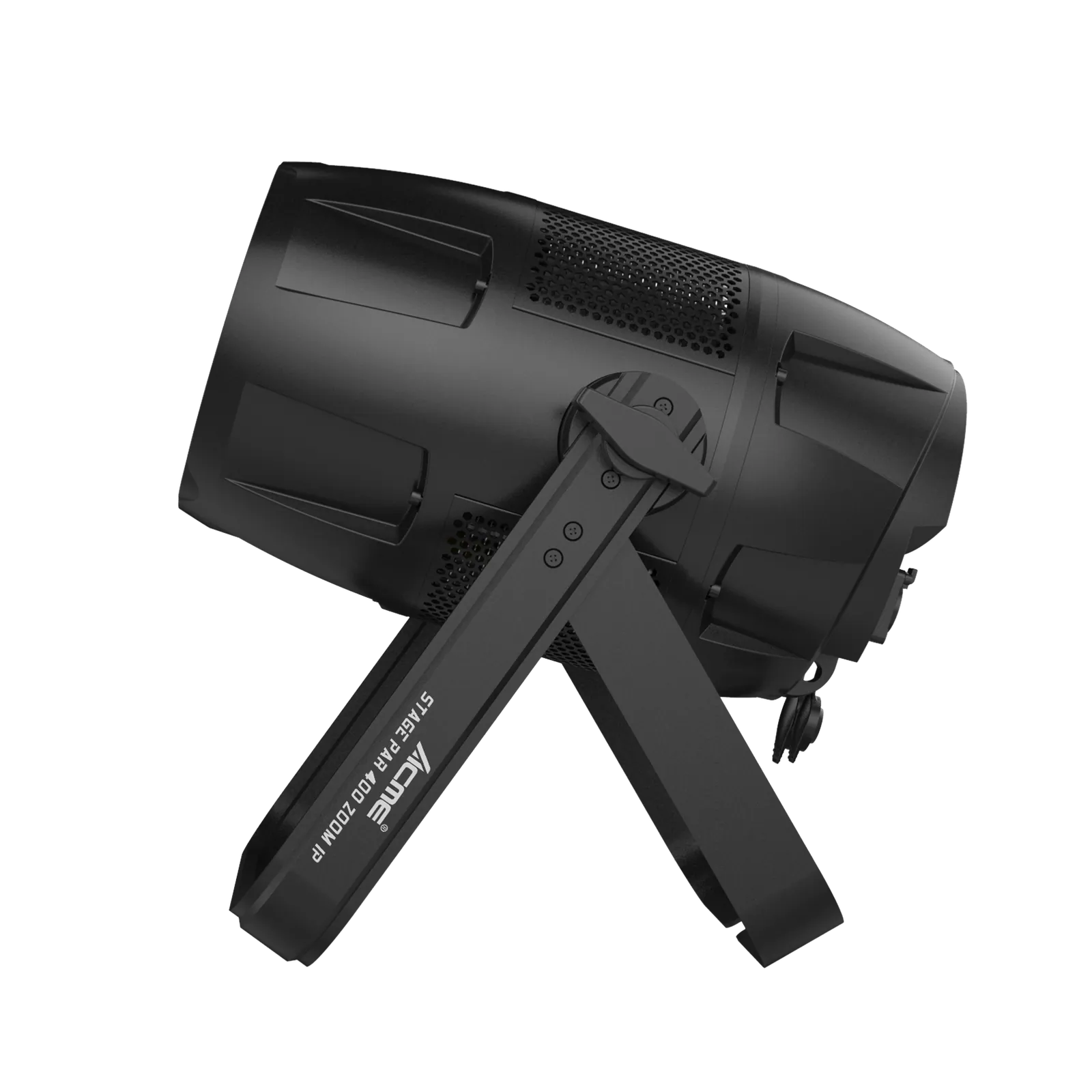

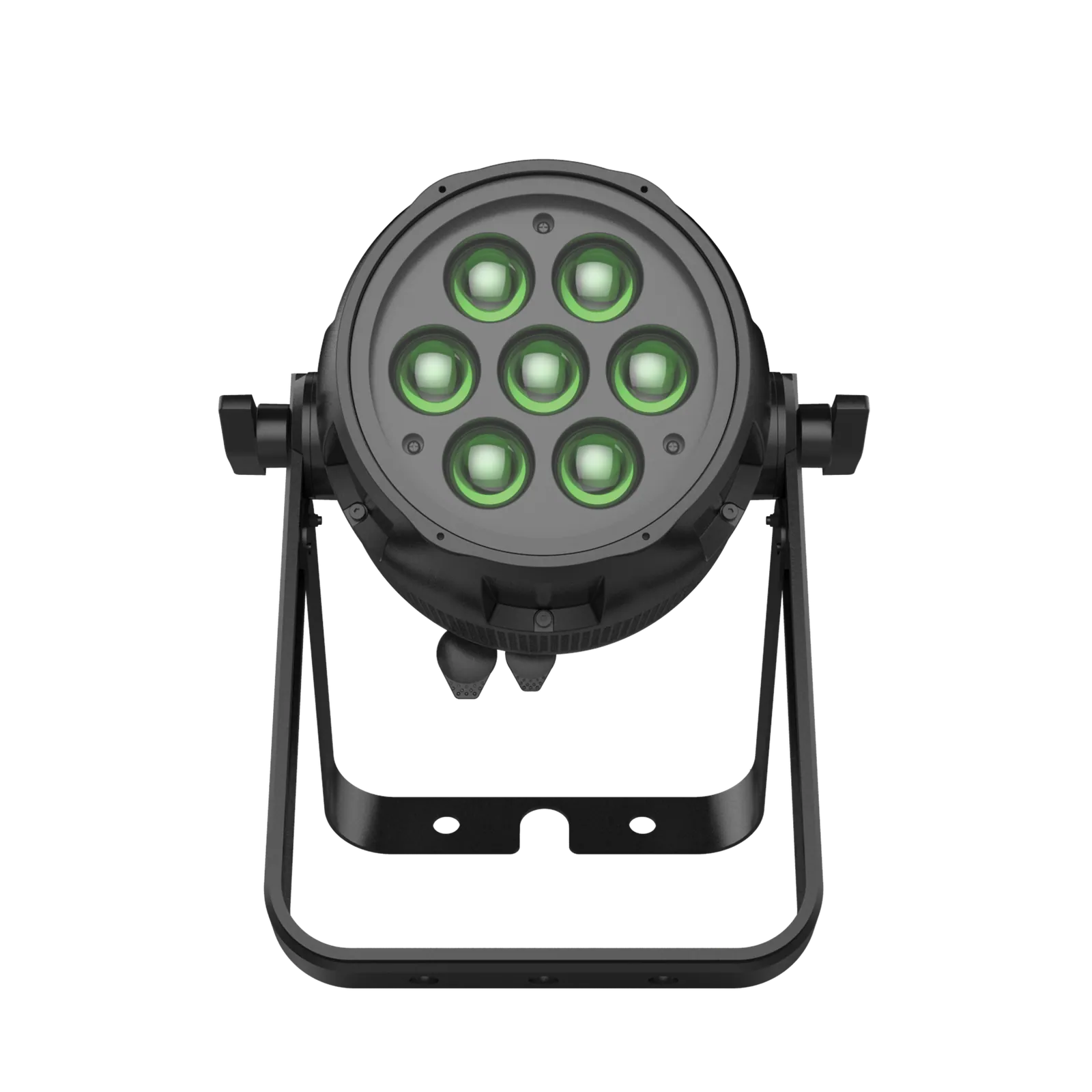

STAGE PAR 400 ZOOM IP

ModelMP-400Z IP

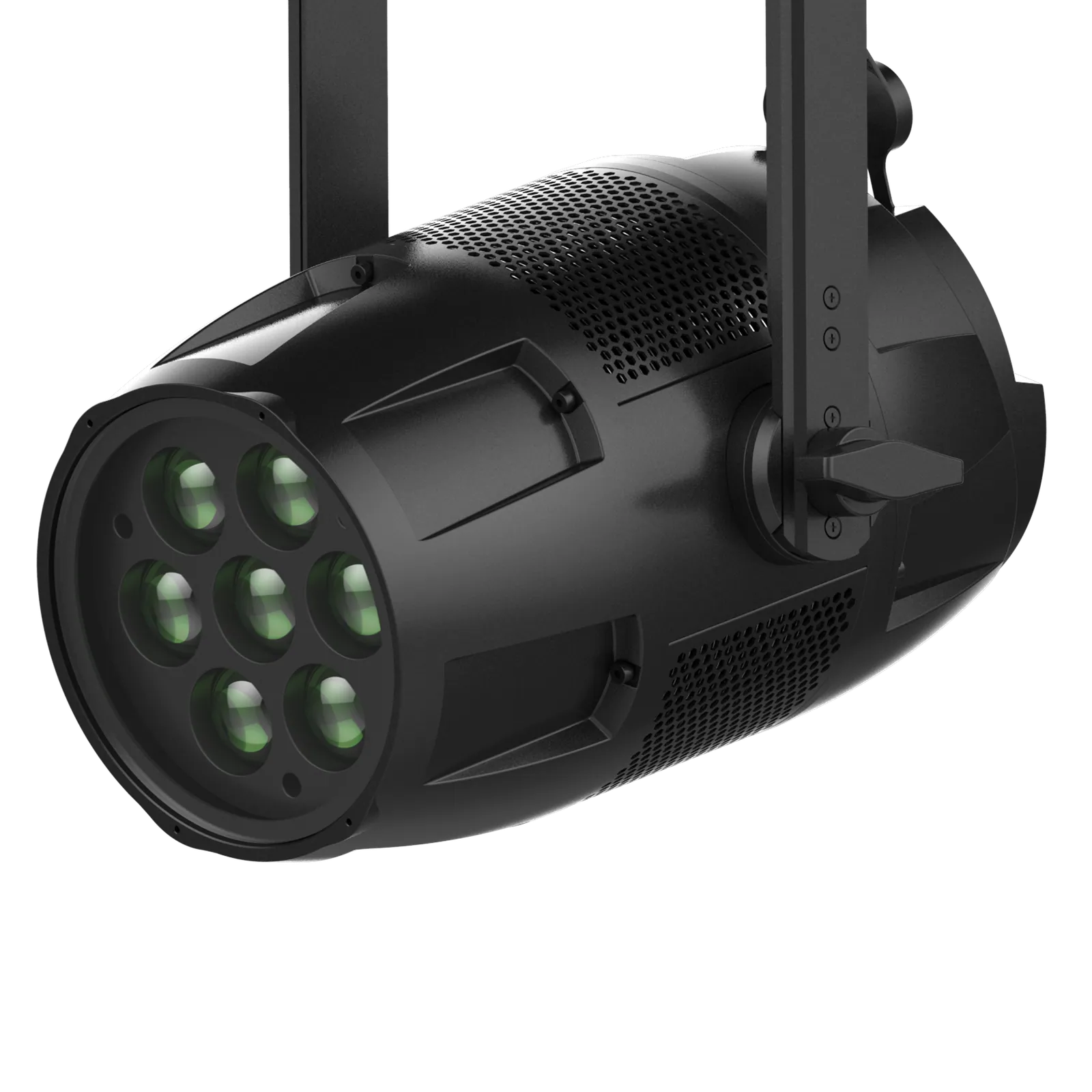

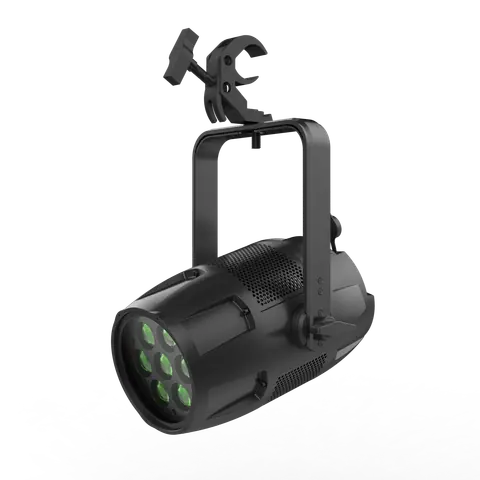

ACME STAGE PAR 400 ZOOM IP, an IP66 rated outdoor par featuring 7x30W Osram RGBW 4in1 LED, a 1:6 ratio motorized zooming from 6° to 40° with smooth color mixing and variable preset macro effects, the unique color calibration system also contributing the ever best color mixing and color consistency performance. What's more, it offers CCT adjustment from 3,200-10,000K, optional dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation in TV and FILM application, RDM was supported as well.Equipped with a 5pin DMX In&Out and powerCON TRUE1 power In/Out connections, OLED display menu, integrated dual rigging yoke, such fixture with adurable die-cast compact IP housing is just 8.5kg, the user friendly IP Par light innovation significantly saves cost and time in any shipping work & limited outdoor application, surely it's a rising star fixture.

Light source: 7x30W RGBW LED
Power consumption: 250W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 6°- 38°
DMX channels: 5/7/9
Protocols: DMX512,RDM
Net weight: 8.5 kg (18.7 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:06

ACME STAGE PAR 400 ZOOM IP2:06

02SpecificationManufacturer's data · 14 groups · 53 values

What this product is, in numbers.

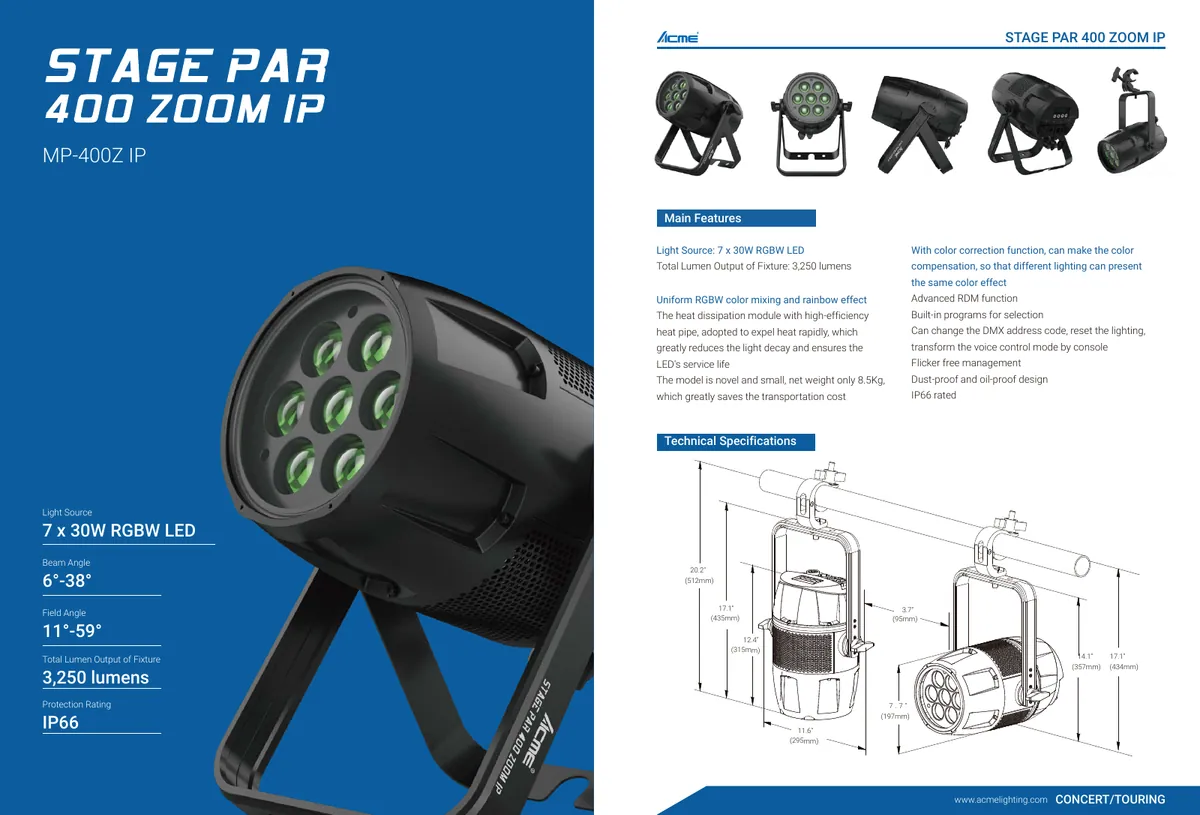

PDFDatasheetEN · 2 pages · 739 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: STAGE PAR 400 ZOOM IP
Model Code: MP-400Z IP

02Light Source3

Light Source: 7x30W RGBW LED
Light Source Rated Life: 30,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 3,250 lumens

04Optical System2

Beam Angle: 6°- 38°
Field Angle: 11°- 59°

05Control6

4 touch button control panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol Modes: 3
Control Channels: 5/7/9
Firmware Upgrade: Upgrade via DMX link

06Other Effects11

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Excellent RGBW color mixing

Adopt high-efficiency heat pipe cooling module to quickly discharge heat, greatly reduce light decay and ensure the service life of LED

The model is novel and small, net weight only 8.5Kg, which greatly saves the transportation cost

With color correction function, can make the color compensation, so that different lighting can present the same color effect

Advanced RDM function

Built-in programs for selection

Can change the DMX address code, reset the lighting, transform the voice control mode by console

Flicker free management

Dust-proof and oil-proof design

Show the full specificationHide the rest of the specification8 more groups · 28 values

07Electrical and Connectors5

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 250W
Data In/Out: 3-pin or 5-pin waterproof XLR
Maximum Quantity of Connections
230V, 50Hz: 12 units
120V, 60Hz: 6 units

08Physical Information4

Fixture Dimensions
Width: 318 mm (12.5")
Depth: 295 mm (11.6")
Height: 316 mm (12.4")
Weight: 8.5 kg (18.7 lbs)

09Packing Information4

Flight Case Dimensions
Width: 885 mm (34.8")
Depth: 600 mm (23.6")
Height: 835 mm (32.9")
Weight
Standard: G.W.: 97.5 kg (215.0 lbs) (Six-pack loader case)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

11Approvals1

CE compliant

12Installation4

Horizontal or vertical mounting

Universal working position

The feet support with 3 locking points

Safety cable attachment point

13Included Items2

Digital user manual

Power cable

14Optional Accessories (With Order Code)4

Flight Case
Standard: Six-pack loader case (63583819)

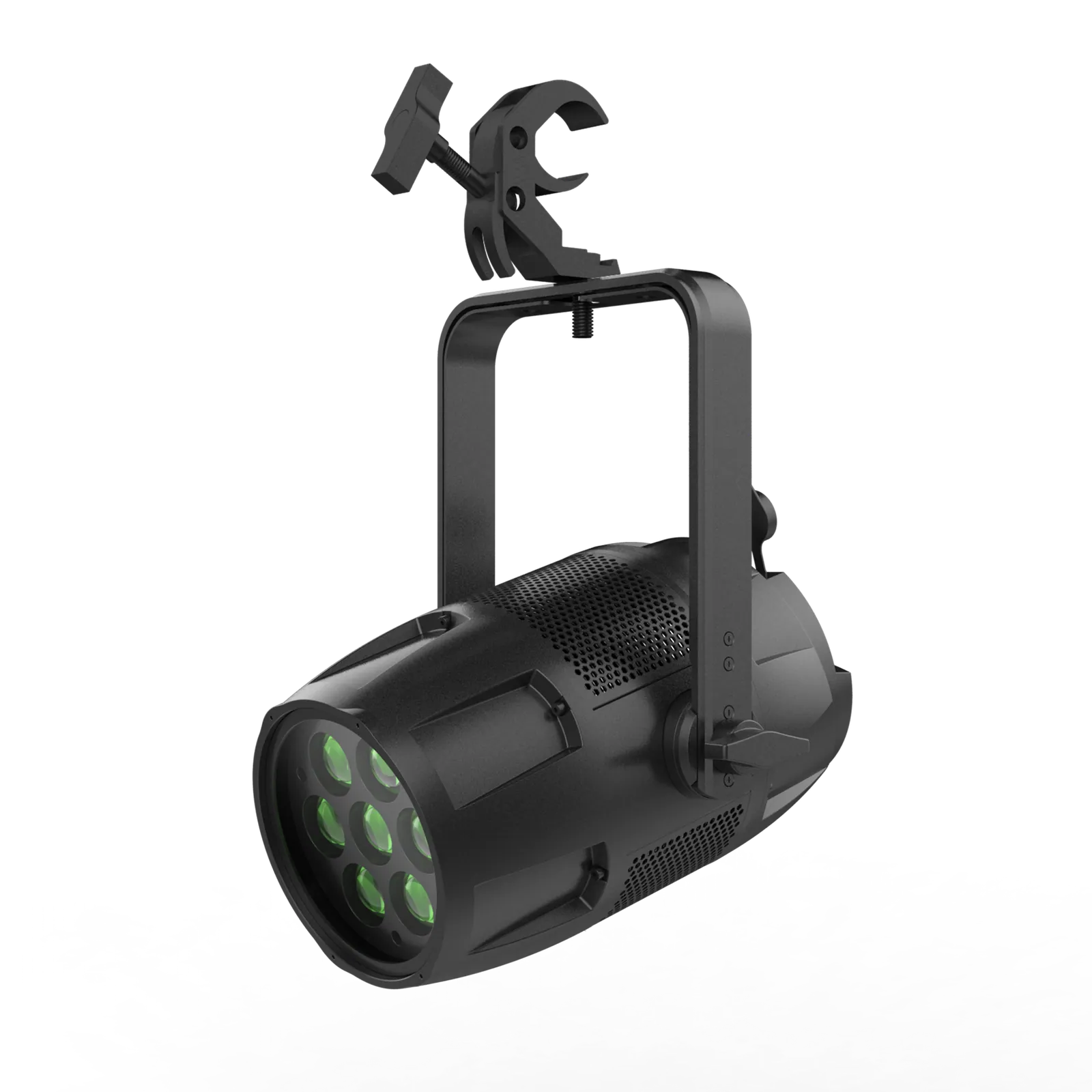

Clamp: C-250B (2060001632-B)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin waterproof single cable (3017013468) or 5-pin waterproof single cable (3017013473)
