Sheet 05.961

ACME · Other fixtures

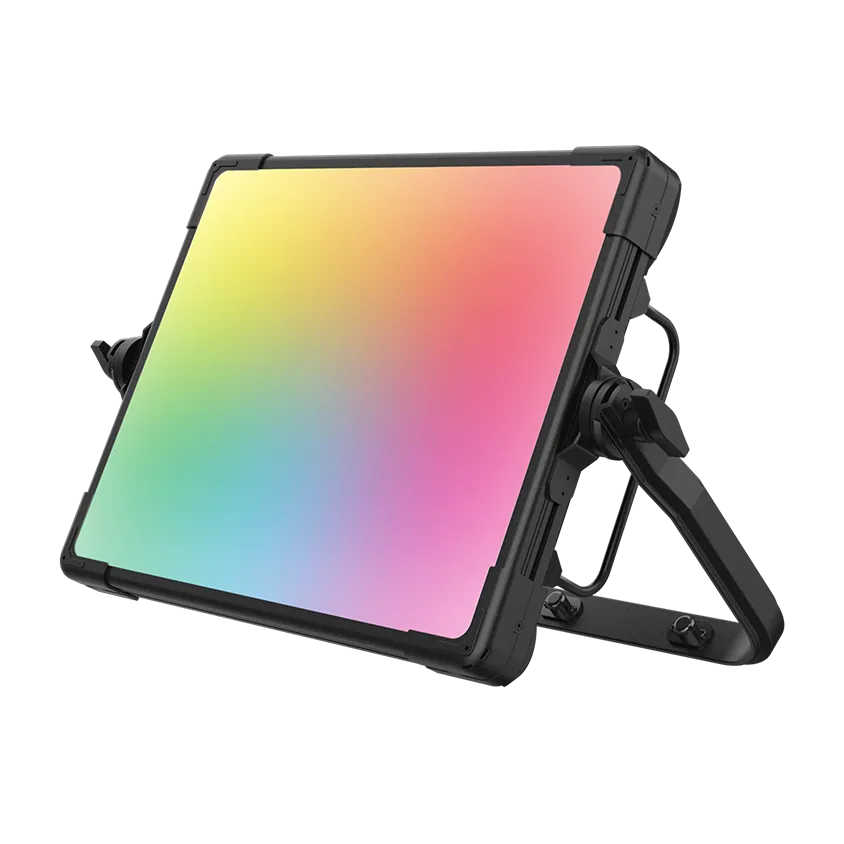

TV LIGHT PANEL 3000

ModelLP F3000

TV LIGHT PANEL 3000, ACME's latest television soft light, offers a durable lighting experience with 50,000 hours ultra-long life expectancy.

Light source: 336 x 2.5W RGB LED
Power consumption: 455W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 110°
DMX channels: 10/28
Protocols: DMX512,RDM,Art-Net,sACN
Net weight: 12 kg (26.5 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 14 groups · 60 values

What this product is, in numbers.

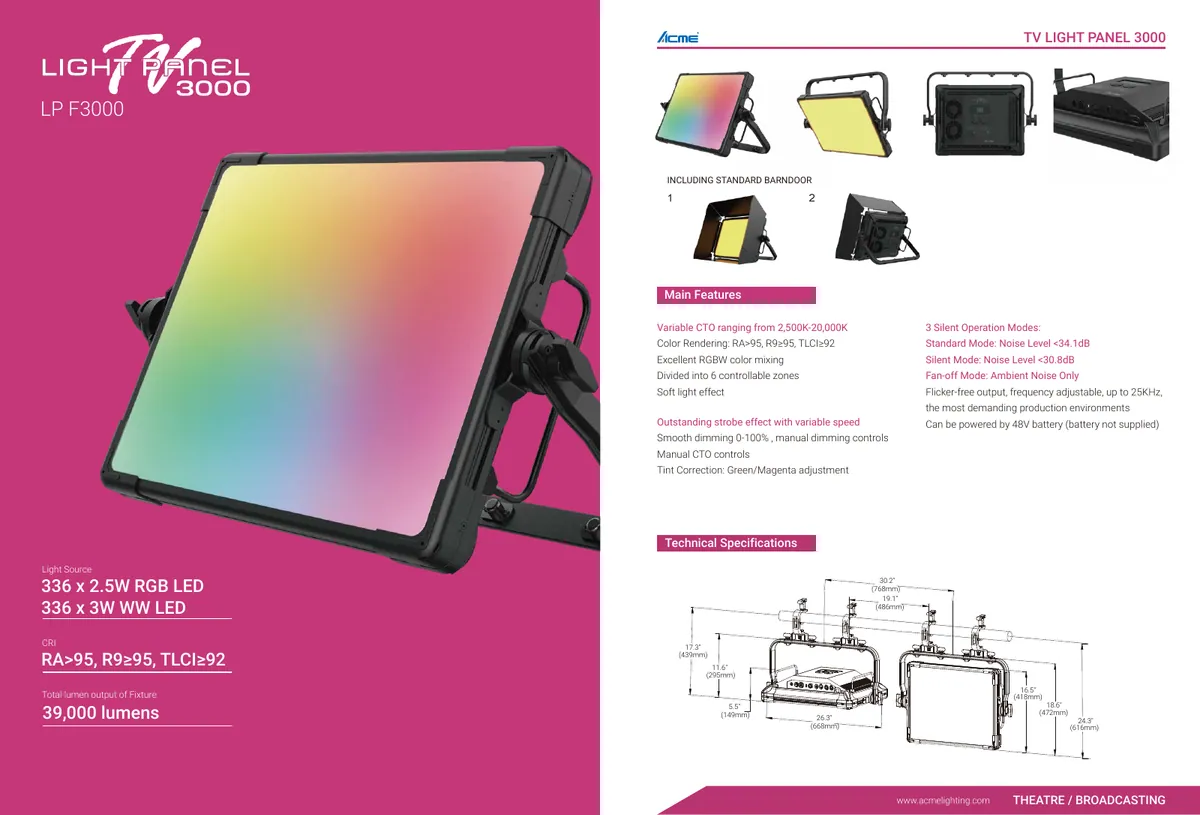

PDFDatasheetEN · 2 pages · 741 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: TV LIGHT PANEL 3000
Model Code: LP F3000

02Light Source4

Light Source: 336 x 2.5W RGB LED; 336 x 3W WW LED
Light Source Rated Life: 50,000 hours*; *Source manufacturer specification

03Photometric Data2

Total Lumen Output of Fixture: 39,000 lumens
Color Rendering: RA>95, R9≥95, TLCI≥92

04Optical System2

Beam Angle: 110°
Field Angle: 160°

05Control6

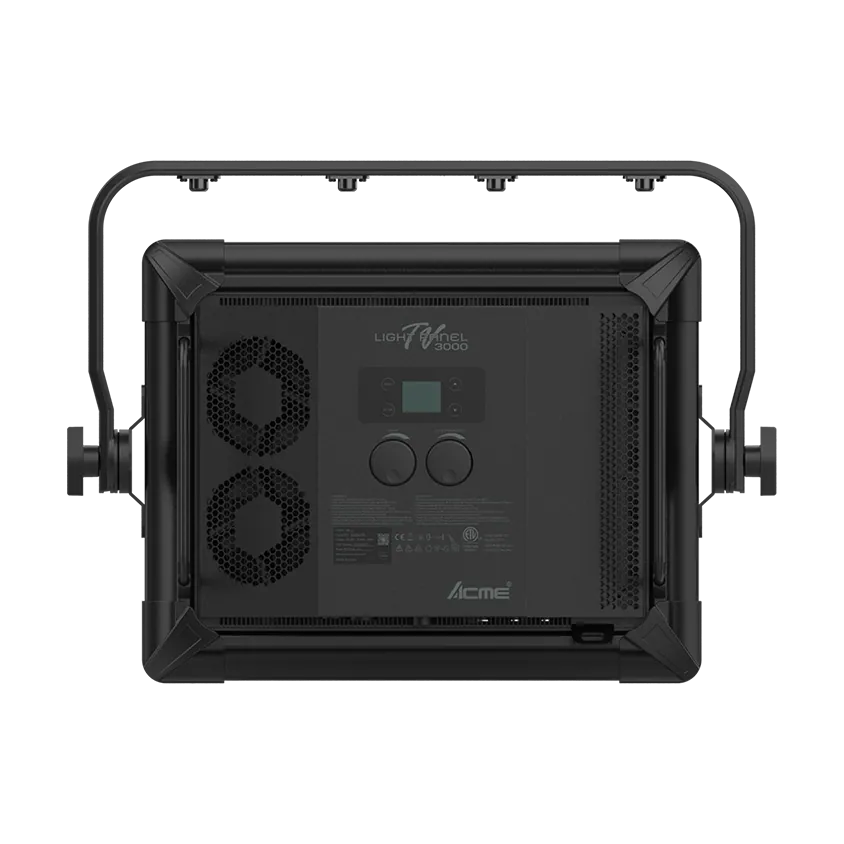

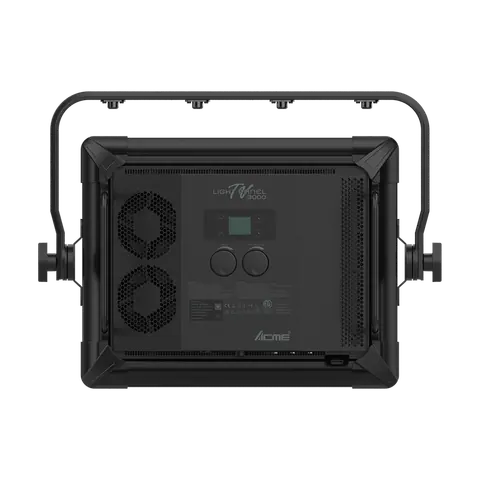

Display: LCD display
Operational Modes: DMX Control,Manual Control
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 2
Control Channels: 10/28
Firmware Upgrade: Upgrade via DMX link or USB stick

06Other Effects12

Outstanding strobe effect with variable speed
3 Silent Operation Modes
Standard Mode: Noise Level <34.1dB
Silent Mode: Noise Level <30.8dB
Fan-off Mode: Ambient Noise Only; Smooth dimming 0-100% (4 user selectable dimming curves); Excellent RGBW color mixing; ± Green/Magenta adjustment; Divided into 6 controllable zones; Soft light effect; Smooth dimming 0-100% (4 user selectable dimming curves), manual dimming controls; Manual CTO controls; Flicker-free output, frequency adjustable, up to 25KHz, the most demanding production environments

Show the full specificationHide the rest of the specification8 more groups · 32 values

07Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 455W

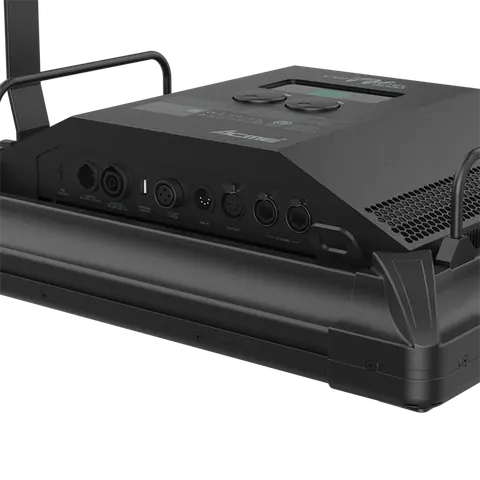

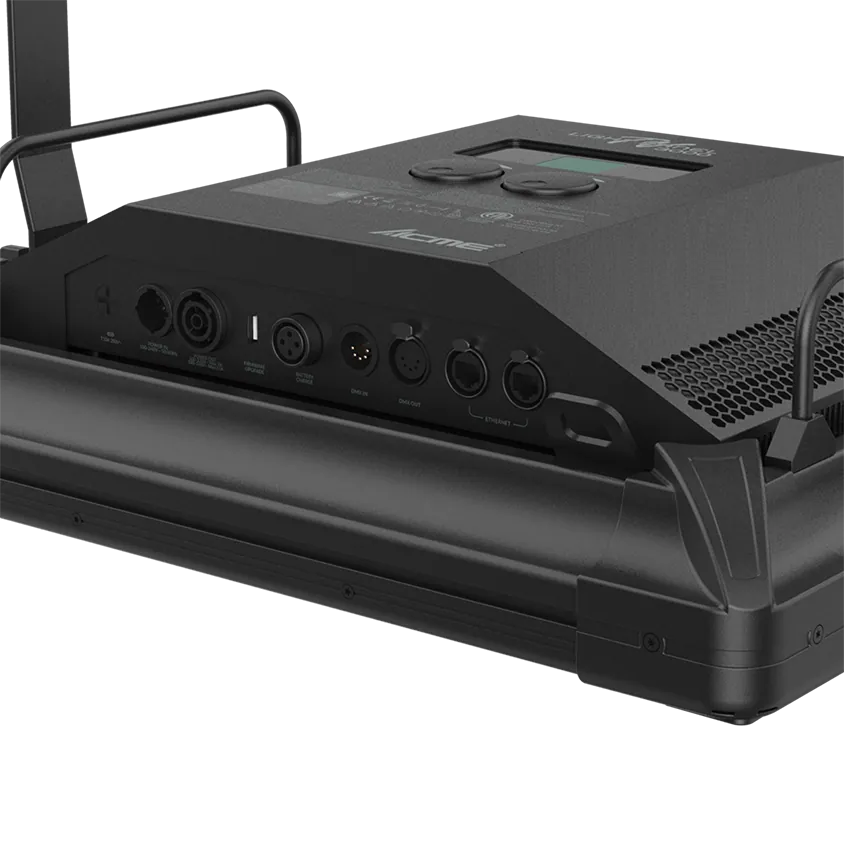

Power In/Out: Power connector in/out,DC 48V battery connector (battery not supplied)
Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

08Physical Information4

Fixture Dimensions
Width: 668 mm (26.3")
Depth: 149 mm (5.9")
Height: 492 mm (19.4")
Weight: 12 kg (26.5 lbs)

09Packing Information4

Carton Dimensions
Width: 755 mm (29.7")
Depth: 570 mm (22.4")
Height: 330 mm (13.0")
Weight
G.W.: 19 kg (41.9 lbs) (one-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 55°C
Protection Rating: IP20

11Approvals3

CE compliant

UKCA compliant

cETLus compliant

12Installation5

Horizontal or vertical mounting

Universal working position

2 pairs 1/4-turn locking points and one locking hole on the hanger

2 omega brackets

Safety cable attachment point

13Included Items4

Digital user manual

Power cable

2 omega brackets (3002003928)

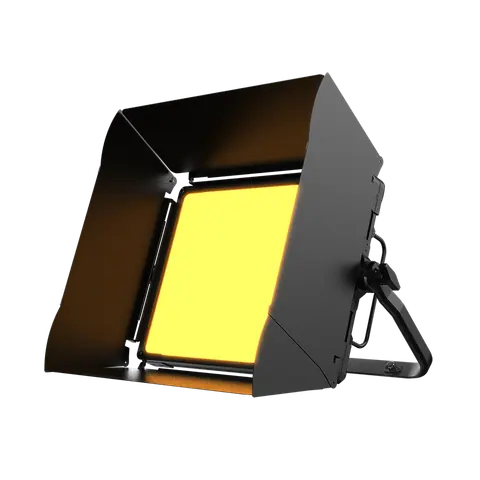

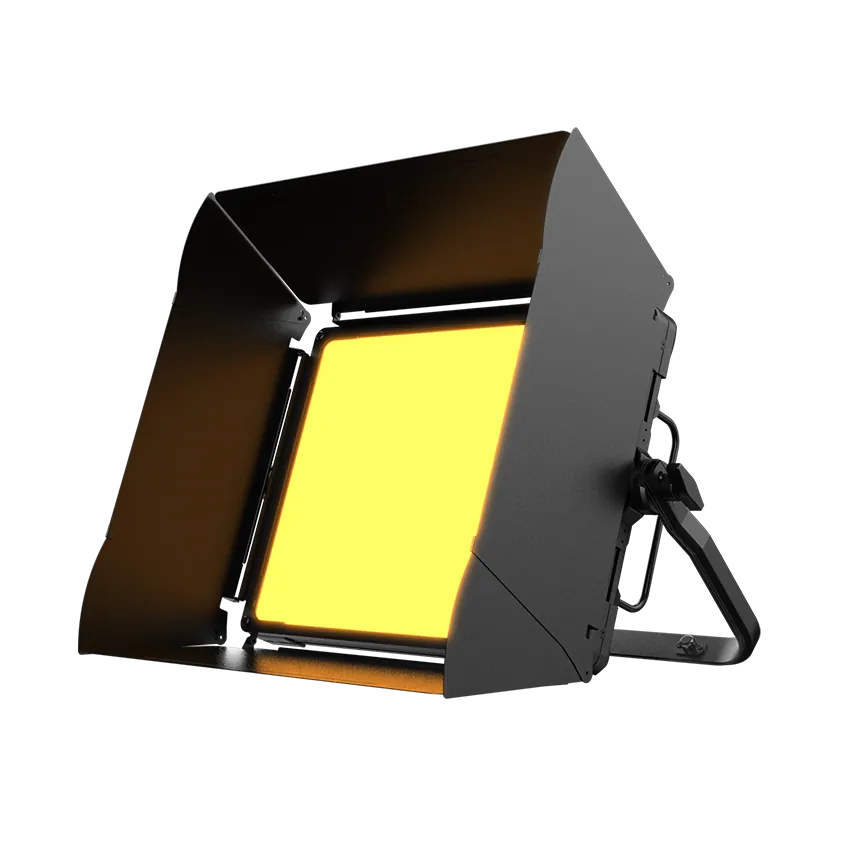

Barndoor (63581220)

14Optional Accessories (With Order Code)4

Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable
Honeycomb Grid: 63580912 (20mm thick)

02DescriptionManufacturer's description

What it is.

TV LIGHT PANEL 3000, ACME's latest television soft light, offers a durable lighting experience with 50,000 hours ultra-long life expectancy. Powered by 336 pcs 2.5W RGB LEDs and 336 pcs 3W WW LEDs, it boasts a color rendering index greater than 95 for excellent color accuracy and color reproduction.

The fixture features an outstanding RGBW mixing system and adjustable Magenta/Green CCI, providing different lighting atmospheres for various scenes. With its advanced silent technology, the TV LIGHT PANEL 3000 can operate below 34.1dB at maximum brightness. Featuring a built-in manual dimming knob for flicker-free output, it is perfect for high-production scenes.

The lightweight TV LIGHT PANEL 3000 continues to work even during power interruptions after assembling the external battery, making it the optimal choice for broadcasting halls, theaters, and stage productions.
