Sheet 05.960
ACME · Other fixtures

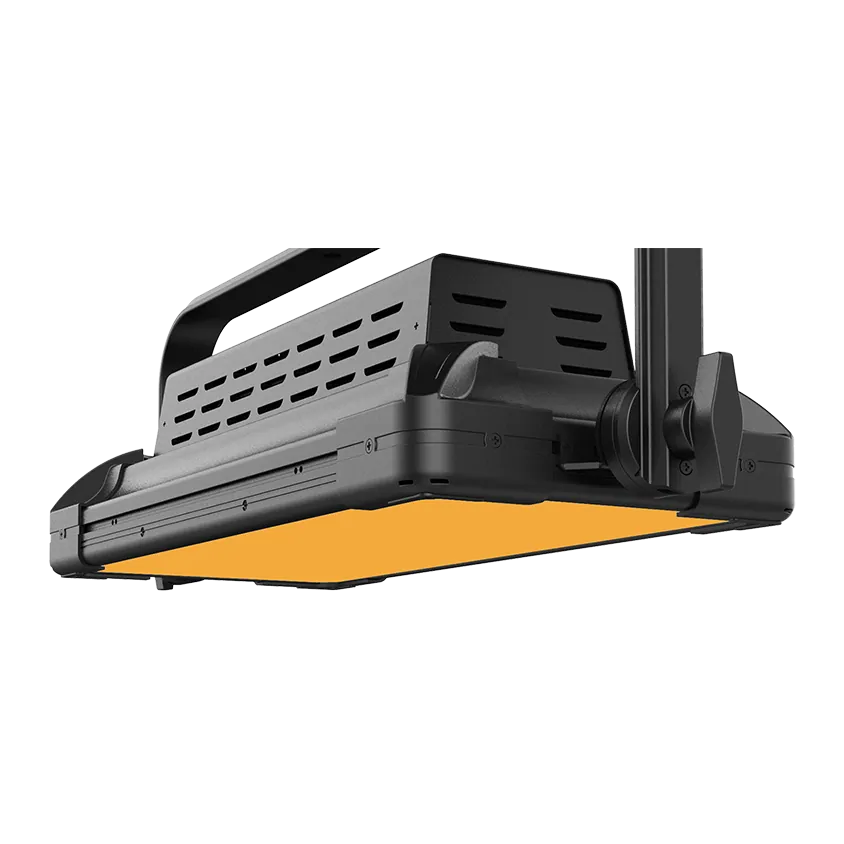

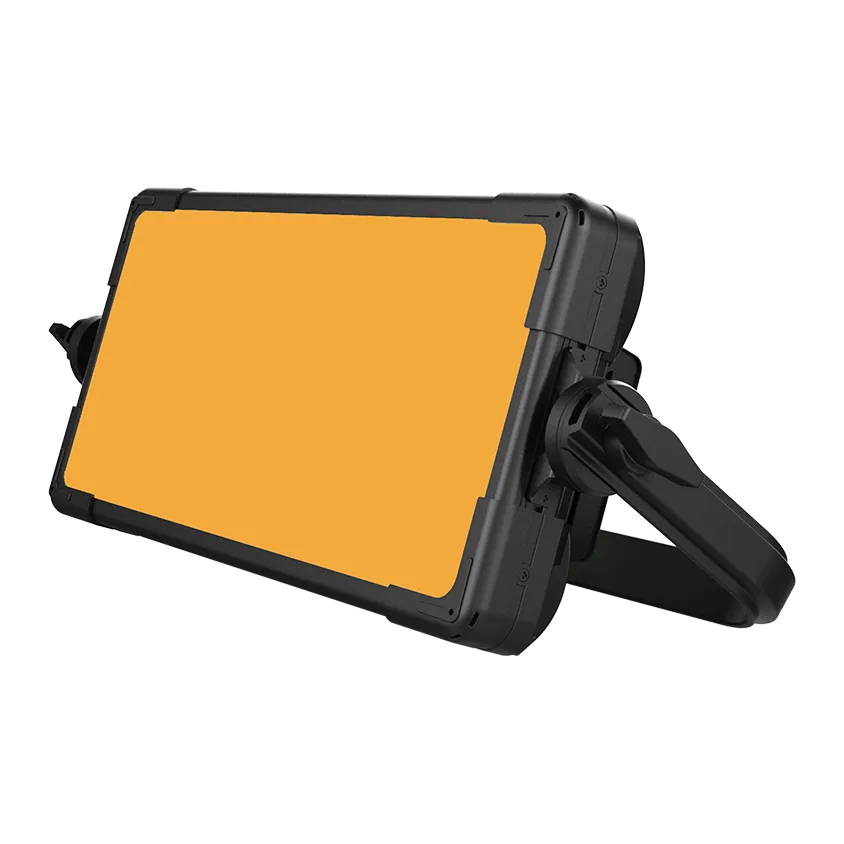

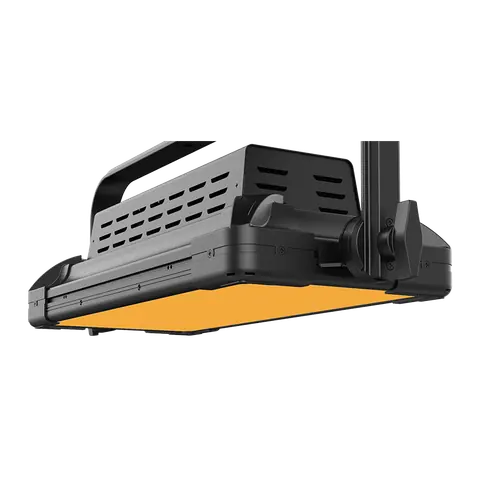

TV LIGHT PANEL 1000 WW
ModelLP-F1000 WW
The TV LIGHT PANEL 1000 series, with its outstanding floodlight and soft light, is widely used in photographic studios, TV stations, conference rooms, and shopping malls. It has a battery backup for user operation without connecting to the mains.
- Light source
- Light source : 240pcs WW LED
- Power consumption
- 100W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- Beam angle / zoom
- 113°
- DMX channels
- 1/2A/2B/3
- Protocols
- DMX512,RDM,Art-Net
- Colour temperature
- 3,200±150K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
TV LIGHT PANEL 1000 WWPrice on requestRequest a quotation
01SpecificationManufacturer's data · 13 groups · 43 values
What this product is, in numbers.

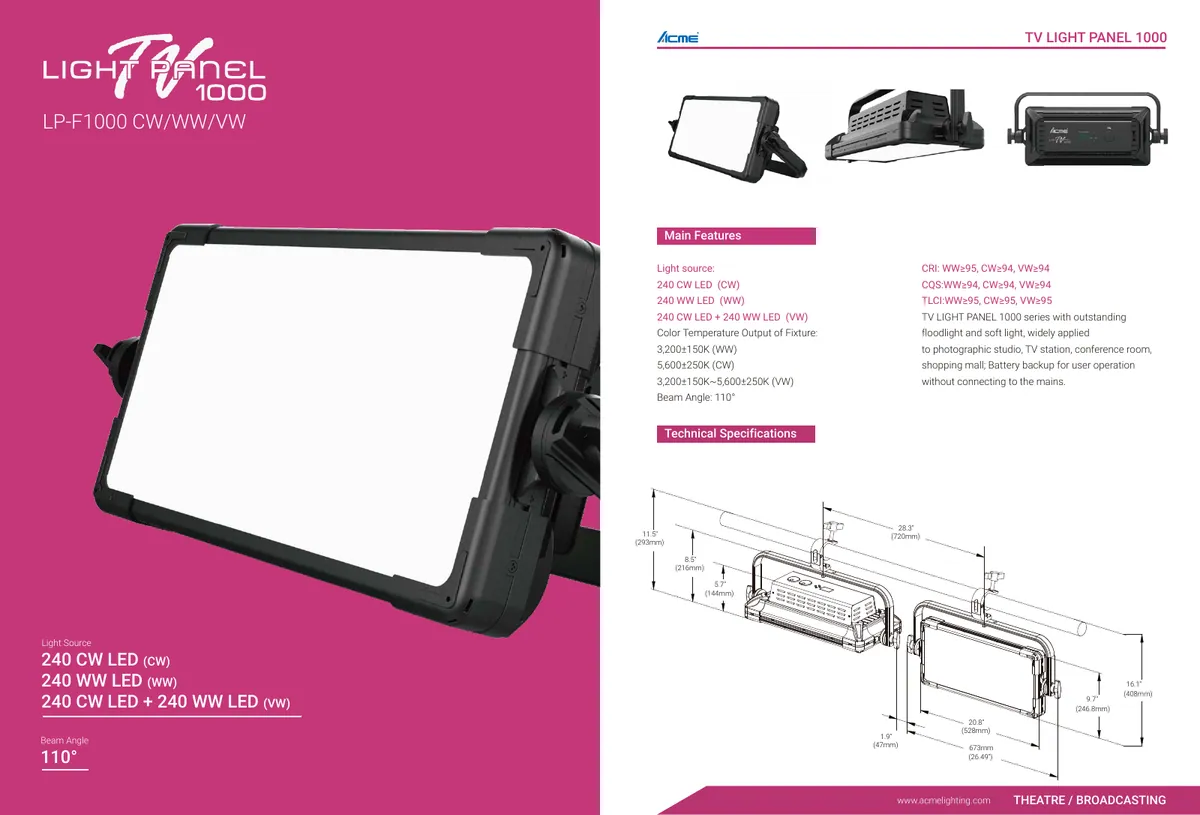

PDFDatasheetEN · 2 pages · 441 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- TV LIGHT PANEL 1000 WW
- Model Code
- LP-F1000 WW
02Light Source4
- Light Source
- Light source : 240pcs WW LED
- Color Temperature Output of Fixture
- 3,200±150K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data1
- Color Rendering
- CRI:≥95, CQS:≥94, TLCI:≥95
04Optical System2
- Beam Angle
- 113°
- Field Angle
- 156°
05Control7

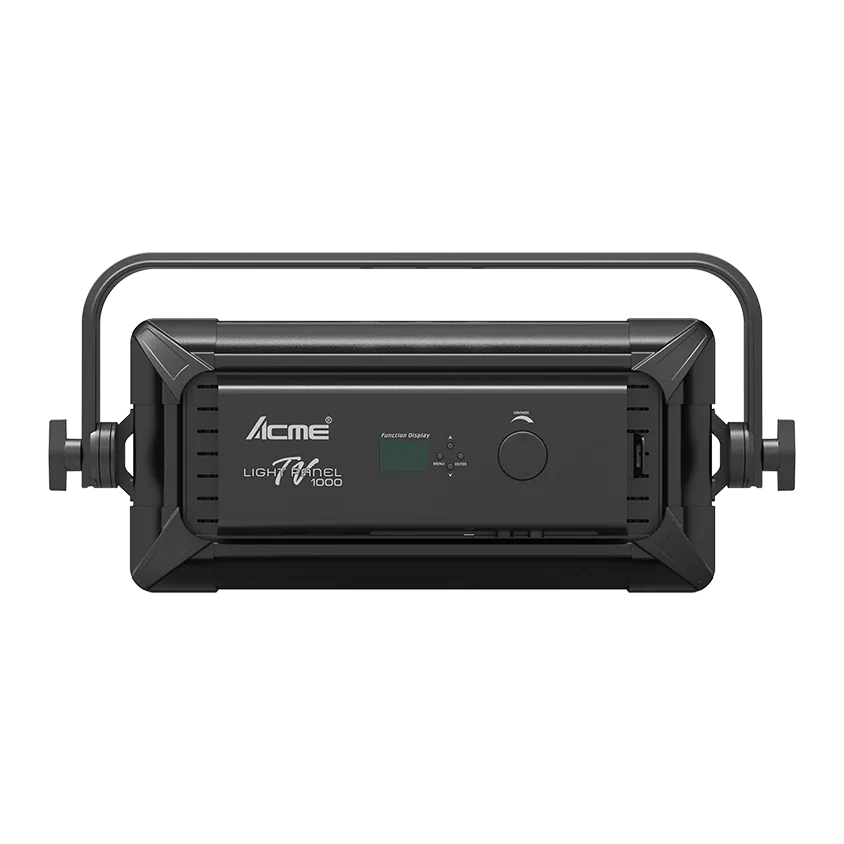

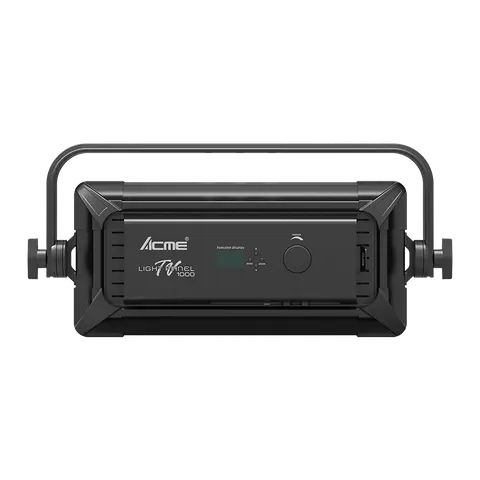

- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net
- DMX Protocol Modes
- 4
- Control Channels
- 1/2A/2B/3
- Firmware Upgrade
- Upgrade via DMX link
- 1-knob
06Other Effects1
- Flicker-free management
Show the full specificationHide the rest of the specification7 more groups · 26 values
07Electrical and Connectors6
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 100W

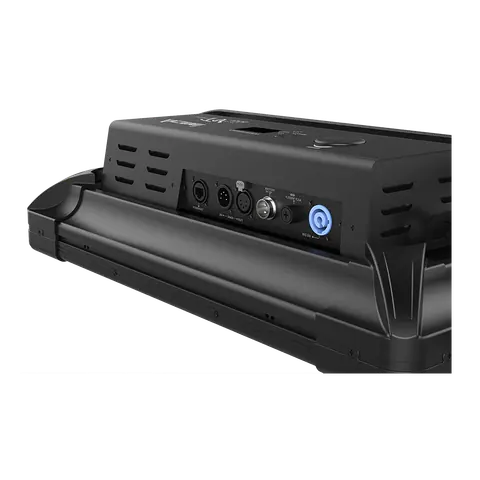

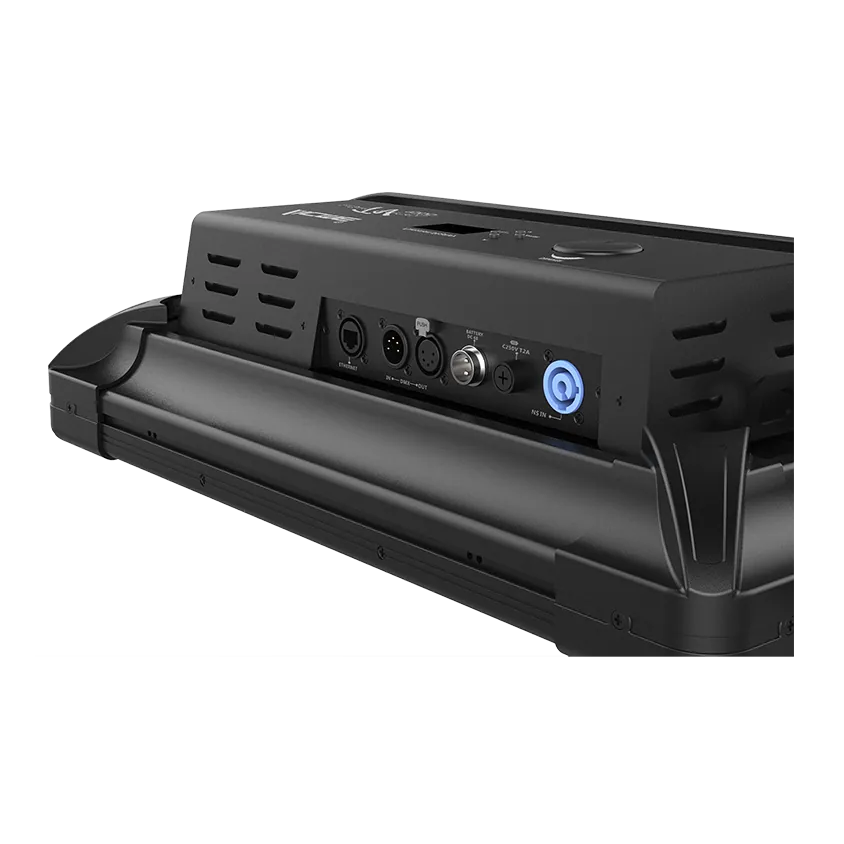

- Power In/Out
- Power connector in
- Data In/Out
- 3-pin or 5-pin XLR,RJ45 connector
- 48V input from external battery
- Power supply with electronic auto-ranging
08Physical Information4
- Fixture Dimensions
- Width
- 151 mm (5.9")
- Depth
- 661 mm (26.0")
- Height
- 301 mm (11.8")
- Weight
- 8.0 kg (17.6 lbs)
09Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP20
10Approvals1
- CE compliant
11Installation4
- Horizontal or vertical mounting
- Universal working position
- The feet support with 3 locking points
- Safety cable attachment point
12Included Items3
- Digital user manual
- Power cable

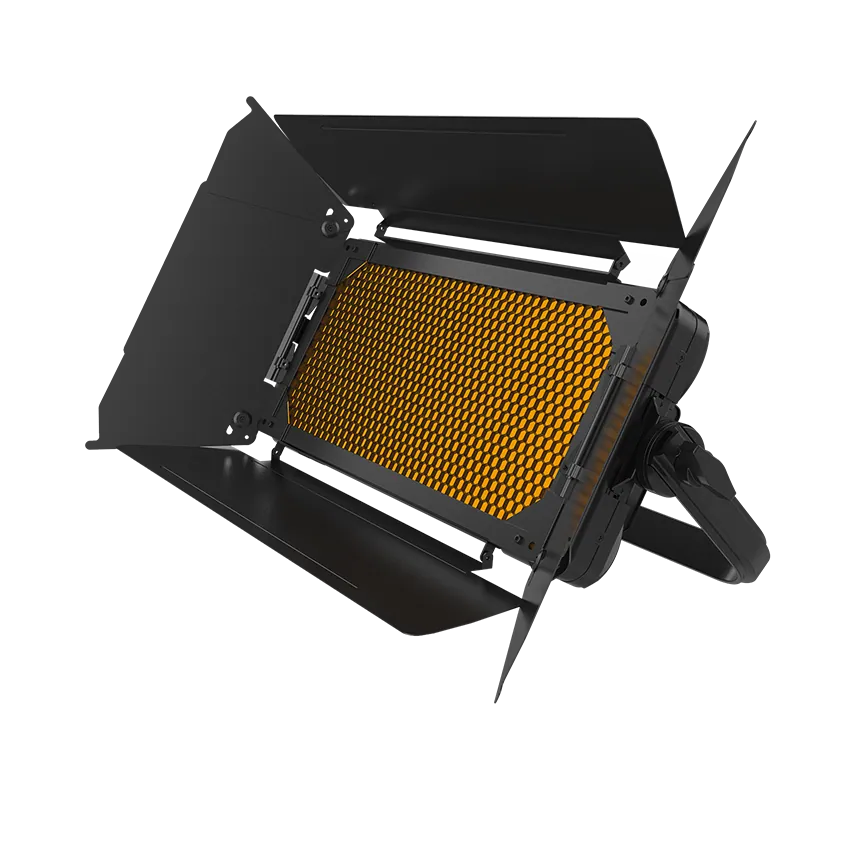

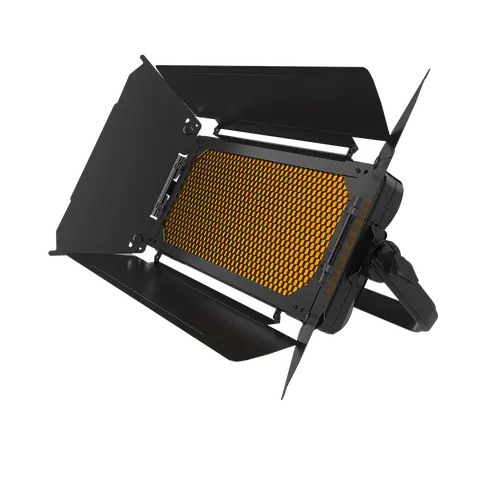

- Barn door
13Optional Accessories (With Order Code)4
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-02 (2060000200-B)
- Signal Cable
- 3-pin or 5-pin signal cable

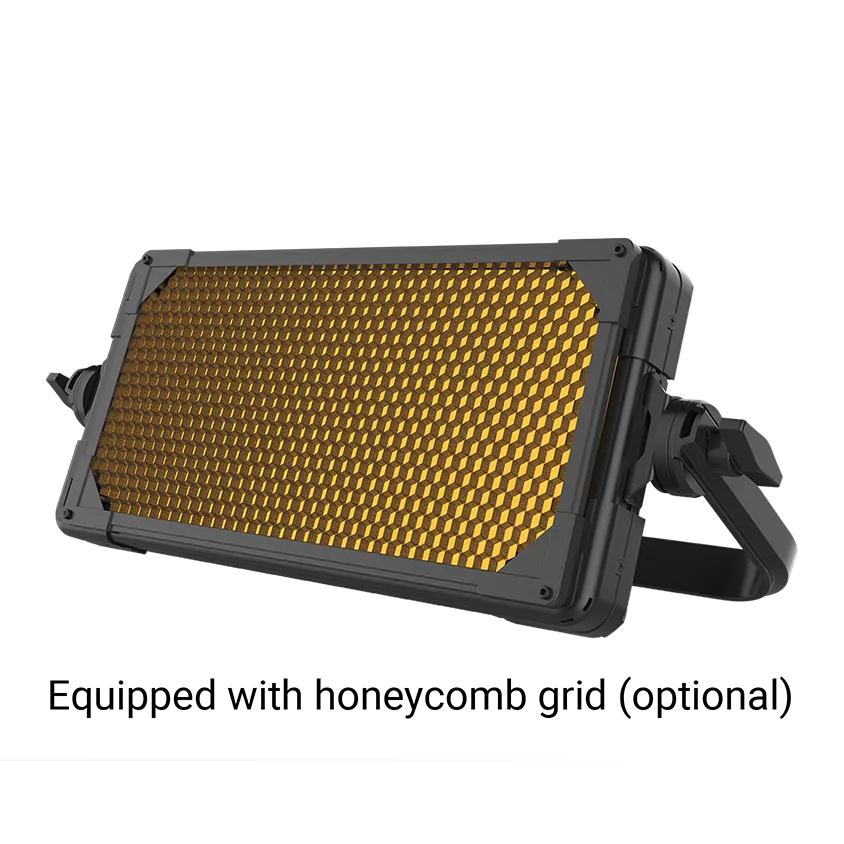

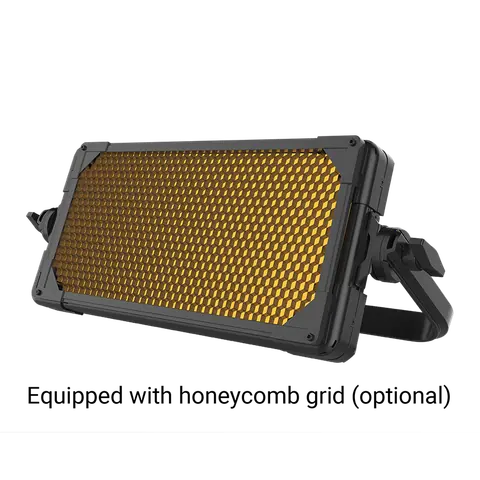

- Honeycomb Grid
- 20mm thick (63580911), 10mm thick (63580910)
