Sheet 05.959
ACME · Other fixtures

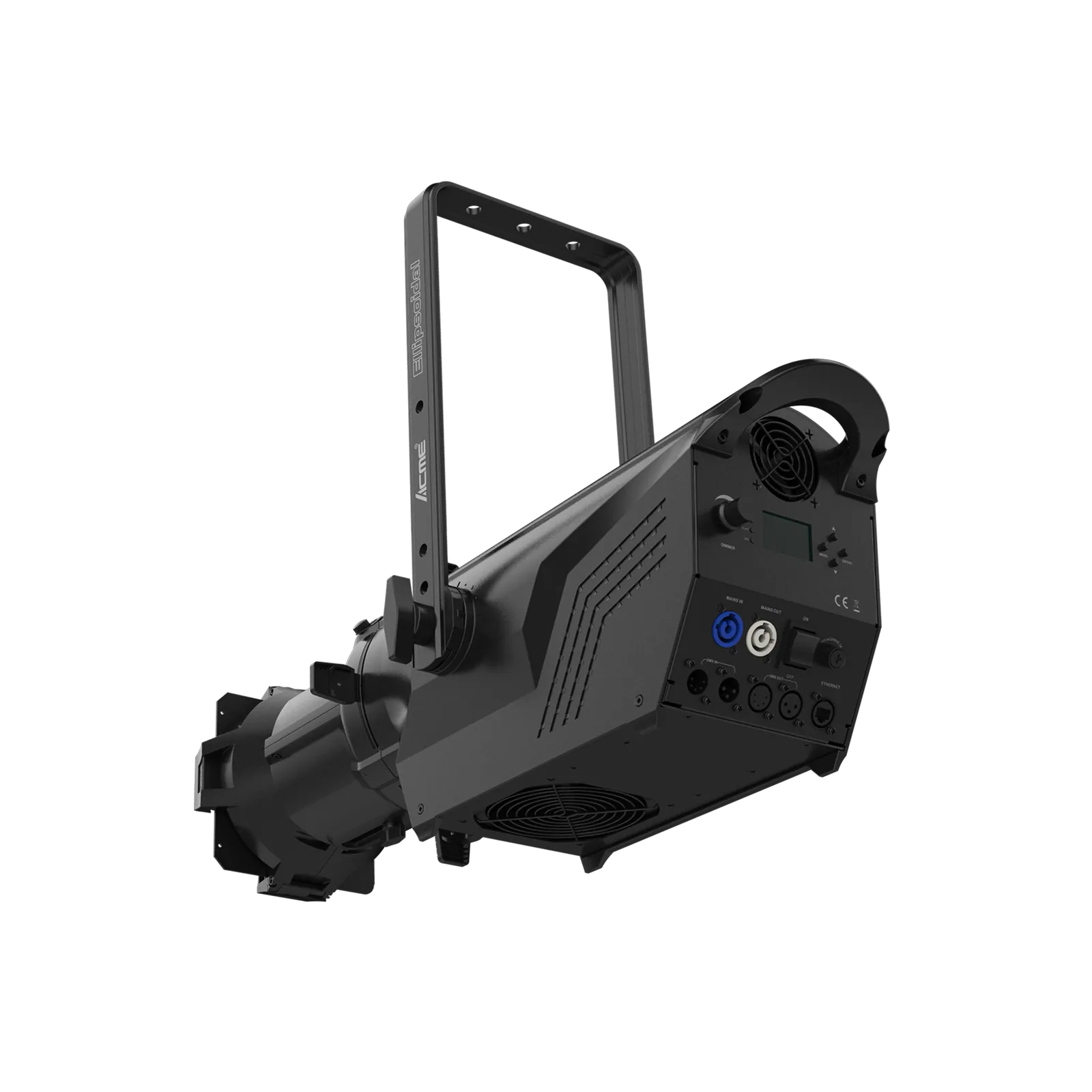

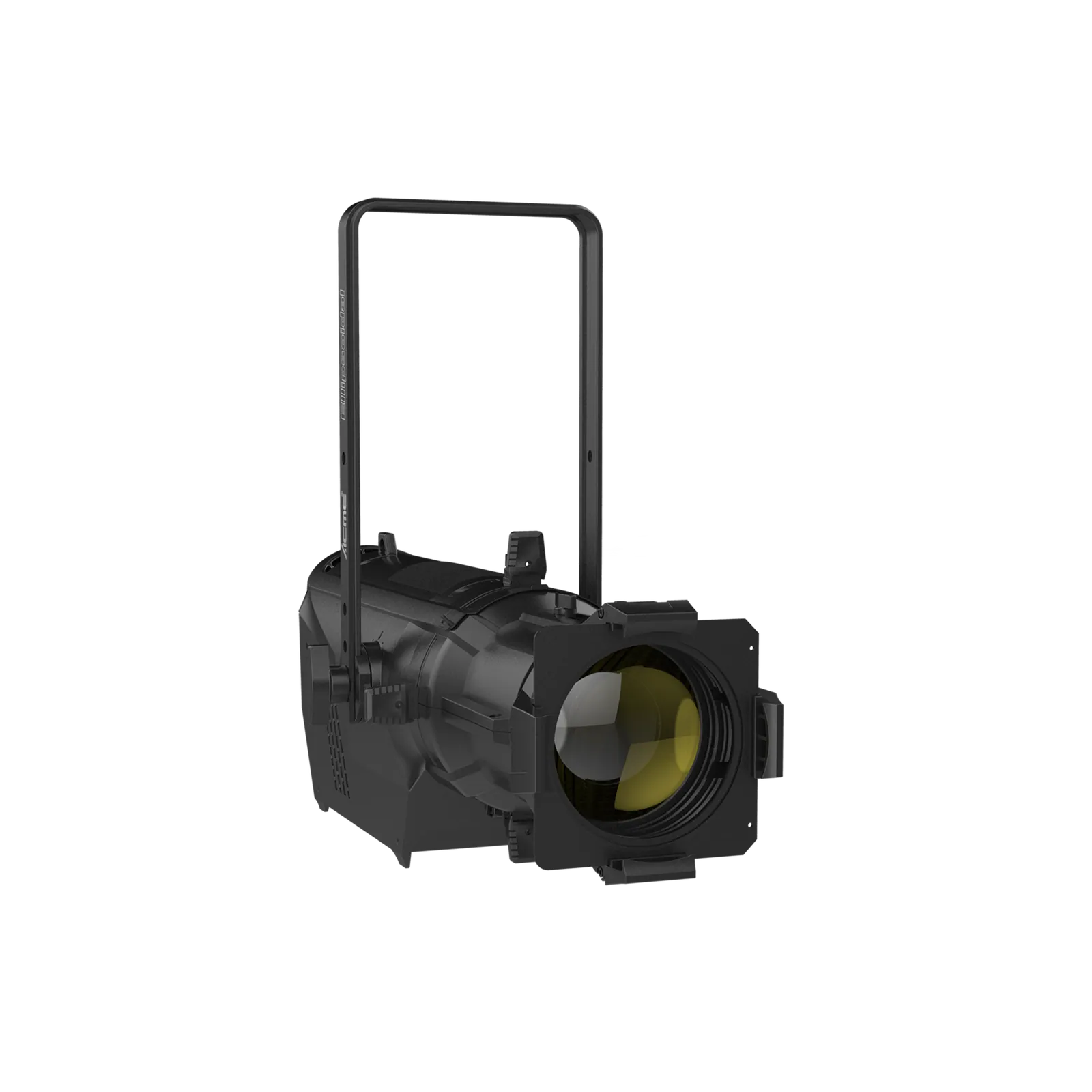

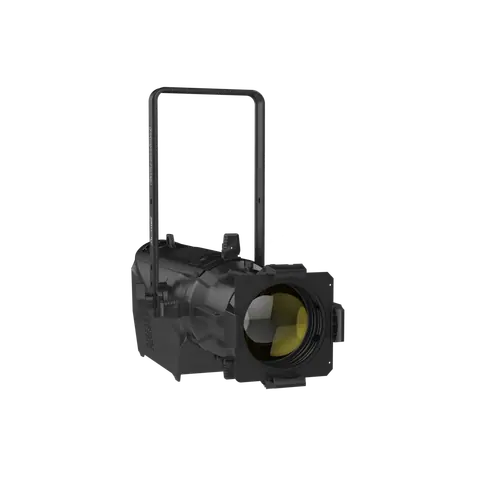

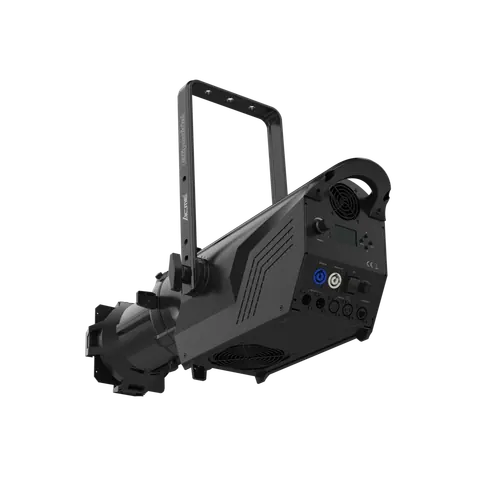

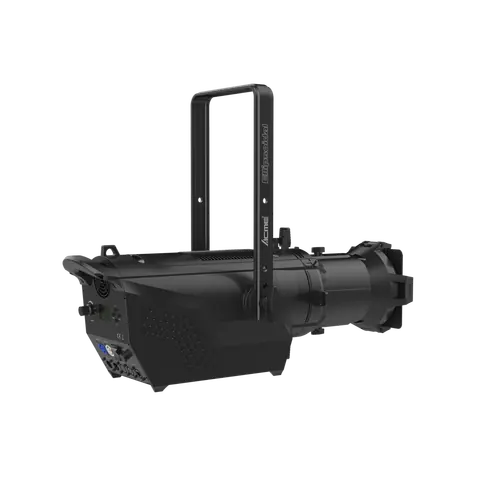

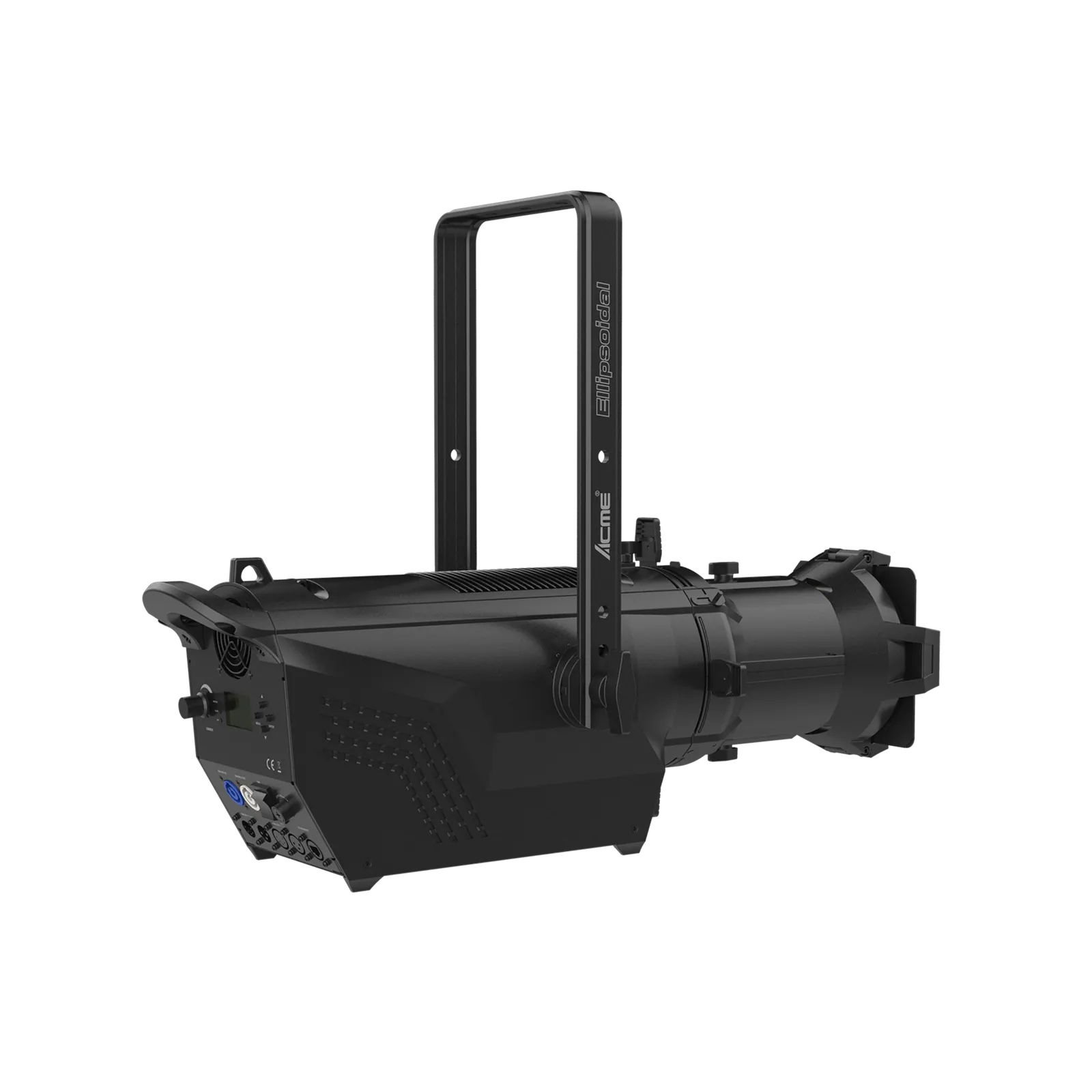

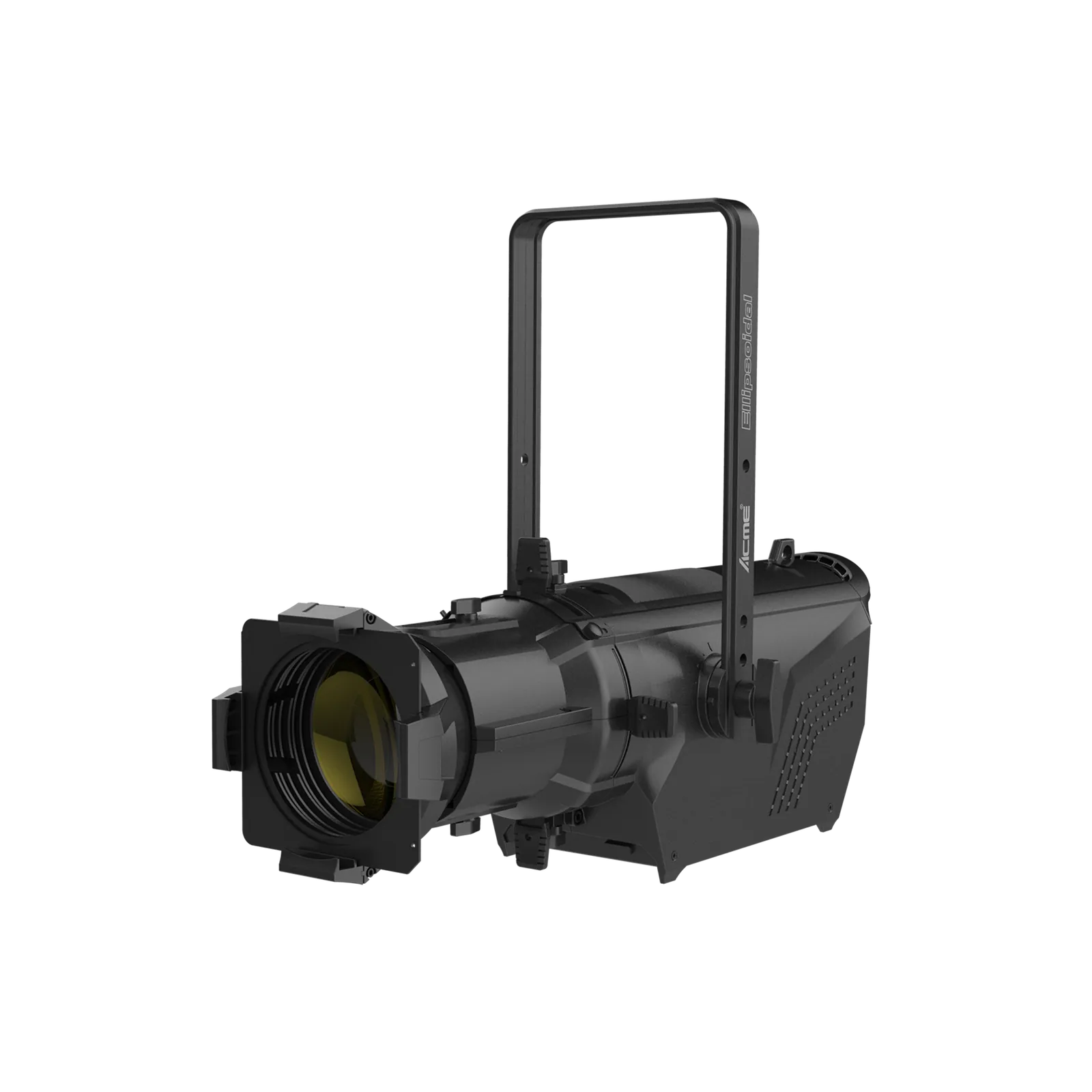

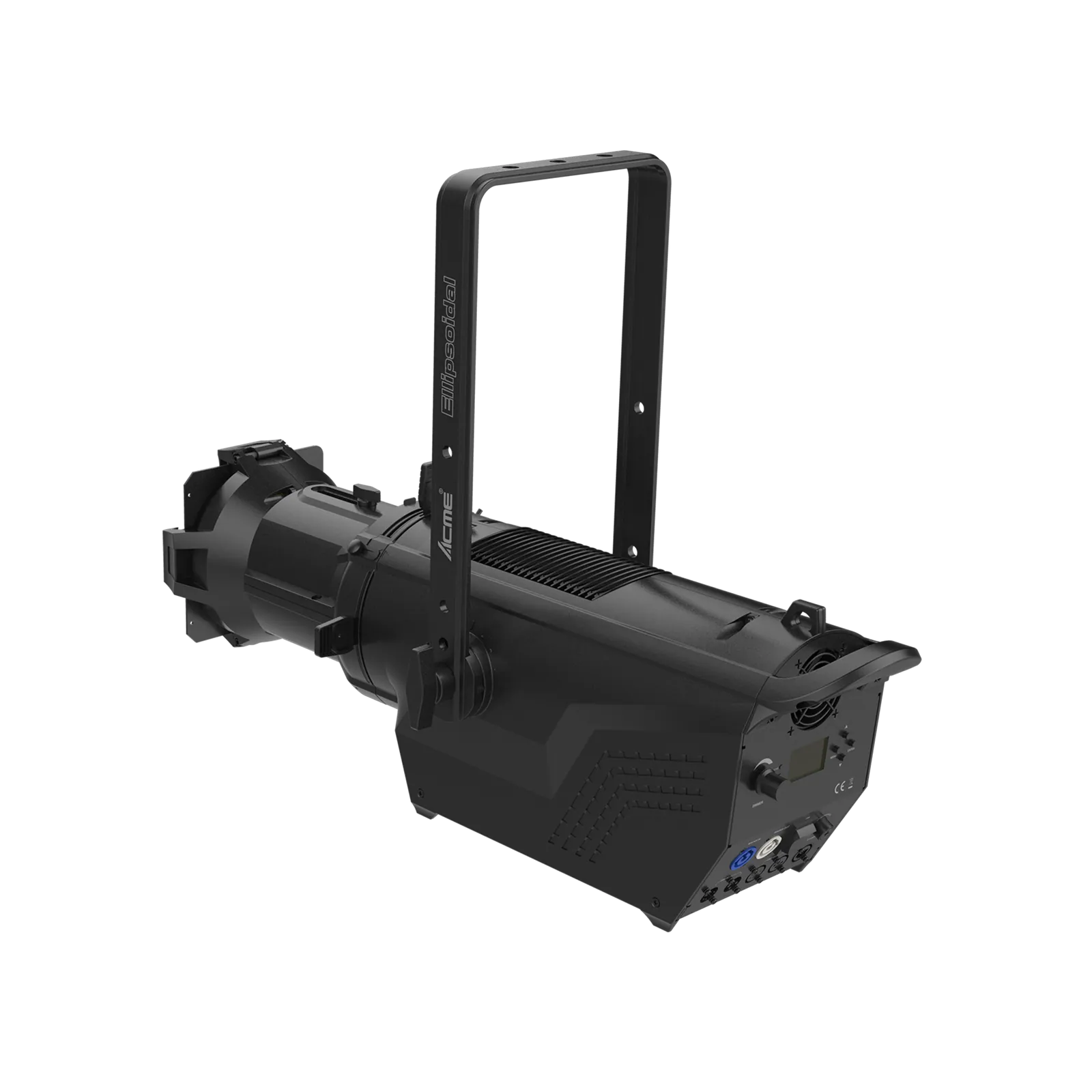

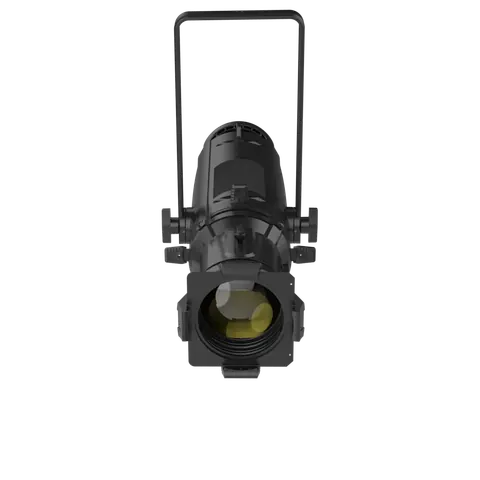

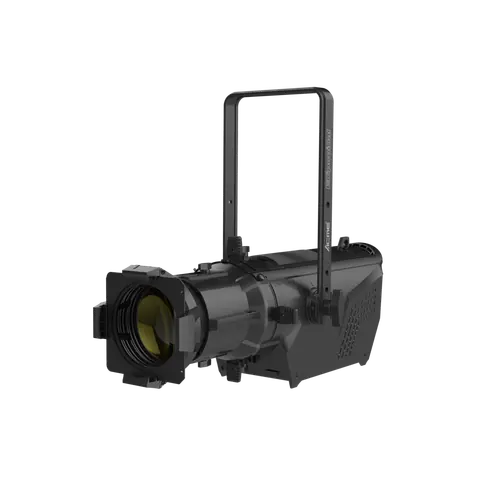

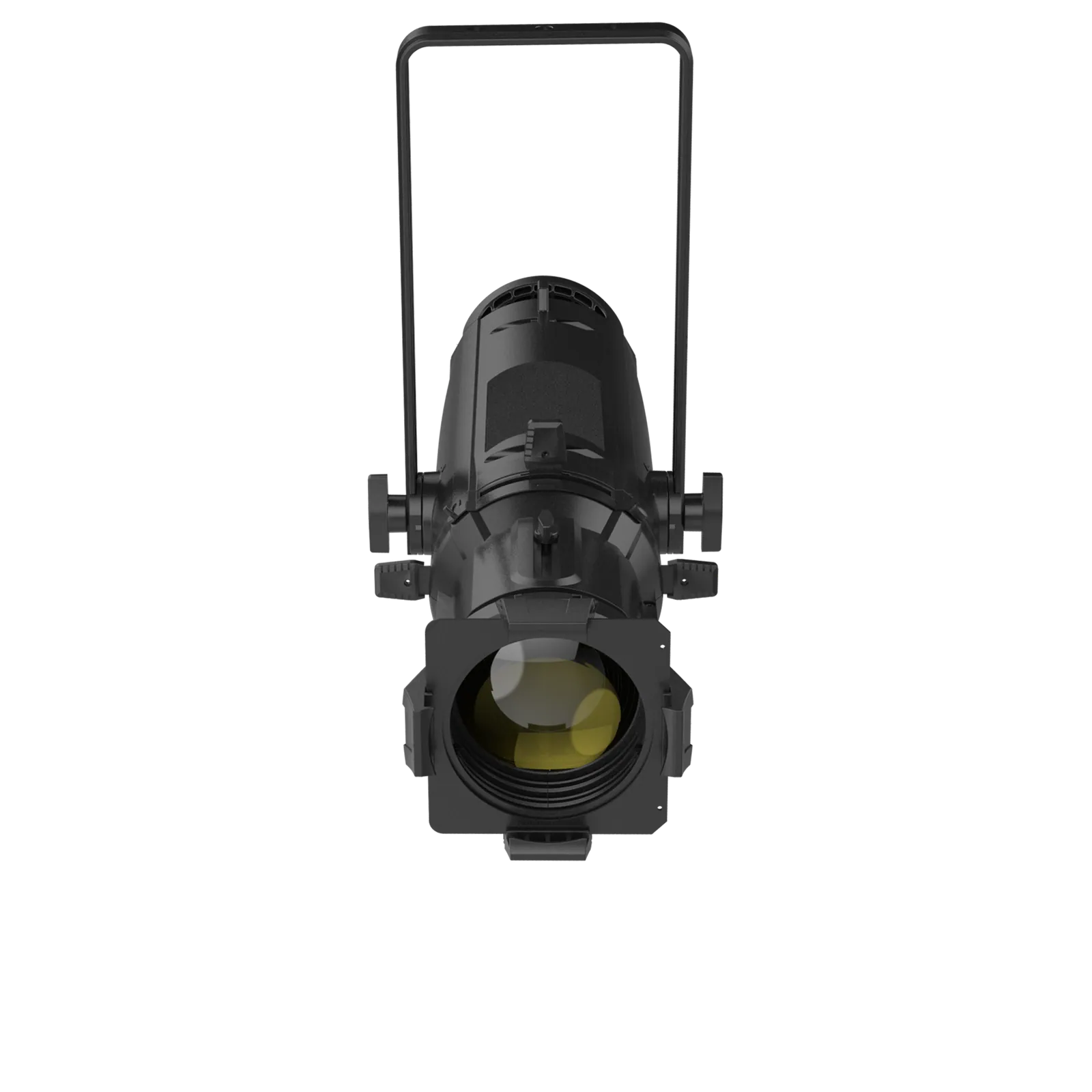

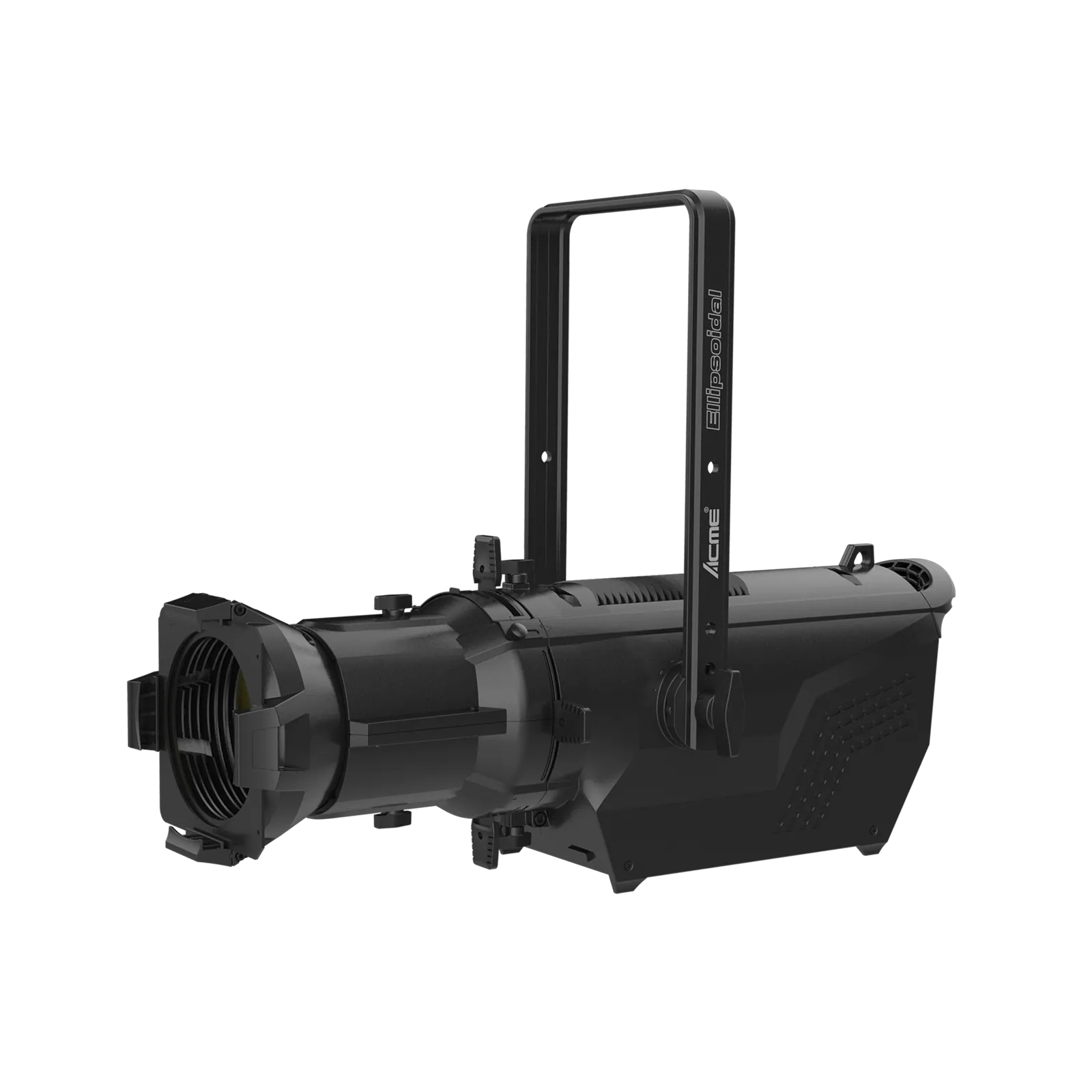

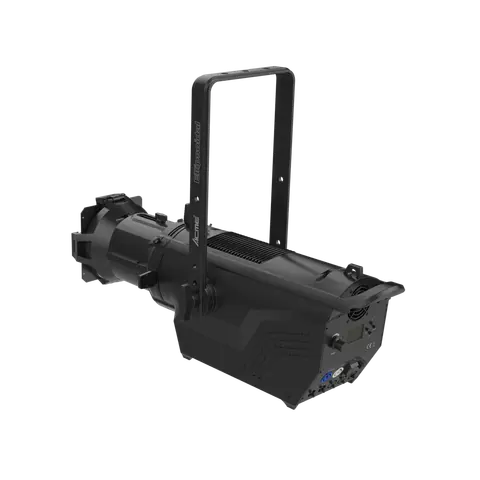

ELLIPSOIDAL 300 WW
ModelE-300 WW
The ELLIPSOIDAL 300 Series delivers uniform beams, perfect for theatre and broadcasting. It features standard beam shaping shutters & a gobo slot, multiple lens options, and two framing modules for precision control across various beam angles.
- Light source
- 1 x 280W Warm White LED
- Power consumption
- 335W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- DMX channels
- 1/2
- Protocols
- DMX512,RDM
- Colour temperature
- 3,100±150K
- Net weight
- 10 kg (22.1 lbs)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ELLIPSOIDAL 300 WWPrice on requestRequest a quotation
01SpecificationManufacturer's data · 10 groups · 29 values
What this product is, in numbers.

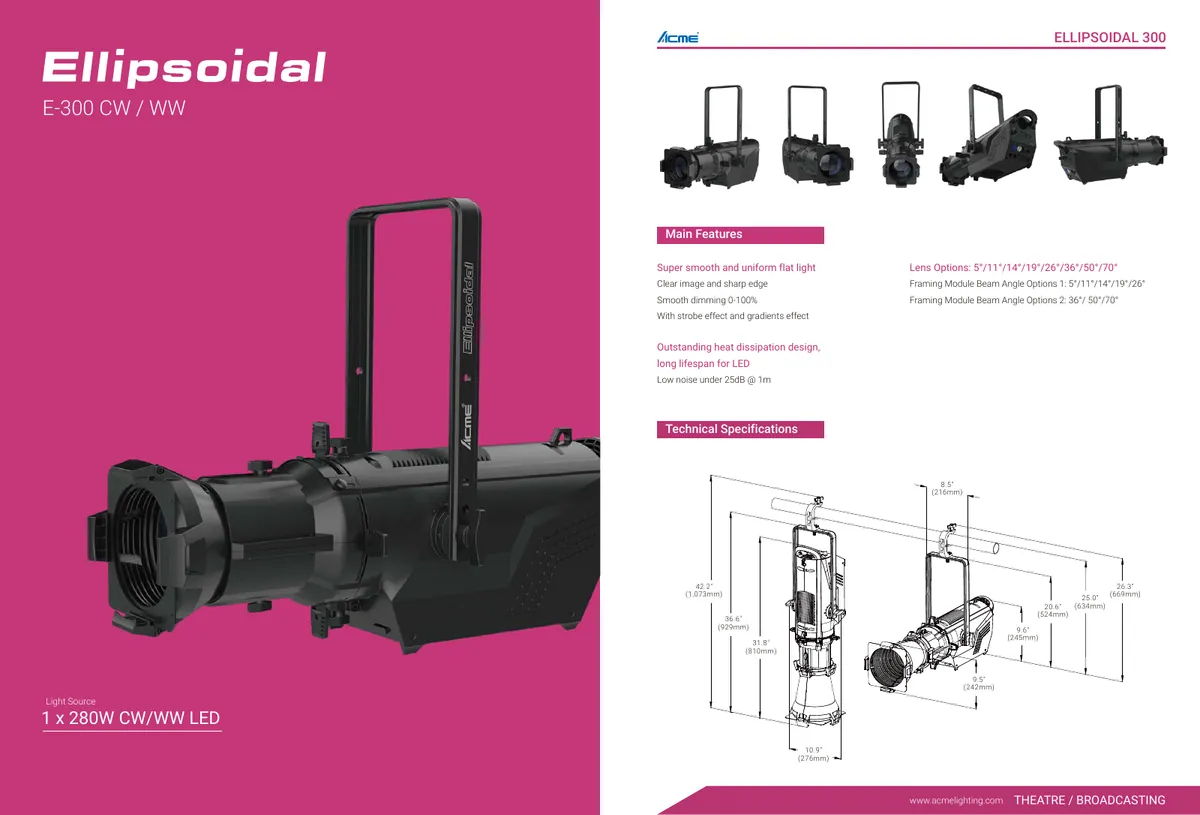

PDFDatasheetEN · 2 pages · 626 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- ELLIPSOIDAL 300 WW
- Model Code
- E-300 WW
02Light Source2
- Light Source
- 1 x 280W Warm White LED
- Color Temperature Output of Fixture
- 3,100±150K
03Photometric Data1
- Color Rendering
- CRI≥90, CQS≥91, TLCI≥94
04Control6
- Display
- LCD display
- Operational Modes
- DMX Control,Manual Control
- Protocols
- DMX512,RDM
- DMX Protocol Modes
- 2
- Control Channels
- 1/2
- Firmware Upgrade
- Upgrade via DMX link
05Other Effects7
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Excellent smooth light output
- Standard beam shaping shutters & a gobo slot
- Lens Options
- 5°/11°/14°/19°/26°/36°/50°/70°
- Framing module 1
- for beam angle 5°/11°/14°/19°/26°
- Framing module 2
- for beam angle 36°/ 50°/70°
06Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 335W
- Power In/Out
- Power connector in/out
- Data In/Out
- 3-pin or 5-pin XLR,RJ45 connector
07Physical Information4
- Fixture Dimensions
- Width
- 276 mm (10.9")
- Depth
- 712 mm (28")
- Height
- 524 mm (20.6")
- Weight
- 10 kg (22.1 lbs)
08Work Environment1
- Protection Rating
- IP20
09Approvals1
- CE compliant
10Optional Accessories (With Order Code)1
- Signal Cable
- 3-pin or 5-pin signal cable
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
The ELLIPSOIDAL 300 Series delivers uniform beams, perfect for theatre and broadcasting. It features standard beam shaping shutters & a gobo slot, multiple lens options, and two framing modules for precision control across various beam angles. With smooth dimming 0-100%, outstanding strobe and gradient effects, the fixture ensures creative versatility. Its low noise operation (<25dB @1m) and advanced thermal design for a long LED lifespan, make it a reliable and quiet lighting solution.
03Documents7 files · 9.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
