AET · All-in-one LED screens

Dream Wall COB Series

The Dream Wall Series by AET represents the pinnacle of all-in-one LED display technology.

Series
Dream Wall Series
Pixel pitch
0.9375 mm
Brightness
800–1000 nits
Size
163″ in
Resolution
3840 × 2160
Refresh rate
3840 Hz
Weight
163″: ≤187 kg
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 16 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications16
Model code
COB Series
Max. 500 Adjustable
800–1000
Size
163″ in
Pixel Pitch
0.9375 mm
Resolution
3840 × 2160
Operating System
Android 11.0
CPU
4 Core Processor
Brightness
800–1000 nits
Viewing Angle (H/V, °)
170 / 170
Max. Contrast Ratio
18000:1
Refresh Rate
3840 Hz
WiFi
Internet: 2.4G, Screen Casting 5G
Interaction
IR (Optional)
Cabinet material
Aluminum
Dimensions
163″: 3600 × 2025 mm
Weight
163″: ≤187 kg
02Models2 models in the family

Models compared.

ModelDream Wall (All in One) SERIESDream Wall COB Series
Model code110″ / 136″ (4K) / 138″COB Series
Max. 500 AdjustableMax. 500 Adjustable800–1000
Size (Inch)110″ / 136″ (4K) / 138″ / 165″163″
Pixel Pitch (mm)1.26 / 0.78 / 1.59 / 1.890.9375
Resolution1920 × 1080 / 3840 × 2160 / 1920 × 1080 / 1920 × 10803840 × 2160
Operating SystemAndroid 11.0Android 11.0
CPU4 Core Processor4 Core Processor
Brightness (nits)Max. 500 Adjustable800–1000
Viewing Angle (H/V, °)≥ 160170 / 170
Max. Contrast Ratio≥ 7000:118000:1
Refresh Rate (Hz)≥ 38403840
WiFiInternet: 2.4G, Screen Casting 5GInternet: 2.4G, Screen Casting 5G
InteractionIR (Optional)IR (Optional)
Cabinet materialAluminum (some sizes: aluminum alloy / die-casting aluminum-magnesium alloy)Aluminum
Dimensions (W × H, mm)110″: 2421.2 × 1361.8 · 138″: ≈3062 × 1723 · 165″: width 3630.8, height not confirmed163″: 3600 × 2025
Weight (Kg)110″: ≤94 · 138″: 125 · 165″: 150163″: ≤187
03DescriptionManufacturer's description

What it is.

The Dream Wall Series by AET represents the pinnacle of all-in-one LED display technology. Designed to deliver exceptional flexibility, performance, and visual impact, this series is ideal for large indoor spaces such as auditoriums, conference halls, and corporate lobbies. The Dream Wall Series simplifies the installation and operation of LED displays, providing a comprehensive solution that meets the diverse needs of modern enterprises and educational institutions.

  • AET Dream Wall COB Series: Integrated Design

    Integrated Design

    The Dream Wall Series integrates all essential components into a single, sleek unit. This design eliminates the need for additional equipment and reduces installation complexity, ensuring a clean and efficient setup.

  • AET Dream Wall COB Series: Ultra-High Resolution

    Ultra-High Resolution

    Experience breath taking visuals with stunning clarity and detail. The high resolution of the Dream Wall Series captivates audiences and enhances the impact of presentations, videos, and graphics

  • AET Dream Wall COB Series: Scalable Solutions

    Scalable Solutions

    The series offers a range of sizes to accommodate various space requirements. Whether you need a large display for a grand auditorium or a smaller unit for a meeting room, the Dream Wall Series can be customized to fit your needs.

  • AET Dream Wall COB Series: Advanced Technology

    Advanced Technology

    Utilizing cutting-edge QCOB and COB technologies, the Dream Wall Series delivers superior performance, reliability, and visual quality. These technologies ensure that the displays maintain their exceptional performance over time.

Transform any space with the all-in-one excellence of the Dream Wall Series.

AET Dream Wall COB Series: Transform any space with the all-in-one excellence of the Dream Wall Series.

Features

Corporate Offices

Enhance meeting efficiency and collaboration with stunning visual presentations.

AET Dream Wall COB Series: Corporate Offices

Features

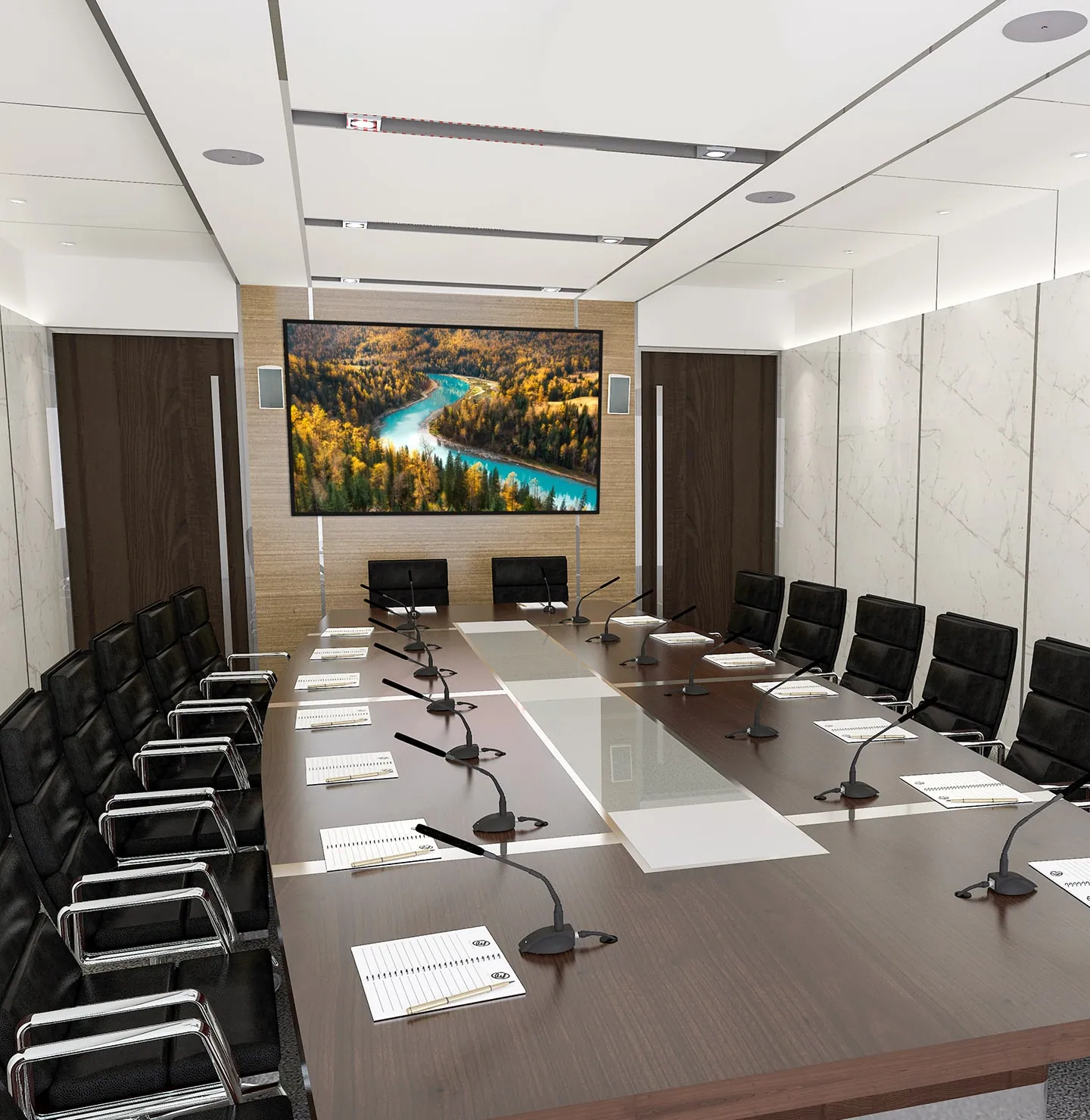

Conference Rooms

Provide impactful visuals and dynamic content for conferences and seminars.

AET Dream Wall COB Series: Conference Rooms

Features

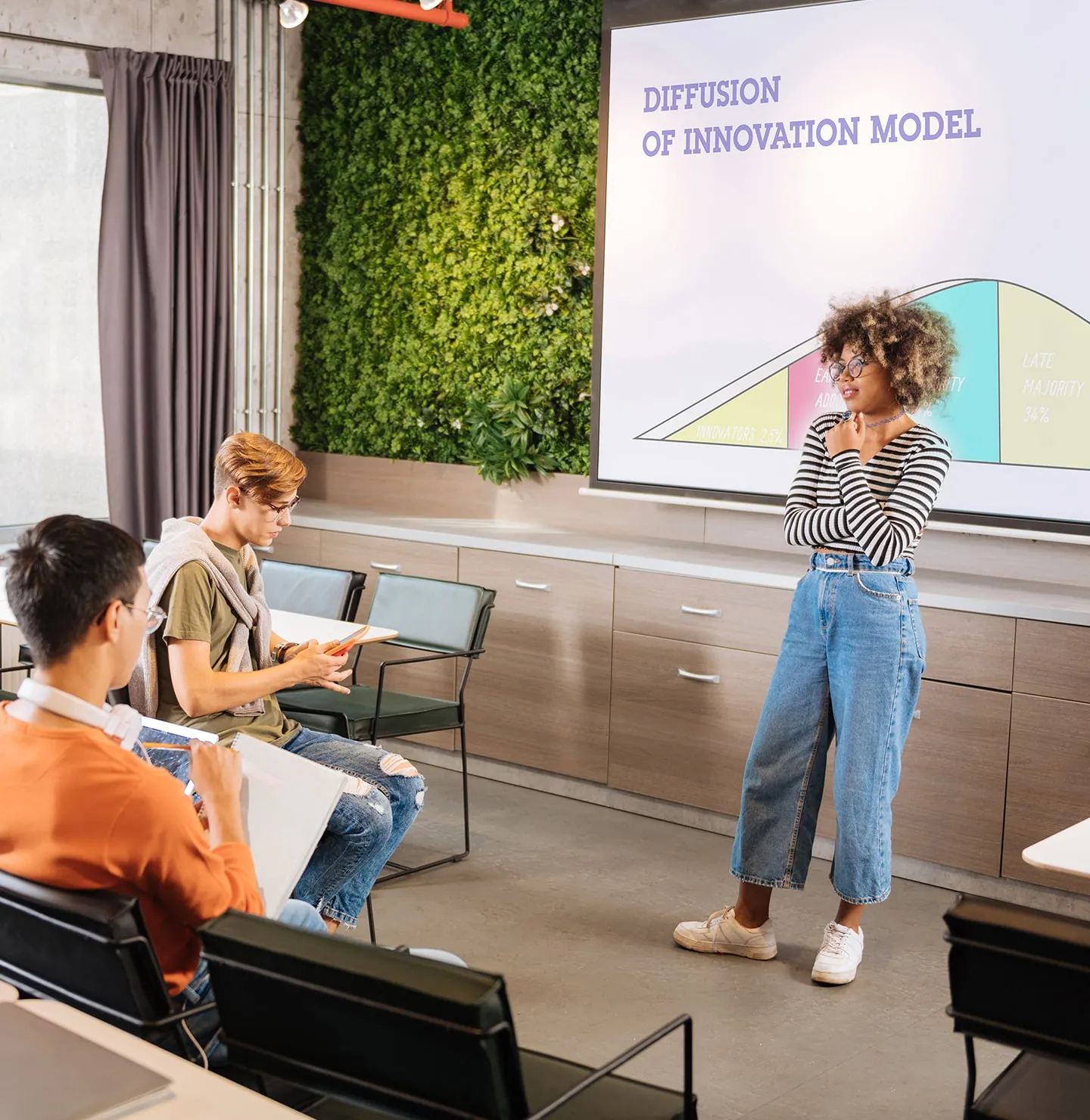

Schools & Colleges

Improve learning experiences and engagement with high-quality displays.

AET Dream Wall COB Series: Schools & Colleges

Features

Personal Spaces

Create an immersive environment for home entertainment or personal projects.

AET Dream Wall COB Series: Personal Spaces
  • AET Dream Wall COB Series: Aspect Ratio & Resolution

    Aspect Ratio & Resolution

    16:9 aspect ratio with a standard 2K LED display for high-quality visuals.

  • AET Dream Wall COB Series: Multi-Platform Wireless Screen Casting

    Multi-Platform Wireless Screen Casting

    Supports Windows, Mac OS, iOS, and Android devices, allowing seamless connectivity and screen sharing.

  • AET Dream Wall COB Series: Support for Up to 4 Terminals

    Support for Up to 4 Terminals

    Connect and manage multiple devices simultaneously.

  • AET Dream Wall COB Series: Dual Wi-Fi Mode

    Dual Wi-Fi Mode

    Provides flexible and robust wireless connectivity options.

  • AET Dream Wall COB Series: One-Click Eye Protection Mode

    One-Click Eye Protection Mode

    Reduces eye strain with a simple activation of the eye protection feature.

  • AET Dream Wall COB Series: Whiteboard Writing and Annotation

    Whiteboard Writing and Annotation

    Turn your display into an interactive whiteboard for notes and annotations.

  • AET Dream Wall COB Series: Gigabit Ethernet Network Port

    Gigabit Ethernet Network Port

    Ensures fast and reliable wired network connections.

  • AET Dream Wall COB Series: TCP/IP Protocol

    TCP/IP Protocol

    Standard protocol support for network communication.

  • AET Dream Wall COB Series: Bluetooth 5.0

    Bluetooth 5.0

    Offers improved connectivity with external devices.

  • AET Dream Wall COB Series: IR Remote Control

    IR Remote Control

  • AET Dream Wall COB Series: Support for External Conference Devices

    Support for External Conference Devices

    Compatible with cameras, audio systems, and laser markers for enhanced conferencing.

  • AET Dream Wall COB Series: OPS Host Interface - Dual System Configuration

    OPS Host Interface - Dual System Configuration

    Enables the integration of additional computing power with dual system support.

Dream Wall (QCOB Technology)

The QCOB (Quantum COB) technology employed in the Dream Wall Series represents the forefront of LED display innovation. QCOB technology integrates quantum dot technology with the traditional COB (Chip-on-Board) structure, resulting in:

With the Dream Wall Series, you can transform any space into a visually stunning environment. Ideal for corporate settings, meeting rooms, board rooms, and educational institutions, this series provides an all-in-one solution that meets the highest standards of performance and aesthetics.

  • AET Dream Wall COB Series: Enhanced Color Accuracy

    Enhanced Color Accuracy

    Quantum dot technology provides a broader color spectrum and more accurate color reproduction, ensuring that every image is vibrant and true-to-life.

  • AET Dream Wall COB Series: Improved Brightness and Contrast

    Improved Brightness and Contrast

    The combination of QCOB technology delivers superior brightness levels and contrast ratios, making it ideal for various lighting conditions and enhancing visual impact.

  • AET Dream Wall COB Series: Longer Lifespan

    Longer Lifespan

    TQCOB technology enhances the durability and longevity of the displays, ensuring consistent performance and reduced maintenance costs.

Dream Wall (COB Technology)

The COB (Chip-on-Board) technology in the Dream Wall Series offers robust performance and reliability. COB technology integrates multiple LED chips onto a single circuit board, resulting in:

  • AET Dream Wall COB Series: Superior Image Quality

    Superior Image Quality

    COB technology ensures high resolution and excellent image quality by minimizing color distortion and improving pixel uniformity.

  • AET Dream Wall COB Series: Compact Design

    Compact Design

    The integration of LED chips onto a single board allows for a thinner and more compact display unit, making it suitable for various installation environments.

  • AET Dream Wall COB Series: Focus

    Focus

    The solid construction of COB displays makes them highly resistant to mechanical damage and environmental factors, ensuring long-term reliability.
