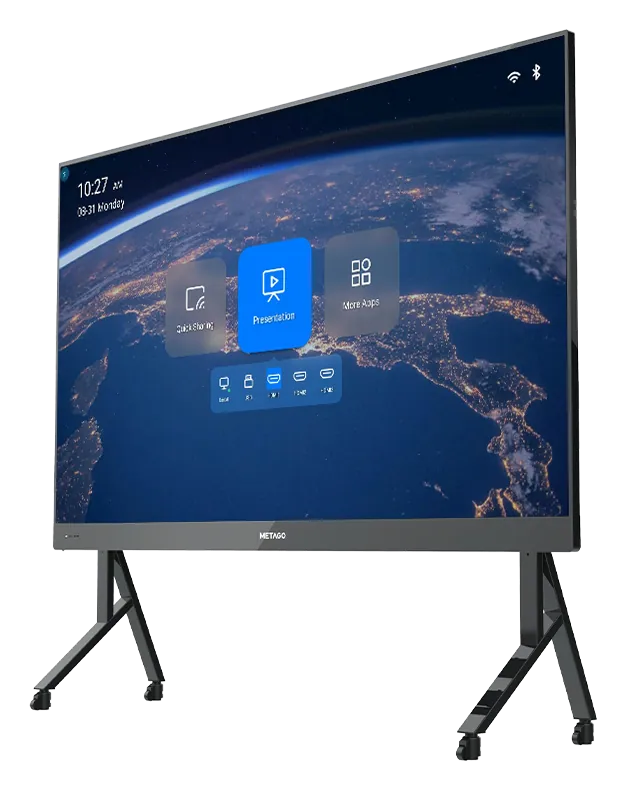

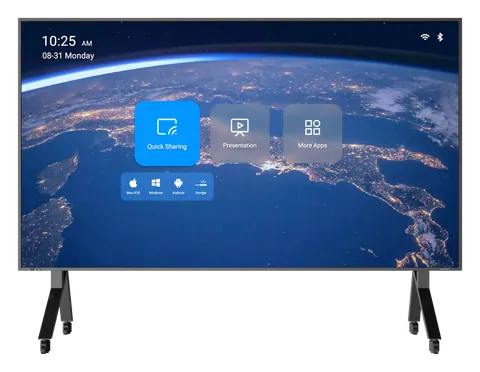

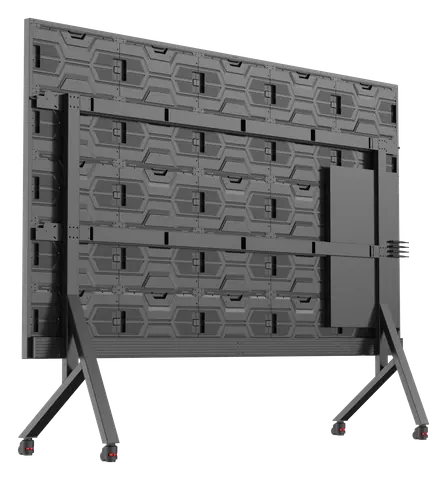

METAGO LT135

LT135/LT162 all-in-one touchscreen: FHD display, one-button control, wireless mirroring.

Series
METAGO
Brightness
100–450 nits
Power consumption
max 415 / avg 138 W/m²
Size
3015 × 1821 mm
Screen size
135"
Resolution
1920 × 1080
Refresh rate
3840 Hz
LED type
SMD
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 15 values

What this product is, in numbers.

PDFBrochureEN · 10 pages · 13 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications15
Screen Size
135"
Size W × H
3015 × 1821 mm
Resolution
1920 × 1080
LED Type
SMD
Brightness
100–450 nits
Refresh Rate
3840 Hz
Viewing Angle (H/V)
160° / 160°
Color Temperature
2000–10000 (Adjustable)
Voltage (V)
AC 100–240
Average Power Consumption
0.76 kW
IP Rating
IP30
System
Android (Standard) / Windows (Optional)
Frame Rate
50 / 60 Hz
Weight
Wall Mounted: 140 / Pedestal Mounted: 198
Max Power Consumption
2.28 kW
02Models3 models in the family

Models compared.

ModelMETAGO LT135METAGO LT162METAGO LT135 (COB)
Screen Size (inch)135"162"135
Size W × H (mm)3015 × 18213615 × 2151
Resolution1920 × 10801920 × 10801920 × 1080
LED TypeSMDSMDCOB
Brightness (nits)100–450100–450100–600
Refresh Rate (Hz)384038403840
Viewing Angle (H/V)160° / 160°160° / 160°170° / 170°
Color Temperature (K)2000–10000 (Adjustable)2000–10000 (Adjustable)2000–10000 (Adjustable)
Voltage (V)AC 100–240AC 100–240AC 100–240
Average Power Consumption (KW/pc)0.760.830.53
IP RatingIP30IP30IP30
SystemAndroid (Standard) / Windows (Optional)Android (Standard) / Windows (Optional)Android (Standard) / Windows (Optional)
Frame Rate (Hz)50 / 6050 / 6050 / 60
Weight (Kg)Wall Mounted: 140 / Pedestal Mounted: 198Wall Mounted: 190 / Pedestal Mounted: 248Wall Mounted: 128 / Pedestal Mounted: 186
Max Power Consumption (KW/pc)2.282.491.55
Dimension (mm)Wall Mounted: 3015 × 1821 × 96 / Pedestal Mounted: 3015 × 2588 × 700
03DescriptionManufacturer's description

What it is.

  • Corporate and meeting rooms
  • Control rooms and command centres

* All specification values given are per panel. The specifications are for reference only, actual values may vary.

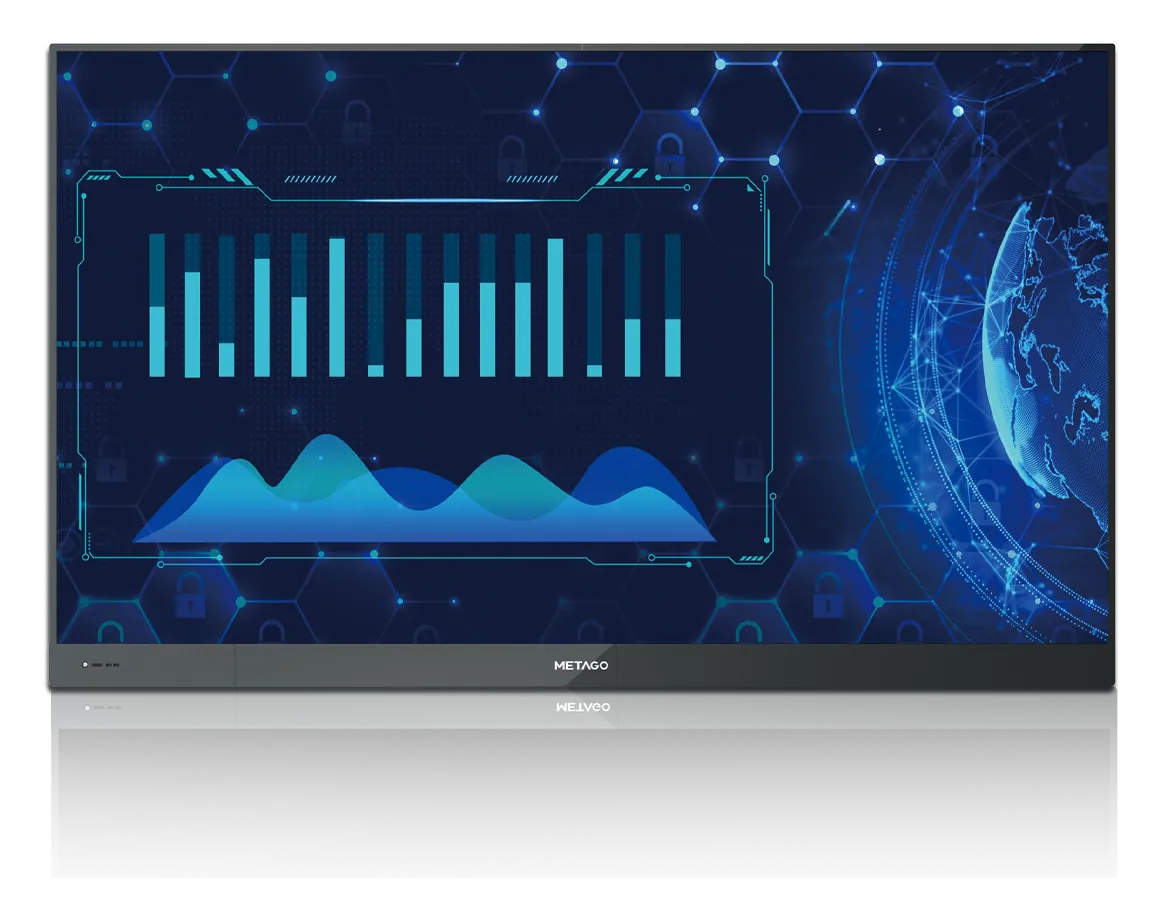

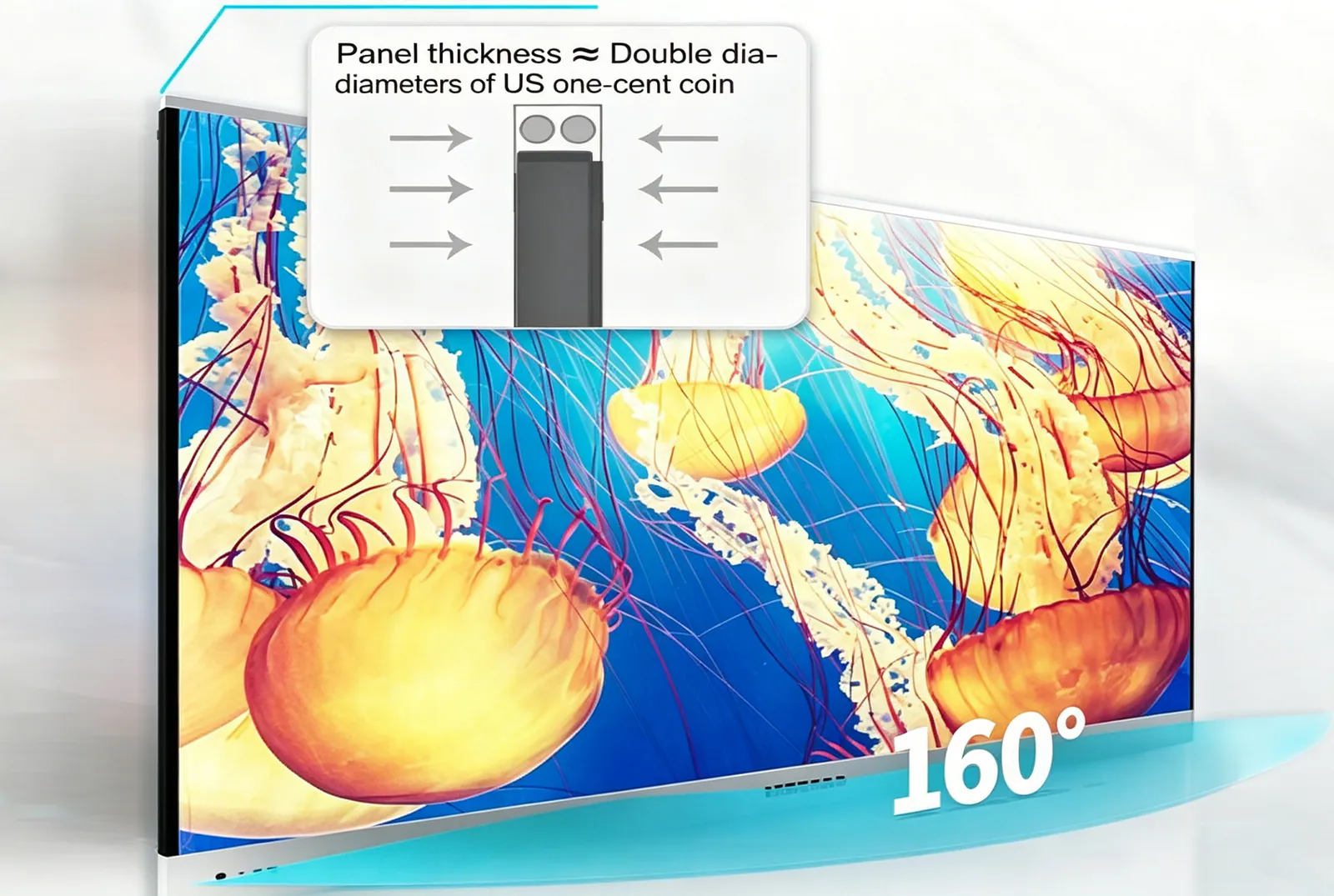

Streamlined Lightweight Design, Ultra-Slim Artwork

51mm-thin panel reduces weight by 30% than other LED meeting panels; 95% screen-to-body ratio with 160° wide views delivers exceptional visual comfort.

LianTronics METAGO LT135: Streamlined Lightweight Design, Ultra-Slim Artwork

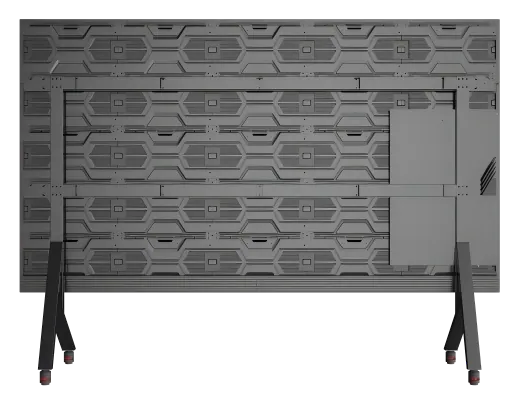

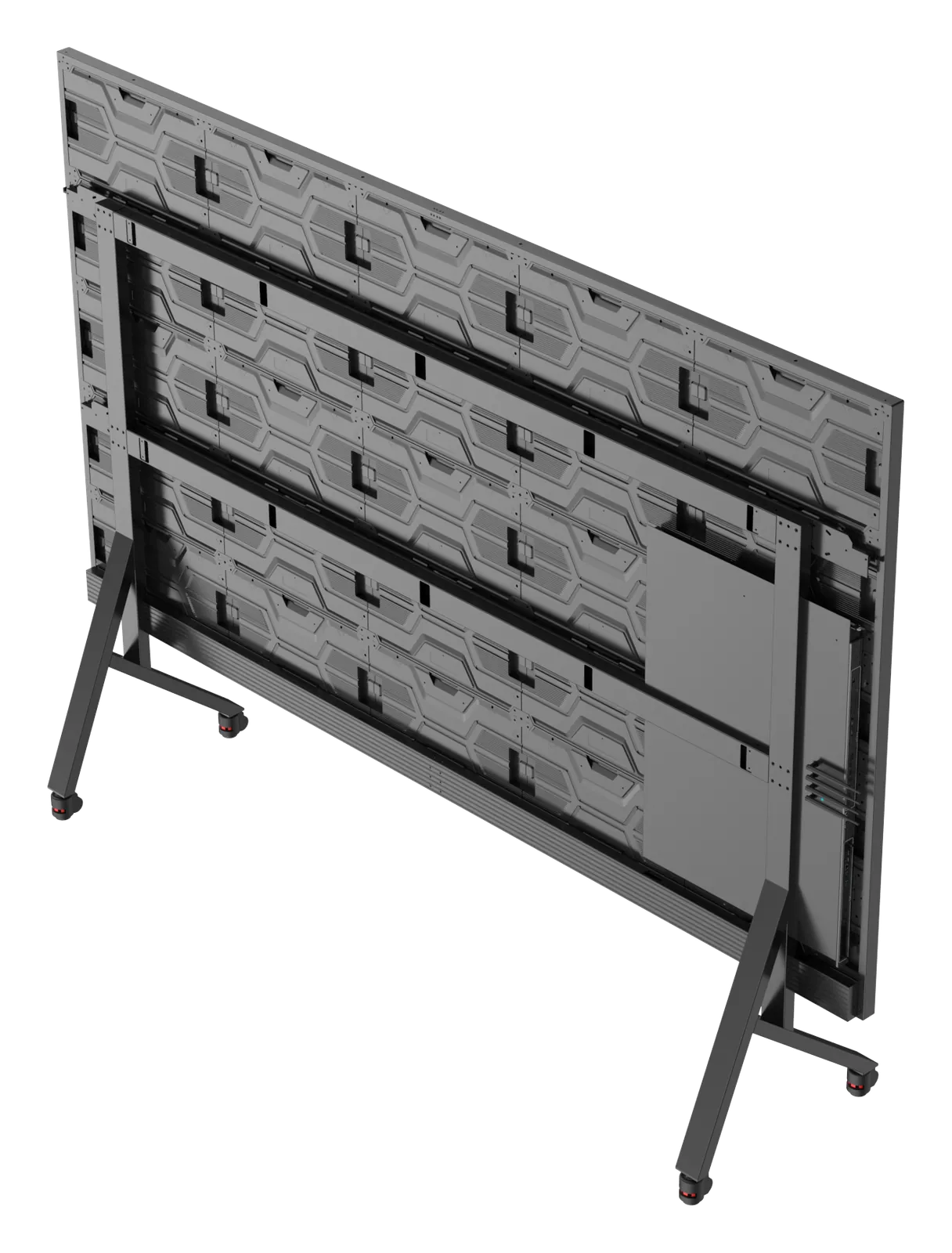

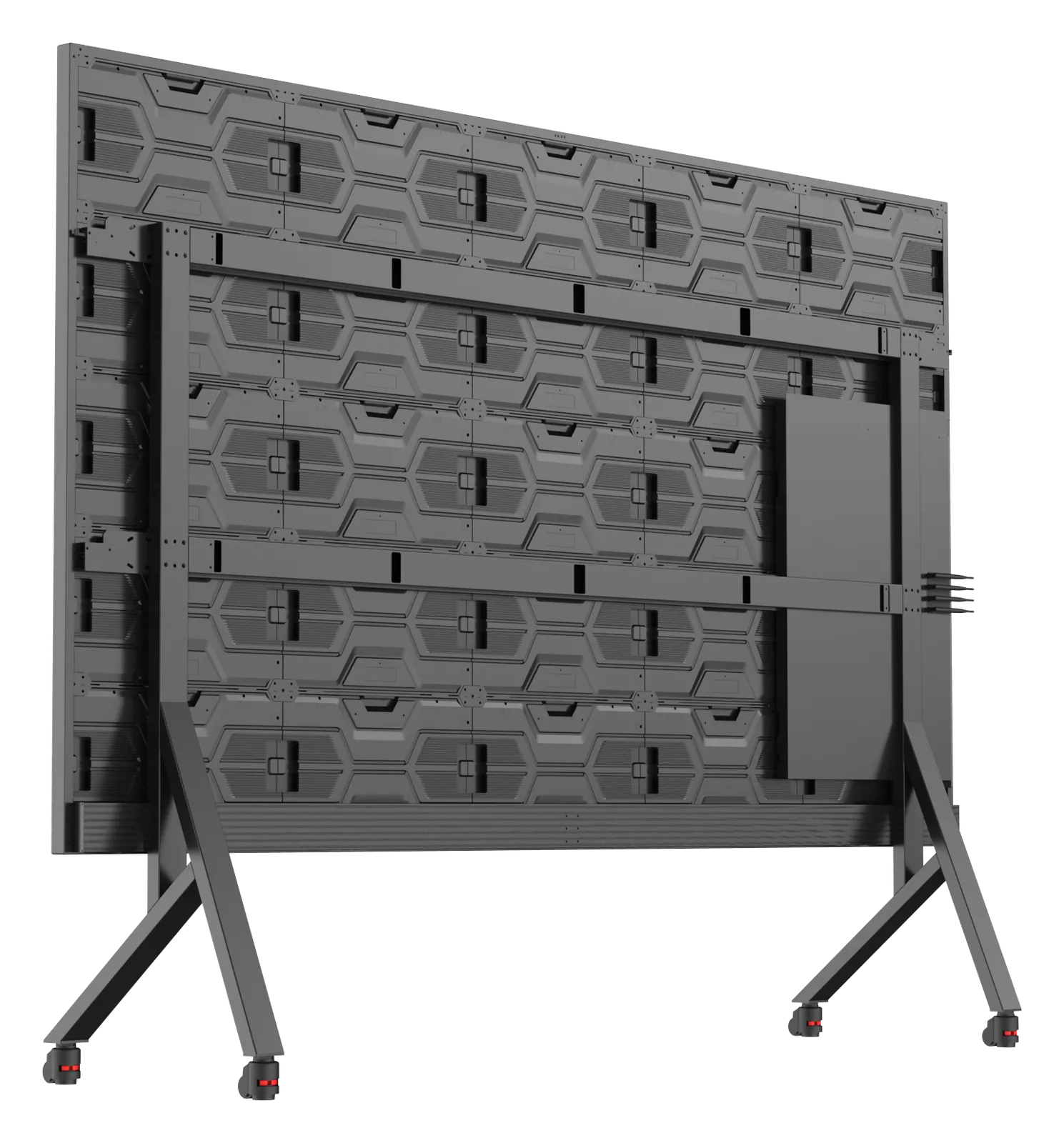

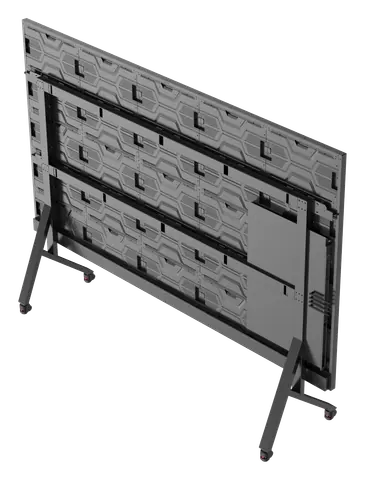

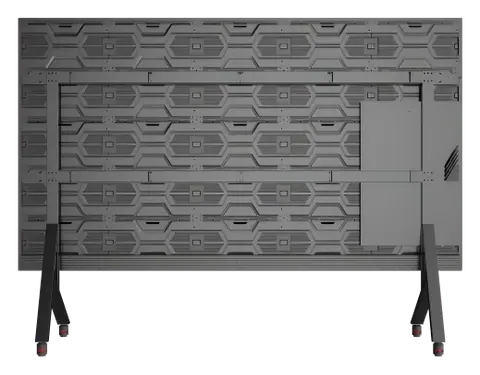

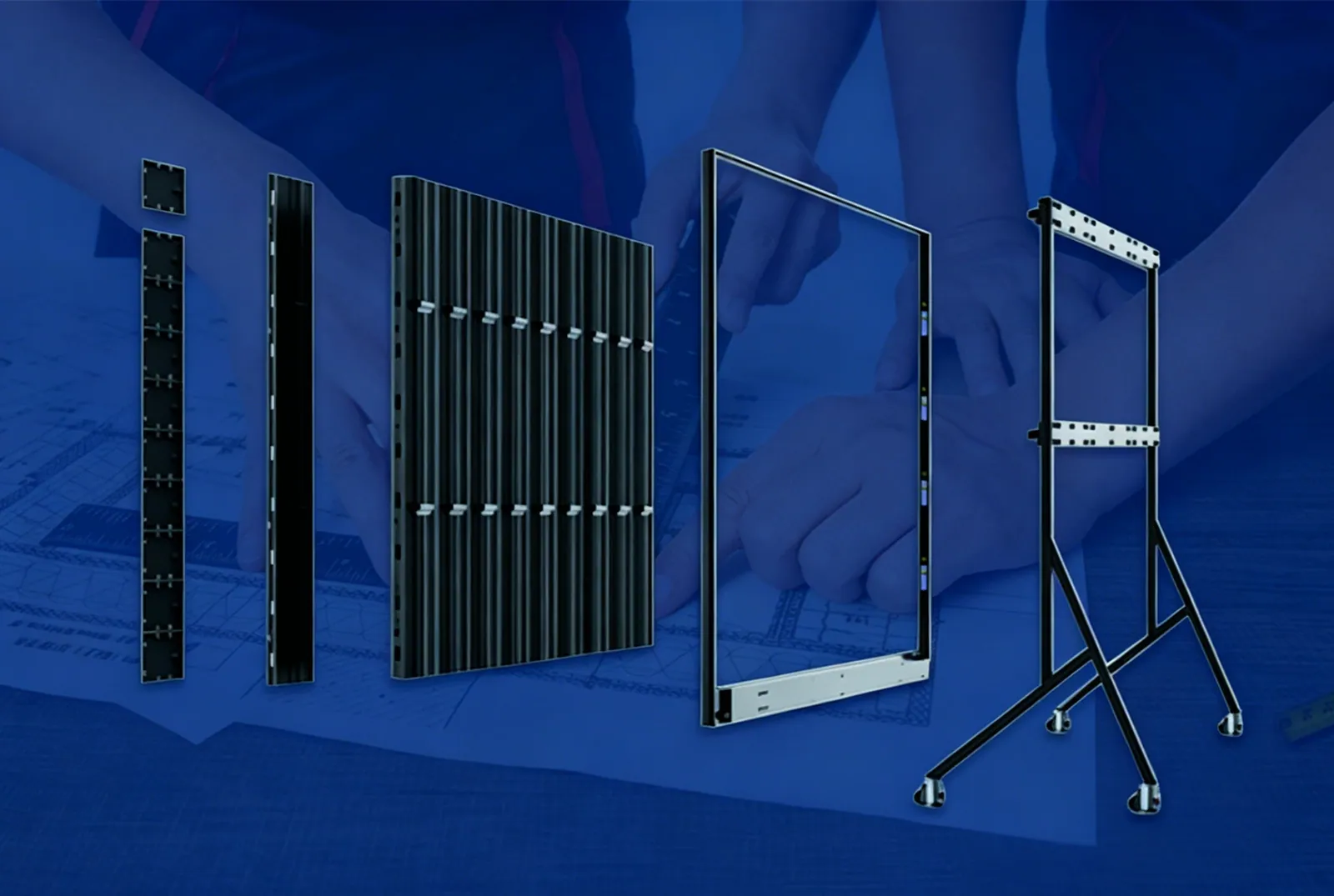

Quick Installation, Easy-to-Maintain METAGO

Segmented modularization design allows seamless fast assembly of LED panel; Pixel-level maintenance on the location saves the cost of return-to-factory repair.

LianTronics METAGO LT135: Quick Installation, Easy-to-Maintain METAGO

Giant FHD Screen, Maximized Sight

Unparalleled larger size creates cinematic immersive viewing comfort; FHD broadcasting presents realistic pictures pixel by pixel.

LianTronics METAGO LT135: Giant FHD Screen, Maximized Sight

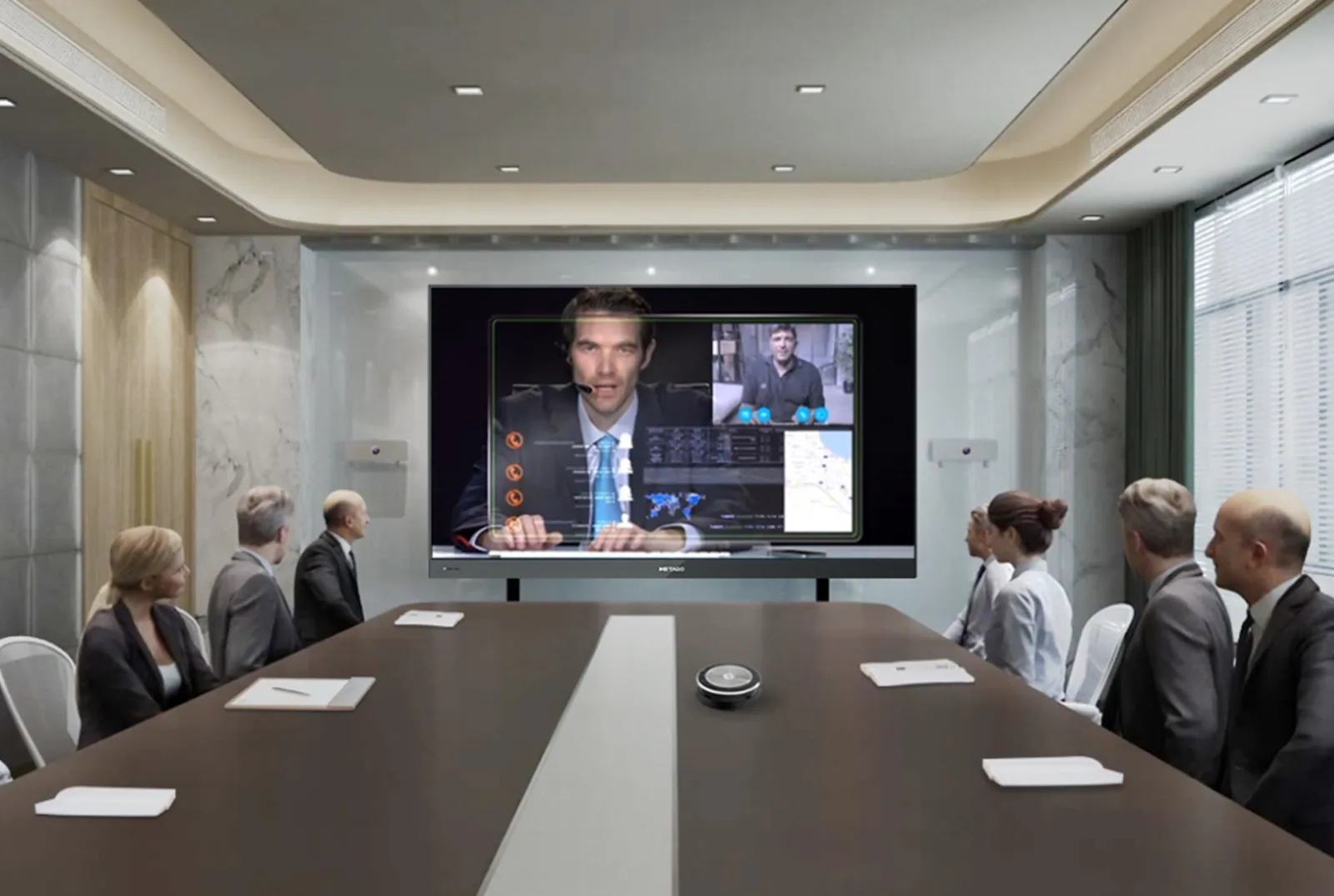

High-Clarity Video Conference Without Buffer

3840Hz high refresh rate ensures smooth presentation during meetings; Ultra-high flatness facilitate visual experience; Optional camera, omni-directional microphone and speaker allow video conference application.

LianTronics METAGO LT135: High-Clarity Video Conference Without Buffer

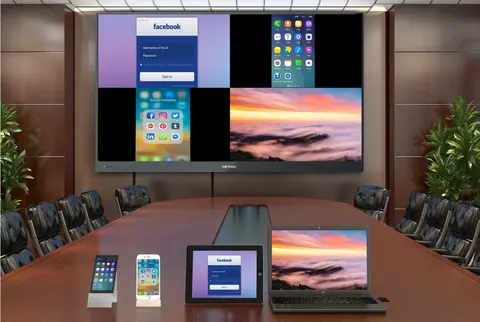

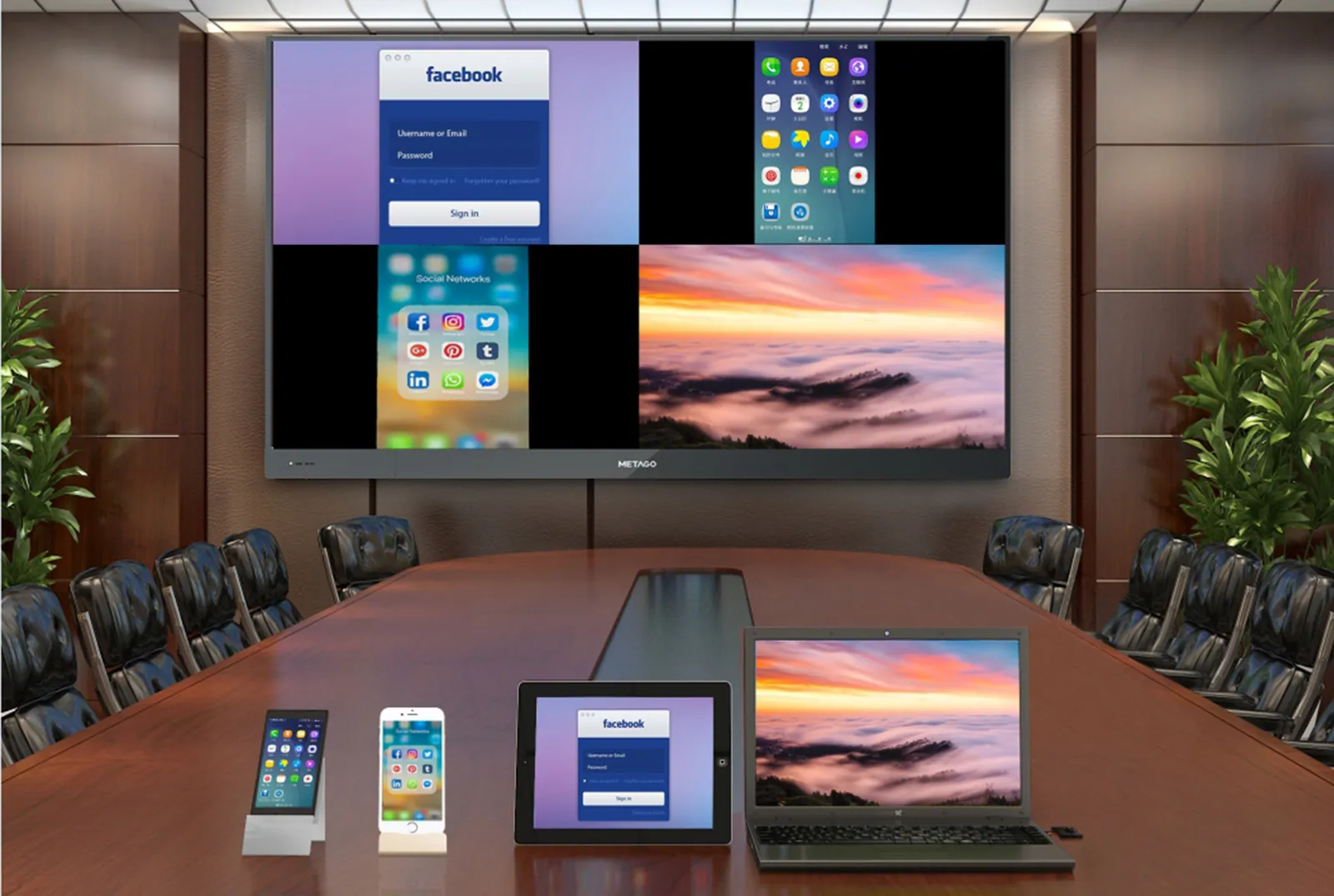

Multi-Signal Connection, Instant Wireless Mirroring

Support 8-channel mirroring access and 4-signal split display simultaneously; Support Android, iOS, Windows & Mac OS system mirroring with <160ms ultra-low latency; Support two-way WiFi connection without signal interference between mirroring and networking.

LianTronics METAGO LT135: Multi-Signal Connection, Instant Wireless Mirroring

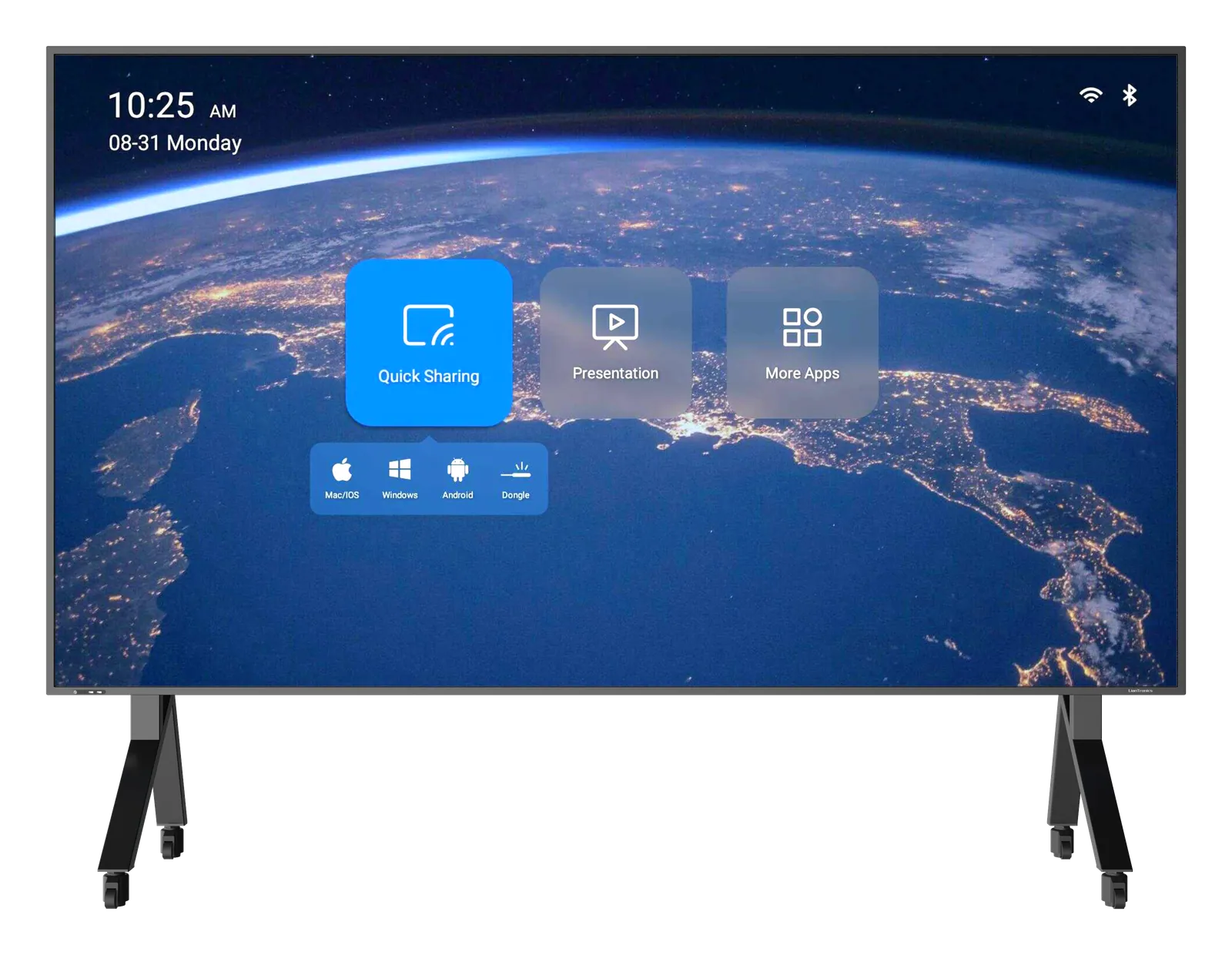

Intelligent Modes, Intelligent Display

One press and go. Standard, soft, movie and conference modes are provided to take on your content meticulously.

LianTronics METAGO LT135: Intelligent Modes, Intelligent Display

Patented Safeguard, Outstanding Quality

Smart Inkjet Craftsmanship is optional to improve contrast ratio greatly; Nano-Coating Protection Technology stabilizes display effect optionally.

LianTronics METAGO LT135: Patented Safeguard, Outstanding Quality

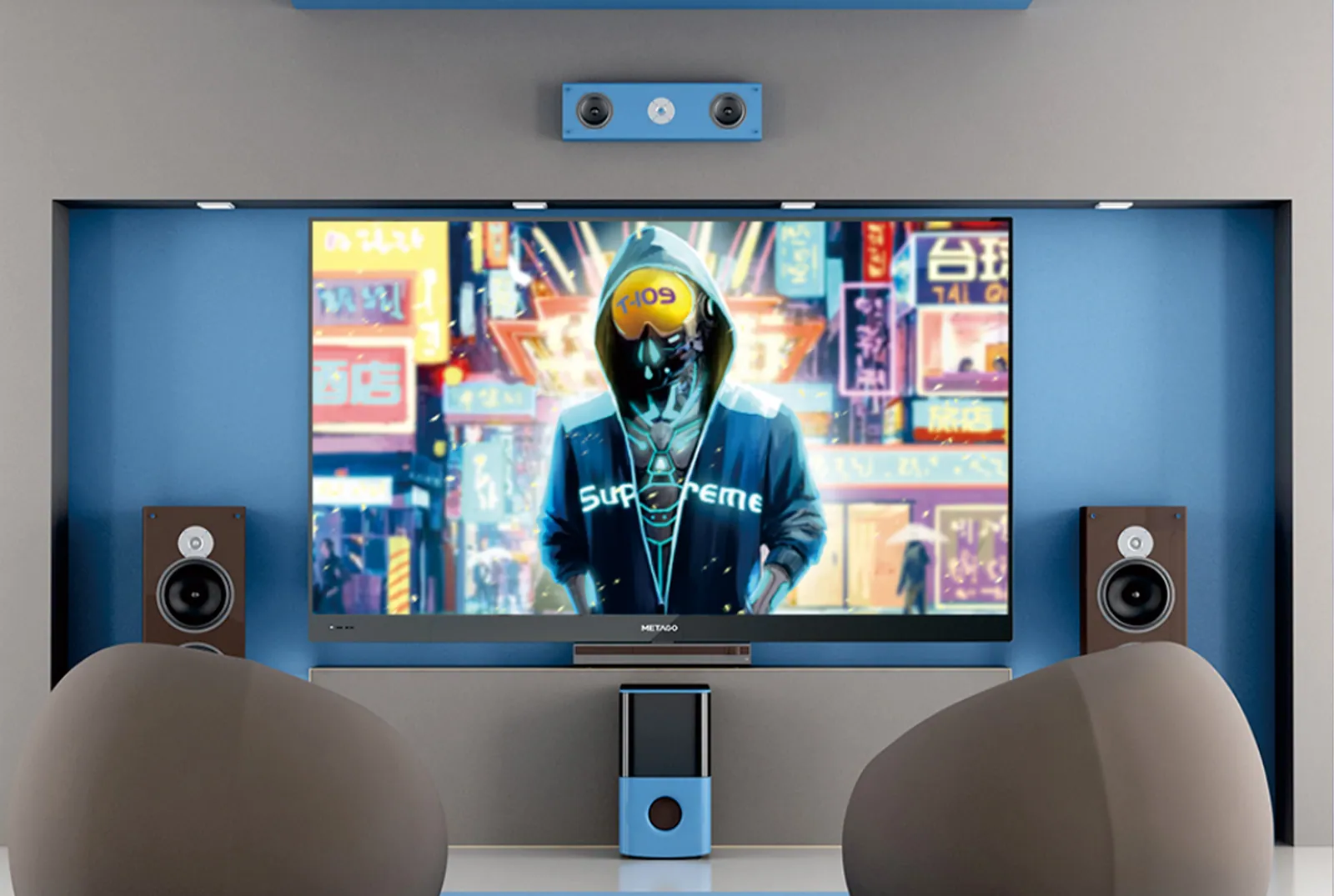

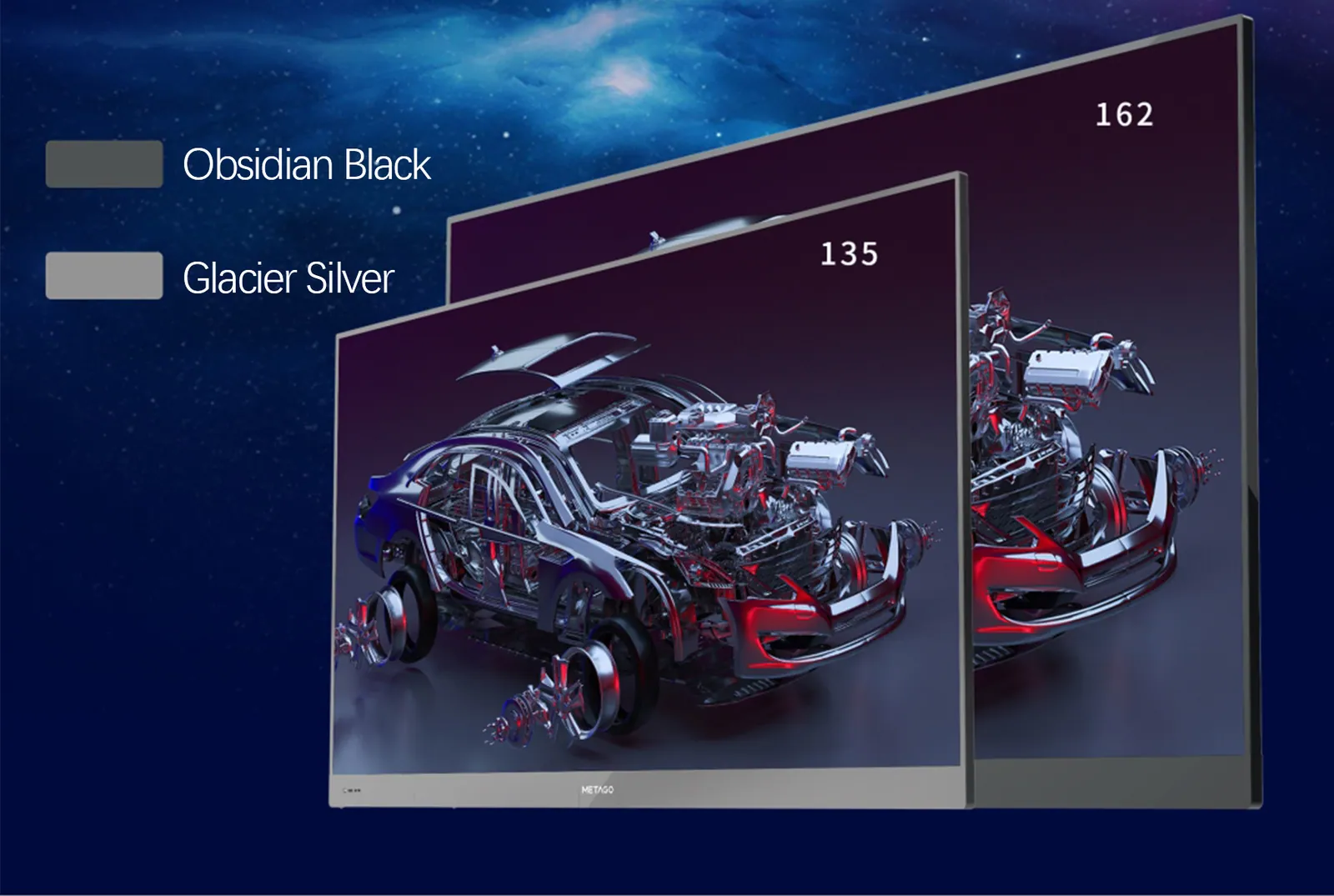

More Options, More Applicable Scenarios

Optional sizes & colors meet customized needs; Support double METAGO joint splicing and different installation like wall mounting and mobile standing; Applicable on various occasions like medium and large meeting rooms, lecture theaters, exhibition halls and private cinemas.

LianTronics METAGO LT135: More Options, More Applicable Scenarios
