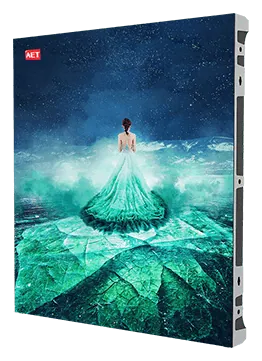

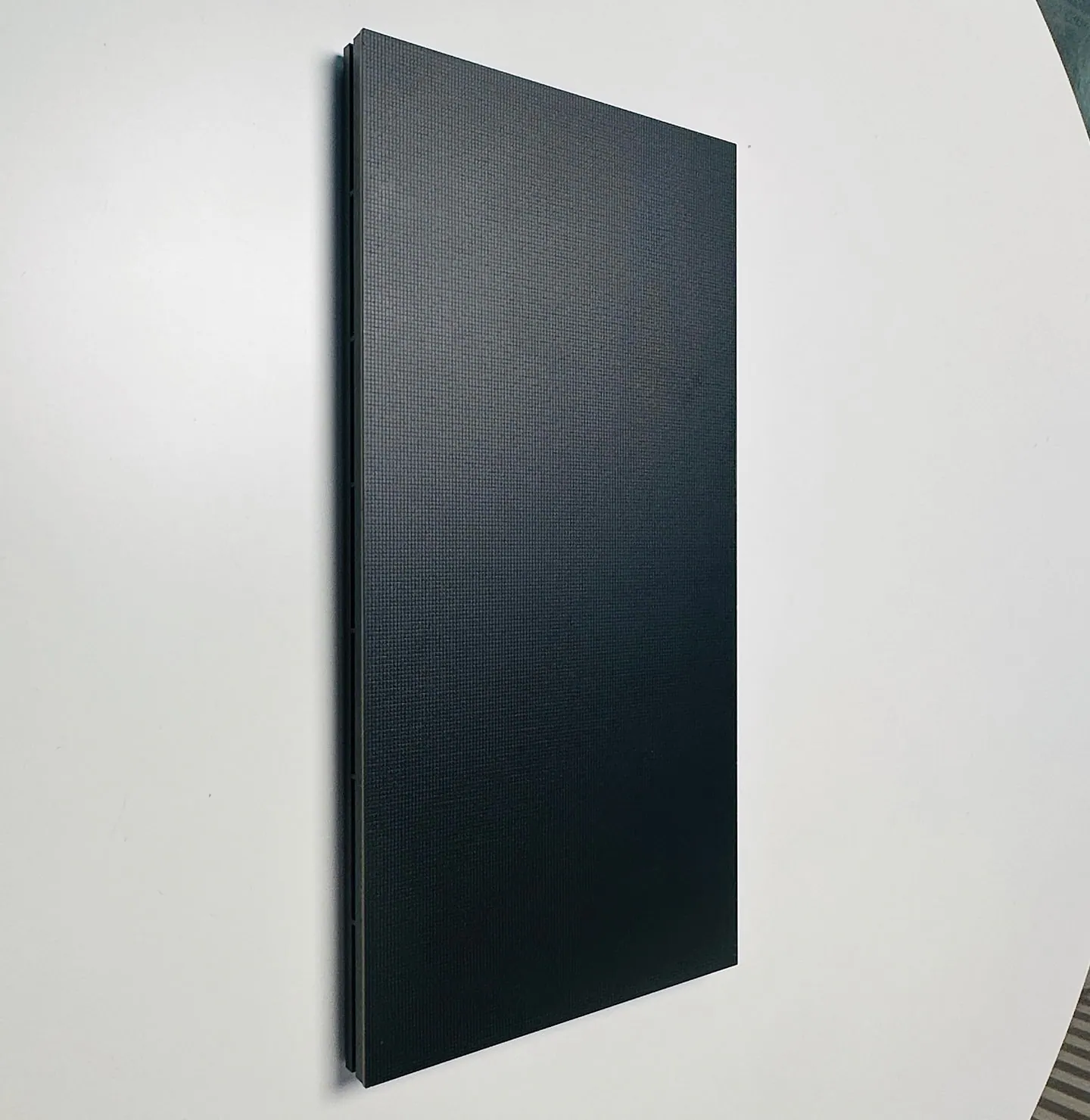

Koala P2.0mm

The Koala Series redefines visual display technology with ultra-high refresh rates, versatile aspect ratios, and robust environmental protection. Ideal for digital signage and 3D displays, it delivers unmatched versatility, precision, and durability.

Series: Koala Series
Pixel pitch: 1.99 mm
Brightness: ≥600 nits
Cabinet size: 480 × 270 × 54 mm
Module resolution: 120 × 135
Refresh rate: ≥3840 Hz
LED type: TOP 1817
IP rating: IP3X

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 22 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications22

Model code: KL19AB82
LED Type: TOP 1817
Pixel Pitch: 1.99 mm
Module Resolution: 120 × 135
Module Dimension: 240 × 270 mm
Cabinet Resolution: 240 × 270
Cabinet Size: 480 × 270 × 54 mm
Back shell: Die-cast aluminum
Weight: ≤3.4 KGS
IP Rating: IP3X
Brightness: ≥600 nits
Viewing Angle (H/V,°): 160
Brightness/Colour Uniformity: ≥97%
Contrast Ratio: 5000:1
Scan Rate: 40
Max Power Consumption: ≤650 W/m²
Average Power Consumption: ≤220 W/m²
Input Power Voltage: AC220V±15%, 50 / 60 (Hz)
Refresh Rate: ≥3840 Hz
Color Depth (Bits): 14
Operating temperature (°C): -10–45
Operating Humidity (RH): 10–90%

02Models5 models in the family

Models compared.

Model	Koala P1.25mm	Koala P1.49mm	Koala P1.875mm	Koala P2.0mm	Koala P2.5mm
Model code	KL12AC52	KL14AC52	KL18AA52	KL19AB82	KL25AB56
LED Type	TOP 1010	TOP 1212	TOP 1515	TOP 1817	TOP 2121
Pixel Pitch (mm)	1.25	1.49	1.875	1.99	2.5
Module Resolution (W × H)	192 × 216	160 × 180	128 × 144	120 × 135	96 × 108
Module Dimension (W × H,mm)	240 × 270	240 × 270	240 × 270	240 × 270	240 × 270
Cabinet Resolution (W × H,mm)	384 × 216	320 × 180	256 × 144	240 × 270	192 × 108
Cabinet Size (W × H × D,mm)	480 × 270 × 54	480 × 270 × 54	480 × 270 × 54	480 × 270 × 54	480 × 270 × 54
Back shell	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
Weight (KG/Cabinet)	≤3.4 KGS	≤3.4 KGS	≤3.4 KGS	≤3.4 KGS	≤3.4 KGS
IP Rating	IP3X	IP3X	IP3X	IP3X	IP3X
Brightness (nits)	≥600	≥600	≥600	≥600	≥600
Viewing Angle (H/V,°)	160	160	160	160	160
Brightness/Colour Uniformity	≥97%	≥97%	≥97%	≥97%	≥97%
Contrast Ratio	5000:1	5000:1	5000:1	5000:1	5000:1
Scan Rate	48	48	48	40	32
Max Power Consumption (W/m²)	≤650	≤650	≤650	≤650	≤650
Average Power Consumption (W/m²)	≤220	≤220	≤220	≤220	≤220
Input Power Voltage	AC220V±15%, 50 / 60 (Hz)	AC220V±15%, 50 / 60 (Hz)	AC220V±15%, 50 / 60 (Hz)	AC220V±15%, 50 / 60 (Hz)	AC220V±15%, 50 / 60 (Hz)
Refresh Rate (Hz)	≥3840	≥3840	≥3840	≥3840	≥3840
Color Depth (Bits)	14	14	14	14	14
Operating temperature (°C)	-10–45	-10–45	-10–45	-10–45	-10–45
Operating Humidity (RH)	10–90%	10–90%	10–90%	10–90%	10–90%

03DescriptionManufacturer's description

What it is.

Aspect Ratios- Tailoring Visuals to Your Needs

16:9: The standard widescreen format, perfect for a variety of media applications, including video presentations and digital signage.

8:9: A more specialized format that offers a nearly square aspect ratio, ideal for applications requiring a balanced display area, such as interactive kiosks.

4:9: Provides a taller display, suited for vertical applications and narrow spaces, enhancing versatility in design and functionality.

QCOB Process

Epoxy Resin Encapsulation: This technology involves encapsulating LEDs in epoxy resin, which enhances their resilience against environmental factors such as moisture, dust, and mechanical impact. This encapsulation helps prolong the lifespan and reliability of the display.

New Optical Heat-Conducting Material: Utilizes advanced materials to improve thermal management, ensuring that the LEDs operate efficiently and remain stable under high loads, thus reducing the risk of overheating and performance degradation.

Enhanced PCBA Strength: The Printed Circuit Board Assembly (PCBA) is reinforced to handle operational stress, providing better support for electronic components and ensuring long-term reliability.

Surface Light Source Display: This feature enhances brightness and uniformity, providing a clearer and more vivid visual experience with consistent light distribution across the screen.

Automotive-Grade Connectors– Precision and Reliability

Reduced Splicing Gaps: Precision engineering minimizes gaps in electrical connections, which improves signal integrity and reduces the likelihood of display errors or failures.

Improved Conductivity: High-quality connectors ensure stable and efficient electrical transmission, enhancing the overall performance and reliability of the display system.

Increased Module Flatness: The connectors contribute to a smoother display surface, minimizing visual distortions and ensuring a seamless viewing experience.

Higher Efficiency: Optimizes the performance of the display modules, contributing to lower power consumption and better overall system efficiency.

Flatness Adjustment – Precision Perfected

Z Direction ±125μm: Allows for fine-tuning of the display’s surface in the vertical direction, compensating for any manufacturing variances or installation misalignments.

XY Direction ±175μm: Provides adjustment in the horizontal plane, ensuring that the display surface remains perfectly flat and aligned for optimal visual performance.

Ultra High Refresh Rate – Unmatched Smoothness and Clarity

960Hz-7680Hz: A high refresh rate reduces motion blur and flicker, ensuring smooth and stable visuals even during fast-moving scenes. This is crucial for applications such as live events, sports broadcasts, and dynamic content where high visual clarity is required.

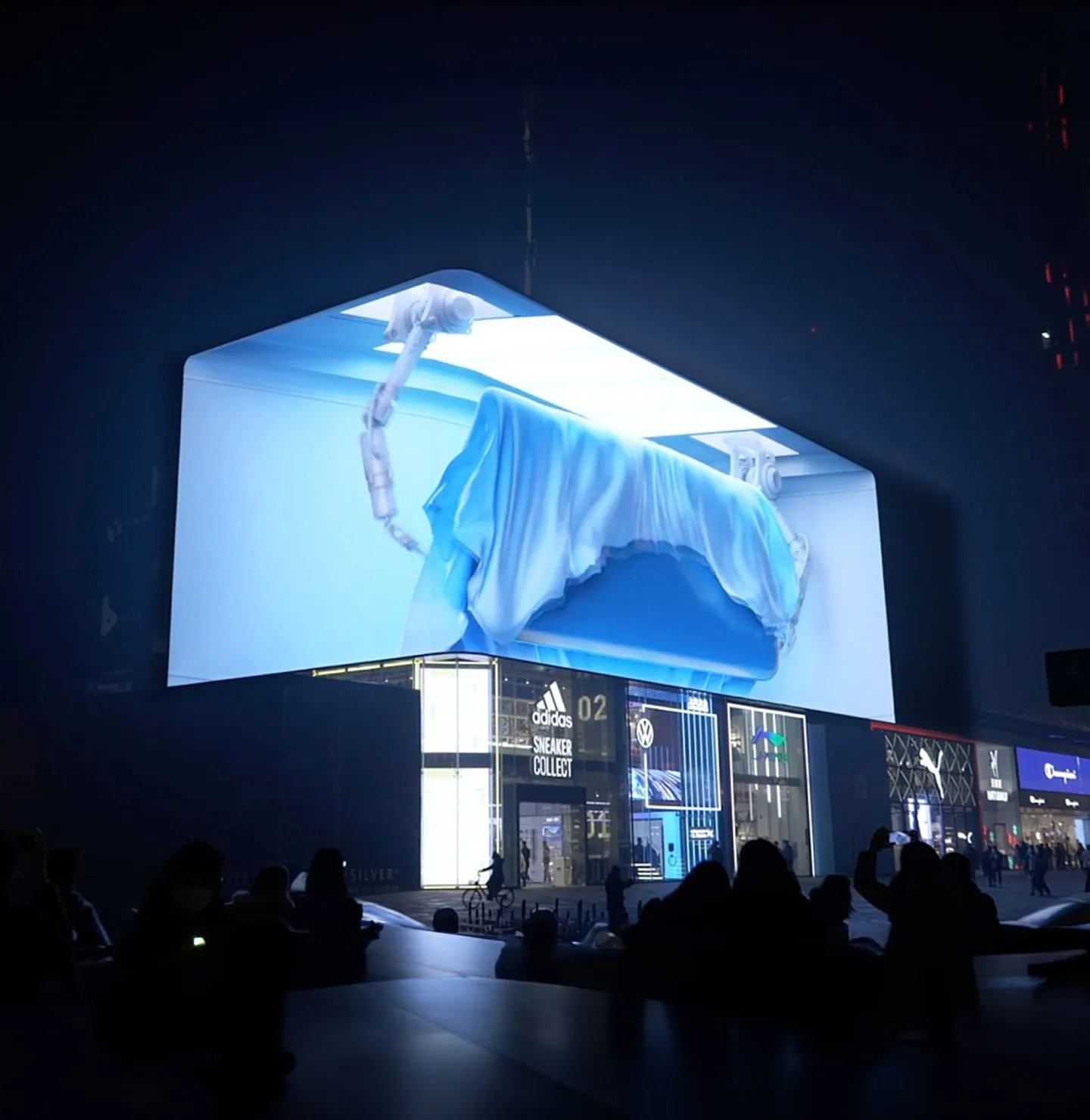

3D Display Support– Immersive Visual Experience

Adjustable Settings: Supports multiple refresh rates (30/50/60/90/120/240Hz) to accommodate various types of 3D content and viewer preferences, enhancing the flexibility of the display for different applications.

Nano Optical Coating – Superior Protection and Longevity

Waterproof: Protects the display from damage caused by water exposure, making it suitable for outdoor or high-humidity environments.

Dust-Proof: Prevents dust and debris from affecting the display’s performance, ensuring consistent operation and longevity.

Anti-Salt Spray: Provides resistance to corrosive salt spray, which is particularly important in coastal or industrial areas.

High-Temperature Resistant: Ensures reliable performance in extreme temperatures, whether high or low, expanding the range of possible installation environments.

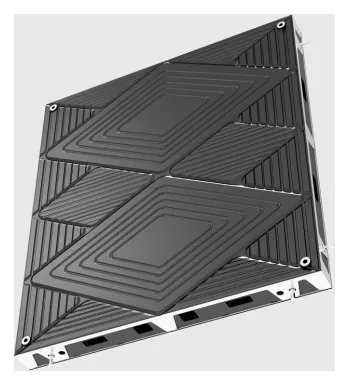

Durable Cabinet Design – Built to Last

Die-Cast Aluminum-Magnesium Alloy: Combines the strength of aluminum with the lightweight properties of magnesium, resulting in a robust yet lightweight cabinet that can withstand physical stress while remaining easy to handle.

Anti-Radiation: Protects against electromagnetic interference, ensuring the display operates reliably in environments with potential radio frequency interference.

Impact-Resistant: Designed to resist physical impacts, reducing the risk of damage from accidental collisions or harsh handling.

Corrosion-Resistant: Prevents deterioration from environmental factors, enhancing the display’s longevity and maintaining its appearance over time.

Silent Operation: Engineered to minimize operational noise, contributing to a quieter environment, which is particularly beneficial in settings such as meeting rooms or performance venues.

Dust-Proof: Further ensures that dust and particles do not compromise the internal components, maintaining consistent performance.

Front Maintenance – Easy Access and Convenience

Easy Access: Enables quick and straightforward maintenance of critical components such as modules, power units, and system cards without the need to dismantle the entire display setup. This minimizes downtime and operational disruptions.

Efficient Assembly – Quick and Reliable Setup

Interlocking Structure: The modular design allows for easy and secure assembly, ensuring that each component fits together precisely and securely.

Module Replacement <2 minutes: Facilitates rapid replacement of faulty or damaged modules, reducing maintenance time and keeping the display operational.
