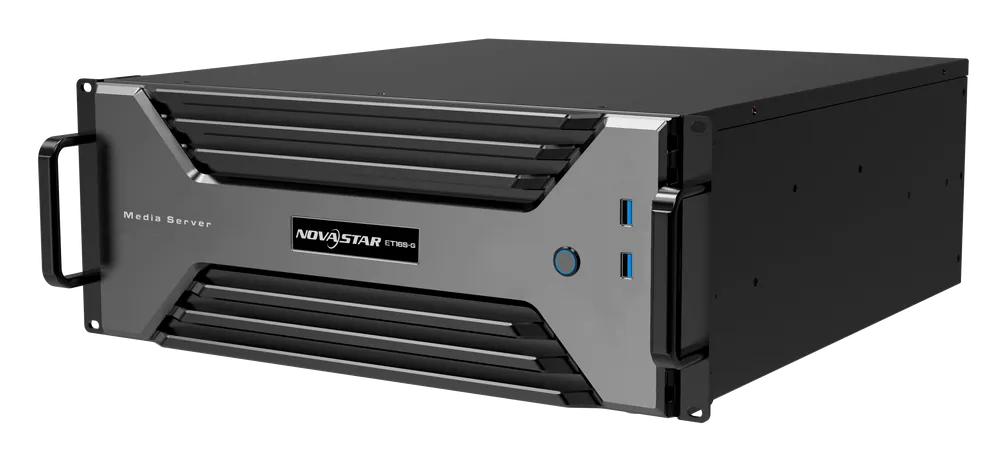

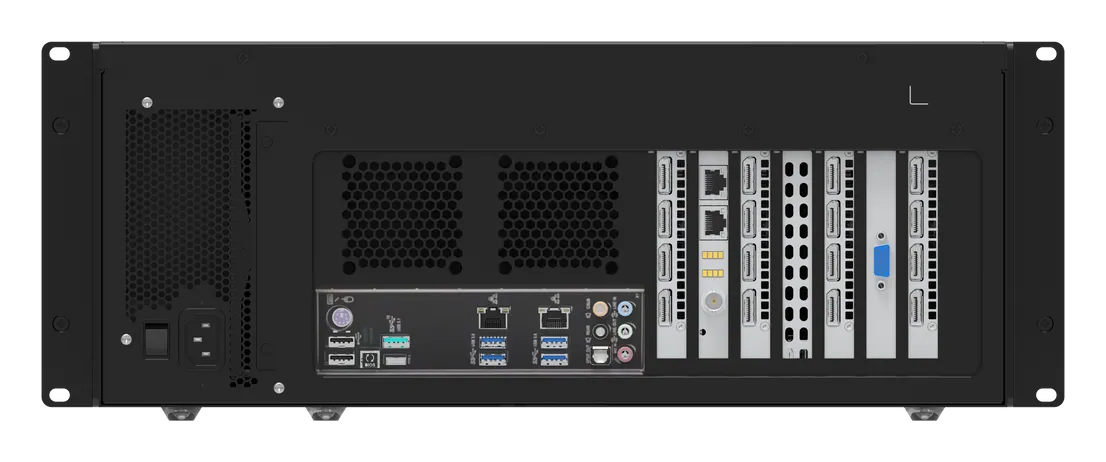

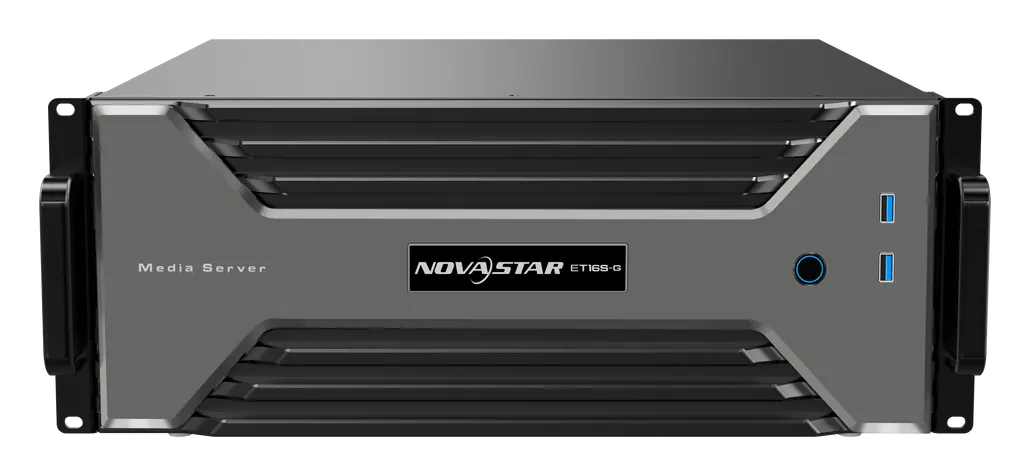

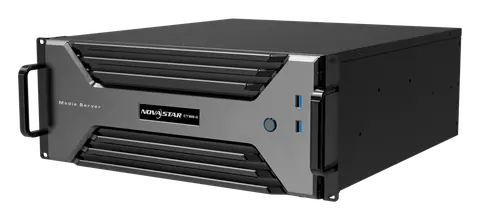

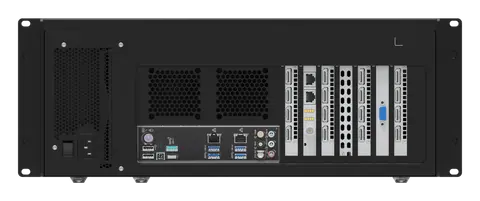

ET16S-G(3A4)
Media Server.
- Chassis
- 4U
- RAM
- 128G (DDR4)
- CPU
- 2x Intel Xeon Gold Processors
- Storage
- 1TB M.2 high-speed SSD (system disk) / 960GB U.2 high-speed SSD (storage disk)
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- Chassis
- 4U
- RAM
- 128G (DDR4)
- CPU
- 2x Intel Xeon Gold Processors
- Storage
- 1TB M.2 high-speed SSD (system disk) / 960GB U.2 high-speed SSD (storage disk)
- Graphics Card
- 3x HPGA4000+MPGT400+Sync card
- Loading Capacity
- 12x 5120*2880@60Hz
- Decoding Capability
- 3x 8K4K@60fps or 12x 4K2K@60fps
- Programs
- Unlimited
- Layers
- 12 mixing layers (2 graphics cards for 24 layers, 3 graphics cards for 36 layers, 4 graphics cards for 48 layers), 1 audio layer, expandable, limit: 60
- EDID Lock
- √
- Device Link
- √
- Frame Sync Mosaic
- √
- Device Backup
- √
- IPAD Control
- √
- Protocol Control
- √
- OS
- Windows 10 Enterprise LTSC
Show the full specificationHide the rest of the specification0 more groups · 0 values
