Sheet 05.783

Color Imagination · Effects and lasers

CLASSICBAR 12

ModelCC12

Light source: 12*12W LED modules, 1500K+5500K
Power consumption: 350W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 9kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video on YouTube

Color Imagination CLASSICBAR 12Open on YouTube

02SpecificationManufacturer's data · 17 groups · 62 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source9

Source: 12*12W LED modules, 1500K+5500K; 360*0.3W 3-IN-1 SMD LEDs, RGB; 360*0.3W 6000K LEDs; 12 LED modules controllable individually; Flicker free operation for broadcast TV and FILM; LED driving frequency adjustable; White balance adjustable
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.

02Optics2

A set of high temperature resistant squamous reflector optic system

60°Beam angle for each module

03Color System5

1500K golden coverage

5500K coverage

6000K as auxiliary light

RGB mixing capability

Different color temperature tunable by mixing

04Strobe Effect1

0-25Hz shutter/strobe effect with variable speed

05Dimming System2

0-100% Smooth linear LED dimming

5 Dimming cure modes, linear/square law/Inv square law/S-curve/ soft curve

06Control System8

13/90/93/108 DMX channels USITT DMX-512

DMX512, master-slave, sound control or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

ART-NET optional

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT

3-Pin XLR connectors IN/OUT

Show the full specificationHide the rest of the specification11 more groups · 35 values

07Software Update2

Software up-datable through DMX connectors or USB connector

Muilt units up-datable in daisy chain

08Display System4

1.8" TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

09Cooling System3

Advanced noise free cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN/OUT

350W Power consumption

11Housing3

Skeleton made of high tension steel metal plates; Dual back handles
Exterior finish: Black

12Installation2

2*1/4 Turn fastening Omega Clamps

1 Safety attachment point

13Operating Condition3

Operating positions: all; -25?? to 45?? ambient temperature; IP20 protection rating

14Compliance4

2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU - Electromagnetic Compatibility (EMC)

2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 9kg
G.W.: 10kg

16Dimensions2

Product Dimensions: 116(D)*996(W)*183(H)mm
Packing Dimensions: 156(D)*1036(W)*235(H)mm

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

03DescriptionManufacturer's description

What it is.

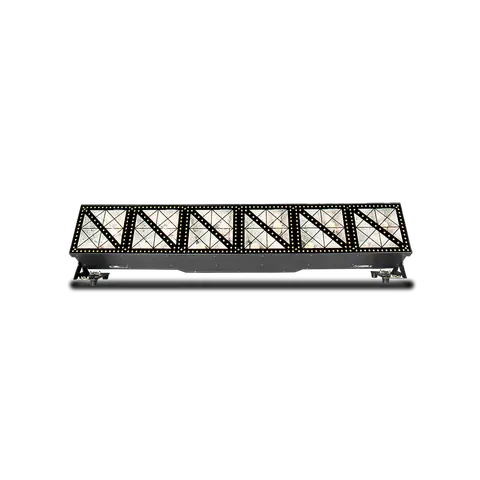

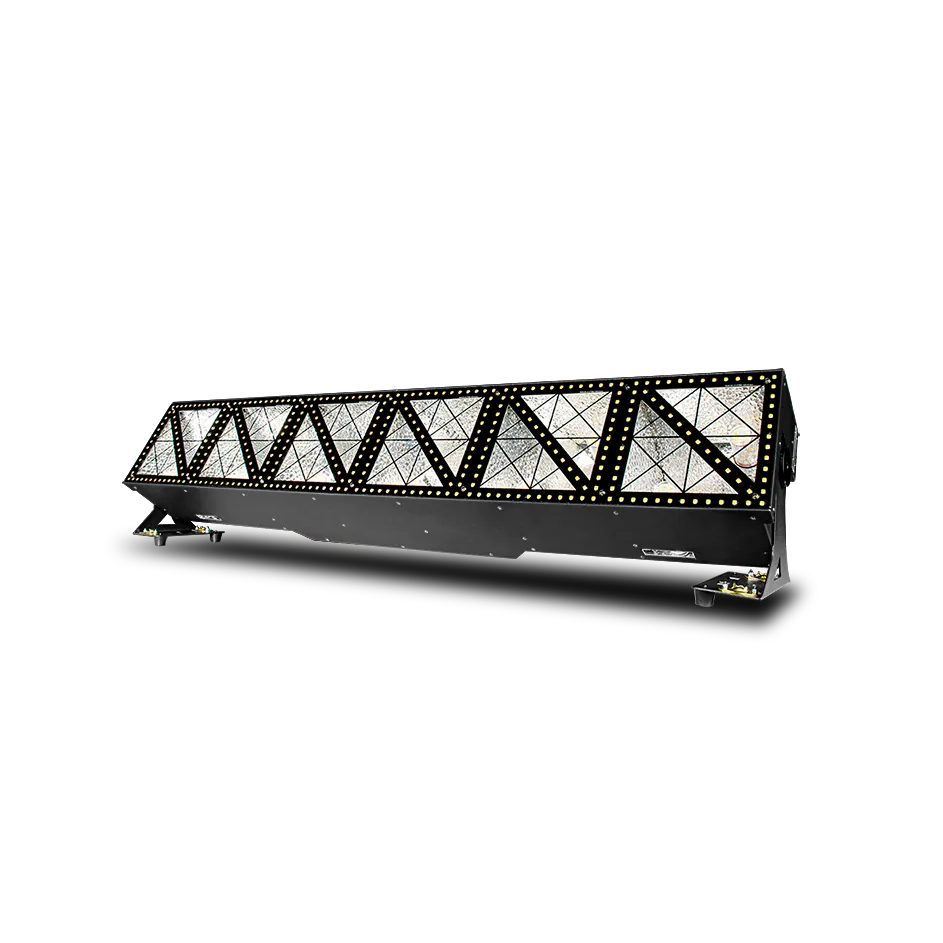

CLASSICBAR 12

The CLASSICBAR 12 is an imperial lighting bar that integrated with nice triangle optic reflector design and tremendous visual effect. The lighting designers could combine each fixture together seamlessly. The more fixtures combined, the more vivid lighting effects will be created for the stages. It features 12*12W 1500K+5500K LED modules, 360*0.3W 3-IN-1 LEDs (RGB) that delivers different color options by color mixing and 360*0.3W 6000K LEDs surrounding the main module as auxiliary light. All the LEDs are controllable individually by 12 sections.

The CLASSICBAR 12 supports DMX, RDM (Remote Device Management), Art-Net protocol. There are 3 installation capabilities with corresponding kits: truss-hanging, wall-mounting and floor-stacking.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, clubs, etc.
