Sheet 05.781

Color Imagination · Effects and lasers

BLACKHOLE MINI

ModelSI-345

Innovatively Color Imagination brings an incredible magic effect into stage light field. The BLACKHOLE MINI, a compact effect moving light, features 360°continuous PAN/TILT movement.

Light source: 150*0.25W 3535 SMD RGB LEDs
Power consumption: 55W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 16.9kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video on YouTube

Color Imagination BLACKHOLE MINIOpen on YouTube

02SpecificationManufacturer's data · 18 groups · 68 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source5

Source: 150*0.25W 3535 SMD RGB LEDs; Programming pixel mapping capability; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics2

Optic integrated with LEDs

Light reflection through silver head

03Movement6

PAN movement: 360°continuous (8/16 bit)
TILT movement: 360°continuous (8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Effect3

Sophisticated 3 colors RGB mixed

Magic lighting effect by reflection

Science fiction blackhole simulation effect when 15 “wings” rotate

05Strobe Effect3

0-25Hz shutter/strobe effect with variable speed

Random strobe effect with variable speed

Preset pulse strobe effect

06Dimming System3

0-100% Smooth linear LED dimming

Dimming reversible

4 Dimming curves, standard/linear/square law/Inv. Square law

Show the full specificationHide the rest of the specification12 more groups · 46 values

07Control System10

13/22/190 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

Sound control sensitivity adjustable

Multi preset internal programs

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET protocol

Shielded input signal protection for stable signal without interference

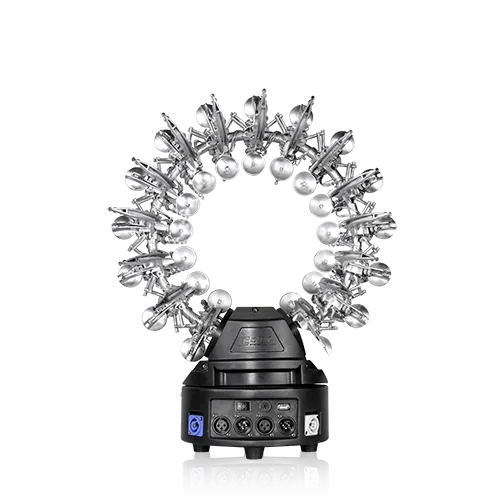

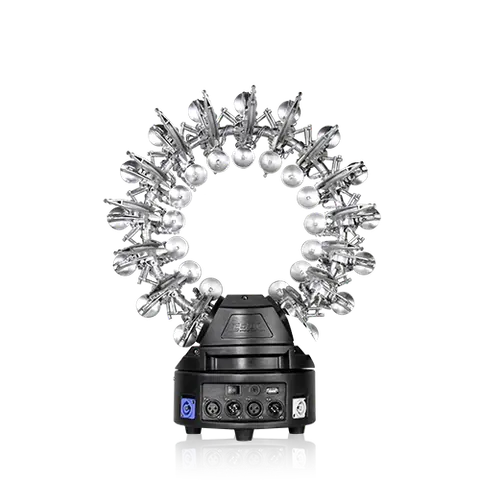

RJ45 etherCON IN/OUT

3-Pin XLR connectors IN/OUT

08Software Update3

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

Software up-datable through USB

09Display System5

2.8" TFT LCD display with adjustable brightness

English/Chinese menu

4 Control buttons

180°Reversible for LCD display

Display auto OFF

10Cooling System4

Advanced natural cooling system for head

Efficient low noise self adjusting fan cooling system for base

Constant temperature readout and management function

Over temperature protection management

11Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/OUT with fuse

55W Power consumption

12Housing4

Moulded fire proof ABS PC; Skeleton made of aluminum and steel metal plates; Two side invisible handles on base
Exterior finish: Black

13Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

14Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25?? to 45?? ambient temperature; IP20 protection rating

15Compliance1

16Weight2

N.W.: 16.9kg
G.W.: 19.7kg

17Dimensions2

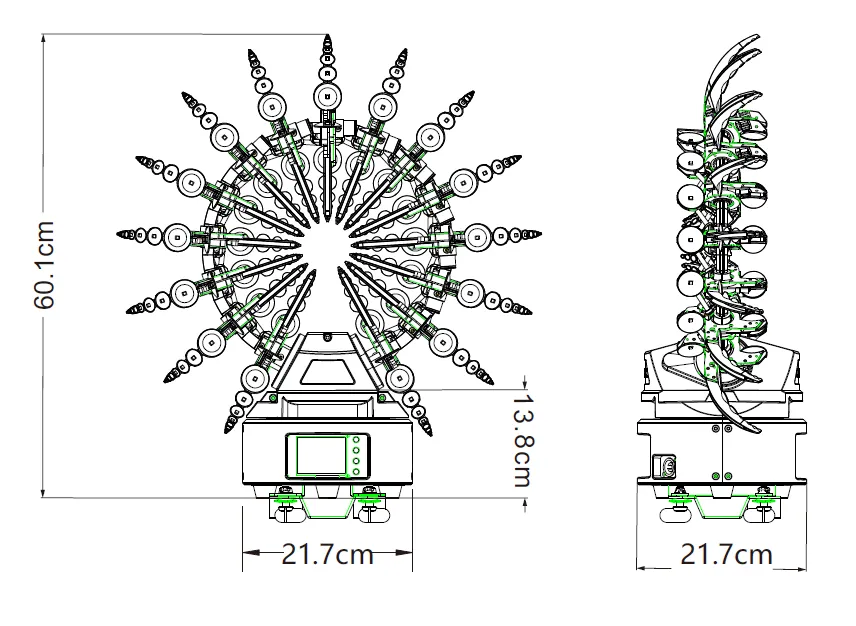

Product Dimensions: 217(D)*560(W)*601(H)mm
Packing Dimensions: 300(D)*460(W)*680(H)mm

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

03DescriptionManufacturer's description

What it is.

BLACKHOLE MINI

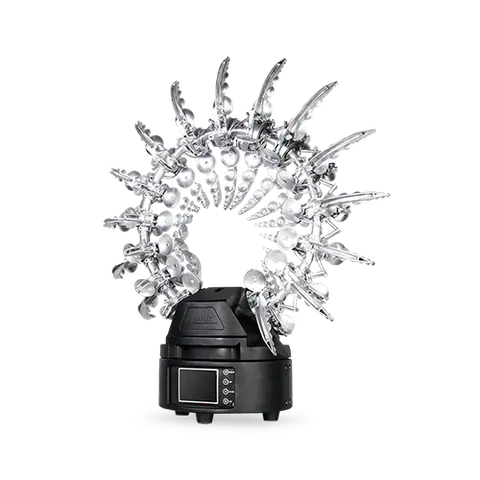

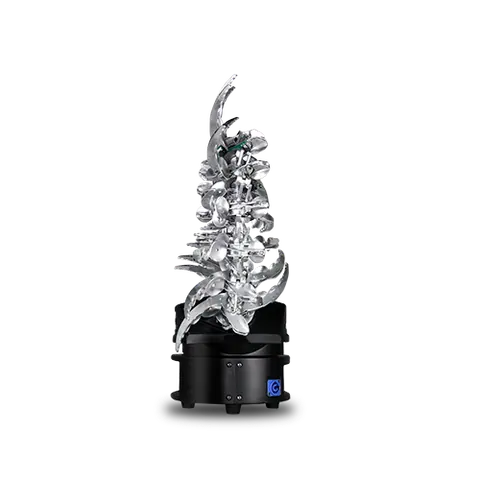

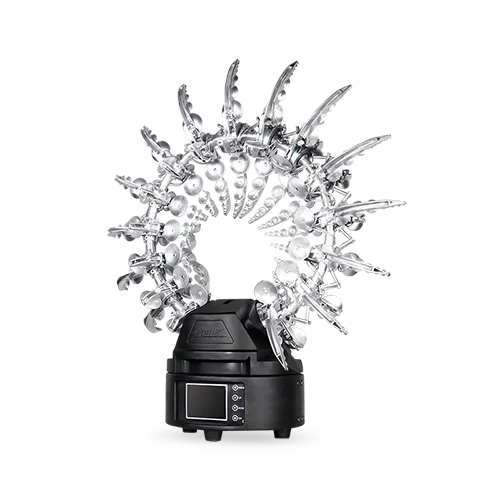

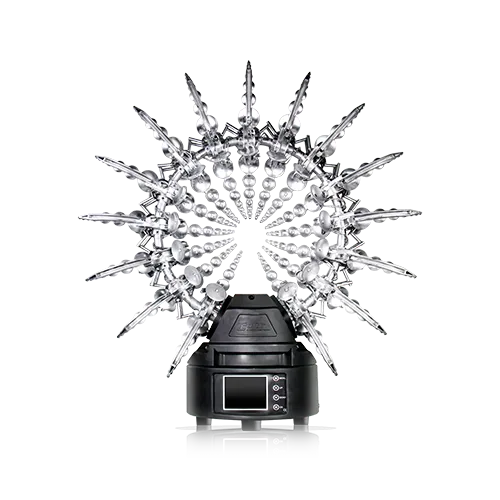

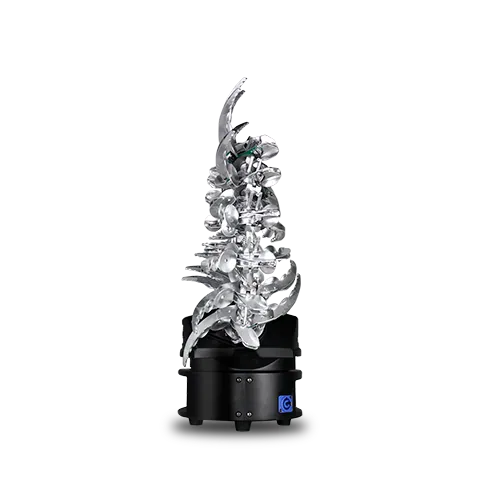

Innovatively Color Imagination brings an incredible magic effect into stage light field. The BLACKHOLE MINI, a compact effect moving light, features 360°continuous PAN/TILT movement. There are 150*0.25W 3535 SMD RGB LEDs which is controllable individually for programming pixel mapping effect. The head is made with a silver circle and 15 “wings”. When the lights are ON, the fixture will bring amazing magic effect through the head reflection. And it will simulate the science fiction blackhole effect when the 15 “wings” rotate, which stands out as a very first in entertainment filed.

The BLACKHOLE MINI supports DMX, RDM (Remote Device Management), Art-Net protocol. It’s designed with 3 DMX control modes. The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the fixture achieves more than just a striking look.

It’s fast and quiet operation LED moving effect light. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for TV productions, high standard clubs, festival decorations, retail shops, etc.
