Sheet 05.782
Color Imagination · Effects and lasers
BLINDER 2300P
ModelBL2300P
The BLINDER 2300-IP is an IP66 rated LED blinder fixture in a very stylish, compact and lightweight die-cast aluminum housing, featuring 2*300 5-IN-1 (RGBWA) COB LEDs, fitted in a 30° beam angle optic system (90° field angle).
- Light source
- 2*300W 5-IN-1 LEDs, RGBWA
- Power consumption
- 620W Power consumption
- Power supply
- AC100-240V 50/60Hz
- Ingress protection
- IP66 protection rating
- Net weight
- 7.7kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
BLINDER 2300PPrice on requestRequest a quotation
01SpecificationManufacturer's data · 17 groups · 56 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source5
- Source
- 2*300W 5-IN-1 LEDs, RGBWA
- Each LED controllable individually
- Flicker free operation for broadcast TV and FILM
- Life Span
- 50000H
- The life span may vary depending on several following factors but not limited to
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
02Optics2
- Specific optic system with 30°beam angle
- 60° field angle
03Color System3
- Pure RGBWA color mixing
- Ultra even light coverage
- 2700K-10000K color temperature adjustable
04Preset Programs2
- Preset color macros
- Preset dynamic programs with variable speed
05Strobe Effect1
- 1-25Hz High speed LED shutter/strobe effect with variable speed
06Dimming System3
- 0-100% Smooth linear LED dimming
- 4 Dimming curves, linear/square law/Inv square law/S-curve
- 5 Dimming modes
Show the full specificationHide the rest of the specification11 more groups · 40 values
07Control System5
- 2/6/11/16 DMX channels USITT DMX-512
- RDM available (Remote Device Management)
- DMX512, master-slave, sound control or auto operation
- Shielded input signal protection for stable signal without interference
- Waterproof 3-Pin XLR DMX connectors IN/OUT
08Display System5
- 1.8″ TFT LCD display
- 4 Touch control buttons
- 180°Reversible for LCD display
- Display auto OFF
- DMX signal monitoring indicator
09Cooling System3
- Advanced low noise self-adjusting fan cooling system integrated aluminum
- Constant temperature readout and management function
- Over temperature protection management
10Power Supply4
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- Waterproof TRUE1 powerCON connectors IN&OUT
- 620W Power consumption
11Housing2
- Skeleton made of dies-cast aluminum
- Exterior finish
- Black
12Installation4
- Single hanging brackets
- 2*1/4 turn fastening Omega Clamps
- 1*Safety attachment point
- Multi units can be combined together
13Operating Condition3
- Operating positions
- all
- -25°C to 45°C ambient temperature
- IP66 protection rating
14Compliance4
- CE
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
15Weight2
- N.W.
- 7.7kg
- G.W.
- 9.2kg
16Dimensions2
- Product Dimensions
- 191(D)*493(W)*293(H)mm
- Packing Dimensions
- 300(D)*590(W)*380(H)mm
17Accessories6
- Power Cable STANDARD code: QTY: 1PCS
- Signal Cable STANDARD code: QTY: 1PCS
- Omega STANDARD code: QTY: 2PCS
- Safety Cable STANDARD code: QTY: 1PCS
- Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions
- Clamps OPTIONAL code: QTY: 2PCS
02DescriptionManufacturer's description
What it is.
BLINDER 2300P
The BLINDER 2300-IP is an IP66 rated LED blinder fixture in a very stylish, compact and lightweight die-cast aluminum housing, featuring 2*300 5-IN-1 (RGBWA) COB LEDs, fitted in a 30° beam angle optic system (90° field angle). It produces very high light output with ultra smooth dimmer control and even field coverage. The fixture provides variable speed strobe effect, pulse/random strobe effect and built-in running programs. The fixture supports DMX and RDM protocol.
It is ideal for large scale tour shows, theatre, houses of worship, conference rooms, special photography, TV studios, exhibition centre, universities and schools, hospitality, retail, clubs, etc.
03Documents1 file · 1.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

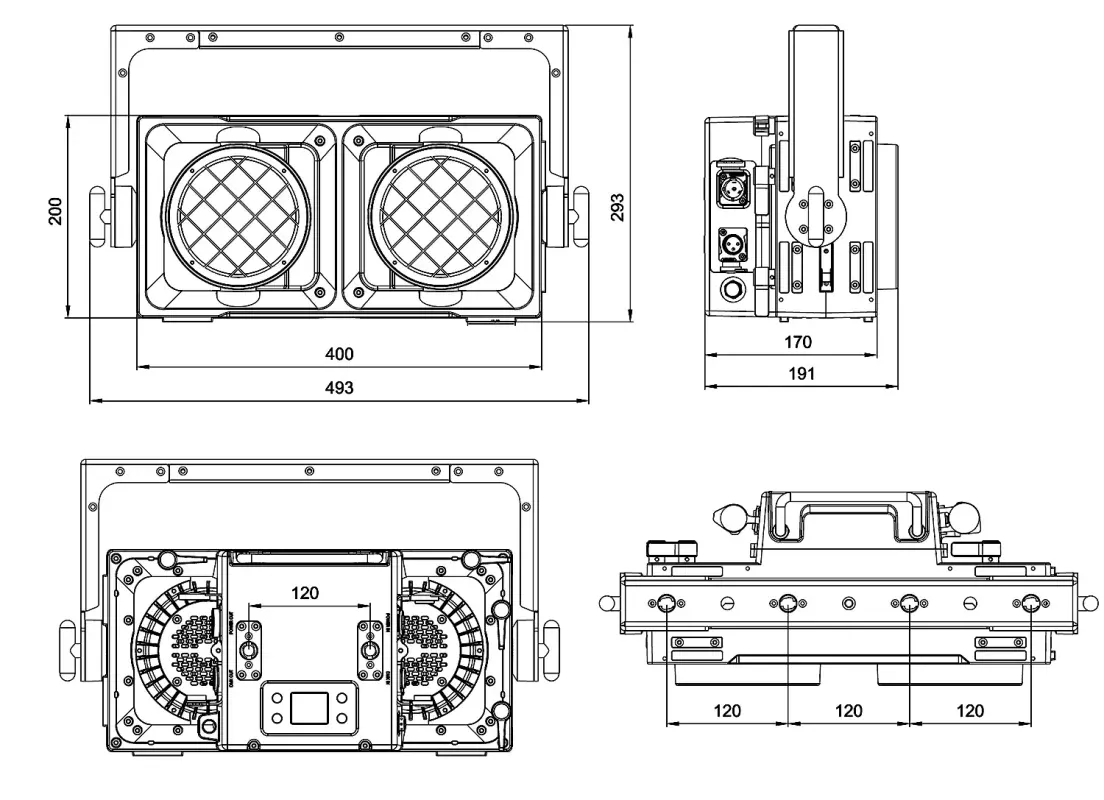

Drawings01
