SOUSA

A new dimension of strobe effects is about to emerge.

Light source: 160×5W CW + 800×0.5W RGB
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 74°
DMX channels: Standard 21CH,15CH,158CH (see channel chart for details)
Net weight: 14.0 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 8 groups · 42 values

What this product is, in numbers.

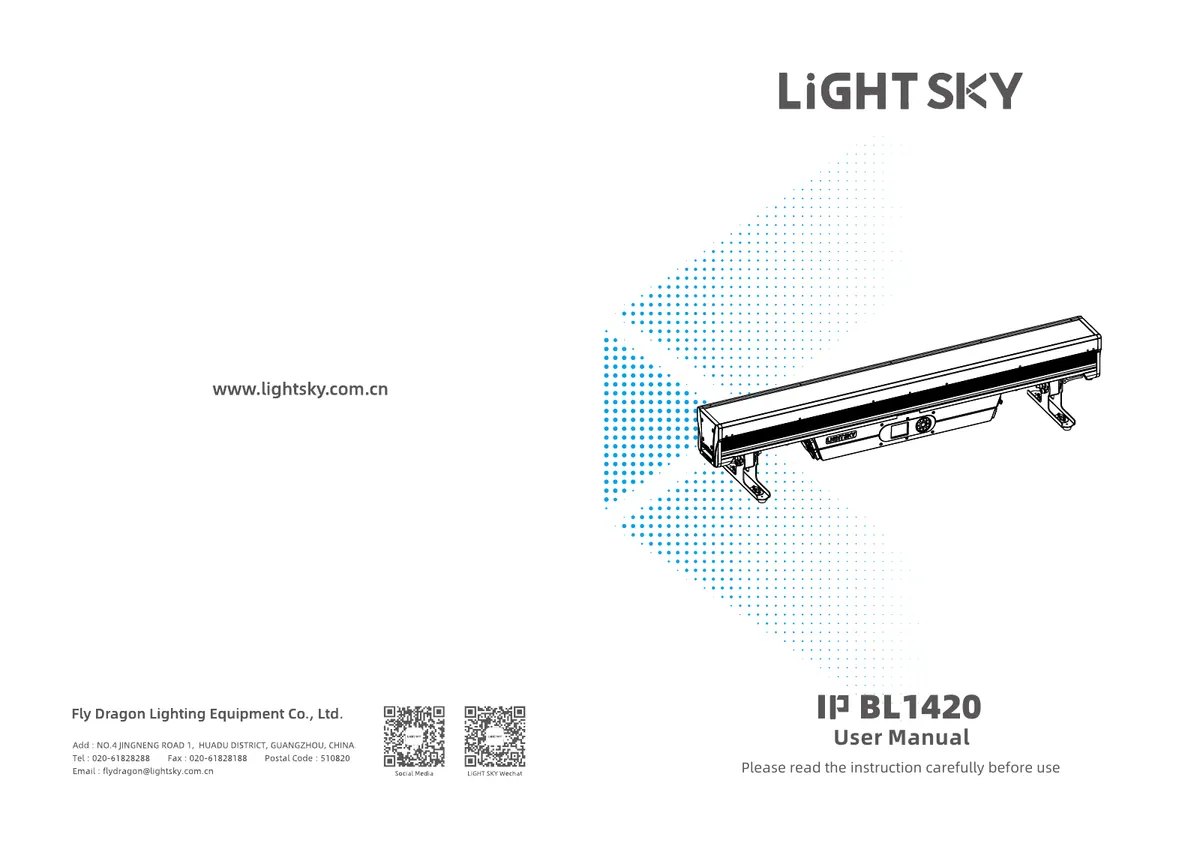

PDFUser manualEN · 23 pages · 3.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light source & Optics8

Light source: 160×5W CW + 800×0.5W RGB
Beam Angle: 74°
Field Angle: 114°
Color Rendering Index: Ra≥71
Lumem Output RGB: 14,391 lm
Lumem Output W: 28,895 lm

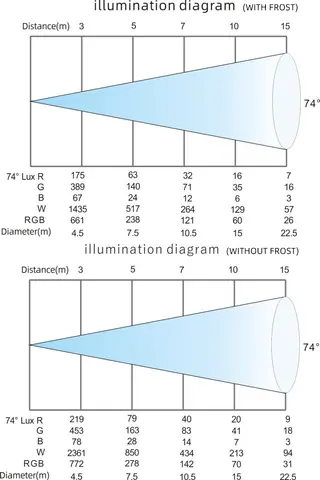

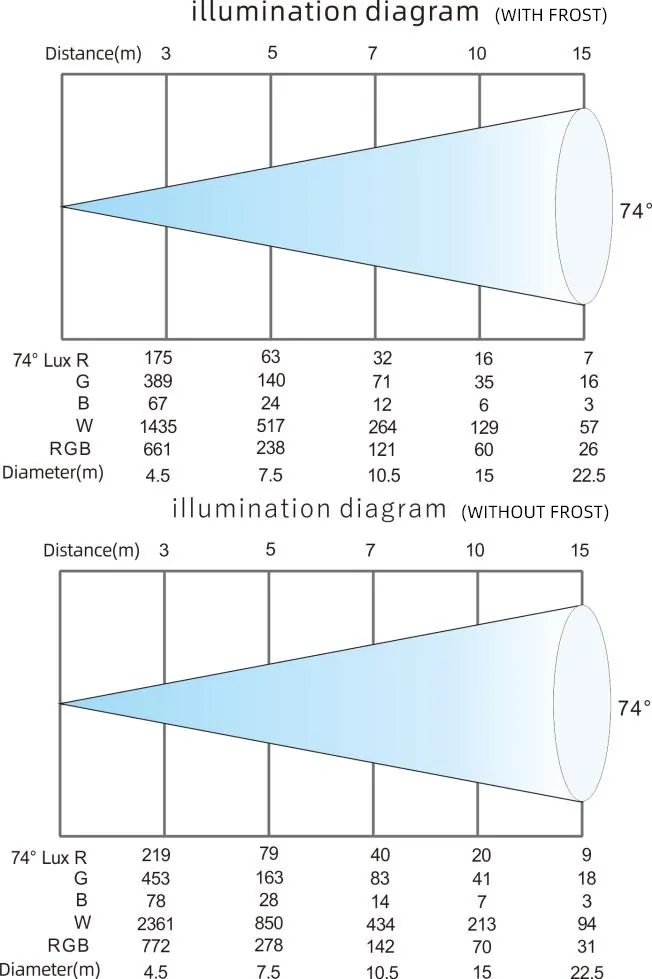

Illuminance: RGB:278 lx @ 5m W:850 lx @ 5m
Light Source Theory Life Span: ≥ 30,000 h

02EFFECTS5

Color Mixing System: Uniform RGB color mixing system with independent control of each color, enabling a wide variety of visual effects.
Intelligent Frost: Linearly adjustable frost function to enhance color mixing effects.(optional)
Effect Macros: Static effect macros and dynamic effect macros functions
Dimming: Electronic dimming with four dimming curves
Strobe: 1-25Hz electronic strobe and random strobe

03CONTROL AND PROGRAMMING4

Control Channels: Standard 21CH,15CH,158CH (see channel chart for details)
Control Protocols: DMX512, RDM, Art-Net, sACN
Data Connection: 3 pin or 5 pin XLR IN/OUT, RJ45(Art-Net) In/Out
Display: LCD screen

04SOFTWARE8

Software upgrade: via DMX interface
Temperature control: Intelligent system for LED lifespan; POWER AND ELECTRICAL
Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 790W
Input Voltage Range: 1200W
Power Factor: 0.97
Maximum Current: 8.1A/100V ; 3.6A/220V

05SIZE & WEIGHT4

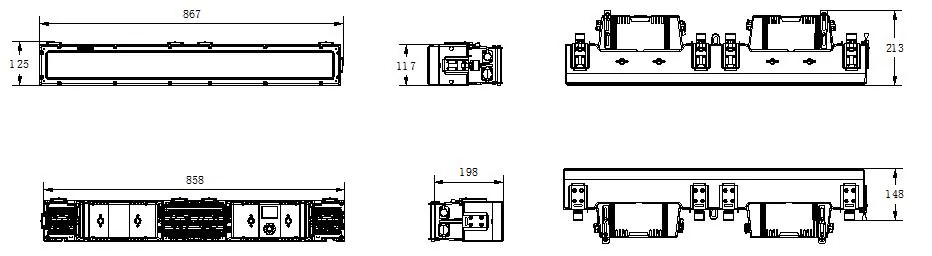

Product Dimensions: 867mm x 125mm x 213mm
Net Weight: 14.0 kg
Carton Dimensions: 955mm × 215mm × 345mm
Gross Weight: 17.4 kg

Show the full specificationHide the rest of the specification3 more groups · 13 values

06OTHERS4

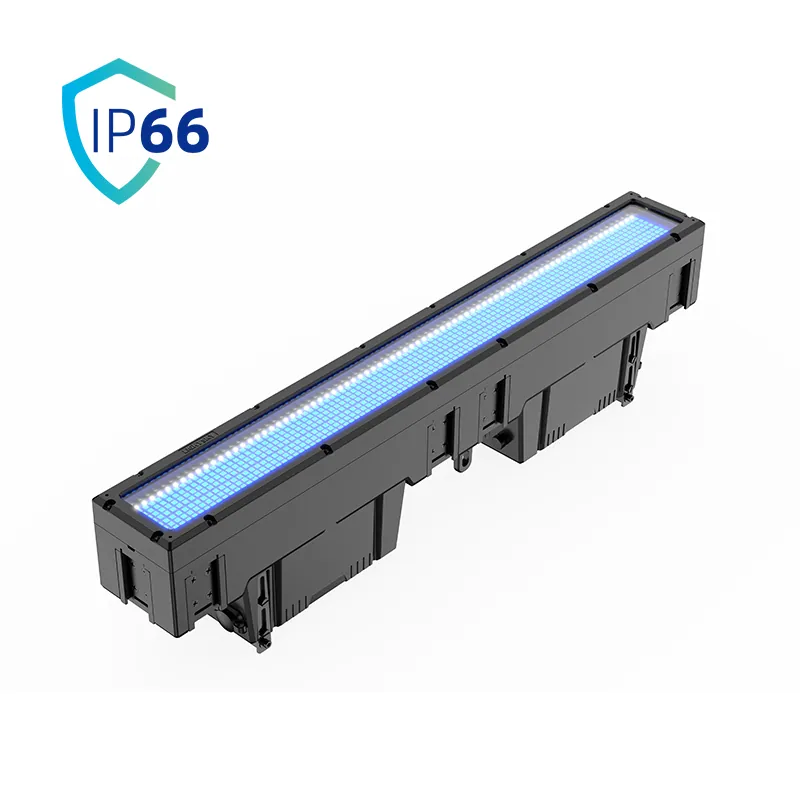

Protection Level: IP66
Operating Environment: -20°C ~ 45°C
Maximum Surface Temperature: 65°C
Locking System: LiGHT SKY Mortise Locking System

07FACTORY CONFIGURATION3

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: F0200020008)
Safety Rope: 1 pc (Part No.: F0200010002)

08Optional accessories/packaging6

Clamp(LiGHT SKY): Part No.: C0499990075 (Compatible with tubes of Ø40–60 mm)
Clamp(Neutral): Part No.: C0499990021 (Compatible with tubes of Ø40–60 mm)
Flycase Part No.: B0101460001 (Without Quick-Release Clamp)
Flycase Dimensions(4 in 1): 920mm x 790mm x 460mm Gross Weight: 89.3 kg
Flycase Part No.: Part No.B0101460002 (With Quick-Release Clamp)
Flycase Dimensions(4 in 1): 920mm x 830mm x 460mm Gross Weight: 92 kg

02DescriptionManufacturer's description

What it is.

A new dimension of strobe effects is about to emerge. Designed to go beyond traditional strobe effects, SOUSA combines smooth RGB and 28,895 lm high-output white LED sources with independent zone control to create dynamic effects, pixel-like movements, and expressive lighting visuals.

FEATURES

HIGH-POWER PIXEL STROBE BAR

The SOUSA is a waterproof strobe light that integrates both strobe and wash effects.

It offers rich and dynamic lighting possibilities, allowing seamless transitions between powerful strobe effects and soft wash effects, making it highly expressive for stage performances.

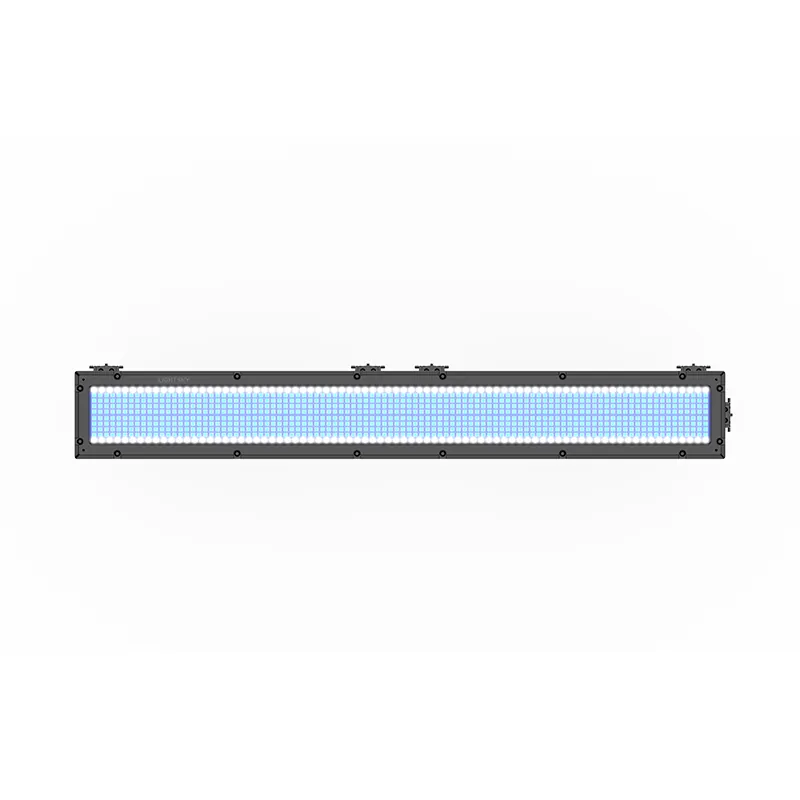

The fixture features independent control over colored and white light sections. The colored light section utilizes 800 high-brightness and 0.5W RGB LEDs, divided into 40 individually controllable zones, while the white light section employs 160 high-brightness and 5W white LEDs, divided into 20 controllable zones.

Unlocking limitless lighting possibilities, our smart frost system (optional) offers linear dimming and seamlessly blends zone-controlled color with white light to create a universe of dynamic effects.

The fixture also includes a dedicated splicing mechanism, enabling quick and easy assembly in both vertical and horizontal configurations.

With exceptional strobe and wash capabilities housed in a compact body, it is ideally suited for medium to large outdoor events, variety shows, concerts, and similar venues.
