Sheet 05.790

Color Imagination · Effects and lasers

CRAZYBASE 1

ModelCB1

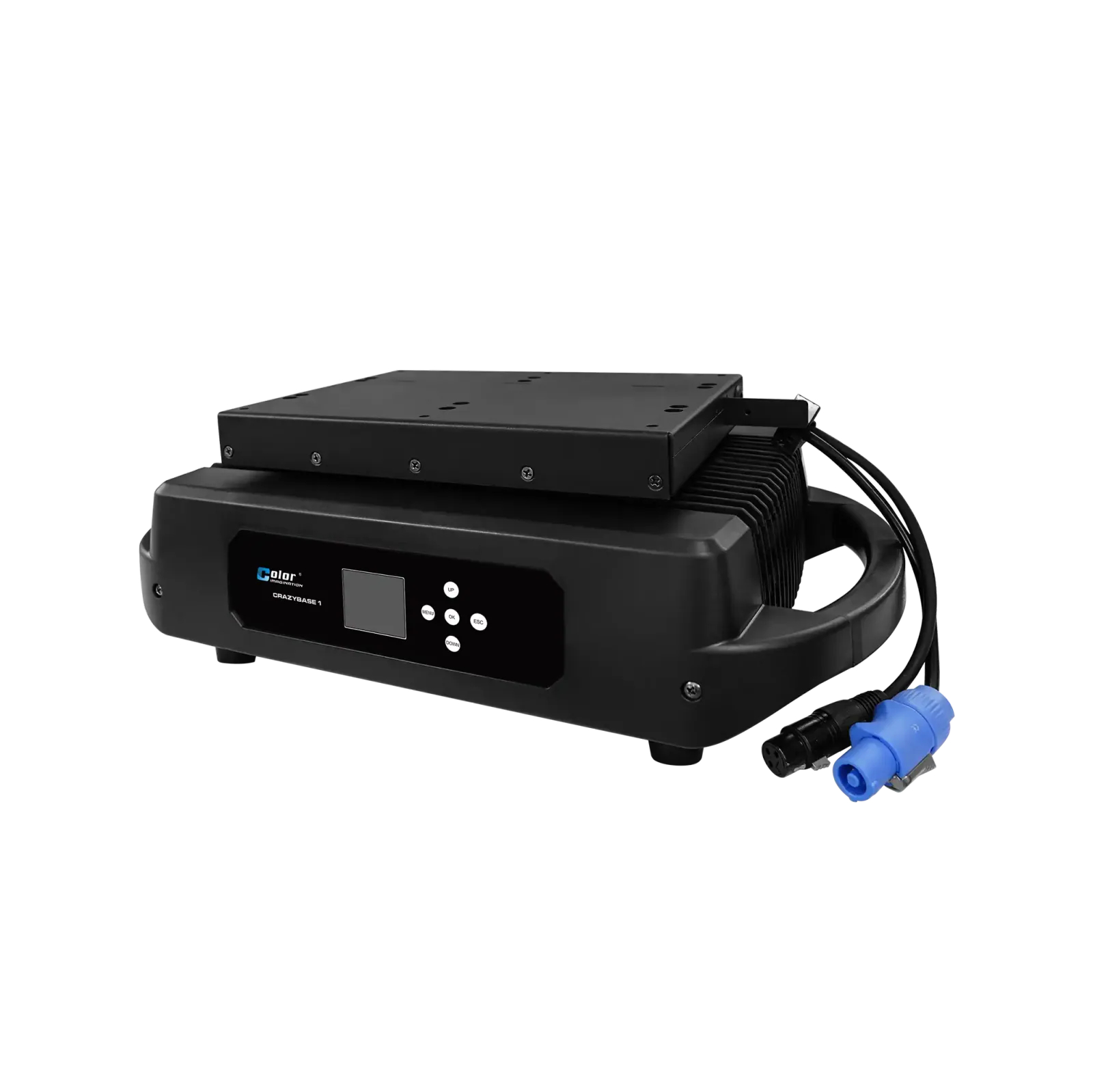

The CRAZYBASE 1 is a dynamic solution designed to be an optional system kit for the CRAYZBAR series fixtures.

Power consumption: 16W Power consumption(CB1)
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 10.7kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 12 groups · 54 values

What this product is, in numbers.

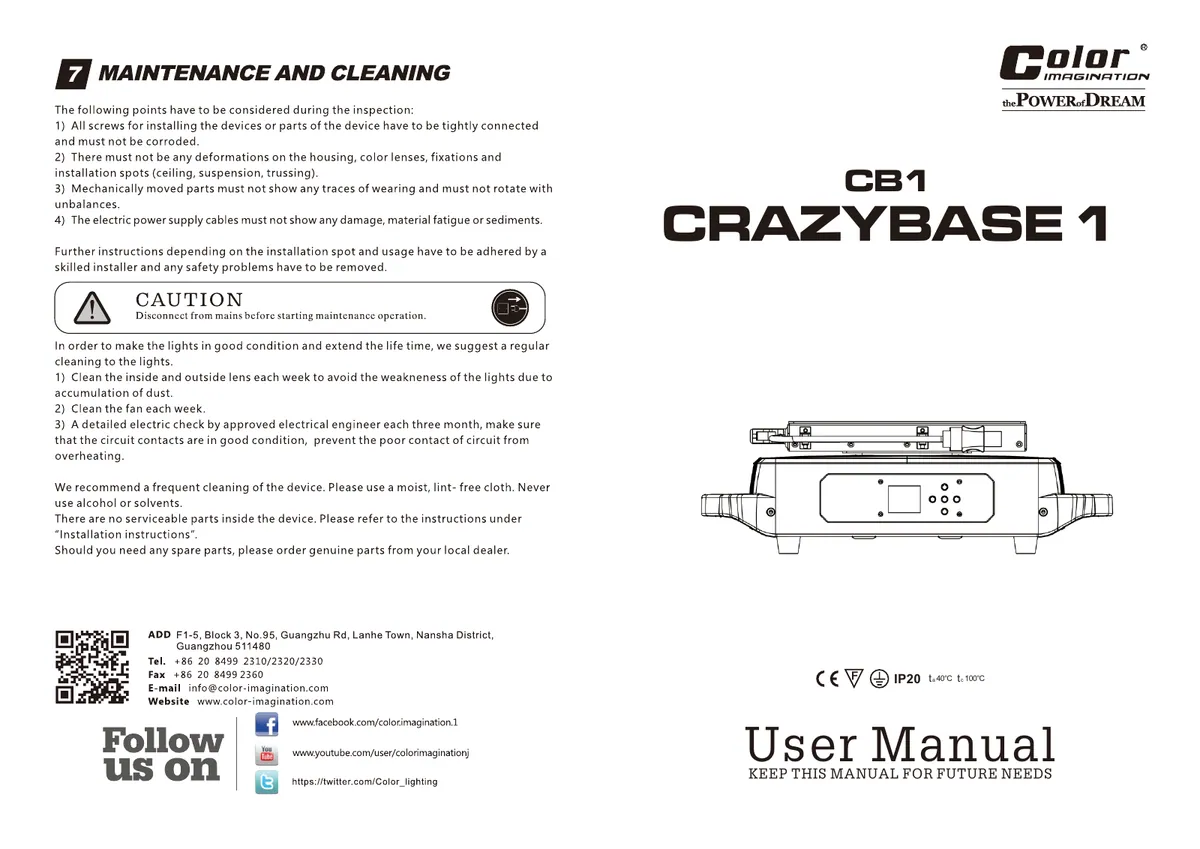

PDFUser manual3.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Movement8

PAN: 2 modes; 1. 360° Continuous movement; 2. 540° (8/16 bit); Fast, quiet, smooth and precise 2-phase motors; Smooth, fast and precise resolution for movement with low noise operation; Scan position memory, auto reposition after unexpected movement; 50KG Max mounted weight; 50RPM Max rotation speed

02Control System7

5 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

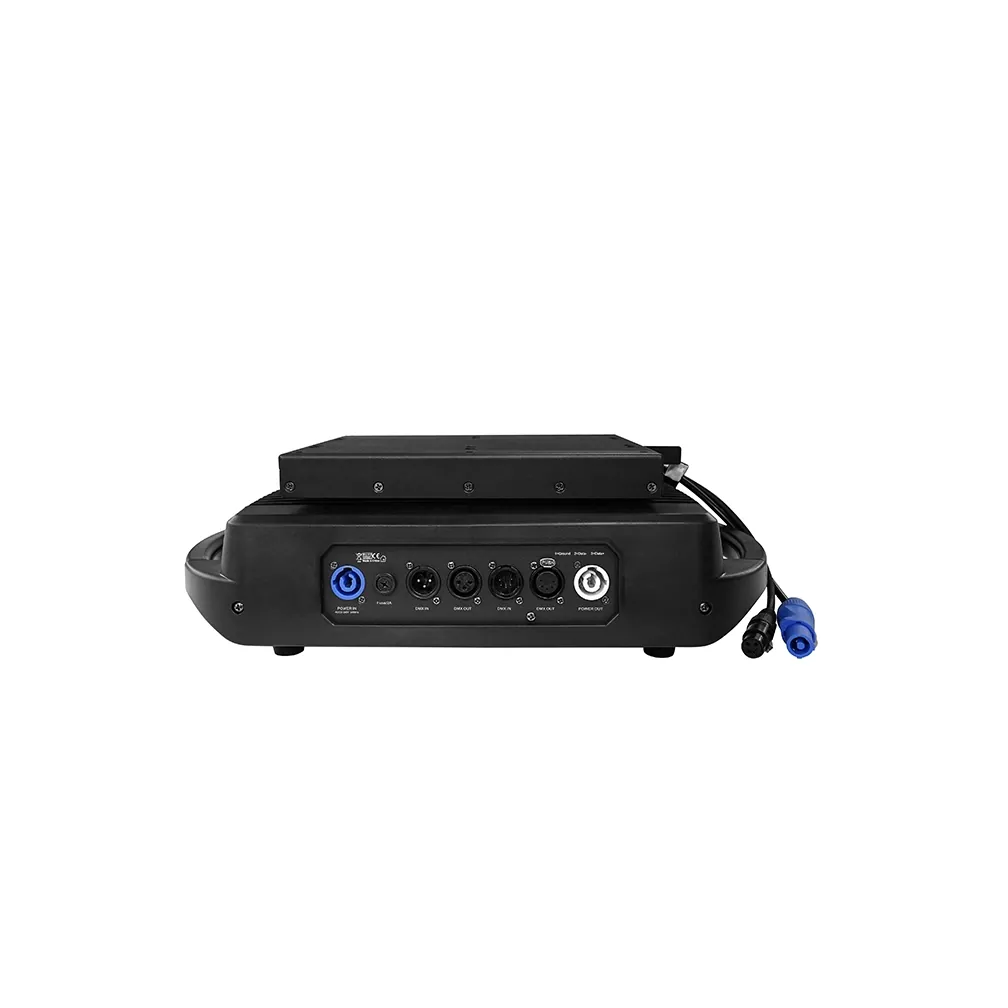

3-Pin XLR connectors IN/OUT (for the base)

3-Pin XLR connector OUT (for the mounted lights)

03Display System5

1.44″ TFT LCD display

English/Chinese menu

5 Control buttons

180°Reversible for LCD display

Display auto OFF

04Cooling System3

Advanced self-adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

05Power Supply7

Electronic supply with active PFC; AC100-240V 50/60Hz; PowerCON IN/OUT with fuse (for the base); PowerCON OUT (for the mounted lights); 16W Power consumption(CB1)
Max power consumption: 220VA
Mains out: 2300VA@230V; 1250VA@110V

Show the full specificationHide the rest of the specification7 more groups · 24 values

06Housing3

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

07Installation2

2*1/4 turn fastening Omega Clamps

3*Safety attachment point

08Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

09Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

10Weight4

Horizontal
N.W.: 10.7kg
G.W.: 13.4kg
Vertical
N.W.: 14.1kg
G.W.: 18.6kg

11Dimensions3

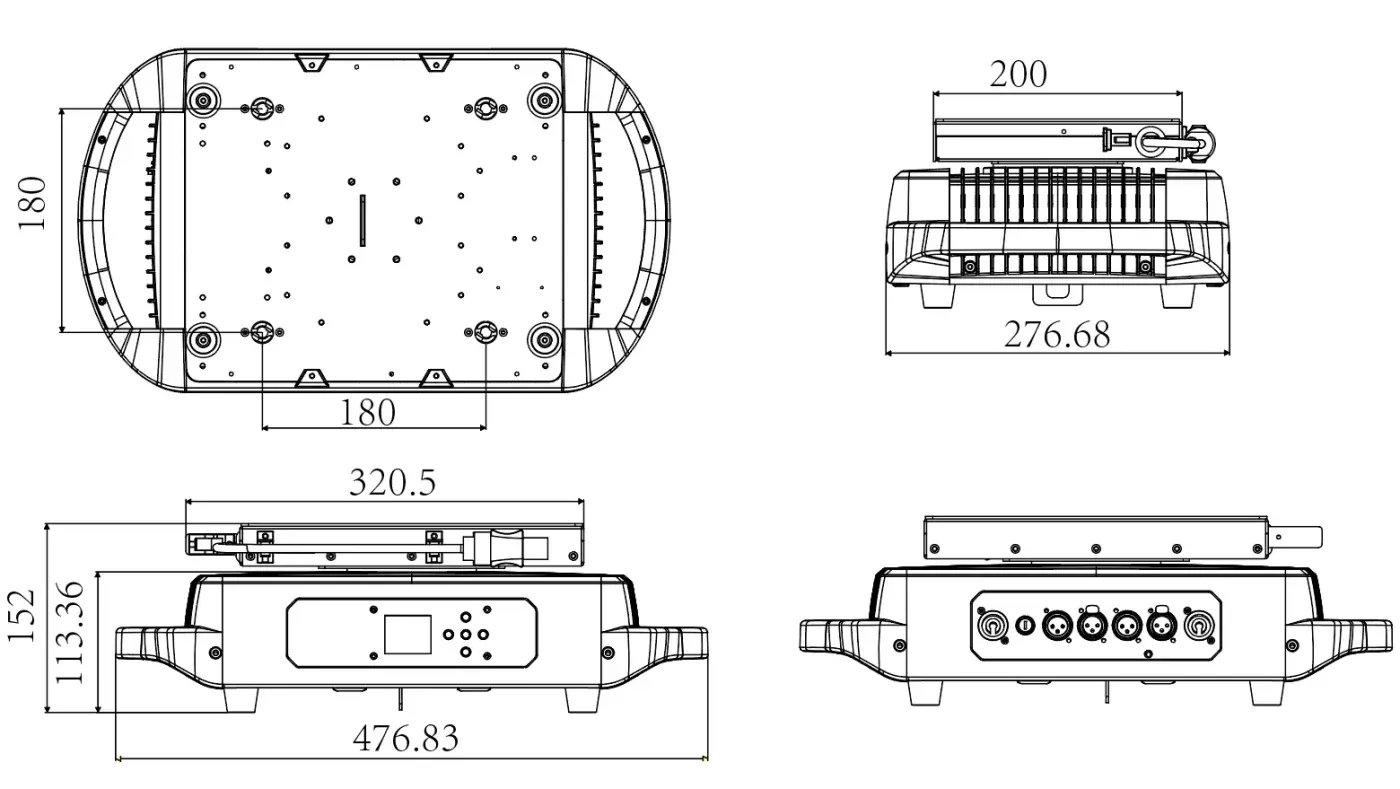

Product Dimensions: 276.68(D)*476.83(W)*152(H)mm
Packing Dimensions: 370(D)*640(W)*220(H)mm (Horizontal); 570(D)*835(W)*370(H)mm (Vertical)

12Accessories5

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 6-IN-1 or 8-IN-1 versions

Clamps OPTIONAL code: QTY: 1PCS

02DescriptionManufacturer's description

What it is.

CRAZYBASE 1

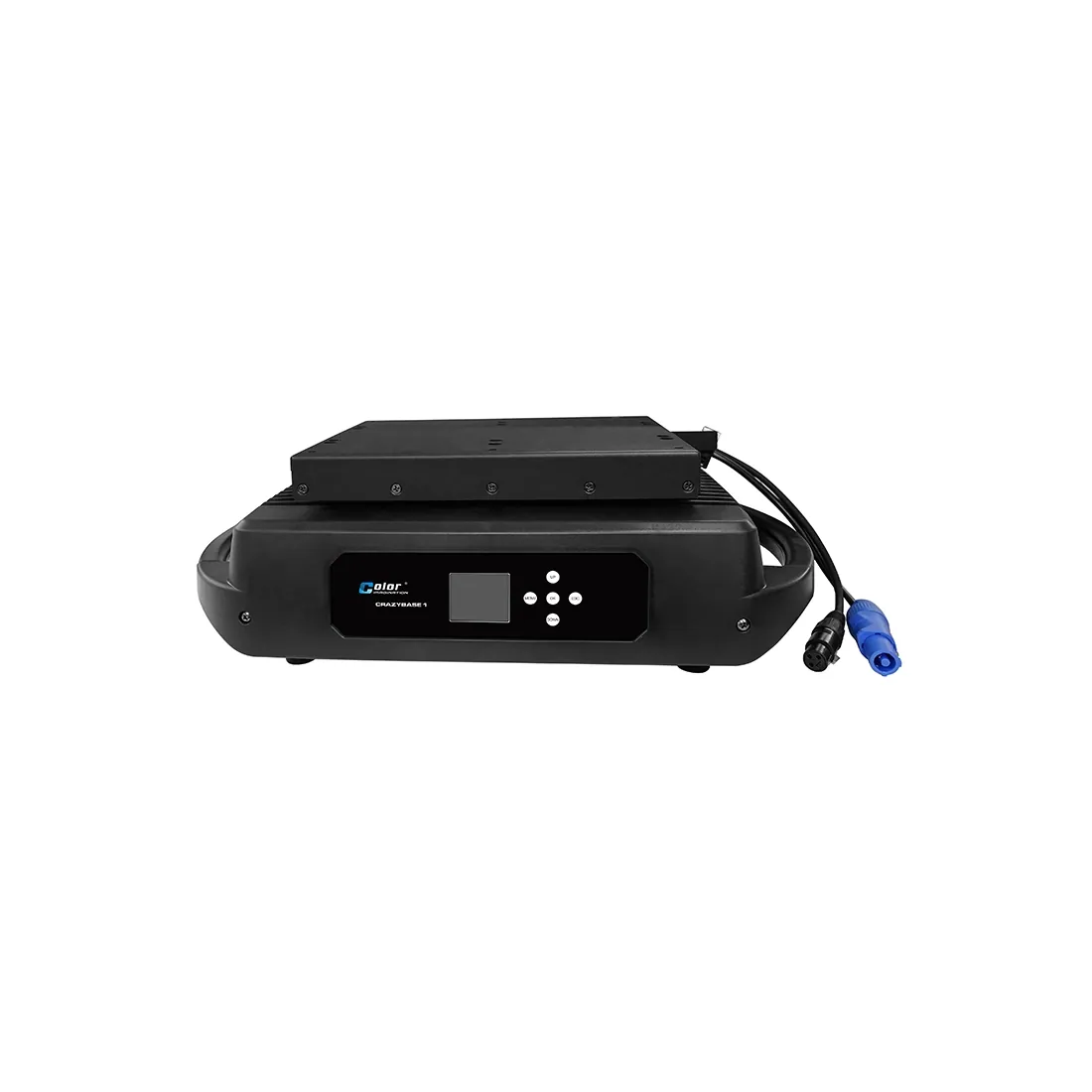

The CRAZYBASE 1 is a dynamic solution designed to be an optional system kit for the CRAYZBAR series fixtures. It’s an innovative moving head base that allows you to install a non-moving head fixture on it and turn the fixtures to be a complete moving head light to get dynamic effects.

You could mount the CRAZYBAR products horizontally or vertically on the CRAZYBASE. Suggested as following options:

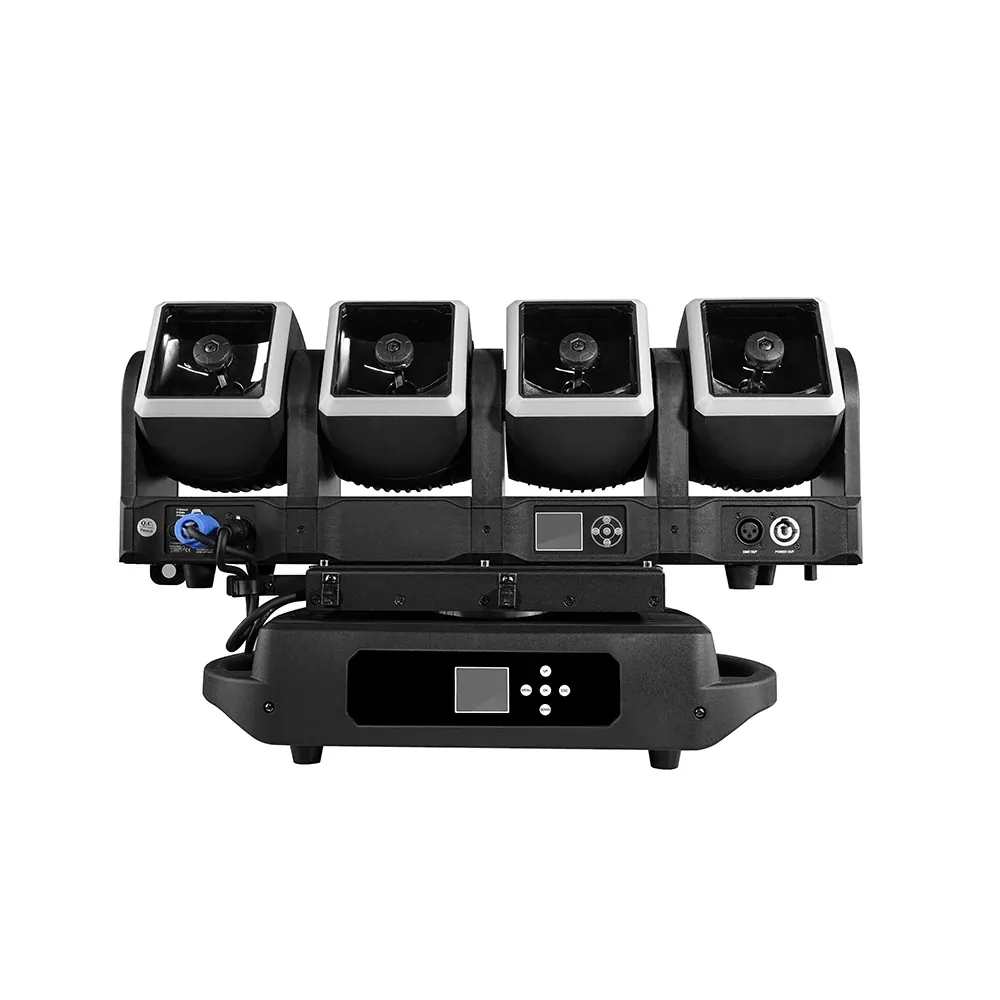

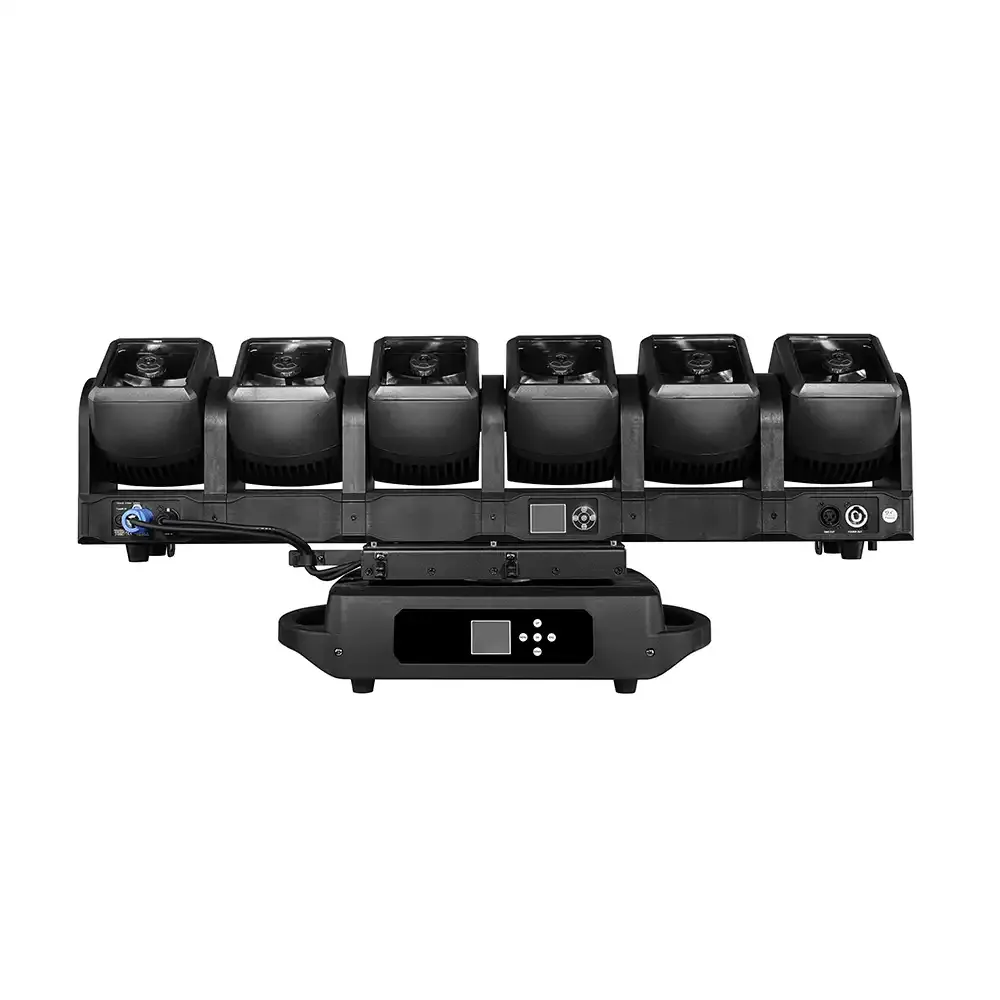

Horizontally

CRAZYBAR 86/66/46

CRAZYBAR 86X/66X/46X

CRAZYBAR 66M/46M

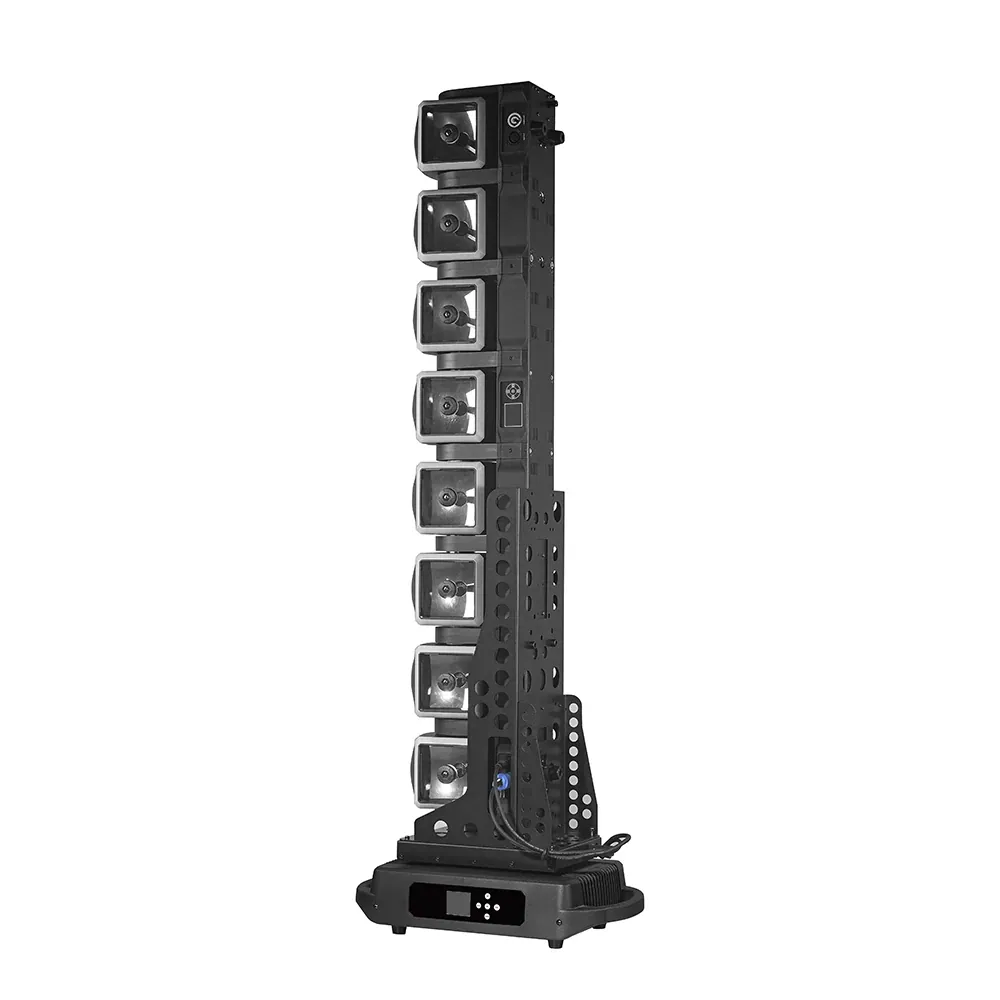

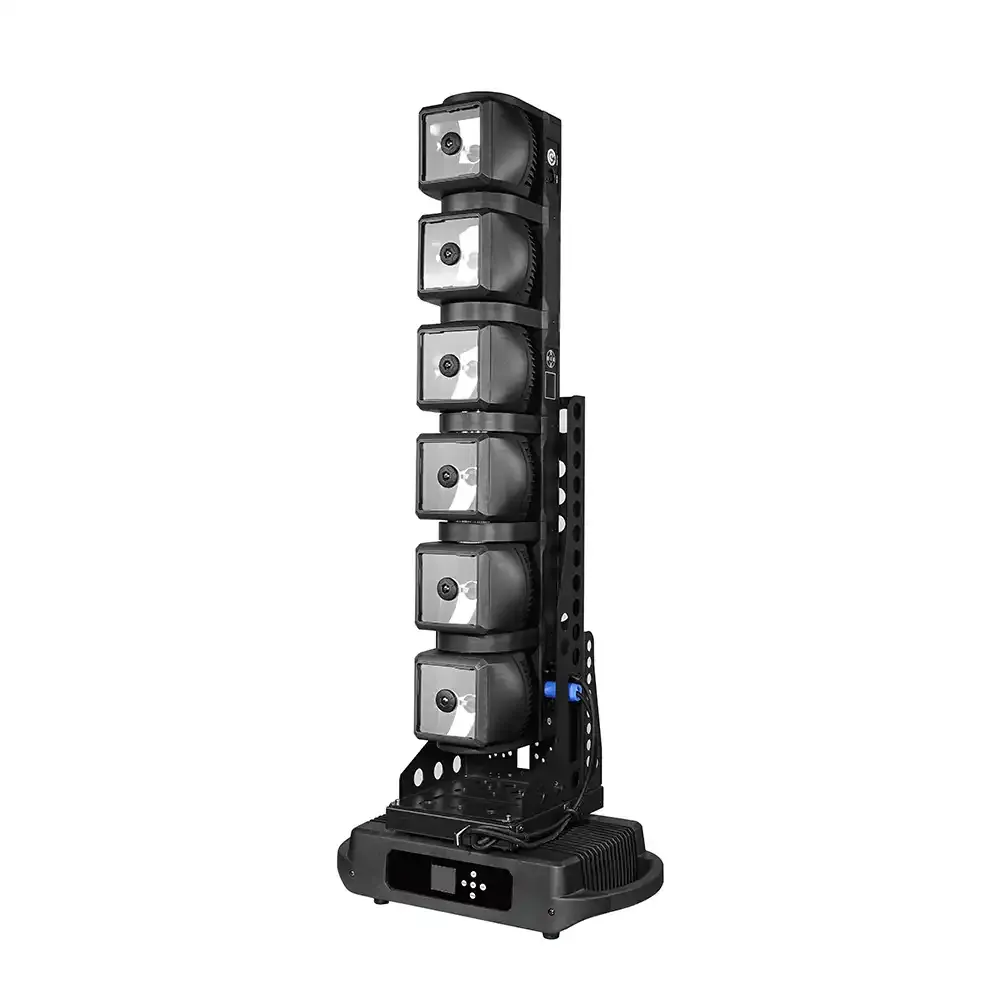

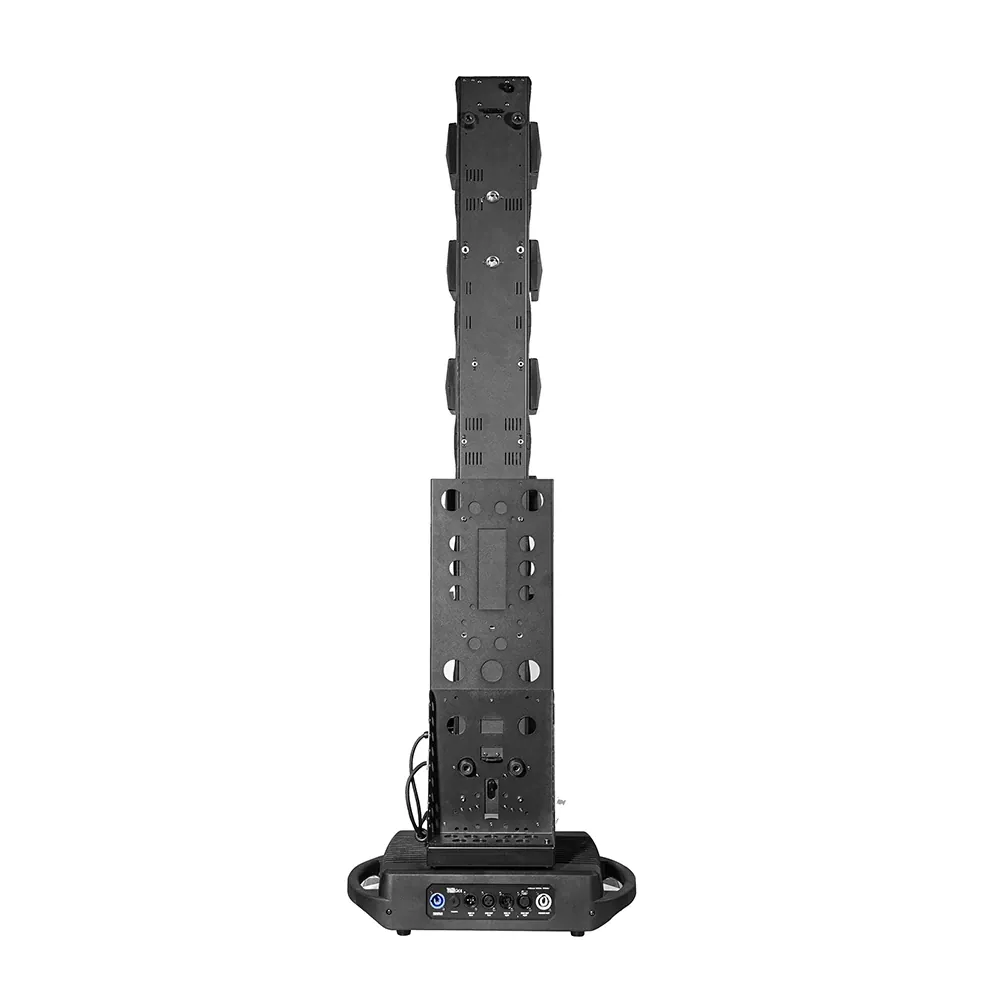

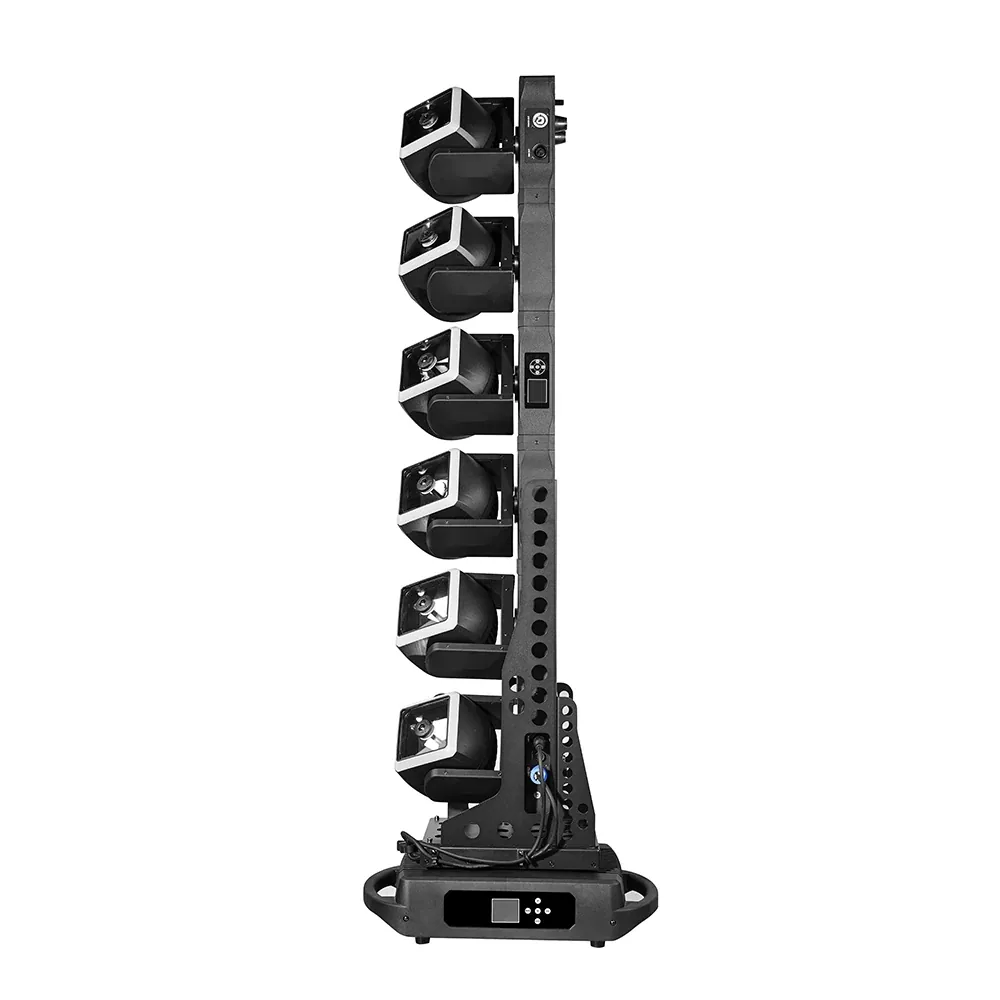

Vertically

CRAZYBAR 86

CRAZYBAR 86X

CRAZYBAR 66M

The CRAZYBASE offers smooth continuous PAN movement with various speeds. The unit could spin up to 50 RPM. It could load a fixture with 50KG less weight. It’s with very SMART power system and DMX system for the BASE itself and the mounted fixtures on it. So there are no concerns of tangled power or DMX cables when using the continuous PAN system.

Overall, the CRAZYBASE 1 is a super flexible system to bring unique features to the CRAZYBAR series, which help the users to get much more lighting benefit. And, it’s also available to mount other brands’ static/non-moving fixtures on CRAZYBASE 1 and make them to moving lights (some extra accessories need to be made accordingly).
