Sheet 05.792

Color Imagination · Effects and lasers

CRAZYDOT 16

ModelC16

Light source: 1*60W 4-IN-1 RGBW LEDs
Power consumption: 78W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 4.8kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 18 groups · 67 values

What this product is, in numbers.

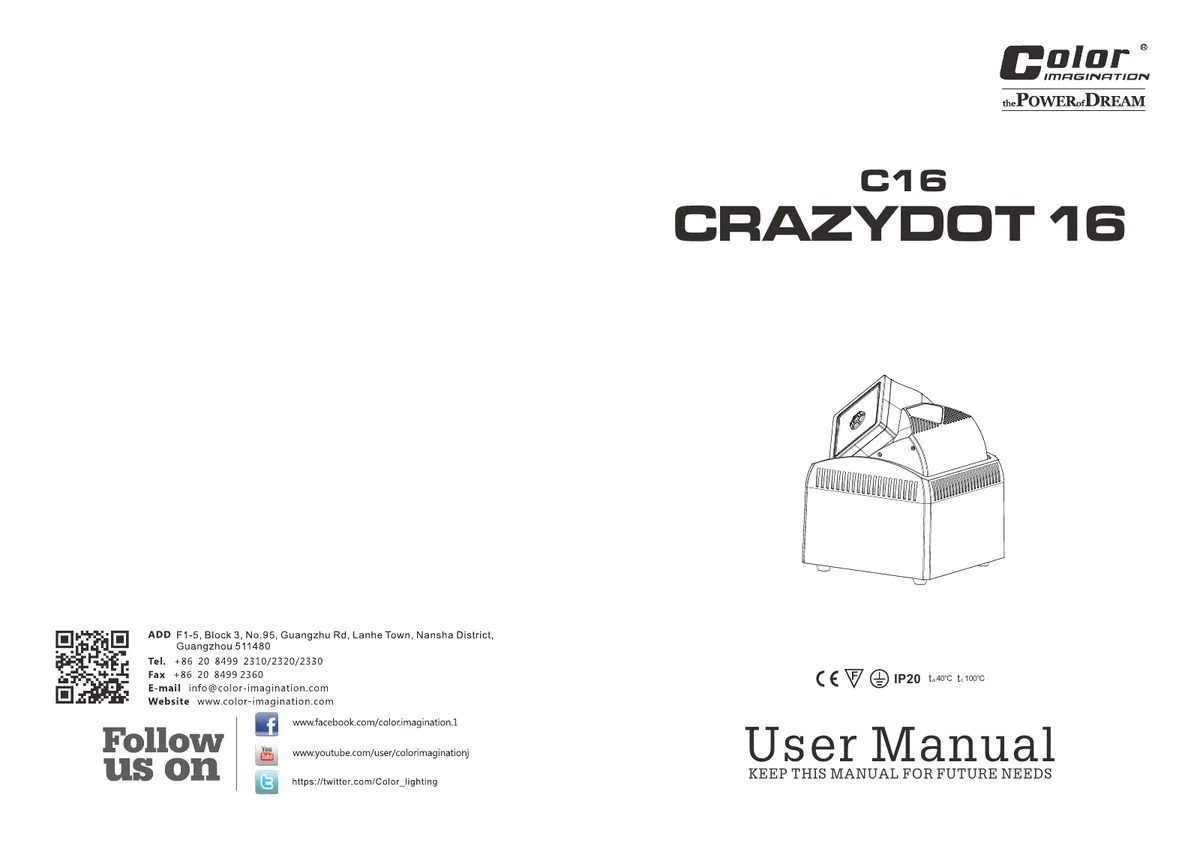

PDFUser manual2.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 1*60W 4-IN-1 RGBW LEDs; 30*0.2W 3-IN-1 SMD RGB LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H; 900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics3

High efficiency lens

3.5°Projection angle

Sharp and clear beam effect

03Movement5

PAN movement: 76° (8/16 bit)
TILT movement: 76° (8/16 bit); Fast, quiet, smooth and precise 2-phase motors; Smooth, fast and precise resolution for movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors5

Sophisticated 4 colors RGBW mixed

Linear CTO 2500-8000K

Preset static patterns

Preset dynamic patterns with variable speed

Preset dynamic color macro with variable speed

05Strip Effect2

Brilliant and magic trip effect with different built-in macros

(variable speed control)

06Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

Show the full specificationHide the rest of the specification12 more groups · 43 values

07Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

08Control System6

23/28 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

Pin XLR connectors IN/OUT

09Display System5

1.44″ TFT LCD display

English/Chinese menu

5 Control buttons

180°Reversible for LCD display

Display auto OFF

10Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

11Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

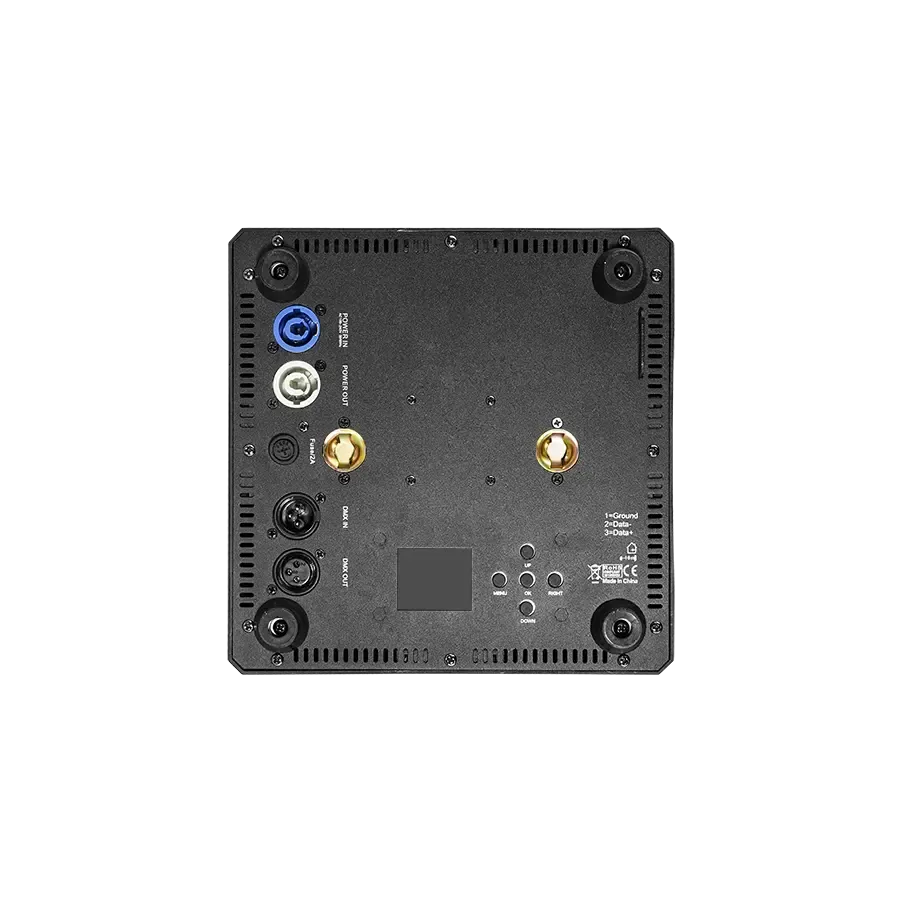

PowerCON IN/OUT with fuse

78W Power consumption

12Housing3

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

13Installation3

1*1/4 turn fastening Omega Clamps

Specific parts for seamless combination between lights

1*Safety attachment point

14Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

15Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

16Weight2

N.W.: 4.8kg
G.W.: 6.5kg

17Dimensions2

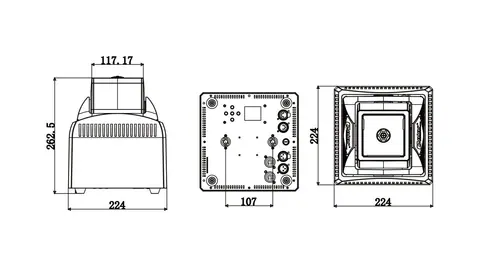

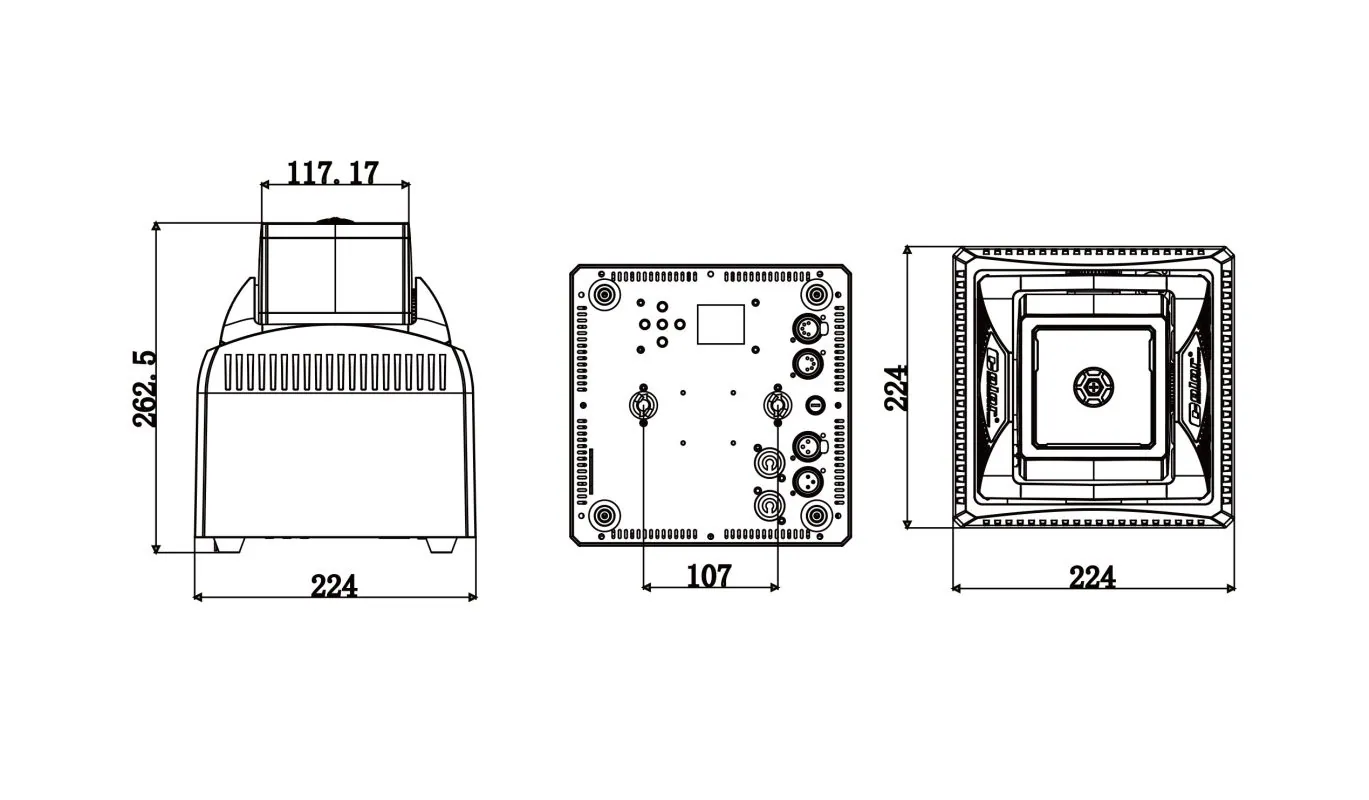

Product Dimensions: 224(D)*224(W)*262.5(H)mm
Packing Dimensions: 425(D)*330(W)*335(H)mm

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

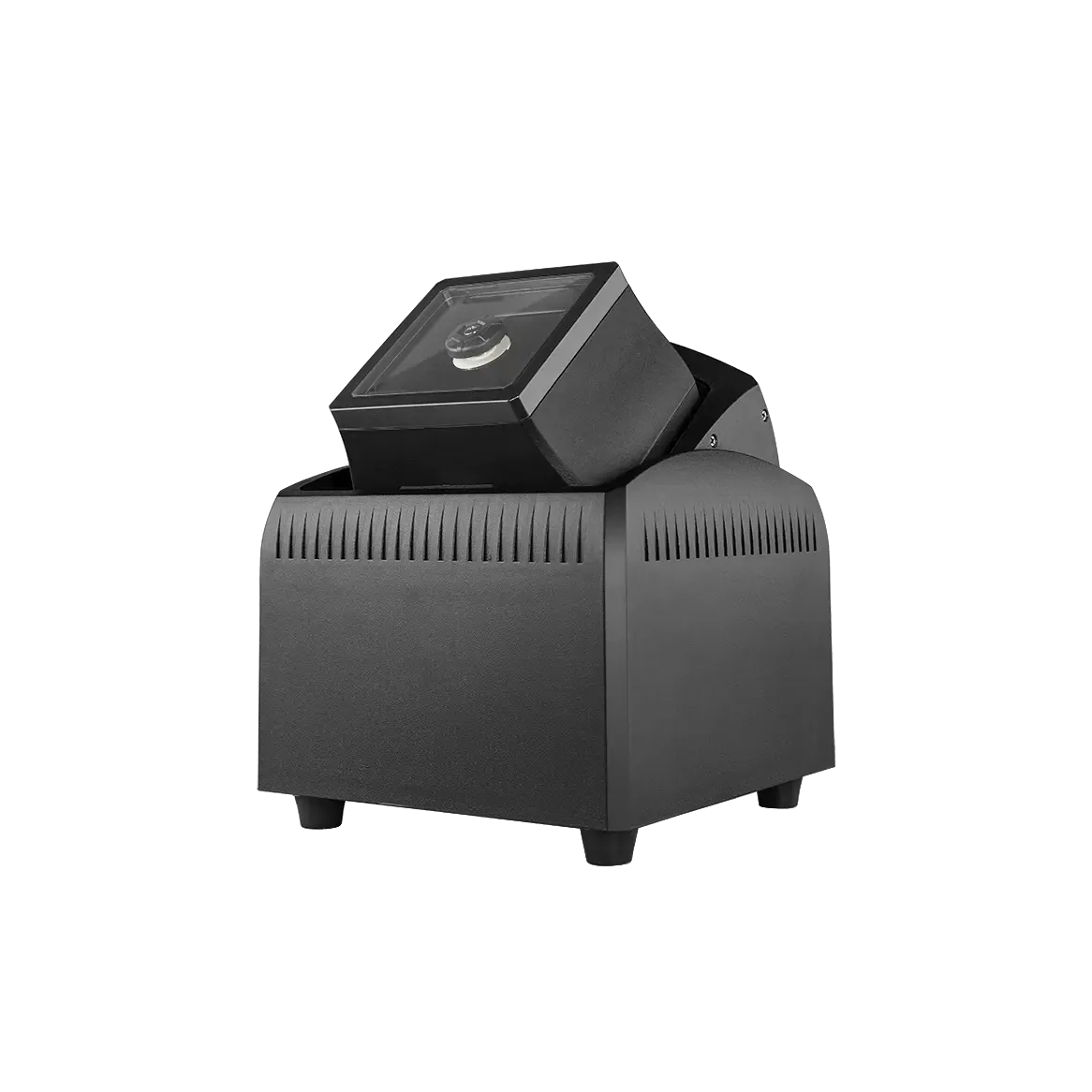

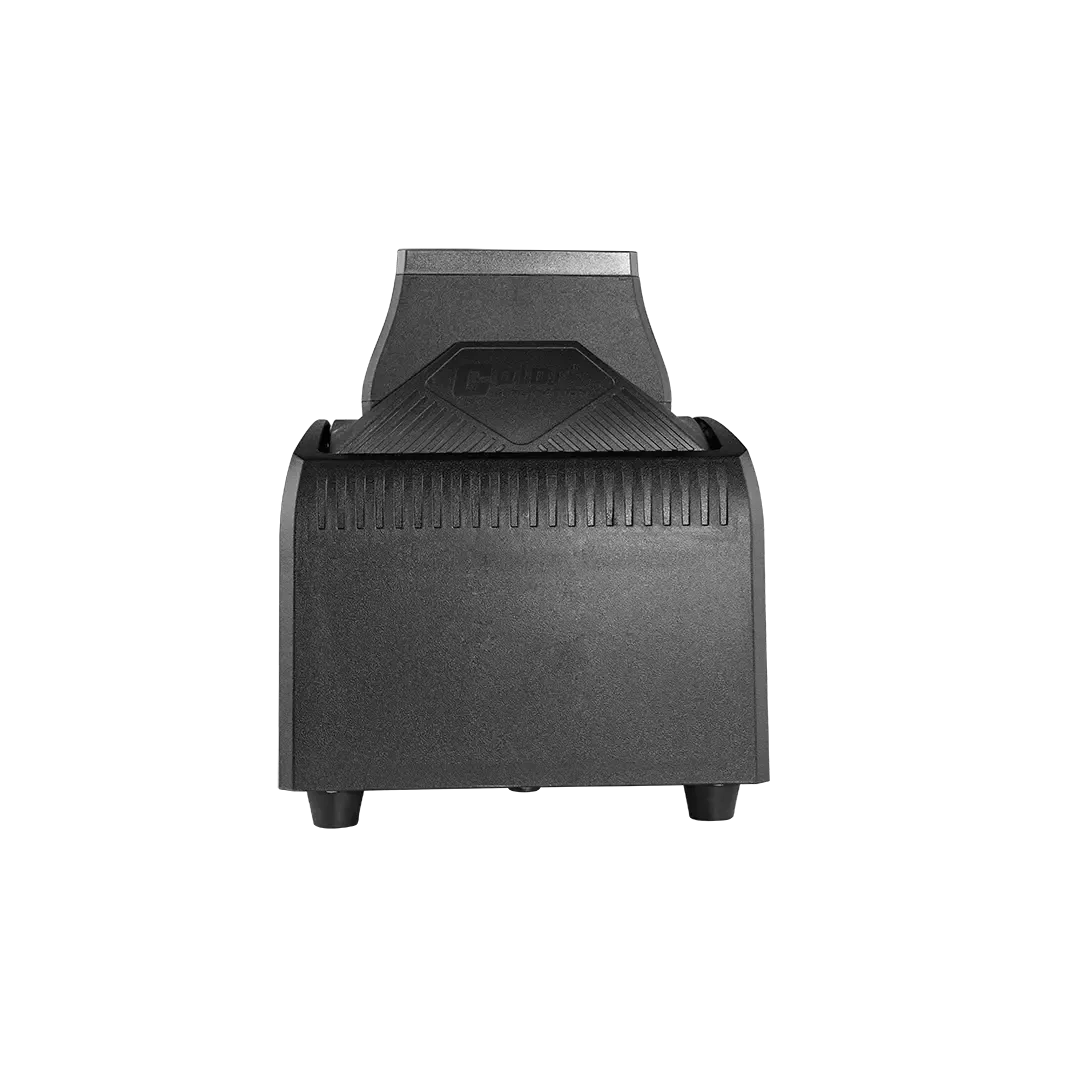

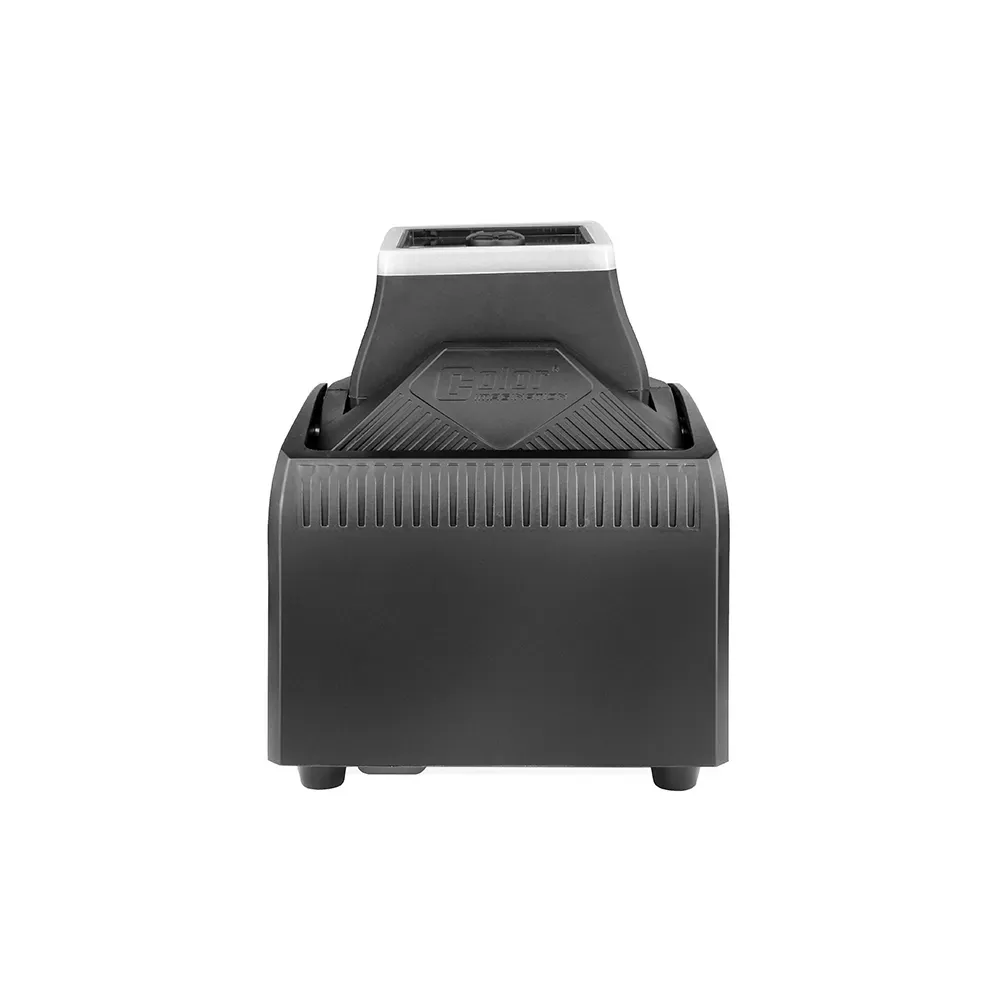

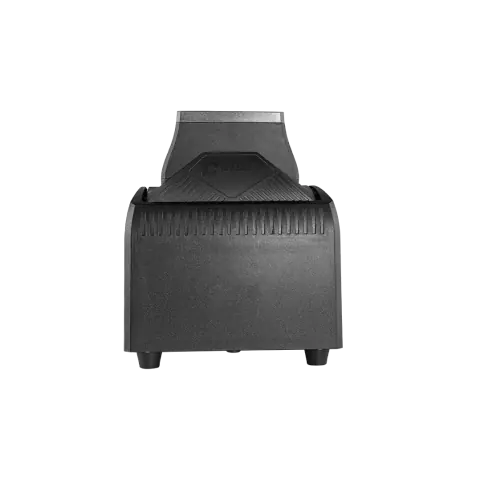

CRAZYDOT 16

The CRAZYDOT 16 is a high-performance stage lighting BEAM fixture that features a ultra flexible moving MINI head, which is available with 76°for both PAN/TILT movement. The fixture is equipped with a powerful 60W 4-IN-1 RGBW LED light source. With its versatile design and advanced features, specially the mirror based optical system, the CRAZYDOT 16 is capable of producing a wide range of dynamic sharp and collimated BEAM lighting effects that are sure to captivate audiences and enhance performances. Also, thanks to the ingenious neon ring design on the front head, the fixture could bring ultra brilliant and magic lighting effect to the lighting designers.

The CRAZYDOT 16 also features a range of advanced lighting effects, including strobe, color mixing, and CTO. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

In addition to its advanced features, the CRAZYDOT 16 is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could combine different CRAZYDOT 16 together on truss/wall/ceiling and get an impressive wave of light through it’s 3.5°specially designed optical system.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, ballrooms, banquet halls, etc.
