Sheet 05.791

Color Imagination · Effects and lasers

CRAZYCUBE 46

ModelCC46

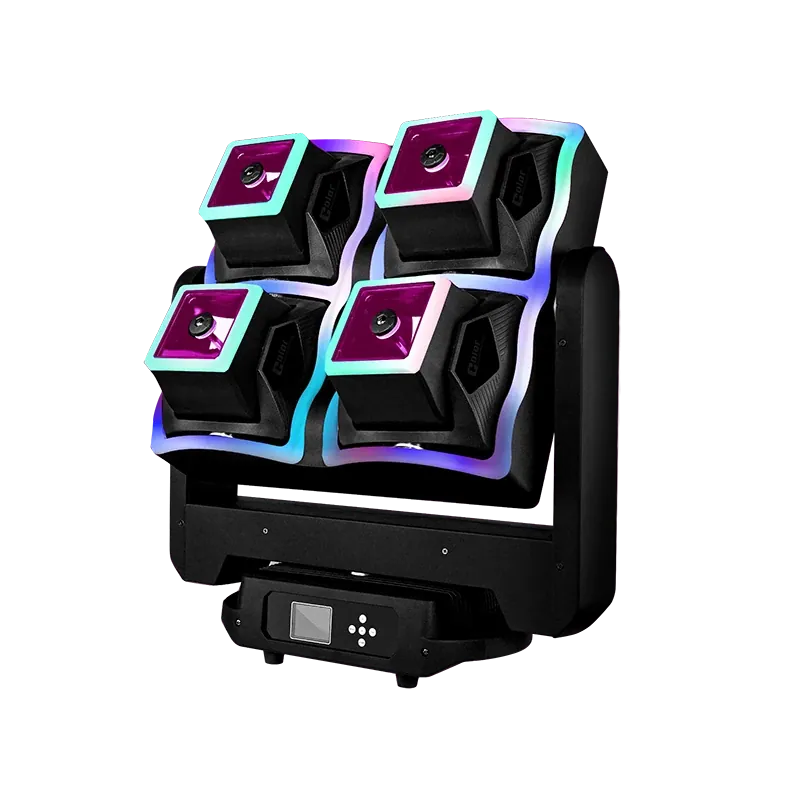

Prepare to be captivated by the CRAZYCUBE 46, an unprecedented marvel in the world of stage lighting. It is a moving head light that stands as a mark to innovation, offering a light that has never before graced the market.

Light source: 4*60W 4-IN-1 RGBW LEDs
Power consumption: 354W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 35.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 72 values

What this product is, in numbers.

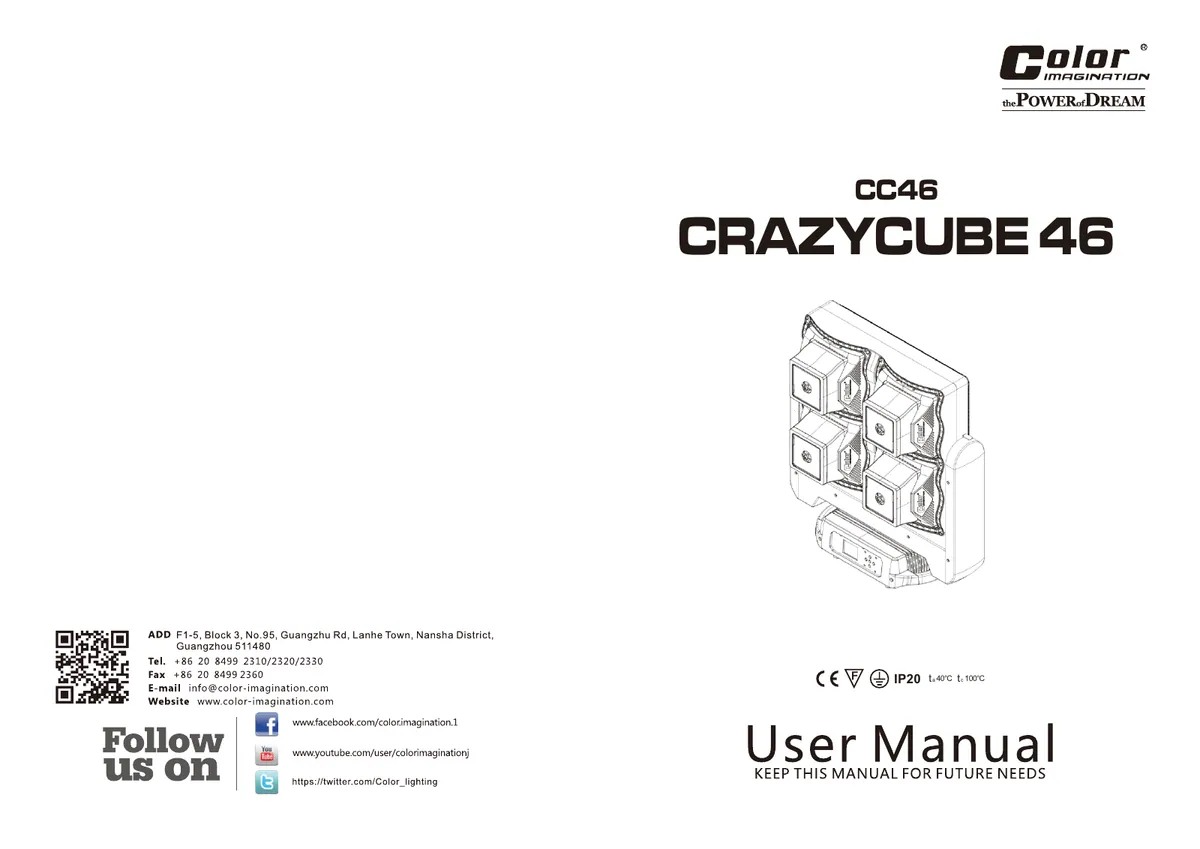

PDFUser manual2.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source10

Source: 4*60W 4-IN-1 RGBW LEDs; (4*30)*0.2W 3-IN-1 SMD RGB LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H; 900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc); Optics; High efficiency lens; 3.5°Projection angle; Sharp and clear beam effect

02Movement11

The complete head
PAN: 2 modes; 1. 360°Continuous movement; 2. 540°(8/16 bit)
TILT: 2 modes; 1. 360°Continuous movement; 2. 270°(8/16 bit)
Each mini head
PAN movement: 76° (8/16 bit)
TILT movement: 76° (8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for movement with low noise operation; Scan position memory, auto reposition after unexpected movement

03Colors5

Sophisticated 4 colors RGBW mixed

Linear CTO 2500-8000K

Preset static patterns

Preset dynamic patterns with variable speed

Preset dynamic color macro with variable speed

04Strip Effect2

Brilliant and magic trip effect with different built-in macros

(variable speed control)

Show the full specificationHide the rest of the specification13 more groups · 44 values

05Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

06Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

07Control System6

37/88 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

3-Pin XLR connectors IN/OUT

08Display System5

1.44″ TFT LCD display

English/Chinese menu

5 Control buttons

180°Reversible for LCD display

Display auto OFF

09Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/OUT with fuse

354W Power consumption

11Housing3

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

12Installation2

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

13Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 35.2kg
G.W.: 40.5kg

16Dimensions2

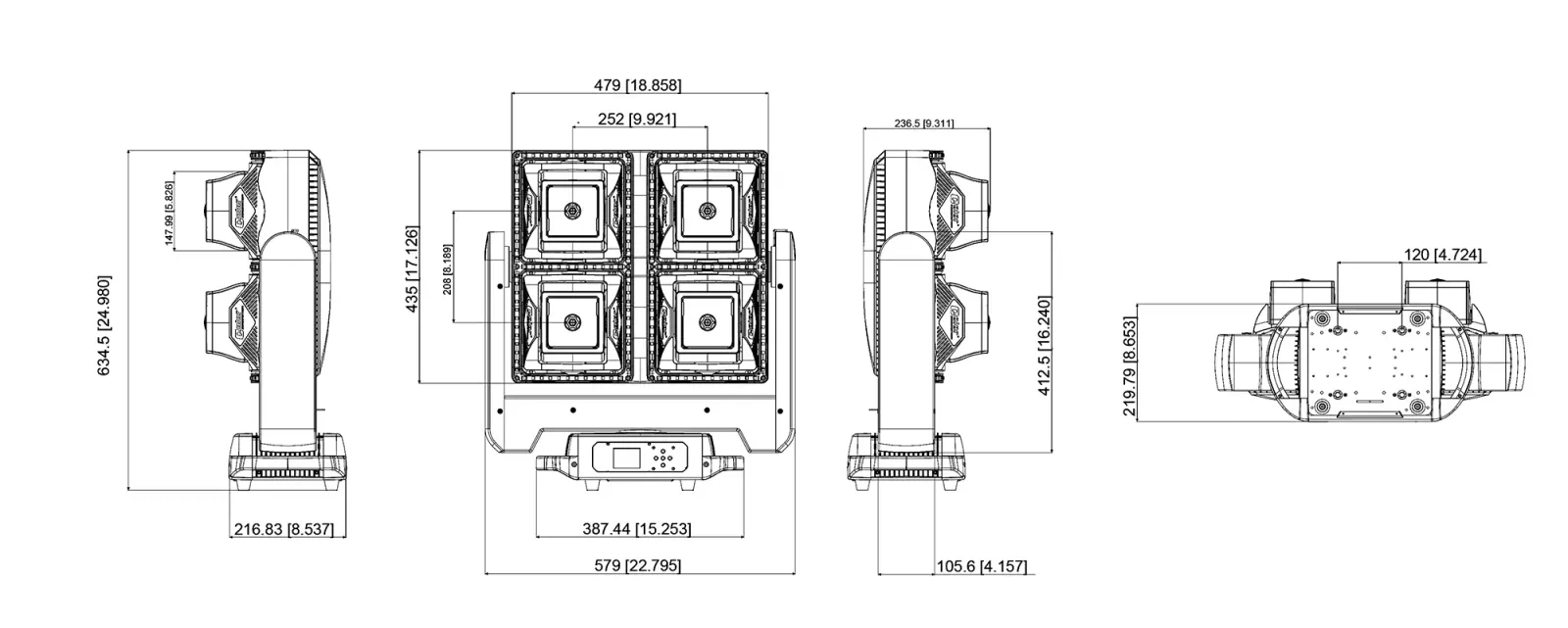

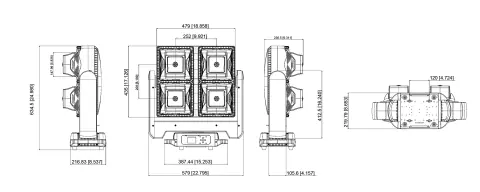

Product Dimensions: 236.5(D)*579(W)*634.5(H)mm
Packing Dimensions: 710(D)*780(W)*400(H)mm

17Accessories5

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 6-IN-1 or 8-IN-1 versions

Clamps OPTIONAL code: QTY: 1PCS

02DescriptionManufacturer's description

What it is.

CRAZYCUBE 46

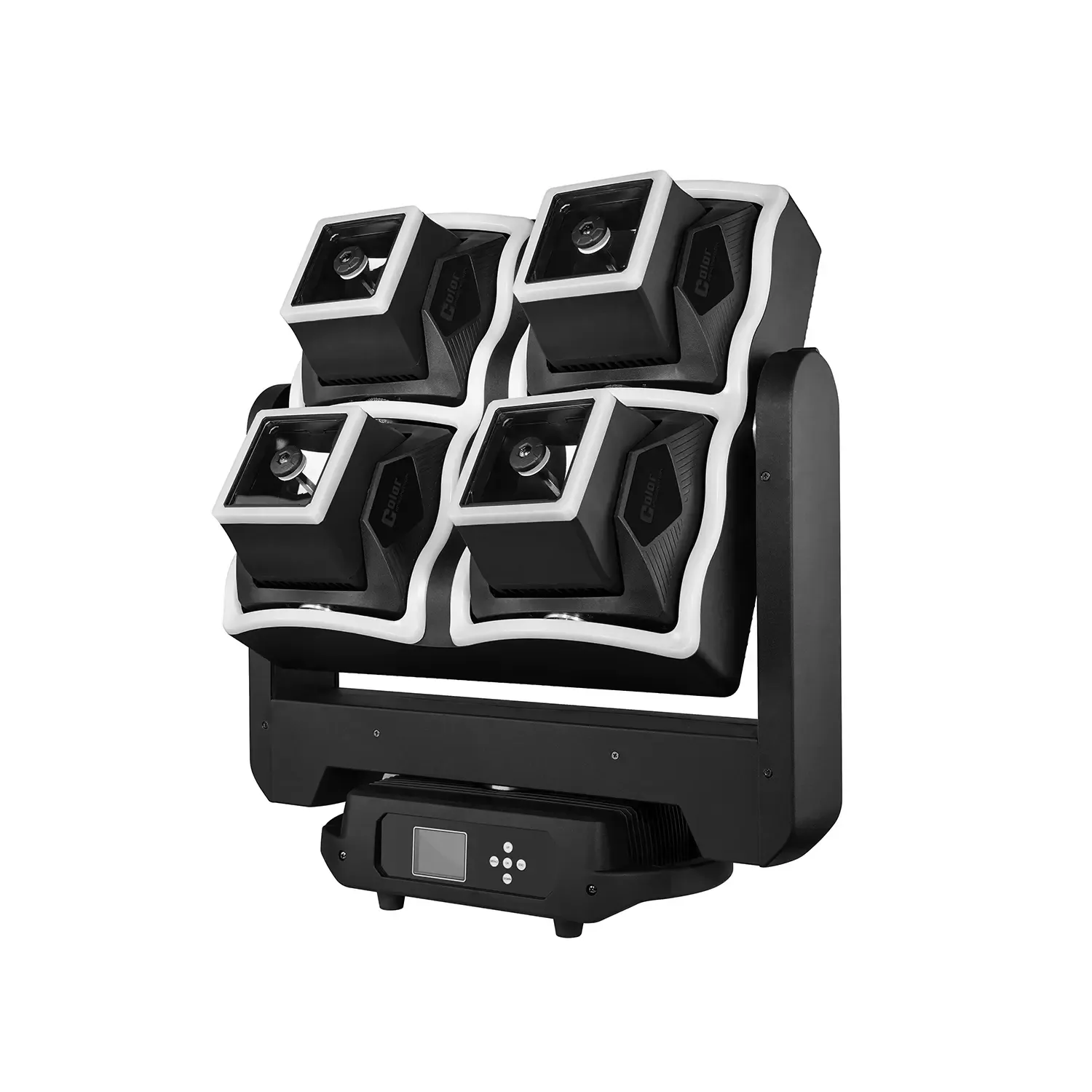

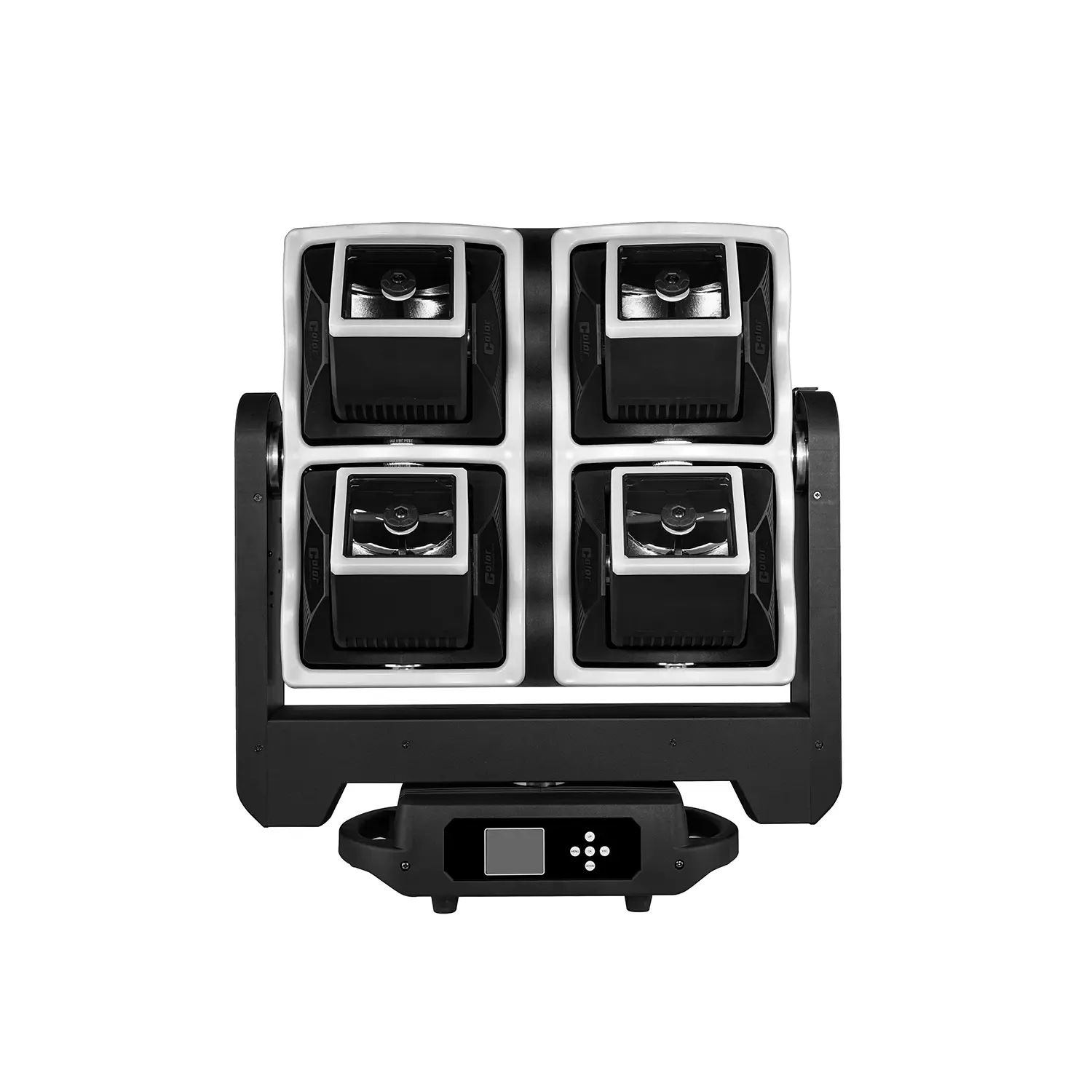

At its core, the CRAZYCUBE 46 is a beacon of creative exploration, thanks to its four individual mini moving heads. These heads produce a narrow angle beam effect (3.5°), casting a spotlight on your imagination. What sets this fixture apart is the unique ability to control each head individually for colors and PAN/TILT movement (76°), providing you with the ultimate canvas to craft your lighting masterpiece.

Experience a dynamic interplay of light and shadows with the CRAZYCUBE 46’s continuous PAN/TILT movement. With the ability to create sweeping arcs, dramatic cuts, or graceful rotations, this fixture infuses life and energy into any application environment.

The heart of this extraordinary fixture lies in its 4*60W 4-IN-1 RGBW LED chips, heralding the zenith of lighting technology. These advanced light sources produce a radiant spectrum of colors, enabling you to paint your surroundings with rich, vibrant hues. From delicate pastels to intense, vivid tones, the CRAZYCUBE 46 opens up a world of possibilities.

In summary, the CRAZYCUBE 46 is a groundbreaking moving head light that redefines the art of lighting. It offers an unprecedented narrow angle beam effect, individual head control, continuous movement, and the brilliance of 60W 4-IN-1 RGBW LED chips. Elevate your lighting designs to new heights with a fixture that is truly exceptional.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, ballrooms, banquet halls, etc.
