Sheet 05.793

Color Imagination · Effects and lasers

CURVEBAR 1080EP

ModelCB1080EP

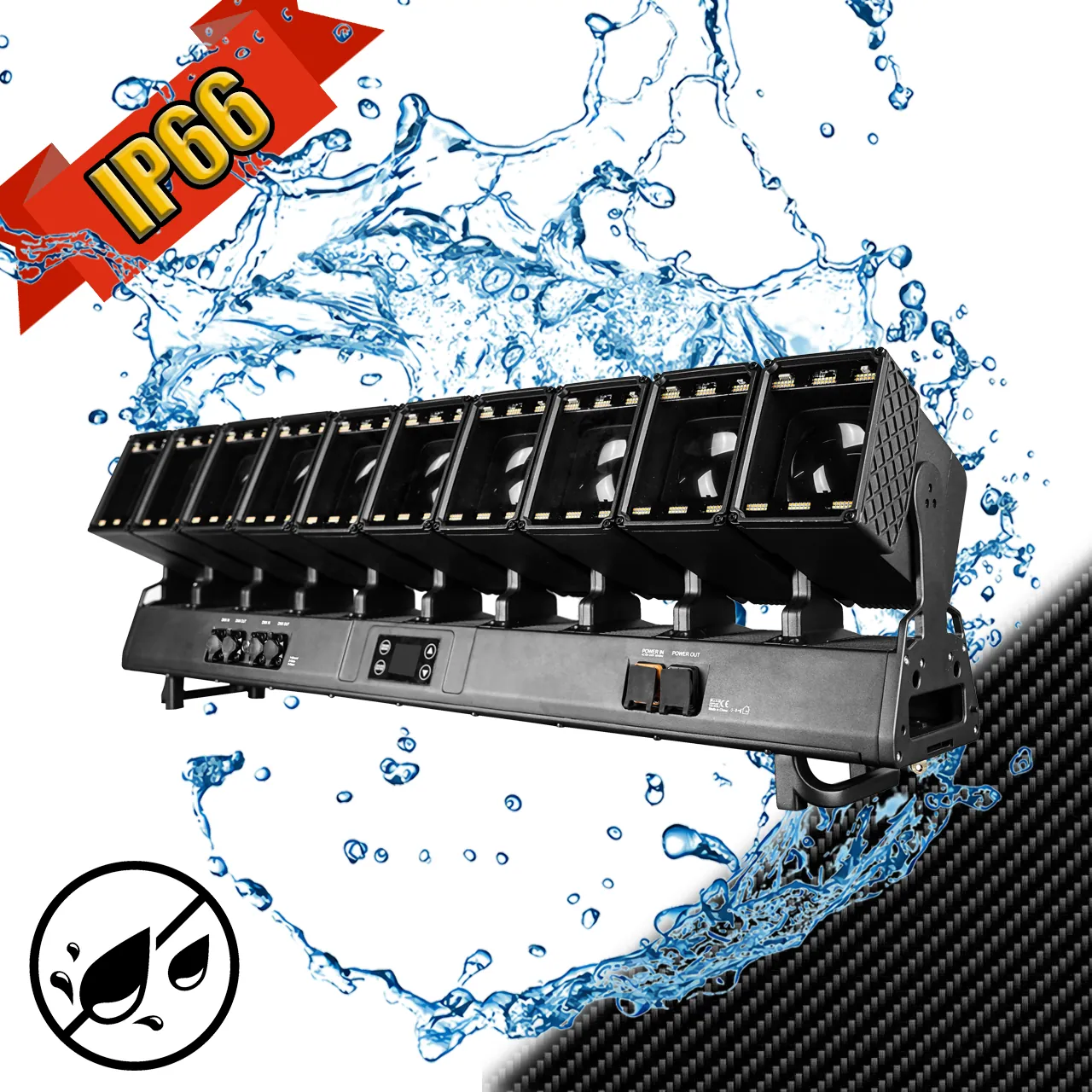

The CURVEBAR 1080EP is an IP66 rated stage lighting wave bar fixture that features 10 individual MINI moving heads, each of which is with a 80W 4-IN-1 RGBW LED.

Power consumption: 880W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP66 protection rating
Net weight: 28.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 75 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01General4

Source: 10*80W 4-IN-1 RGBW LEDs; 360*0.5W amber LEDs+360*0.5W cold white LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H600Hz-15KHz LED frequency adjustable (1200Hz as default)The life span may vary depending on several following factors but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics3

5PCS high efficiency lens

5.5°-37°Zoom range (main source)

120°Beam angel (strip)

03Movement4

TILT: 270° (8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors11

Pixel mapping capability with each LEDs controllable individually

Sophisticated 4 colors RGBW mixed

Linear CTO 2700-8000K

White light CTC

Preset white light CTC effect with variable speed

Sharp beam effect

Pure and even wash effect

Preset static patterns

Preset dynamic patterns with variable speed

Preset dynamic color macro with variable speed

Background color macros

05Strip Effect2

Each head with strip effect with different built-in macros (amber+CW)

(variable speed control)

06Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

Show the full specificationHide the rest of the specification13 more groups · 48 values

07Dimming System3

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

2 Dimming modes

08Control System8

29/56/144/216/262/282 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-Net as optional

Waterproof RJ45 connectors IN/OUT

Shielded input signal protection for stable signal without interference

Waterproof 3-Pin XLR connectors IN/OUT

09Software Update2

Software up-datable through DMX connectors

Multi units up-datable in daisy chain

10Display System5

1.8″ TFT LCD display

English/Chinese menu

4 Touch control buttons

180°Reversible for LCD display

Display auto OFF

11Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

12Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

Waterproof TRUE-1 power connects IN/OUT with fuse

880W Power consumption

13Housing3

High tension molded die-cast aluminum housing; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

14Installation3

2*1/4 turn fastening Omega Clamps

Specific parts for seamless combination between lights

2*Safety attachment point

15Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

16Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

17Weight2

N.W.: 28.3kg
G.W.: 31.2kg

18Dimensions2

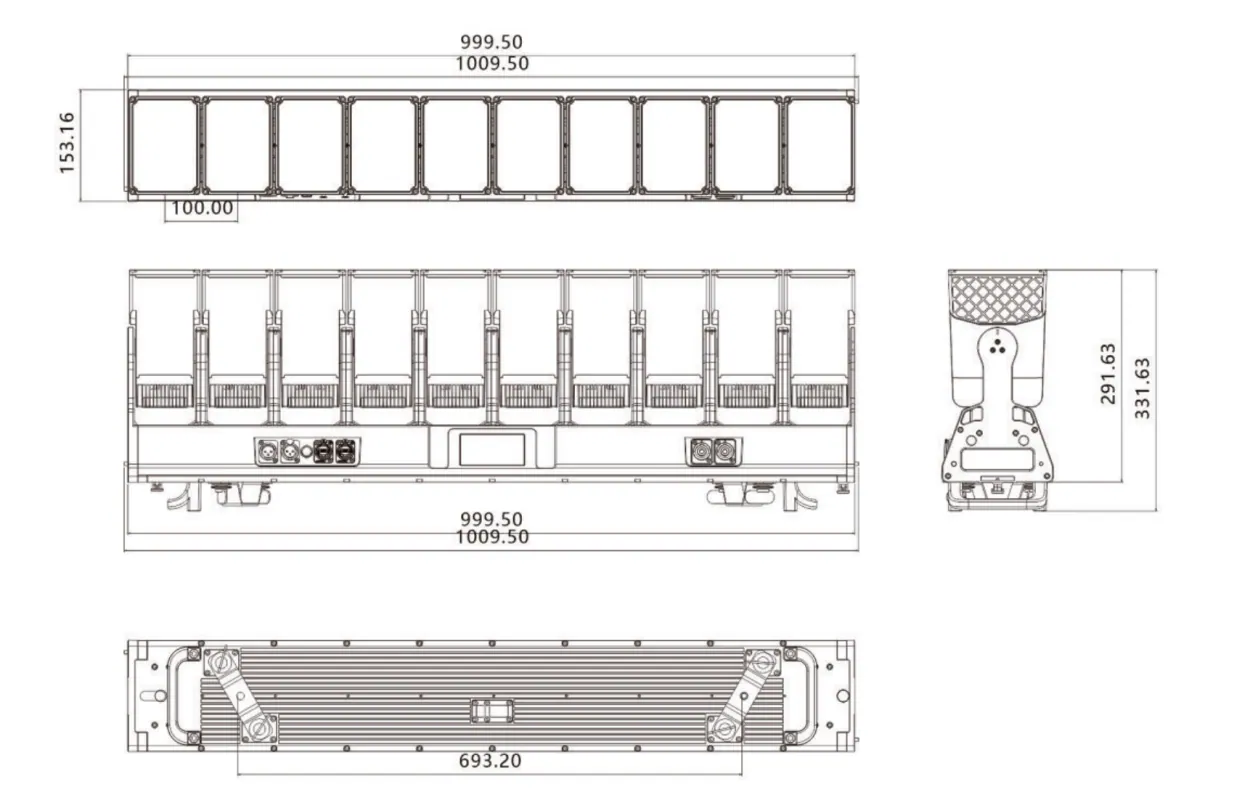

Product Dimensions: 153.2(D)*1009.5(W)*331.6(H)mm
Packing Dimensions: 410(D)*1135(W)*230(H)mm

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

CURVEBAR 1080EP

The CURVEBAR 1080EP is an IP66 rated stage lighting wave bar fixture that features 10 individual MINI moving heads, each of which is with a 80W 4-IN-1 RGBW LED. The BAR is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects. Also, thanks to the ingenious front neon ring design on each head, the BAR could bring ultra brilliant and magic lighting effect to the users.

The CURVEBAR 1080EP also features a range of advanced lighting effects, including strobe, color mixing, and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

The BAR is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different CURVEBAR 1080EP seamlessly and get synchronized movement that produces an impressive wave of light (BEAM or WASH), paralleled to each other due to it’s 5.5°-37°zoom range.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.
