Sheet 05.679

Color Imagination · Wash

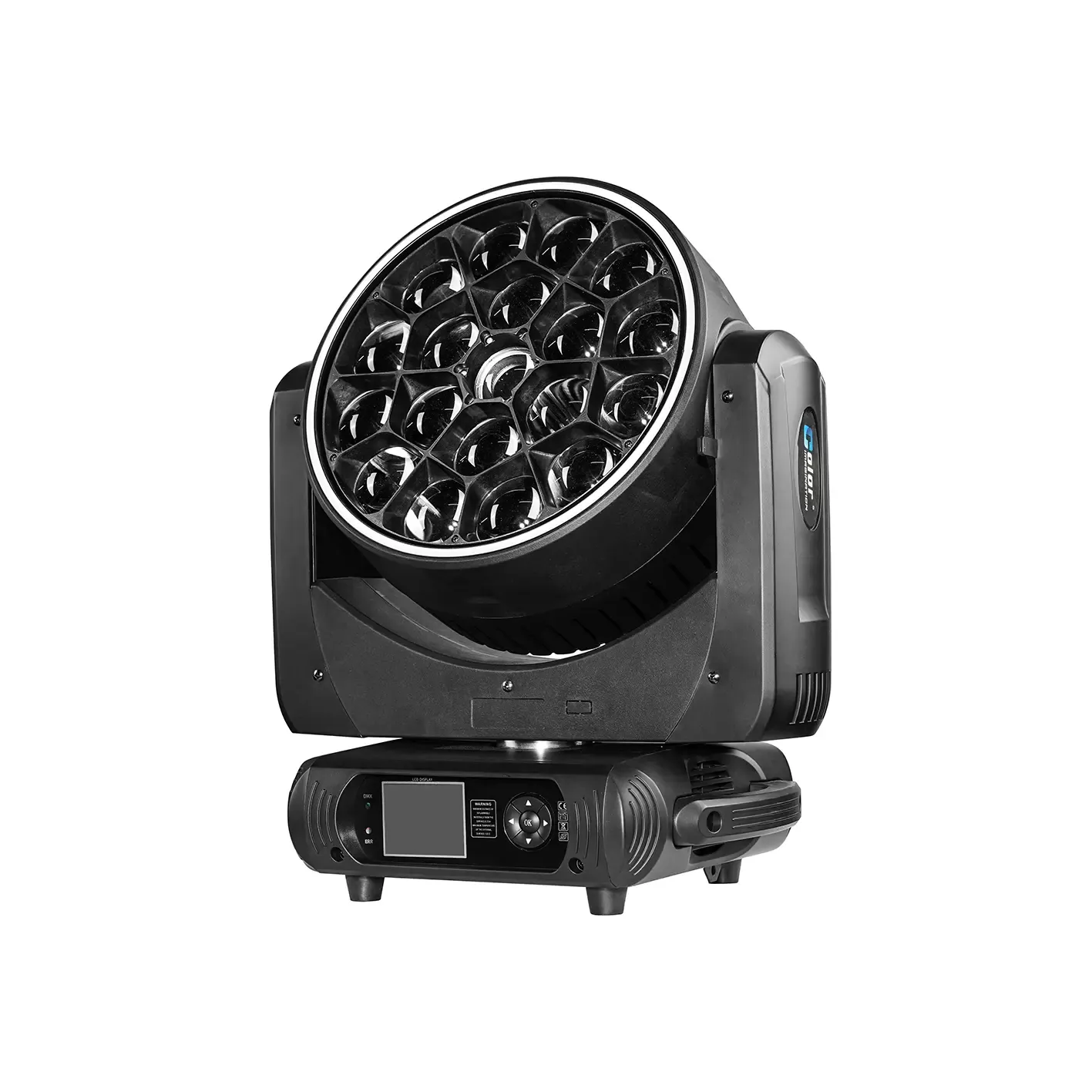

FLYEYE 1940FP

ModelFE1940

The FLYEYE 1940FP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects.

Light source: 19*40W RGBW 4-in-1 LEDs
Power consumption: 760W Power consumption
Power supply: AC90-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 15.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 81 values

What this product is, in numbers.

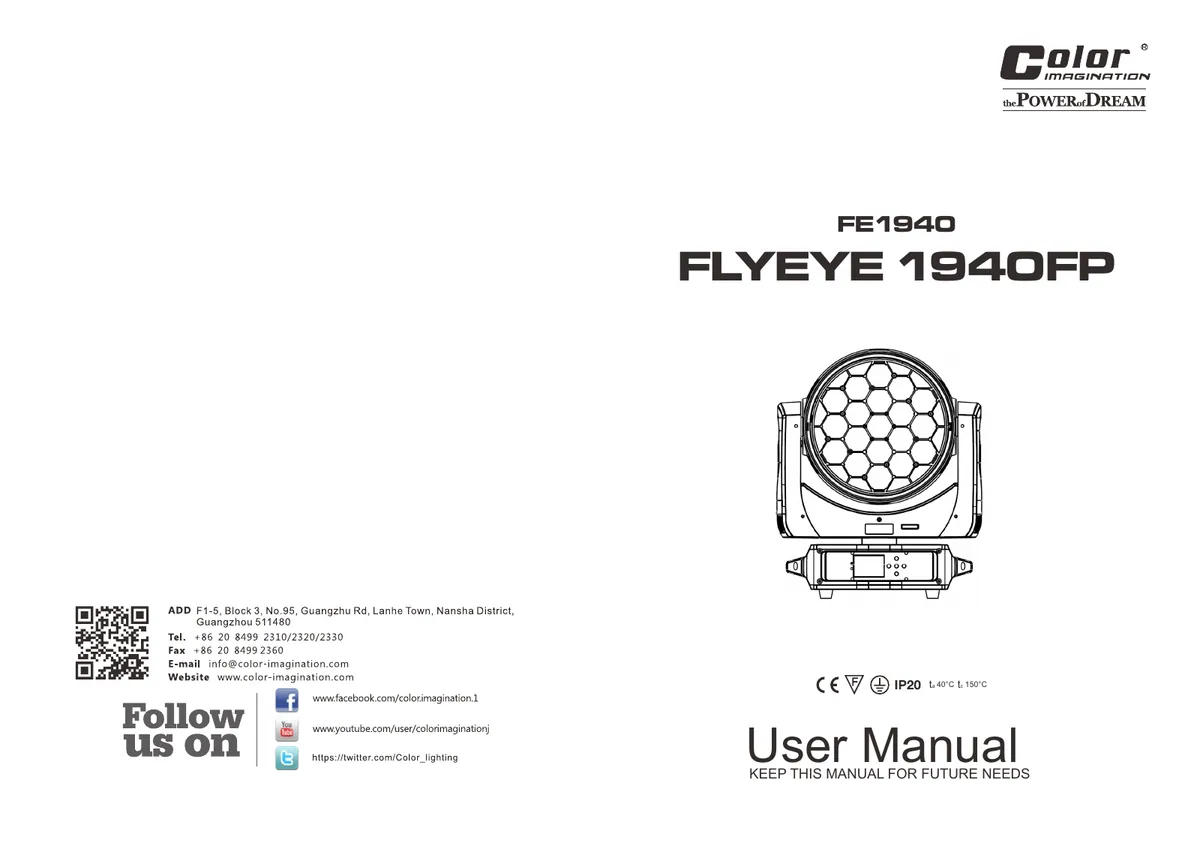

PDFUser manual2.5 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 19*40W RGBW 4-in-1 LEDs; 76*0.2W 3-IN-1 SMD RGB LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),; Control, and Dimming, etc)

02Optics4

19PCS high efficiency acrylic lens

Optimized light pipe for higher LED efficiency

6°-60°Smooth and quiet linear motorized zoom with fine control

360°Continuous front lends rotation with variable speed

03Movement6

PAN movement: 540° (8/16 bit)
TILT movement: 250° (8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Colors5

Pixel mapping capability with each LED

Sophisticated 4 colors RGBW mixed

Even and soft light coverage with pure mixing

Linear color temperature adjustment

Preset color macros

05Strip Effect2

1 Neon ring effect with different built-in macro effects

(variable speed control)

06Visual Effect6

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect

Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

Ringlike LED pixel strip for magic visual effects

Show the full specificationHide the rest of the specification13 more groups · 52 values

07Strobe Effect4

1-25Hz shutter/strobe effect with variable speed

Random strobe effect with variable speed

Preset pulse strobe effect

Different foreground/background strobe effect

08Dimming System2

0-100% Smooth linear LED dimming

Fine dimming control

09Control System9

25/39/82/115 DMX channels USITT DMX-512

DMX512, master-slave, auto operation and sound control

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

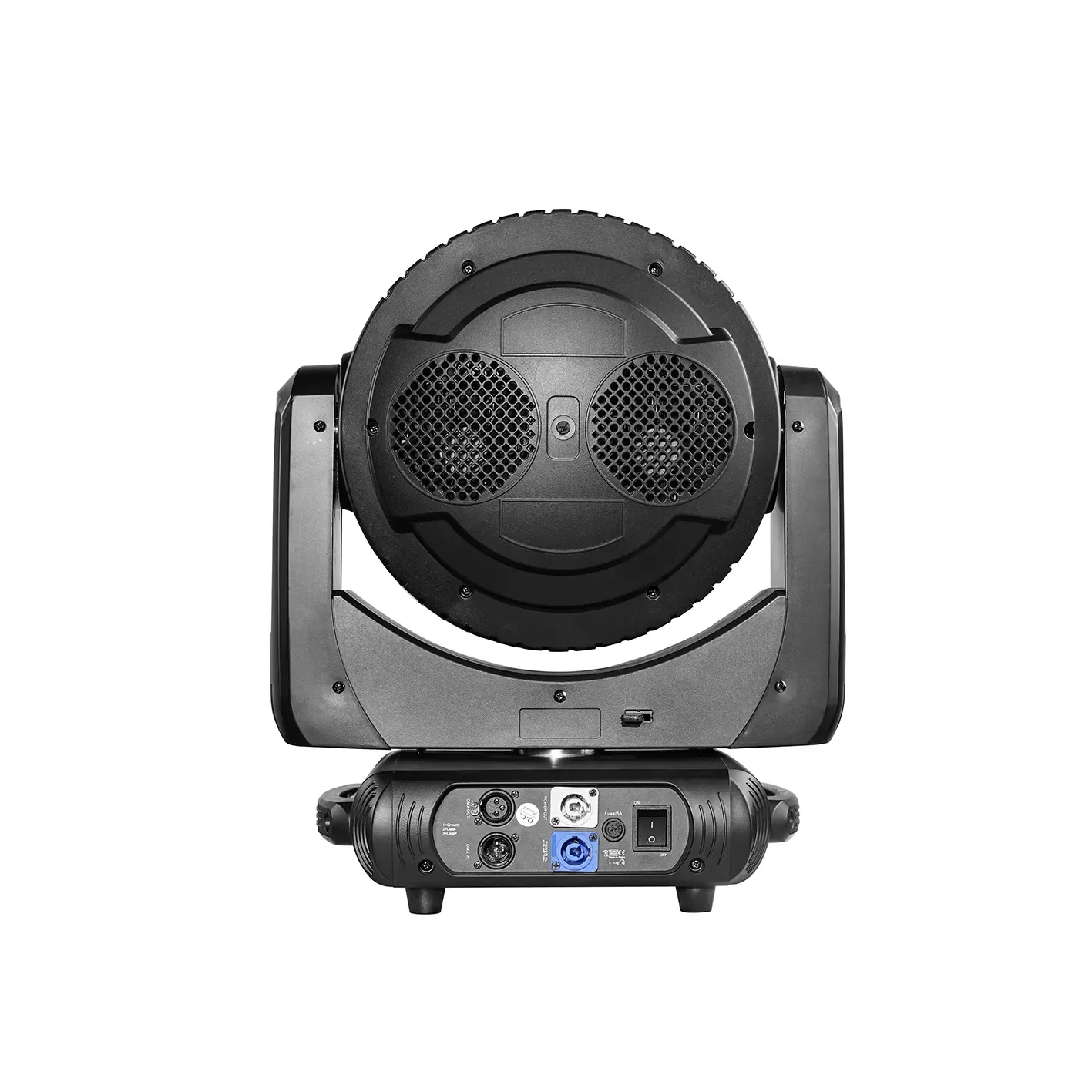

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-pin XLR DMX connectors IN/OUT

10Display System5

2.4″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

11Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management (output decreased when over heat)

12Power Supply4

Electronic power supply

AC90-240V 50/60Hz

PowerCON IN/OUT with swtich and fuse

760W Power consumption

13Housing4

Moulded fire proof ABS PC; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

14Installation3

2*1/4 turn fastening Omega Clamps

(Adaptable vertically and horizontally)

1*Safety attachment point

15Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

16Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

17Weight2

N.W.: 15.2kg
G.W.: 18.7kg

18Dimensions2

Product Dimensions: 231(D)*405 (W)*440(H)mm
Packing Dimensions: 390(D)*620(W)*510(H)mm

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

FLYEYE 1940FP

The FLYEYE 1940FP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. It features 19x40W 4-in-1 RGBW LEDs integrated in specially designed optical lens with awesome lumen ratio in the front. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects. The strip light in the front head delivers magic and vivid dynamic lighting effect created by 76*0.2W 3-IN-1 SMD RGB LEDs.

The ZOOM system ranges from 6° to 60°with smooth and quiet working. The fixture will bring brilliant dazzling hard BEAM effect when it zooms to 6°. And it will bring pure and even wash coverage effect when it zooms to 60°.

The fixture provides 4 DMX modes that fulfill the needs of different professional lighting designers. It’s with fast, quiet and precise PAN/TILT movement, and low noise cooling system though it’s a high power light.

It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.

03Documents1 file · 2.5 MB
