Sheet 05.678

Color Imagination · Wash

FLYEYE 740FP

ModelFE740

The FLYEYE 740FP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects.

Light source: 7*40W RGBW 4-in-1 LEDs
Power consumption: 350W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 10kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 18 groups · 81 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source7

Source: 7*40W RGBW 4-in-1 LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H; The life span may vary depending on several following
factors but not limited to: Environmental Conditions,; Power/Voltage, Usage Patterns (On-Off Cycling),; Control, and Dimming, etc)

02Optics4

7PCS high efficiency acrylic lens

Optimized light pipe for higher LED efficiency

4°-60°Smooth and quiet linear motorized zoom

360°Continuous front lends rotation with variable speed

03Movement7

PAN movement: 540° (8/16 bit)
TILT movement: 270° (8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT; movement with low noise operation; Scan position memory, auto reposition after unexpected movemen; PAN/TILT reversible

04Color System6

Pixel mapping capability with each LED; Sophisticated 4 colors RGBW mixed; Even and soft light coverage with pure mixing; Linear color temperature adjustment; Preset color macros
2 Color modes: RGWB/CMY

05Visual Effect5

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

Ringlike LED pixel strip for magic visual effects

Show the full specificationHide the rest of the specification13 more groups · 52 values

06Strobe Effect4

0-25Hz high speed shutter/strobe effect with variable speed

Random strobe effect with variable speed

Preset pulse strobe effect

Differenct forground/background strobe effect

07Dimming System2

0-100% Smooth linear LED dimming

Fine dimming control

08Control System8

12/16/19/39 DMX channels USITT DMX-512?

DMX512, master-slave, sound activated or auto operation?

Sound control sensitivity adjustable

RDM available (Remote Device Management)

Multi preset internal programs?

DMX recorder and edit function integrated?

Shielded input signal protection for stable signal without interference

3-Pin XLR connectors IN/OUT

09Display System5

2.4" TFT LCD display

English/Chinese menu

4 Control buttons 180°

Reversible for LCD display

Display auto OFF

10Cooling System5

Advanced cooling system integrated aluminum and copper with liquid

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

(output decreased when over heat)

11Power Supply4

Electronic power supply

AC100-240V 50/60Hz

PowerCON IN/OUT with swtich and fuse

350W Power consumption

12Housing4

Moulded fire proof ABS PC; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

13Installation3

2*1/4 turn fastening Omega Clamps

(Adaptable vertically and horizontally)

1*Safety attachment point

14Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25 to 45 ambient temperature; IP20 protection rating

15Compliance4

CE?

2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU - Electromagnetic Compatibility (EMC)

2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

16Weight2

N.W.: 10kg
G.W.: 12.3kg

17Dimensions2

Product Dimensions: 223.6(D)*307 (W)*380.2(H)mm
Packing Dimensions: 310(D)*415(W)*510(H)mm

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

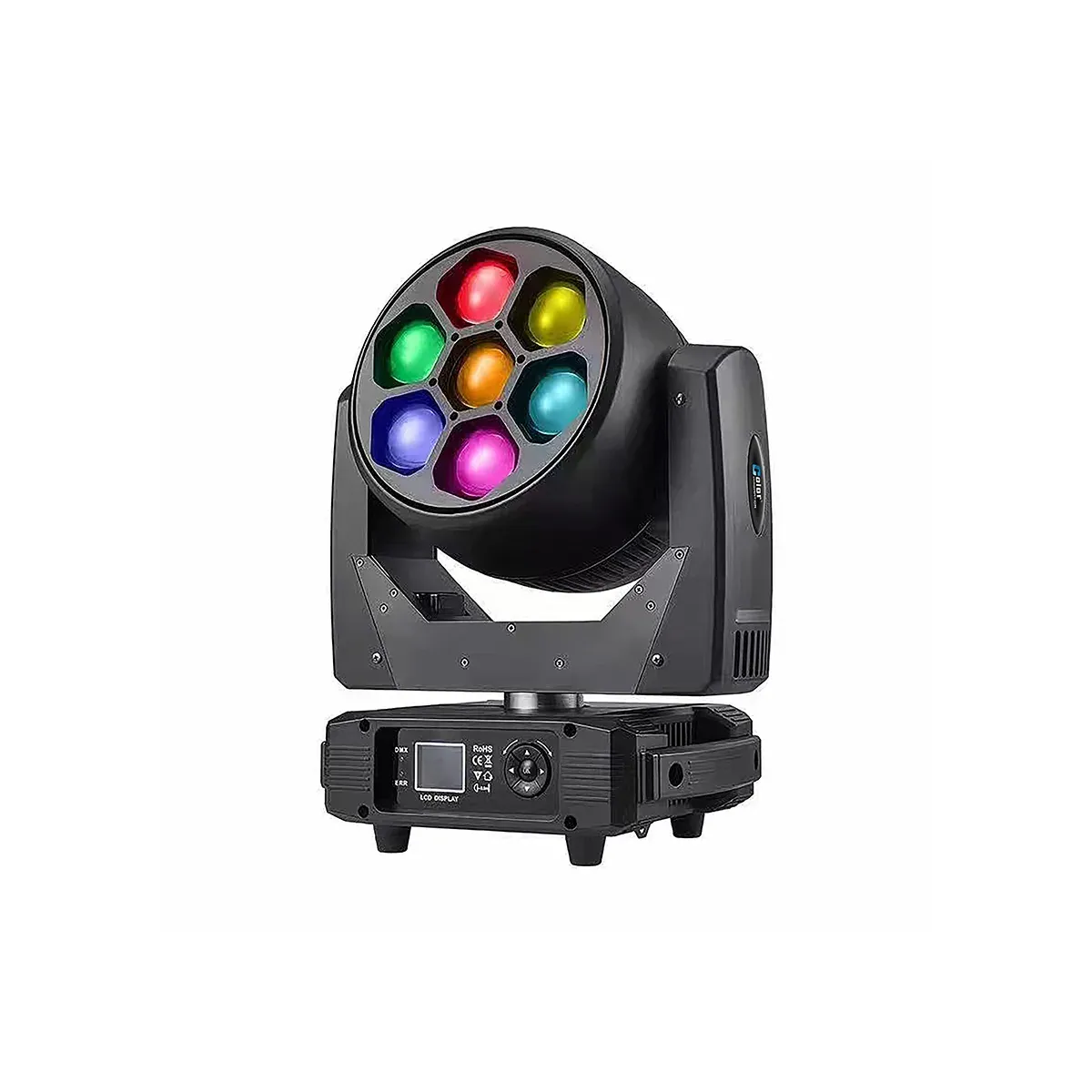

FLYEYE 740FP

The FLYEYE 740FP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. It features 7x40W 4-in-1 RGBW LEDs integrated in specially designed optical lens with awesome lumen ratio in the front. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects.

The ZOOM system ranges from 4° to 60°with smooth and quiet working. The fixture will bring brilliant dazzling hard BEAM effect when it zooms to 4°. And it will bring pure and even wash coverage effect when it zooms to 60°.

The fixture provides 5 DMX modes that fulfill the needs of different professional lighting designers. It’s with fast, quiet and precise PAN/TILT movement, and low noise cooling system though it’s a high power light.

It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.
