FLYEYE 3740FP

ModelFE3740

The FLYEYE 3740FP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects.

Light source: 37*40W 4-in-1 LEDs, RGBW
Power consumption: 1564W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 25.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 18 groups · 74 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source4

Source: 37*40W 4-in-1 LEDs, RGBW; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics4

37PCS high efficiency acrylic lens

Optimized light pipe for higher LED efficiency

4°-60°Smooth and quiet linear motorized zoom with fine control

360°Continuous front lends rotation with variable speed

03Movement6

PAN movement: 540° (8/16 bit)
TILT movement: 210° (8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Colors5

Pixel mapping capability with each LED

Sophisticated 4 colors RGBW mixed

Even and soft light coverage with pure mixing

Preset color macros

2800K-8500K linear color temperature adjustment

05Visual Effect5

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect

Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

06Strobe Effect4

0-25Hz shutter/strobe effect with variable speed

Random strobe effect with variable speed

Preset pulse strobe effect

Different foreground/background strobe effect

Show the full specificationHide the rest of the specification12 more groups · 46 values

07Dimming System2

0-100% Smooth linear LED dimming

Fine tune of dimming

08Control System8

21/22/35/36/111/148 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

Sound control sensitivity adjustable

Multi preset internal programs

RDM available (Remote Device Management)

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin&5-Pin XLR connectors IN/OUT

09Display System5

2.8″ TFT LCD display

English/Chinese menu

5 Control buttons

180°Reversible for LCD display

Display auto OFF

10Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

11Power Supply4

Electronic power supply

AC100-240V 50/60Hz

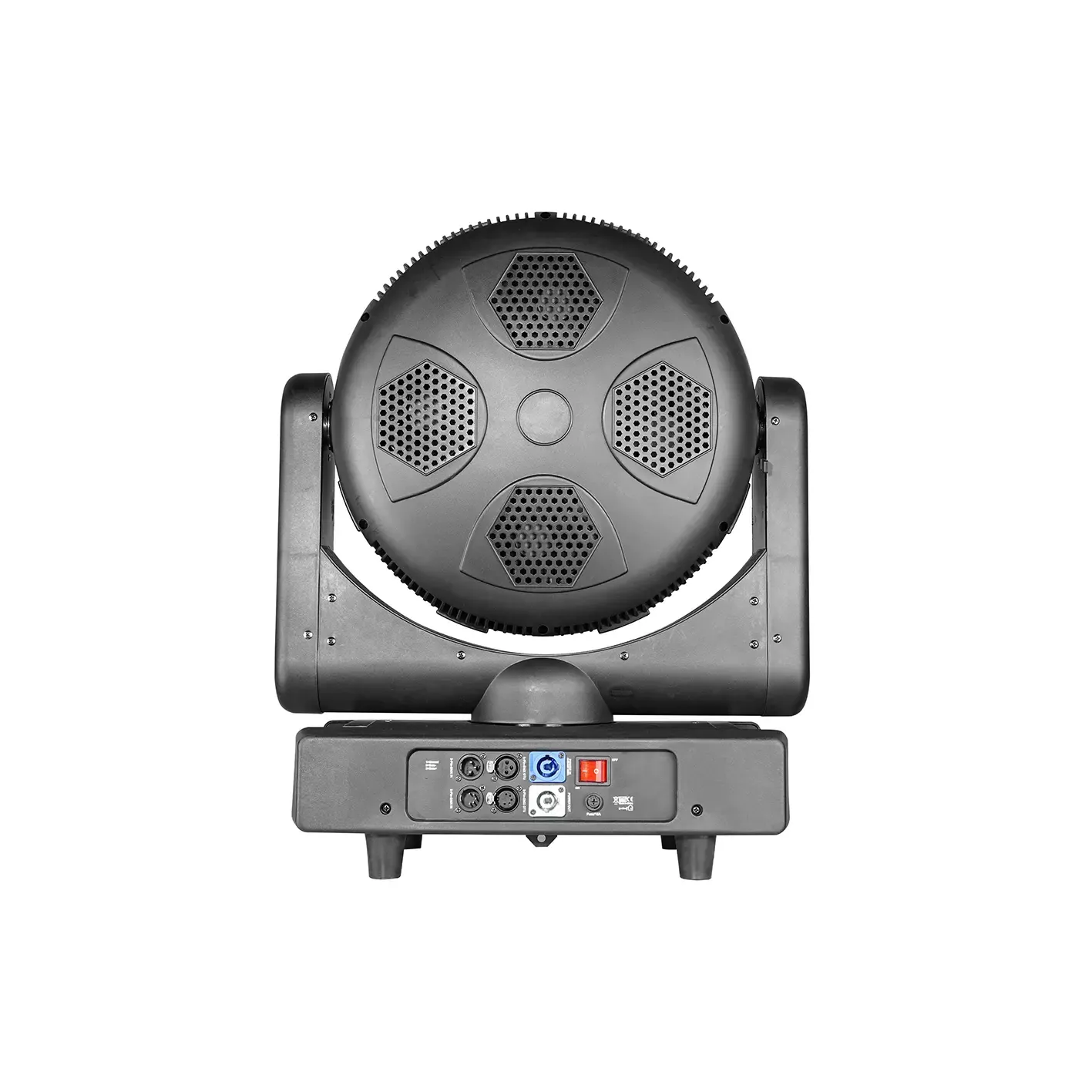

PowerCON IN/OUT with swtich and fuse

1564W Power consumption

12Housing4

Molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

13Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

14Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

15Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

16Weight2

N.W.: 25.6kg
G.W.: 28.8kg

17Dimensions2

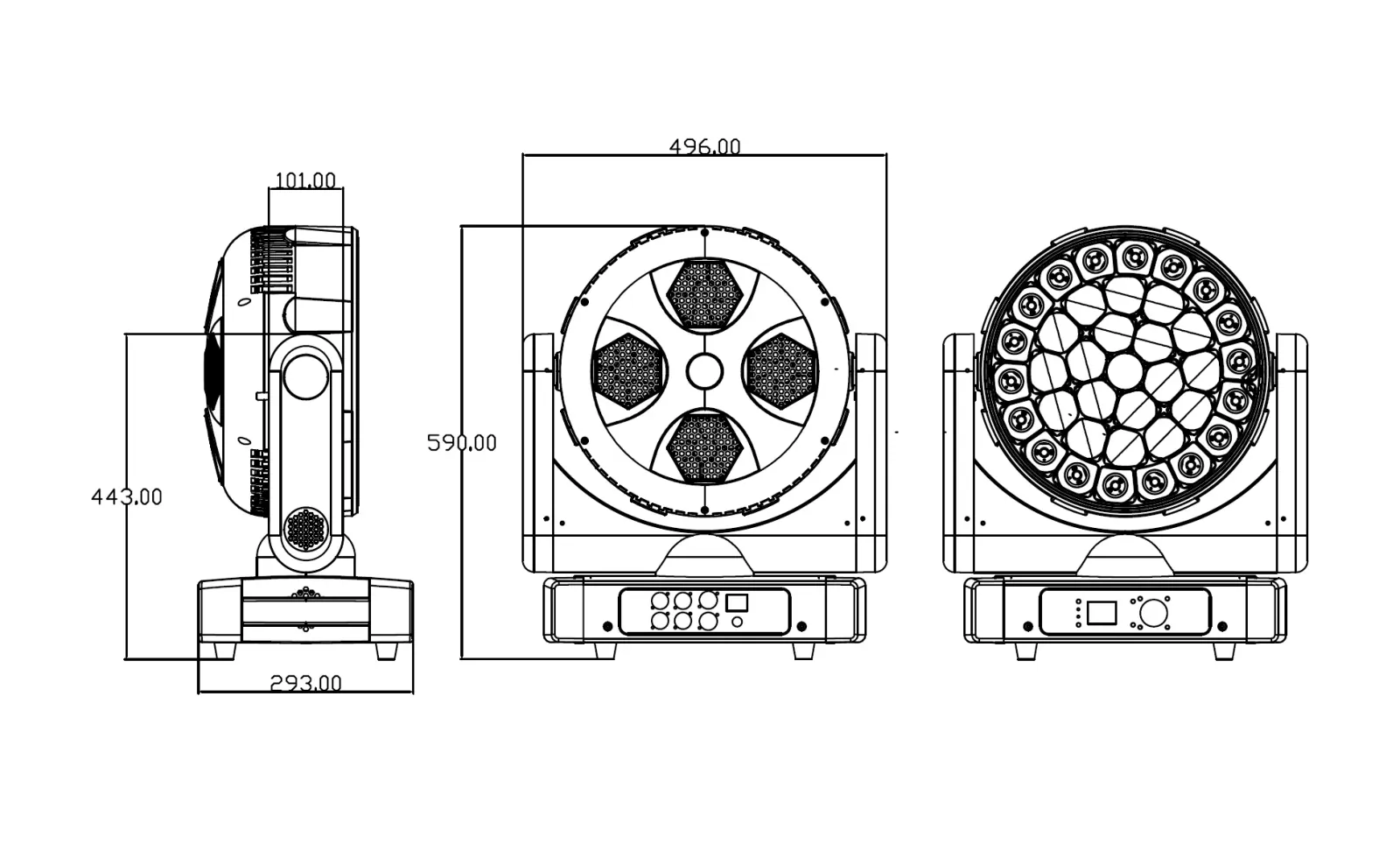

Product Dimensions: 293(D)*496(W)*590(H)mm
Packing Dimensions: 745(D)*615(W)*415(H)mm

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

Omega STANDARD code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

FLYEYE 3740FP

The FLYEYE 3740FP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. It features 37*40W 4-in-1 RGBW LEDs integrated in specially designed optical lens with awesome lumen ratio in the front. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects.

The ZOOM system ranges from 4° to 60°with smooth and quiet working. The fixture will bring brilliant dazzling hard BEAM effect when it zooms to 4°. And it will bring pure and even wash coverage effect when it zooms to 60°.

The FLYEYE3740FP provides 6 DMX modes that fulfill the needs of different professional lighting designers. It’s with fast, quiet and precise PAN/TILT movement, and low noise cooling system though it’s a high power light.

It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.
