Sheet 05.976

Color Imagination · Other fixtures

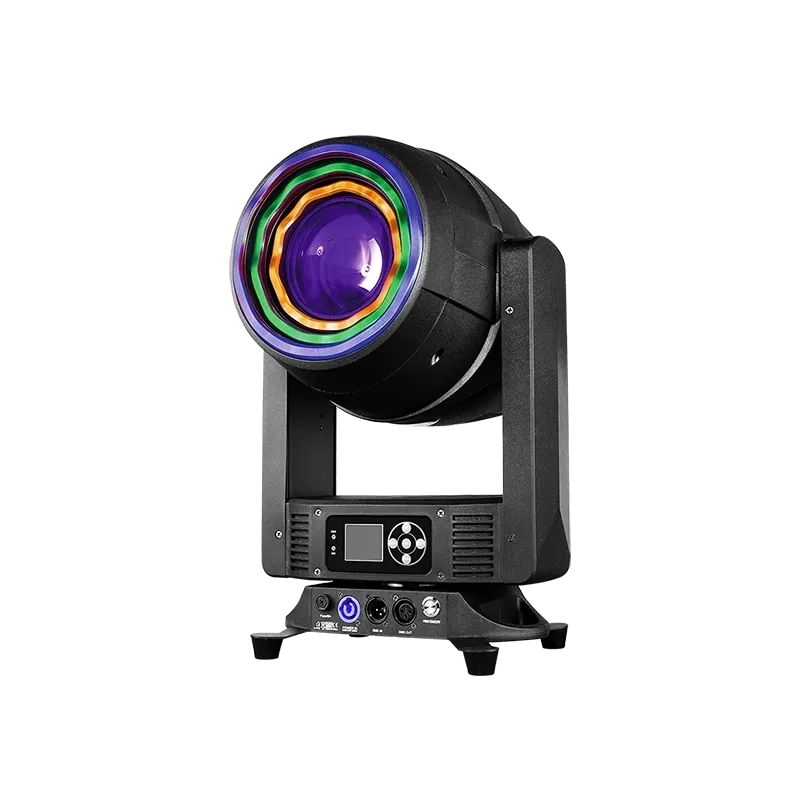

L-SPOT 150

ModelLS150

SPOT+BEAM+WASH, White Laser, 3-Ring Strip Effect, 2 Prism Wheels, Animation Wheel, Continuous PAN/TILT

Light source: 1*150W White LASER module
Power consumption: 227W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 14.24kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 23 groups · 91 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source7

Source: 1*150W White LASER module; (30+36+42)*0.2W 3-IN-1 SMD RGB LEDs
Color Temperature: 9000K
CRI: ≥70; Flicker free operation for broadcast TV and FILM
Life Span: >12000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics6

A set of high resolution and precise optics; Smooth and quiet linear motorized zoom

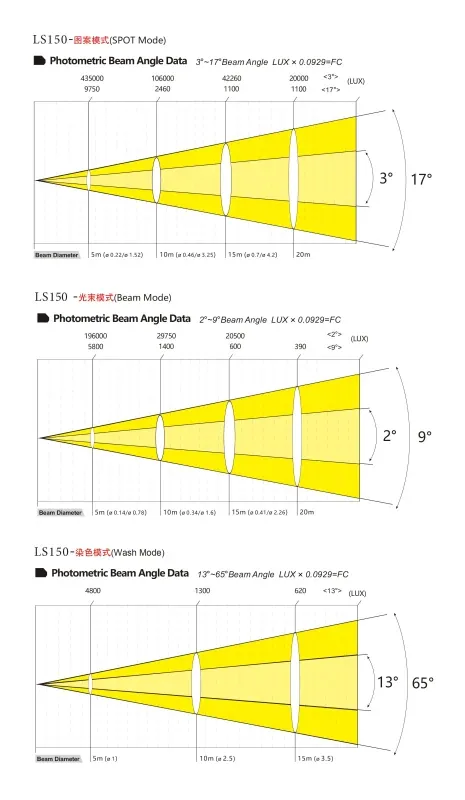

SPOT Mode: 3°-17°
Beam Mode: 2°-9°
Wash Mode: 13°-65°; Smooth and precise linear focus

03Movement10

PAN: 2 modes; 1. 360°Continuous movement; 2. 540°(8/16 bit)
TILT: 2 modes; 1. 360°Continuous movement; 2. 270°(8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Color System3

1 Color wheel with 13 dichroic colors plus open (half color mode available)

Variable direction rainbow effect with speed adjustable

6-Color effect wheel

Show the full specificationHide the rest of the specification19 more groups · 65 values

05Strip Effect1

3- ring strip effect with different built-in macro effects (variable speed control)

06Gobo System4

1 Rotating gobo wheel with 8 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo size: 15mm (external)/5mm (inner)/1.1mm (thickness); 1 Static gobo wheel with 19 gobos plus open; Gobo overlay (gobo morphing)

07Animation System1

Special dynamic flame or water effect, etc

08Prism System7

2 Prism wheel design
Prism 1: 4 different prisms, 4-Facet linear prism/3-Facet circular prism/4-Facet circular prism/6-facet circular prism with variable speed and direction
Prism 2: 4 different prisms, 6-Facet linear prism/8-facet circular prism/16-facet circular prism/6+12-facet circular prism with variable speed and direction; Prism indexing; Prism overlay (prism morphing); 16 Kinds of prism morphing effect; 24 Kinds of prism effect in total

09Wash System2

Frost filter

Even and soft coverage

10Strobe Effect2

0-25Hz Strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect

11Dimming System1

0-100% Smooth linear dimming

12Control System9

27 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin and 5-pin XLR DMX connectors IN/OUT

13Software Update2

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

14Display System5

1.44″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

15Cooling System4

Advanced cooling system integrated aluminum

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

16Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

227W Power consumption

17Housing4

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

18Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

19Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

20Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

21Weight2

N.W.: 14.24kg
G.W.: 16.17kg

22Dimensions2

Product Dimensions: 261.8(D)*297.9(W)*513.7(H)mm
Packing Dimensions: 655(D)*380(W)*355(H)mm

23Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

L-SPOT 150

The L-SPOT 150 is a new generation professional and intelligent compact WHITE LASER BSW moving head light designed with smooth and linear zoom. The SPOT features a new reliable, sage and fully sealed white laser module delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. The 3-ring strip light in the front head delivers magic and vivid dynamic lighting effect created by 108*0.2W 3-IN-1 SMD RGB LEDs.

It offers a full complement of other professional characteristics, rotating gobo wheel, static gobo wheel, color wheel, 6-color effect wheel, animation wheel, 2 prism wheels (8 prisms), frost filter, motorized focus, linear dimmer, strobe, etc. It provides 360°continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the L-SPOT 150 achieves more than just a striking look.

It’s fast and quiet operation WHITE LASER BSW moving head. The fixture is tuned with proper refresh rate for flicker free operation for TV and FILM. It’s a perfect option for live concerts, TV productions, road shows, theatre, conference halls, club/bars, etc.
