Sheet 05.978

Color Imagination · Other fixtures

MSPOT 600P

ModelMS600P

The MSPOT 600P is a professional and intelligent LED moving head BSW designed with a full CMY color mixing system plus CTO color correction, smooth and linear zoom from 6.5°-41°.

Light source: 600W White LED module
Power consumption: 700W Power consumption
Power supply: AC100-240V 50/60Hz

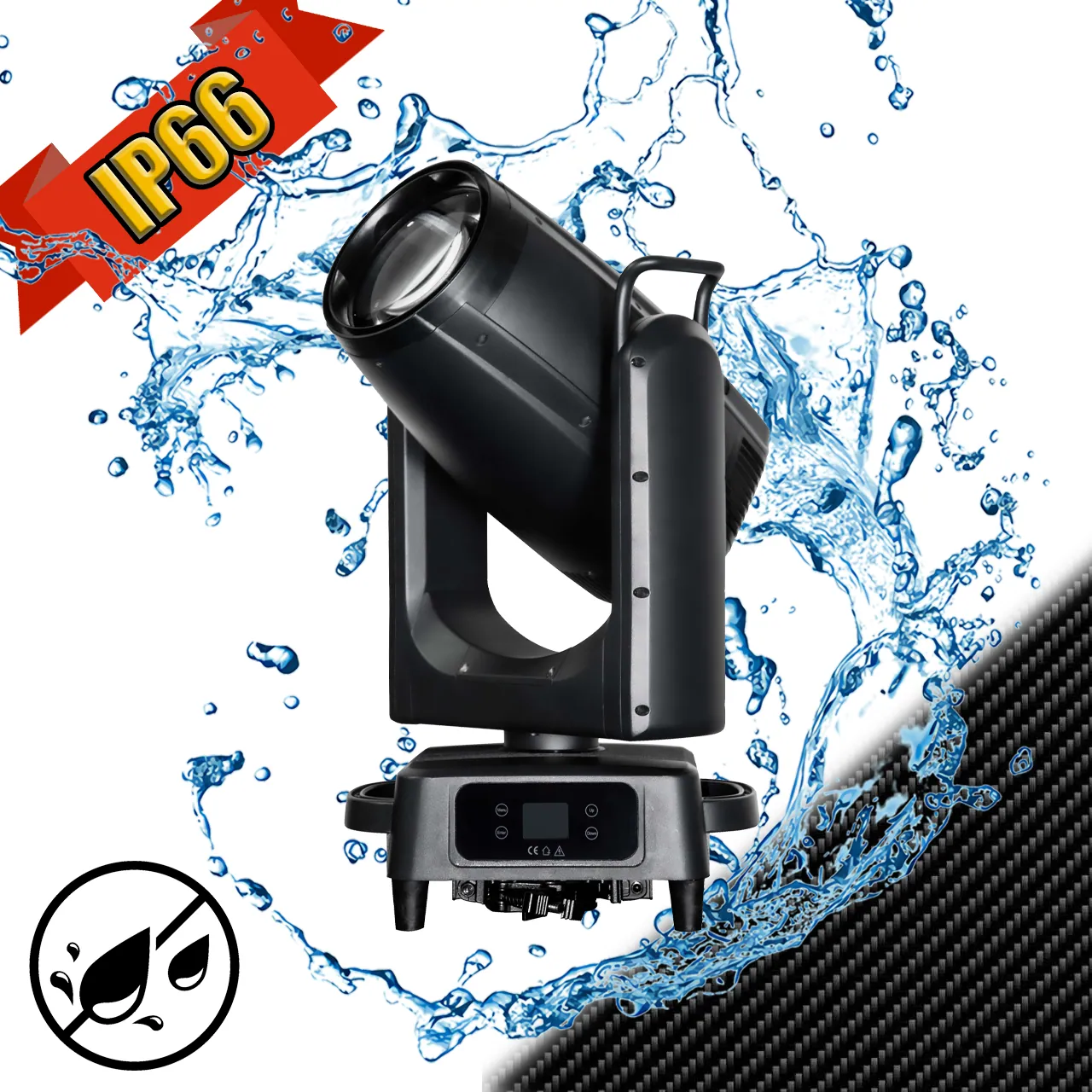

Ingress protection: IP66 protection rating
Net weight: 22.8kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 22 groups · 76 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 600W White LED module
Color Temperature: 8500K (customizable)
CRI: ≥70 (customizable); Flicker free operation for broadcast TV and FILM
Life Span: 30000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics3

A set of high resolution and precise optics

6.5°-41°Smooth and quiet linear motorized zoom

Smooth electronic focus

03Movement7

PAN movement: 540°(8/16 bit)
TILT movement: 270°(8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT time controllable; PAN/TILT reversible and swap

04Color System4

Full CMY color mixing system with linear CTO color correction

2700-6500K CTO

1 Color wheel with 5 dichroic colors plus open

Variable direction rainbow effect with speed adjustable

05Gobo System4

1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise

Gobo indexing available

1 Static gobo wheel with 6 gobos plus open+animation effect

Gobo overlay (gobo morphing)

06Prism System3

8-Facet prism with variable speed and direction

6-Facet linear prism with variable speed and direction

Prism overlay (prism morphing)

Show the full specificationHide the rest of the specification16 more groups · 49 values

07Strobe Effect2

0-25T/sec high speed LED shutter/strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect

08Wash System1

Even and soft coverage

09Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curve modes, linear/square law/Inv square law/S-curve

10Control System6

26 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

IP rated 3-Pin XLR DMX connectors IN/OUT

11Software Update2

Software up-datable through DMX connectors

Multi units up-datable in daisy chain

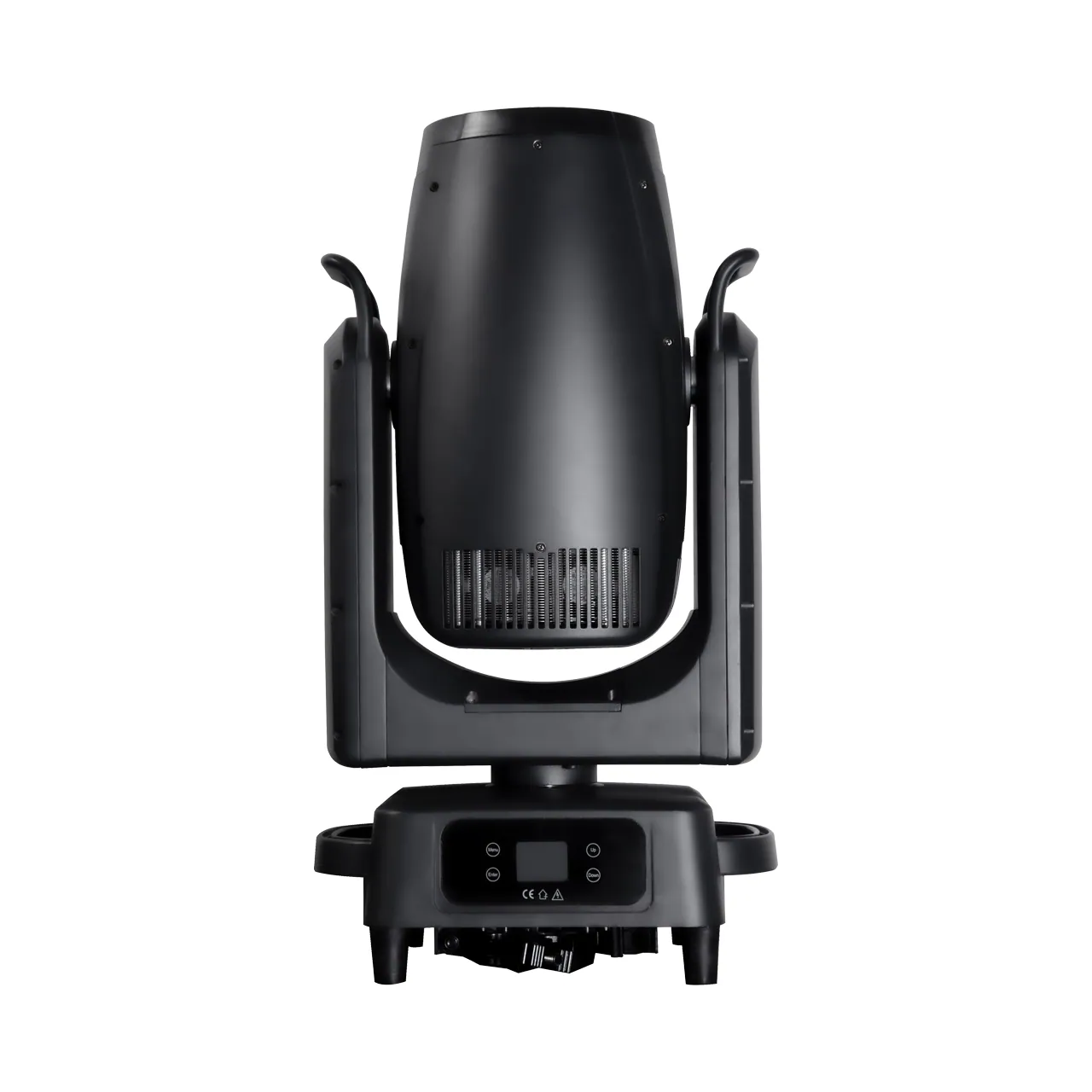

12Display System5

1.8″ TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

13Cooling System1

Advanced cooling system integrated aluminum and copper with liquid

14General3

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

15Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

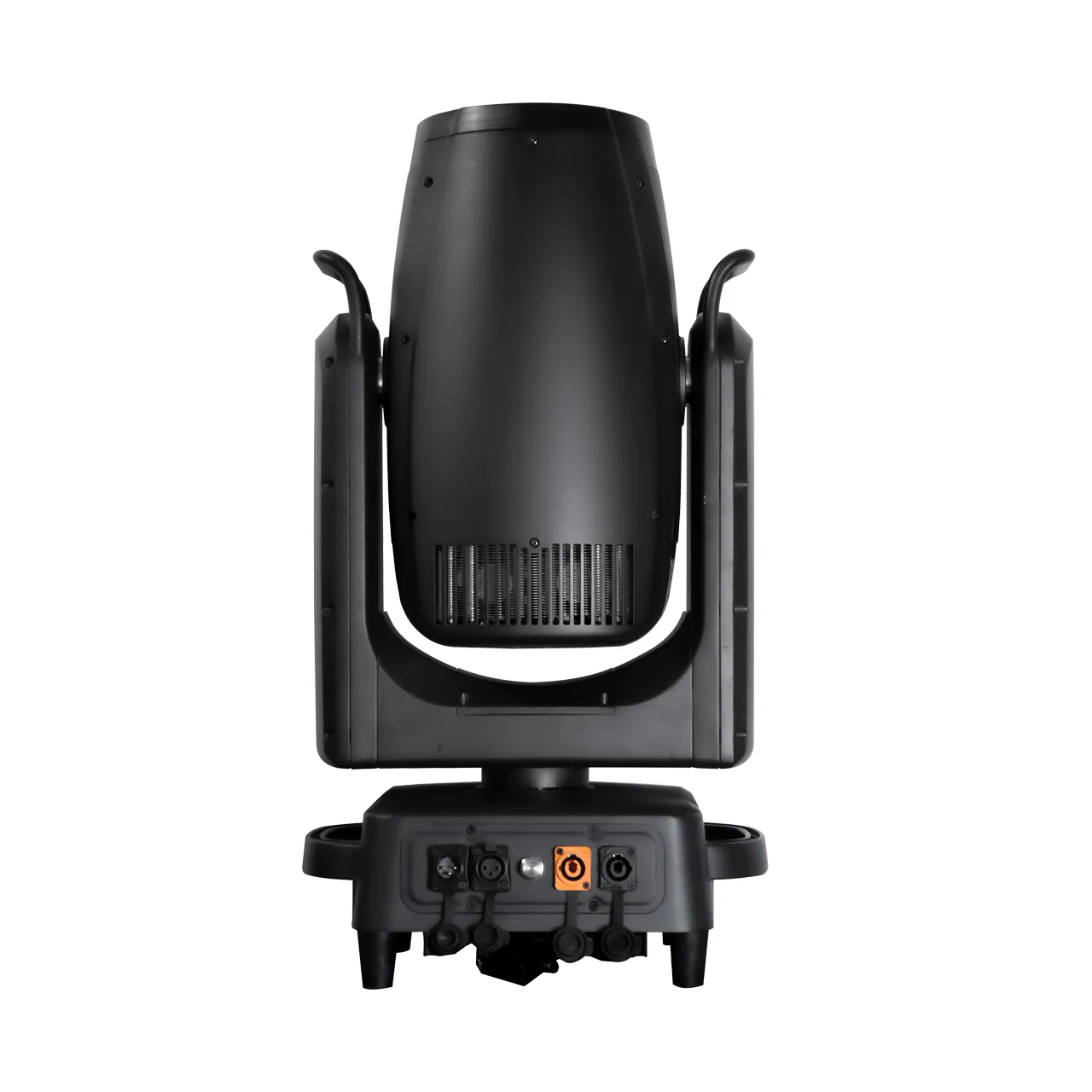

IP rated powercon connectors IN/OUT

700W Power consumption

16Housing4

Die-cast aluminum housing+plastic; Chassis constructed from aluminum and steel plates; Two side handles on both base and arm
Exterior finish: Black

17Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

18Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

19Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

20Weight2

N.W.: 22.8kg
G.W.: 25.9kg

21Dimensions2

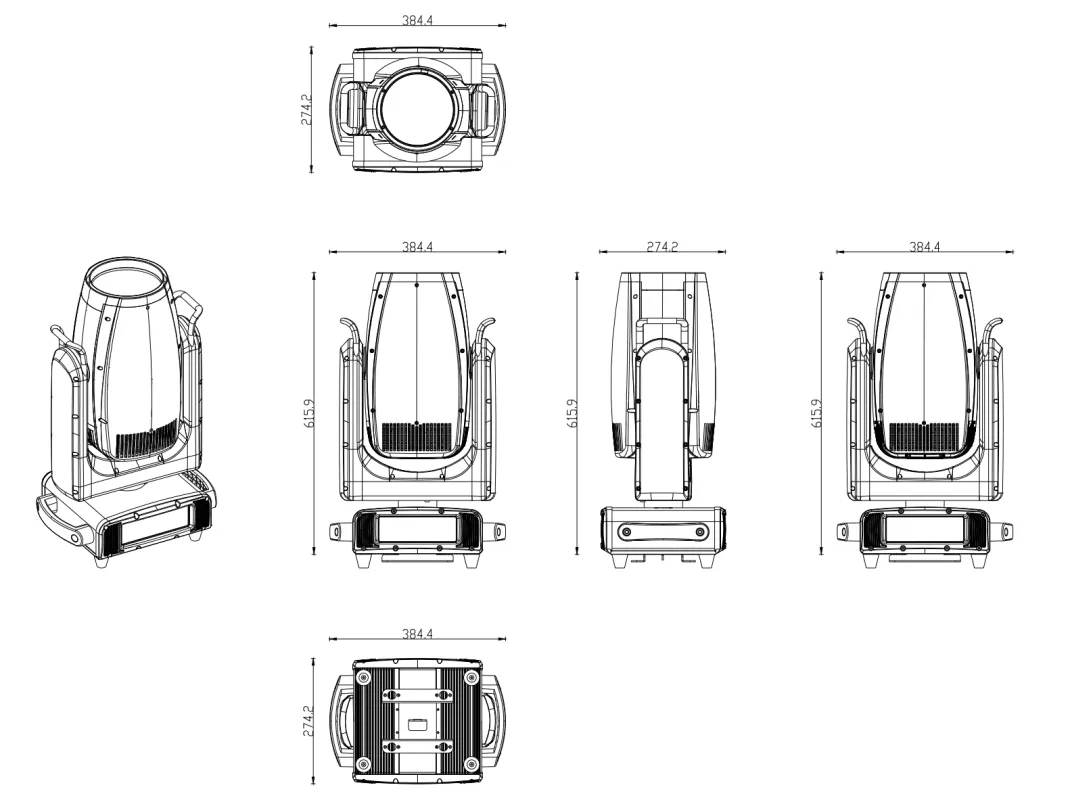

Product Dimensions: 263(D)*361(W)*638(H)mm
Packing Dimensions: 360(D)*795(W)*500(H)mm

22Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

MSPOT 600P

BEAM+SPOT+WASH, CMY+CTO, ZOOM (6.5°-41°)

The MSPOT 600P is a professional and intelligent LED moving head BSW designed with a full CMY color mixing system plus CTO color correction, smooth and linear zoom from 6.5°-41°. The fixture features a new high intensity and efficiency cool white 600W LED engine (8500K) delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, rotating gobo wheel, static gobo wheel, color wheel, prism wheel, frost filter, linear electronic focus, linear dimmer, variable speed shutter/strobe, full color 180° reversible TFT display with 4 control buttons, etc. The MSPOT 600P supports DMX, RDM (Remote Device Management)

As structure is perfectly designed with ultimate heat sink system, the MSPOT 600P will keep itself in excellent performance in all functions even though in raining, dirty, sandy or water environment. There will be no accumulation of dust or external impact on inside components like optics, gobos, color filters or the light source. And there will be no smoke fluid or humidity gathering inside.

It’s fast and quiet operation LED moving head spot. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. The applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.

03Documents1 file · 703 KB
