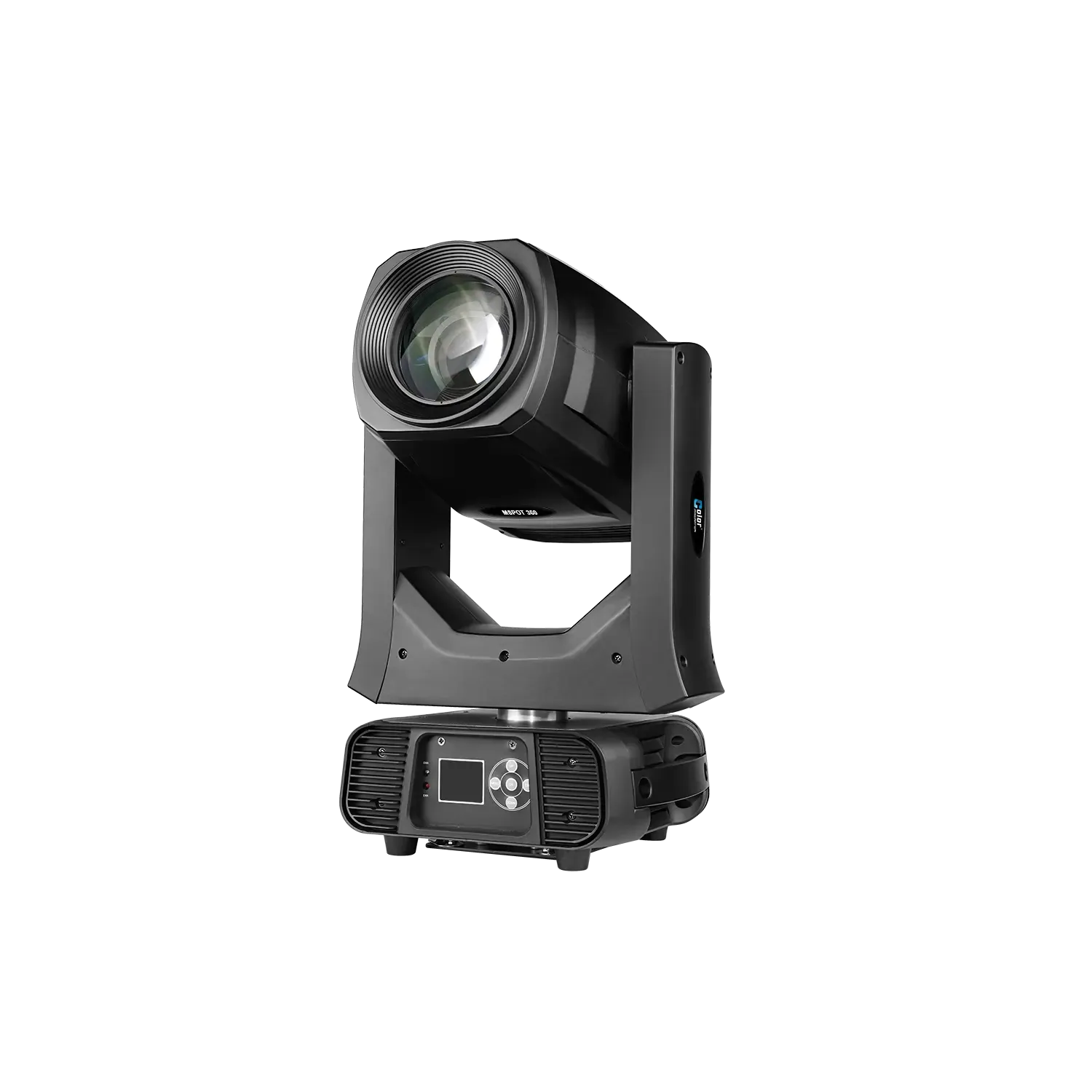

MSPOT 360

ModelMS360

The MSPOT 360 is an intelligent compact LED BSW moving head light designed with smooth and linear zoom from 4°-32°.

Light source: 1*320W White LED module
Power consumption: 395W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 14.1kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 73 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source7

Source: 1*320W White LED module
Color Temperature: 9500K(±500K)
CRI: ≥70; 16000 Lumen (Source); Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics5

A set of high resolution and precise optics; Smooth and quiet linear motorized zoom
SPOT Mode: 4°-32°
Beam Mode: 3°-18°; Smooth and precise linear focus

03Movement6

PAN: 540°(8/16 bit)
TILT: 270°(8/16 bit); Fast, quiet, smooth and precise 2-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Color System2

1 Color wheel with 13 dichroic colors plus open (half color mode available)

Variable direction rainbow effect with speed adjustable

05Gobo System3

1 Rotating gobo wheel with 8 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise

1 Static gobo wheel with 12 gobos plus open

Gobo overlay (gobo morphing)

06Prism System1

3-Facet circular prism with variable speed and direction

Show the full specificationHide the rest of the specification15 more groups · 49 values

07Wash System2

Frost filter

Even and soft coverage

08Strobe Effect2

0-25Hz LED shutter/strobe effect with variable speed

Preset variable random strobe and dimming pulse effect

09Dimming System1

0-100% Smooth linear LED dimming

10Control System6

17 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

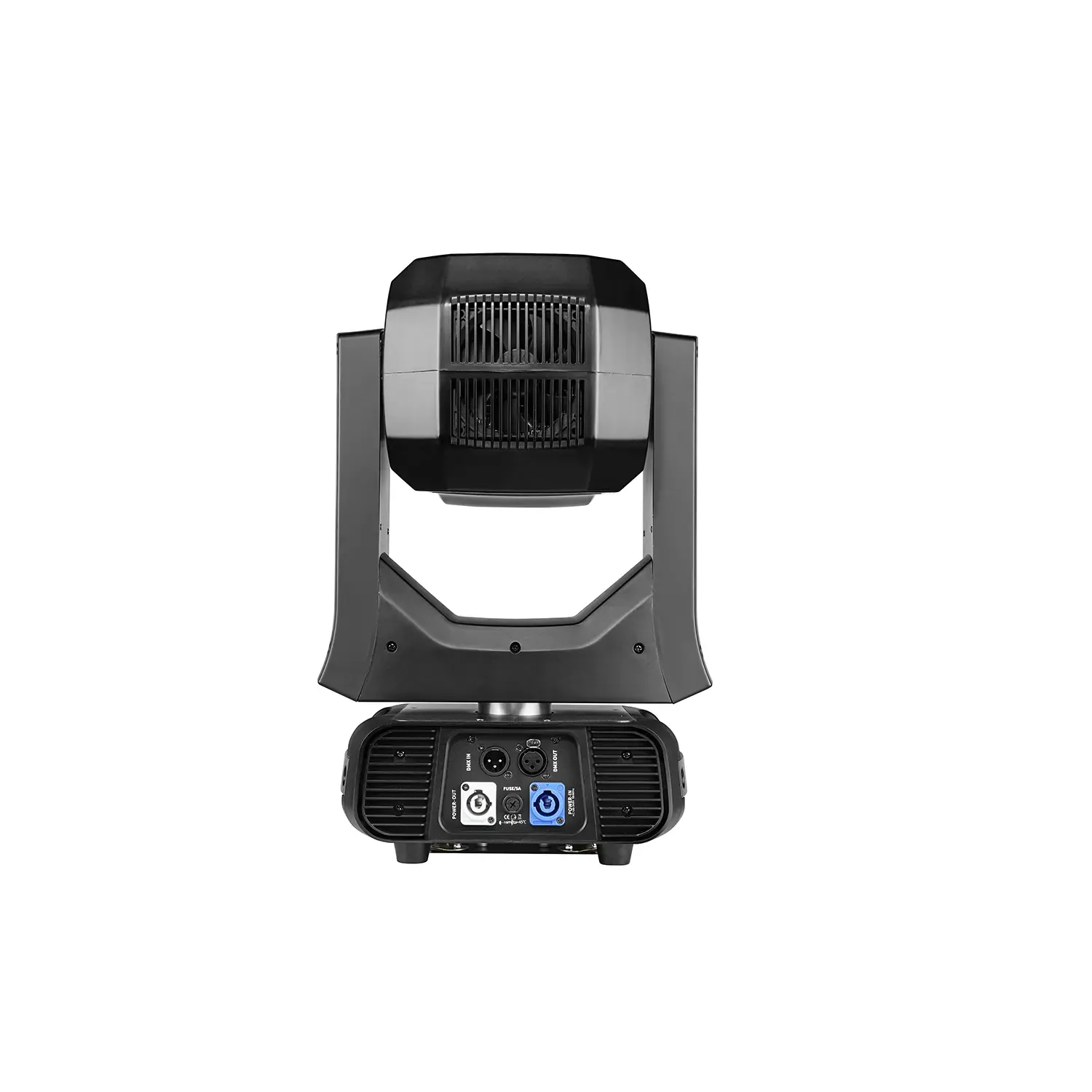

3-Pin and 5-pin XLR DMX connectors IN/OUT

11Software Update2

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

12Display System5

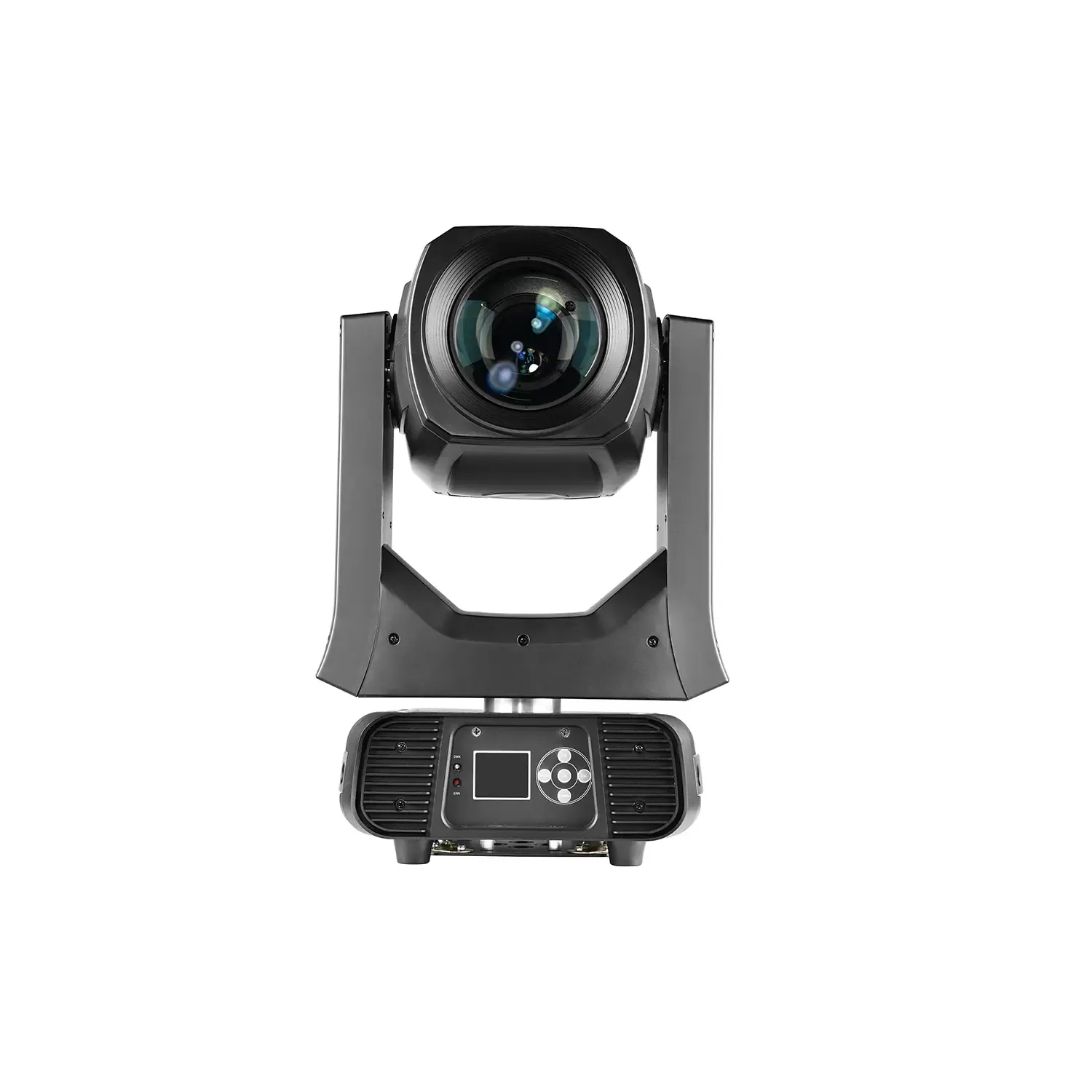

1.8″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

13Cooling System4

Advanced cooling system integrated aluminum

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management

14Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

395W Power consumption

15Housing4

High tension molded fire proof housing with ABS PC; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

16Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

17Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

18Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

19Weight2

N.W.: 14.1kg
G.W.: 17.8kg

20Dimensions2

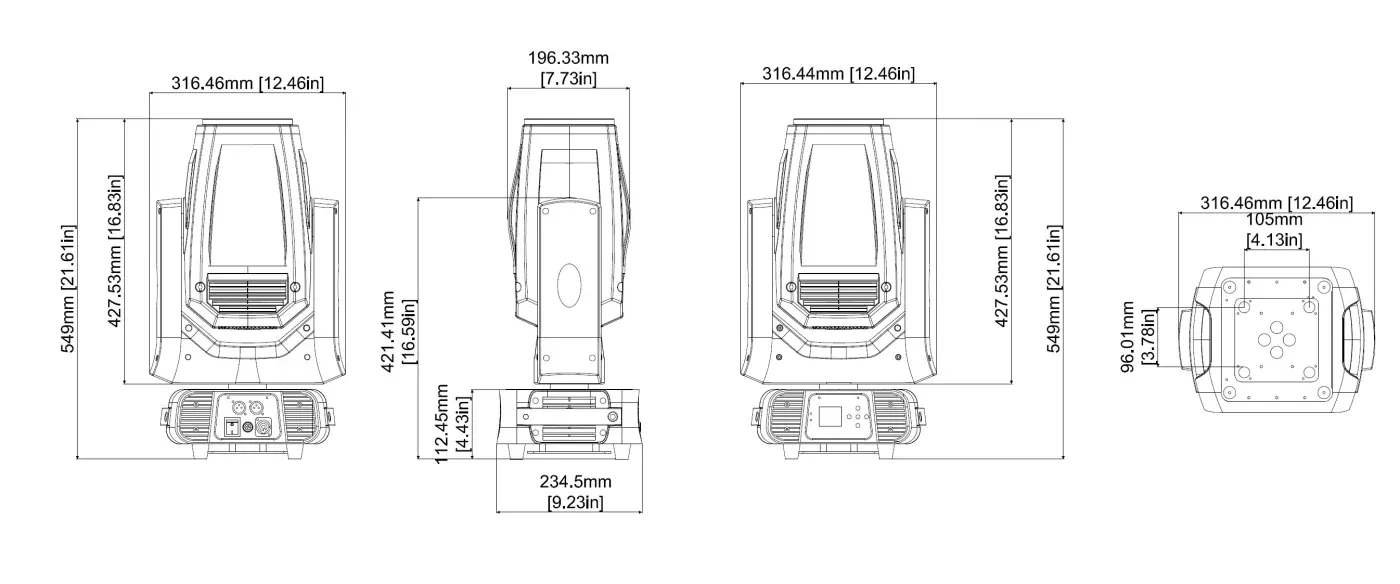

Product Dimensions: 234.5(D)*316.5(W)*549(H)mm
Packing Dimensions: 410(D)*450(W)*580(H)mm

21Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

MSPOT 360

SPOT+BEAM+WASH

The MSPOT 360 is an intelligent compact LED BSW moving head light designed with smooth and linear zoom from 4°-32°. The SPOT features a new high intensity and efficiency Appotronics 360W 9500K LED module delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage.

It offers a full complement of other professional characteristics, rotating gobo wheel, static gobo wheel, color wheel, 6-color effect wheel, prism wheel, frost filter, motorized focus, linear dimmer, strobe, etc. It provides fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the MSPOT 360 achieves more than just a striking look.

It’s fast and quiet operation LED BSW moving head. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for live concerts, TV productions, road shows, theatre, conference halls, club/bars, etc.
