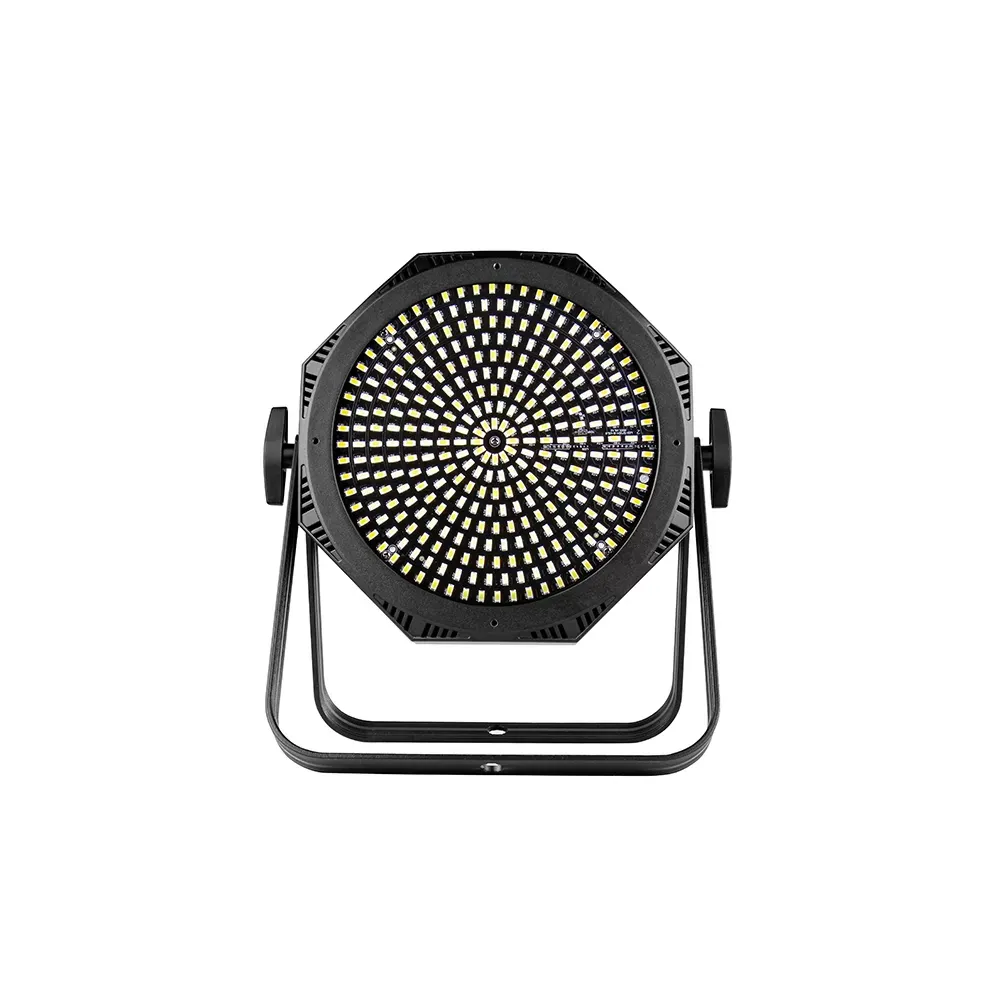

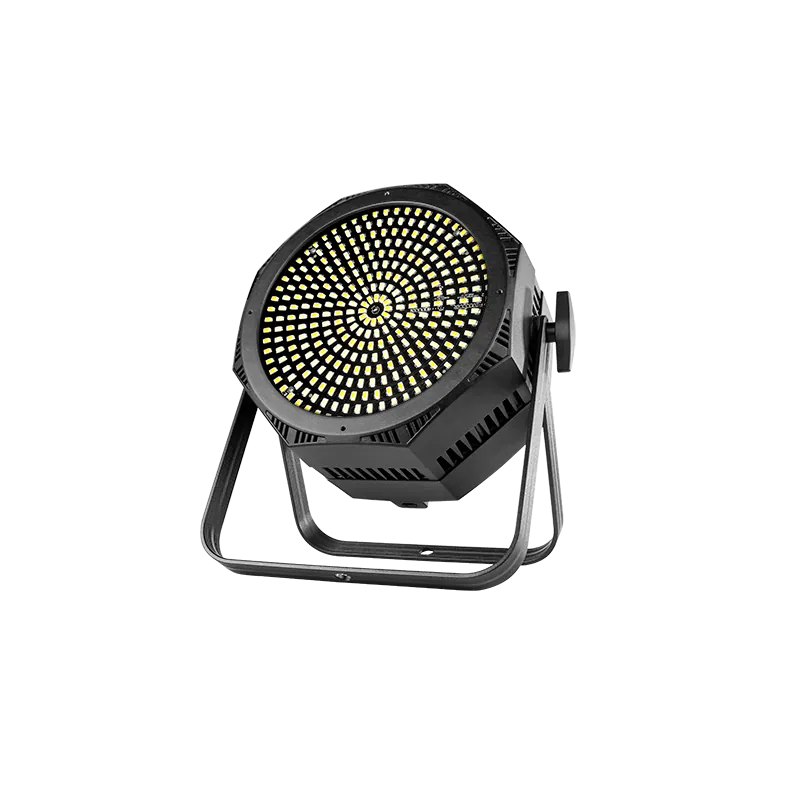

SMARTPAR 3245P

ModelIP3245

The SMARTPAR 3245 is an IP66 rated high power indoor LED flat strobe par light using 324*0.5W 5730 WW+CW LEDs which is designed with 9 individual rings. It’s available for 2500K-6500K color temperature adjustment.

Light source: 324*0.5W 5730 LEDs (WW+CW )
Power consumption: 177W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP66 protection rating
Net weight: 4.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 53 values

What this product is, in numbers.

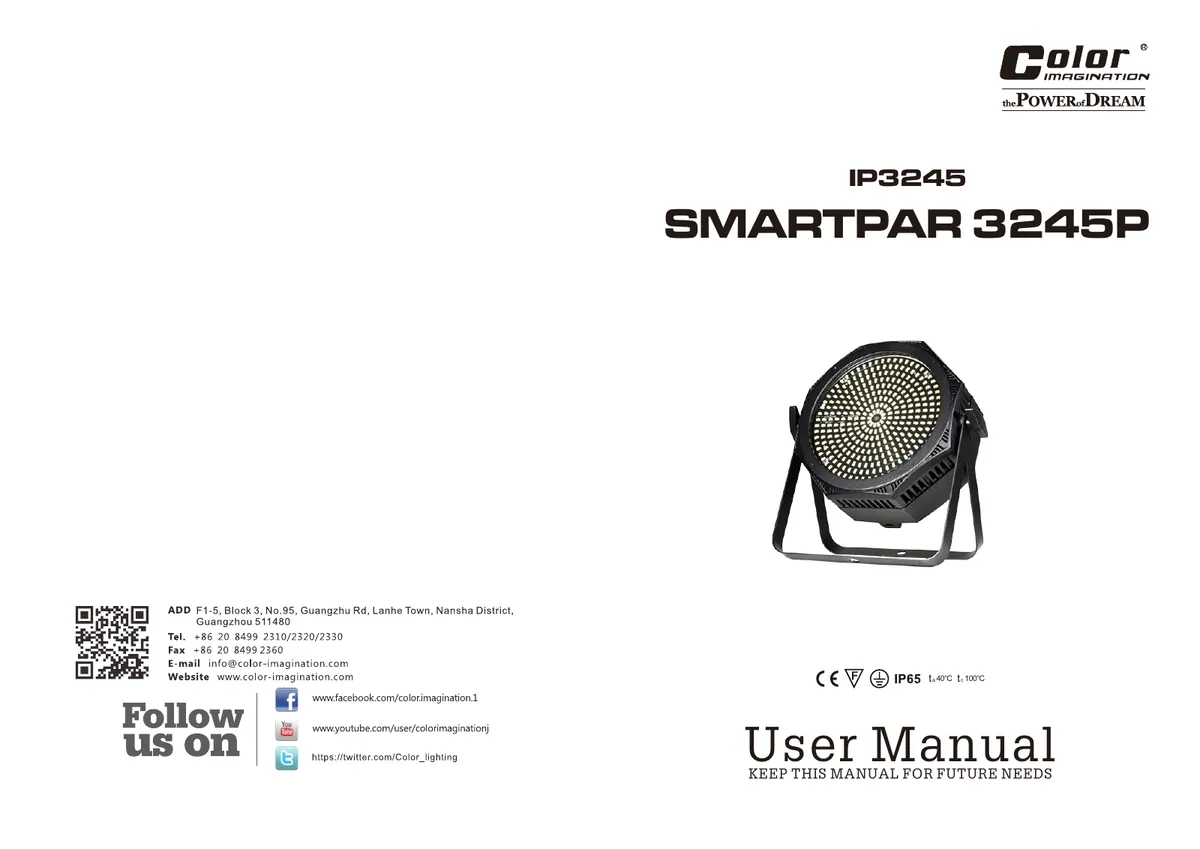

PDFUser manual2.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source5

Source: 324*0.5W 5730 LEDs (WW+CW ); 9 Individual control rings; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics2

120°Field angle

High output

03Color System3

Warm white+cold white

Smooth and pure color mixing capability

CTO, 2500K-6500K color temperature adjustment

04Built-in Programs2

Different built-in dynamic effects with variable speed

Different preset colors

05Strobe Effect1

0-25Hz LED shutter/strobe effect with variable speed

06Dimming System1

0-100% Smooth linear LED dimming

Show the full specificationHide the rest of the specification10 more groups · 39 values

07Control System10

3/4/5/7/9 DMX channels DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available

(Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

Waterproof RJ45 etherCON IN

(Optional with Art-Net)

Waterproof SEETRONIC’s 3-Pin or 5-pin XLR DMX connectors IN/OUT

08Display System5

1.44” TFT LCD display

4 Touch control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal and error monitoring indicators

09Cooling System3

Advanced low noise self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

Waterproof SEETRONIC’s TRUE1 powerCON

177W Power consumption

11Housing4

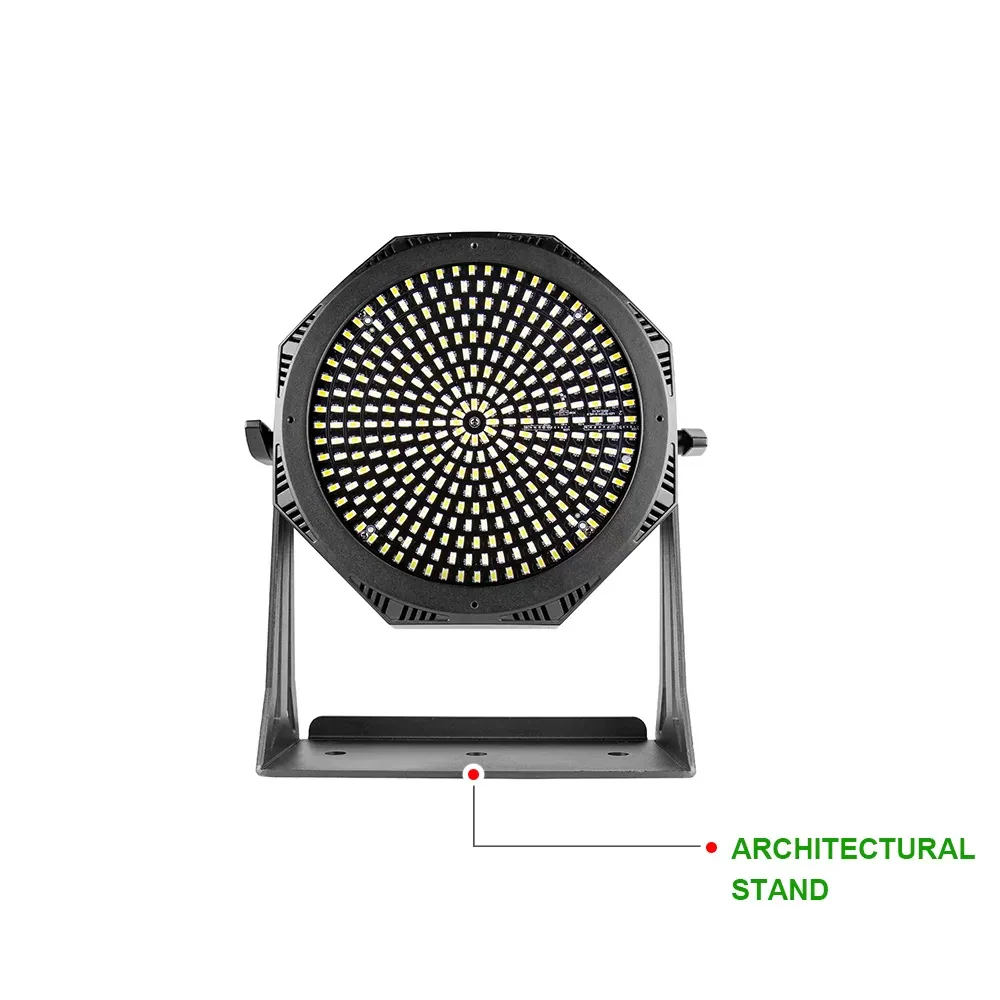

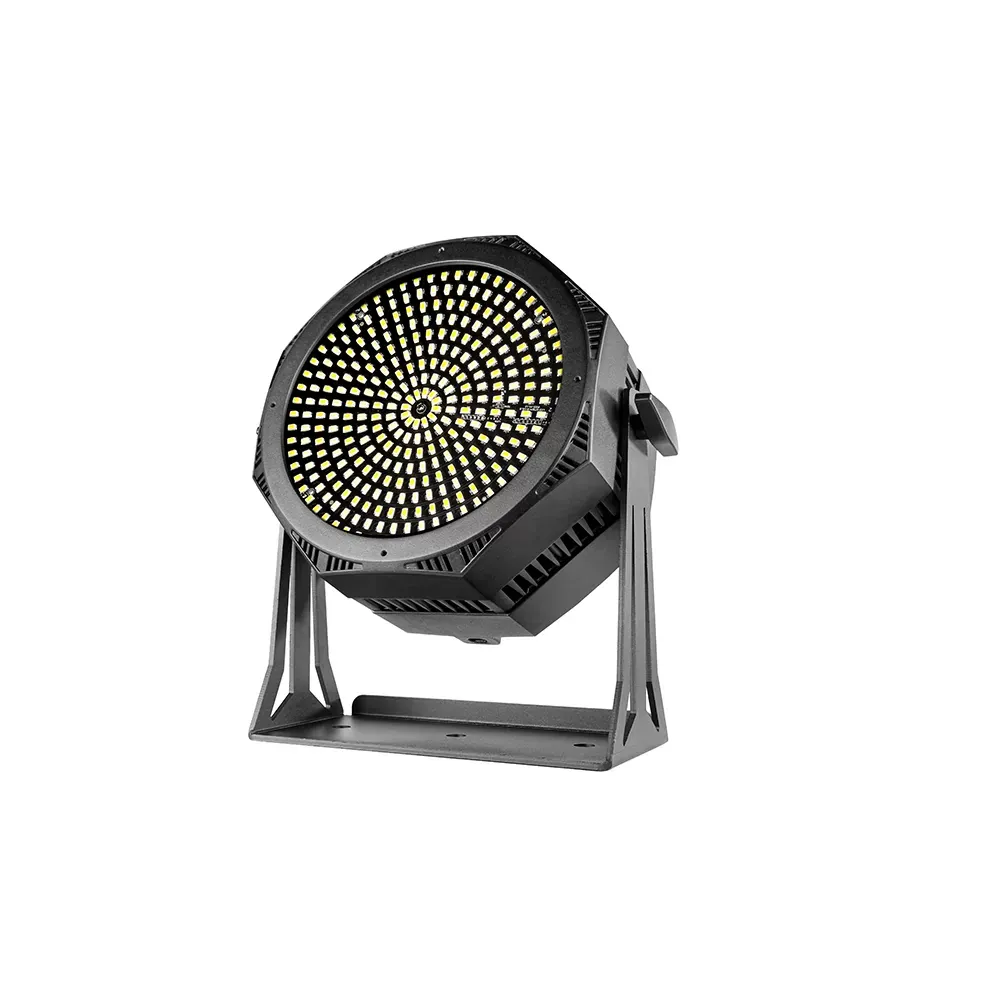

Aluminum die-casting structure; 2 Hanging brackets (Standard); 1 Floor stand bracket (Optional)
Exterior finish: Black

12Installation1

1*Safety attachment point

13Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 4.6kg
G.W.: 5.72kg(1PCS)/24.08kg(4PCS)

16Dimensions3

Product Dimensions: 107.5(D)*280(W)*315.5(H)mm
Packing Dimensions: 340(D)*380(W)*190(H)mm(1PCS); 390(D)*710(W)*400(H)mm(4PCS)

02DescriptionManufacturer's description

What it is.

SMARTPAR 3245P

It features excellent color mixing, quiet running and flicker free control. The fixture is built in with internal dynamic effects with variable speed. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.

The SMARTPAR 3245P is designed for applications as concerts, TV studios, conference halls, bars, pubs, DJ entertainment, architectural lighting projects, gardens, theme parks, etc.
