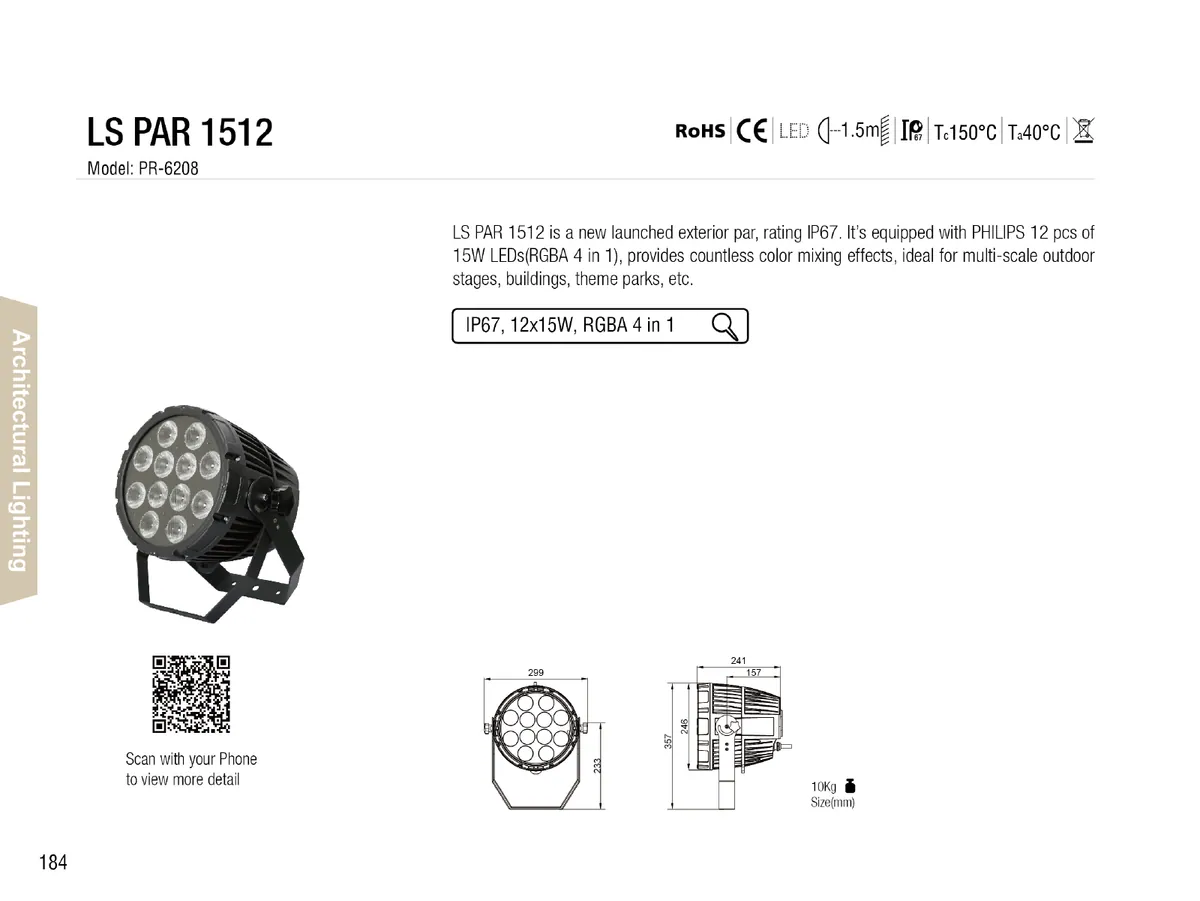

LS PAR 1512
ModelPR-6208
LS PAR 1512 is a new launched exterior par, rating IP67. It’s equipped with PHILIPS 12 pcs of 15W LEDs(RGBA 4 in 1), provides countless color mixing effects, ideal for multi-scale outdoor stages, buildings, theme parks, etc.
- Light source
- PHILIPS 12x15W LEDs(RGBA 4 in 1), 50,000 hrs
- Net weight
- 10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
LS PAR 1512Price on requestRequest a quotation
01SpecificationManufacturer's data · 13 groups · 26 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 1.6 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 180W@220V
03Light Source1
- PHILIPS 12x15W LEDs(RGBA 4 in 1), 50,000 hrs
04Strobe1
- Electronic strobe, 0.5-33 F.P.S
05Dimmer1
- 0-100% linear adjustment
06Light Angle1
- Beam angle(1/2 peak) θ1/2
- 14°(optional 10°, 20° and 40°)
07Other Functions5
- LED board temperature and fixture usage time can be checked via menu
- DMX channel mode and settings displayed
- LED and inverted display
- Display backlight automatically shut off after delay
- Transmitted under synchronization
08Control4
- International DMX512, 3 pins interface
- Standard mode 6 channels and extended mode 11 channels
- Master-slave mode, test mode
- DMX control mode, preset memory and user memory
09Physical2
- Housing
- high intensity cast aluminum alloy, IP67
- Ambient working temperature
- -20°C~40°C
10Weight1
- Net weight
- 10kg
11Packaging2
- Standard
- carton 700x690x480(mm), 4 in 1
- Optional
- flight case 875x590x512(mm), 4 in 1
12Accessories5
- C clamp, 1 pc
- Signal adapter cord, 2 pcs
- Power cord, 1 pc
- Safety cord, 1 pc
- Optional
- N/A
13Color System1
- R/G/B/A color mixing
