Sheet 05.865
PR Lighting · PAR and static lightOn request
LS PAR 1512-W
ModelPR-6207
LS PAR 1512-W is a new launched exterior par, rating IP67. It’s equipped with PHILIPS 12 pcs of 15W LEDs, provides pure white light, ideal for multi-scale outdoor stages, buildings, theme parks, etc.
- Light source
- PHILIPS 12x15W LEDs white, 50,000 hrs
- Net weight
- 10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
LS PAR 1512-WPrice on requestRequest a quotation
01SpecificationManufacturer's data · 12 groups · 25 values
What this product is, in numbers.

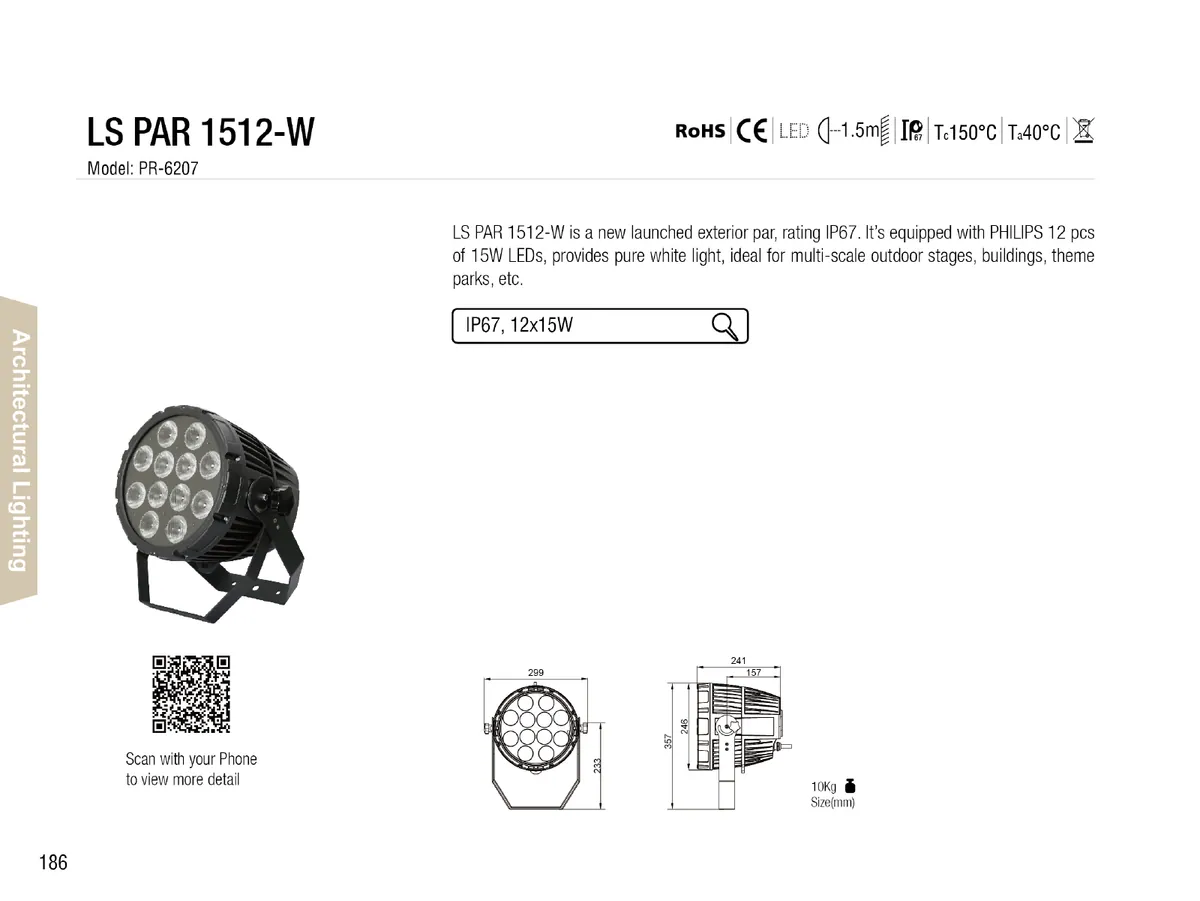

PDFDatasheetEN · 2 pages · 1.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100-240V AC, 50/60Hz
02Power Consumption1
- 180W@220V
03Light Source1
- PHILIPS 12x15W LEDs white, 50,000 hrs
04Strobe1
- Electronic strobe, 0.5-33 F.P.S
05Dimmer1
- 0-100% linear adjustment
06Light Angle1
- Beam angle(1/2 peak) θ1/2
- 14°(optional 10°, 20° and 40°)
07Other Functions5
- LED board temperature and fixture usage time can be checked via menu
- DMX channel mode and settings displayed
- LED and inverted display
- Display backlight automatically shut off after delay
- Transmitted under synchronization
08Control4
- International DMX512, 3 pins interface
- Standard mode 2 channels
- Master-slave mode, test mode
- DMX control mode, preset memory and user memory
09Physical2
- Housing
- high intensity cast aluminum alloy, IP67
- Ambient working temperature
- -20°C~40°C
10Weight1
- Net weight
- 10kg
11Packaging2
- Standard
- carton 700x690x480(mm),4 in 1
- Optional
- flight case
12Accessories5
- C clamp, 1 pc
- Signal adapter cord, 2 pcs
- Power cord, 1 pc
- Safety cord, 1 pc
- Optional
- N/A
Show the full specificationHide the rest of the specification0 more groups · 0 values
