Sheet 05.564

Color Imagination · Spot and profile

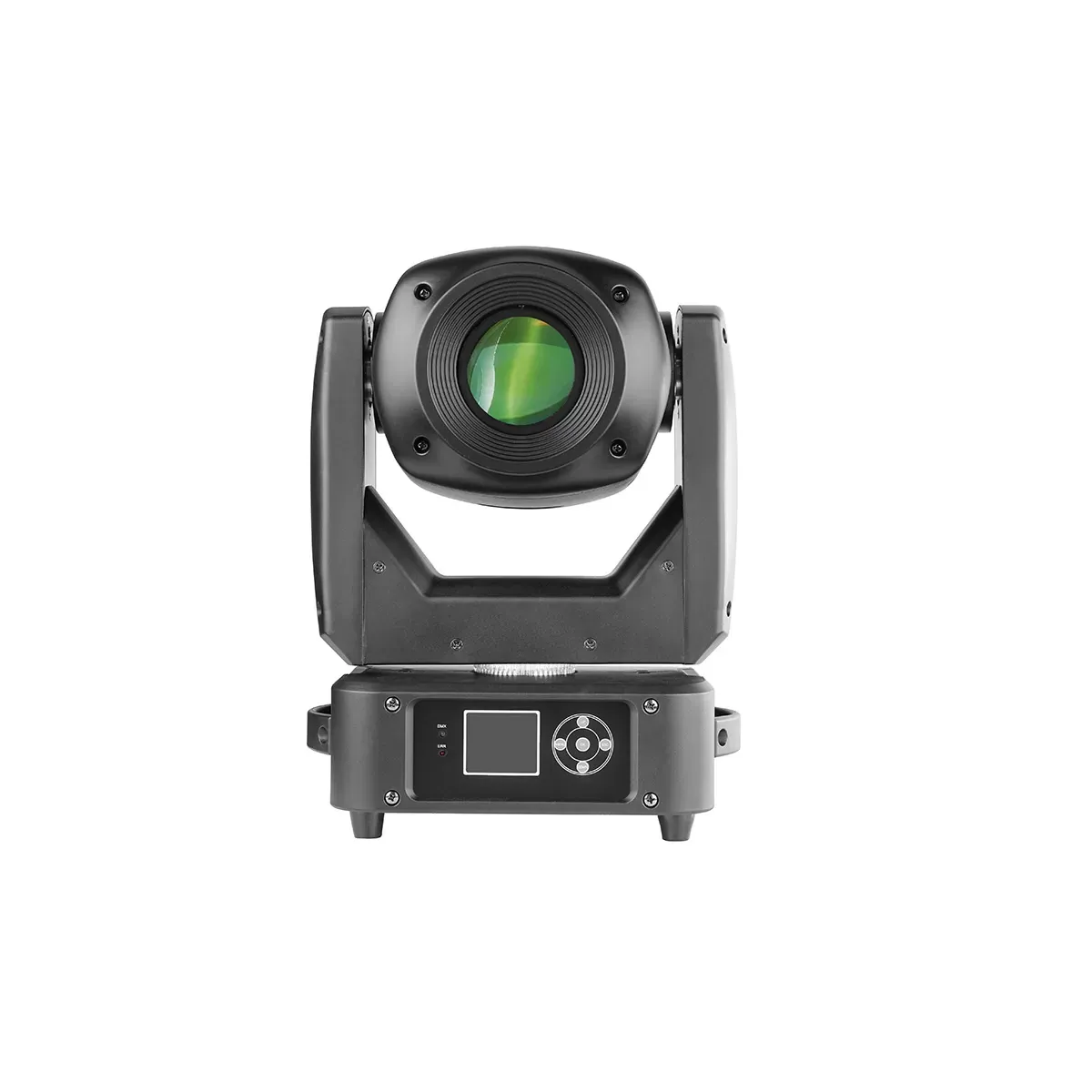

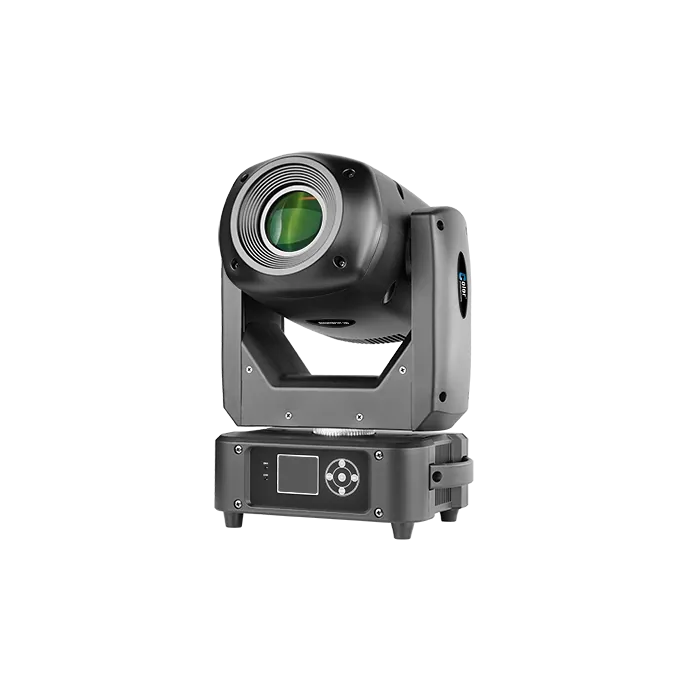

SMARTSPOT 150

ModelSI-293

The SMARTSPOT 150 is a new stylish 150W LED spot moving head basing on “smaller and better” design philosophy. It’s our brightest, most economic 150W spot into a new housing.

Light source: 150W White LED engine
Power consumption: 225W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 8.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video on YouTube

Color Imagination SMARTSPOT 150Open on YouTube

02SpecificationManufacturer's data · 21 groups · 104 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source9

Source: 150W White LED engine
Color Temperature: 7500K; Flicker free operation for; broadcast TV and FILM
Life Span: 50000H; The life span may vary depending on
several following factors but not limited to: Environmental Conditions, Power/Voltage,; Usage Patterns (On-Off Cycling), Control,; and Dimming)

02Optics3

A set of high resolution and precise optics

15°Projection angle

Linear electric focus

03Movement9

PAN movement: 540°(8/16 bit)
TILT movement: 270°(8/16 bit); Fast, quiet, smooth and; precise 2-Phase motors; Smooth, fast and precise; resolution for PAN/TILT movement; with low noise operation; Scan position memory, auto reposition; after unexpected movement

04Color System4

1 Color wheel with 7 dichroic colors plus

open (half color mode available)

Variable direction rainbow effect with

speed adjustable

05Prism System3

3-Facet prism with variable

speed and direction

Prism indexing

Show the full specificationHide the rest of the specification16 more groups · 76 values

06Strobe Effect4

0-25Hz high speed LED shutter/strobe

effect with variable speed

Preset variable/random strobe and

dimming pulse effect

07Gobo System10

1 Rotating gobo wheel with 6 rotatable and

interchangeable glass gobos plus open

with speed adjustable, stream effect,

dithering effect and rotatable clockwise or

anticlockwise

Gobo indexing

Gobo size 22mm (external)/16mm (inner)

1 Static gobo wheel with 7 gobos plus

open with dithering effect

Gobo overlay (gobo morphing)

08Dimming System1

0-100% Smooth linear LED dimming

09Control System12

14/22 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available

(Remote Device Management)

Art-NET (optional)

Wireless receiver system built-in (optional)

Shielded input signal protection for stable

signal without interference

RJ45 etherCON IN/OUT

(optional as Art-NET)

3-Pin XLR DMX connectors IN/OUT

10Preset Program1

Auto programs

11Display System5

1.8" TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display OFF

DMX signal monitoring indicator

12Cooling System7

Advanced cooling system

integrated with aluminum

Efficient low noise self

adjusting fan cooling system

Constant temperature readout and

management function

Over temperature protection management

13Power Supply5

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

power switch and fuse

225W Power consumption

14Housing5

High intension moulded fire proof ABS PC; Skeleton made of aluminum and steel; metal plates; Two side handles on base
Exterior finish: Black

15Installation3

2*1/4 turn fastening Omega Clamps

(Adaptable vertically and horizontally)

1*Safety attachment point

16Operating Condition4

Operating positions: all; (device on floor or fixed to a support); -25?? to 45?? ambient temperature; IP20 protection rating

17Installation2

1*1/4 turn fastening Omega Clamps

1*Safety attachment point

18Compliance7

2014/35/EU - Safety of electrical

equipment supplied at low voltage (LVD)

2014/30/EU -

Electromagnetic Compatibility (EMC)

2011/65/EU - Restriction of the use of

certain hazardous substances (RoHS)

19Weight2

N.W.: 8.2kg
G.W.: 9.7kg

20Dimensions2

Product Dimensions: 170(D)*237(W)*372(H)mm
Packing Dimensions: 280(D)*295(W)*385(H)mm

21Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

03DescriptionManufacturer's description

What it is.

SMARTSPOT 150

The SMARTSPOT 150 is a new stylish 150W LED spot moving head basing on “smaller and better” design philosophy. It’s our brightest, most economic 150W spot into a new housing. The fixture features a 7500K 150W LED with high intensity and efficiency through a set of high resolution 15° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

The SMARTSPOT 150 supports DMX, RDM (Remote Device Management), Art-Net protocol (optional), wireless system built-in (optional).The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the SMARTSPOT 150 achieves more than just a striking look.The fixture is applicable for small-medium scale live concerts, DJ Shows, schools, clubs, weddings, etc.
