Sheet 05.566

PR Lighting · Spot and profileOn request

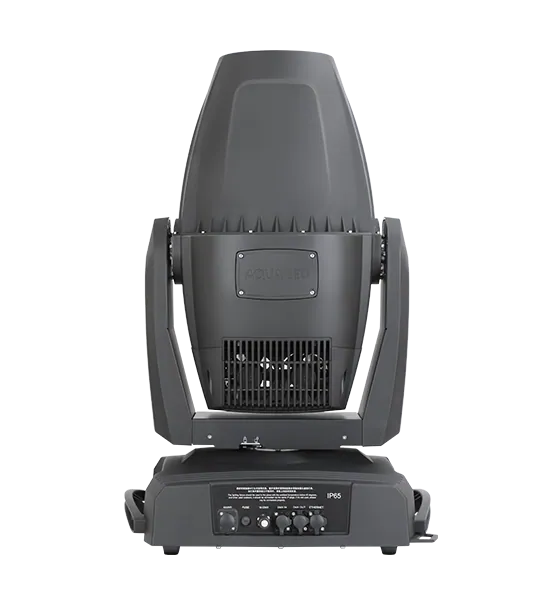

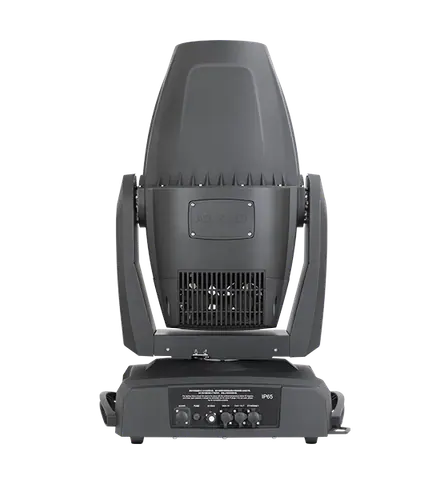

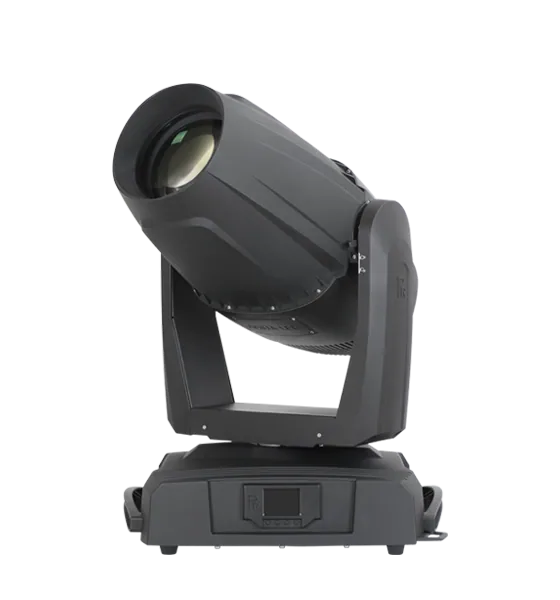

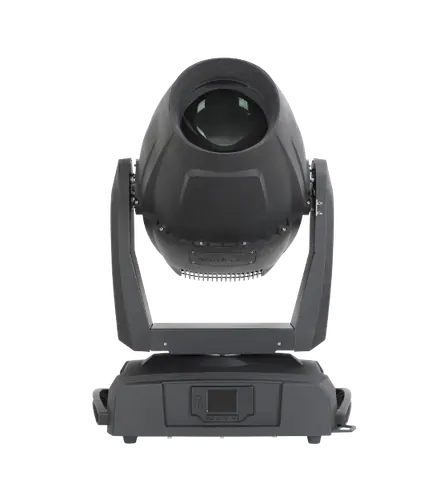

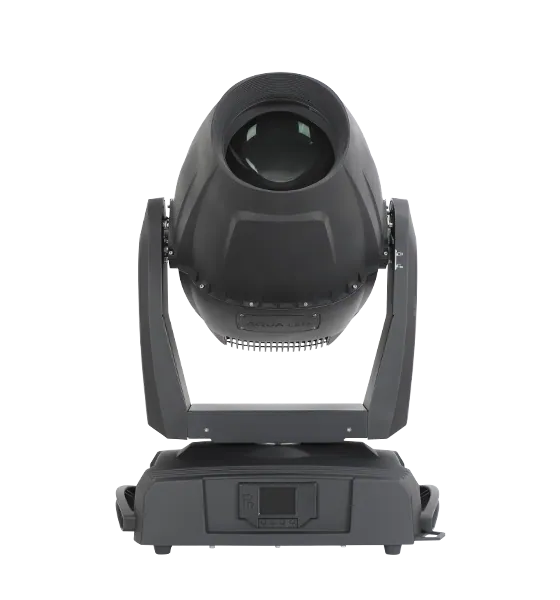

AQUA LED 1500-W Framing

ModelPR-8176

AQUA LED 1500-W FRAMING is an all weather moving head framing lighting fixture with IP66, suitable for harsh places with heavy dust ,rain, strong sunlight and etc..

Light source: Lamp 600W ,LED white (8000K, 20000hrs)
Beam angle / zoom: 6°~ 56° Linear zoom with 16 bit precision

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 25 groups · 62 values

What this product is, in numbers.

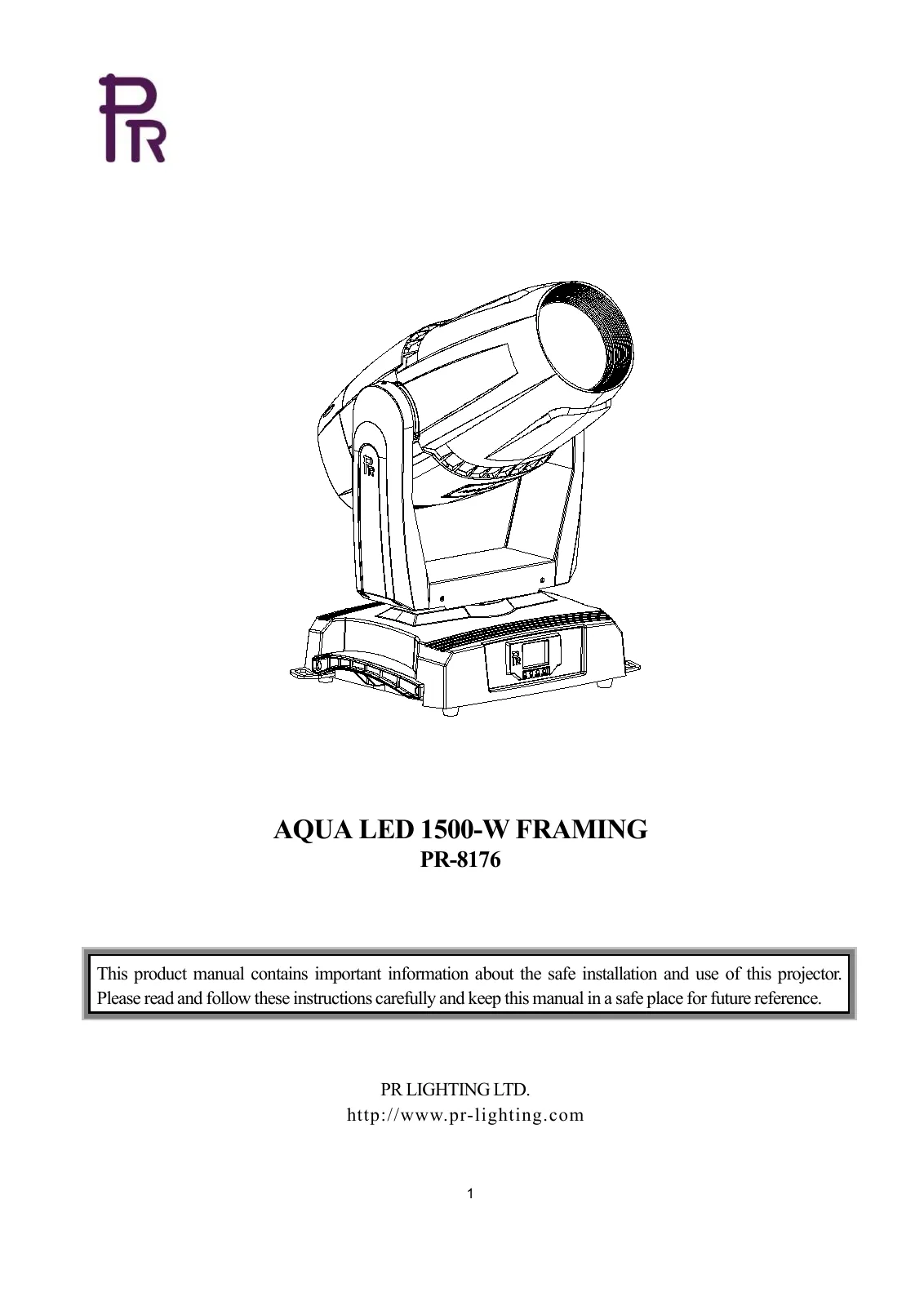

PDFUser manualEN · 30 pages · 4.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V-240V AC,50/60Hz

02Input Power3

950W@220V AC; 980W@100V AC
Power factor: PF>0.95

03Light Source3

Lamp 600W ,LED white (8000K, 20000hrs)

Ra≥70

Ra≥95 , R9≥90 (Optional)

04CTO1

Linear CTO system(0-100%)

05Prism1

1pc 4 facet prism, bi-directional rotation with varied speeds and indexing function

06Frost1

Linear frost (0-100%)

Show the full specificationHide the rest of the specification19 more groups · 52 values

07Effect Wheel1

1 exchangeable graphic effect wheel, bi-directional rotation with varied speeds

08Focus1

0-100% linearly adjustable by DMX

09Dimmer4

Linear dimmer 0-100%

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K~2.5K) good for high speed 4K video camera

10Iris1

Linear iris 5-100% with macros

11Strobe1

Double shutter blades, 0.3~25 F.P.S

12Head Movement1

Pan 540º, Tilt 270º with auto position correction

13Beam Angle1

Beam angle: 6°~ 56° Linear zoom with 16 bit precision

14Control6

International standard DMX512 signal , 5 pin interface(Optional 3pin interface)

RDM control protocol

ArtNet protocol(Optional)

35channels in short mode, 38channels in standard mode,54channel in extended mode

Master/slave synchronized mode

Stand-alone mode

15Other Functions11

Adjustable Pan & Tilt speeds

Pan and Tilt swappable and invertible

Fixture and lamp hours’ display

Color screen, Chinese-English menus, brightness and contrast adjustable

Diagnostic system with sensors

Software version display

Protection and insulation of input signals

Modular construction for easy maintenance

ArtNet interface(Optional)

DMX512 wireless receiver

DMX512 wireless transmitter (optional)

16Housing1

High tensile cast Aluminum, high temperature resistant/anti-UV ABS, IP66

17Ambient Temperature3

-20°C ~ 45°C
Note: if the ambient temperature is below -20°C; please preheat the lamp more than 30 minutes and reset it again.

18Weight1

56Kg

19Packaging2

Standard: carton 855×655×815(mm)
Optional: flight case 695x535x870(mm)

20Accessories6

G clamp 2 Pcs

XLR connector 1 Set Male and female

Safety cord 2 Pc

This manual 1 Pc

Ω clamp 2 Pcs Optional

Power Cord 1 Pc

21CMY1

CMY linear coloring mixing system with macros

22Color Wheel3

1 Color Wheel: 6 color + white; Bi-directional rainbow effect with variable speeds and half color effect; Linear /stepping color changing

23Rotating Gobo3

1 rotating gobo wheel: 6 exchangeable+ white, glass or metal gobos; Bi-directional rotation, indexing, shake with varied speeds, bi-directional; scrolling with varied speeds

24Fixed Gobo3

1 fixed gobo wheel

7 exchangeable gobos+ white

Shake effect with varied speeds and bi-directional rotation with varied speeds

25Framing2

Continual rotation with graphics with different sizes and shapes

4 blades for complete curtain effect

02DescriptionManufacturer's description

What it is.

AQUA LED 1500-W FRAMING is an all weather moving head framing lighting fixture with IP66, suitable for harsh places with heavy dust ,rain, strong sunlight and etc.. It has a 360°continually rotating framing module made of 4 framing blades greatly improving produced graphics’ flexibility and artistry. Its cutting-edge optics enable extremely wide zoom between 6°and 56°and a color wheel(7colors), linear CMY and CTO control its colors with high precision.
